Commercial Automatic Small SUS Chocolate Wafer Stick Egg Roll Make Production Making Machine for Sale
- Category: >>>
- Supplier: Jiangsu Haitel Machinery Co. Ltd.Jiangsu Ltd.
Share on (1601320023372):
Product Overview
Description
Product Description
Commercial Automatic Small SUS Chocolate Wafer Stick Egg Roll Make Production Making Machine for Sale
Characteristics

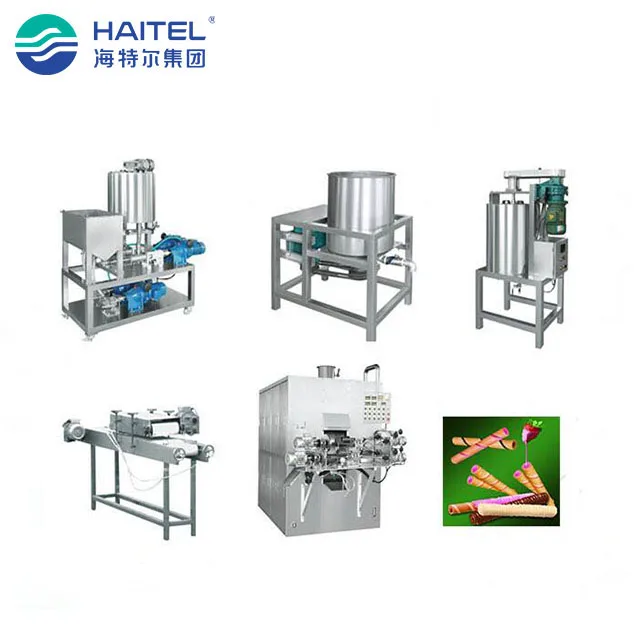

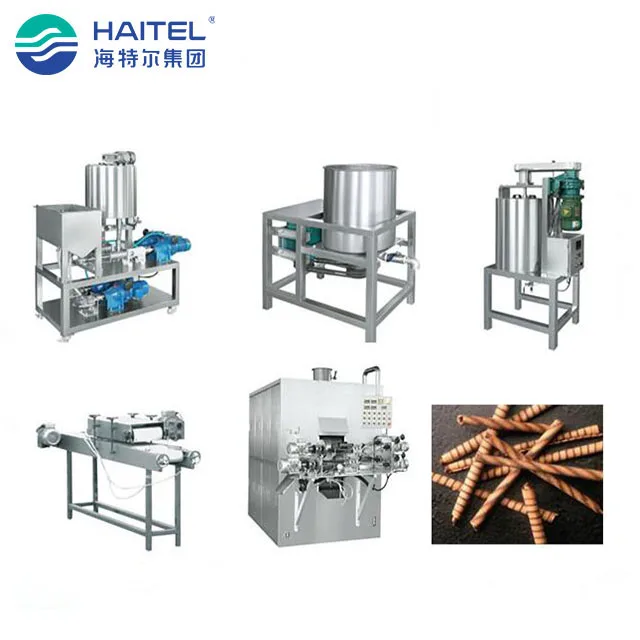

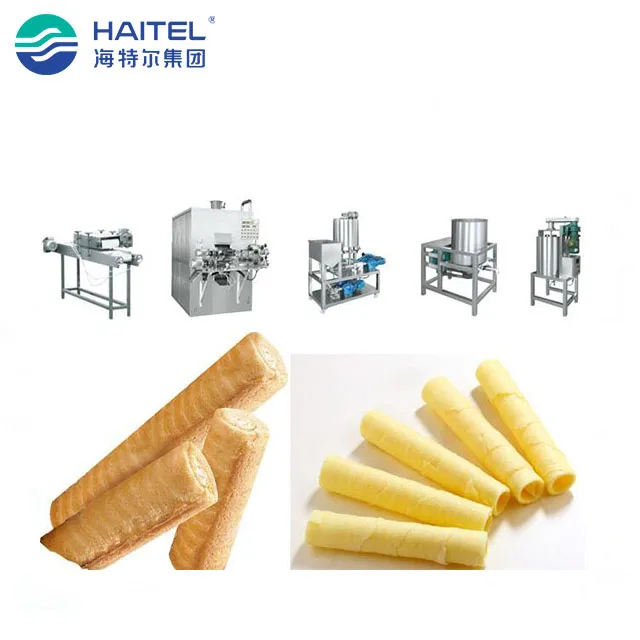

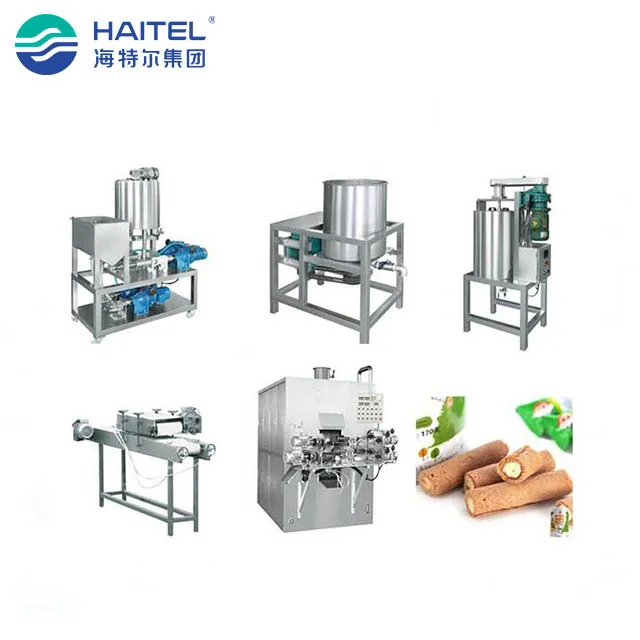

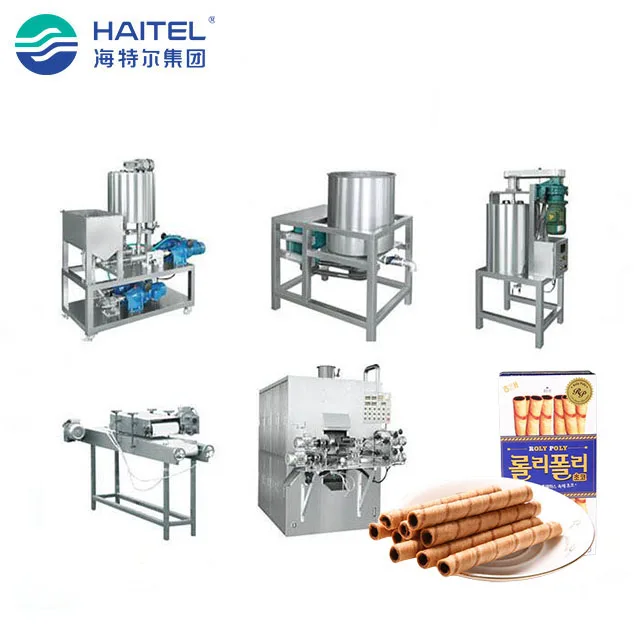

The Model HTL-2200 Machine is a domestic new-generation and fully-automatic production line,researched and developed with Japanese top-notch technology,to produce hollow-core stick.The production line is made up of a beating machine for raw and semifinished materials,a curing main machine,two conveyors,two slurry-poured machine and a conveyer belt.According to the prescription,raw materials are placed into the beating machine to be stirred into even powdered slurry, then conveyed onto the heated wheel hub in the curing machine.After cured,the soft bar is scraped by a scraper and put in reeling shaft to circle into a bar shape.And cut into a needed length to be collected in the conveyer belt,through grooved rails.
The curing machine is heated with gas to give a space of a effective temperature-holding,utilizing energy reasonably,by a
automatic control system including ignition,alarm cut-off gas generator and temperature control devices.The machines of the unit are installed with a program-controlled system.The speed of the wheel hub and the powder slurry thickness can be regulated.The diameter of wafer bar can be changed by transferring different reeling bar shafts.The length of wafer bar can be changed by adjusting the diaphragm aperture,which controls a shear.The cream and other infillings can be completely or partly poured into hollow-core wafer bar.In the proceeding above,their main engines are controlled by their own frequency converters.
The Model HTL-2200 Machine is a domestic new-generation and fully-automatic production line,researched and developed with Japanese top-notch technology,to produce hollow-core stick.The production line is made up of a beating machine for raw and semifinished materials,a curing main machine,two conveyors,two slurry-poured machine and a conveyer belt.According to the prescription,raw materials are placed into the beating machine to be stirred into even powdered slurry, then conveyed onto the heated wheel hub in the curing machine.After cured,the soft bar is scraped by a scraper and put in reeling shaft to circle into a bar shape.And cut into a needed length to be collected in the conveyer belt,through grooved rails.
The curing machine is heated with gas to give a space of a effective temperature-holding,utilizing energy reasonably,by a
automatic control system including ignition,alarm cut-off gas generator and temperature control devices.The machines of the unit are installed with a program-controlled system.The speed of the wheel hub and the powder slurry thickness can be regulated.The diameter of wafer bar can be changed by transferring different reeling bar shafts.The length of wafer bar can be changed by adjusting the diaphragm aperture,which controls a shear.The cream and other infillings can be completely or partly poured into hollow-core wafer bar.In the proceeding above,their main engines are controlled by their own frequency converters.
Specification
Model | HTL-2200 | ||
Diameter of Wheel Hub(mm) | 2000 | ||
Gas Consumption(kg/h) | 4 | ||
Power Consumption(kw/h) | 10 | ||
Production Capacity(kg/h) | Hollow core 25-30; Poured core 50-60 | ||
Main machine size(L*W*H)mm | 3400*1700*2500 | ||
Weight(ton) | 5 | ||
Recommend Products
Company Profile
Located in Dongtai, our company is a professional manufacturer of confectionery food processing and packing machines,mask machines. We have a professional team with strong technical and R&D knowledge to develop advanced food equipements to cope with market change. Haitel has got the ISO9001 and CE certificate,and our mask machines has passed SGS test. With new products development,Haitel has also gained many national patents to remain competitive,we have won the titles of "China Most Preferred Packaging Machinery Product", "Customers' Most Preferred Product" and "Qualified Product of China Selective Quality". Our main products sell well and are famous in domestic and overseas markets.
Exhibition
Customer Photos
Pre-sale
1.confirm machine type: Negotiate with clients to seclect the correct machine according to customers’ requirment.
2.Quote and Sign firm contract: After confirm with customers with all details, such as payment terms, model, delivery time, send official quotation to clients.
After-sale
1.When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2.In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3.From the date of the buyer receive the machines, free warrant for 12 months.
1.confirm machine type: Negotiate with clients to seclect the correct machine according to customers’ requirment.
2.Quote and Sign firm contract: After confirm with customers with all details, such as payment terms, model, delivery time, send official quotation to clients.
After-sale
1.When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2.In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3.From the date of the buyer receive the machines, free warrant for 12 months.
Packing and Delivery
FAQ
Q1: Are you a factory or trading company?
A1: We are manufacture and welcome to visit our factory!
Q2: Where is your factory located? How can I visit there?
A2: Our factory is located in Taidong Industrial Zone, Dongtai City, Jiangsu Province, China.
All our clients, from home or abroad, are warmly welcome to visit us!
Q3:What about your warranty?
A3: The supplier has agreed to provide 12 months guarantee period from the date of supply (deliver date).
Q4: What about the service after sale?
A4: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12hours and help you to solve the problem.
Q5: What’s the shipping way?
A5: We can ship goods by Air, Express, Sea or other ways as your requirement.
Q6: How about our payment?
A6:40% T/T advance after order, 60% T/T before delivery.
A1: We are manufacture and welcome to visit our factory!
Q2: Where is your factory located? How can I visit there?
A2: Our factory is located in Taidong Industrial Zone, Dongtai City, Jiangsu Province, China.
All our clients, from home or abroad, are warmly welcome to visit us!
Q3:What about your warranty?
A3: The supplier has agreed to provide 12 months guarantee period from the date of supply (deliver date).
Q4: What about the service after sale?
A4: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12hours and help you to solve the problem.
Q5: What’s the shipping way?
A5: We can ship goods by Air, Express, Sea or other ways as your requirement.
Q6: How about our payment?
A6:40% T/T advance after order, 60% T/T before delivery.
