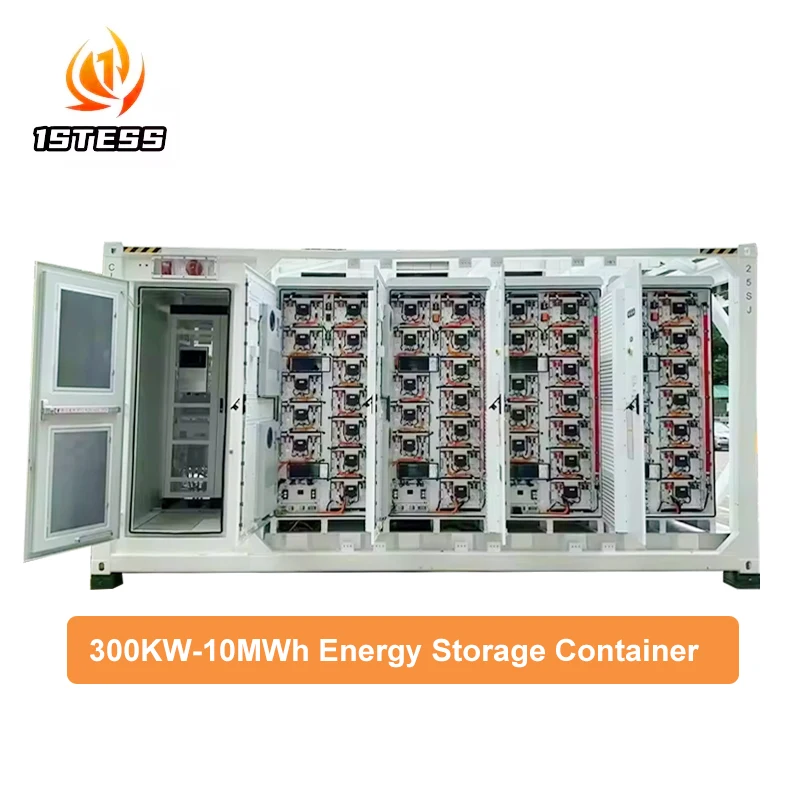

1MW 2MW 3MW Solar Energy System 300KW 500KW 800KW 1MW Battery LifePO4 Battery Energy Storage System Container Micro grid
- Category: >>>
- Supplier: Shenzhen First Tech Co. Ltd.Shenzhen Ltd.
Share on (1601320117092):
Product Overview
Description
Type | P400C860 | P500C1075 | P600C1290 | P700C1505 | P800C1720 | |||||
DC side parameters | ||||||||||
Cell type &capacity | LiFePO₄-280Ah | |||||||||
Battery module type | 1P20S | |||||||||
System configuration | 4*1P240S | 5*1P240S | 6*1P240S | 7*1P240S | 8*1P240S | |||||
Capacity(BOL) | 860kWh | 1075kWh | 1290kWh | 1505kWh | 1720kWh | |||||
AC side parameters | ||||||||||
Grid type | 3P4W+PE | |||||||||
Rated output power | 400kW | 500kW | 600kW | 700kW | 800kW | |||||
Rated voltage | AC400V | |||||||||
Rated frequency | 50/60(±5)Hz | |||||||||
Maximum output current | 577A | 722A | 866A | 1010A | 1155A | |||||
Harmonics | <3%(@rated power) | |||||||||
Overload capacity | 110%,10mins;120%,60s | |||||||||
General parameters | ||||||||||
Isolation transformer | No | |||||||||
Protection level | Outdoor installation (Battery cabinet:IP55,Electrical room:IP34) | |||||||||
Container anti-corrosion grade | C3 | |||||||||

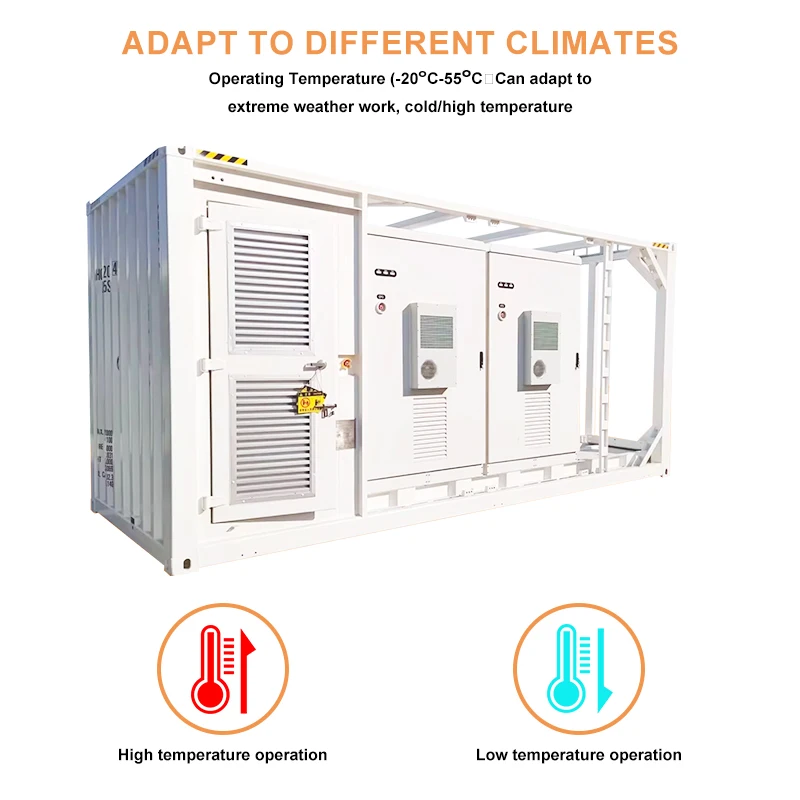

Operation temperature* | -20℃~50℃ | |||||||||
Relative humidity | 0~95%(non-condensing) | |||||||||
Permissible altitude** | <2000m | |||||||||
Cooling method | Battery cabinet:HVAC,Electrical room:forced air cooling | |||||||||
Fire fighting system | FAS &FM200/Novec1230 | |||||||||
Noise emission | ≤75dB | |||||||||
Dimension (W*D*H) | 20HQ container (6058mm*2438mm*2896mm) | |||||||||
Maximum weight | 24500kg | |||||||||
Communication interface | Ethernet | |||||||||
Communication protocol | Modbus TCP/IP | |||||||||
Warranty | 5 years (can be extended to 10 years)Warranty | |||||||||
Certification | System:UN3536、LVD、EMC、RoHS Cell:IEC62619、UL1973、UL9540A PACK:UN38.3 PCS:G99、EN50549、AS4777.2、VDE4105 | |||||||||

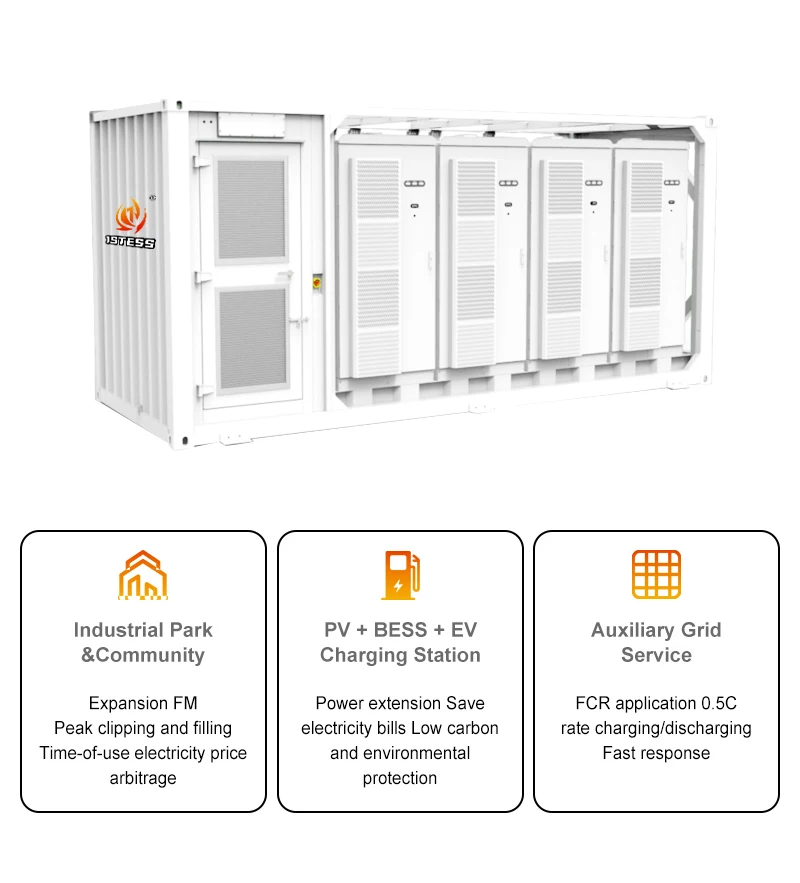

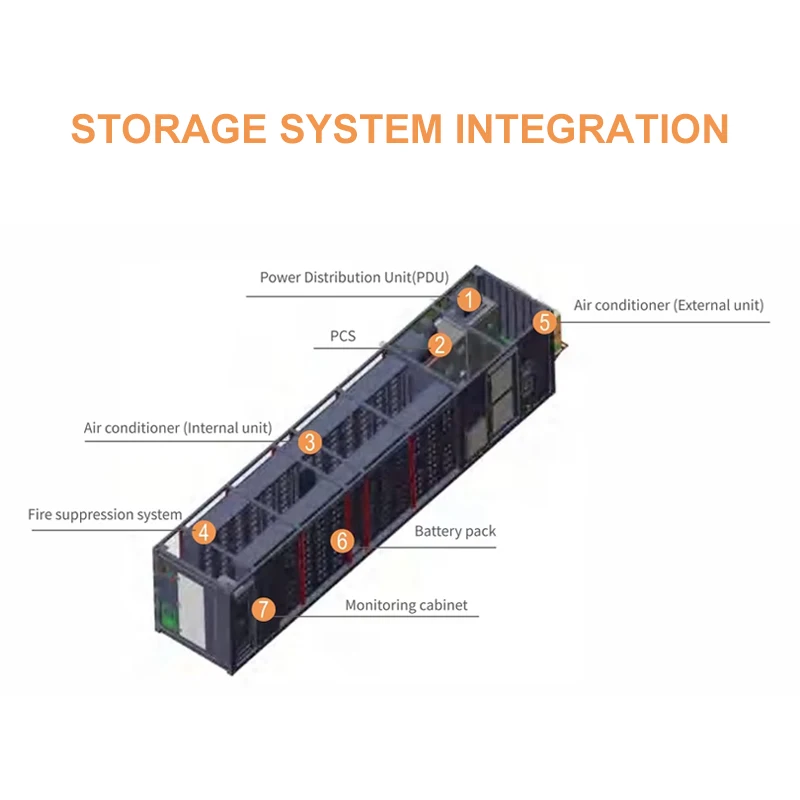

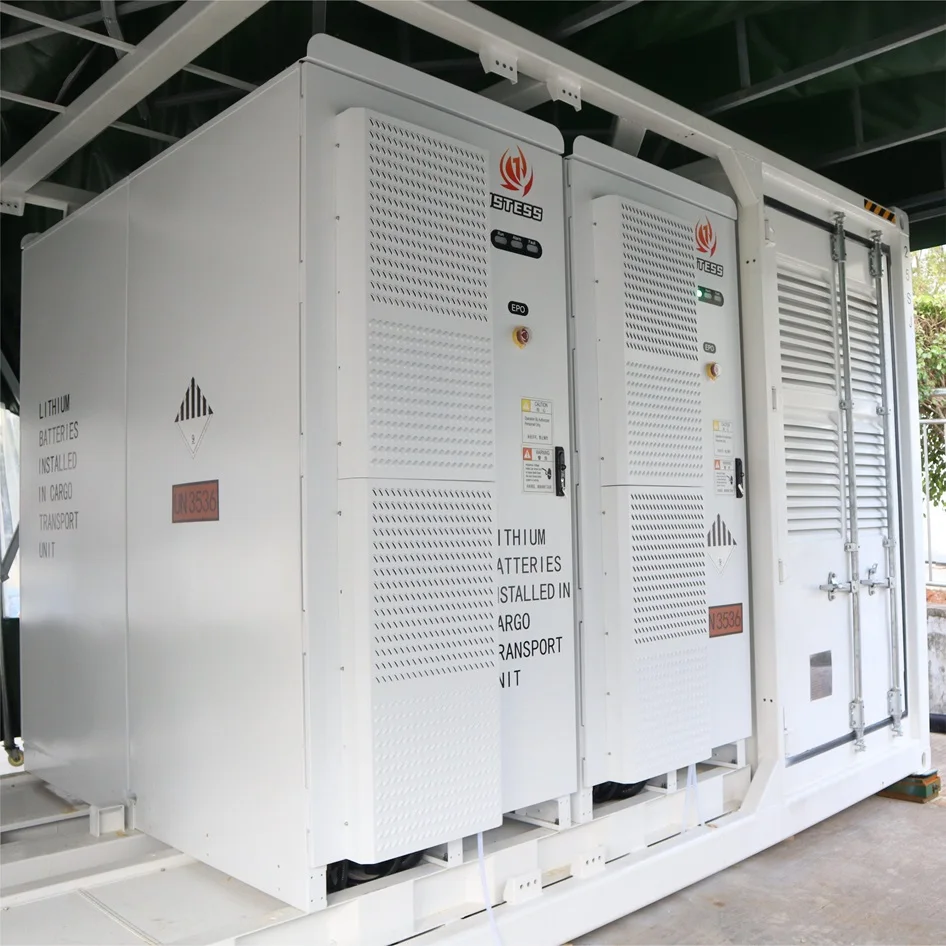

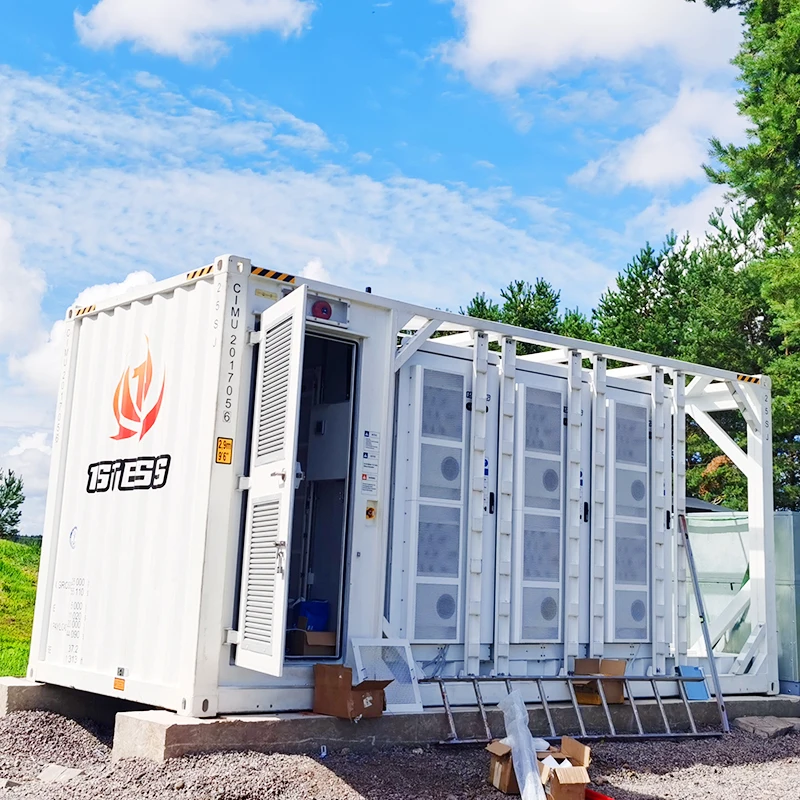

EnerCube3.0 containerized Battery Energy Storage System adopts an All-in-One modular design,integrating the battery PACK,intelligent energy storage converter (PCS),power distribution unit(PDU),automatic fire extinguishing system (FFS),and temperature control system (TCS) ,intelligent monitoring system (IMS),etc.are integrated into one,and the 20HQ standard container design is adopted,which saves application space and facilitates transportation,hoisting,installation and maintenance. Plug-and-play design greatly reduces on-site construction time and costs.

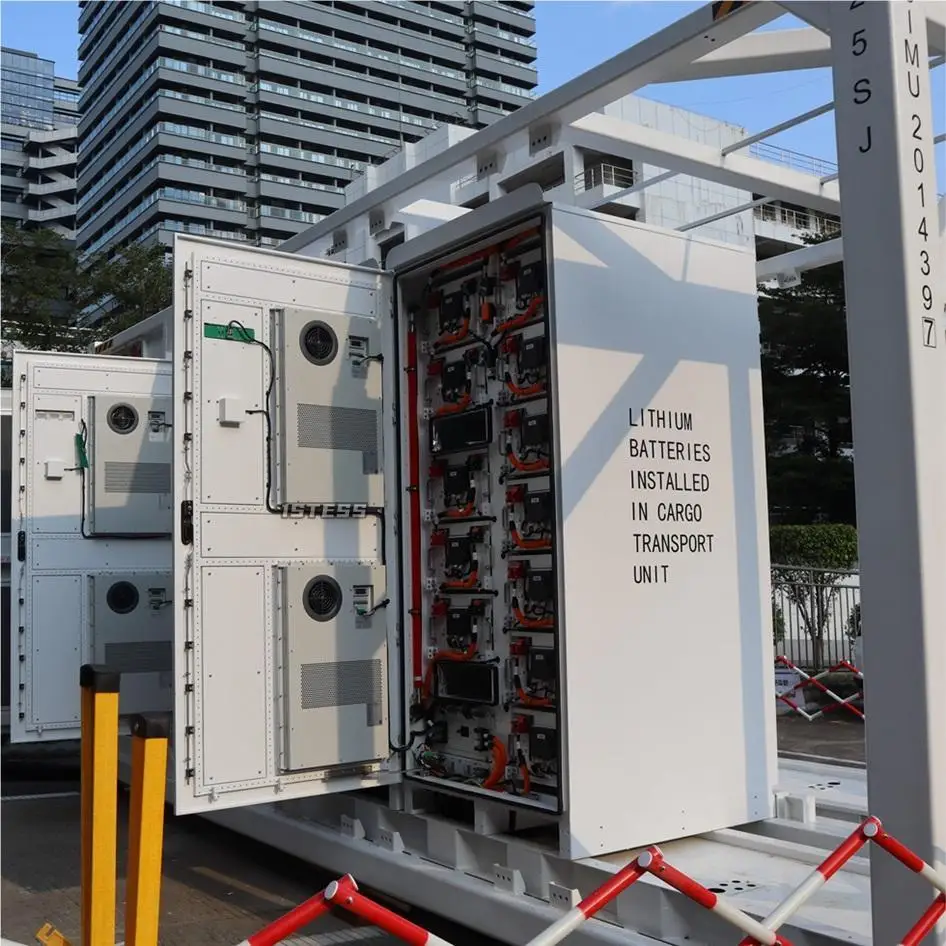

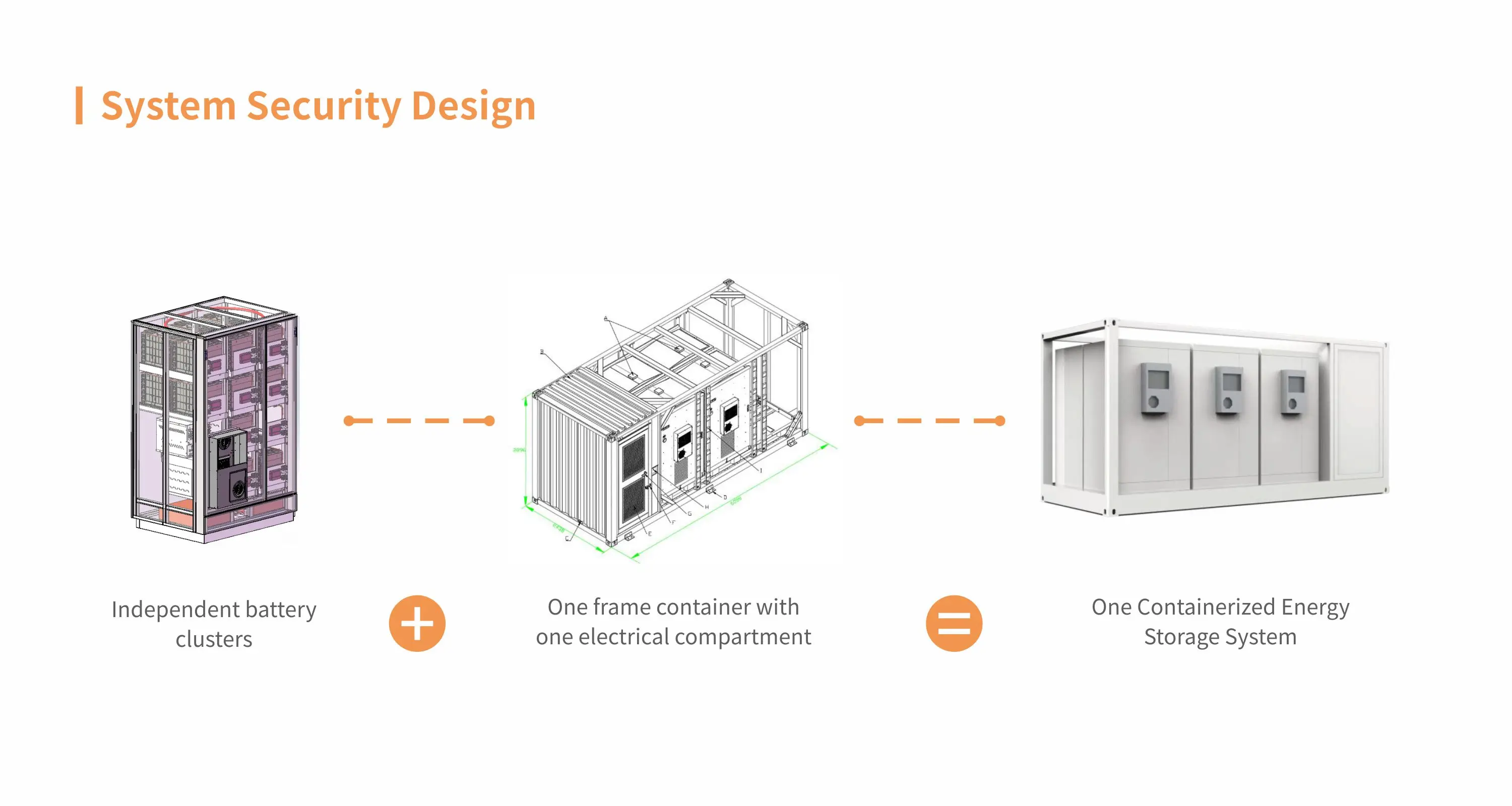

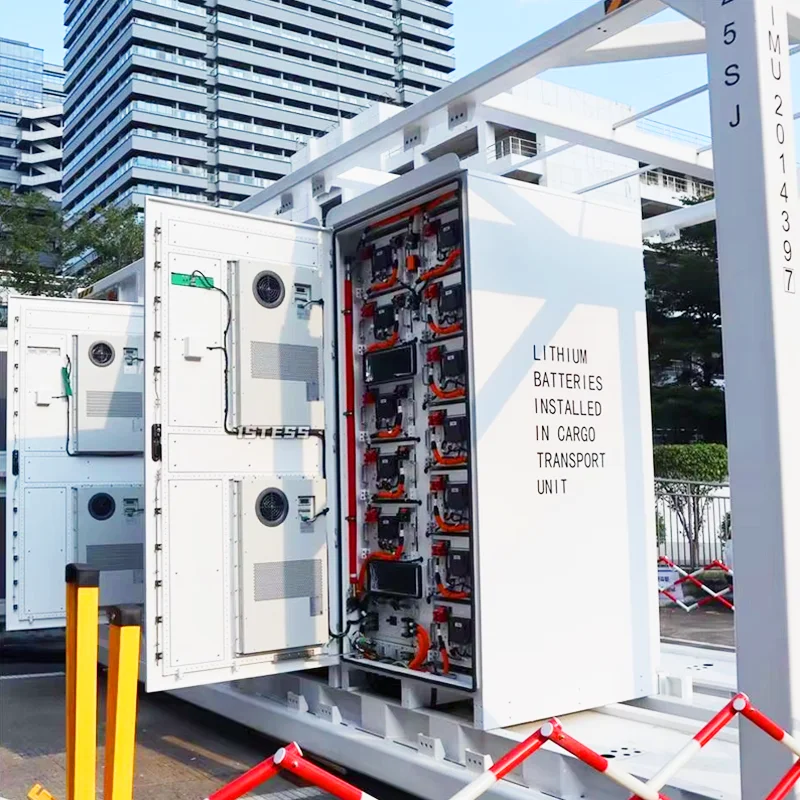

EnerCube3.0 containerized Battery Energy Storage System supports integrated transportation with batteries,with single clusters in cabinets,thermal isolation between clusters,and independent maintenance of each cluster. The air-condition er, FFS,and BMS are independent of each other. The clusters adopt an exclusive patent to prevent open flame leakage ,combined with the self-developed operation and maintenance platform,can quickly realize fault prediction and location
Why Choose Us
We are a professional one-stop solution provider of energy storage system integration for large scale commercial and industrial projects. Our founder and core engineers have more then 10 years working experience in the battery energy storage system product industry, we know better what solution will be good and suitable for you.
We can dispatch our technical engineers and provide on-site installation instruction and commissioning service to you for the projects, make sure the project timely completion and operation.
Our customized BESS energy storage system is 5 years warranty with spare parts and remote viewing service. We provide regular monitoring and maintenance of the system and remotely upgrade service via EMS control system, work with us you will have no worries of your after-sales work.

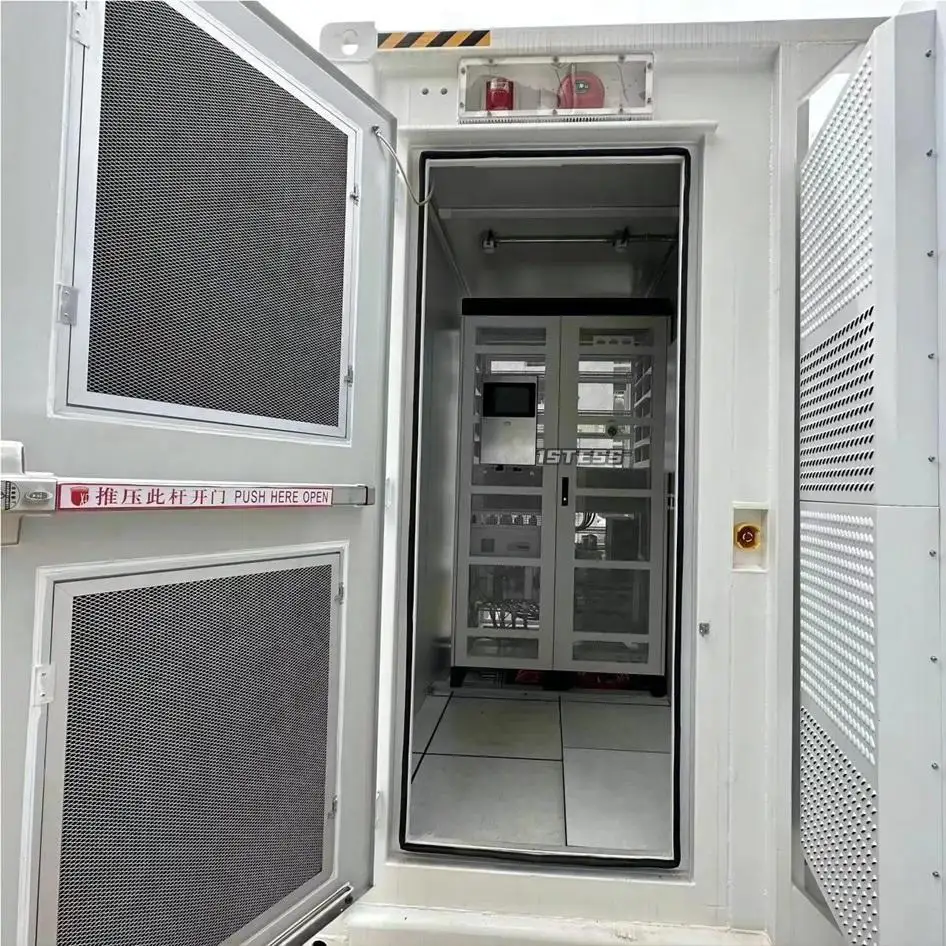

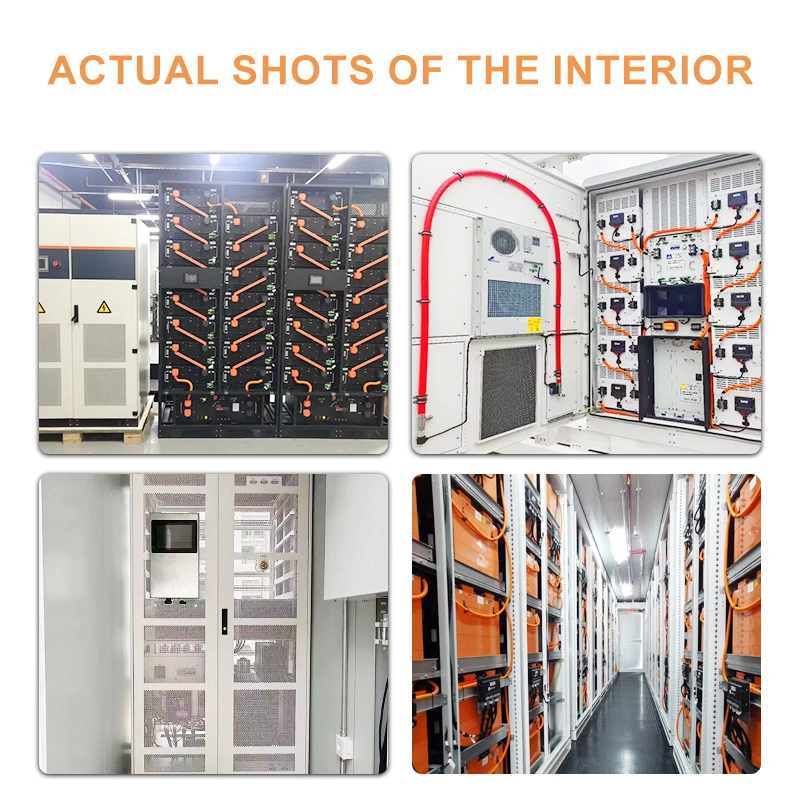

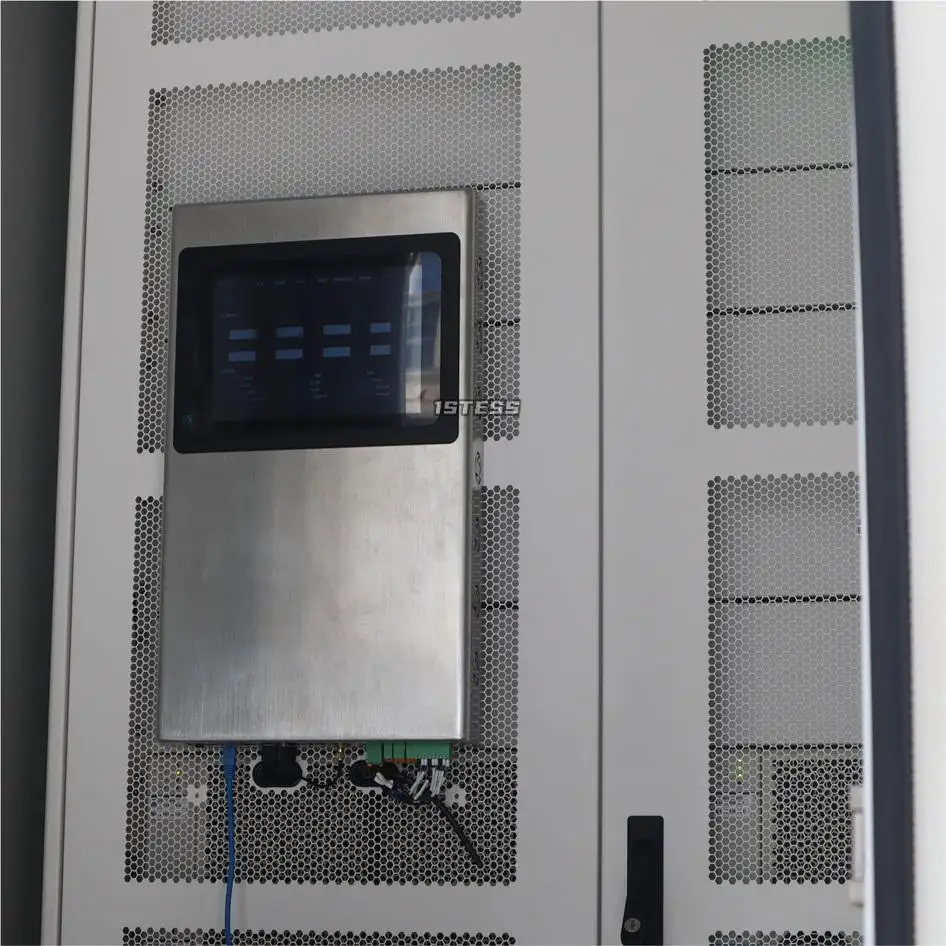

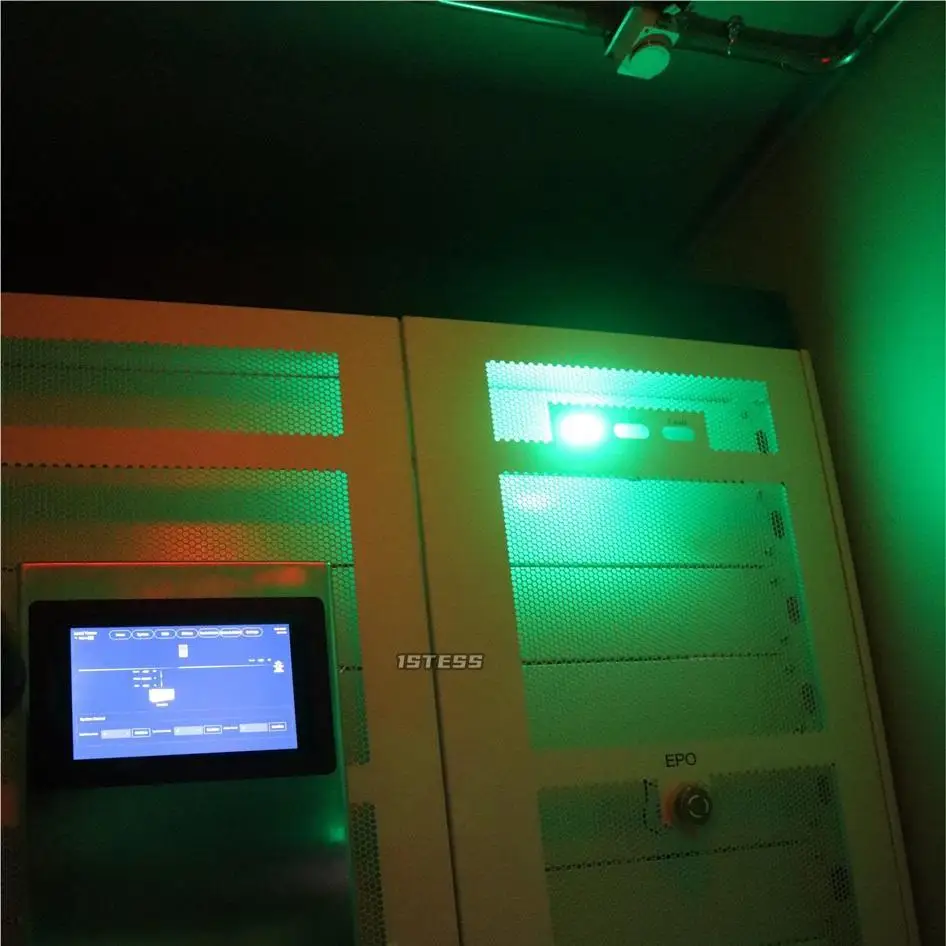

Details Images
Recommend Products
Company Profile
Shenzhen First Tech Co., Ltd is a manufacturer and an one stop solution provider of energy storage system products, the founder and core engineers have more then 10years working experience in the industry. We fully grasp the ESS project integration key technology, and familiar with the industry technical standards.
Our main products are including solar inverter, portable energy storage system, LiFePO4 battery pack, LiFePO4 battery module for container, residential energy storage system, customized container energy storage system etc. And we have accumulated participation in global BESS projects exceed 1GWh since 2017.
Our main products are including solar inverter, portable energy storage system, LiFePO4 battery pack, LiFePO4 battery module for container, residential energy storage system, customized container energy storage system etc. And we have accumulated participation in global BESS projects exceed 1GWh since 2017.
FAQ
1.Who are we?
We are based in Shenzhen Guangdong, China, start from 2017, a manufacturer and solution provider of energy storage system products, sell to Africa, Europe, Southeast Asia, Mid East, Eastern Asia.
2.What products I can buy from you?
Commercial and industrial energy storage container system, residential energy storage system, lithium battery, solar inverter, energy storage system EV charging station, solar optimizer etc.
3.Can you supply OEM & ODM service?
Yes, we can do OEM & ODM as your requirements for you.
4.What’s your MOQ?
Sample order is acceptable, but for customized product the MOQ is different based on different product.
Need more details please feel free to contact us online or by mail (info@1stess.com) at any time.
5.How you guarantee your products quality?
Our factory have ISO90001 certification, from incoming materials to production, and then to delivery, we have a very complete quality control management system to guarantee the quality of every step.
6.What’s the lead time for mass production?
It depends on the stock situation, if have stock it will be 3-5 working days, if out of stock it will be around 20-45 days according to different quantity and models.
7.What kind of certificates do you have for your product?
Our products have the certificates of CE, IEC, LVD, EMC, TUV, MSDS, UN38.3, etc.
We are based in Shenzhen Guangdong, China, start from 2017, a manufacturer and solution provider of energy storage system products, sell to Africa, Europe, Southeast Asia, Mid East, Eastern Asia.
2.What products I can buy from you?
Commercial and industrial energy storage container system, residential energy storage system, lithium battery, solar inverter, energy storage system EV charging station, solar optimizer etc.
3.Can you supply OEM & ODM service?
Yes, we can do OEM & ODM as your requirements for you.
4.What’s your MOQ?
Sample order is acceptable, but for customized product the MOQ is different based on different product.
Need more details please feel free to contact us online or by mail (info@1stess.com) at any time.
5.How you guarantee your products quality?
Our factory have ISO90001 certification, from incoming materials to production, and then to delivery, we have a very complete quality control management system to guarantee the quality of every step.
6.What’s the lead time for mass production?
It depends on the stock situation, if have stock it will be 3-5 working days, if out of stock it will be around 20-45 days according to different quantity and models.
7.What kind of certificates do you have for your product?
Our products have the certificates of CE, IEC, LVD, EMC, TUV, MSDS, UN38.3, etc.
