Product Overview

Description

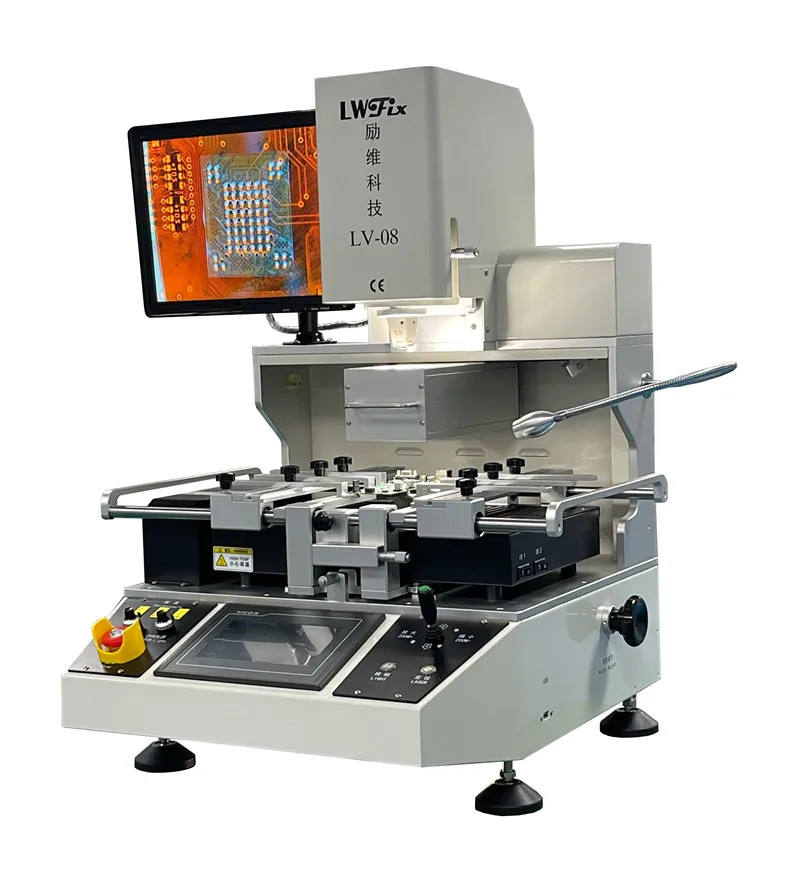

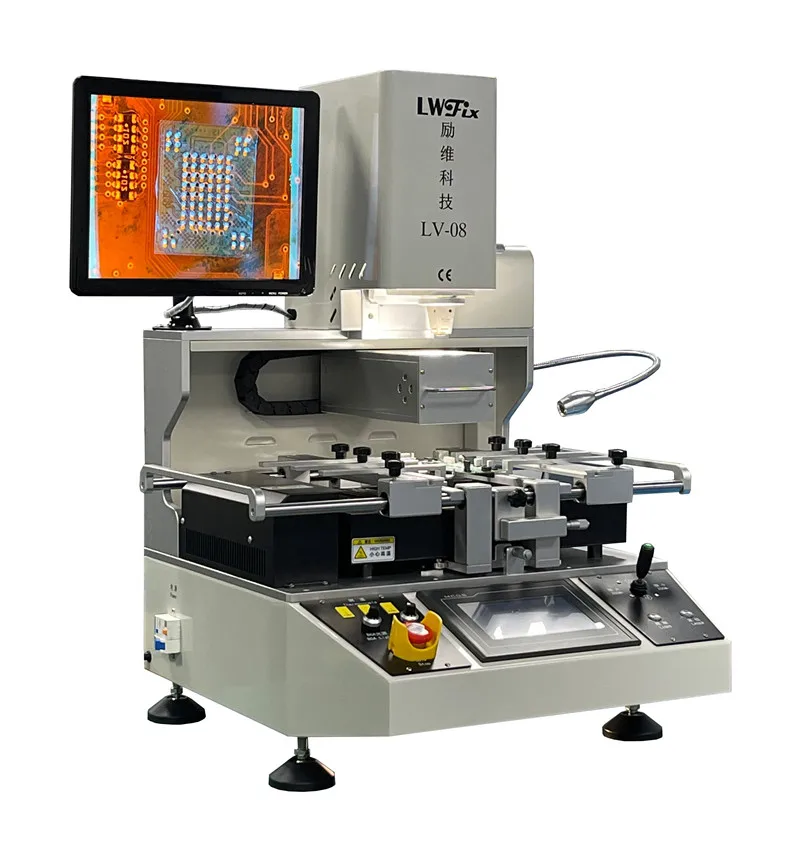

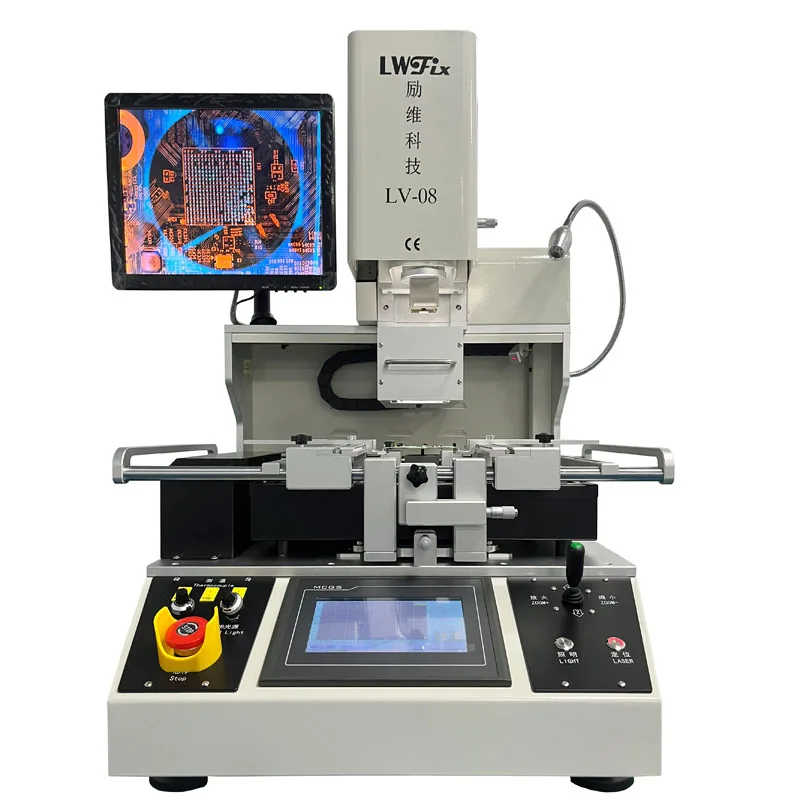

5300W Automatic Hot Air Rework Station Soldering Machine for Game Consoles Mobile Phone and Laptop Repairing PCB Working LV-08



Model:LV-08

v Repair Success Rate:More Than 99%.

v Using The Industrial Touch Screen.

v Independent 3 Heating Zones, Hot Air Heating / Infrared Preheat. (temperature accuracy ± 3℃).

v With CE Certification.

Specification :

1	Power	AC 220V±10% 50Hz

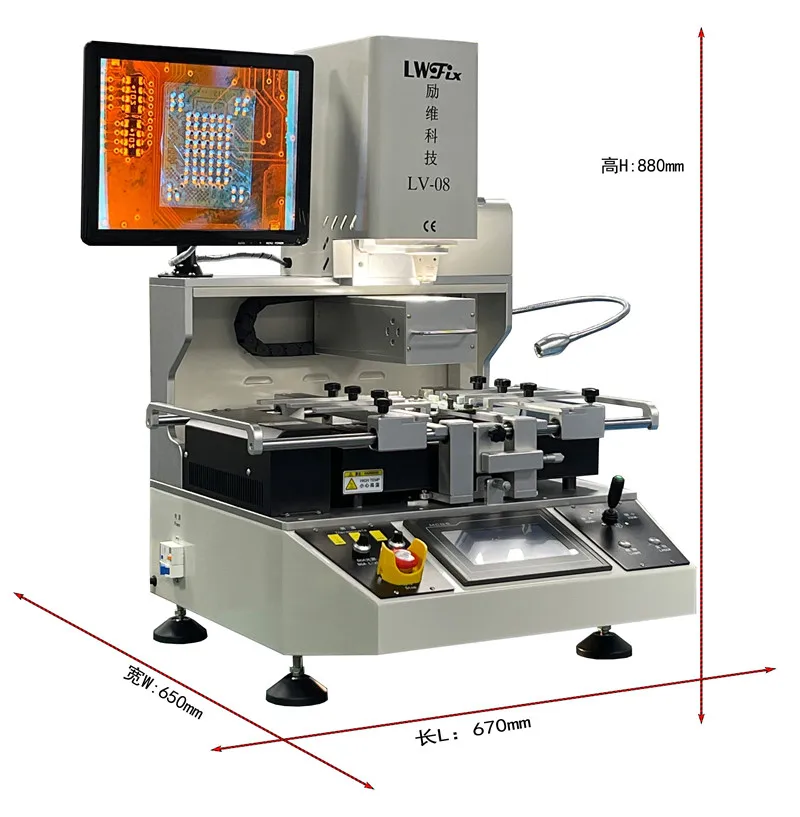

2	Overall dimension	L660mm*W640mm*H870mm
3	PCB jigs size	Max 460mm*380mm Min 10mm*10mm
4	Chip magnification	1-200 times
5	Applicable chips	0.8mm-6cm
6	Weight of machine	70KG
7	Warranty	1 year
8	Total power	5300W
9	Payment way	T/T,Western Union,Paypal
10	Usage	Repair chips / phone motherboard etc
11	Electrical material	Touch screen+Temperature control module+PLC control
12	Location way	V-shape card slot+Universal jigs



 Independent three-temperature zone temperature control system:

 Upper and lower temperature zone both are hot air heating, IR preheating zone for infrared heating, the temperature is accurately controlled at ± 2 ℃, the upper and lower temperature zone can be heated from the top of the components and the bottom of the PCB at the same time, meanwhileareare can be set up to 8 temperature control, so that the PCB board is heated uniformly, the bottom are the large IR preheating, so that the entire PCB temperature, to prevent deformation, to ensure that the welding effect, the heating plate can be independently controlled by the heating.

 BGA chips and PCB boards can be hot air local heating at the same time, supplemented by a large area of infrared heaters on the bottom of the PCB board for preheating, can completely avoid the deformation of the PCB board in the rework process; through the selection of the upper temperature zone can be used individually or the lower temperature zone, and the free combination of upper and lower heaters Energy.

 Select high-precision K-type thermocouple closed-loop control and PID parameter self-tuning system; can simultaneously display four temperature curves and store multiple sets of user data, and has an instantaneous curve analysis function; external temperature measurement interface to achieve precision detection of the temperature, can be analyzed and calibrated at any time on the actual acquisition of the BGA temperature curve. It can also analyze, set and correct the curve of temperature parameters on the touch screen at any time.;

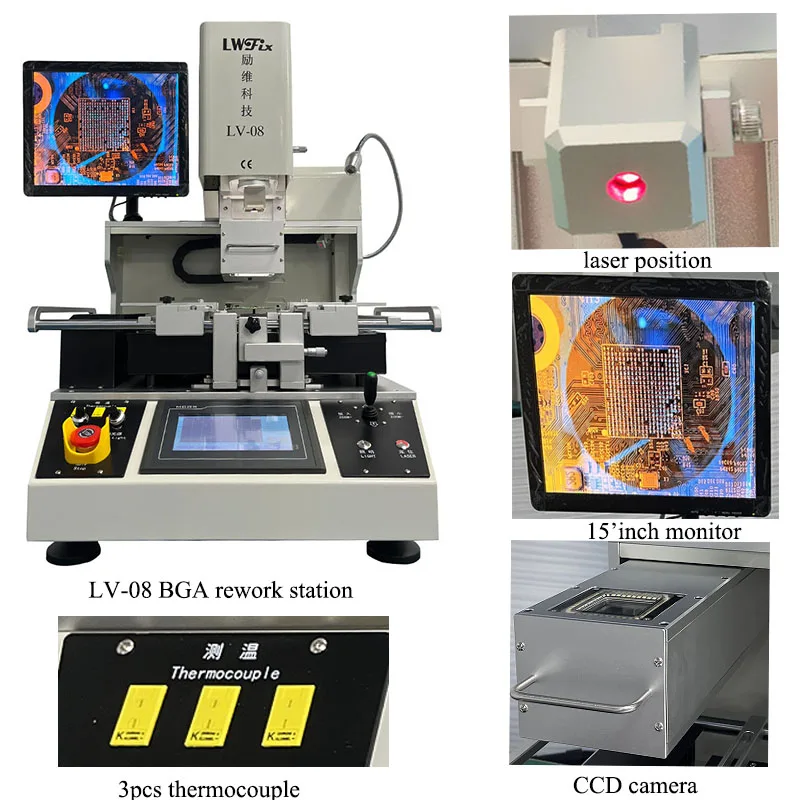

Precise Optical Alignment System: Adopting high-definition adjustable CCD color optical vision alignment system with beam splitting, zoom-in, zoom-out, and auto focus functions, and equipped with automatic chromatic aberration resolution and brightness adjustment device, which can adjust the clarity of the image; equipped with a 15” high-definition LCD monitor.Versatile and user-friendly operating system
