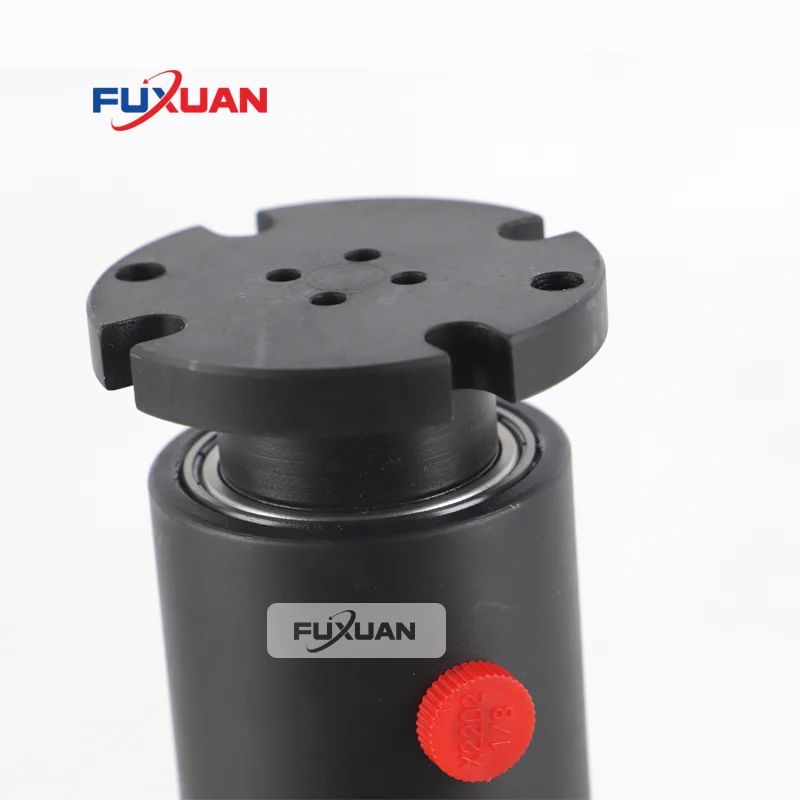

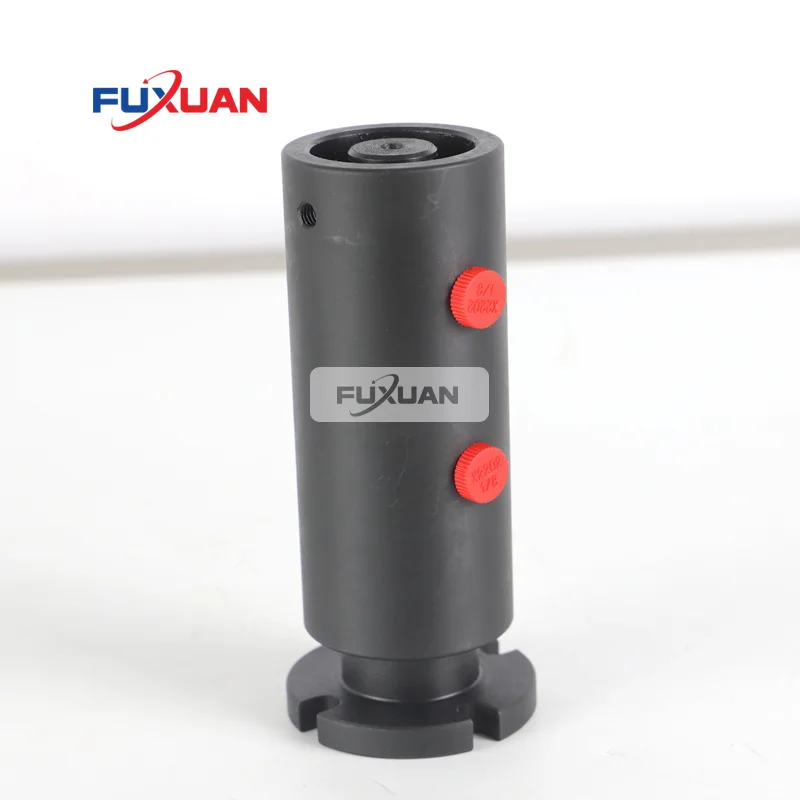

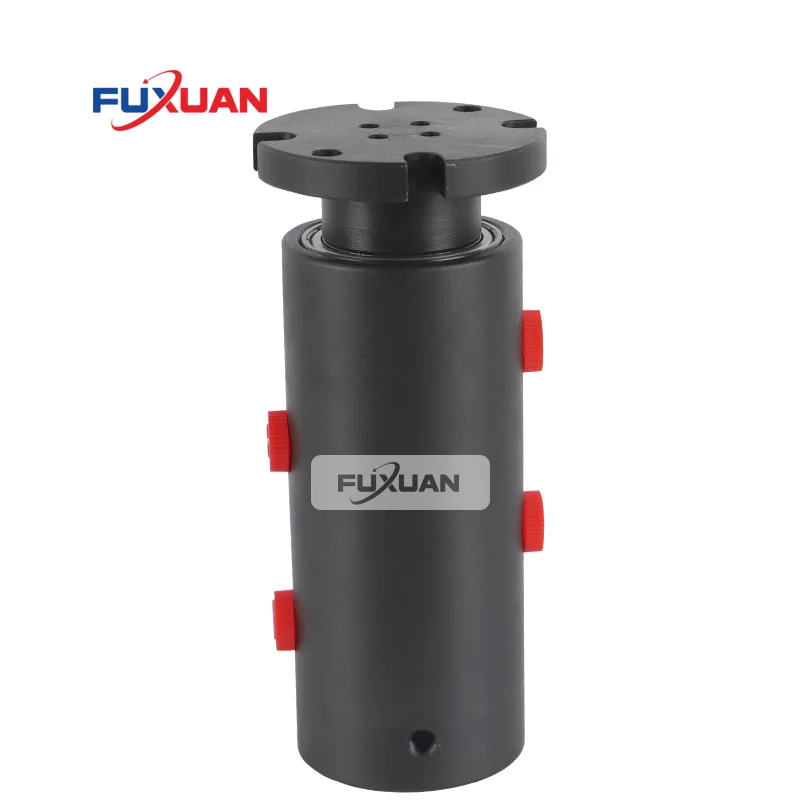

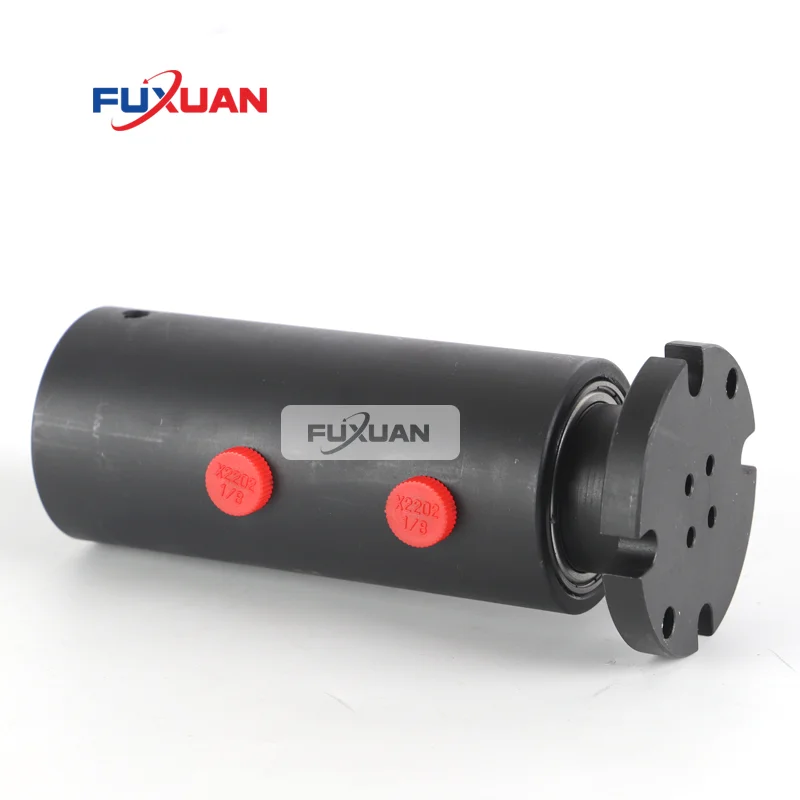

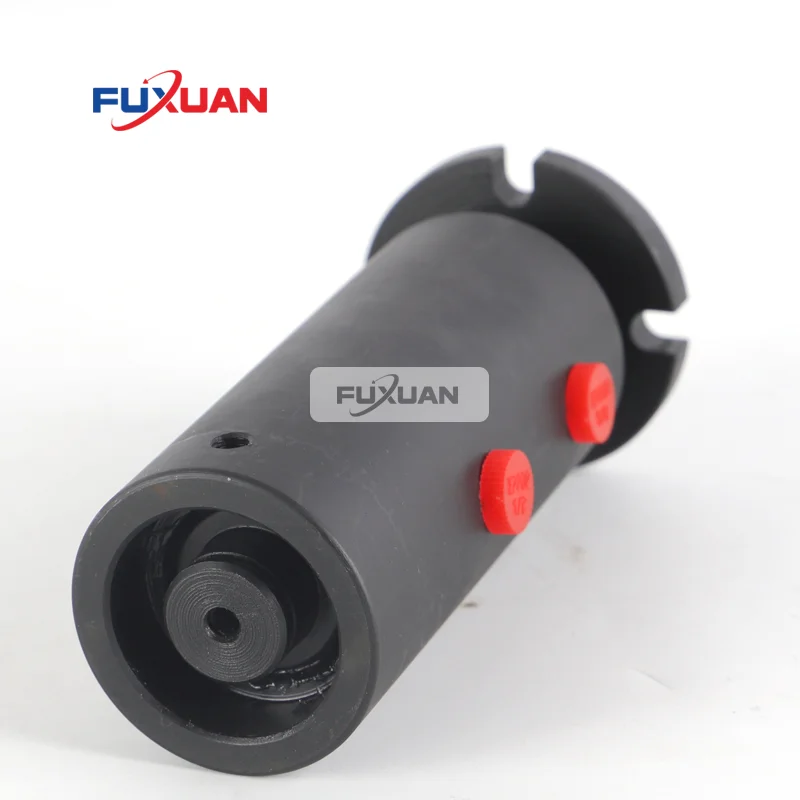

Hot sale 4 Passages rotary unions Hydraulic Multiport rotating unions
- Category: >>>
- Supplier: Shandong Focus Machinery Co. Ltd.Shandong Ltd.
Share on (1601320167980):
Product Overview
Description
Hot sale 4 Passages rotary unions Hydraulic Multiport rotating unions
Attention:
Due to the different size, use parameters and materials of the rotary joint, the price will be very different, please consult customer service before placing the order, otherwise we will not ship.
Due to the different size, use parameters and materials of the rotary joint, the price will be very different, please consult customer service before placing the order, otherwise we will not ship.
Product Paramenters
High pressure | High pressure high speed | |
passage | 1-24 Customized Size | 1-24 Customized Size |
Interface size | G1/8"---G1/2" | G1/8"---G1/2" |
pressure | 0---500 bar | 0---350 bar |
speed | 0---300 RPM | 0---4500 RPM |
Introduction：
A multi-channel rotary joint is a mechanical device used to connect fixed pipeline systems and rotating equipment (such as pumps, mixers, fans, etc.), which allows fluid to be continuously transmitted between rotating and stationary parts without leakage. This type of joint is commonly used in chemical, petroleum, pharmaceutical, food processing, and other industrial fields, where the medium (such as water, oil, steam, chemicals, etc.) needs to be transported to specific parts of rotating equipment.
Advantages and characteristics：
1.Multi-channel Design：It can transmit multiple different media simultaneously, with each channel independently sealed and not interfering with each other.
2.Sealing performance：Use high-performance sealing components such as silicon carbide, hard alloy, or other wear-resistant materials to ensure that no leakage occurs during high-speed rotation
3.Bearing system：Internally, it contains a precision bearing system to support rotating components and reduce friction, ensuring smooth rotation of joints.
4.Material selection：According to different working environments and media characteristics, the multi-channel rotary joint can be made of different materials such as stainless steel, carbon steel, copper, aluminum alloy, etc.
5.interface type：The import and export of connectors can be customized according to needs. Common types of interfaces include flange connection, threaded connection, quick connector, etc
6.Temperature and pressure range：The multi-channel rotary joint can operate within a certain temperature and pressure range, and the specific parameters depend on the design and materials used.
Multiport Rotary Union Hydraulic - innovative seal for air/gas, coolant and hydraulics
multiple-passage hydraulic rotary unions are available in 2, 3, 4, 6, 8, 10 and 12 passages. These general-purpose rotary distributors have special sealing technology suitable for vacuum and bidirectional pressures. At the same time, different types of media can also be transferred independently through the flow channels. The carbon steel (black oxide) construction is suitable for air/gas, coolant and hydraulic applications. For applications where water or corrosive media must be transmitted, we recommend using the stainless steel models (GPS series). As standard, these hydraulic rotary unions have NPT threaded shaft connections and O-ring grooves for flush mounting of the union to the interface. You can easily combine these multiport rotary joints with electrical power and/or data signals.
Article No. | No. of Passages | Connection | Passage Size | Through bore | Feature/Option |
JDGP-2T | 2 | 1/8", 1/4", 3/8", 1/2", 1" | 4mm - 25.4mm | with or w/o | Slip ring |
JDGP-3T | 3 | 1/8", 1/4", 3/8", 1/2", 3/4", 1" | 4mm - 25.4mm | with or w/o | Slip ring |
JDGP-4T | 4 | 1/8", 1/4", 3/8", 1/2", 3/4", 1" | 4mm - 25.4mm | with or w/o | Slip ring |
JDGP-6T | 6 | 1/8", 1/4", 3/8", 1/2", 3/4" | 4mm bis 19mm | with or w/o | Slip ring |
JDGP-8T | 8 | 1/8", 1/4", 3/8", 1/2" | 4mm - 12.7mm | none | Slip ring |
JDGP-10T | 10 | 1/4", 3/8" | 6.35mm - 9.5mm | with | Slip ring |
JDGPT-12T | 12 | 1/4", 3/8" | 6.35mm - 9.5mm | with | Slip ring |
Company Profile
Shandong Focus Machinery Co., Ltd. is located at No. 988 Xingteng East Road, Tengzhou Economic and Technological Development Zone, Shandong Province, China. it is a wel-known rotary joint manufacturing enterprise in China. The company has 12 R&D technicians, more than 60 high-precision and high-efficiency CNC machine tools, more than 20 testing equipment, and an annual production of more than 30000 rotary joints.
The rotary joints produced by our factory not only have excellent quality, but also have a very competitive price. Support OEM/ODM outsourcing production; Short delivery cycle; Produce according to your drawings or provide samples for customization.
FAQ
What is a rotary union?
A rotary union (or swivel joint) is a device used to transfer fluid under pressure or vacuum from a stationary inlet to a rotating outlet, preserving and isolating the fluid connection. Learn more about How do I choose a rotary union?
Proper selection of a rotary union solution requires details about your application's operating parameters including pressure, speed, media type(s), number of flow passages (channels), and connection size(s) / type(s). A good place to start your search is with our Standard Rotary Unions. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our experts are here for you.
Do you offer custom rotary unions?
Yes, it's what we do best! We can meet your exact fluid rotary union requirements from modifying our standard products to complete, custom design and manufacturing. For more information see Custom Solutions
What is your process for a custom rotary union solution?
First, contact us to Get Started. Our team will reach out to you to start learning more about your project's technical and delivery requirements. We will consider all aspects of your application and work together to develop the best solution.
Do you offer compatible options for replacing another manufacturer's fluid rotary union?
Yes, we can cross reference other manufacturer's fluid rotary unions to find an equivalent solution. Contact us to Get Started
What is the life expectancy of a rotary union?
The life expectancy of a rotary union varies widely depending on many application variables: media type, pressure, rotational speed, duty cycle, temperature, and more. If you need further assistance contact a member of our Sales Support Team.
Is there a quantity price break if I order multiple units?
To discuss quantity price breaks, contact a member of our Sales Support Team.
