AIDA 225 60KG Afghanistan Halal Biscuit Making Machine Fully Automatic Small Biscuits Hot Selling in Afghanistan
- Category: >>>
- Supplier: Shandong Aida Machinery Co. Ltd.Shandong Ltd.
Share on (1601320351596):
Product Overview
Description
Product Description
Product Application
Biscuit Cookies Rice Cracker Sandwich Machines on Sale Automatic Industry Equipment Biscuit Making Machine
1.Automatic Small Capacity Biscuit Production Line Specifications
Biscuit processing line composed of powder-mixer,peel-fold machine,candy-filling machine, molding machine,egg-brushing grain-scatter machine,tunnel stove ,swerve machine , oil-sprayer,cooling transmission,suger/salt-pouring machine and so on.
2.Automatic Small Capacity Biscuit Production Line Production Capacity Biscuit making machine industry
50-60kg/h,80-100kg/h 150-220kg/h 300kg/h 400-600kg/h 800-1000kg/h
3.Chinese Voltage: Biscuit making machine industry
380V/50HZ
Can adjust according to buyer's local Voltage
4.Main machines: Biscuit making machine industry

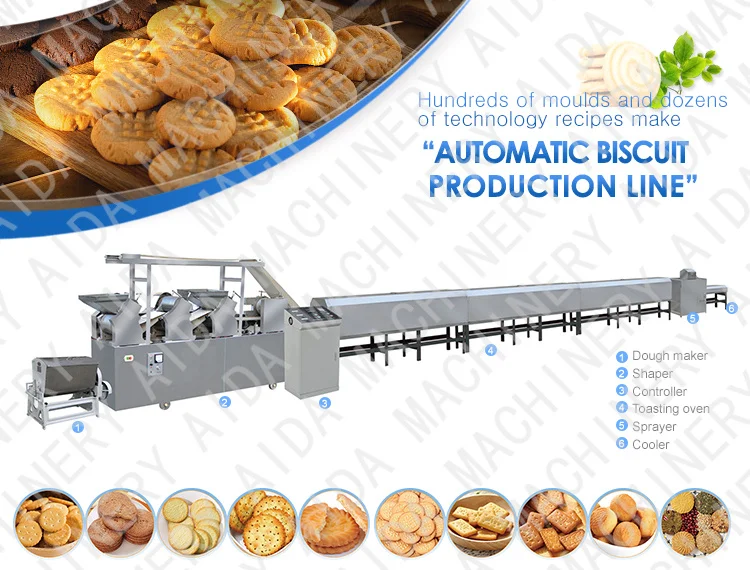

Consist of a biscuit line:
1.Horizontal dough mixer
2.Automatic dough tipper and feeding system
3.Three-roll combination sheeter for feeding and sheeting the dough
4.Laminator for overlapping dough to sheeting on gauge rolls, included cream spreading machine.
5.Gauge rolls
6.Rotary cutting machine for hard biscuit forming
7.Scrap collection and return system
8.Rotary moulder for soft biscuit forming
9.Salt/sugar spreading machine
10.Tunnel oven.Three kinds of heating source: Electric, Natural Gas, Liquefied Petroleum Gas.
11.Oil spraying machine

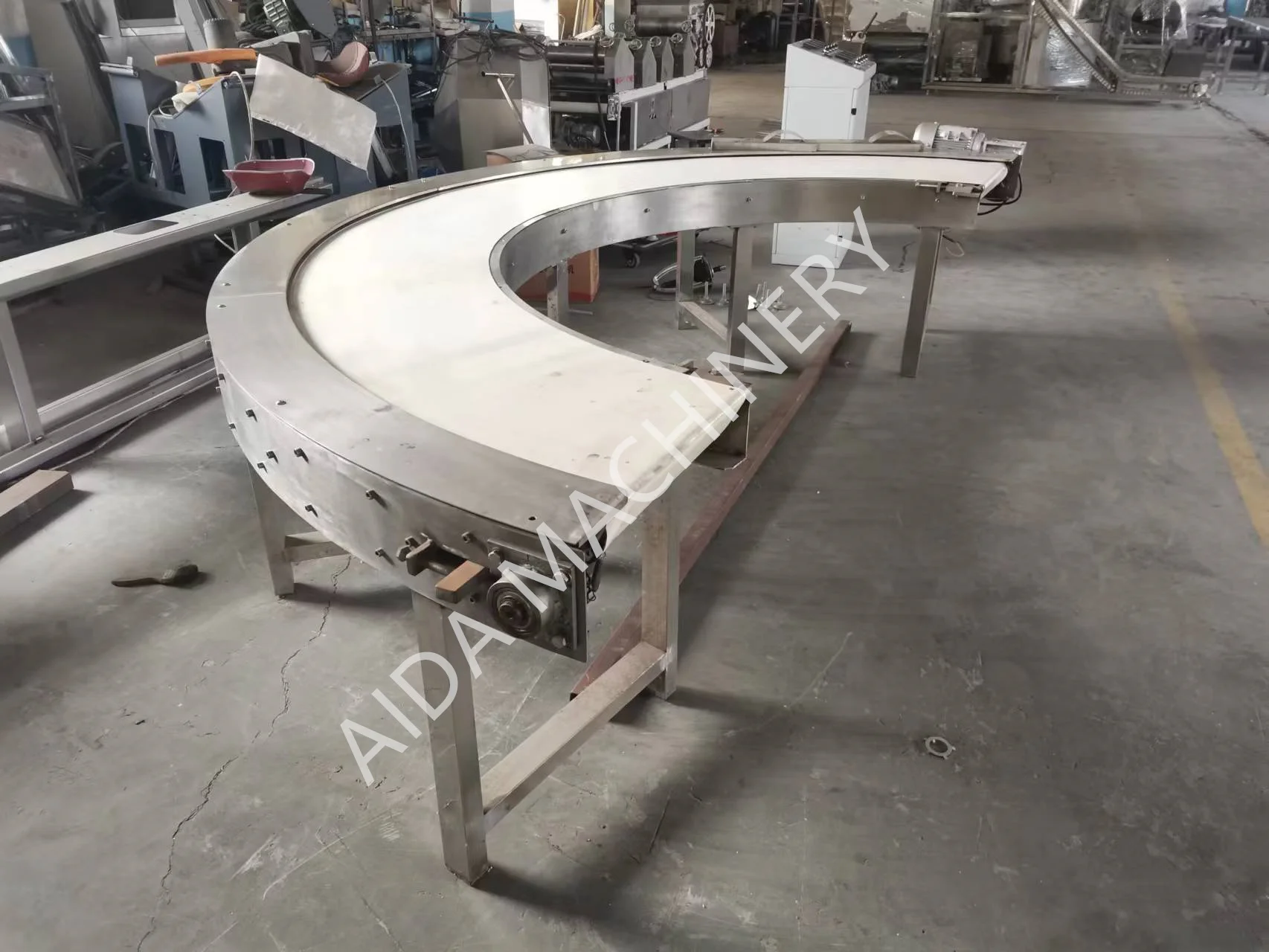

12.Turning machine 180degree or 90degree design as per the plant length

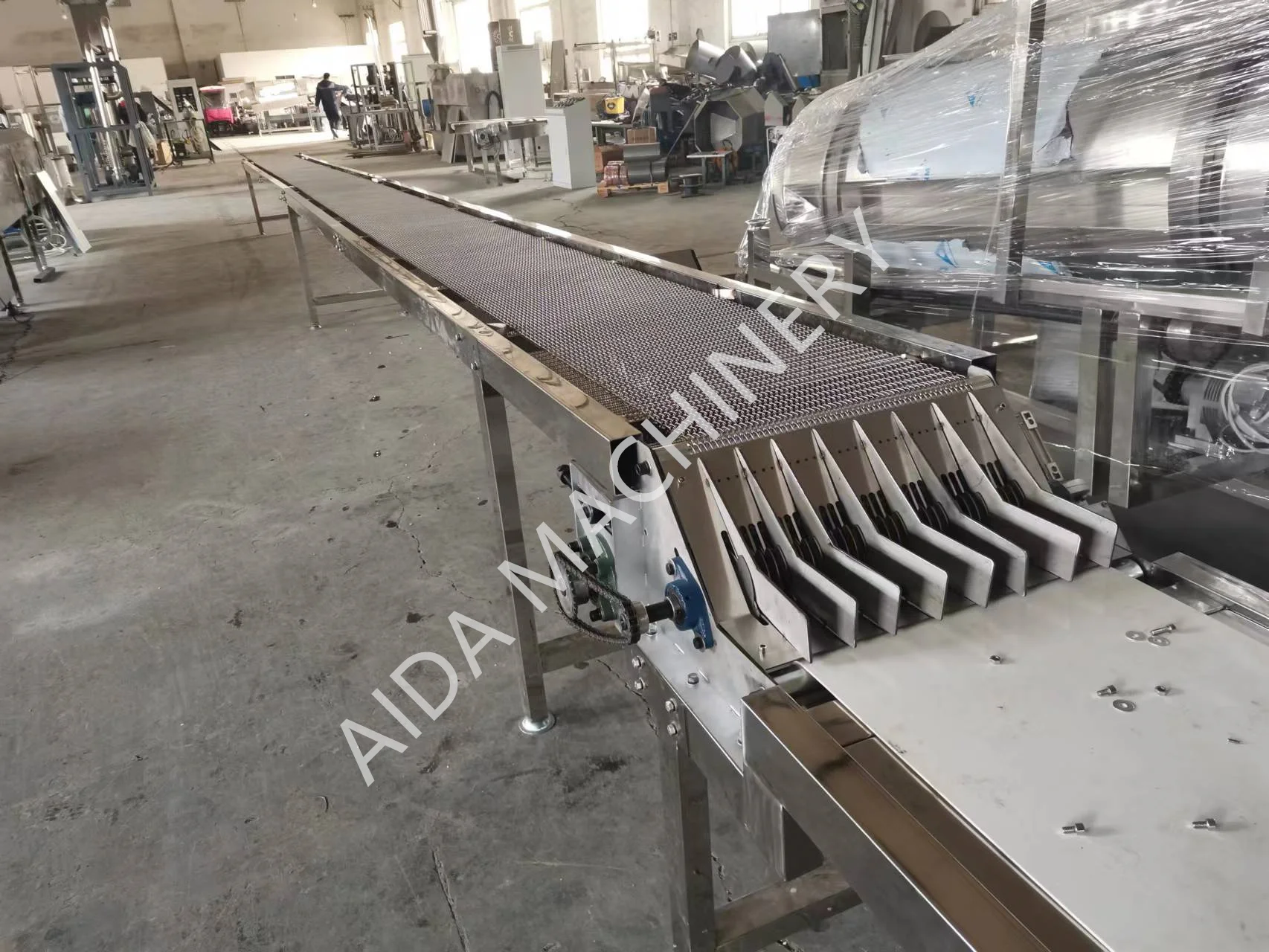

13.Cooling conveyor
14.Biscuit stacking machine
15.Packing table
5.Industrial biscuit cracker production line Machine's material
All the machines are made by SS202 /304/316 stainless .
6.Material Can Take
Wheat flour,corn four,rice flour,milk powder,egg powder ,vegetables powder,nut powder etc.

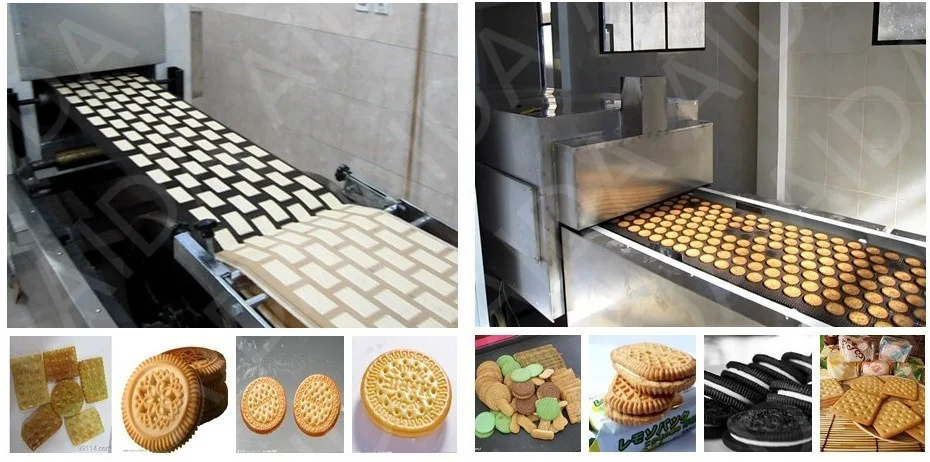

7. Biscuit Cookies Rice Cracker Sandwich Machines on Sale Automatic Industry Equipment Biscuit Making Machine Finished Biscuit
milk biscuit ,nut-biscuit,core filling biscuit,coco busicuit,vegetables buscuit.
word shape biscuit,ainimal shape biscuit
150 kgs biscuit production line vegetable biscuit production line | ||||||
Engine | Engine model | Kw/rpm | 135.5/2150 | |||
No. of cylinders | Kw/rpm | 637/1800 | ||||
Net Power | L | 6.494 | ||||
Main performance parameters | Main performance parameters | km/h | 5.9/4.0 | |||
Travel speed (max. & min.) | ° | <=35 | ||||
Max. Gradeability | rpm | 11.3 | ||||
Hydraulic system | Hydraulic system | KPa | 50.1 | |||
Main pump | KN | 161 | ||||
Rate flow | KN | 125 | ||||
Main Features
Pre-sale services:
1> Provide the free consultation of the equipment

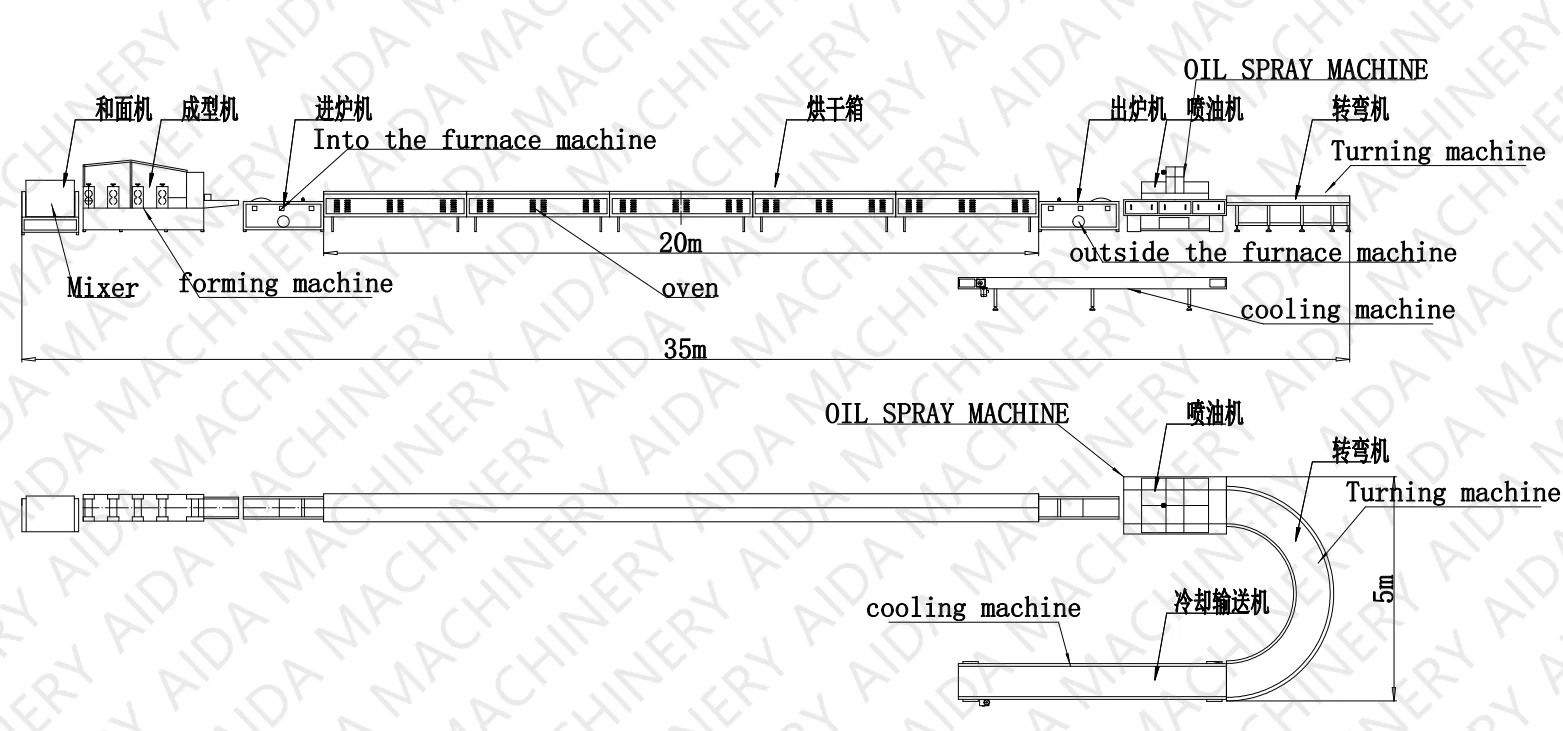

2> Provide the standard device and the flow chart
3> According to the clients' special requirement, offering the reasonable plan and free design helping
to select the equipment.
4> Biscuit Cookies Rice Cracker Sandwich Machines on Sale Automatic Industry Equipment Biscuit Making Machine Welcome to visit our factory or the domestic clients' factory.
Certifications

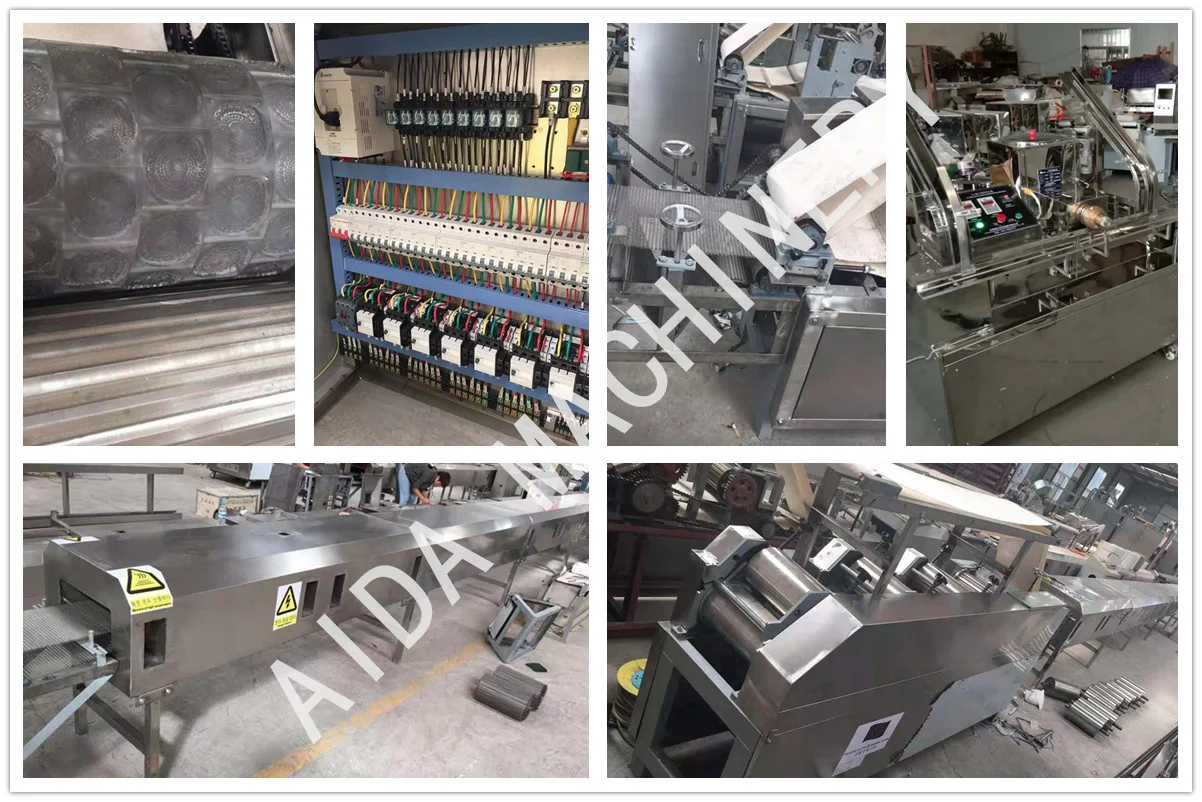

Detailed Images
Machine details
Name: Rotary cutter for hard biscuit
A. Voltage: 220/380v
B. Power: 4.0kw
C. Dimension: 5000*850*1500mm
D. Weight: 1000kg
Material: (housing, food contact part) stainless steel (transmission) carbon steel
the mixed flour into the machine, after roller forming can be born biscuit embryo, made of high-grade cookies in the oven, etc.
Main details
Name: Rotary printer for soft biscuit
A. Voltage: 220/380v
B. Power: 2.2 kw
C. Dimension: 1600*810*1100mm
D. Weight: 350kg
E. Output: 200kg/h
Material: (housing, food contact part) stainless steel (transmission) carbon steel
the mixed flour into the machine, after roller forming can be born biscuit embryo, made of high-grade cookies in the oven, etc.
Machine details
Name: Sandwich machine
One-row one -layer two/one-color butter/jam stuffing (Roundness):(ø)35-60(mm)(H)3-8(mm)
(Square):(L)35-65(mm)(W)35- 65(mm)H3-8(mm)
Stainless steel material
Weight :500kg
Machine details
Name: electric tunnel baking oven
A. Dimension: 2400*980*1200mm
B. Weight: 8000kg
C. Output: 200kg/h
Material: stainless steel mesh belt far infrared heating tube (shell) more area of intelligent temperature control using electric heating and temperature control, temperature range of the temperature, the temperature zone can be set to the temperature uniformity, high quality thermal insulation material, heat insulation performance is good, high thermal efficiency, the furnace plate spray with silicon, high temperature resistant silver paint (400 degrees of high temperature resistant). Automatic PLC temperature control system, automatic temperature control constant temperature, flexible operation, high safety performance, suitable for baking all kinds of biscuits
Our Service
Pre-Sales Service
1> Help client design the factory and offering professional advice, free engineering drawing for the
factory layout.
2> Inspect the machine before leaving the factory.
3> Oversea install and debug the equipment.
4> Train the first-line operator.
5> full auto biscuit production machine with tunnel ovenProvide the basic formula
After-Sales Service
1> 24 hours online service
2> Engineers available to service machinery overseas
3> Provide technical exchanging
Packing: Simple packing stretch film (Based on the customers' need adopt the wooden case or wooden pellets, etc.)
Transportation: According to the contract, our company could in charge for the shipment or you prepaid. We will choose the most timely and safe way transportation.
Packing & Delivery
Packaging | ||
Size | 1200(L) * 2300 (W) * 2500 (D) | |
Weight | 6.2 T | |
Packaging Details | 150 kgs biscuit production line vegetable biscuit production line with tunnel oven The normal package is wooden boxAutomatic Small Capacity Biscuit Production Line (Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
