Orange Double Glass Flat Tile Modules 120W Solar Panels
- Category: >>>
- Supplier: Zhongtai Nengchuang (jiangsu) Technology R & D Co. Ltd.Zhongtai Ltd.
Share on (1601320454062):
Product Overview
Description
Basic info
Model NO. | XSDFM-120-T | Application | Photovoltaic venues... | |
Max Power | 120 W | Optimum operating voltage | 9.62 V | |
Optimum Operating Current | 12.89 A | Open-circuit voltage | 11.07 V | |
Short-Circuit Voltage | 13.57 A | Module operading temperature range | -40℃+85℃ | |
Max System Voltage | DC 1000/1500V(IEC) | Maximum fuse current | 25A | |
Power Tolerance Range | 0~+5W | Transport Package | Wooden Box | |
Maximum power temperature coefficient | -0.26%/℃ | Open-circuit voltage temperature coefficient | -0.24%/℃ | |
Short-circuit voltage temperature coefficient | 0.04%/℃ | Module weight | 9.5 kg | |
2400Module size | 1630*440*29 mm | Hs Code | 8541420000 | |

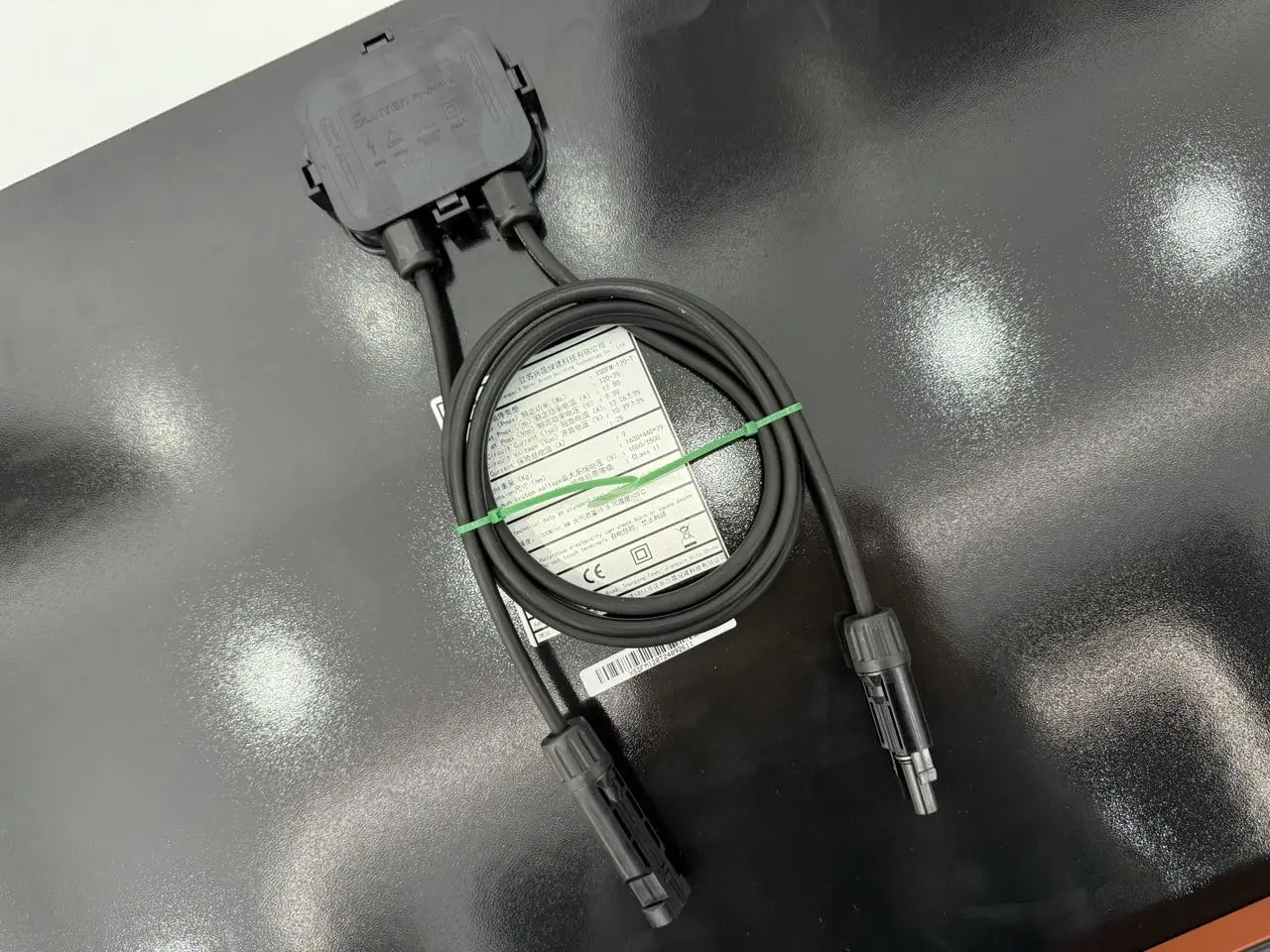

Junction box | Enclosure rating IP68 | Connector registration | MC4 compatibility | |
Cell type | TOPCon cell 182*91 mm | Cell arrangement | 32 PCS(2*16) |
Packing & Delivery
Package Size | 17cm*45cm*3cm | ||||||
Package Gross Weight | 9.5 kg | ||||||
OLITER ENERGY
Brief Introduction of Zhongtai Nengchuang
Zhongtai Nengchuang (Jiangsu) Technology R & D Co., Ltd. is a professional supplier of Solar Products such as lithium battery, inverter and solar panel.
- Our products have obtained needed certifications like CE, TUV.
- We have our own factory who cooperate with many famous companies like China Tower, China Mobile.

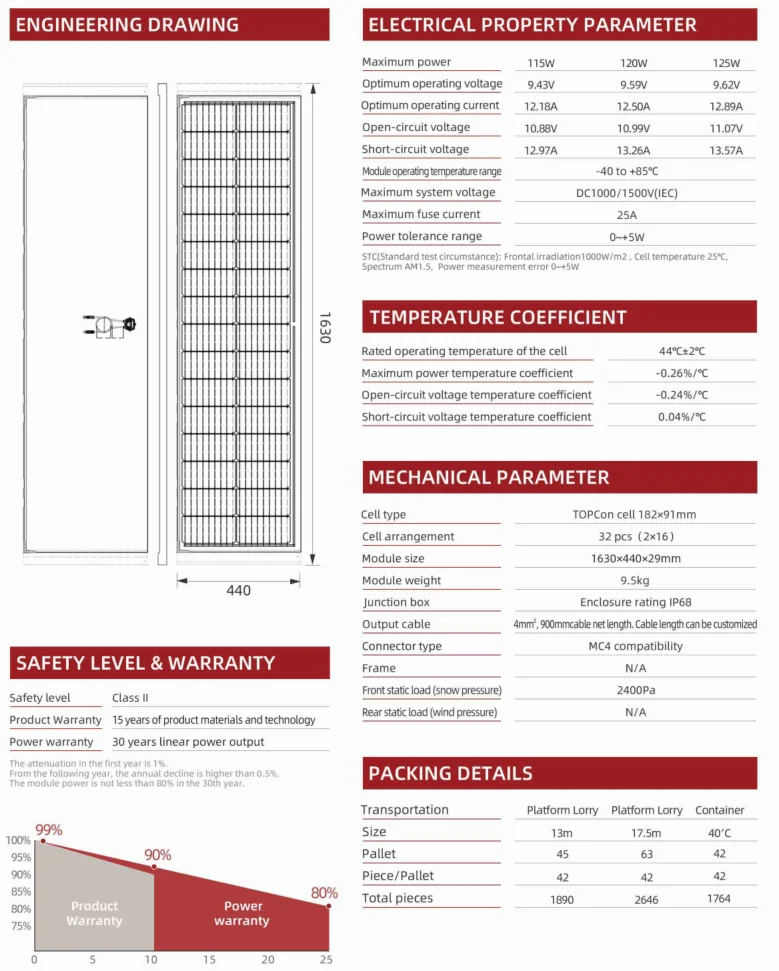

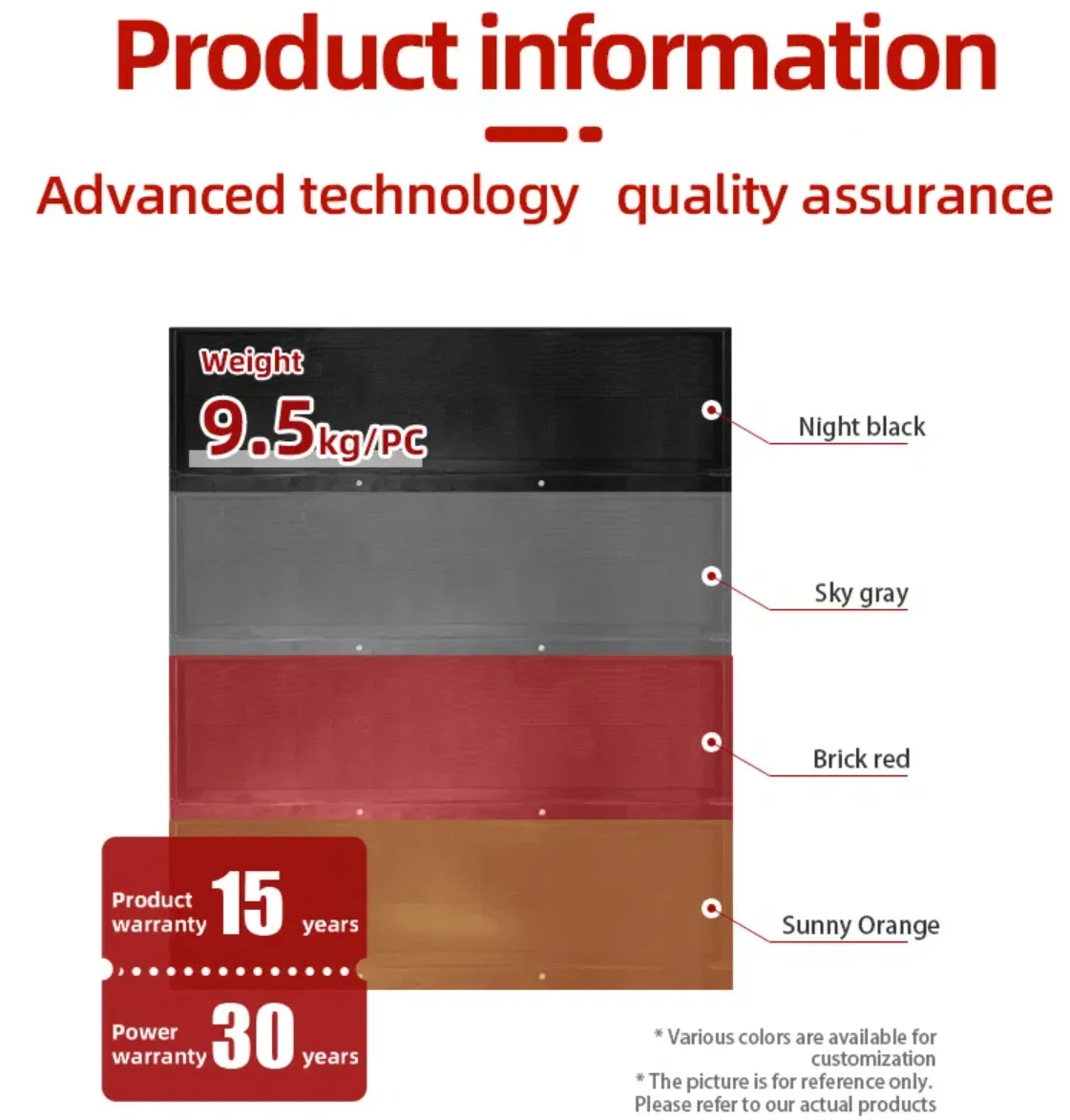

Product information

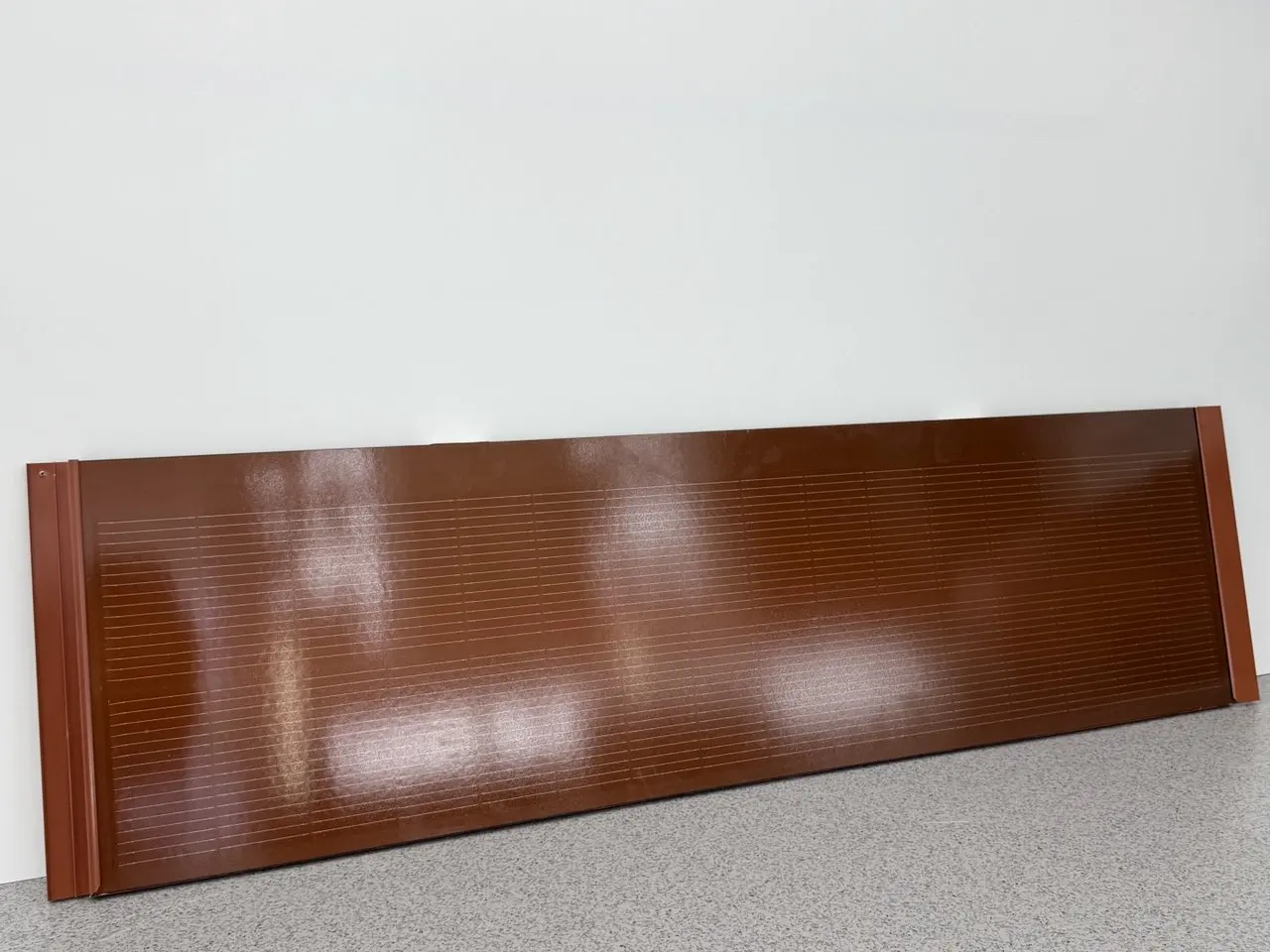

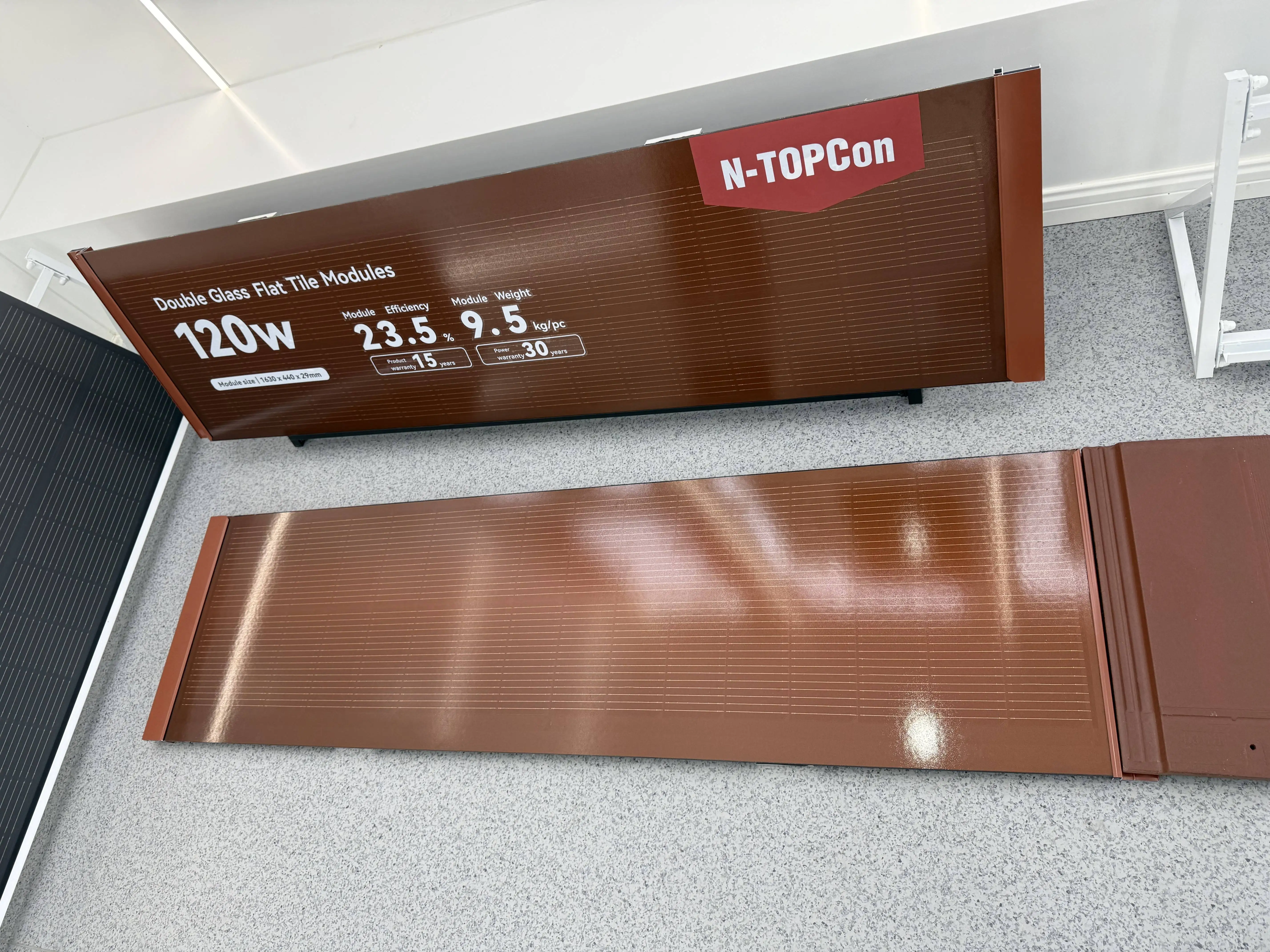

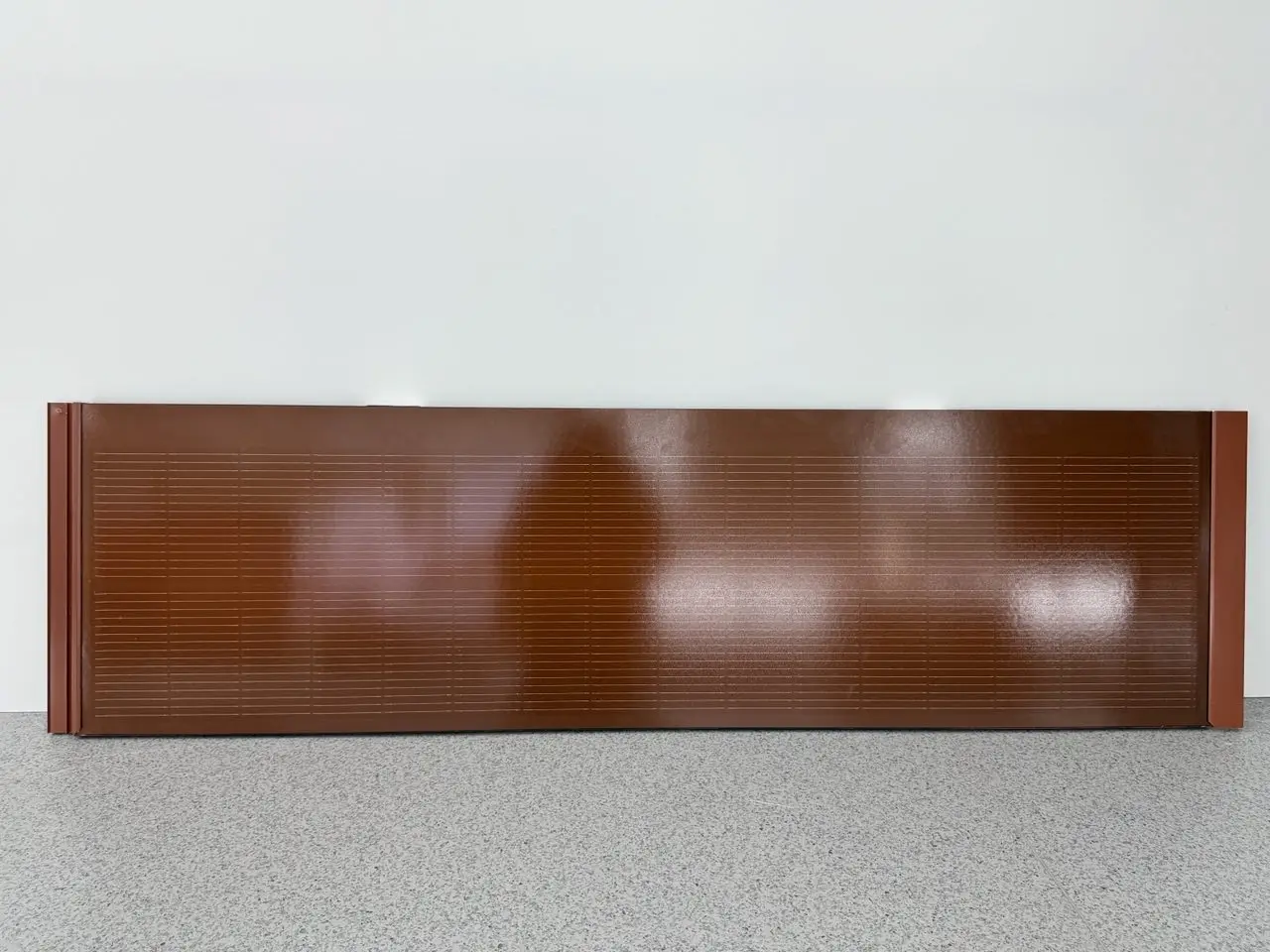

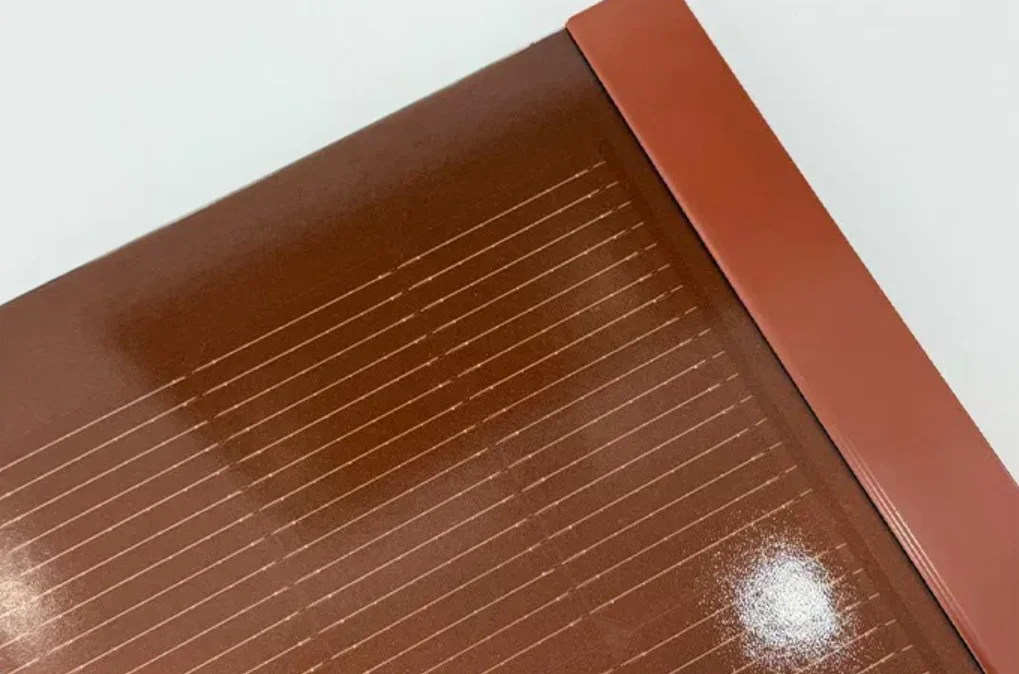

Product Display

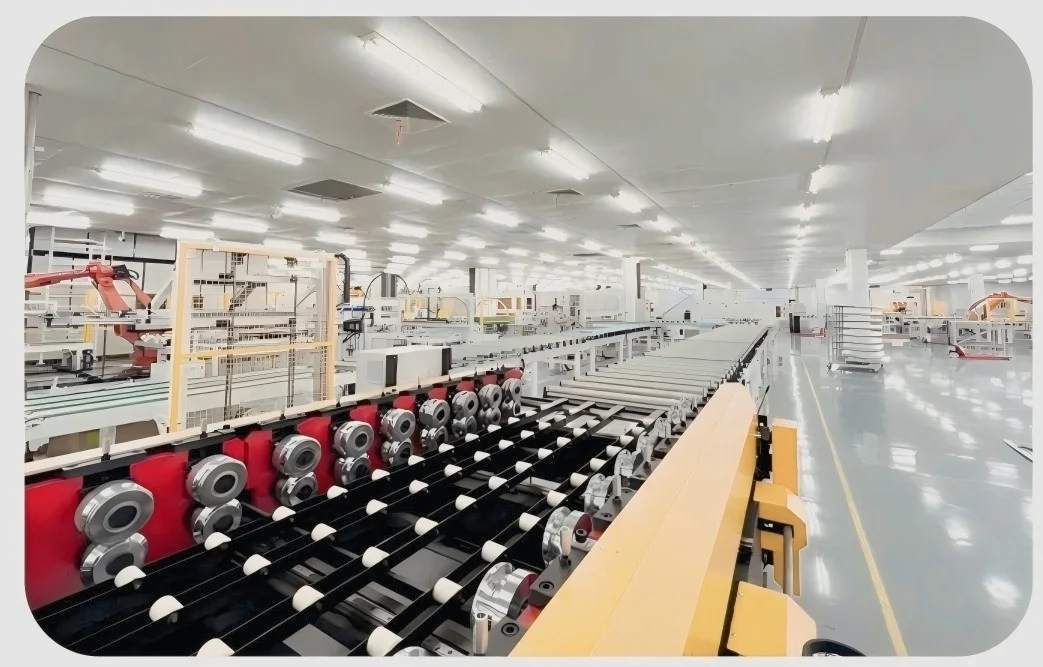

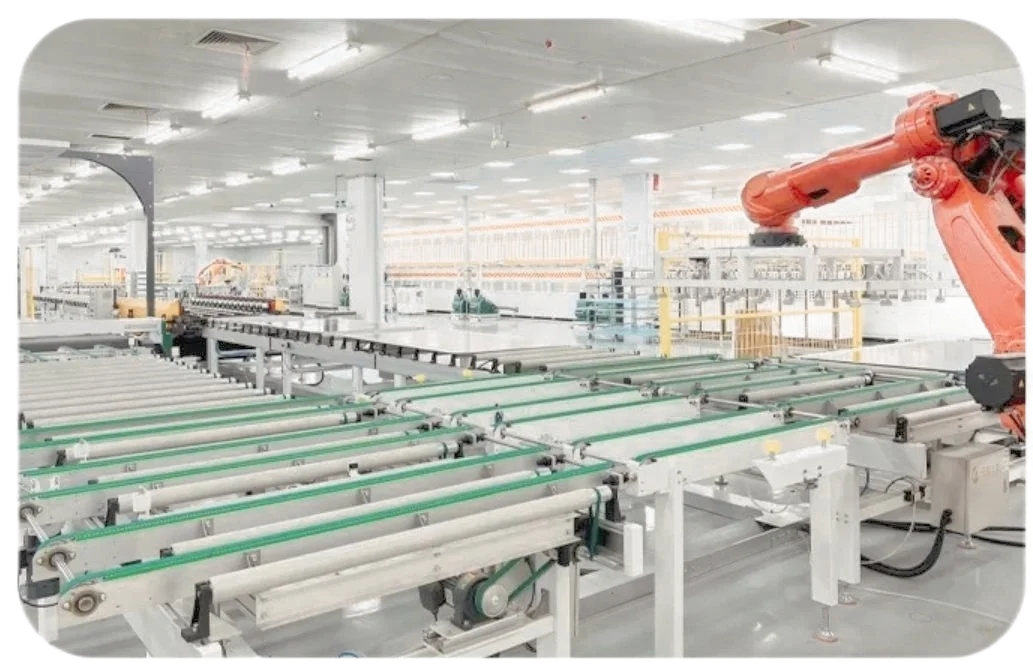

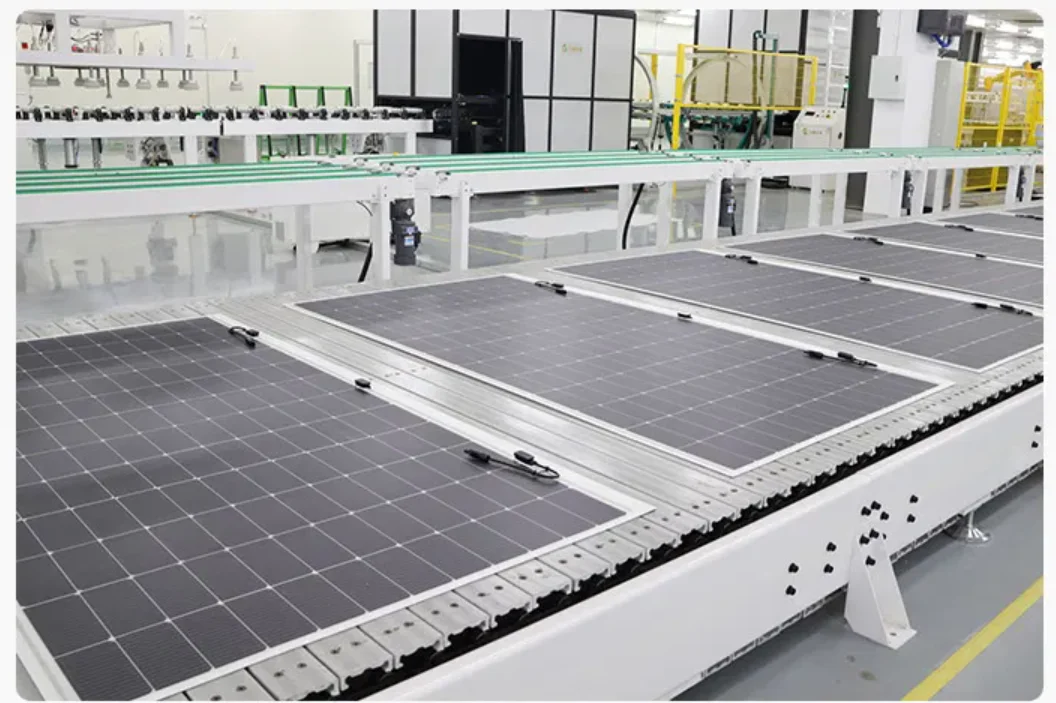

Production Line
Product packaging
