LH Type Electric Hoist Double Girder Bridge Overhead Cranes
$1,800.00-2,000.00
China Supplier New Type Hoist Travelling 3 ton 5 ton Single Beam Overhead Bridge Crane With High Quality
- Category: >>>
- Supplier: Henan Mine Crane Co. Ltd.Henan Ltd.
Share on (1601320472782):
Product Overview
Description
PRODUCTS DESCRIPTION

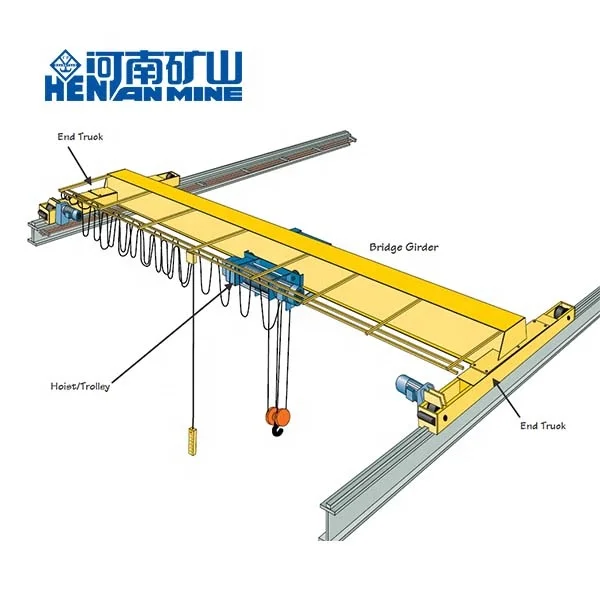

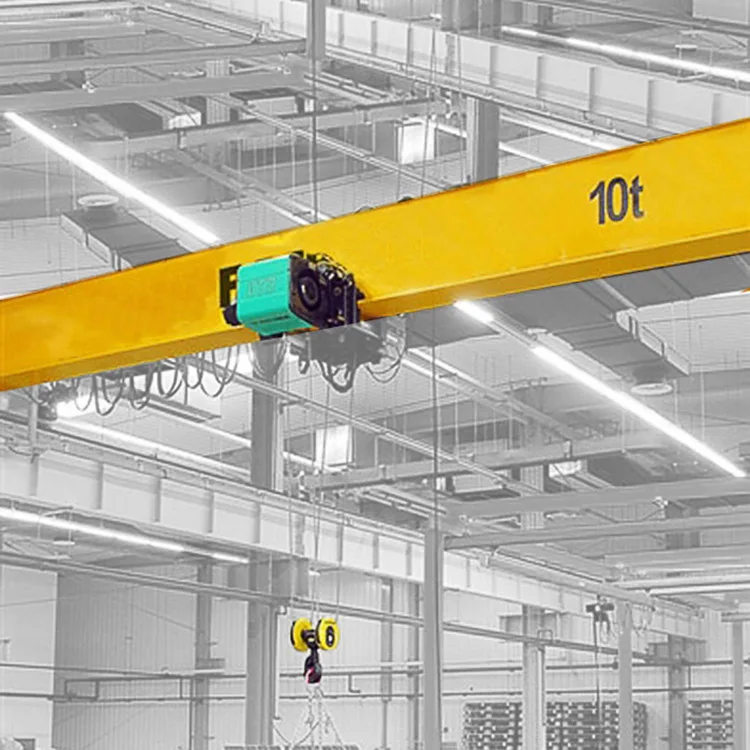

Single Girder European Bridge Crane
European single girder overhead crane is designed to cover a wide range of modern industrial demands, providing excellent value for money with no compromise on performance.
FEATURES AT A GLANCE
1. Steel plate material Q345B (equals to foreign steel plate Fe52).
2. Bias-rail box-type structure with light self-weight.
3. After welding, main girder is through shot blasting treatment, gets Sa2.5 class, and eliminate welding stress.
4. Main girder and end girder adopts bolted connection to ensure strength and accuracy of the whole set.
5. Trolley and crane adopt three-trinity driving mechanism, frequency stepless speed regulating, hard-tooth surface, disc brake.
6. Working level gets to A6 and has low noise.
7. Employ steel rope with high tensile strength of 2,160 kN/mm2
2. Bias-rail box-type structure with light self-weight.
3. After welding, main girder is through shot blasting treatment, gets Sa2.5 class, and eliminate welding stress.
4. Main girder and end girder adopts bolted connection to ensure strength and accuracy of the whole set.
5. Trolley and crane adopt three-trinity driving mechanism, frequency stepless speed regulating, hard-tooth surface, disc brake.
6. Working level gets to A6 and has low noise.
7. Employ steel rope with high tensile strength of 2,160 kN/mm2

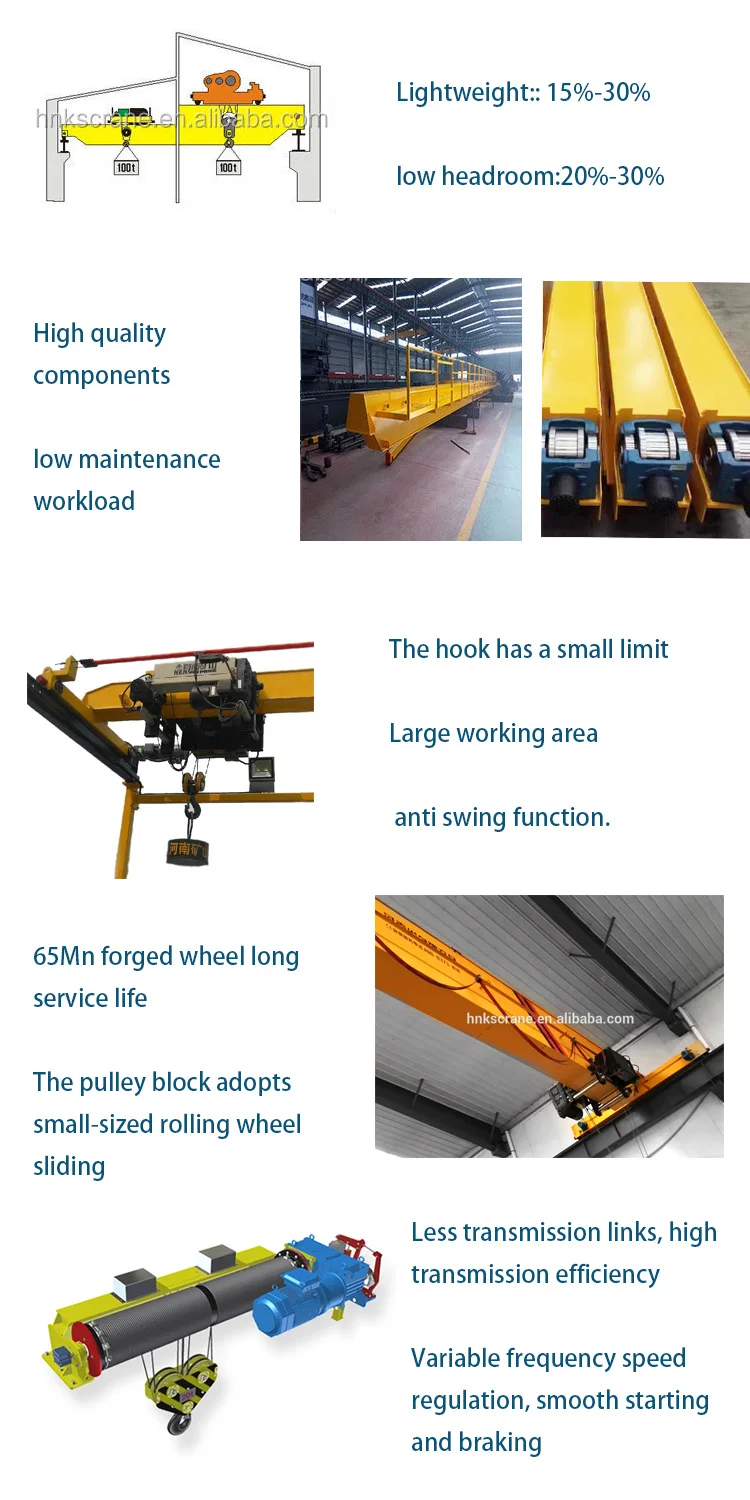

PRODUCT FEATURES
PRODUCT CONFIGURATION
Model | LDC single girder eot crane (Under hung model) | HD single girder eot crane (Top running model) | |
Capacity | 1-20 ton | 1-30 ton | |
Span length | ≥6m | ≥6m | |
Control Patterns | Ground Control, Remote Control, Aerial Control | ||
Safe and reliable:
1. Multiple protection measures such as interlocking, overload protection, zero protection, limit protection to ensure reliable operation of the crane.
1. Multiple protection measures such as interlocking, overload protection, zero protection, limit protection to ensure reliable operation of the crane.
2. Steel drum with the wire rope in small deflection angle, which effectively prevents from abrasion.
3. The hoisting motor is equipped with an independent air cooling system & thermal protection function. Crane driving IP54, F class insulation, contact continuity reaches 40% ED.
4. It has independent braking system which has the function of automatic abrasion compensation. If there are special requirements, it can be equipped with two braking systems.
5. Advanced PLC automatic detection and friendly man-machine interface, which can measure/calculate and monitor the performance/safety and operating conditions of the crane.
Main Girder
Welding structure of steel plate and I-steel with technology: One-off forming U shaped groove.

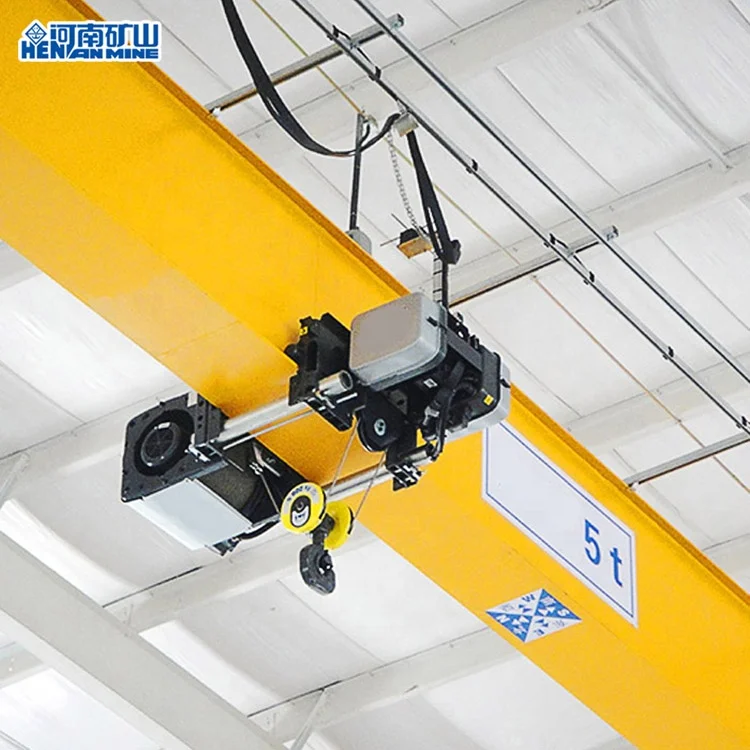

Electric Hoist
Capacity: 0.25-32t
Lifting height: >3m
Usage: Workshop, mines, habour etc.
Lifting height: >3m
Usage: Workshop, mines, habour etc.

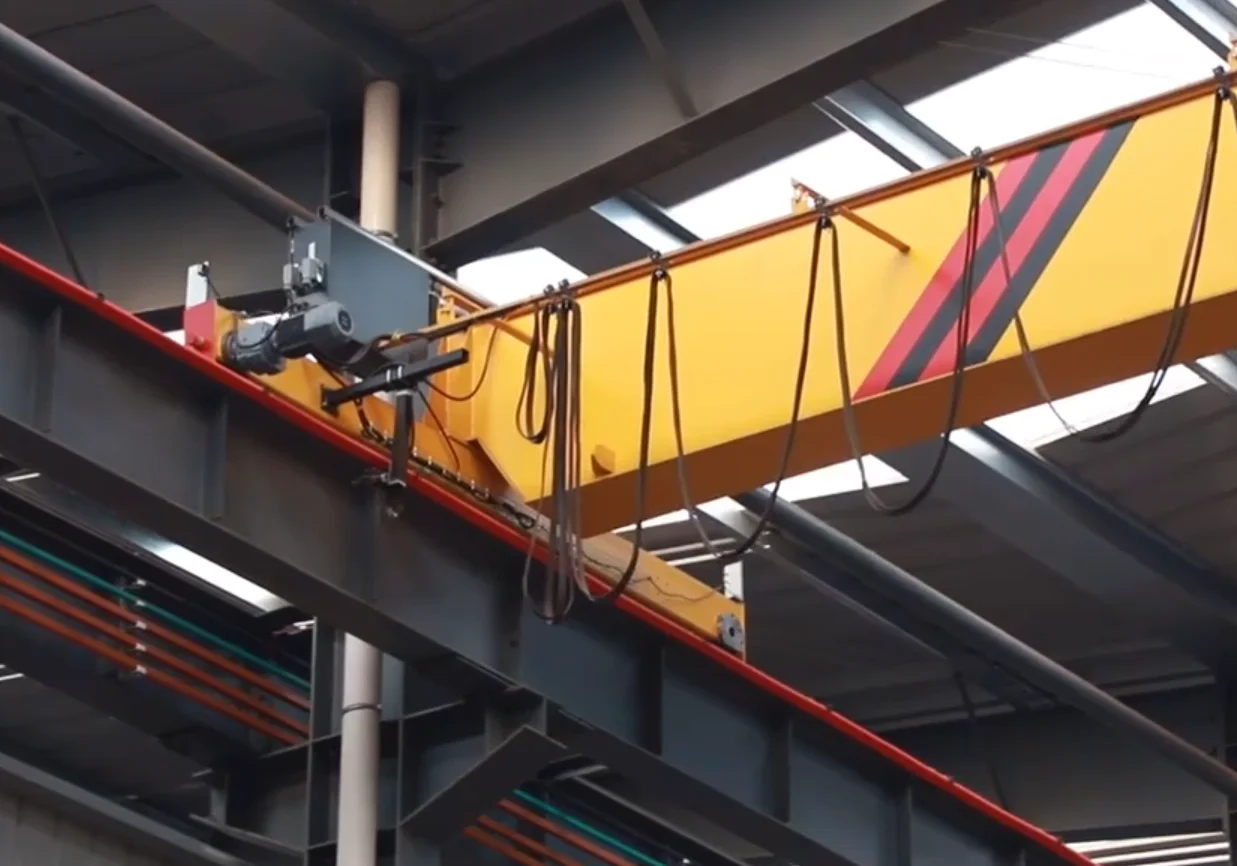

End Girder
The end girder is connected with the main girder by dolts and nuts for easy transportation and installtion.
\\uD83D\\uDC49Click to customize your parameters!\\uD83D\\uDC48
PRODUCT PACKING
Fast Delivery
Henan Mine has sound production security system and experienced workers to ensure timely or early delivery period.
Package
By national station exporting standard plywood box, wooden pallet or in 20ft & 40ft container. Or as your demands.
COMPANY PROFILE
The 4,500-plus-member factory covers over 1,620,000 square meters and has a total asset of 1.18 billion CNY. The 3,000-plus equipment enable the company to independently conduct over 20 technological flows, including lathing, milling, planning and grinding. The 180-plus intermediate and senor technical staff are responsible for R&D and production of all the products. The products have passed CE SGS TUV BV and CU-TR verification, and factory passed ISO9001-2008 international certification, IS014001:1996 environmental and ISO28001-2001 quality, health and safety certification. Our company has perfect quality-control system, strict and comprehensive management system, strong production capability and advanced test measures, guaranteeing high quality, output, competitiveness and market share.
FAQ
Q: Can you provide custom service?
A: Yes, of course. We have our own engineer group. They can work out customized design according to your requirement. So be free to contact us to tell parameters you need.
Q: Are there any professional technicians to assist our installation?
A: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
Q: Whether you can offer the matched spare parts?
A: Yes, we offer all the related spare parts. Such as motor, hoists, drums, wheels, grabs, hooks, rails, travel beams, enclosed bus bar, etc.
Q: How can you ensure the quality?
A: Before delivery, every product will be tested strictly, and we will send you the quality certification. You are also warmly welcomed to our factory to make the inspections.
Q: Have own parameters, How to get the accurate quote?
A: You can provide the following information for quote :
1. What kind of material are you handling?
2. What kind of place will you use it?
3. Lifting Capacity of your need?
4. Lifting Height?
5. Crane Span?
6. Special Power voltage? (Three phrase 380v/50HZ or other)
A: Yes, of course. We have our own engineer group. They can work out customized design according to your requirement. So be free to contact us to tell parameters you need.
Q: Are there any professional technicians to assist our installation?
A: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
Q: Whether you can offer the matched spare parts?
A: Yes, we offer all the related spare parts. Such as motor, hoists, drums, wheels, grabs, hooks, rails, travel beams, enclosed bus bar, etc.
Q: How can you ensure the quality?
A: Before delivery, every product will be tested strictly, and we will send you the quality certification. You are also warmly welcomed to our factory to make the inspections.
Q: Have own parameters, How to get the accurate quote?
A: You can provide the following information for quote :
1. What kind of material are you handling?
2. What kind of place will you use it?
3. Lifting Capacity of your need?
4. Lifting Height?
5. Crane Span?
6. Special Power voltage? (Three phrase 380v/50HZ or other)
