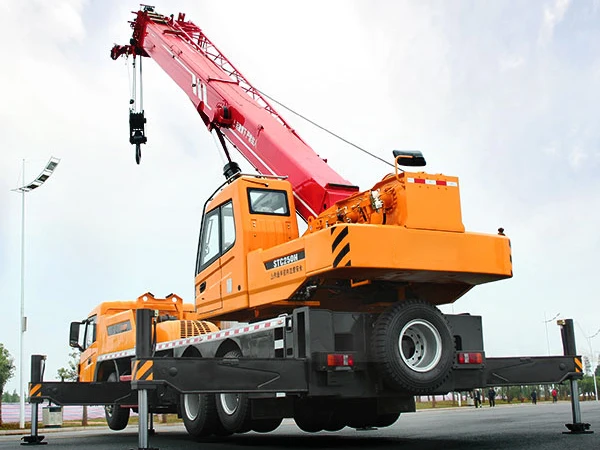

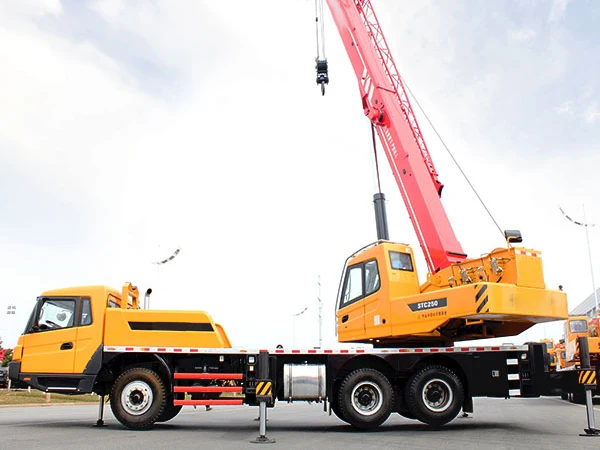

STC250 25 Ton Truck Crane


Products Description


1 STC250 25 Ton Crane Hoist Excellent and stable chassis performance /chassis system
Double-axle drive is used, providing good traffic ability and comfortableness under complex road condition with reliable traveling performance. Engine has the multimode power output function, which reduces power consumption.
The use of tipping over early-warning technology provides high stability and safety of the overall operation.

2 STC250 25 Ton Crane Hoist Highly efficient, stable, energy-saving and adjustable hydraulic system
Electrical proportion Hydraulic system load feedback, piston pump, electrical controlled valve and constant power control are applied to provide strong lifting capacity and good micro-mobility. Unique steering buffer design is adopted to ensure stable braking operation.




Contact


Logan Zheng
Whatsapp/Wechat/Mobile: +86-18058317211
Email:logan@liebty.com
Company: Liebty Machinery Technology(Hangzhou) Co.,Ltd
Address: Room 208,Building 3, No.1866, Binxing Road, Changhe Street,
Bingjiang District, Hangzhou, Zhejiang, China


Specification


Model
STC250
Maximum lifting height
51.5m
Maximum lifting torque
1250.5kNm
Maximum lifting weight
25t
Maximum single rope speed of main winch
130m/min
Full lifting/lowering time of crane arm
40/50s
Full extension/retraction time of crane arm
70/90s
Maximum slewing speed
2.8r/min
Total weight of whole machine
33100kg
Full length of whole machine
13270mm
Full width of whole machine
2550mm
Full height of whole machine
3500mm
Maximum counterweight
7 t
Engine model
Yuchai YCK08310-66
Outrigger span (horizontal x vertical)
6.4x5.5m
Engine maximum power
230/2200kW/rpm
Engine maximum output torque
1280/(1200~1700)N·m/rpm
Maximum driving speed
90km/h
Maximum climbing grade
47%
Minimum turning radius
10.5m
Approach angle
11°
Departure angle
12°
