Triac dimming 3.5inch Trimless LED Downlight 5CCT Warm Dim 1300lm for Modern Homes commerical project
Triac dimming 3.5inch Trimless LED Downlight 5CCT Warm Dim 1300lm for Modern Homes commerical project
Triac dimming 3.5inch Trimless LED Downlight 5CCT Warm Dim 1300lm for Modern Homes commerical project
Triac dimming 3.5inch Trimless LED Downlight 5CCT Warm Dim 1300lm for Modern Homes commerical project
Triac dimming 3.5inch Trimless LED Downlight 5CCT Warm Dim 1300lm for Modern Homes commerical project
Triac dimming 3.5inch Trimless LED Downlight 5CCT Warm Dim 1300lm for Modern Homes commerical project
Triac dimming 3.5inch Trimless LED Downlight 5CCT Warm Dim 1300lm for Modern Homes commerical project

Triac dimming 3.5inch Trimless LED Downlight 5CCT Warm Dim 1300lm for Modern Homes commerical project

Share on (1601320564787):


Price:$15.00

Quantity:


Product Overview

Description

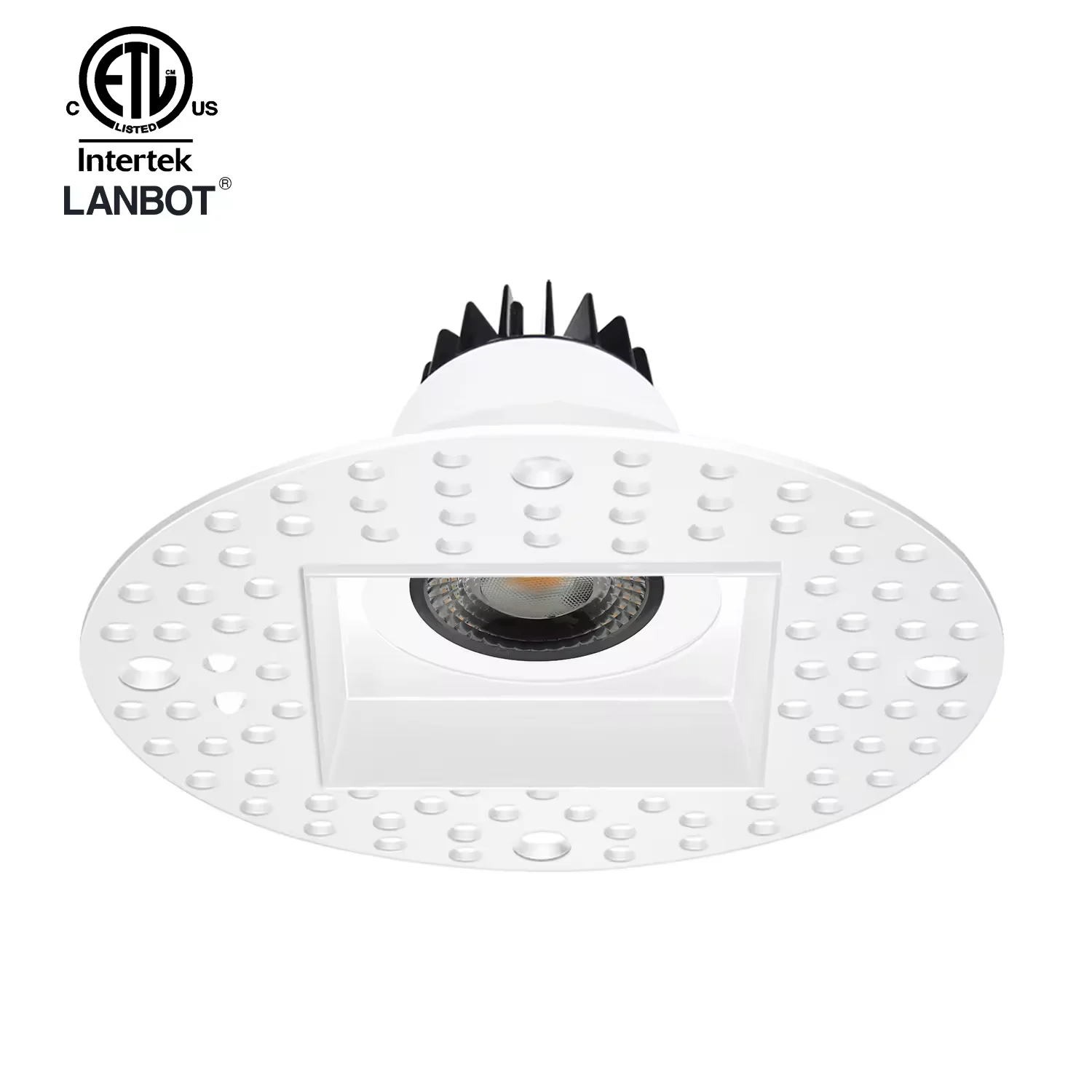

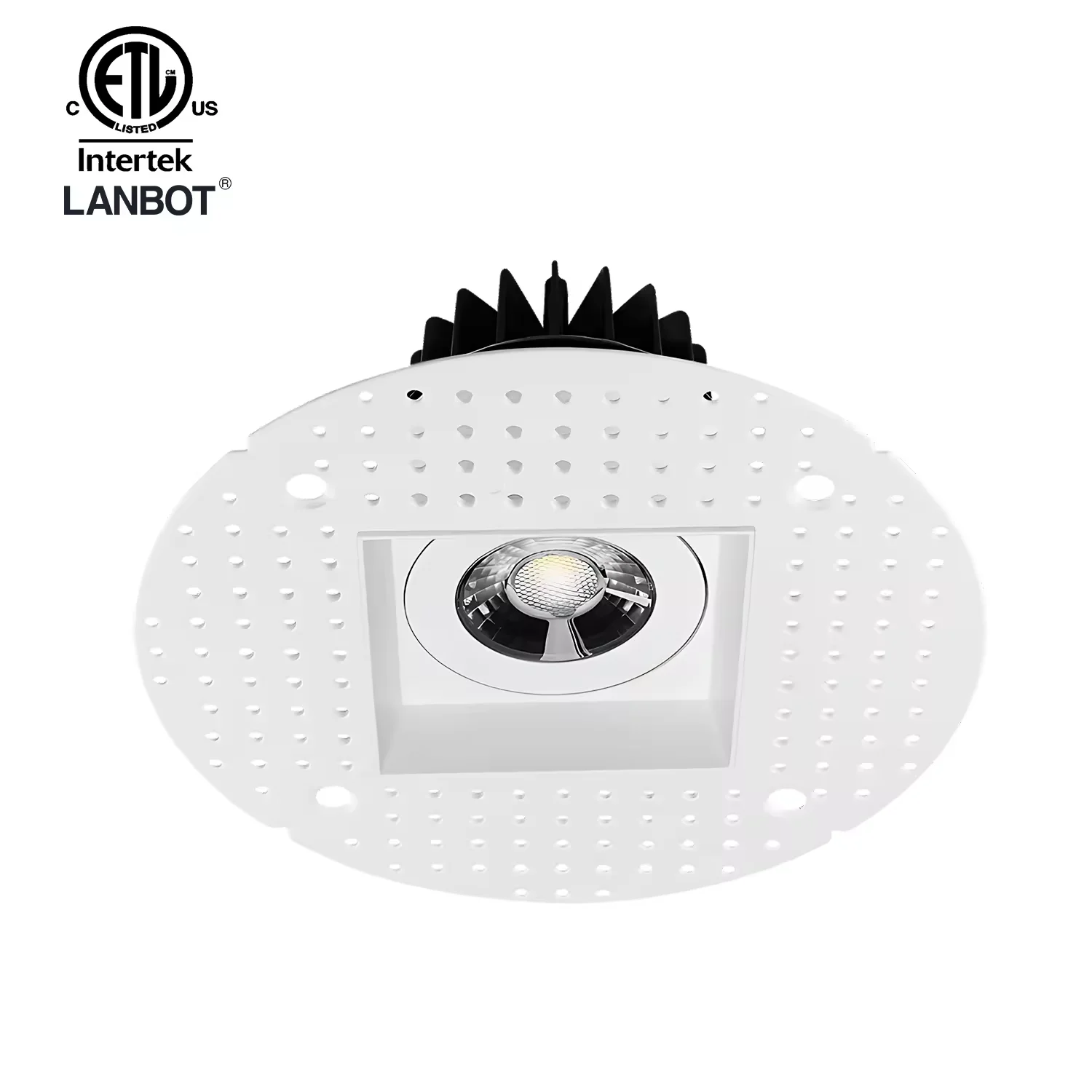

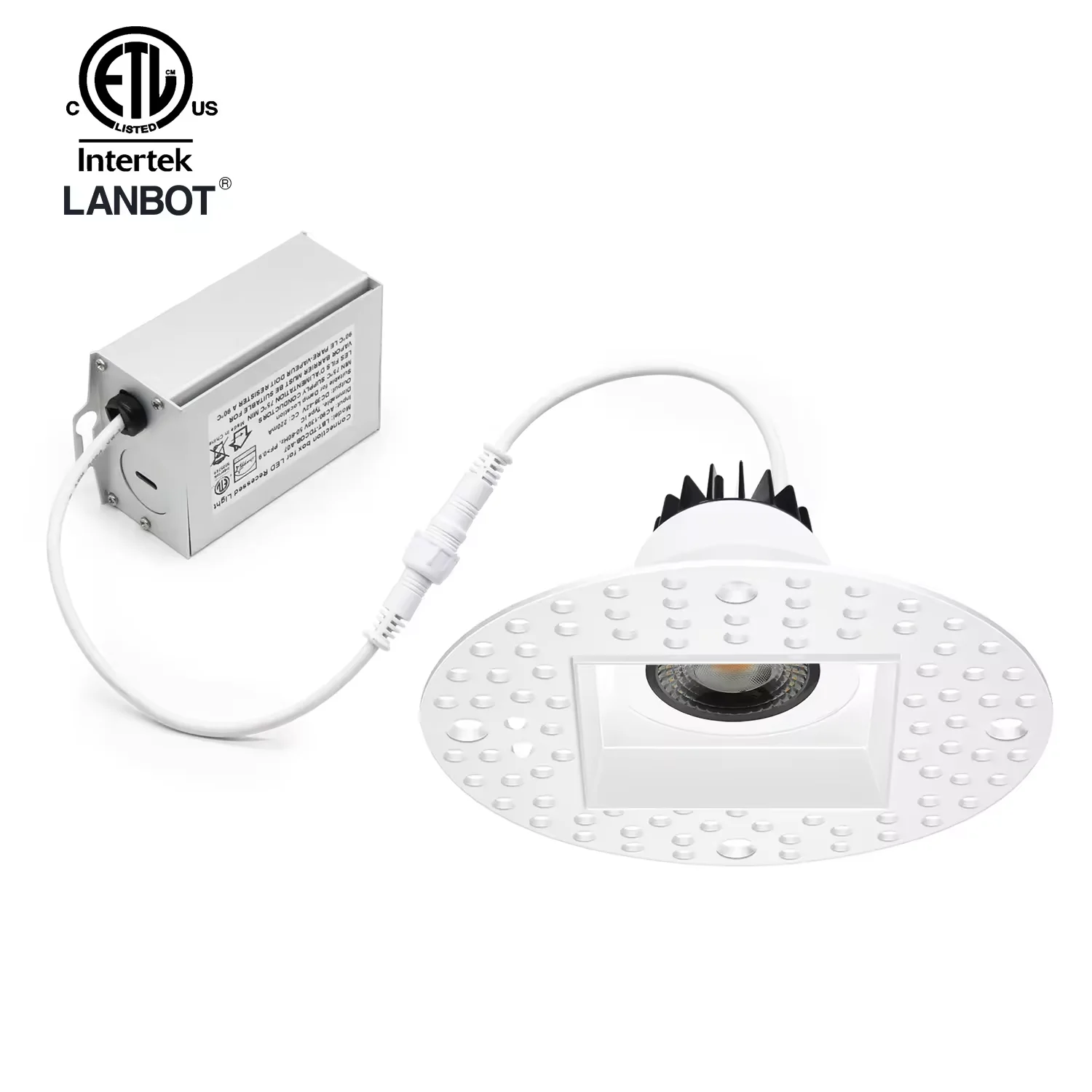

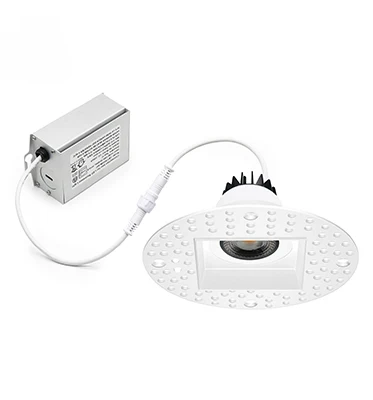

3.5 Inch Square Trimless LED Recessed Downlight 13 Watt 5CCT Selectable, IC & Airtight, RM/NC, Triac/ELV/0-10V
The 3.5 inch Square Trimless LED Downlight / Ceiling Light is a versatile lighting solution for indoor spaces. It operates at
120V/277V/347V, 13W, providing a brightness of 1000-1300 Lumens. This LED downlight also features a high color rendering index (CRI>90) and an integrated COB LED. It offers a key features of this downlight with 5cct selectable color temperature option, which allows for a range of color temperatures to be chosen from (2700K-3000K-3500K-4000K-5000K) to suit different applications. The color temperature can be easily adjusted using the DIP switch on the junction box. It is IC rated and airtight rated and innovative in design and technology, offering a sustainable solution for various
applications with its high lumen output and adaptability. Designed for both residential and commercial spaces the series offers for dry/damp locations for remodel and new construction projects. The fixture installs no housing required for remodel applications. A mounting frame with optional hanger bars is included for new constructions. Housing/bracket is sold separately, and a remote driver is included.




Remodel ,ICAT, 5CCT, Triac/Elv/0-10V
Remodel fixture is designed to be retrofitted into an existing home, such as when a homeowner wishes to accent specific areas of a room or add illumination for ambiance or for task lighting.Remodel fixtures are characterized by the means they receive support. In these fixtures, the housing is pushed into a pre-cut ceiling opening and is then supported by metal clips that go through the housing to contact the top surface of the ceiling (the drywall or paneling).
New Construction ,ICAT, 5CCT, Triac/Elv/0-10V

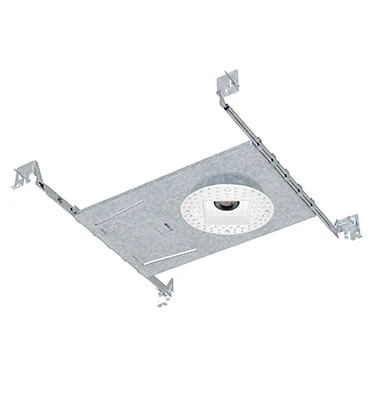

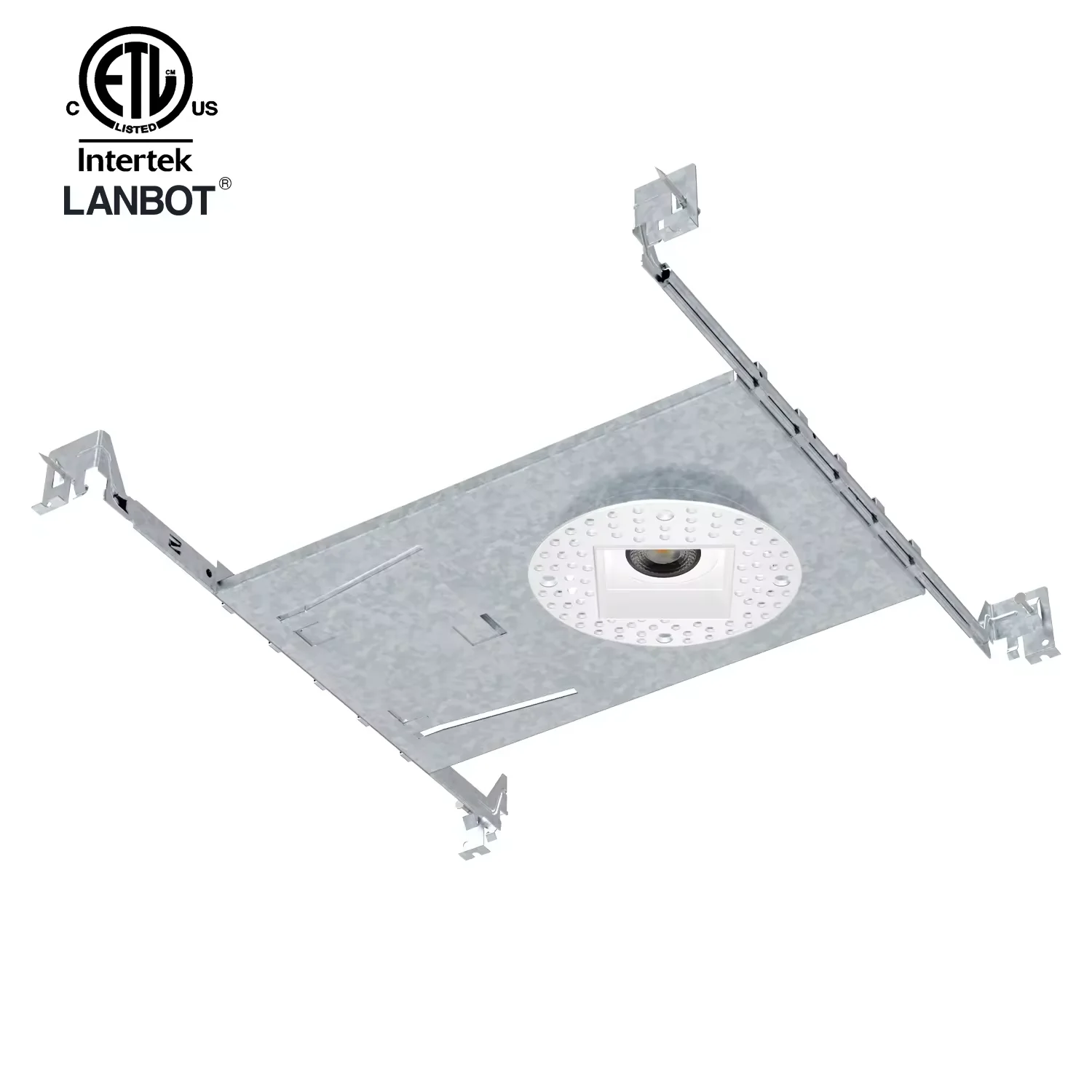

New construction fixtures are attached to ceiling joists before drywall installation, providing sturdy support. They can be used in retrofit applications if there’s access to the area above the fixture, like an attic..if there is attic access, new construction housings can be fitted.There is a benefit to using new construction housings where possible, as there tend to be more choices in styles and trims.

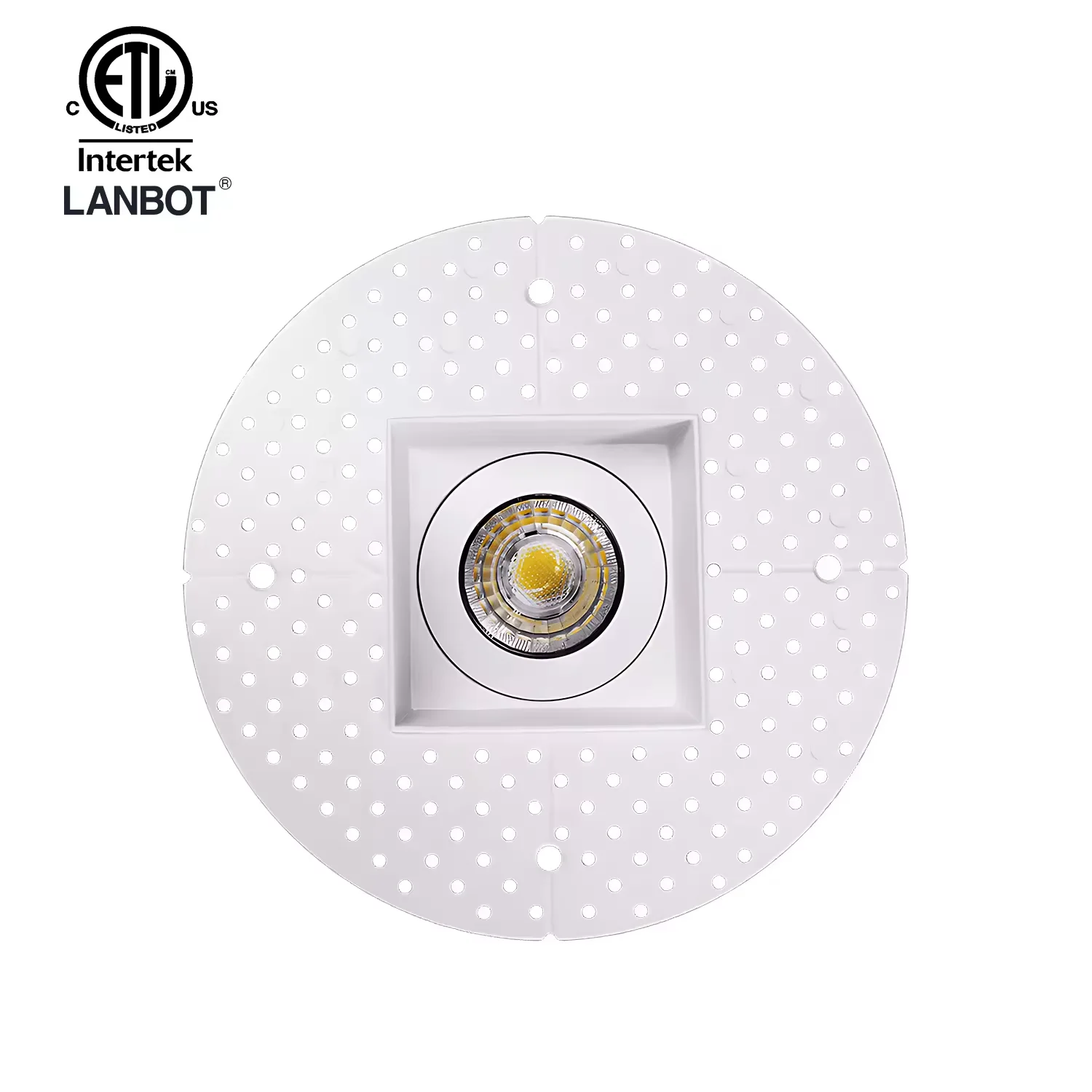

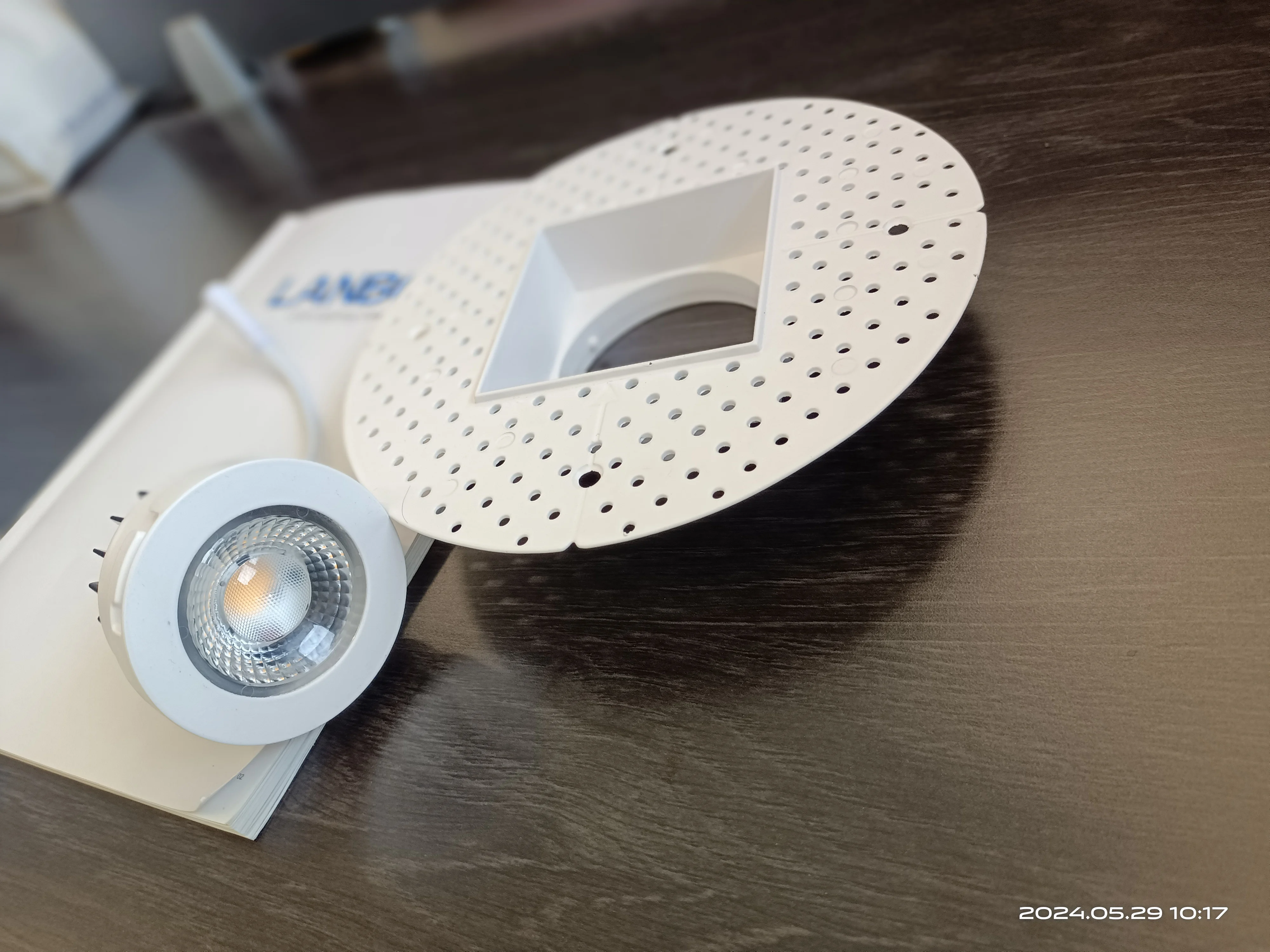

Trimless mesh
Trimless mesh dia 200mmSquare cutout 80mm Black/white/brush nickel/gold/bronze,Silver finish available
LED Heatsink
LED Engine -Modular desigo.
13W 85LPW/100LPW
1CCT/5CCT/WD
CRI: 80Ra/90Ra Optics: 36°Strong
Die casting aluminum material
Strong Quality high end designed Trimless mess perfect to fit ceiling
Easily installed and quick connection
Easily replace engine from trimless kit

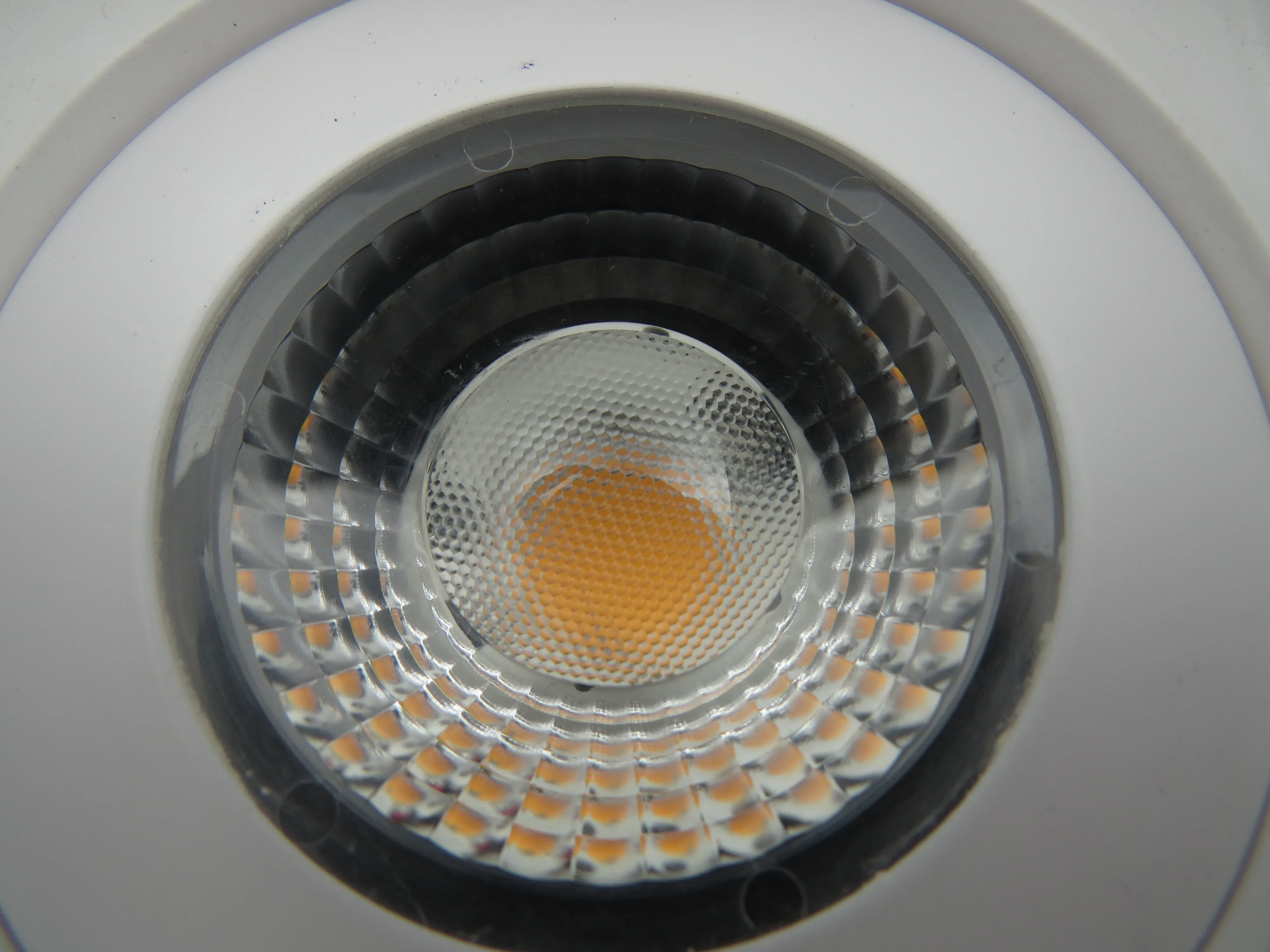

PMMA LENS
Clear PMMA COB LED Lens
95% High TransmittanceBeam Spread :15°/24°/36°/60°
Highly efficient, Anti-glared design
Cost-effective and compatible with various
brands of COB leds.


Features
* Deep regressed elegant design-No Glare * Interchangeable trims with high end finish* Type IC, Air-Tight & Damp/Wet Location
* Canless/No Housing Required
* 3 1/2″ thick – fits in limited ceiling space
* 120V/Triac Dimmable
* 100-277V/347V 0-10V Dimmable
* 5CCT: 2700K, 3000K, 3500K, 4000K, 5000K
* Dim To Warm 3000K to 1800K


Name
3.5" LED Round Trimless Recessed Downlight with Mud-in Flange
Power
13W Max.
Voltage
120V/100-277V/100-347V
Dimmable
Triac/Elv/0-10v DIMMABLE
CCT
1CCT/3CCT/5CCT/Warm Dim
Mounting
Remodel /New construction
CV Scheme
DC12V/24V/36V/48V for POE system
Optics
15°/24°/36°/60°

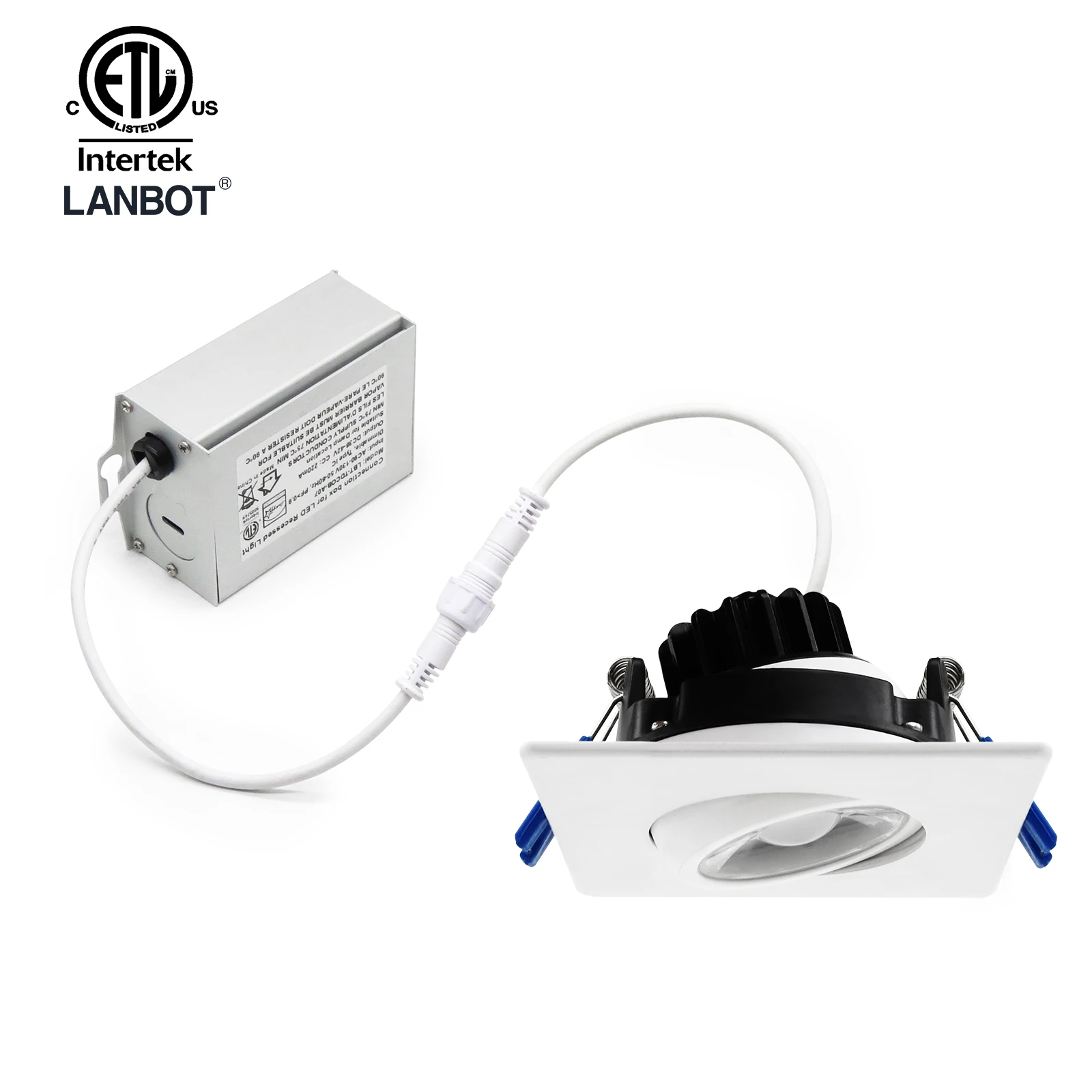

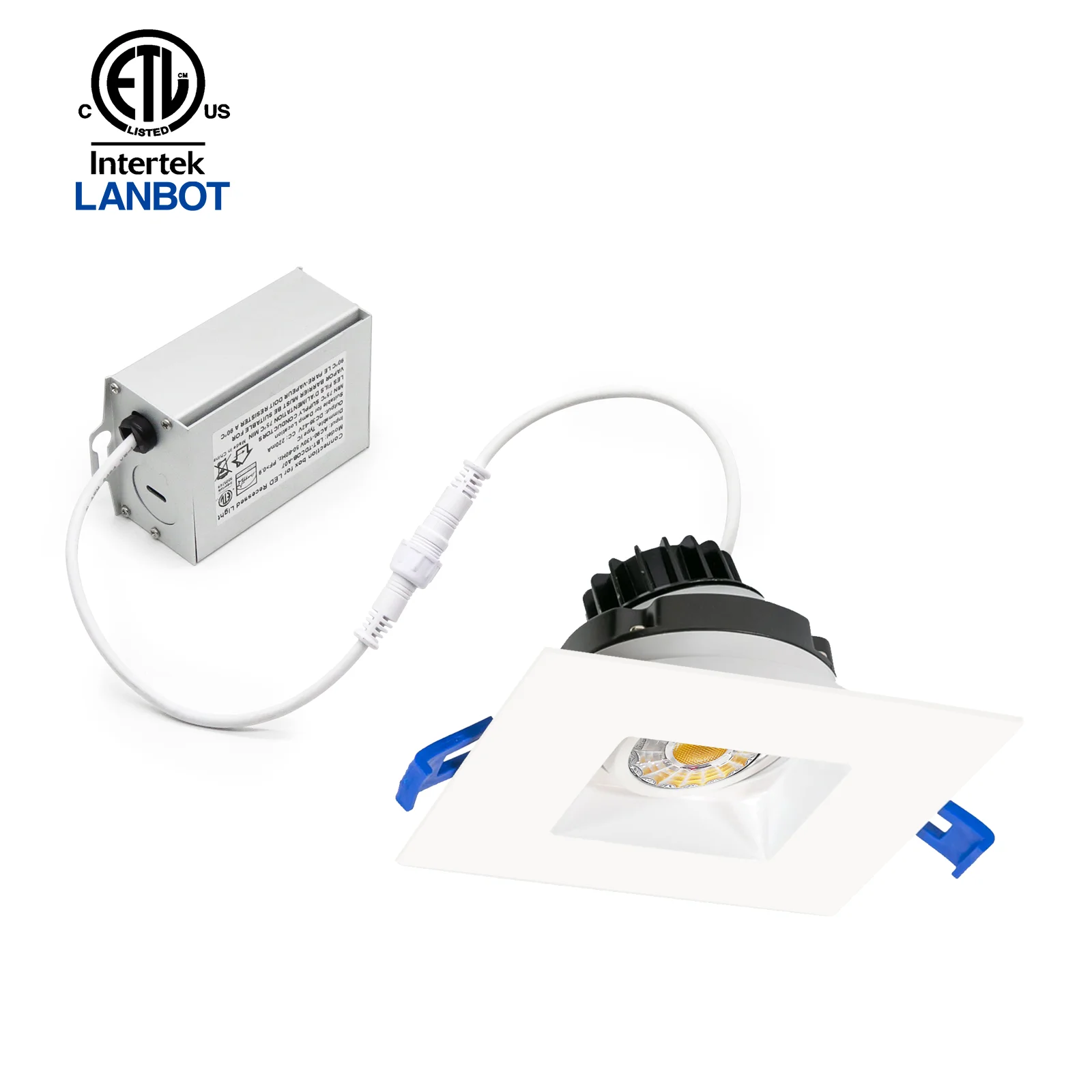

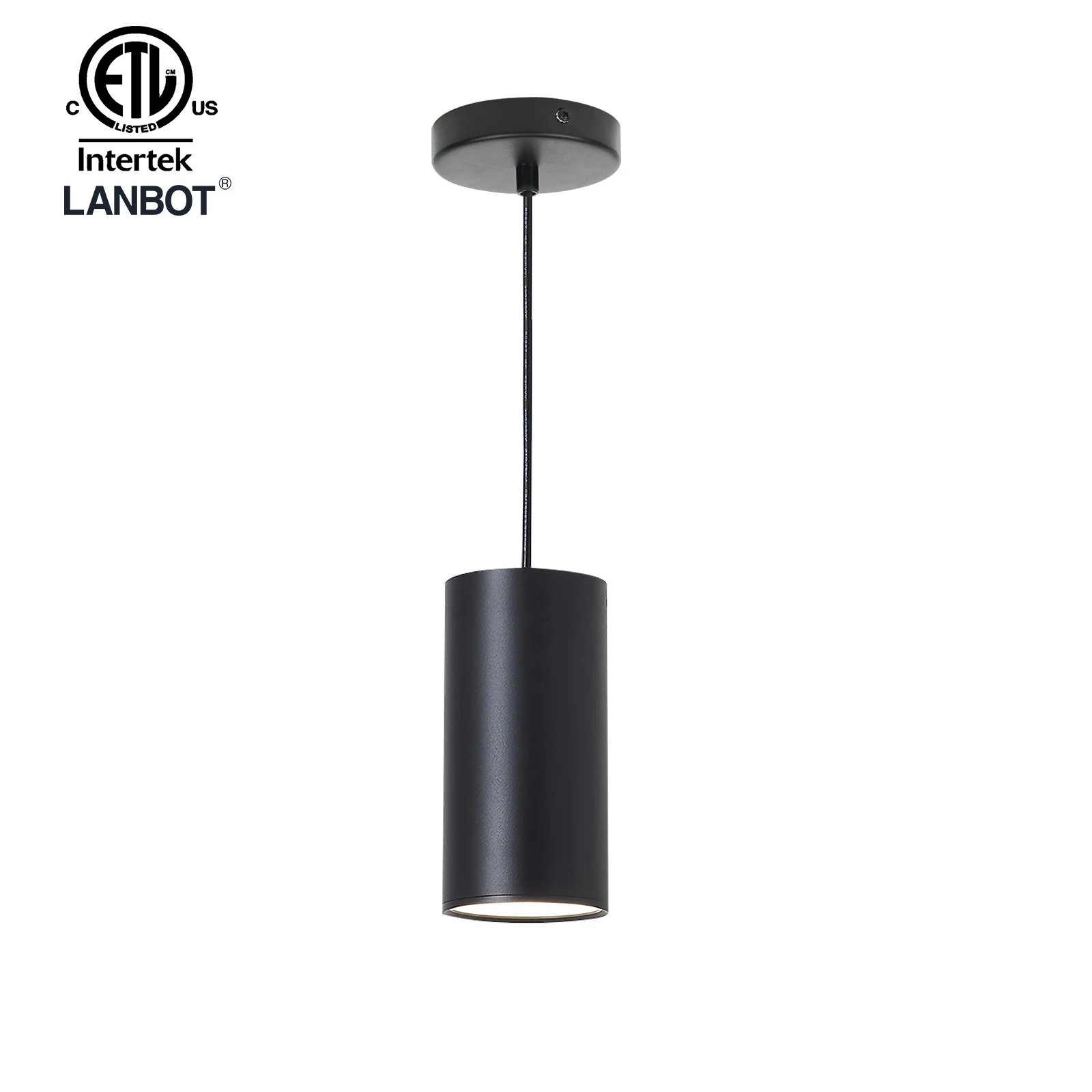

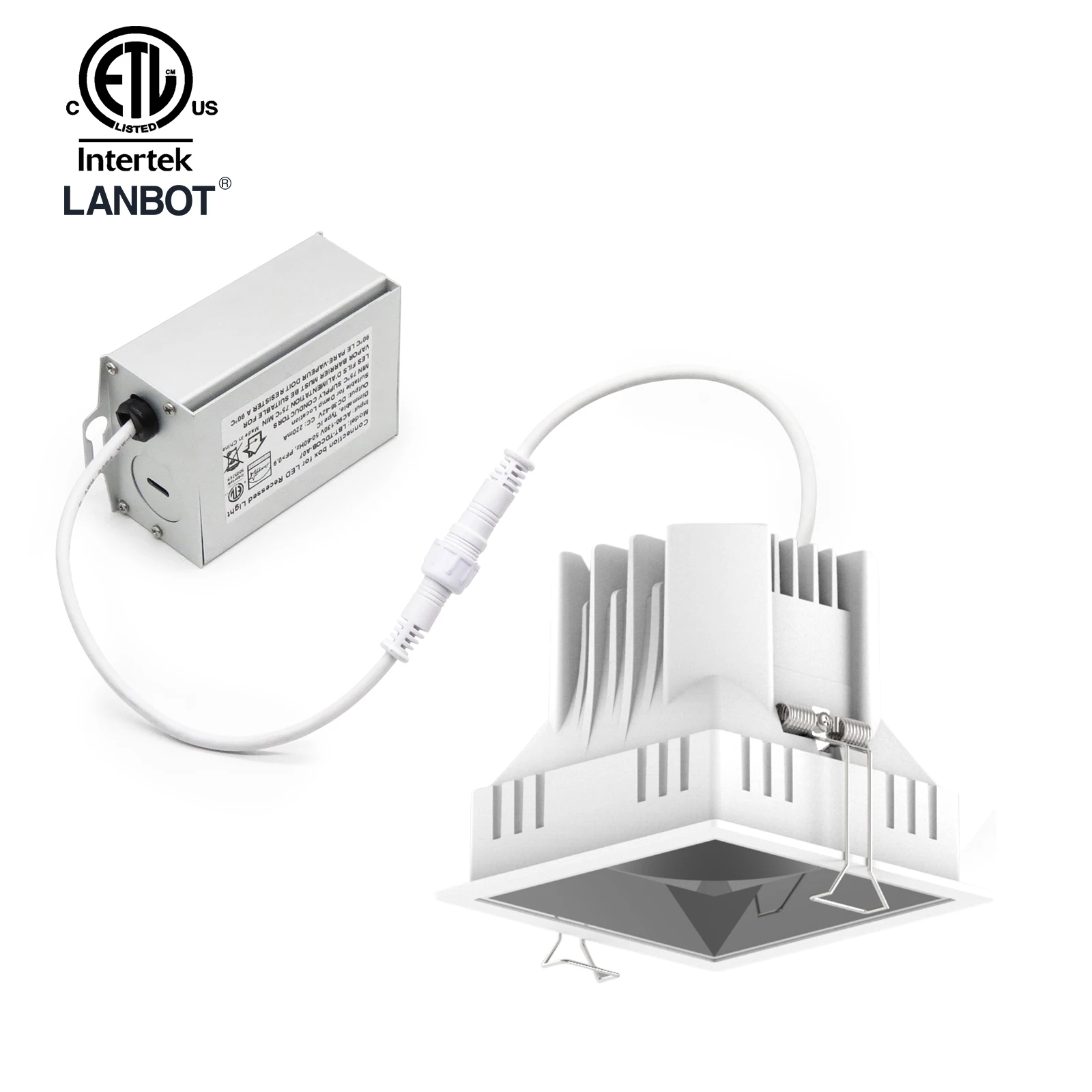

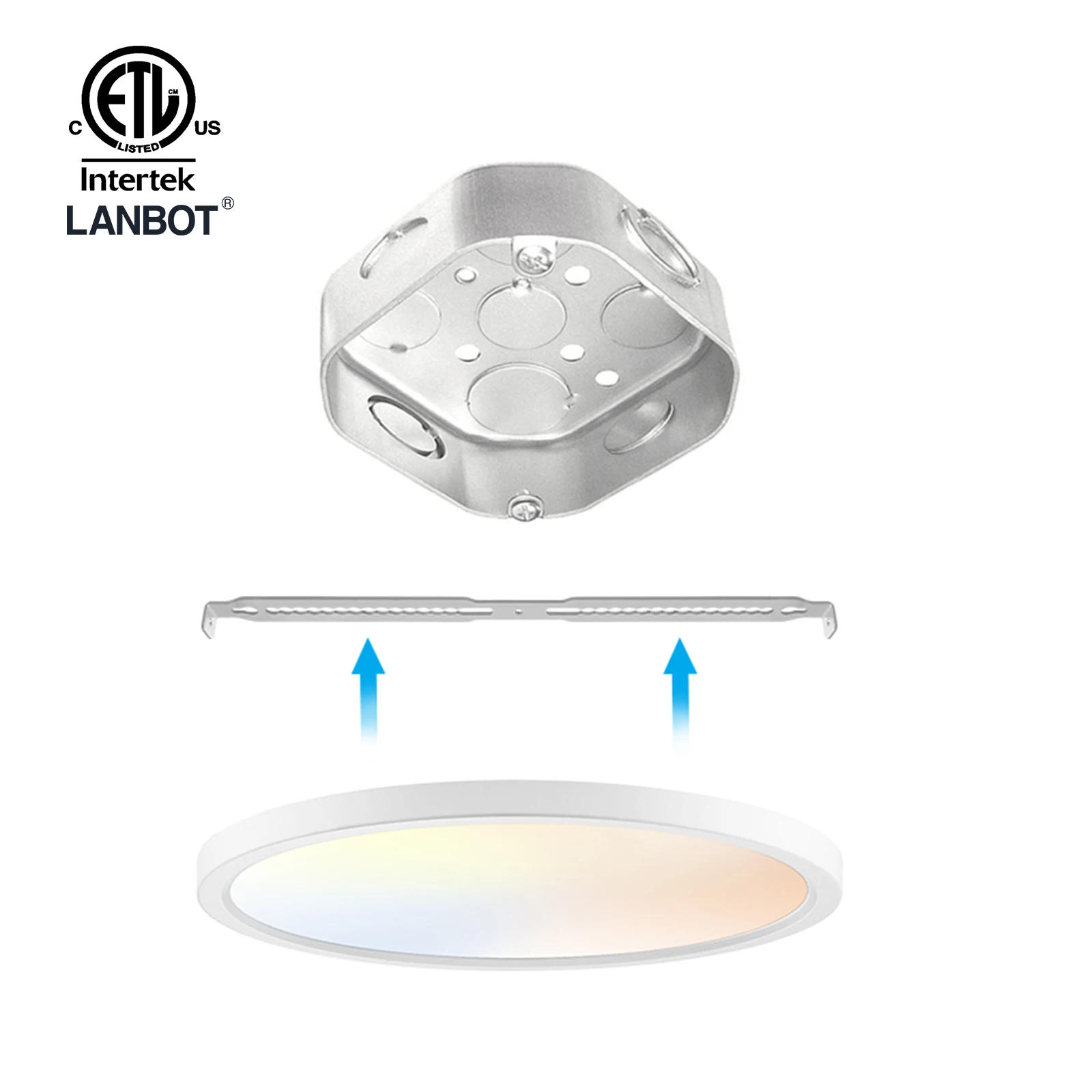

RECOMMENDED OTHER PRODUCTS




















Please don't hesitate to reach out as below if any more jobs to quote, thanks

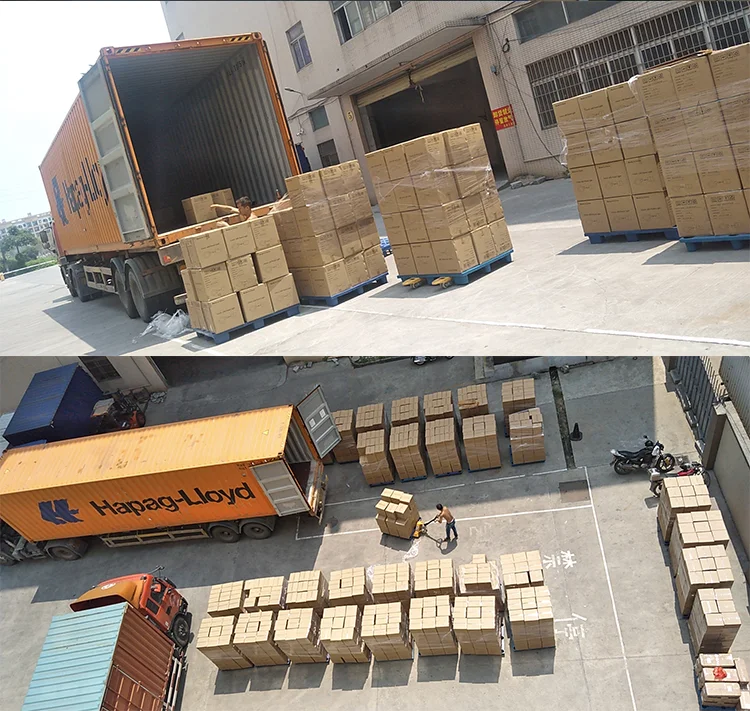

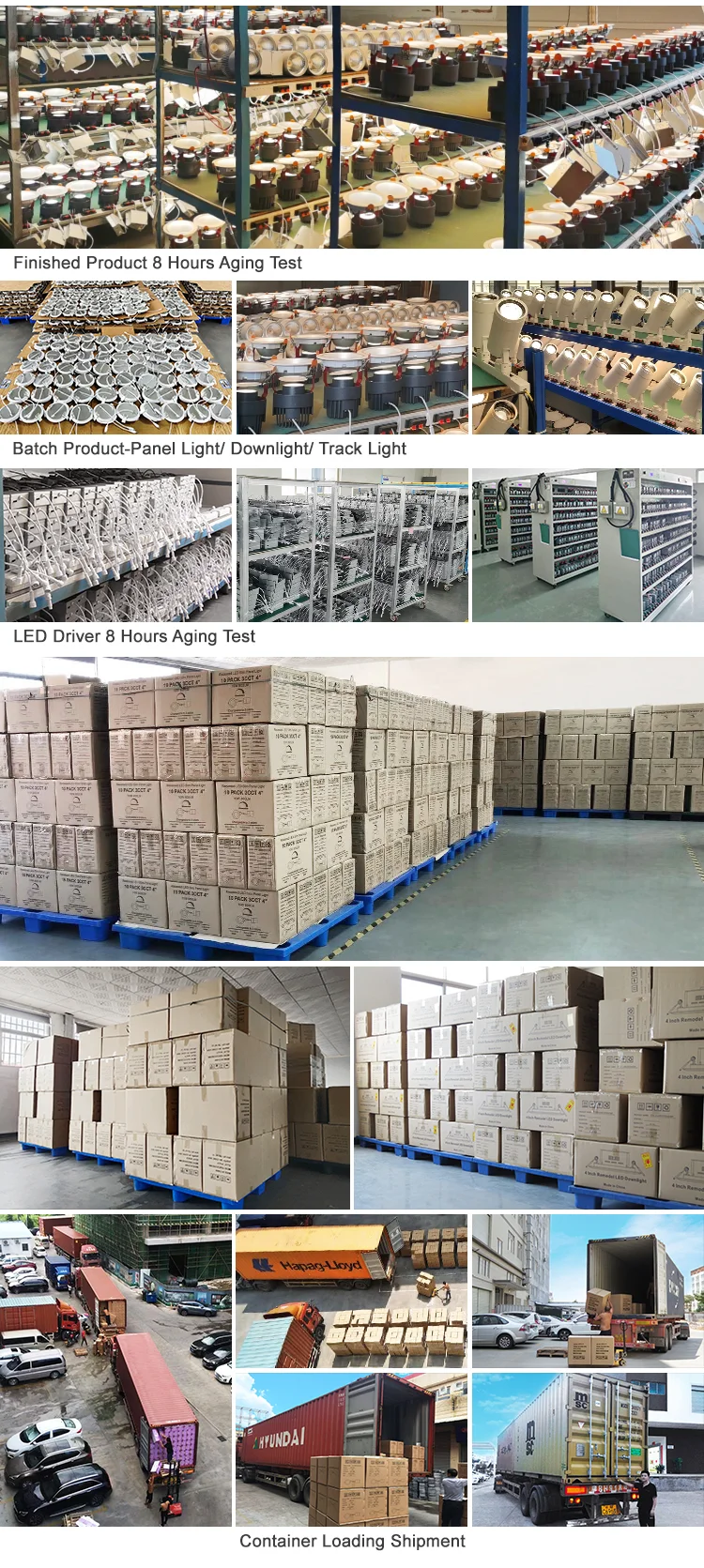

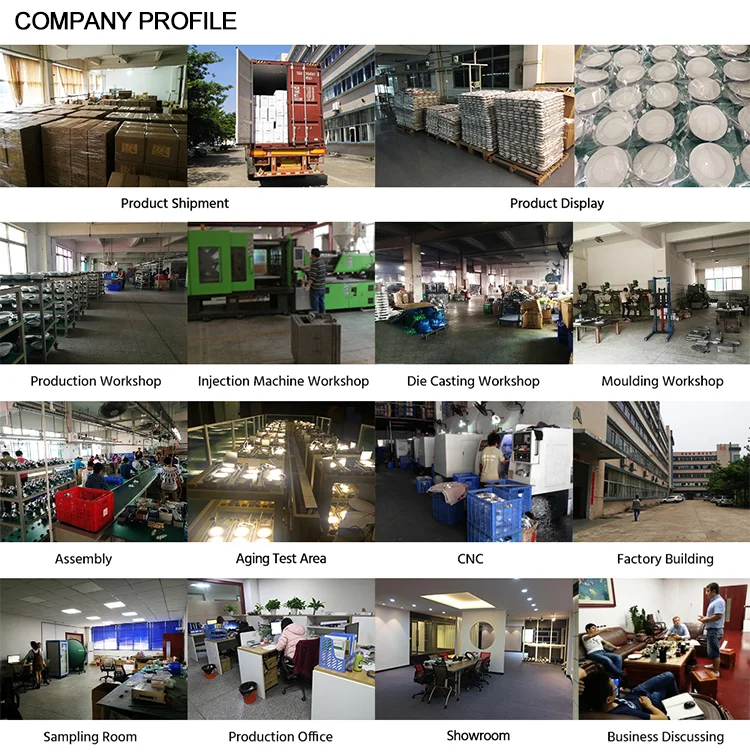

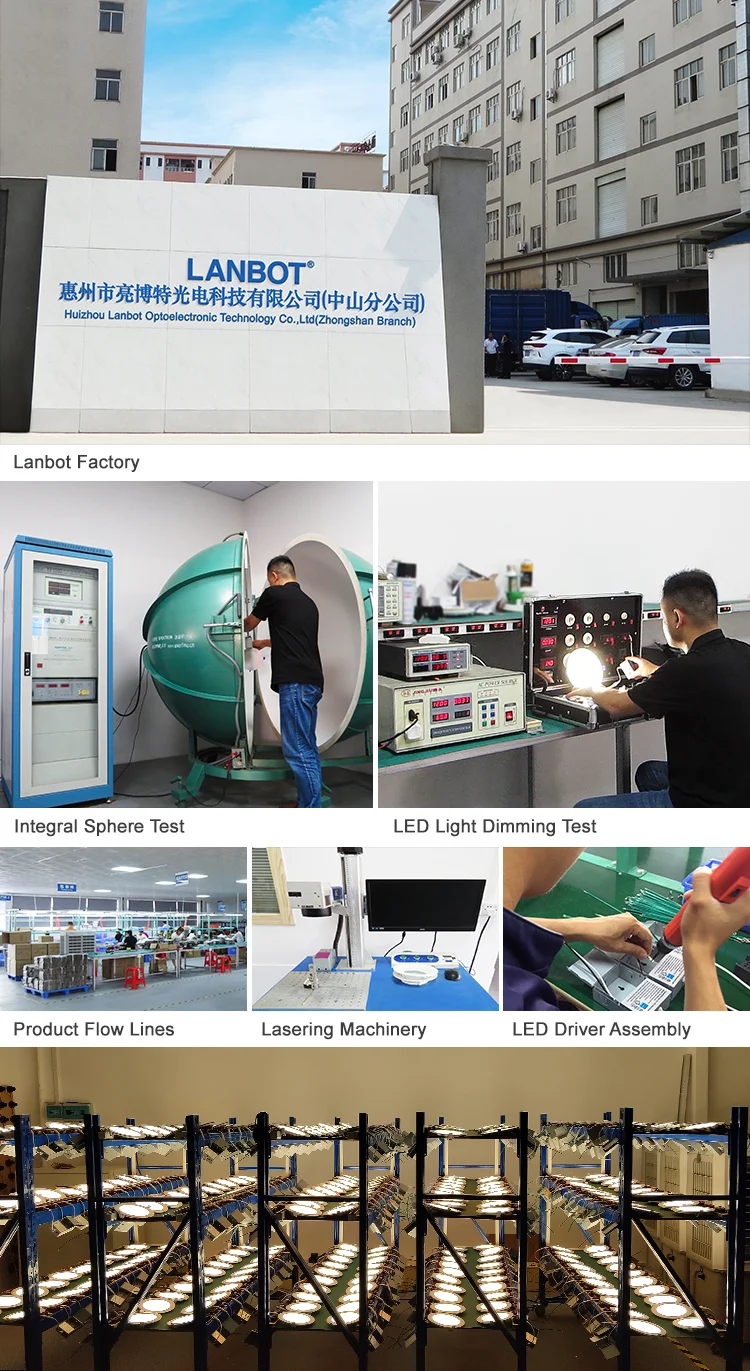

COMPANY PROFILE










2019,2020,2021,2022 HongKong Lighting Fair




FAQ


OEM/ODM/OBM Servics
Customize services are available when needed

Professional team servics
More than 8 years experience R&D and sales engineers would offer best lighting solution for projects

What certification do you have?
Our products are certified with cETL,Energy Star,CE, ROHS etc.

Can I have a sample order before future bulk order?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

How to proceed an order for led light?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Is it OK to print my logo on led light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Do you offer guarantee for the products?
Yes, we offer 5 years warranty to our products.
