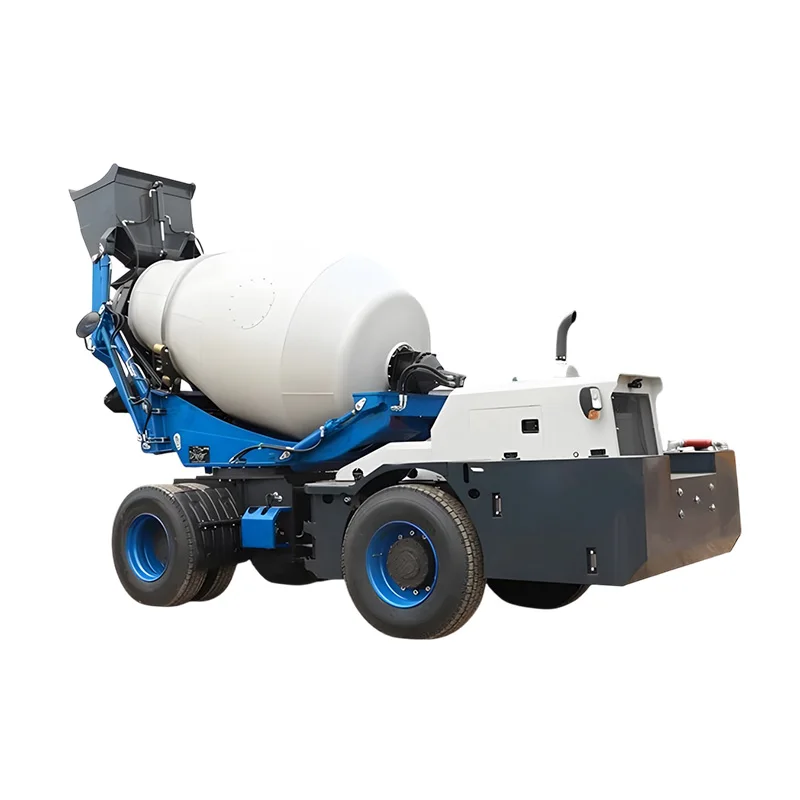

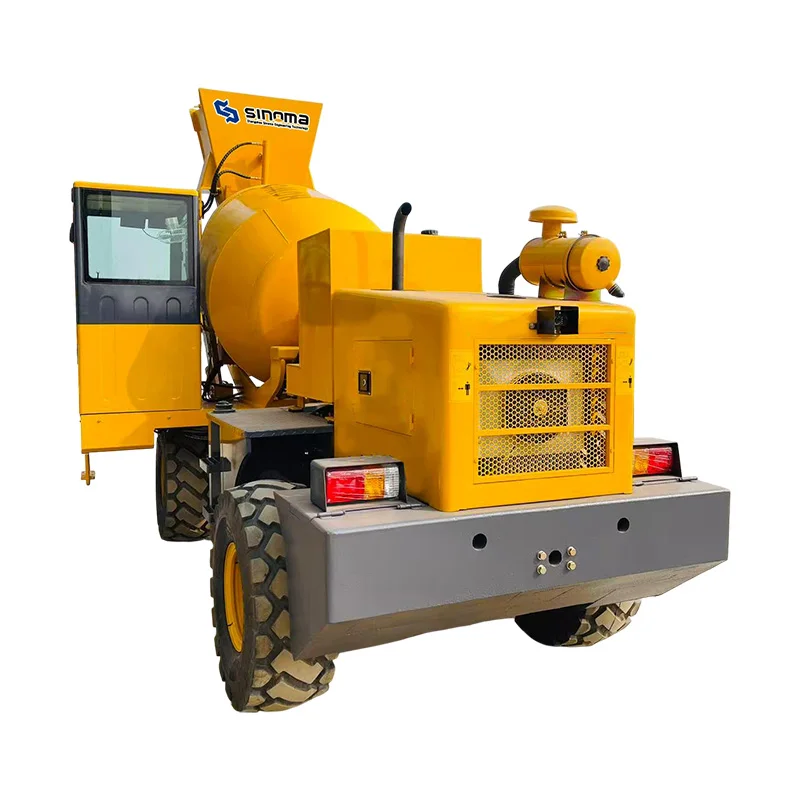

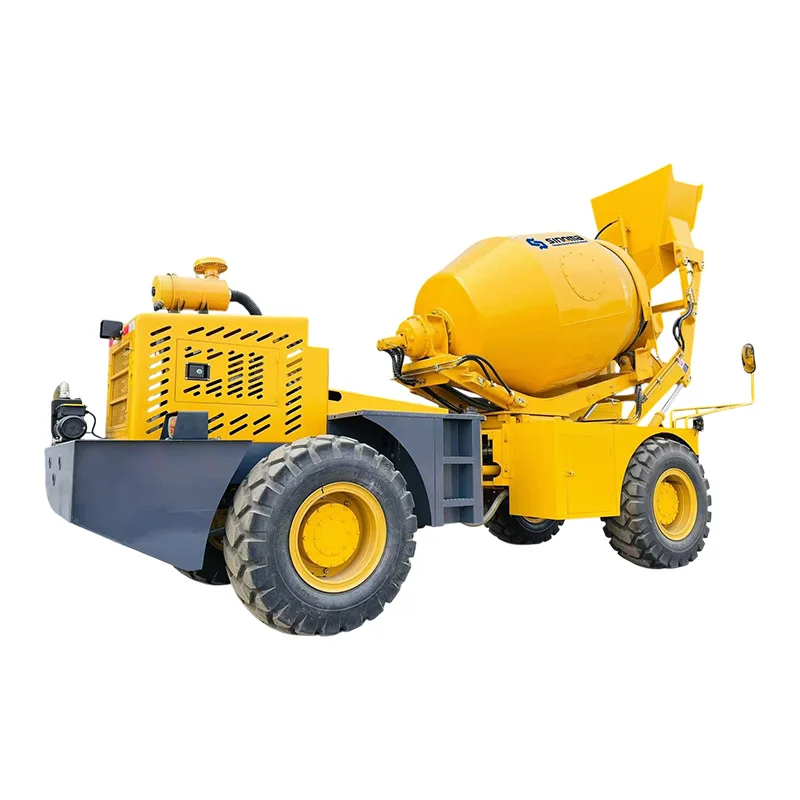

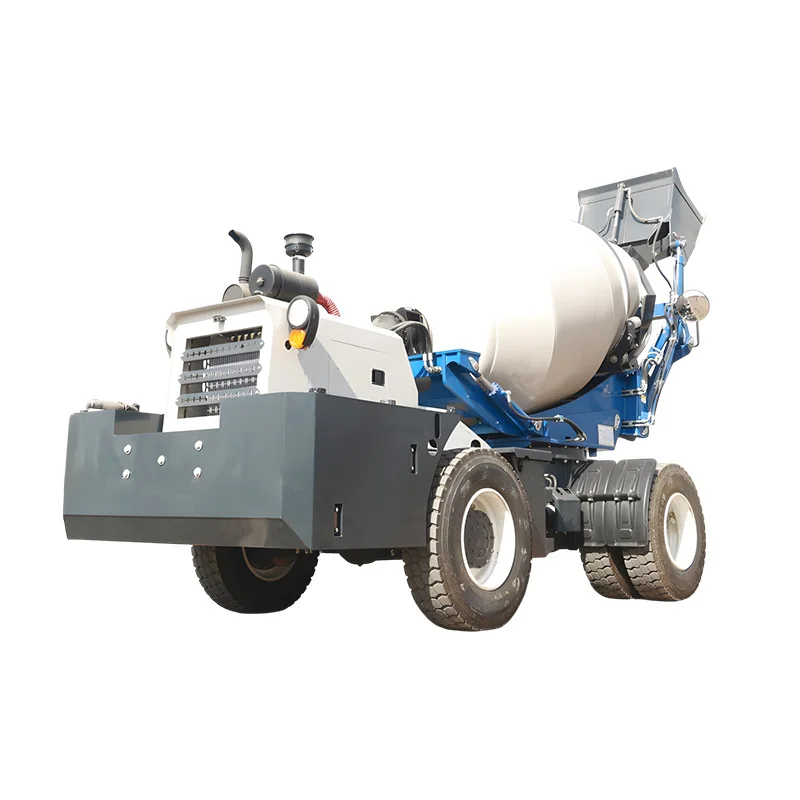

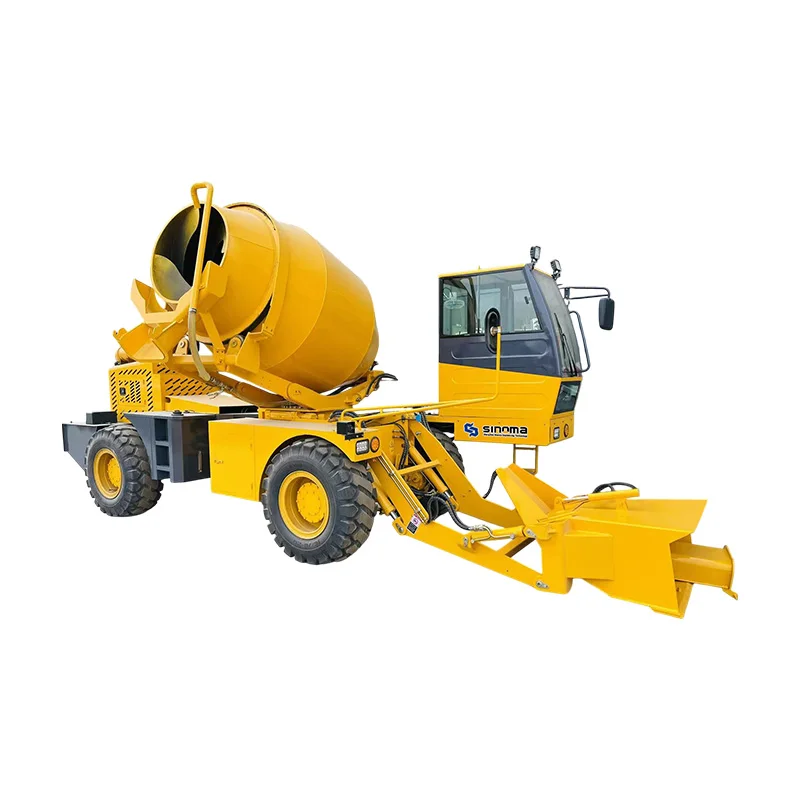

5.5 Cubic Meter Automatic Water Self Loading Cement Concrete Mixer Truck Price Specifications
- Category: >>>
- Supplier: Zhengzhou Sinoma Engineering Technology Co. Ltd.Zhengzhou Ltd.
Share on (1601320619552):
Product Overview
Description
Products Description

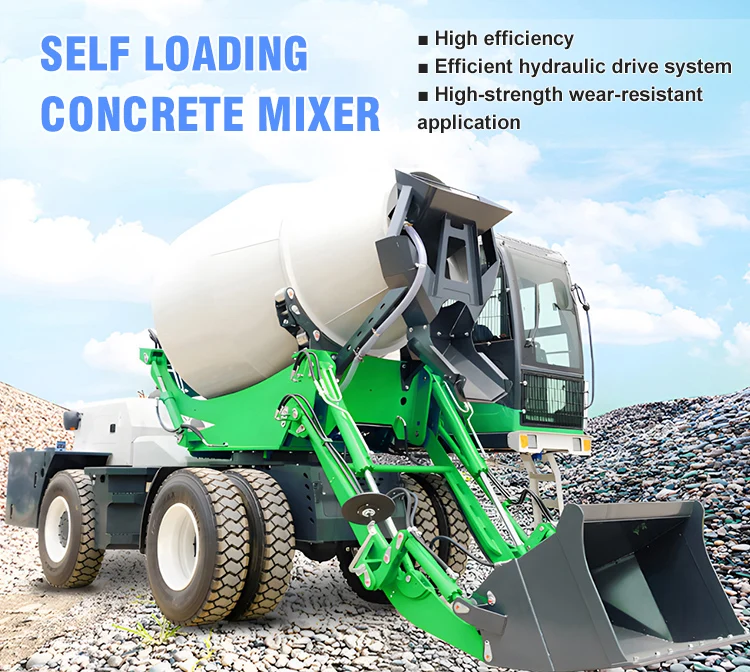

SELF LOADING CONCRETE MIXER TRUCK
Self-loading concrete mixer trucks are widely used in many construction sites, integrating loading, mixing, unloading, transportation and other functions, and can replace small mobile concrete mixing plants.
Compared with traditional concrete mixer trucks, self-loading cement mixer trucks are more flexible and convenient, which can greatly improve work efficiency and productivity, and reduce production time and cost.
Compared with traditional concrete mixer trucks, self-loading cement mixer trucks are more flexible and convenient, which can greatly improve work efficiency and productivity, and reduce production time and cost.
Manufacturing Technique
Model | ZC-1.2 | ZC-1.8 | ZC-2.6 | ZC-3.5 | ZC-4.0 | ZC-5.5 | ZC-6.5 | ||||||
Mixing tank capacity (m³) | 1.2 | 1.8 | 2.6 | 3.5 | 4 | 5.5 | 6.5 | ||||||
Concrete output (m³/h) | 4.8 | 7.2 | 10.4 | 14 | 16 | 22 | 26 | ||||||
Engine power (kW) | 55 | 78 | 78 | 91 | 91 | 110 | 132 | ||||||
Mixer drum capacity (L) | 1700 | 2680 | 3580 | 4740 | 6000 | 7800 | 9000 | ||||||
Water tank (L) | 400 | 500 | 500 | 620 | 920 | 860 | 1465 | ||||||
Weighing method | Automatic hydraulic weighing system | ||||||||||||
Max. Speed (km/h) | 30 | 35 | 30 | 30 | 35 | 42 | 40 | ||||||
Min. turning radius (mm) | 4700 | 3250 | 5300 | 5300 | 4800 | 6200 | 4800 | ||||||
Drum speed (r/min) | 13 | 13 | 13 | 13-20 | 17 | 20 | 20 | ||||||
Fuel tank (L) | 63 | 75 | 75 | 120 | 120 | 180 | 342 | ||||||
Wheel base (mm) | 2300 | 2750 | 2800 | 2900 | 2480 | 3350 | 2850 | ||||||
Hydraulic tank (L) | 63 | 75 | 75 | 120 | 120 | 180 | 274 | ||||||
Product Feature:
1. Convenient loading
2. Uniform mixing
3. Efficient transportation
2. Uniform mixing
3. Efficient transportation
4. Strong mobility
5. Adaptable to multiple working conditions
6. Convenient and durable
5. Adaptable to multiple working conditions
6. Convenient and durable

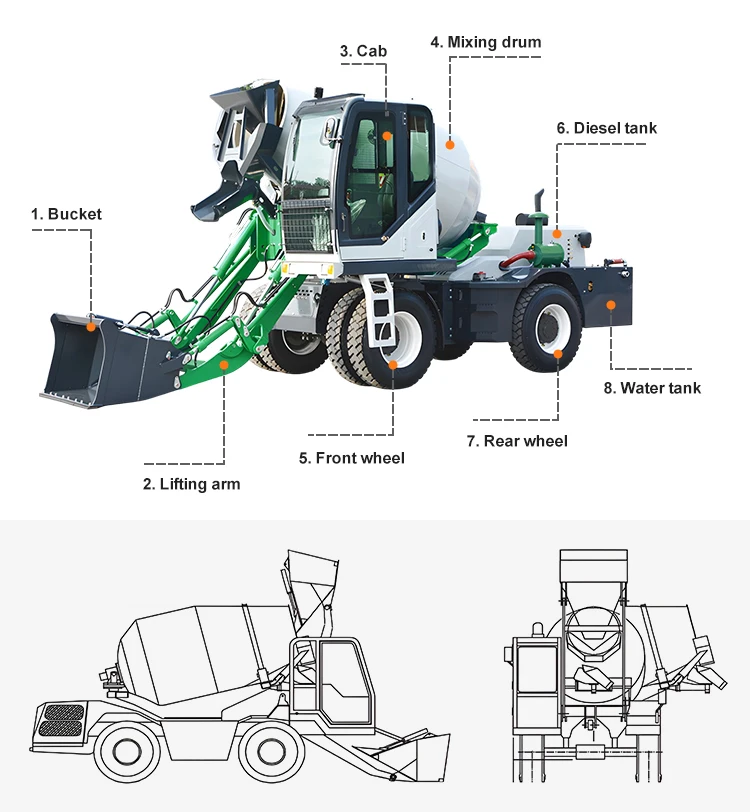

Product Structure

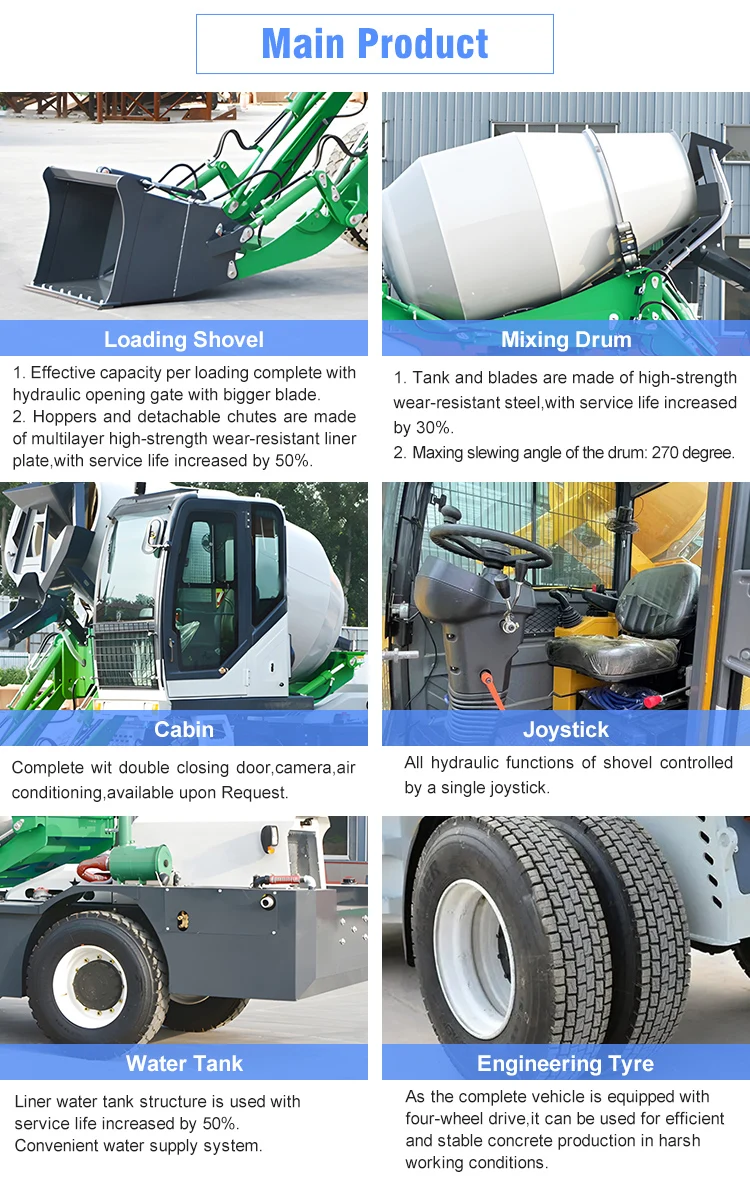

The mixer mainly consists of Bucket, Lifting arm, cab, mixing drum, Diesel tank, Water tank, solid tires.
①Loading: Based on the unique articulated hydraulic shovel, the ingredients can be loaded easily and accurately. The built-in blade of the bucket can automatically cut the cement bag to avoid the waste of raw materials. All the ingredients can be smoothly and quickly entered into the mixing drum from the bucket.
②Mixing: After the aggregate and cement enter the mixing drum, they can be perfectly mixed through the automatic pressurized water flow in the double water tank. The unique double screw blade ensures the mixing quality and the quality of the concrete (electronic weighing system can be equipped)

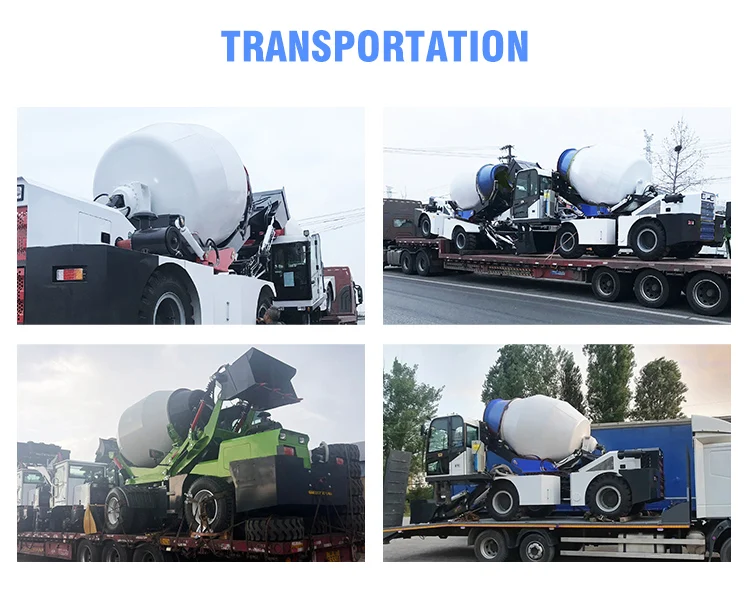

③Transporting: Four-wheel drive hydraulic transmission device and good configuration can be suitable for transportation in any site, so that it can crawl on a slope of 30° under full load.
④Unloading: The operator can use the joystick to pour concrete in 4 directions around the vehicle and at a height of 2m or more through the 270° rotating mixing drum.
②Mixing: After the aggregate and cement enter the mixing drum, they can be perfectly mixed through the automatic pressurized water flow in the double water tank. The unique double screw blade ensures the mixing quality and the quality of the concrete (electronic weighing system can be equipped)
③Transporting: Four-wheel drive hydraulic transmission device and good configuration can be suitable for transportation in any site, so that it can crawl on a slope of 30° under full load.
④Unloading: The operator can use the joystick to pour concrete in 4 directions around the vehicle and at a height of 2m or more through the 270° rotating mixing drum.

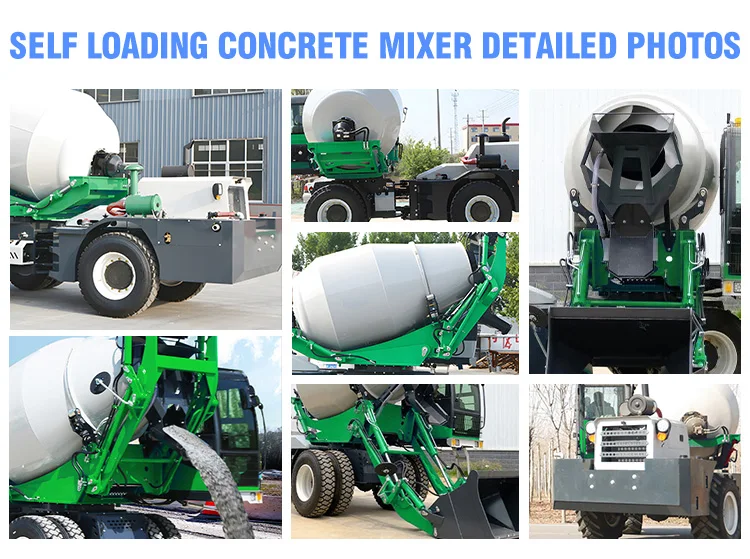

Details Images

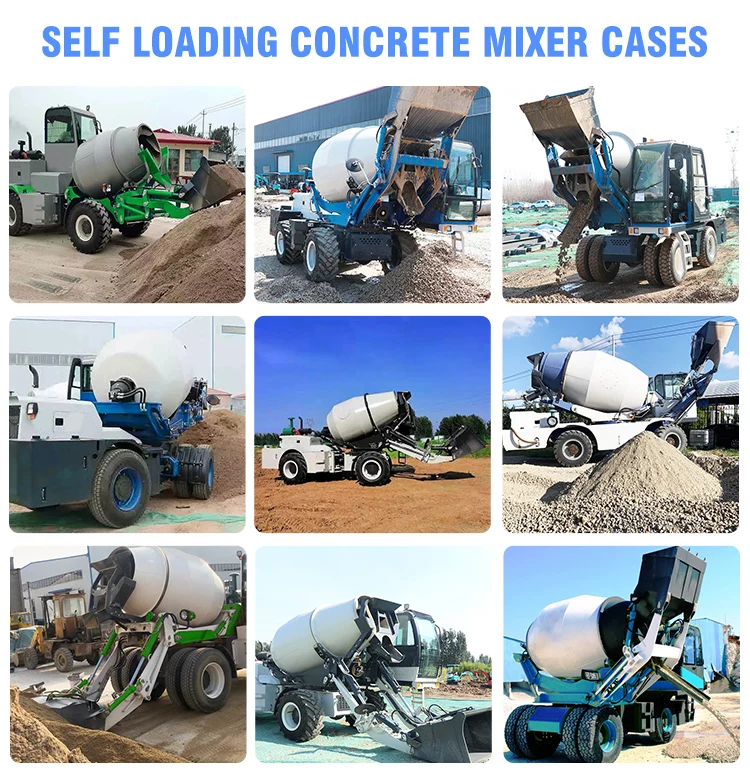

Production Line Cases
Self-loading concrete mixer truck can be used in concrete road maintenance, bridge and tunnel construction, township-level road construction, national defense facility base construction, high speed railway construction. Construction and maintenance and other special concrete structures far away from the commercial concrete mixing plant.
Product packaging
Company Profile

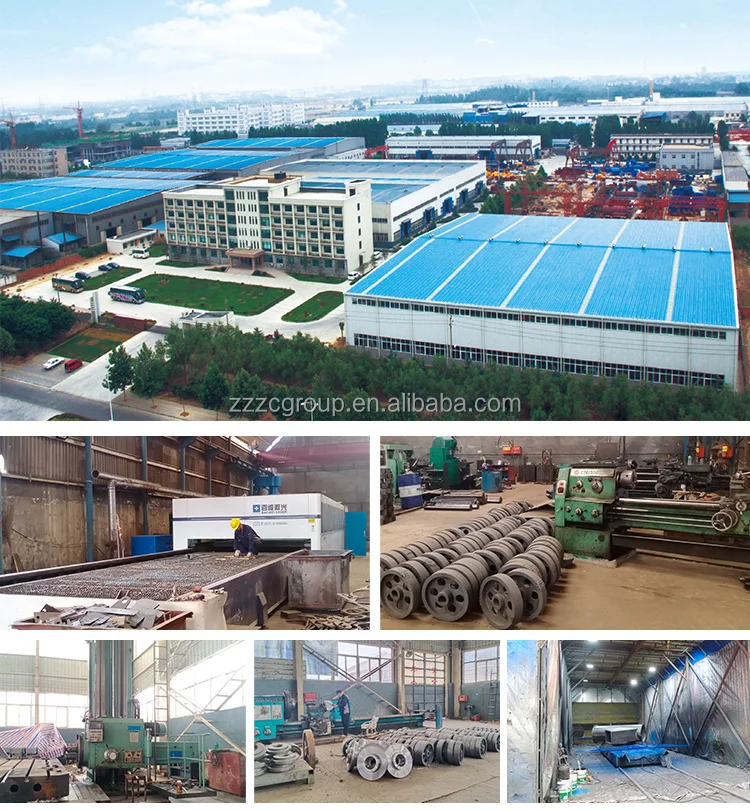

Zhengzhou Sinoma Engineering Technology Co., Ltd. is a large-scale equipment manufacturer that integrates researching & development, production and sales together. We provide concrete machinery, mill machine and stone crushing machinery, including: concrete batching plant, concrete mixer with pump, concrete mixer truck, vertical mill, Raymond mill, ball mill, jaw crusher, impact crusher, cone crusher, VSI sand maker, vibrating screen, etc...
Our equipment is widely used in building, mining, construction industry. We are the largest EPC new sand gravel aggregate production line supplier in China.
FAQ
1. What is your payment method?
The payment methods can be discussed with our sales manager up to you.
6. How about the service?
24 hours online service, various language support, professional technical team to solve all your problems and engineers can be oversea to guide the installation on site.
The payment methods can be discussed with our sales manager up to you.
2. How is the product packaged and shipped?
The package is suitable for oversea exporting. We can also choose a special package depending on your needs.
The package is suitable for oversea exporting. We can also choose a special package depending on your needs.
3. How long is the production time?
In stock, can be shipped anytime. And it can also be customized according to your requirements
In stock, can be shipped anytime. And it can also be customized according to your requirements
4. How long is the warranty? Does your company supply the spare parts?
1-3 year. We supply spare parts for you with lowest price.
1-3 year. We supply spare parts for you with lowest price.
5. If I need a complete project, can you help us to build it?
Definitely. We can help you to set up a complete production line and give the best professional design. We have already set up over 500 projects in China & Overseas.
Definitely. We can help you to set up a complete production line and give the best professional design. We have already set up over 500 projects in China & Overseas.
6. How about the service?
24 hours online service, various language support, professional technical team to solve all your problems and engineers can be oversea to guide the installation on site.
