SHANTUI 16 Ton Single Drum Vibratory Road Roller SR16 B6
- Category: >>>
- Supplier: Zhengzhou Komatco Industrial Equipment Co. Ltd.Zhengzhou Ltd.
Share on (1601320643790):
Product Overview
Description
Overview
Contact Person
Products Description
SHANTUI 16 Ton Single Drum Vibratory Road Roller SR16-B6
Configuration Selling Point
The engine for the roller developed by the Group matches well with Linde high-pressure heavy-duty closed-circuit vibration hydraulic system for fuel saving, high efficiency and large excitation force so that it can easily cope with heavy-load working conditions, with small fluctuations and rapid vibration start; Shantui patented vibrating drum is of “three-in-one” design to improve the compaction flatness.
Ease Of Maintenance And Operation Comfort
The large space cab of new appearance without A-pillar guarantees unobstructed vision and comfortable operation; the engine and gearbox are inverted for easy maintenance; the filter elements are centrally arranged, and the oil drain of the engine and the water outlet of the water tank are led outward for easy maintenance.
Adaptability To Diverse Working Conditions
It is suitable for the compaction of the base course and sub-base course of large-scale projects such as highways, railways and airports, and can compact the non-adhesive materials and semi-adhesive materials such as sand, gravel, crushed stone, rock fill, etc. It can be equipped with optional lugs, with a variety of functions, which is suitable for clay and other working conditions.
The engine for the roller developed by the Group matches well with Linde high-pressure heavy-duty closed-circuit vibration hydraulic system for fuel saving, high efficiency and large excitation force so that it can easily cope with heavy-load working conditions, with small fluctuations and rapid vibration start; Shantui patented vibrating drum is of “three-in-one” design to improve the compaction flatness.
Ease Of Maintenance And Operation Comfort
The large space cab of new appearance without A-pillar guarantees unobstructed vision and comfortable operation; the engine and gearbox are inverted for easy maintenance; the filter elements are centrally arranged, and the oil drain of the engine and the water outlet of the water tank are led outward for easy maintenance.
Adaptability To Diverse Working Conditions
It is suitable for the compaction of the base course and sub-base course of large-scale projects such as highways, railways and airports, and can compact the non-adhesive materials and semi-adhesive materials such as sand, gravel, crushed stone, rock fill, etc. It can be equipped with optional lugs, with a variety of functions, which is suitable for clay and other working conditions.
Product Paramenters
Item | Data |
External dimensions(mm) | 6780*2305*3310 |
Engine brand | WP6 |
Power/speed(kW/rpm) | 129/2200 |
Operating weight(kg) | 16000 |
Front and rear load distribution | 8500/7500 |
Vibration frequency low/high(Hz) | 30/36 |
Minimum turning radius(mm) | 7260 |
Excitation force(kN) | 300/200 |
Amplitude(mm) | 1.95/0.95 |
Gradeability | 0.5 |
Speed(km/h) | 0-4.9/0-7.5 |
Emissions (Indicated as per China standards) | Eu stage III |

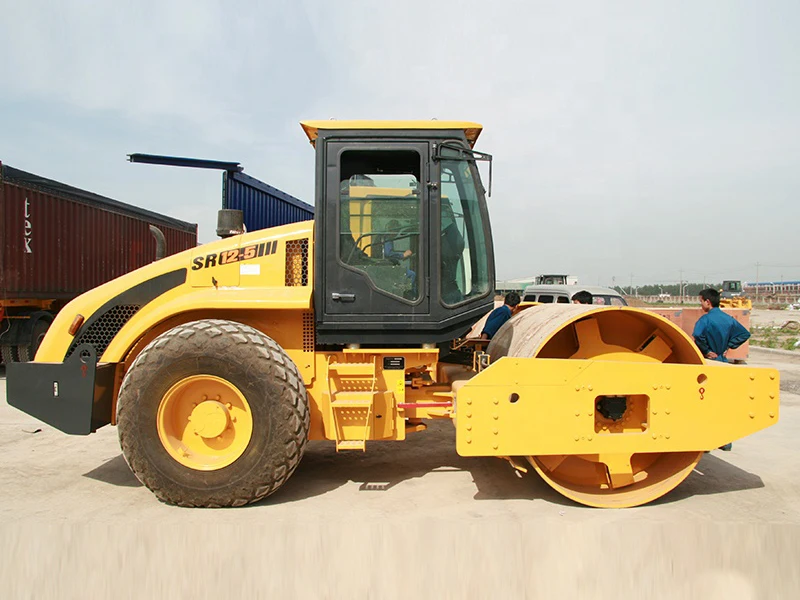

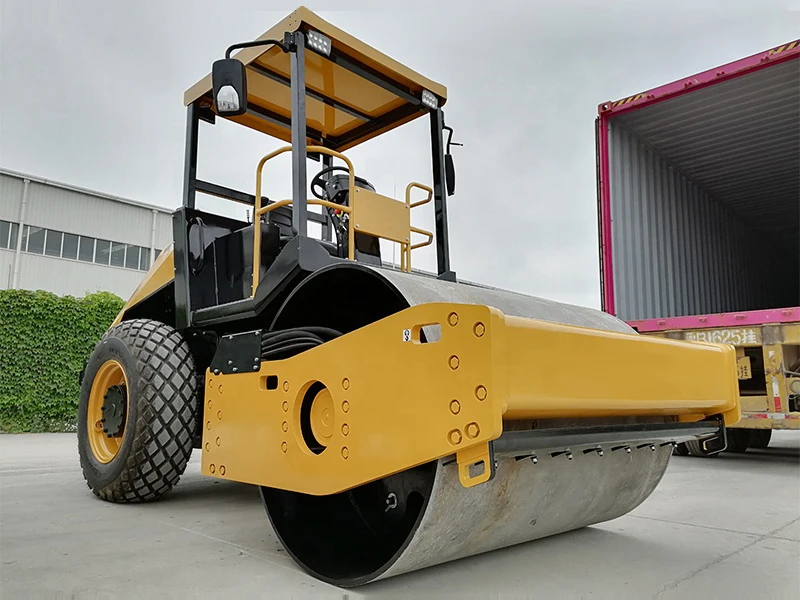

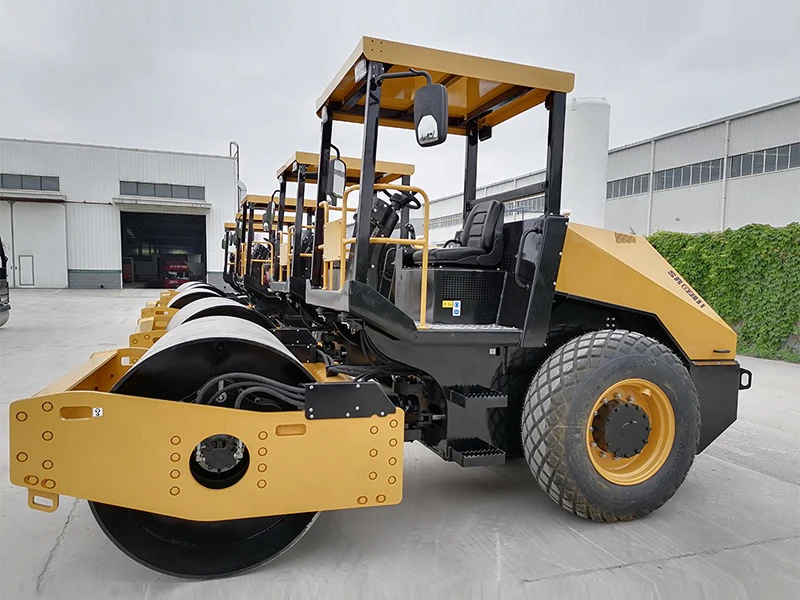

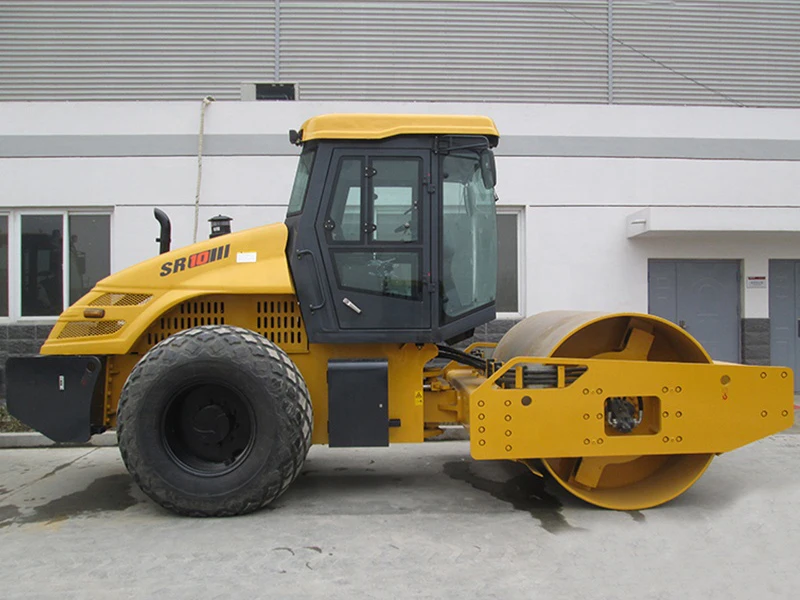

Details Images
