CE 3 Ton 5 Ton Heavy Duty Hydraulic Crawler Spider Crane With Telescopic Boom

Share on (1601320664775):


Price:$6,000.00-8,000.00

Quantity:


Product Overview

Description


 Crawler Mini Spider Crane



Mini-crawler cranes are the latest must-have tool for the glazing, steel erection, and construction industries. YILU Spider cranes offer a compact design that allows for operation in confined areas. The smaller models can travel through a standard width door in their travel position, while other models can fit through a standard double door.

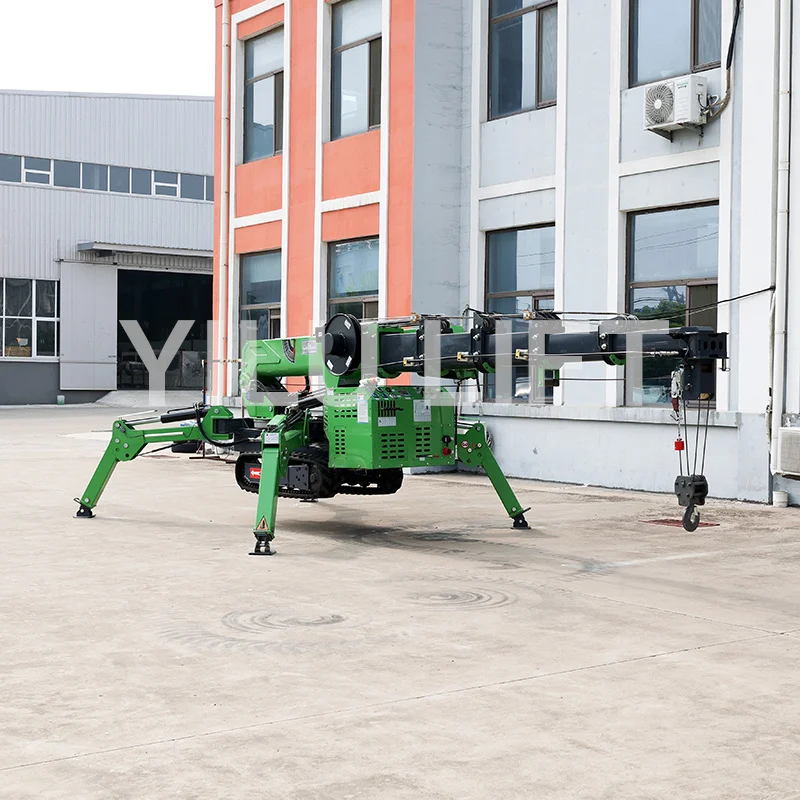

CL10.0-2405 (1)




  • Features & Advantages


1. The Crawler Spider Crane for moving loads quickly, easily, and safely.

2. Spider crane, suitable for occasions with limited space.

3. The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane.

4. The main arm is 4-5 sections. The main arm section adopts a U-shaped structure. The single-st

age telescopic oil cylinder and the wire rope telescopic mechanism can realize the synchronous

expansion and contraction of the main arm.

5. The telescoping limit of the boom uses the double insurance of the marking line and the

alarm


  •  Product Parameters























































































































































































Model



CL1.5



CL3.0



CL5.0



CL8.0



CL10.0



CL12.0



Specifications



1.5ton



3ton



5ton



8ton



10ton



12ton



Maximum operating radius



6m



10.5m



15m



18m



18m



19m



Maximum Ground Lift



6.5m



10.8m



17m



21m



21m



21m



Winch Device



Hook lifting speed



0-8m/min(4 ropes)



0-8m/min(4 ropes)



12m/min (4 ropes)



12m/min (4 ropes)



11m/min (4 ropes)



10m/min (4 ropes)



Specification of steel rope



Φ8mm×45m



Φ8mm×45m



Φ12mm×80m



Φ12mm×80m



Φ12mm×100m



Φ12mm×120m



Telescopic Device



 Boom form



2m×4-section lifting arm



2.4m×6-section lifting arm



4m×5-section lifting arm



5m×5-section lifting arm



5m*5-section lifting arm



5m*5-section lifting arm



Boom length/time



6.5m/20sec



3.1m-9.2m/20sec



4.5m-17m/54sec



5.5m-21m/54sec



5.5m-21m 12.3m/58sec



5.5m-21m 12.3m/60sec



Running Gear



Walking mode



Hydraulic motor drive



Hydraulic motor drive



Hydraulic motor drive



Hydraulic motor drive



Hydraulic motor drive



Hydraulic motor drive



Walking speed



0-2.5km/h



0-2.5km/h



0-2.5km/h



0-2.5km/h



0-2.5km/h



0-2.5km/h



Gradeability



25°(36%)



25°(36%)



25°(36%)



25°(36%)



25°(36%)



25°(36%)



Electrical Machinery



Voltage



AC380V



AC380V



AC380V



AC380V



AC380V



AC380V



Engine



Manufacturer



Honda



Changchai



Yunnei



Yunnei



Yunnei



Yunnei



Type/displacement



390



EV80/F195



490



490



4102



4102



Start mode



Electric start



Electric start



Electric start



Electric start



Electric start



Electric start



Fuel/Volume



gasoline/4L



Diesel oil/8L



Diesel oil/8L



Diesel oil/8L



Diesel oil/8L



Diesel oil/8L



Standard Configuration



Gasoline and AC



Diesel and AC



Diesel and AC



Diesel and AC



Diesel and AC



Diesel and AC



Folding size



2.5*0.6*1.5m



3.5*0.8*1.85m



4.7*1.5*2.25m



6.15*1.6*2.25m



6.15*1.8*2.3m



6.15*1.86*2.48m



Dead-weight



1300kg



2700kg



6100kg



8700kg



10500kg



12500kg

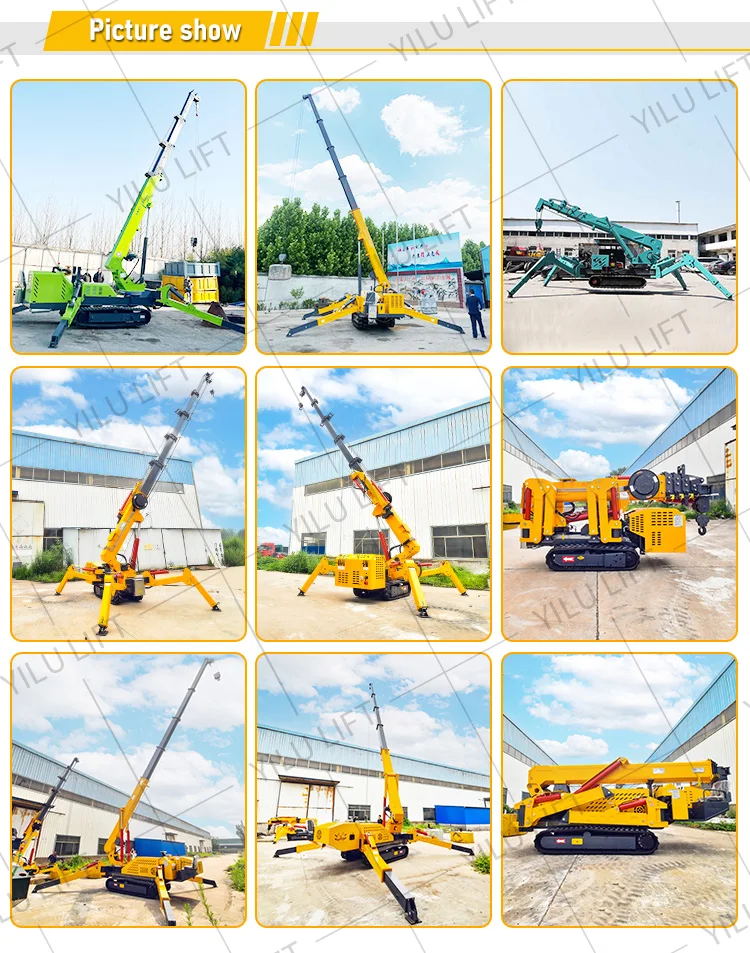

  • Photos

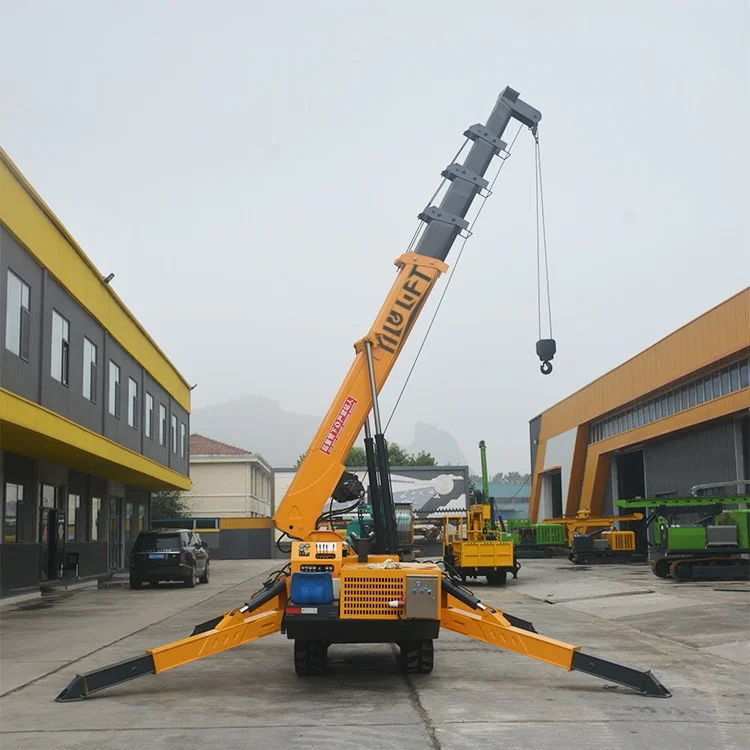

CL10.0-2405 (2)




Complete with some of the same features on the smaller spider crane models, such as an Electronic Display Load Moment Indicator, On-board Self Diagnostic Computer System, and a Full Function Wireless Remote, this mini-crawler is designed for ease of use. It’s mounted on dual tracks and It has the ability to rotate 360 degrees in place, making it easy to maneuver into and out of tight spots. It comes standard with a Quick Disassemble System allowing for the outriggers, boom, and frame assembly to be removed from the carrier to reduce the weight for transport or hoisting.


Mini spider crane is our most versatile. While popular among many industries, the spider crane is quickly becoming one of the most in demand glazing and construction tools to set glass and materials. Available models offer maximum lifting capacities of 1.2Ton 2Ton 3Ton 5Ton 8Ton 10Ton 12Ton 14Ton, Featuring a variable geometric footprint courtesy of adjustable outriggers allowing for set-up in tight spots such as hallways, balconies, or around obstacles, this mini crane acting as a glazing tool is tackling projects once thought impossible.




  • Our Team

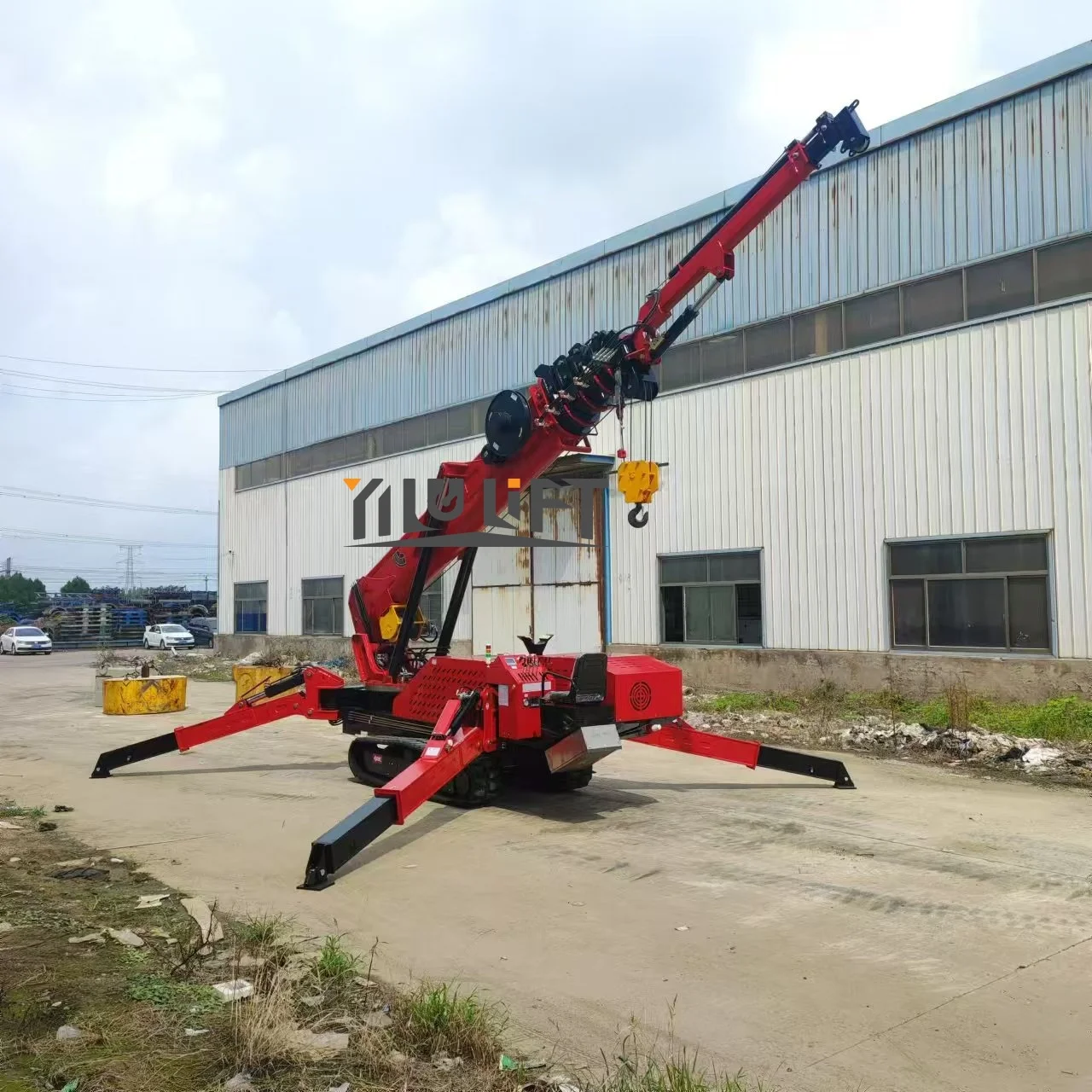

CL10.0-2405 (3)CL10.0-2405 (4)



Commitment is a big word, and not to be taken lightly. With YILU LIFT our first commitment is to offer high quality products. The second promise is innovation. We are constantly developing new models as part of the spider crane family to better serve our customers unique needs. If you have a lifting need, we have a solution.

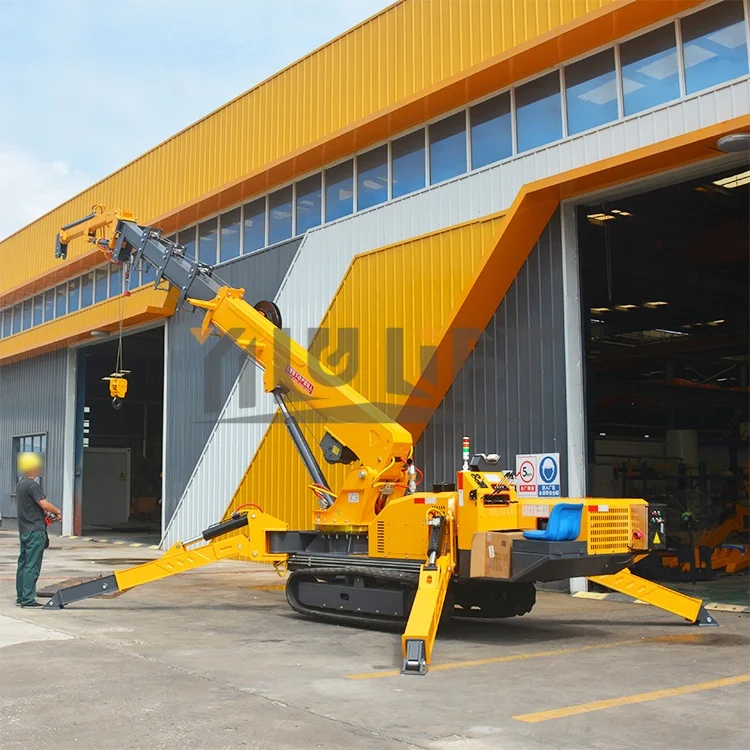

CL10.0-2405 (5)As an standard feature of the spider crane, these  mini cranes are equipped with a wireless radio remote control system; freeing the operator from being tethered to the crane. Couple this crane with a glass manipulator and this crane turns into one of the most powerful glazing tools on the market. The champion of the cranes, the mini-cranes can be seen everywhere from the rooftops to the oil fields.


FAQ















































1: How to place an order?
Answer: Please tell us your detailed requirements (including your product materials, product dimensions and product weight), and we will send you detailed parameters and quotations as soon as possible.







 2: What is the price?

Answer: It depends on your requirements of the equipment and shipment terms (FOB, CIF, CFR, EXW, etc.)
 3: How to make the payment?
Answer: We accept wire transfer; letter of credit; Alibaba trade guarantee.
4: What is the lead time?
Answer: For the standard product, the delivery time is 7 days. For customized orders with no stock, we need to determine the delivery time according to the situation, usually it's 20-30days. If you need urgent items, please contact us.
5: About the warranty
Answer: Our machines enjoy a complete 1-year warranty. Lifelong technical support via email or video.
6: About the guarantee
Alibaba will protect your order. We are Alibaba verified manufacture. We have Alibaba trade guarantee.
7: Mode of transportation
Answer: You can choose sea, air, rail transportation.
