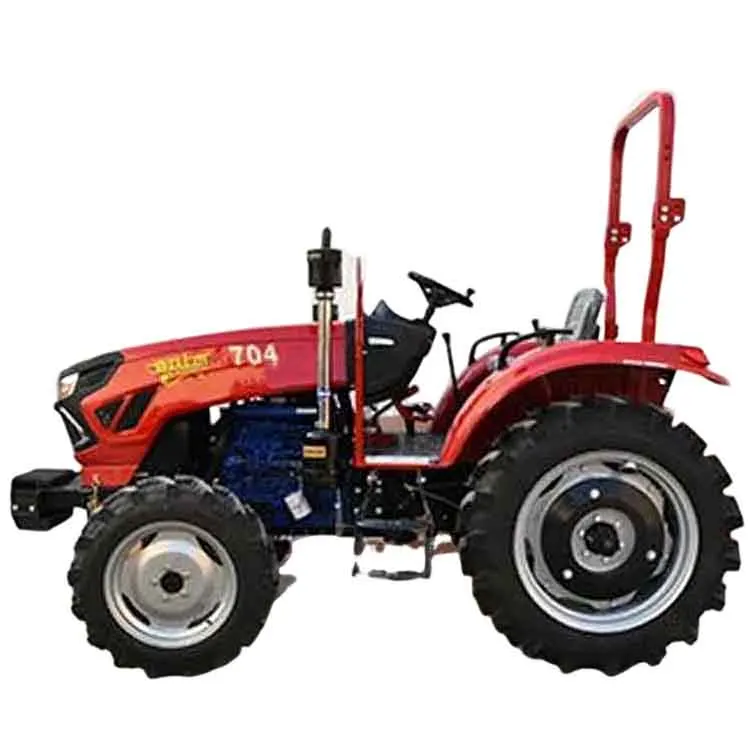

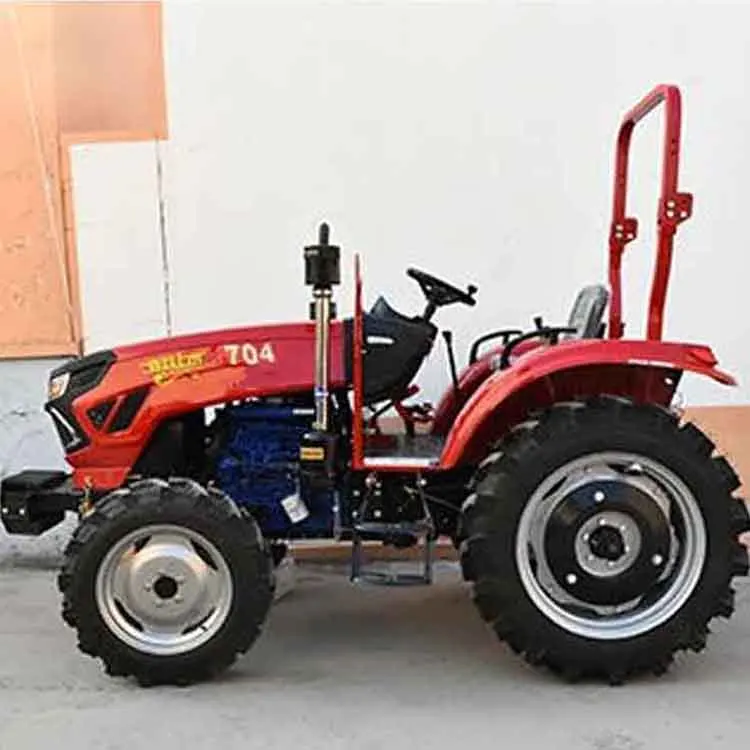

cultivators agricultural farming wheel tractor Small wheel tractor with front loader Compact tractor
- Category: >>>
- Supplier: Shandong Jinlong Lutai International Trade Co. Ltd.Shandong Ltd.
Share on (1601320983767):
Product Overview
Description
JINLONGLUTAI

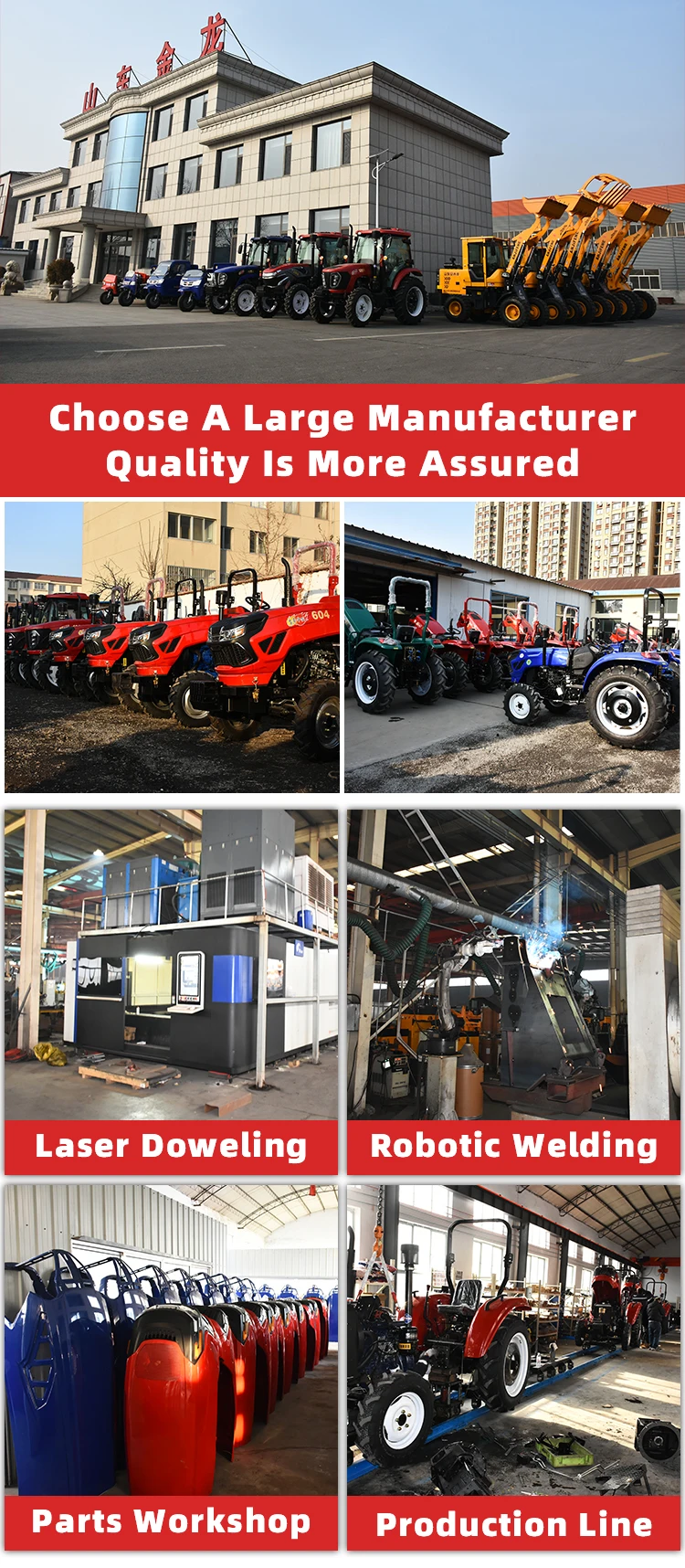

Shandong Jinlong Machinery Co., Ltd was founded in 2006 ,Located in shahe town, Laizhou City, Shandong Province.We have a general investment of 20 million RMB and a plant area of more than 50000 square meters.As a professional Engineering machinery，agricultural machinery and transportation machinery products supplier, we have excellent teams who focus on product development and design, quality control and inspection and company running.In order to provide customers with satisfactory products and services, we have established a modern quality management system in accordance with international standards. And we have obtained ISO9001 quality management system certification, and in order to better serve the overseas market, our products also have CE certification. And we have specially established Jinlong Lutai International Trade Co., Ltd. to provide foreign customers withricher products, more professional and timely services.

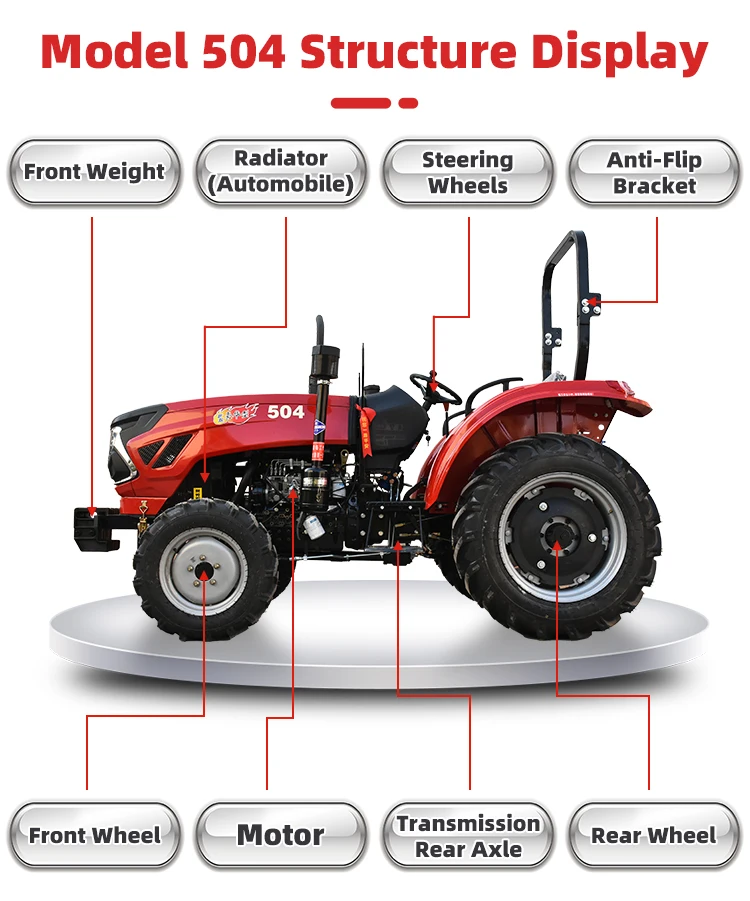

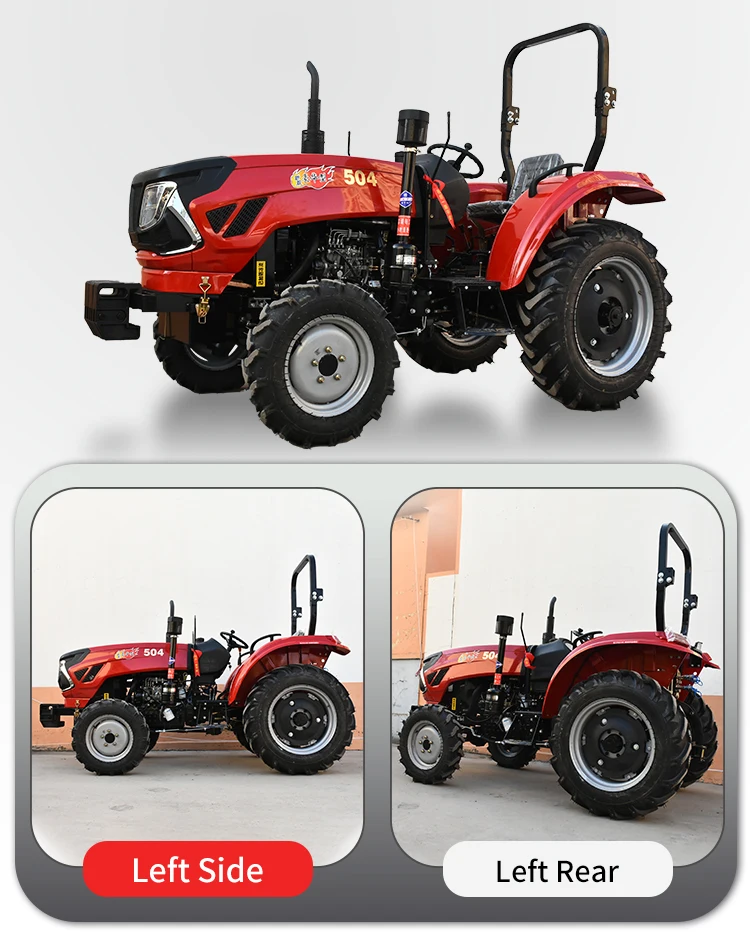

504 parameter display
Model | / | 504 | 604 | 704 | 804 | |||
Driving method | / | 2WD/4WD | 2WD/4WD | 2WD/4WD | 2WD/4WD | |||
Engine brand and model | / | ChangChai 490 | ChangChai 495 | ChangChai 495 pressurize | 常柴495增压 ChangChai 495 pressurize | |||
Engine power | kw | 36.6 | 44.1 | 58.8 | 58.8 | |||
Engine Description | / | water-cooled, direct injection, four cylinder | 水冷、直喷、四缸 water-cooled, direct injection, four cylinder | 水冷、直喷、四缸 water-cooled, direct injection, four cylinder | 水冷、直喷、四缸 water-cooled, direct injection, four cylinder | |||
Engine speed | r/min | 2400 | 2400 | 2400 | 2400 | |||
Horsepower | HP | 50 | 60 | 70 | 80 | |||
Front wheel model | / | 650-16 | 650-16 | 750-16 | 750-16 | |||
Rear wheel model | / | 11.2-24 | 11.2-24 | 11.2-28 | 11.2-28 | |||
Wheelbase | mm | 1850 | 1850 | 1870 | 1870 | |||
Front wheel center distance | mm | 1300 | 1300 | 1300 | 1300 | |||
Minimum ground clearance of front axle | mm | 270 | 270 | 310 | 310 | |||
Length, width, and height (measured up to the muffler) | mm | 3250×1480×1870 | 3250×1480×1870 | 3300×1535×1900 | 3300×1535×1900 | |||
Front axle type | mm | 254 | 254 | Maintenance-free 030 | 免维护030 Maintenance-free 030 | |||
Rear axle type | mm | TYE | TYE | TE | TE | |||
Counterweight (front/rear) | kg | 44/40 | 45/50 | 45/50 | 45/50 | |||
Gear | / | 8F+2R | 8F+2R | 8F+8R | 8F+8R | |||
Maximum theoretical speed | km/h | 40 | 40 | 42 | 42 | |||
Connection method between engine and rear axle | / | Direct connection | 直连 Direct connection | 直连 Direct connection | 直连 Direct connection | |||
Clutch | / | single-action clutch | 单作用离合器 single-action clutch | 单作用离合器 single-action clutch | 单作用离合器 single-action clutch | |||
Form of tipping protection device | / | Safety Frame | 安全架 Safety Frame | 安全架 Safety Frame | 安全架 Safety Frame | |||
Steering Type | / | Hydraulic steering | 液压转向 Hydraulic steering | 液压转向 Hydraulic steering | 液压转向 Hydraulic steering | |||
Steering operation | / | Steering wheel | 方向盘 Steering wheel | 方向盘 Steering wheel | 方向盘 Steering wheel | |||

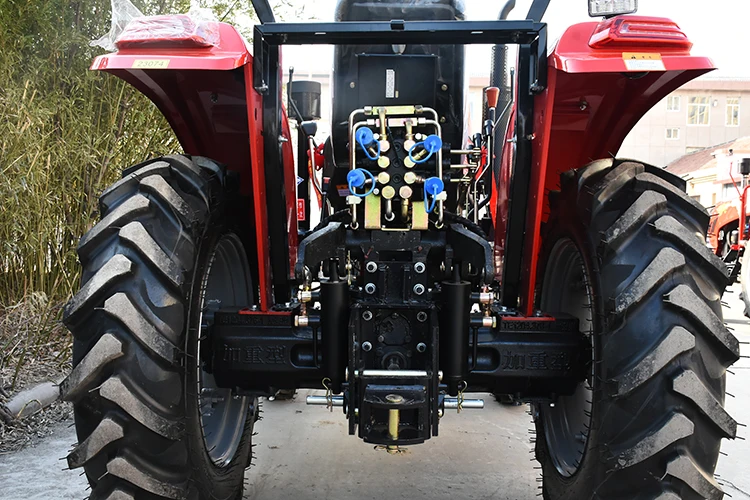

Suspension device form | / | Rear three-point suspension, strong lifting and strong lowering | 后置三点悬挂、强升强降 Rear three-point suspension, strong lifting and strong lowering | 后置三点悬挂、强升强降 Rear three-point suspension, strong lifting and strong lowering | 后置三点悬挂、强升强降 Rear three-point suspension, strong lifting and strong lowering | |||
Number of hydraulic output groups | / | 2 | 2 | 2 | 2 | |||
Hydraulic pressure | mpa | 18-20 | 18-20 | 18-20 | 18-20 | |||
Number of PTO splines | / | 6 | 6 | 6 | 6 | |||
PTO speed | r/min | 540/720 | 540/720 | 540/720 | 540/720 | |||

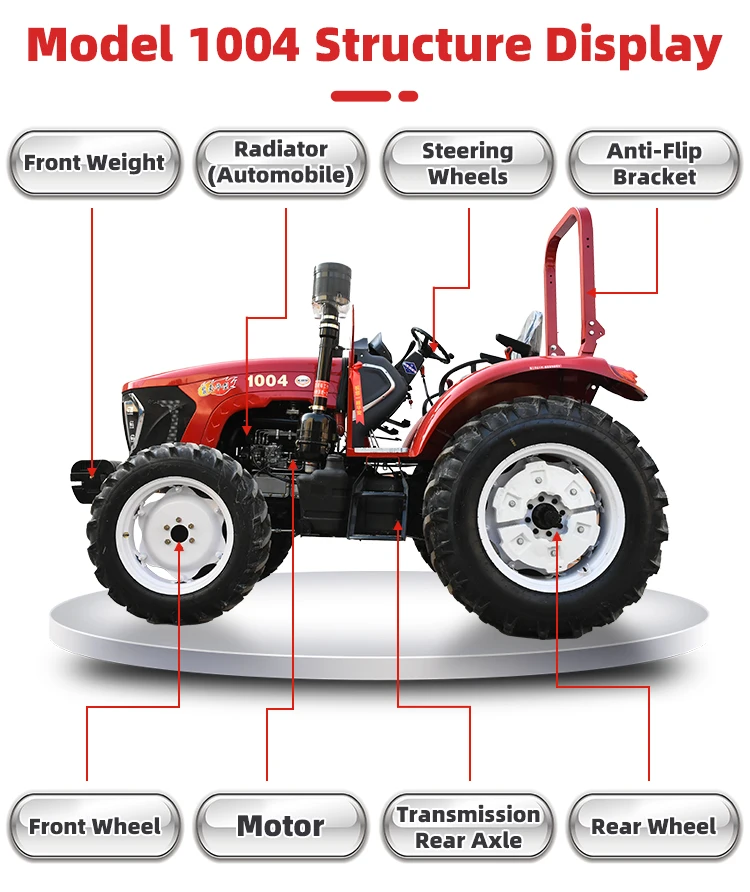

Model | / | 1004 | 1204 | 1404 | ||
Driving method | / | 2WD/4WD | 2WD/4WD | 2WD/4WD | ||
Engine brand and model | / | ChangChai 495 pressurize | 常柴495增压 ChangChai 495 pressurize | Tuodong6108 Self suction | ||
Engine power | kw | 73.5 | 88.2 | 118 | ||
Engine Description | / | water-cooled, direct injection, four cylinder | 水冷、直喷、四缸 water-cooled, direct injection, four cylinder | water-cooled, direct injection, rsix cylinder | ||
Engine speed | r/min | 2400 | 2400 | 2400 | ||
Horsepower | HP | 100 | 120 | 140 | ||
Front wheel model | / | 9.5-24 | 9.5-24 | 12.4-24 | ||
Rear wheel model | / | 14.9-30 | 14.9-30 | 16.9-34 | ||
Wheelbase | mm | 2180 | 2180 | 2600 | ||
Front wheel center distance | mm | 1300 | 1300 | 1580 | ||
Minimum ground clearance of front axle | mm | 420 | 420 | 420 | ||
Length, width, and height (measured up to the muffler) | mm | 3700x1750x2250 | 3700x1750x2250 | 4500*2300*3100 | ||
Front axle type | mm | Maintenance-free TB554 | 免维护TB554 Maintenance-free TB554 | Maintenance-free TD | ||
Rear axle type | mm | TB | TB | TD | ||
Counterweight (front/rear) | kg | 70/80 | 70/80 | 70/80 | ||
Gear | / | 12F+12R | 12F+12R | 16F+8R | ||
Maximum theoretical speed | km/h | 42 | 42 | 42 | ||
Connection method between engine and rear axle | / | Direct connection | 直连 Direct connection | 直连 Direct connection | ||
Clutch | / | double-action clutch | 双作用离合器 double-action clutch | 双作用离合器 double-action clutch | ||
Form of tipping protection device | / | Safety Frame | 安全架 Safety Frame | 安全架 Safety Frame | ||
Steering Type | / | Hydraulic steering | 液压转向 Hydraulic steering | 液压转向 Hydraulic steering | ||
Steering operation | / | Steering wheel | 方向盘 Steering wheel | 方向盘 Steering wheel | ||
Suspension device form | / | Rear three-point suspension, strong lifting and strong lowering | 后置三点悬挂、强升强降 Rear three-point suspension, strong lifting and strong lowering | 后置三点悬挂、强升强降 Rear three-point suspension, strong lifting and strong lowering | ||
Number of hydraulic output groups | / | 2 | 2 | 2 | ||
Hydraulic pressure | mpa | 18-20 | 18-20 | 18-20 | ||
Number of PTO splines | / | 8 | 8 | 8 | ||
PTO speed | r/min | 540/720 | 540/720 | 540/720 | ||
Seven reasons to choose Jinlong Lutai

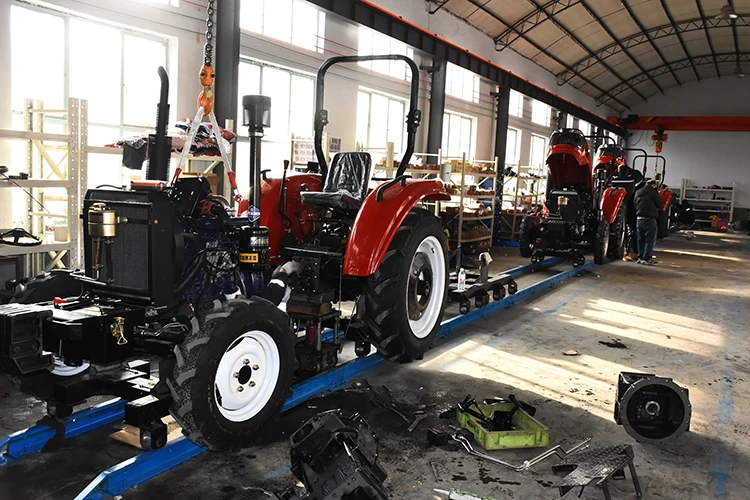

1.Assembly Line Production
Adopting assembly line production, unified technology and mechanized assembly to improve quality and quality.
2.Parts Purchase Control
Screening manufacturers and selecting reliable quality and quality parts to further improve product quality.

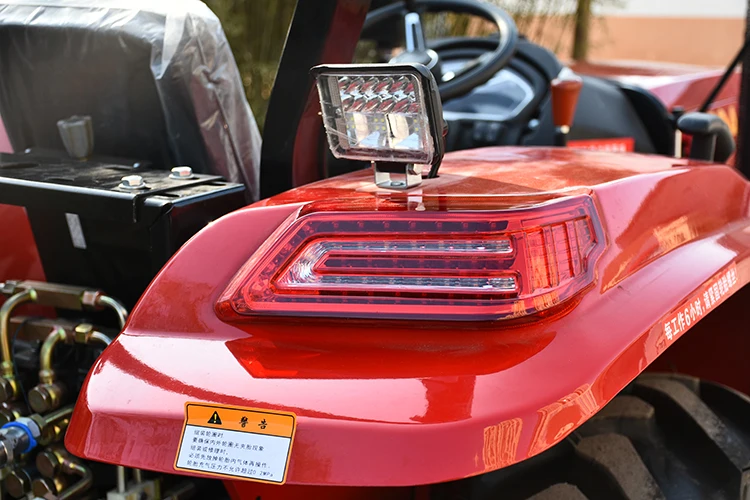

3.Plastic Spraying Appearance
The appearance of the color spray treatment, the surface is smooth and glossy, use for many years without rust.

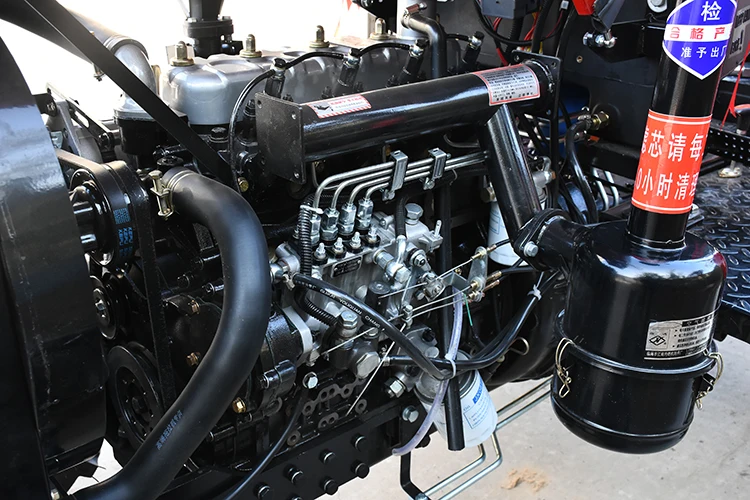

4.Famous Brand Engine
Equipped with domestic famous brand engine, cooperated for many years, quality and after-sales service are guaranteed.

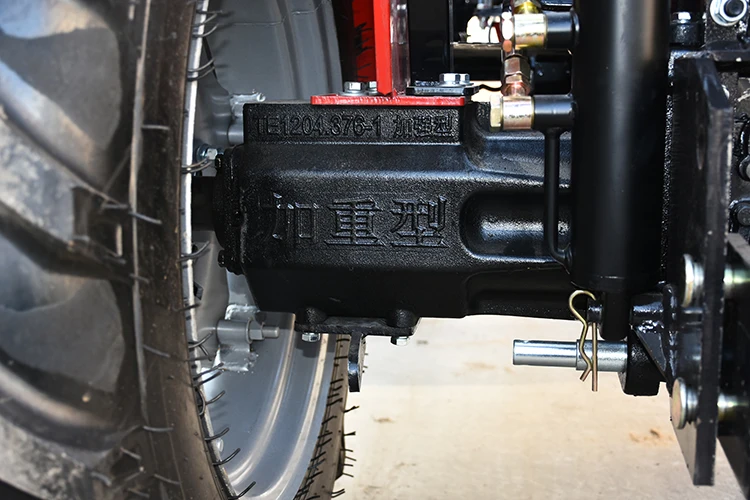

5.Weighted Transmission Axle
Equipped with matching weighted transmission axles to ensure quality and workability.

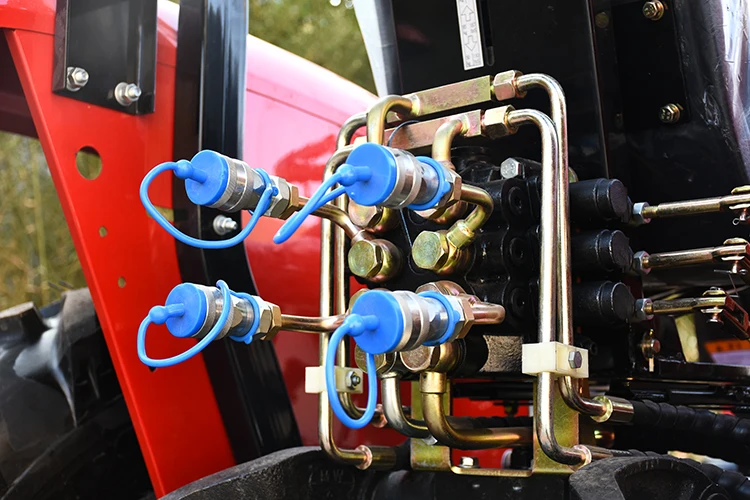

6.Hydraulic System
The hydraulic system is the main working part of the machinery, ensuring that the power and output can be ideally matched.

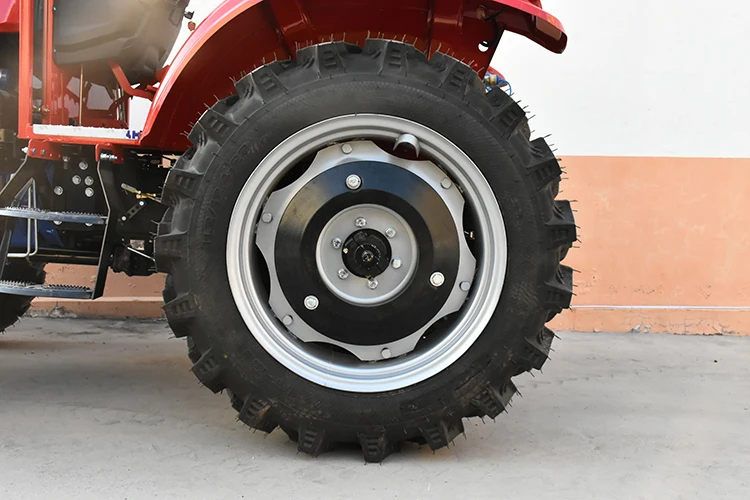

7.Branded Wear-Resistant Tires
Equipped with branded super wear-resistant grade tires, wear-resistant and strong grip service life Strong service life.
