Small Roll to Roll Adhesive Label Rewinder Counter Fully Automatic BOPP Tape Film Rewinding Machine For Meter Counting
- Category: >>>
- Supplier: Hangzhou Prime Intelligent Technology Co. Ltd.Hangzhou Ltd.
Share on (1601321067954):
Product Overview
Description
Product Description
Small Roll to Roll Adhesive Label Rewinder Counter Fully Automatic BOPP Tape Film Rewinding Machine For Meter Counting
★1. The fuselage adopts electrostatic spraying-baking paint, which is solvent-resistant.
★2. Adopt brand motor/reducer, digital display governor, stepless speed change to ensure stable operation of the machine.
★3. Using the meter sensor, you can set the number of meters to automatically stop.
★4. Using frequency converter, start-stop/acceleration/deceleration is more accurate and stable.
★5. The rewinding/unwinding reel adopts an inflatable shaft.
★6. Using magnetic powder tension, the tension can be adjusted.
★7. Long service life, mainly used for rewinding various types of plastic coils.
★8. Rotate the adjustment switch clockwise to slowly increase from low speed to desired speed.\t
★2. Adopt brand motor/reducer, digital display governor, stepless speed change to ensure stable operation of the machine.
★3. Using the meter sensor, you can set the number of meters to automatically stop.
★4. Using frequency converter, start-stop/acceleration/deceleration is more accurate and stable.
★5. The rewinding/unwinding reel adopts an inflatable shaft.
★6. Using magnetic powder tension, the tension can be adjusted.
★7. Long service life, mainly used for rewinding various types of plastic coils.
★8. Rotate the adjustment switch clockwise to slowly increase from low speed to desired speed.\t
Specification
Machine model | PM-FJ-450A | PM-FJ-450B | PM-FJ-450D | PM-FJ-450E |
Maximum take-up/unwind diameter | 450mm | 450mm | 450mm | 450mm |
Rewind/unwind reel diameter | 3 Inch | 3 Inch | 3 Inch | 3 Inch |
Rewind/unwind reel height | 300mm | 300mm | 300mm | 300mm |
Speed | 10-40m/min | 10-40m/min | 10-40m/min | 10-40m/min |
Weight capacity | 20KG | 30KG | 30KG | 30KG |
Power | 120W | 200W | 400W | 500W |
Power supply | 220V | 220V | 220V | 220V |
Weight | 60KG | 60KG | 60KG | 60KG |
Mechanical Dimensions | L640*W450*H680mm | L640*W550*H680mm | L640*W550*H680mm | L640*W550*H680mm |

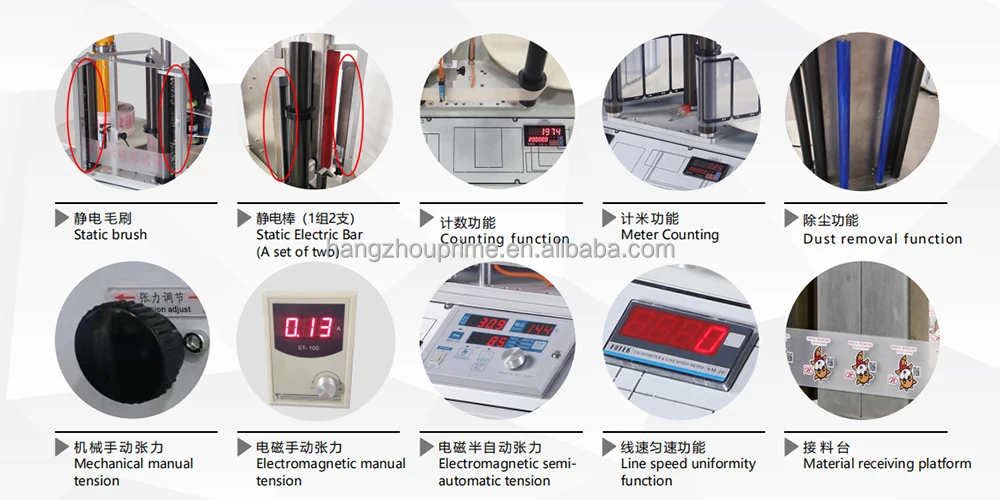

Details Images

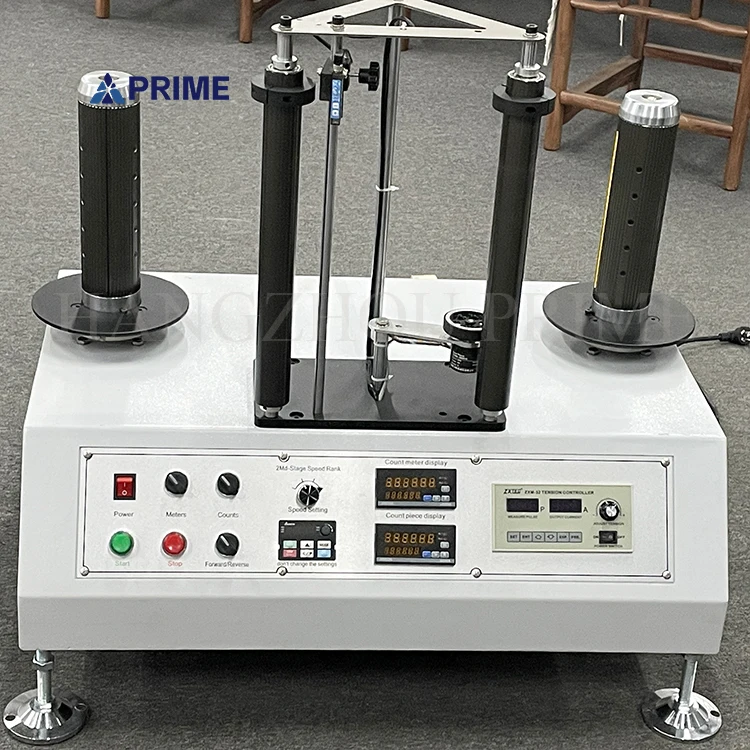

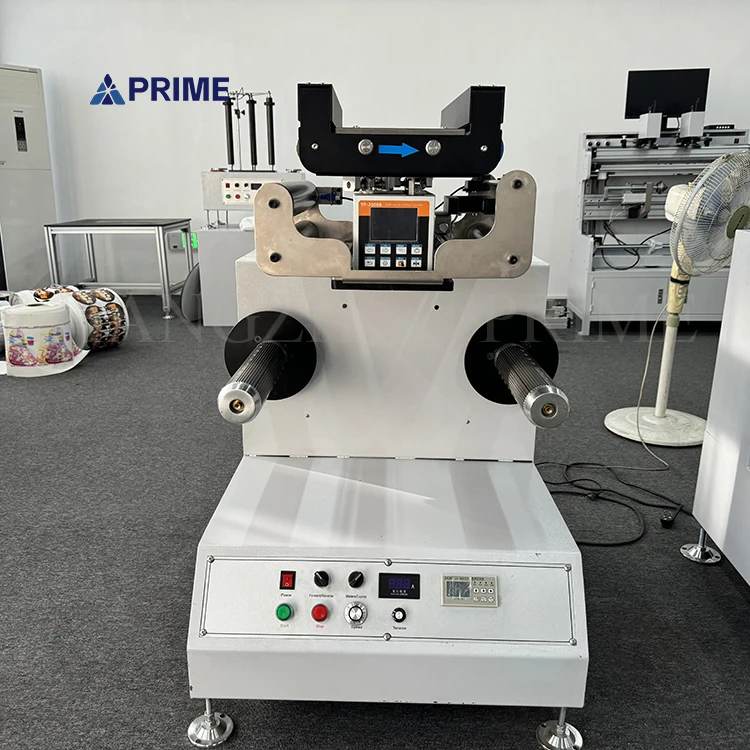

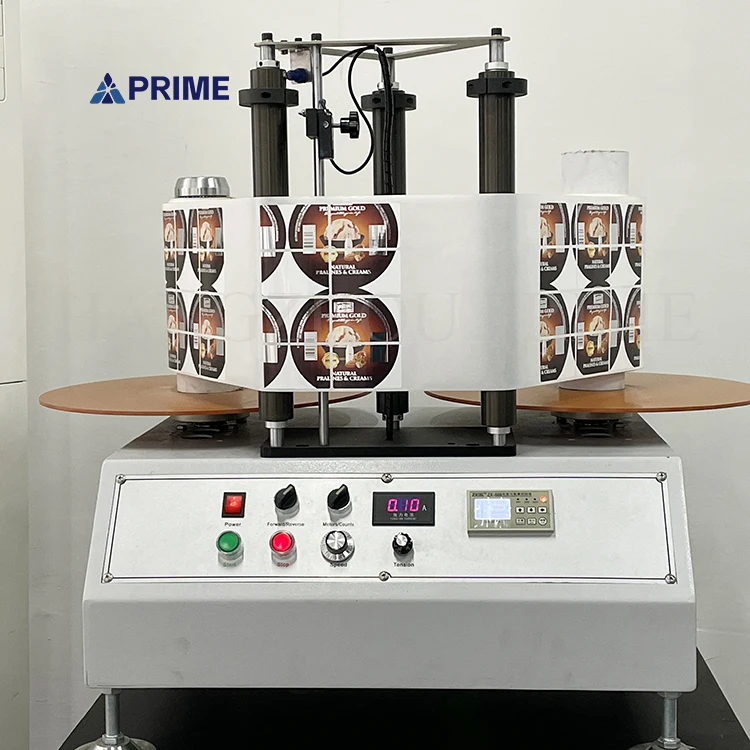

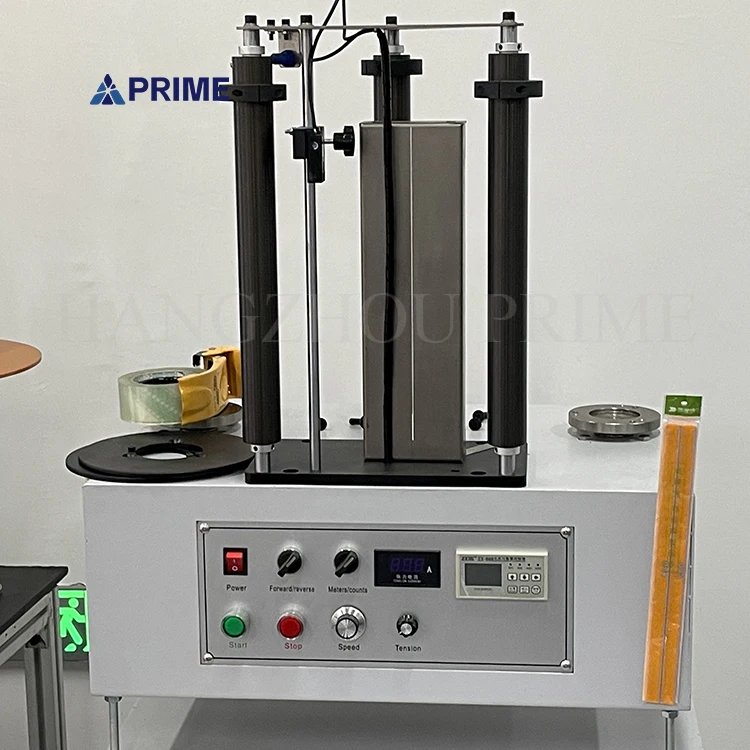

FJ-450A

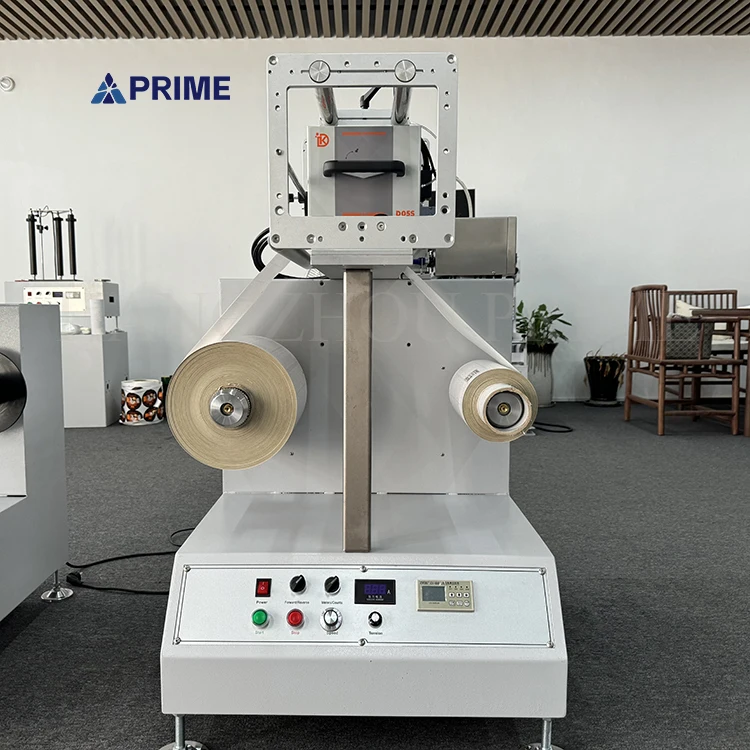

FJ-450B

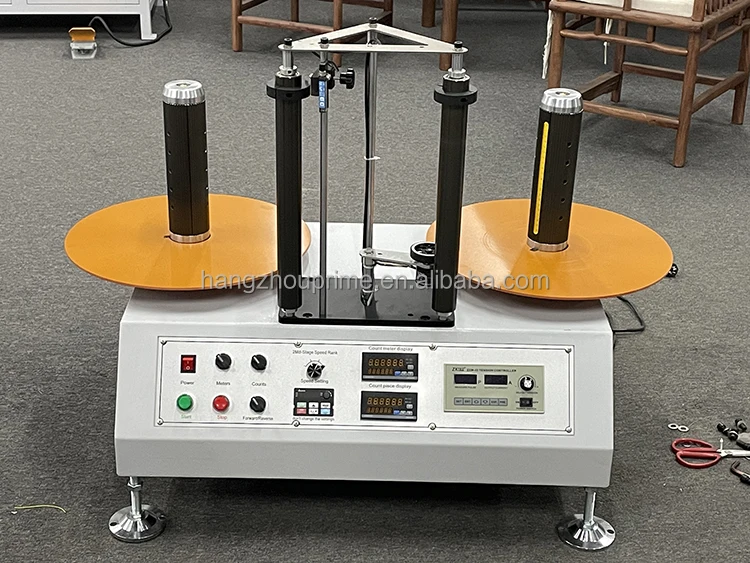

FJ-450D
FJ-450E

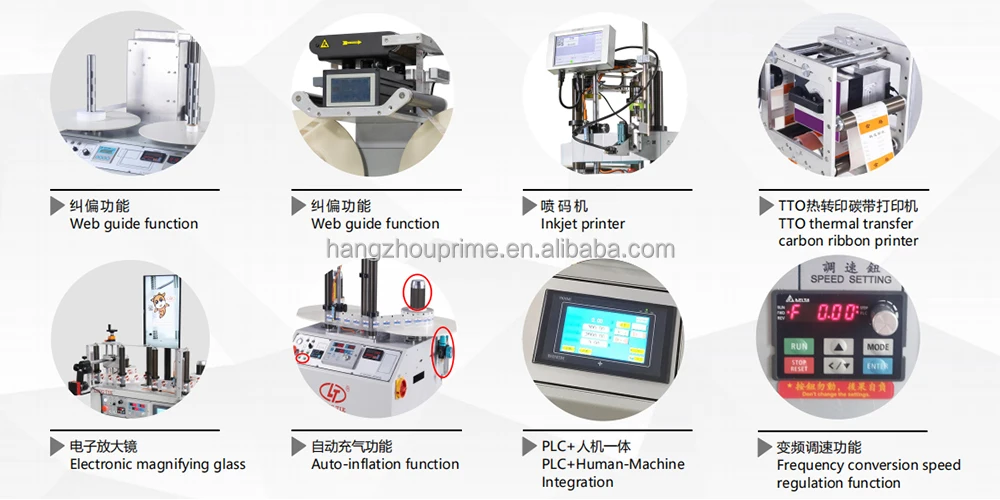

Optional Configurations

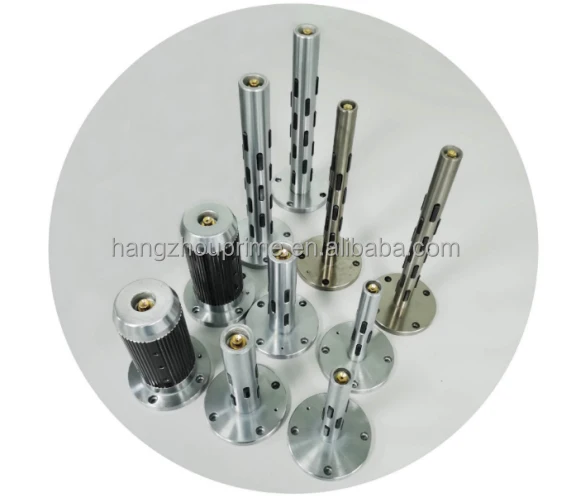

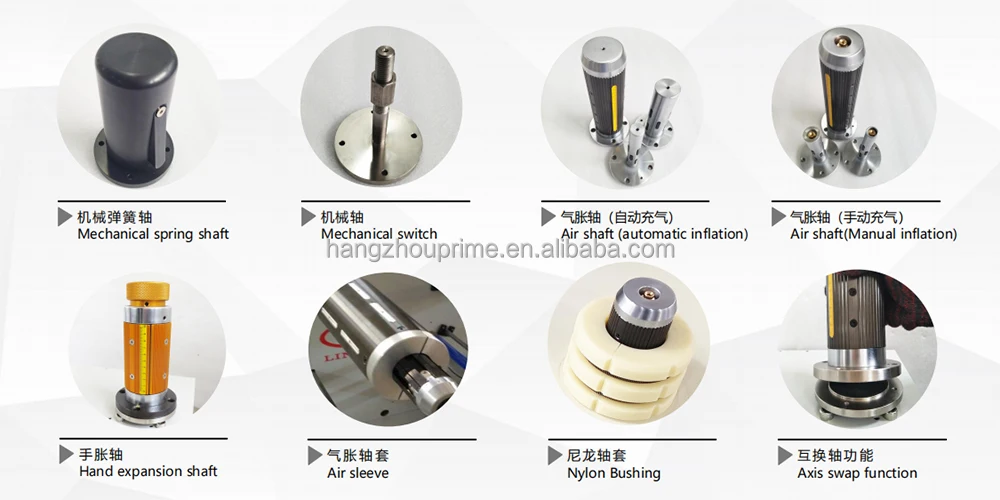

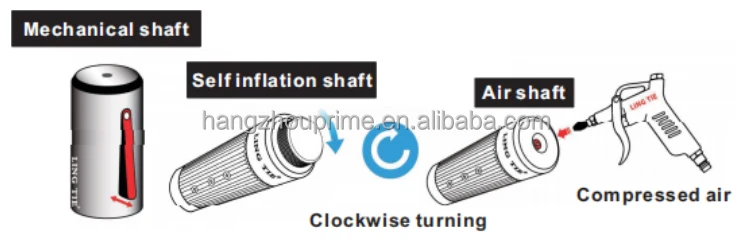

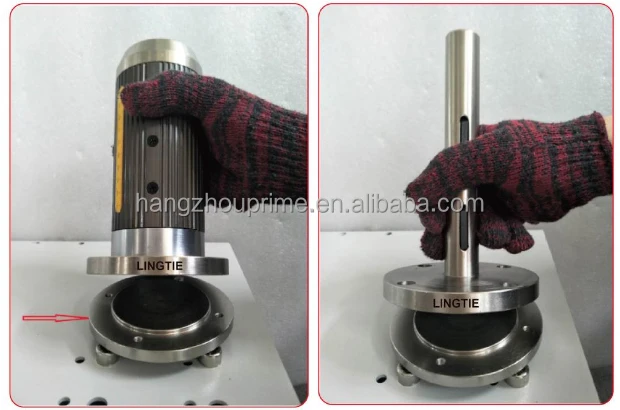

Multiple types of shafts can be selected
Can install different size of air shaft

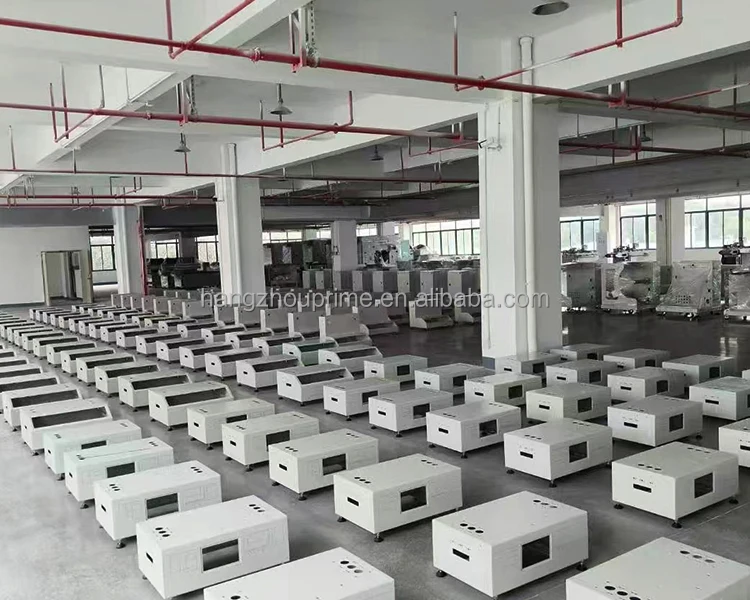

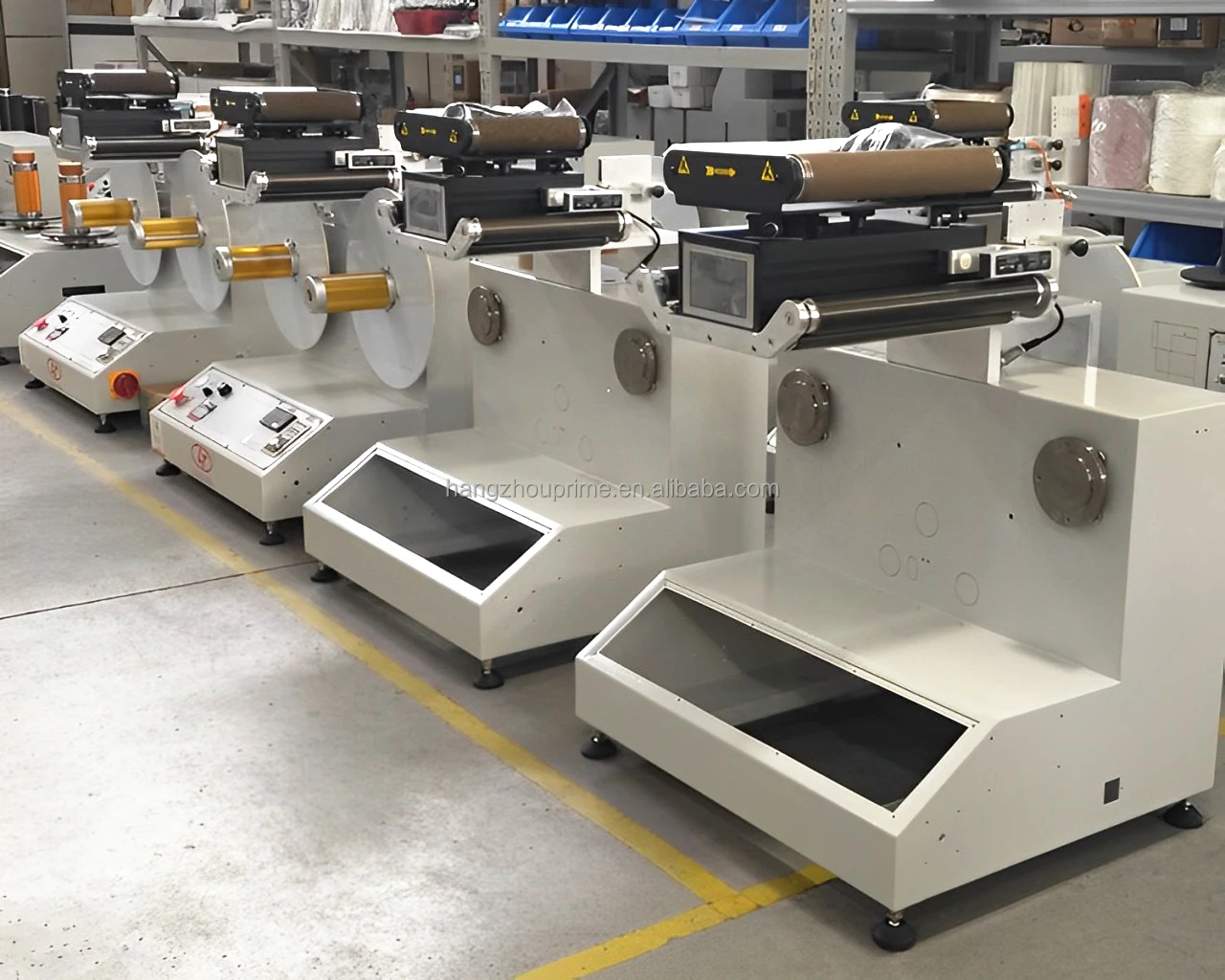

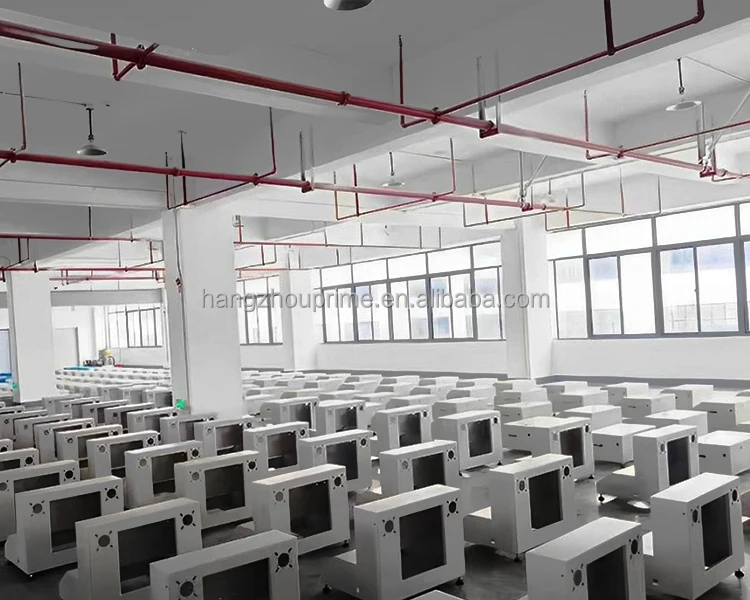

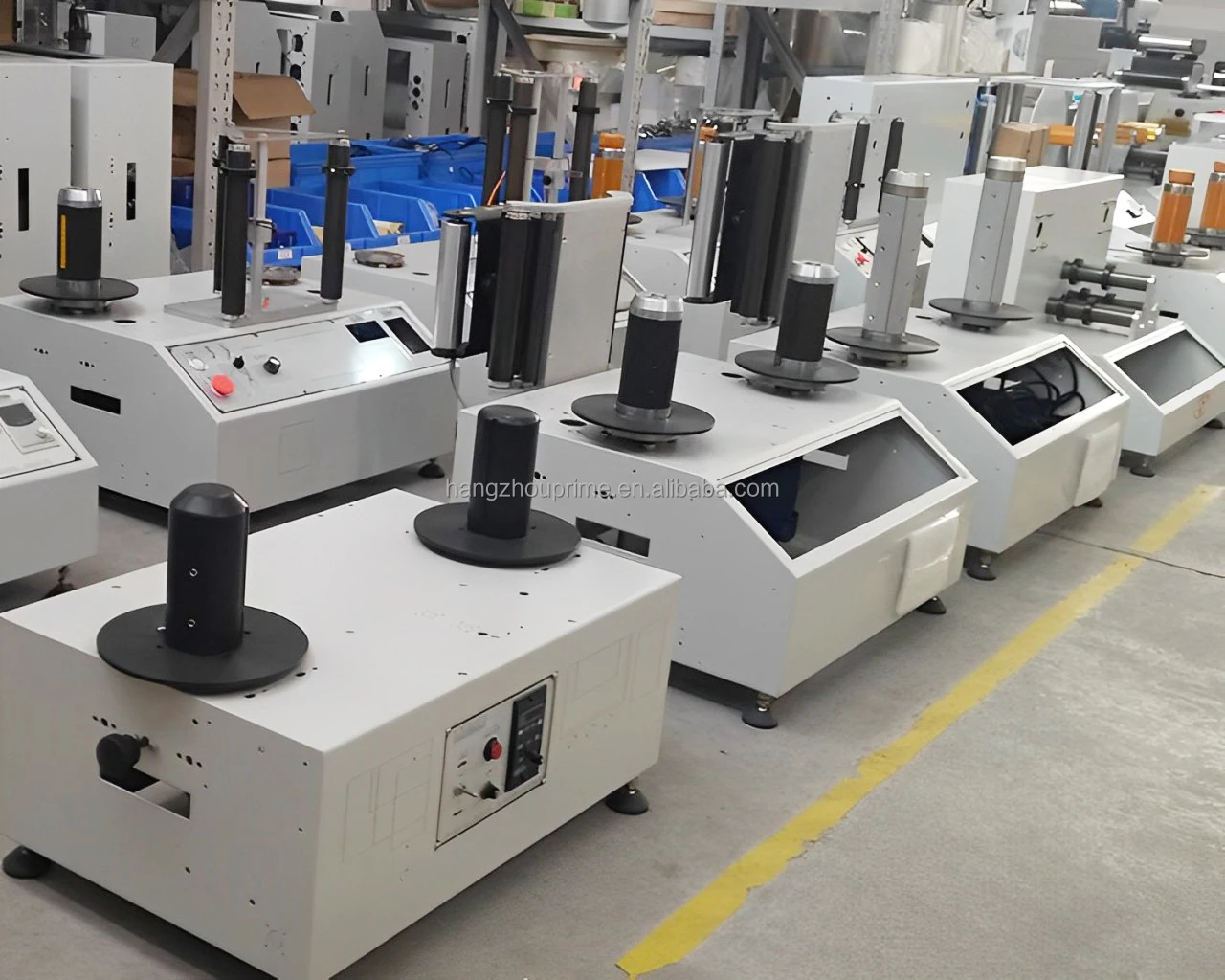

Our Factory
Hangzhou Prime Intelligent Technology company has emerged as a leading manufacturer of printing and packaging machines. We specialized in flexo printing machine, die cutting machine, slitting machine,and other pre & post printing machines for more than 15 years, and currently has customers all over the world.. We have a professional after sales service team to provide you with high quality service.Engineers who can speak English can come to your factories or workshop to help you debug your machine and provide free training by video call.
Our factory also cooperated with some famous French and German companies. Every year, our production director and technical director will go to the European cooperation technology companies or large factories for technical study. By communicating and learning from each other, it ensures the high quality of each machine and our technology is always far ahead in China.
Although we are young, we love this industry and hope that our efforts can change and drive the continuous development of the printing industry. We hope that we can become your loyal partner.
Our factory also cooperated with some famous French and German companies. Every year, our production director and technical director will go to the European cooperation technology companies or large factories for technical study. By communicating and learning from each other, it ensures the high quality of each machine and our technology is always far ahead in China.
Although we are young, we love this industry and hope that our efforts can change and drive the continuous development of the printing industry. We hope that we can become your loyal partner.

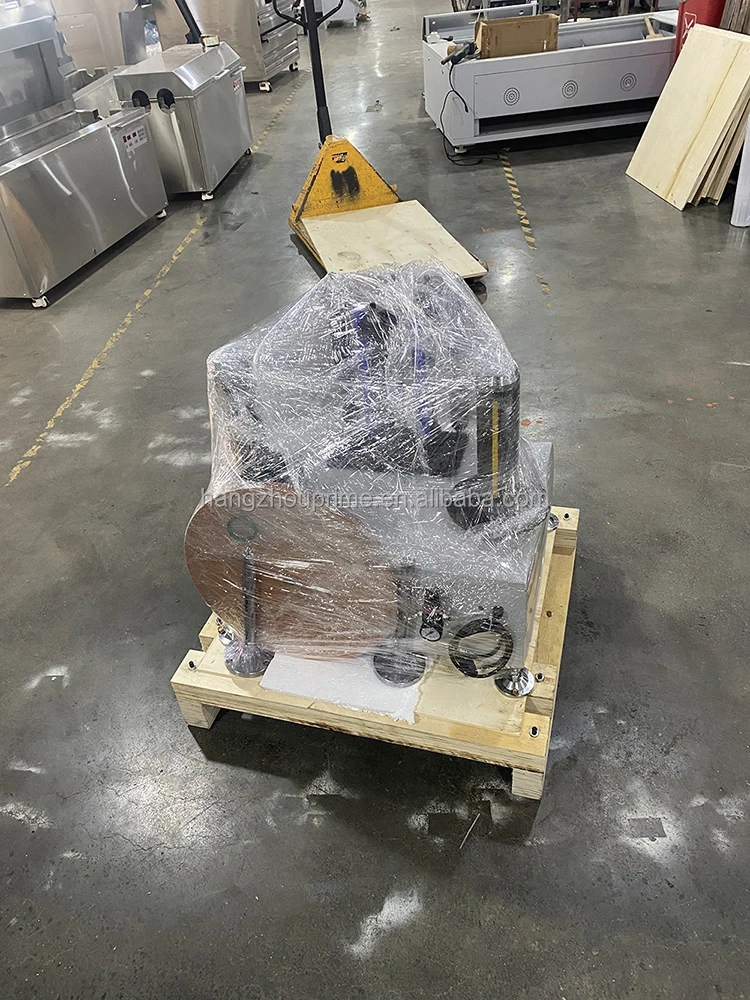

Packing & Delivery
FAQ
1. Q: Are you trading company?
A: We are the professional manufacture for printing machines.
2. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
3. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
4. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
A: We are the professional manufacture for printing machines.
2. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
3. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
4. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
