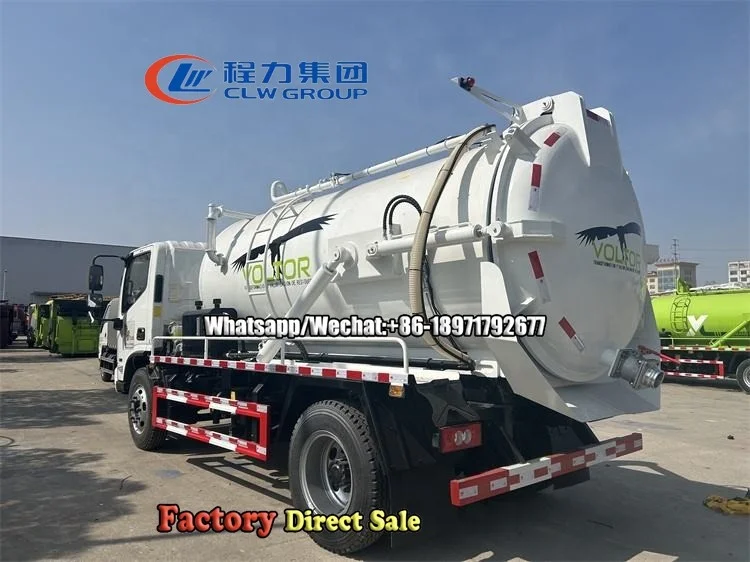

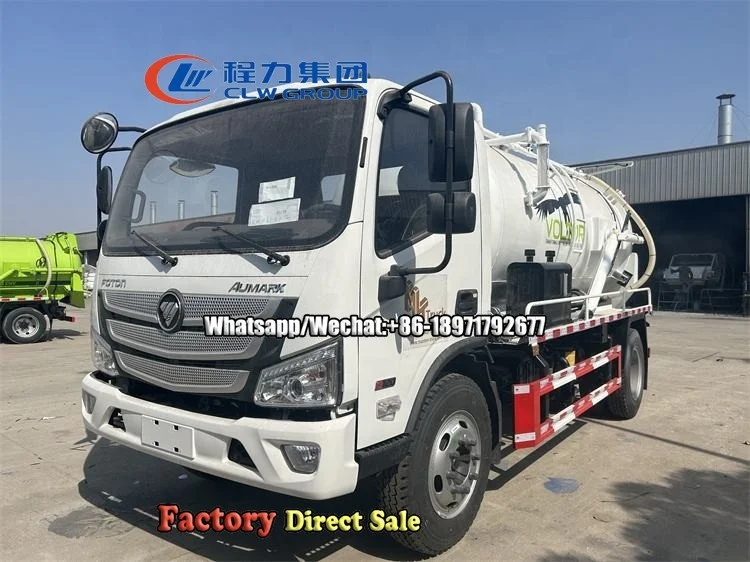

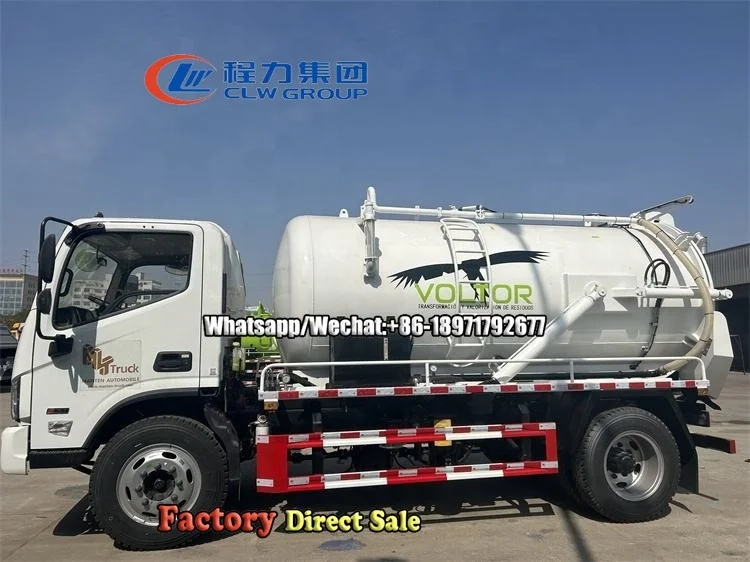

Factory Price Foton 4X2 6000Ltrs Waste Water Suction Tanker Truck Sewage Suction Truck For Sale

Share on (1601321318700):


Price:$2,799.00-3,599.00

Quantity:


Product Overview

Description

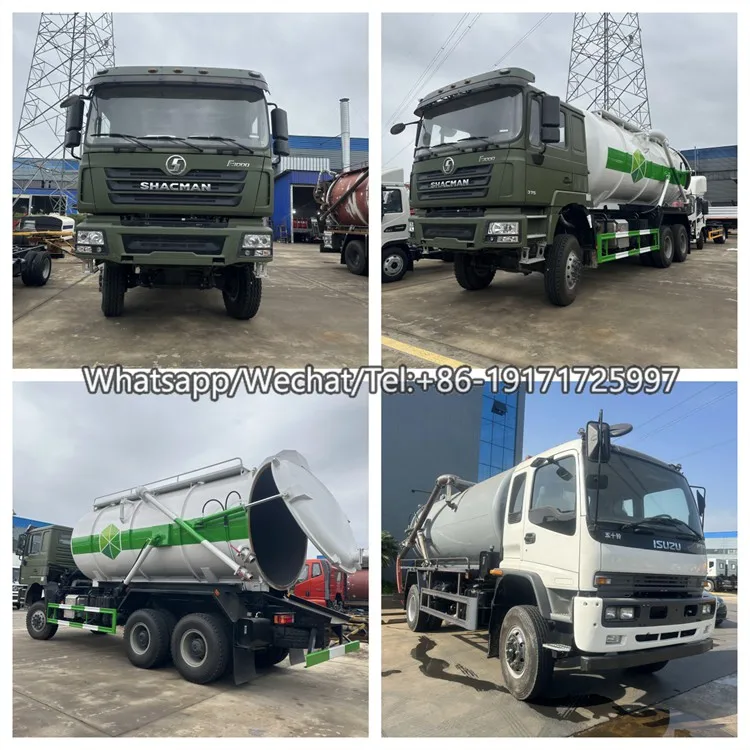

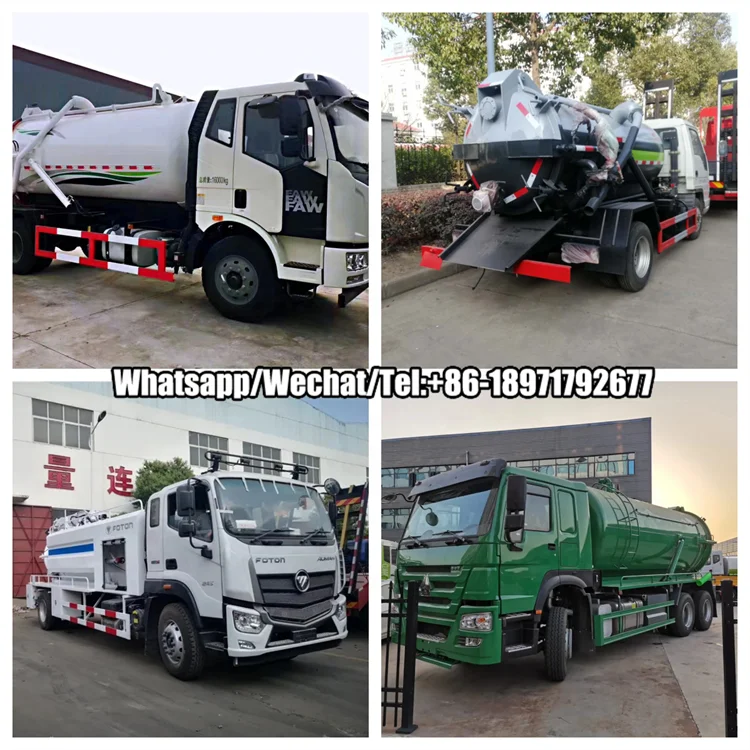

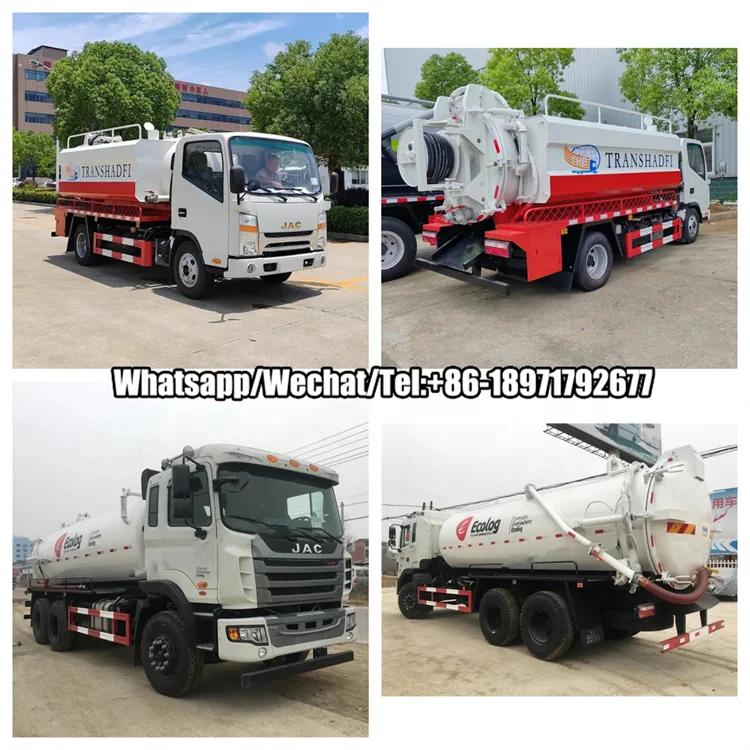

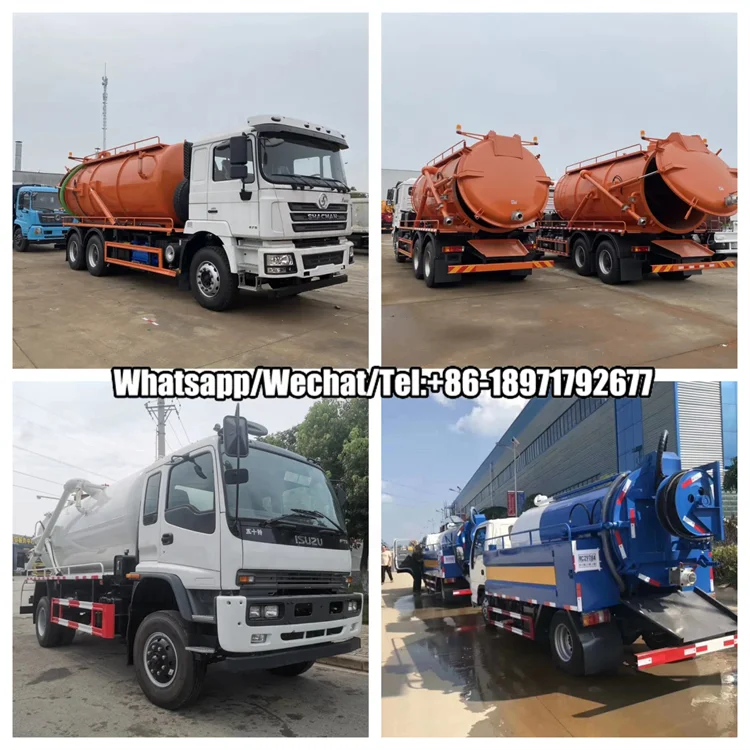

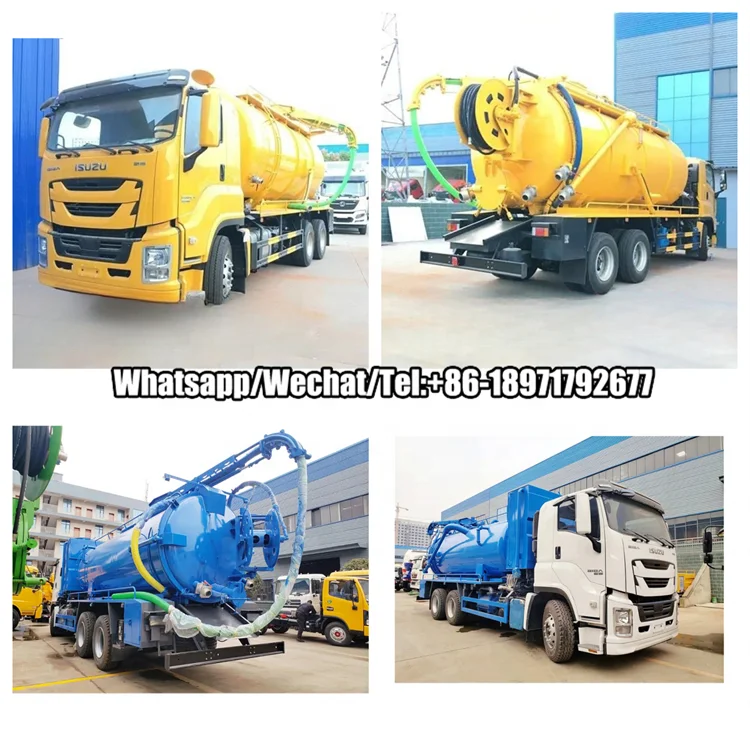

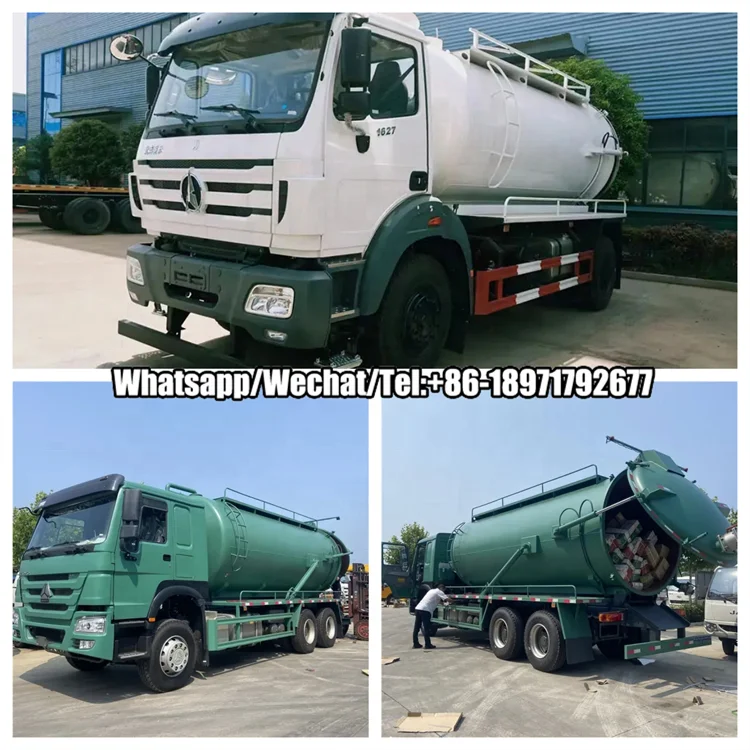

Our factory can supply many different brands of sewage suction trucks,High pressure sewage suction and cleaning trucks,Fecal suction trucks .
The truck chassis type mainly use 4x2 type,6x2type,6x4 type,8x4 type,also have 4x4 abd 6x6 all wheel drive type.,such as Dongfeng brand,Howo brand,Isuzu brand,Foton brand,Faw brand,Forland brand, Shacman brand,etc.


For the sewage suction tank;
The 4x2 type truck can mounted 5000liters to 14000liters capacity sewage tanks;
The 6x4 type truck can mounted 15000liters to 20000liters capacity sewage tanks;


Product Description




Specification


Product name
Dongfeng 6X4 Sewage suction truck
Chassis parameters
Drive mode
6x4
Chassis brand
Dongfeng Truck chassis
Front passenger
2
Engine
Yuchai 240hp , diesel type
Tyre
10.00R20, 10pcs with 1 spare
Gearbox
9 forward,2reverse,manual operated
Steering wheel
Left hand drive
Emission standard
Euro 3 Emission
Wheelbase(mm)
4750+1350
Max.Speed(Km/h)
95
Gross weigh/G.V.W(kg)
25000
Curb weight(kg)
17000
Air Conditioner
A/C
Up-body parameters
Overall dimension(mm)
10000x2550x3850
Capacity of tank body
20000 liters
Color
White
Diameter of suction tube
Φ100mm
Suction depth
> 8 m
Vacuum pump
type: Vane pump
Pumping speed: 318 m3/h
Rated speed: 1300rpm
Body Configuration
1. The sewage tank has a volume of 20 cubic meters and is made of high-quality WISCO steel plates. The wall thickness is 8 mm and
a wave-proof plate is reasonably designed in the middle of the tank.
2. Install china brand water circulation pump
3. Install an anti-overflow valve and a stainless steel filter on the vacuum pipe (to prevent impurities from entering the pump)
4. A seismic pressure gauge with a diameter of 100 is installed at the position of the sewage suction four-way valve, which can
resist vibration in the working environment and reduce the pulsation effect of the medium pressure.

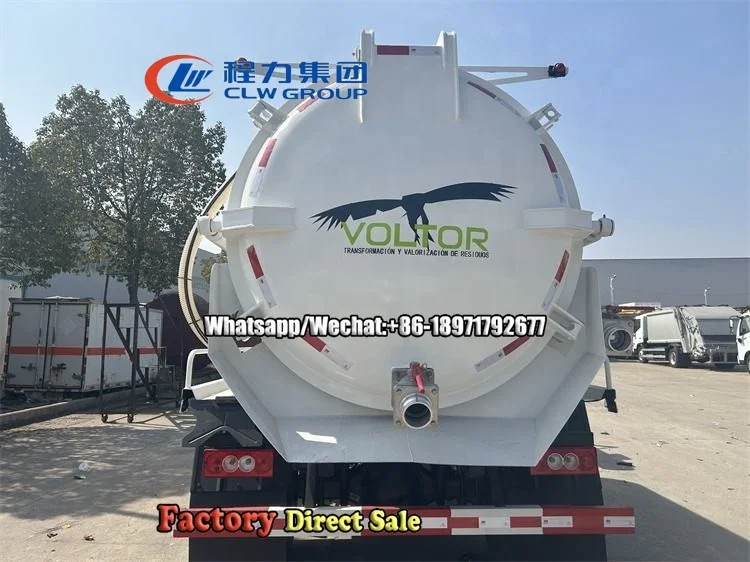

5. A 100mm sewage suction port, a 600mm hydraulic sewage outlet at the rear, and a 100mm sewage outlet
6. The tank has a lifting and self-unloading function, and the tail drain port can be opened hydraulically with a locking device.
7. The tank top design platform is equipped with a protective fence and 2 tank mouths are installed to facilitate feeding and
cleaning the tank from the top.














Packing & Delivery




Packing:Nude packing and covered with wax.
Shipping:Normally carried by bulk carriers or ro-ro ship,container transport is also available if the dimension is suitable.


Company Profile




FAQ


Q1: I want to transport the truck by container, is it ok?
A: Yes, it is ok .The specific needs depend on the size of the vehicle. Generally, small trucks can be shipped with container, and large trucks can be shipped with bulk cargo ship.
Q2:How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q3:How about the delivery time?
A:It depends on the product you ordered and quantity you need,usually produce one unit truck only need 25days.
