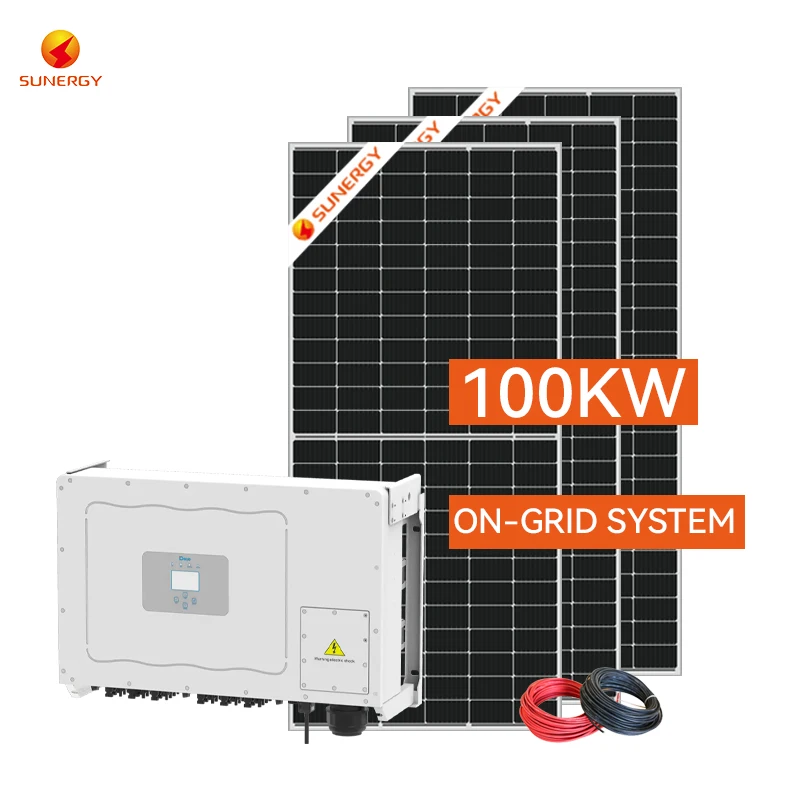

Commercial 50KW 100KW 150kw 200kw on Grid Solar Energy System Grid Tied Solar Power Plant Project
- Category: >>>
- Supplier: Chinaland Solar Energy Co. Ltd.Chinaland Ltd.
Share on (1601322257591):
Product Overview
Description
Products Description
30-100KW Commercial On Grid System Solution | ||||||||||||
Module | 30KW | 40KW | 50KW | 60KW | 80KW | 100KW | ||||||
Solar Panel | 30-33KW | 40-44KW | 50-55KW | 60-66KW | 80-88KW | 100-110KW | ||||||
On Grid Inverter | 30KW | 40KW | 50KW | 60KW | 80KW | 100KW | ||||||
PV/DC Cable | 500 Meters | 600 Meters | 800 Meters | 1000 Meters | 1300 Meters | 1600 Meters | ||||||
MC4 Connector | 20 Pairs | 20 Pairs | 30 Pairs | 30 Pairs | 40 Pairs | 50 Pairs | ||||||
Mounting Brackets | Customized Pitched/Flat Roof, Color Steel Tile or Ground Including All the Accessories | |||||||||||
Optional Accessories | Lightning Protection / Grounding Device AC/DC Combiner Box AC Cable, Smart Meter etc. | |||||||||||

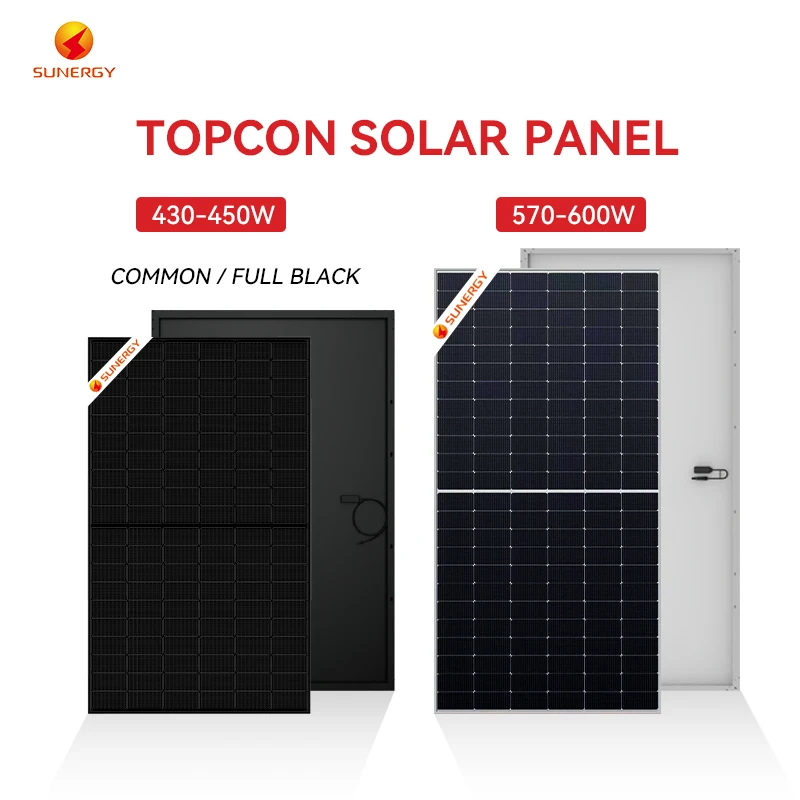

TOPCON SOLAR PANEL
Peak Power Watts: 580W
Maximum Power Voltage: 42.71V
Maximum Power Voltage: 42.71V
Maximum Power Current: 13.56A
Open Circuit Voltage: 51.32V
Short Circuit Current: 14.33A
Size: 2278*1134*35mm
Weight: 27.0 kg
Open Circuit Voltage: 51.32V
Short Circuit Current: 14.33A
Size: 2278*1134*35mm
Weight: 27.0 kg

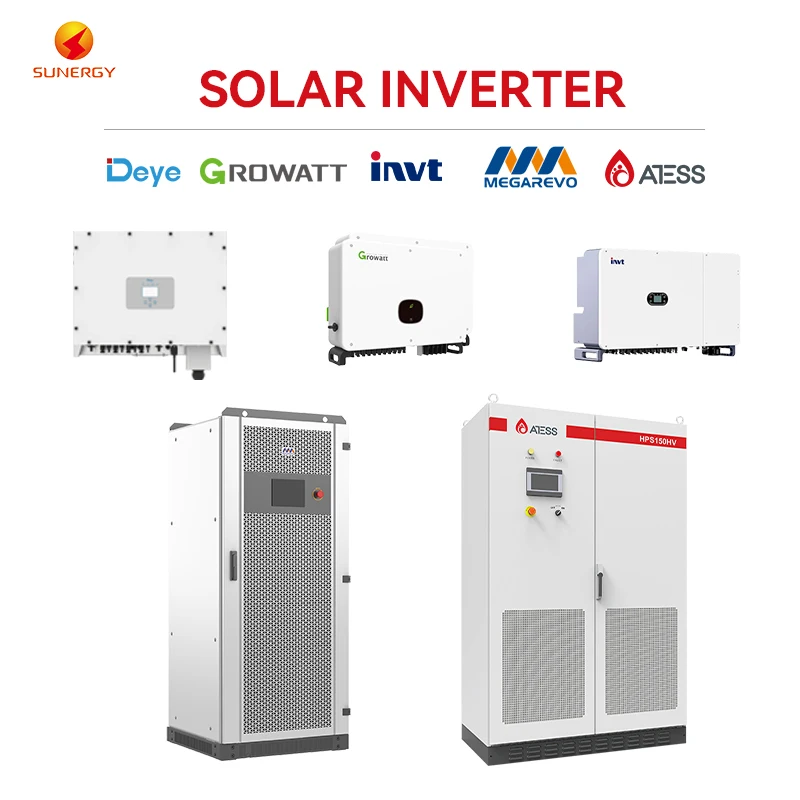

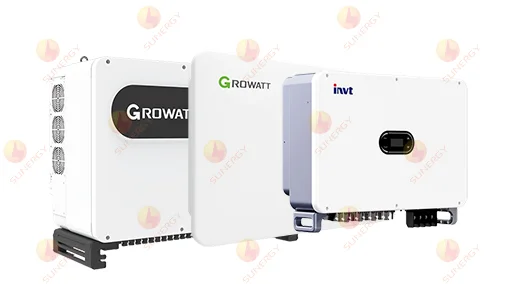

GRID-TIED SOLAR INVERTER
10 MPPTs fusefree design;Smart I/V scan and diagnosis;
Intelligent string monitoring;
AC&DC type II SPD.
Intelligent string monitoring;
AC&DC type II SPD.

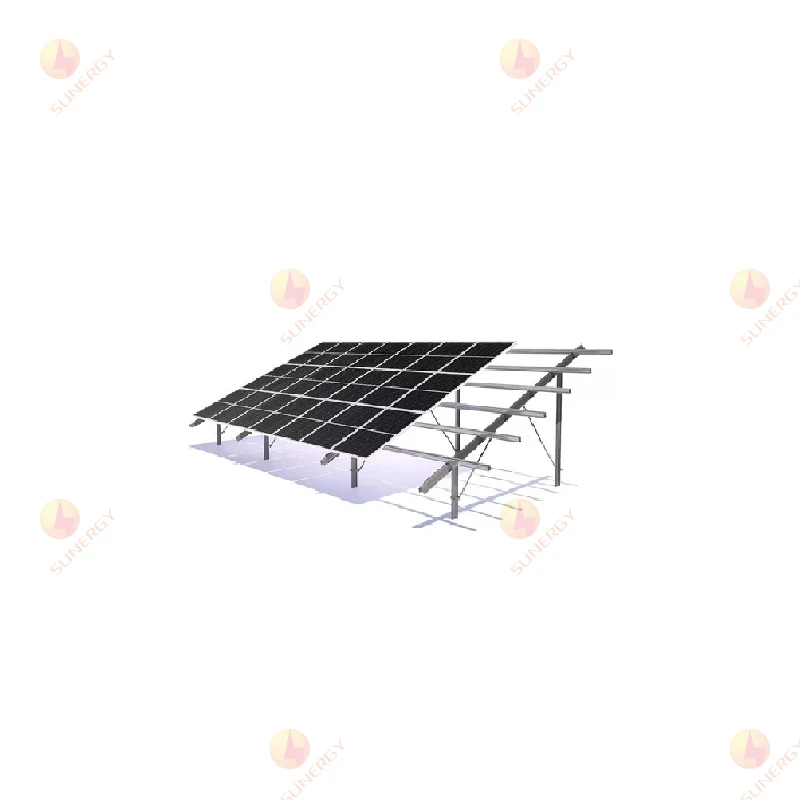

MOUNTING STRUCTURE
Applicable for different tile roof: Design project by project, selecting configuration of mounting system components flexibly.
Save installation time and cost: Pre-assembled components and clear installation manuals are supplier to save the onsite
installation time and cost.
Save installation time and cost: Pre-assembled components and clear installation manuals are supplier to save the onsite
installation time and cost.

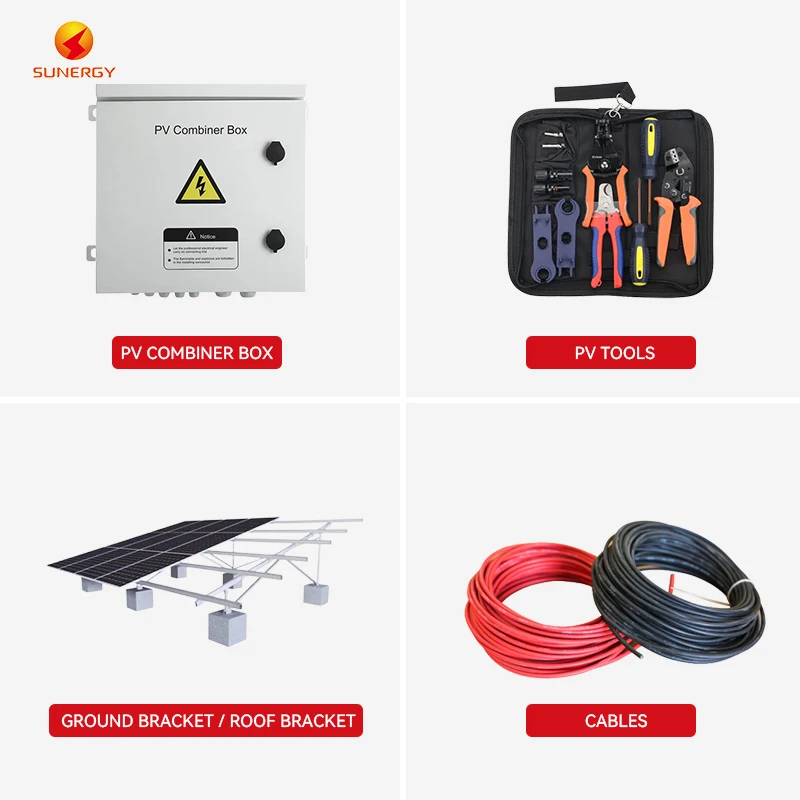

PV COMBINER BOX
IP Rating: IP65
Rated Voltage: 1000VDC
Input cable terminal: 4-6mm2
Rated Voltage: 1000VDC
Input cable terminal: 4-6mm2

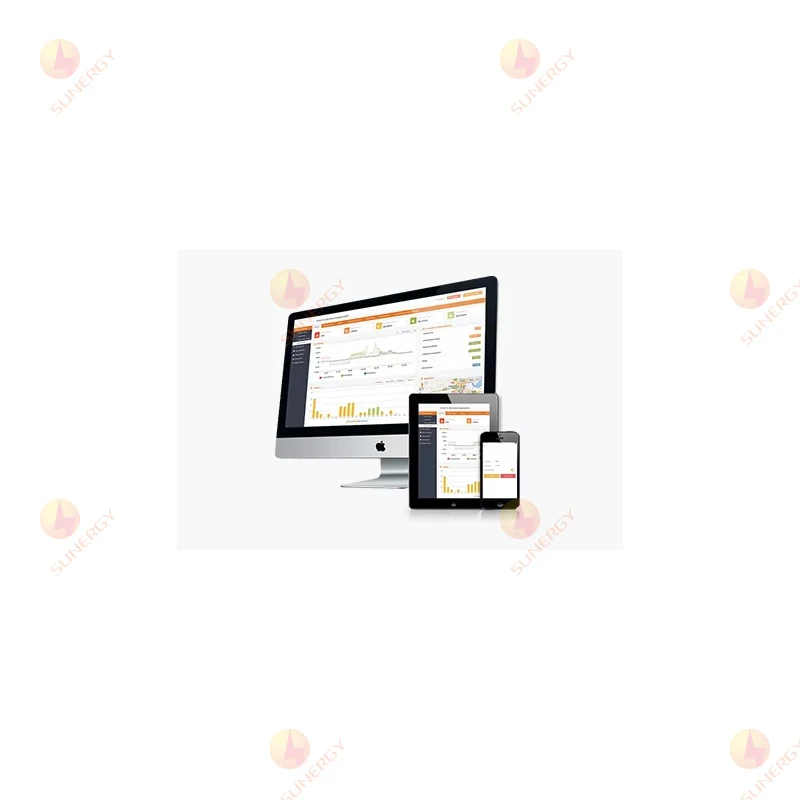

MONITORING SYSTEM
Open station supports one-click installation and registration;Problem support one-click dispatch and navigation;
Safe operation, traceable logs, etc;
Support full lifecycle data storage to ensure data security and reliability.
Safe operation, traceable logs, etc;
Support full lifecycle data storage to ensure data security and reliability.
ACCESSORIES
1. AC Cable
2. DC Switches
3. AC Breaker
4. AC/DC Combine box

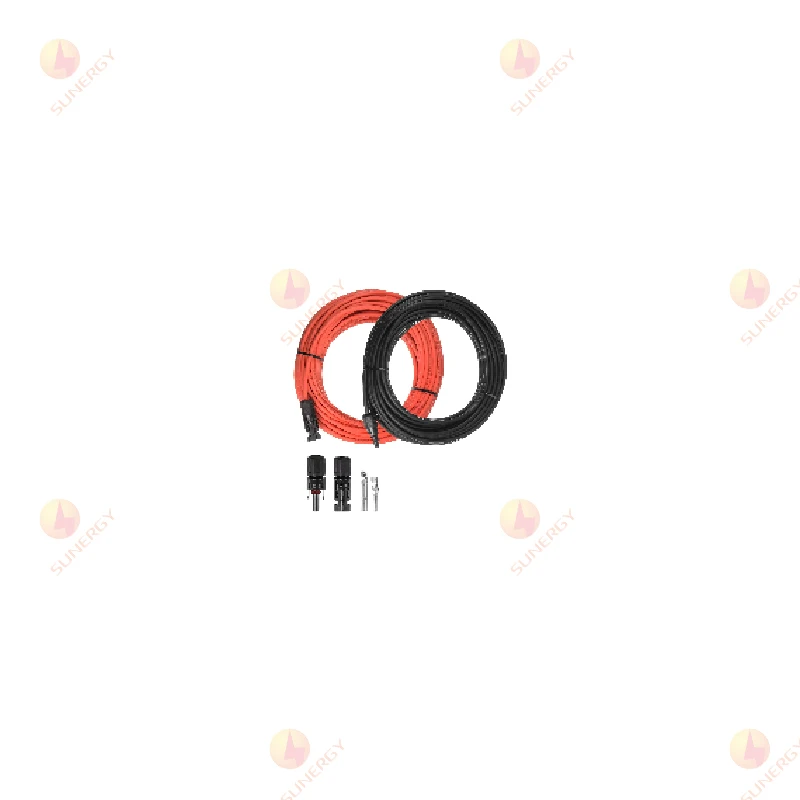

5. PV Cable 4mm2 6mm2
2. DC Switches
3. AC Breaker
4. AC/DC Combine box
5. PV Cable 4mm2 6mm2

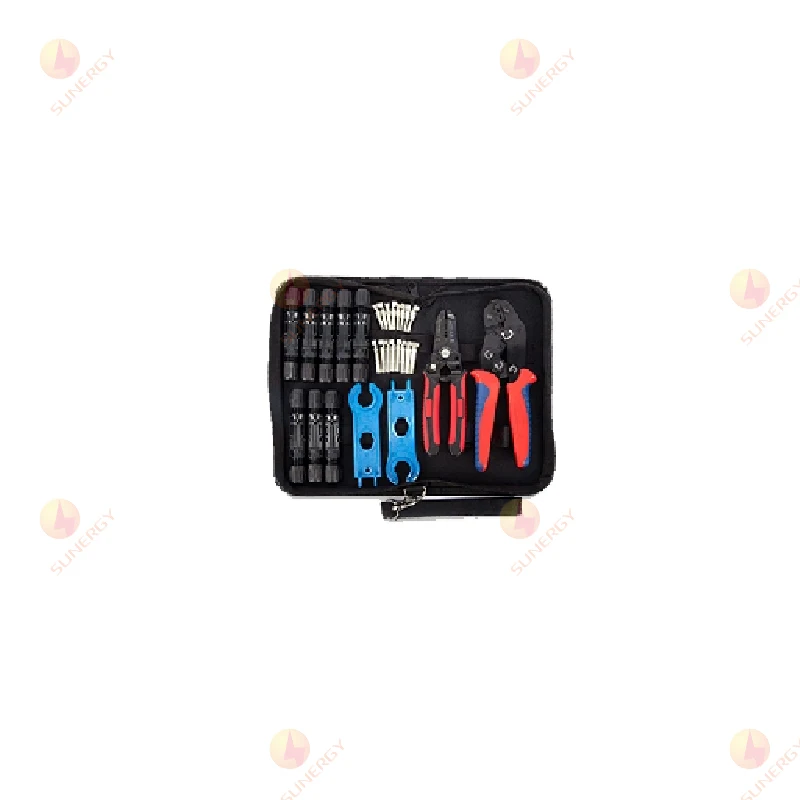

PV TOOLS
Wire Cable Cutter & Stripper;
MC3 MC4 Crimper;
MC4 Connectors Assembly;
Disassembly Tool.
MC3 MC4 Crimper;
MC4 Connectors Assembly;
Disassembly Tool.

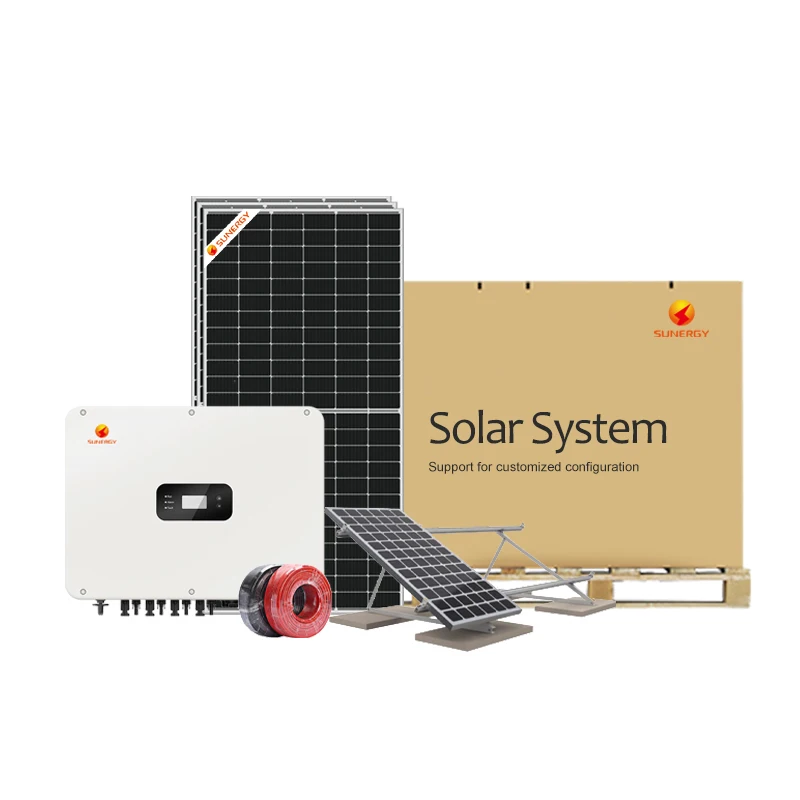

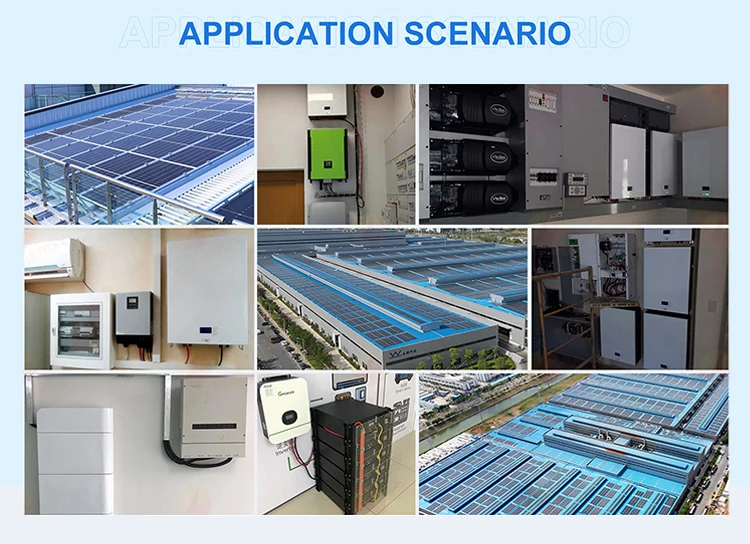

Solar System

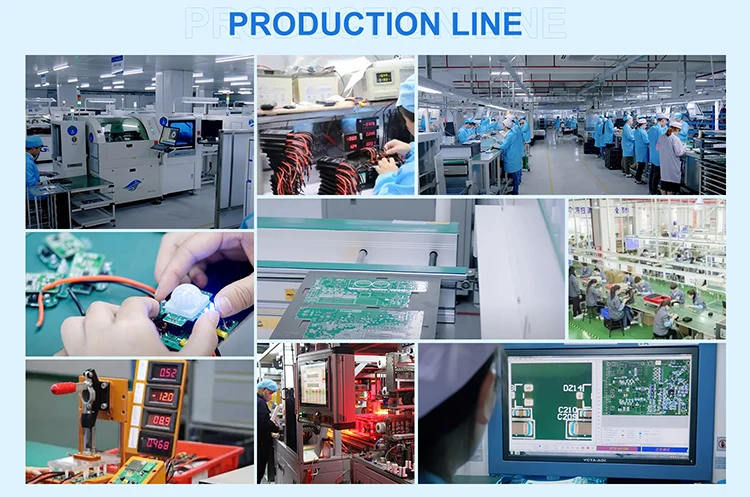

Workshop Show
Package & Delivery
One Stop Solar Solution:
Resource integration to help customers select the right solar panel for their needs. Whether it’s for residential, commercial, or industrial applications, our dedicated team is here to guide customers towards the ideal one stop solar solution that aligns with their vision of a sustainable future.
Customization services to tailor the solar panel to the customer’s specific requirements. Our expert team works closely with customers to assess their specific needs, taking into account factors such as available space, energy demands, and aesthetic preferences.
Fast and safe shipping of the solar panels to any location. With our robust logistics network, we guarantee fast transit times and stringent safety measures to safeguard the integrity of the solar panels during transportation.
