77GHz vehicle Blind area Radar Sensor Blind spot monitoring (BSD) / lane change assistance (LCA) / reversing assistance (RCTA)

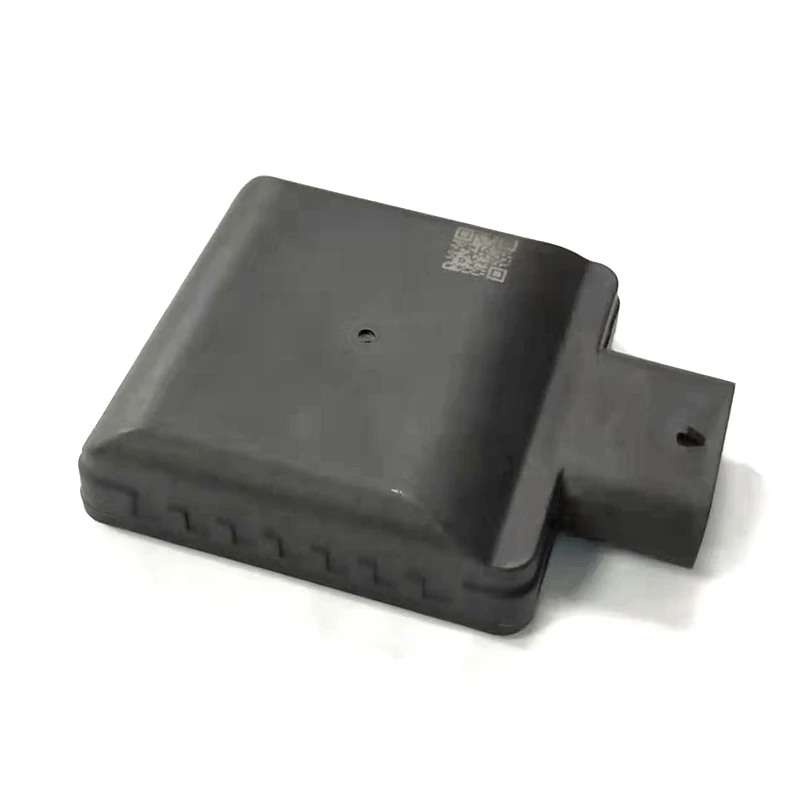

LDBSD400 77Ghz vehicle Blind area Radar Sensor

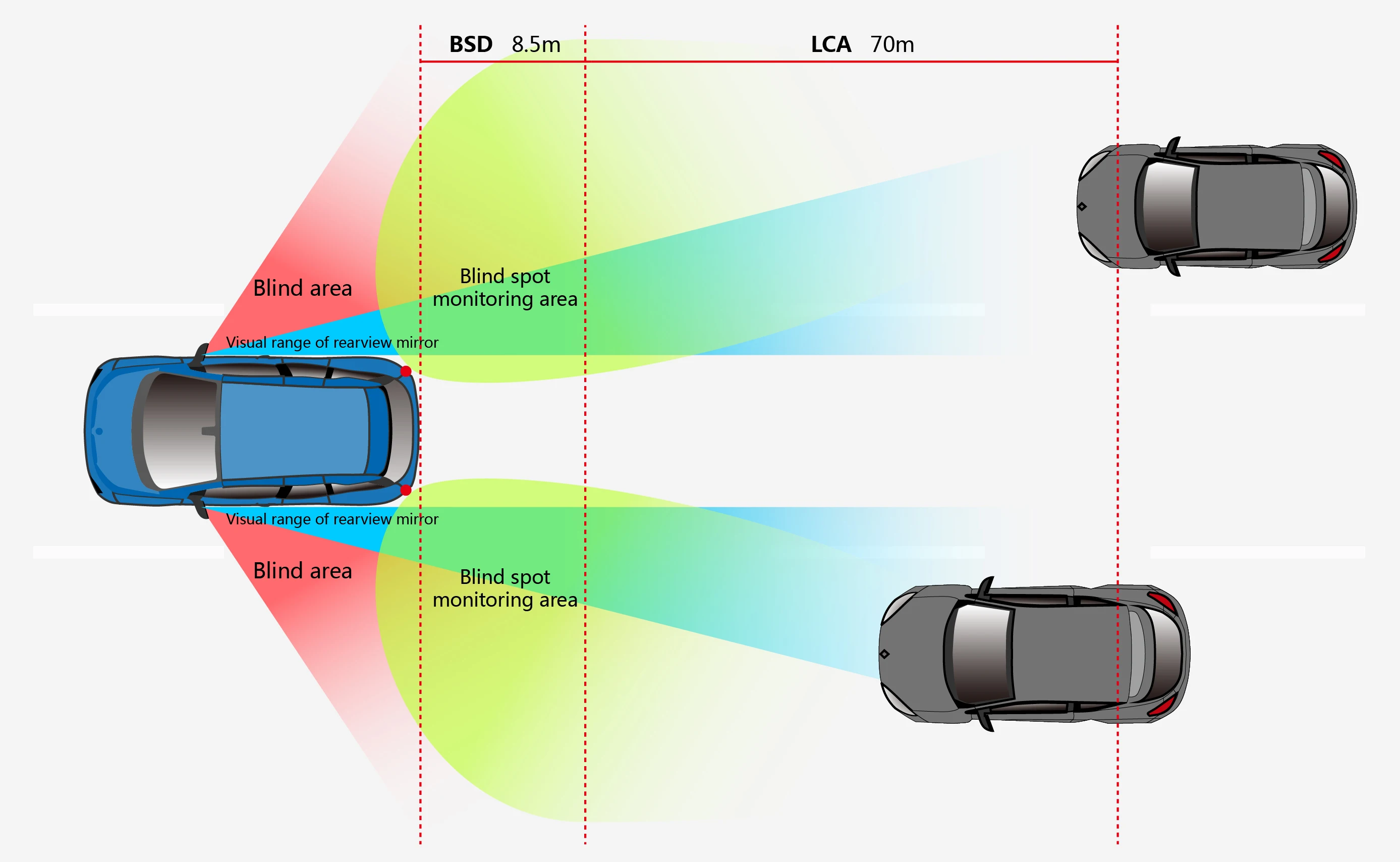

LDBSD400 is a 77GHz vehicle blind area radar sensor, which integrates blind area monitoring (BSD) / lane change assistance (LCA) / reversing assistance (RCTA) functions, using two-transmit and four-receiving microstrip antenna, with self-acquisition speed, wide-angle installation, through CAN, can upload target, alarm, speed, steering, reversing information.
In terms of performance, LDMRR400 is comparable to the original vehicle effect, meets the ISO17387, and meets the performance requirements and test methods of road vehicle blind area monitoring system (BSD).

Product characteristics:

Integrate the new generation of RFCMOS MMIC to better meet the lateral application.
The maximum detection distance of the vehicle can be up to 120 meters.
The maximum detection distance can be up to 100 meters for pedestrians.
The number of targets tracked is as high as 128.
Complete vehicle gauge design.
Horizontal FoV150 °, vertical FoV20 °.
Support for BSD/LCA/RCTA/DOW/RCW

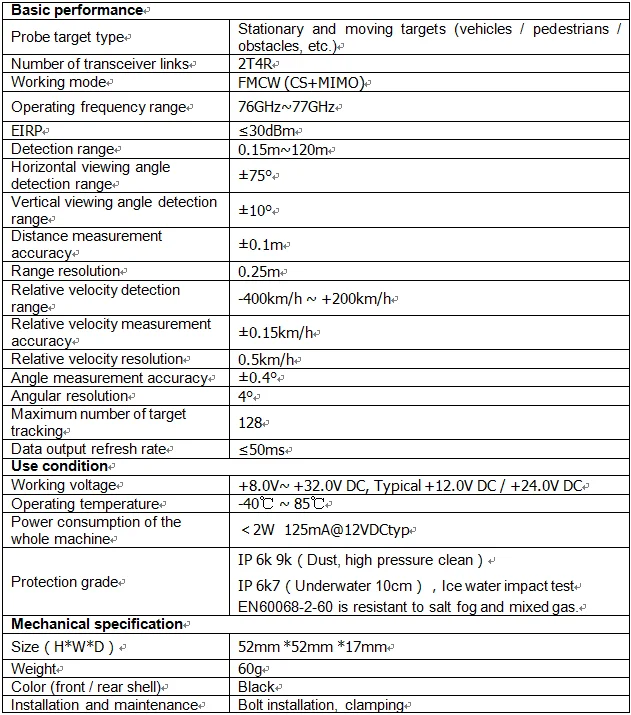

Specification parameters:

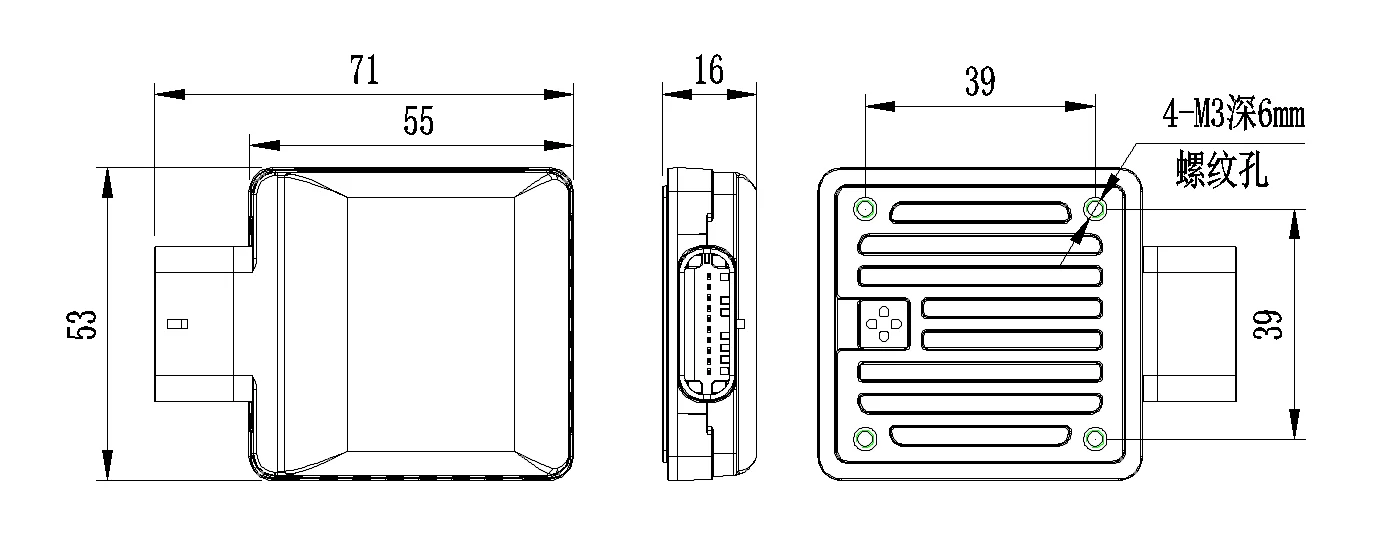

Structure size(Unit:mm):

Radar interface definition diagram:

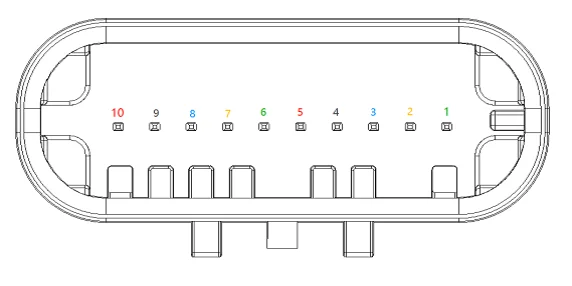

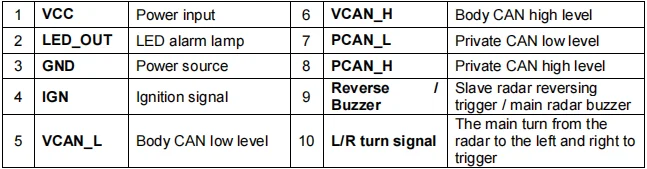

The product connector is standard gauge-grade waterproof connector, and the plug-in model is MOLEX Mini50 349671001. The pin definition is shown in the following table.

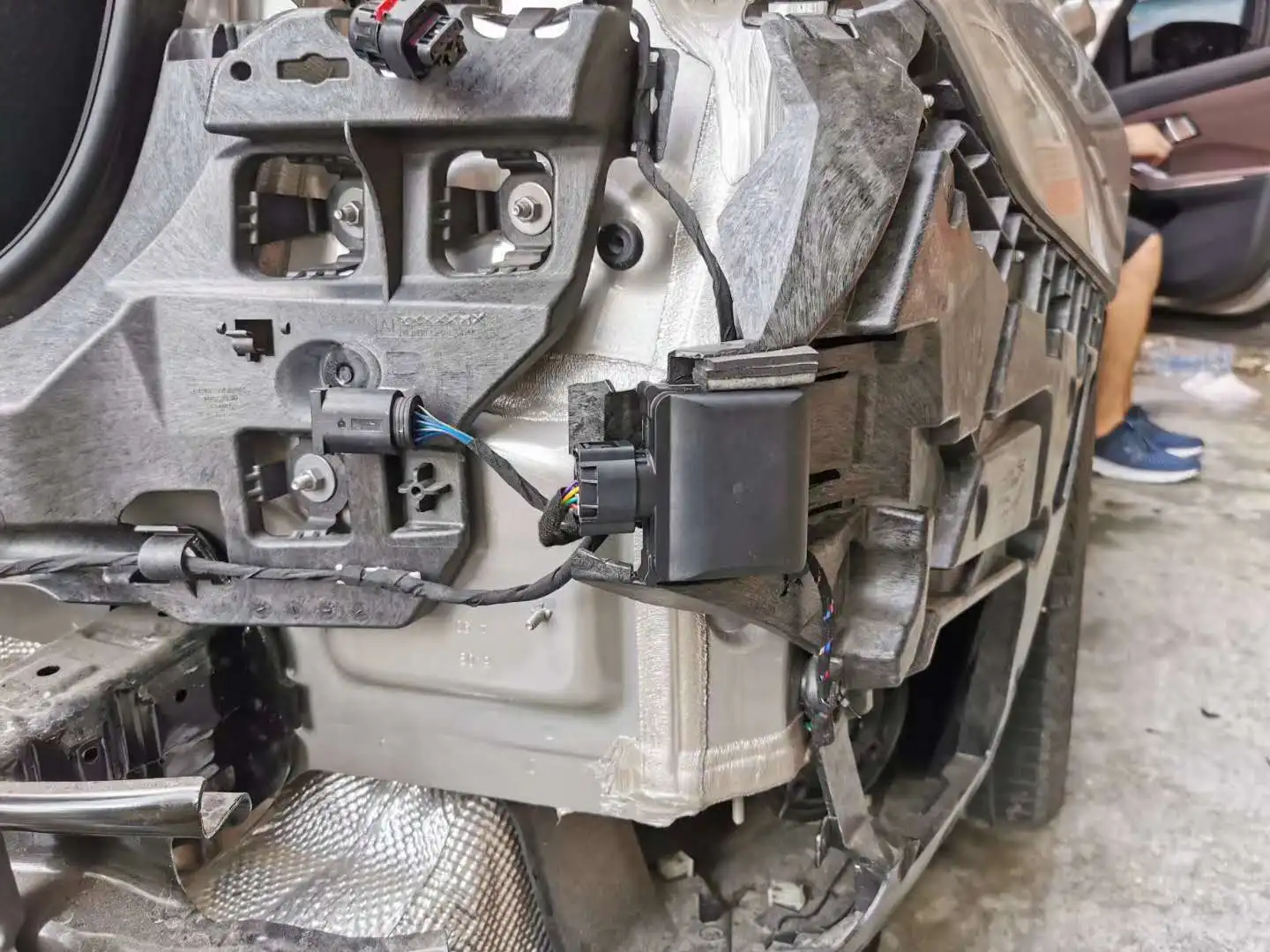

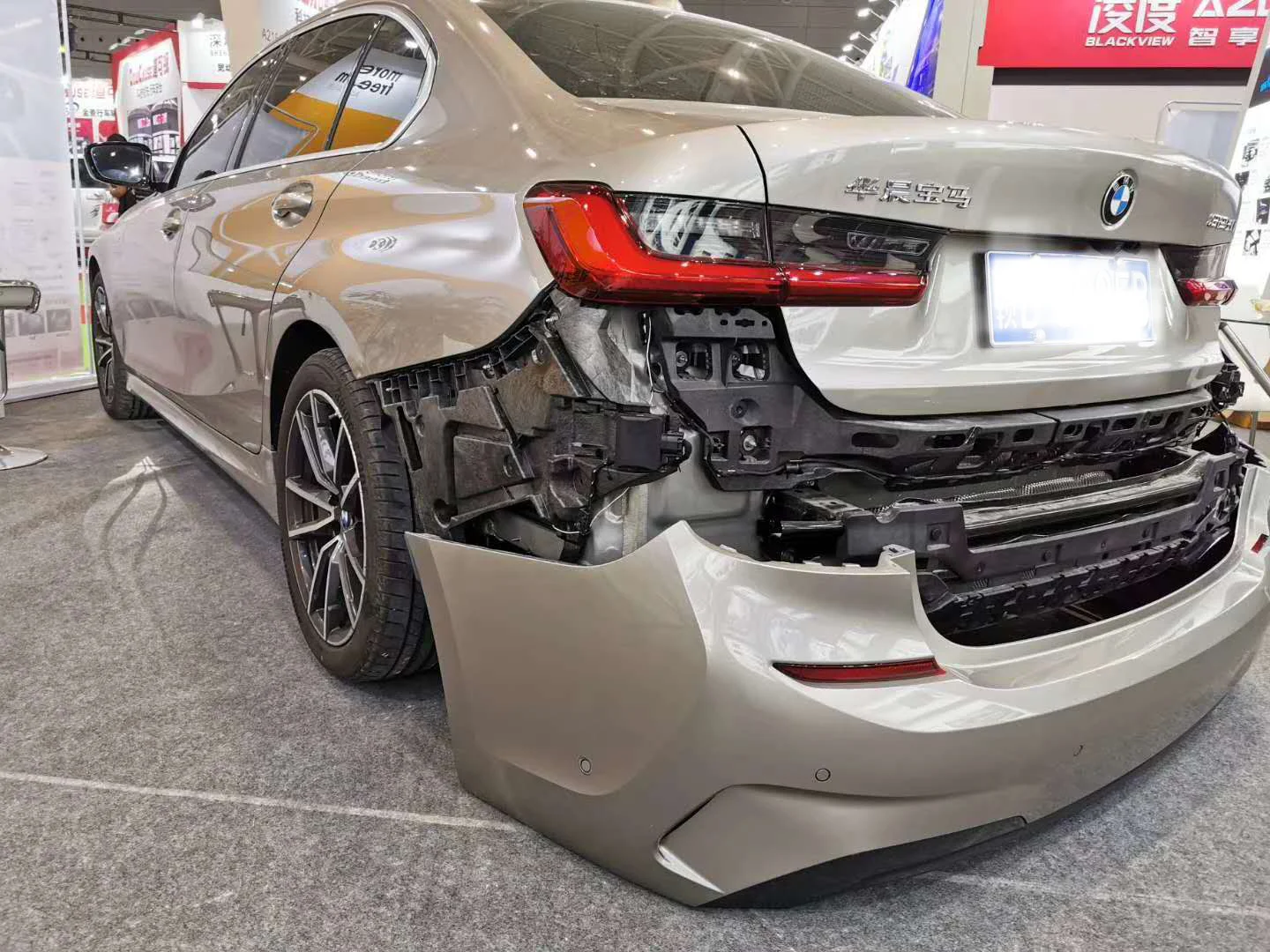

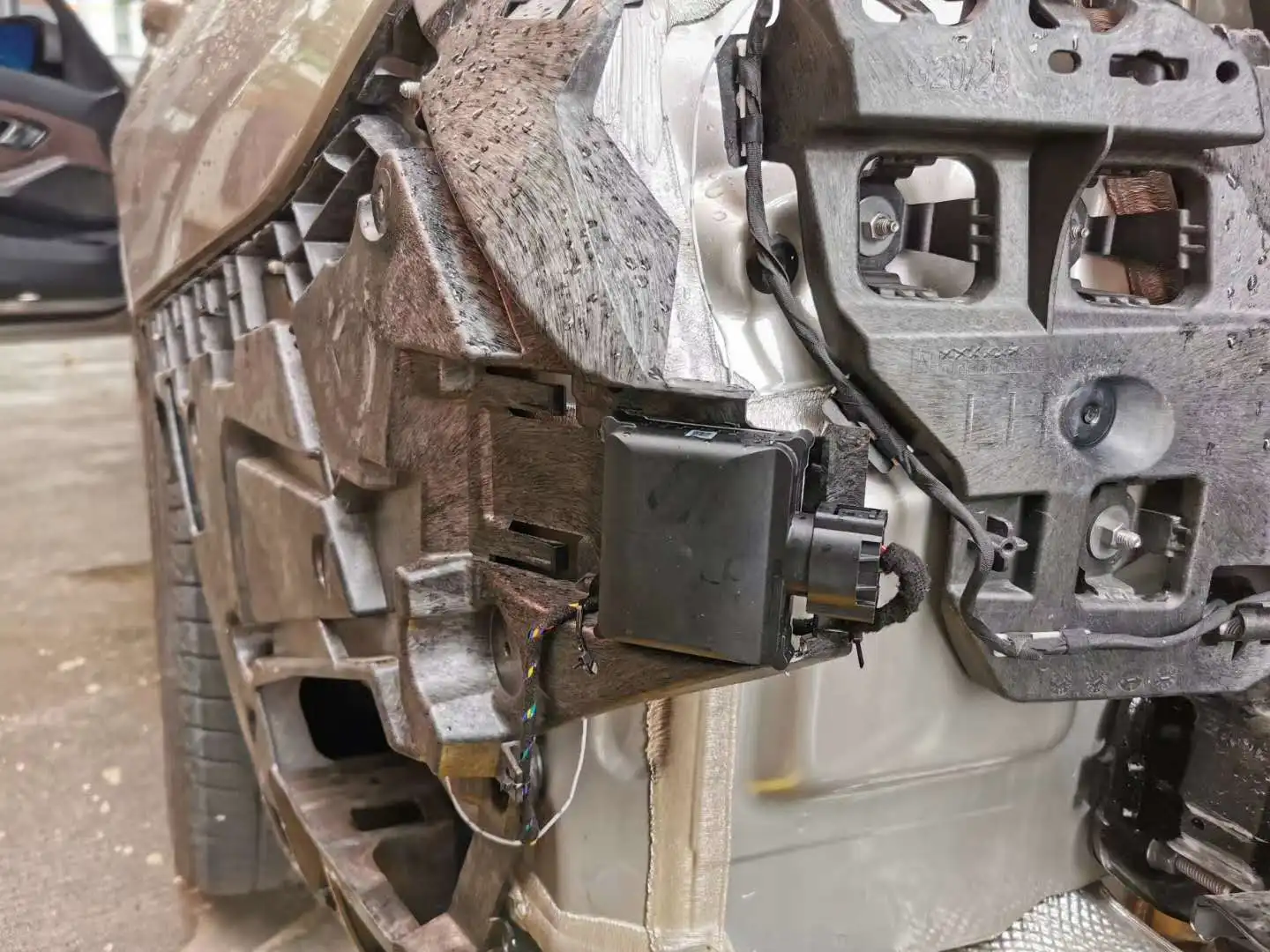

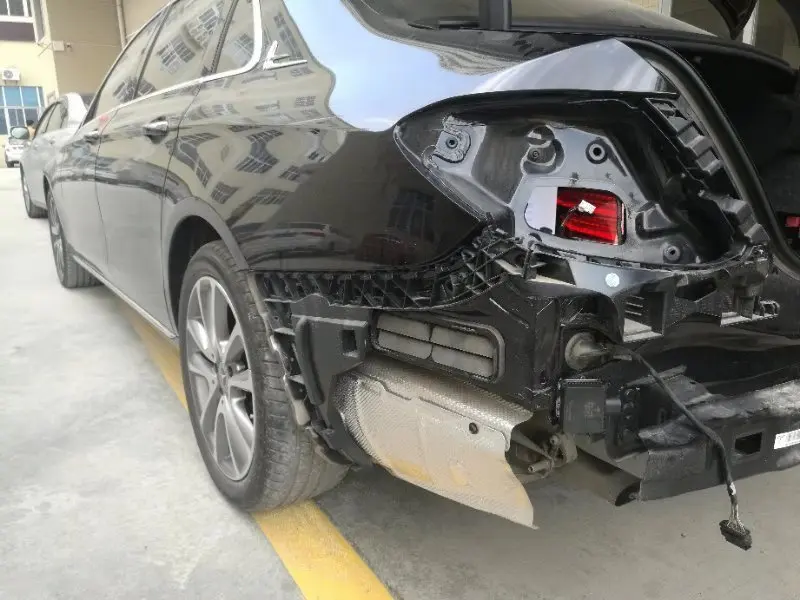

Actual installation site:
