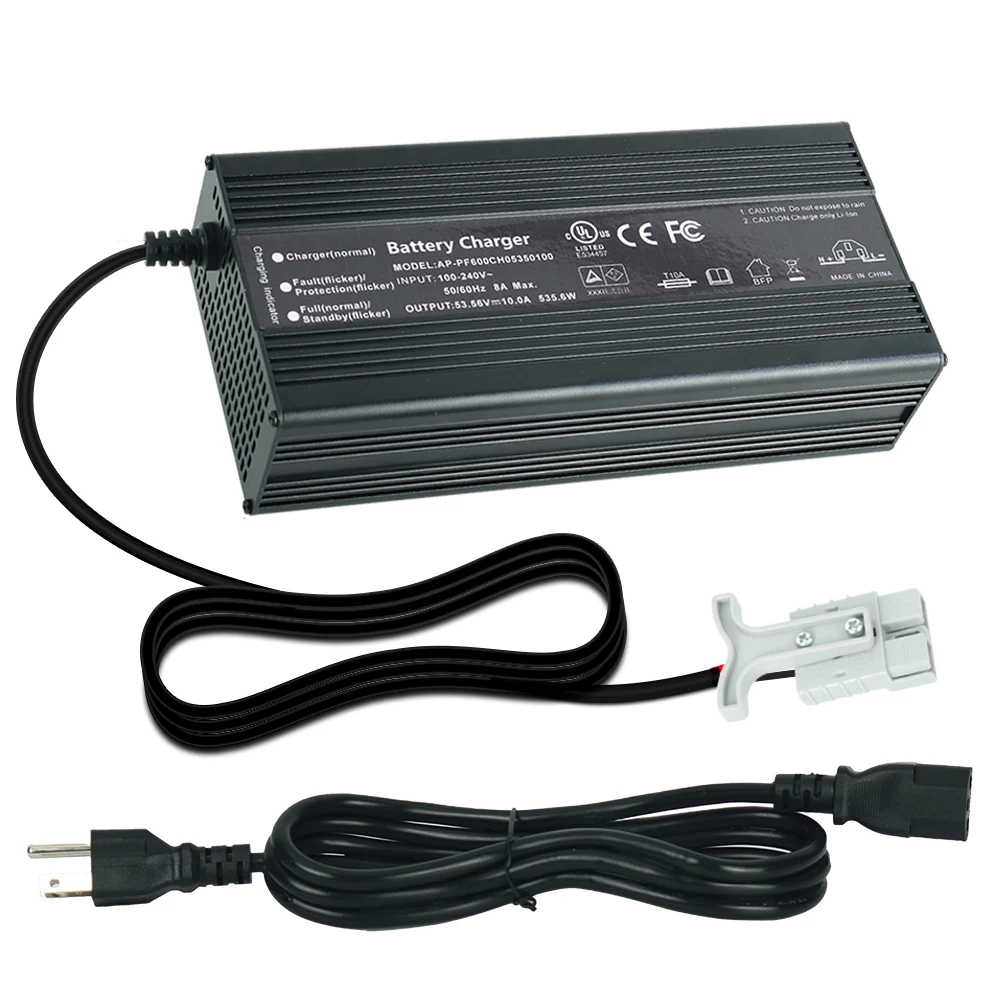

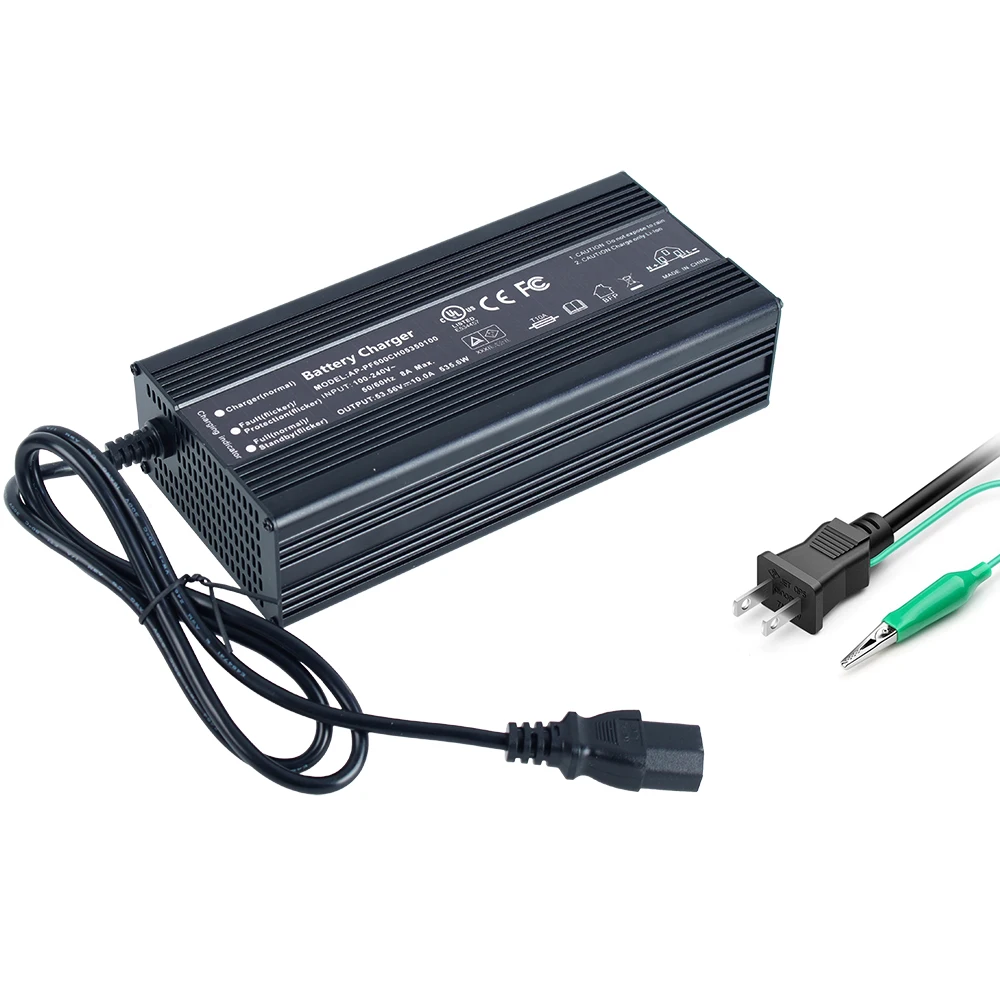

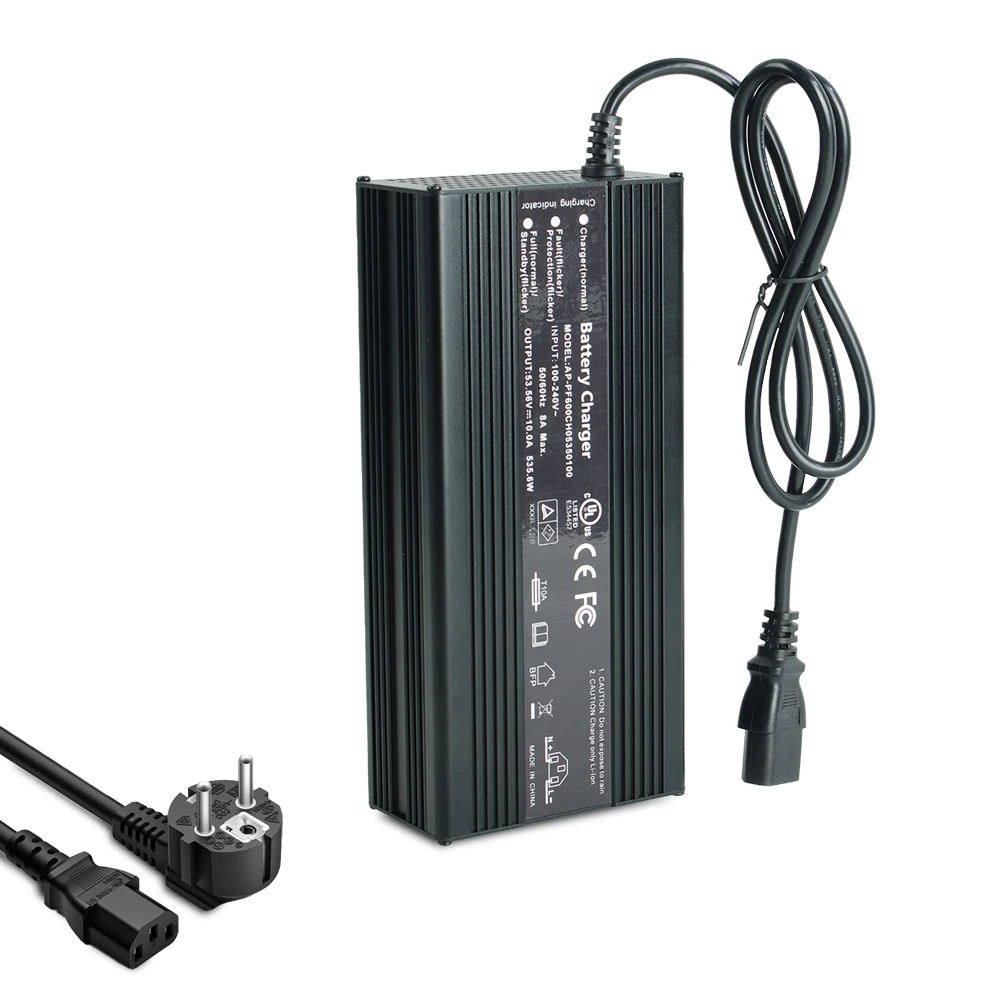

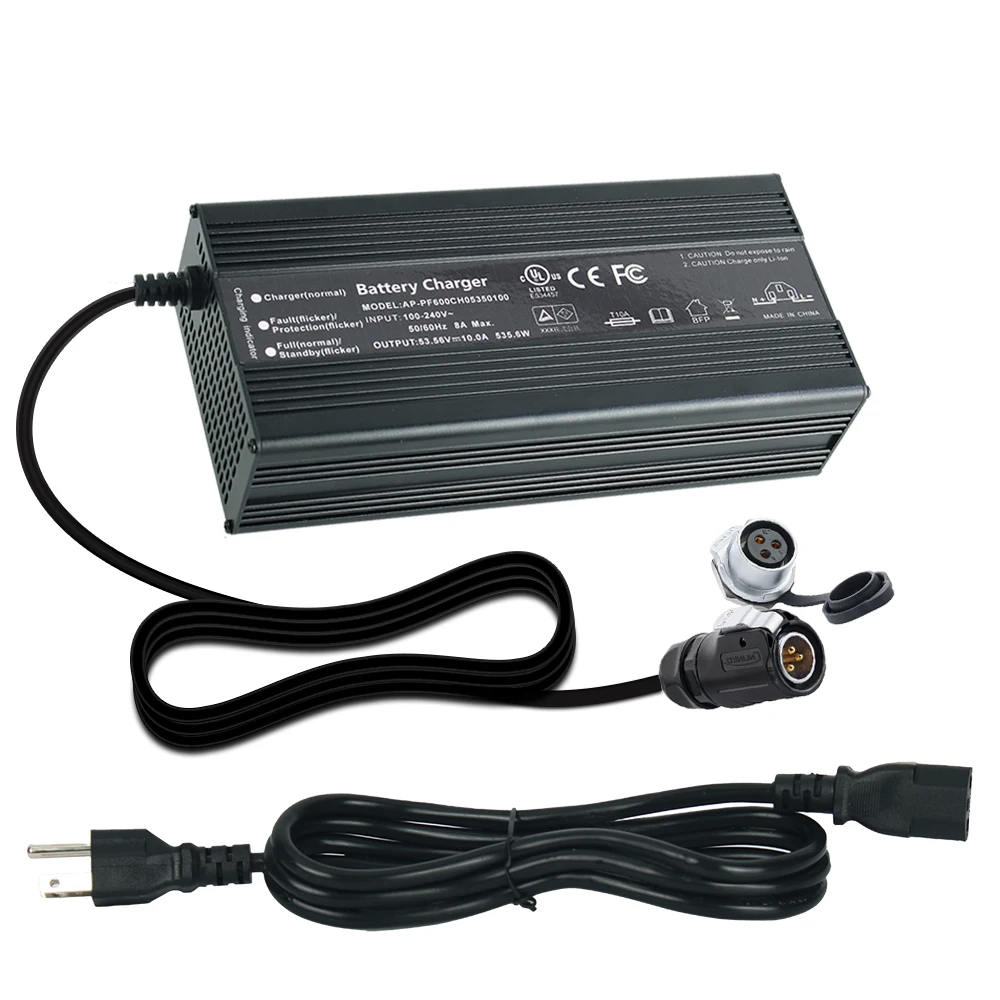

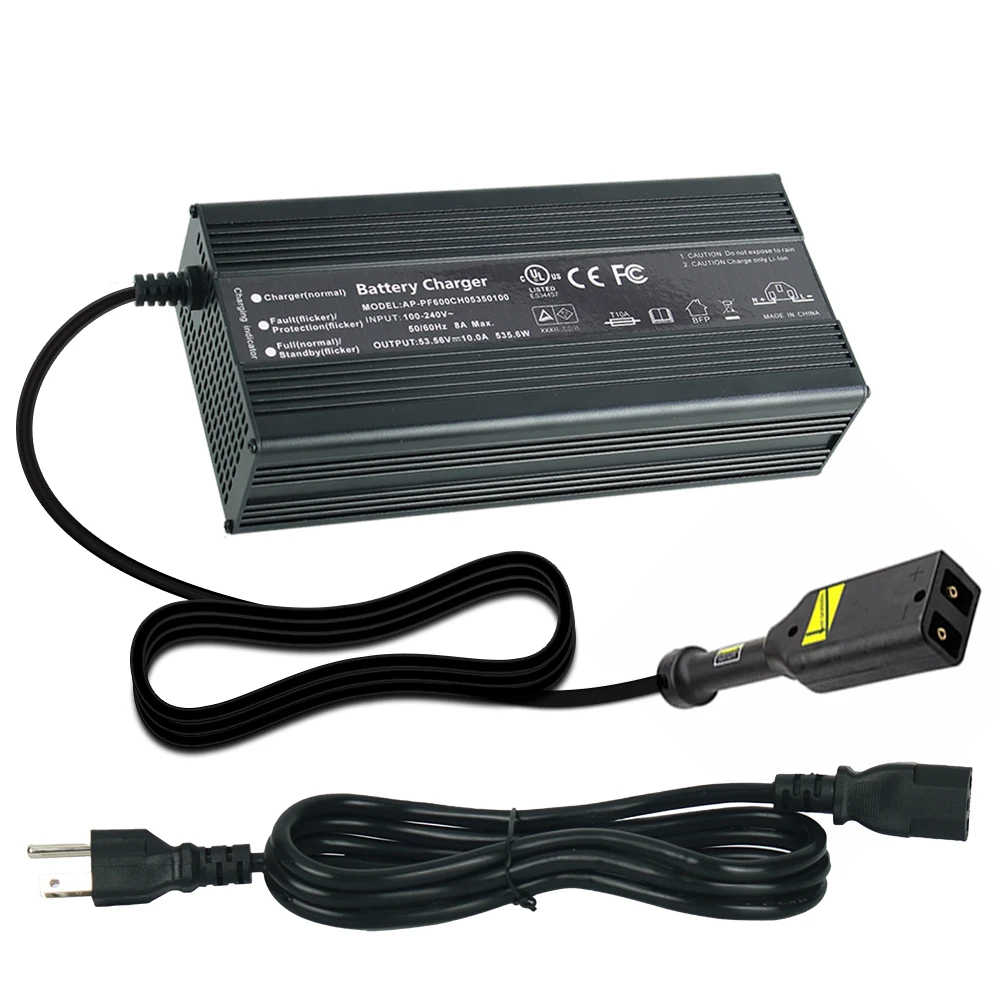

60 Volts 63v 67.2v 71.4v 73v 8 Amp charger CE PSE UL for Lead acid LFP Battery NMC Lithium battery pack
- Category: >>>
- Supplier: Shenzhen Zhichuanghui Electronic Technology Co. Ltd.Shenzhen Ltd.
Share on (1601322355433):
Product Overview
Description
Specification | ||||||||
AC input: | 100-240V AC, 47 to 63Hz | |||||||
Custom color: | Factory default silver, can customize black, blue, red, gold, green and other colors | |||||||
Support auxiliary power: | YES | |||||||
Communication type： | Support CAN | |||||||
Use for battery： | LiFePO4 Battery | Lead Acid Battery | LITHIUM Battery | LTO Battery | ||||
DC output voltage: | Can customized as your need | |||||||
Efficiency: | >92% | |||||||
Charging Mode: | 3 Stages, CC, CV, Trickle | |||||||
Materail: | Aluminum alloy with Fan | |||||||
Tape display： | YES | |||||||
AC/DC cable： | AC-1500mm/DC-1200mm | |||||||
Size: | 215*100*54mm | |||||||
Weight: | about 1.6kg | |||||||
Protect Characteristic： | 1.Short-circuit protection 2.Over-current protection 3.Over-voltage protection 4.Reverse Polarity Protection 5.Over-temperature protection | |||||||
Work Conditions: | Work Temperature: -20℃~+45℃ storing temperature:-20℃至85℃ | |||||||
NOMINAL VOLTAGE | Standard Charging Voltage | Recommended Charging Current | |||||||||
LiFePO4 | Li-ion | LTO | LEAD-ACID | ~VAC90-265V | |||||||
12V | 14.8V | 12.6V | 16.8V | 14.4V | 30A | ||||||
24V | 29.2V | 29.4V | 33.6V | 28.8V | 20A | ||||||
36V | 43.8V | 42V | 42V | 43.2V | 13-14A | ||||||
48V | 54.8V 58.4V | 54.6V 58.8V | 58.8V | 58.8V | 10A | ||||||
60V | 69.35V 73V | 67.2V 71.4V | 67.2V | 73V | 8A | ||||||
72V | 83.95V 87.6V | 84V 88.2V | 84V | 87.6V | 7A | ||||||
84V | 94.9V | 92.4V | 92.4V | 100.8V | 5A | ||||||
96V | |||||||||||
108V | |||||||||||
Remark | We are manufacture!We can customize the charging profile according to your battery information or your requests | ||||||||||
