Product Overview
Description
Products Description

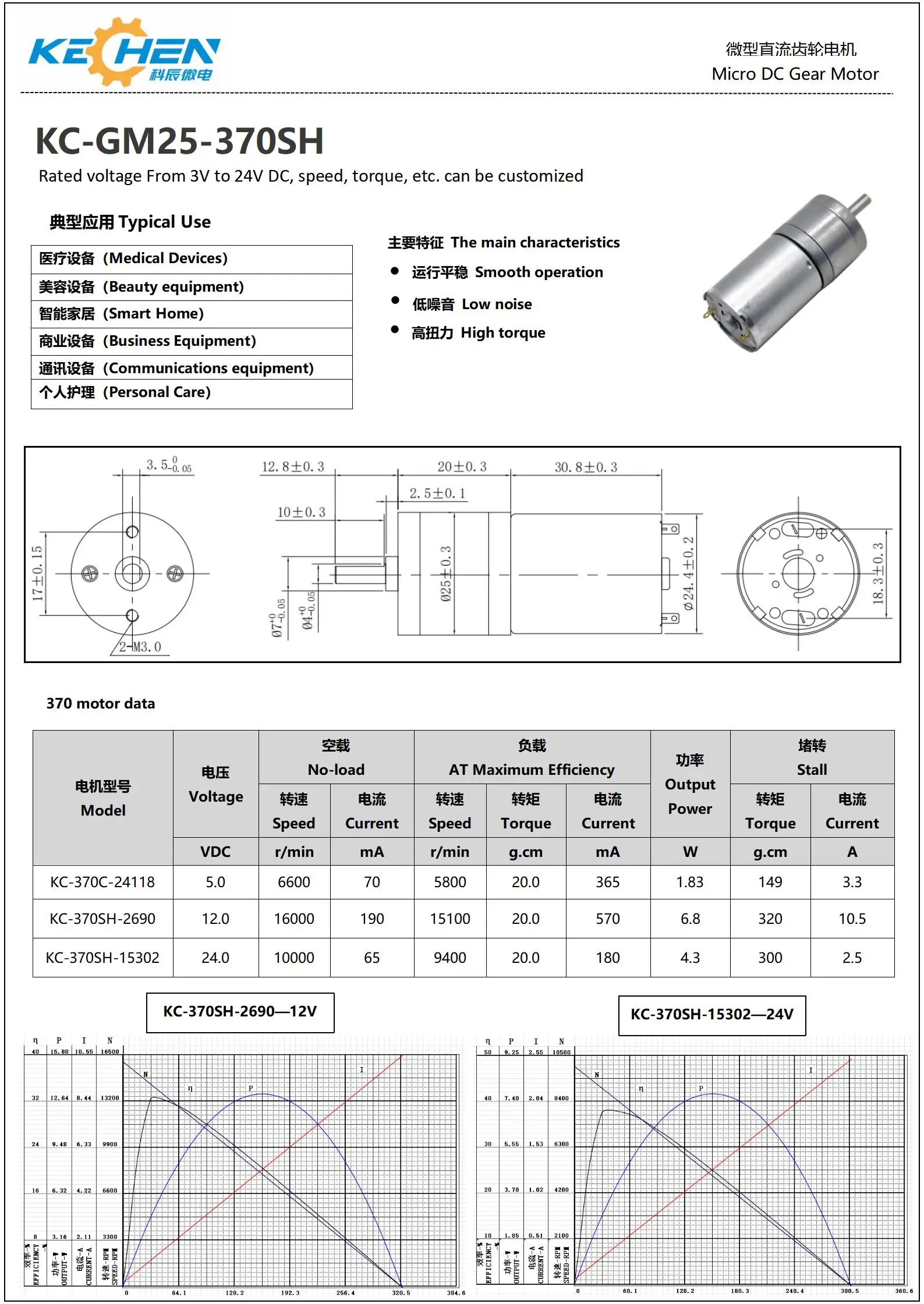

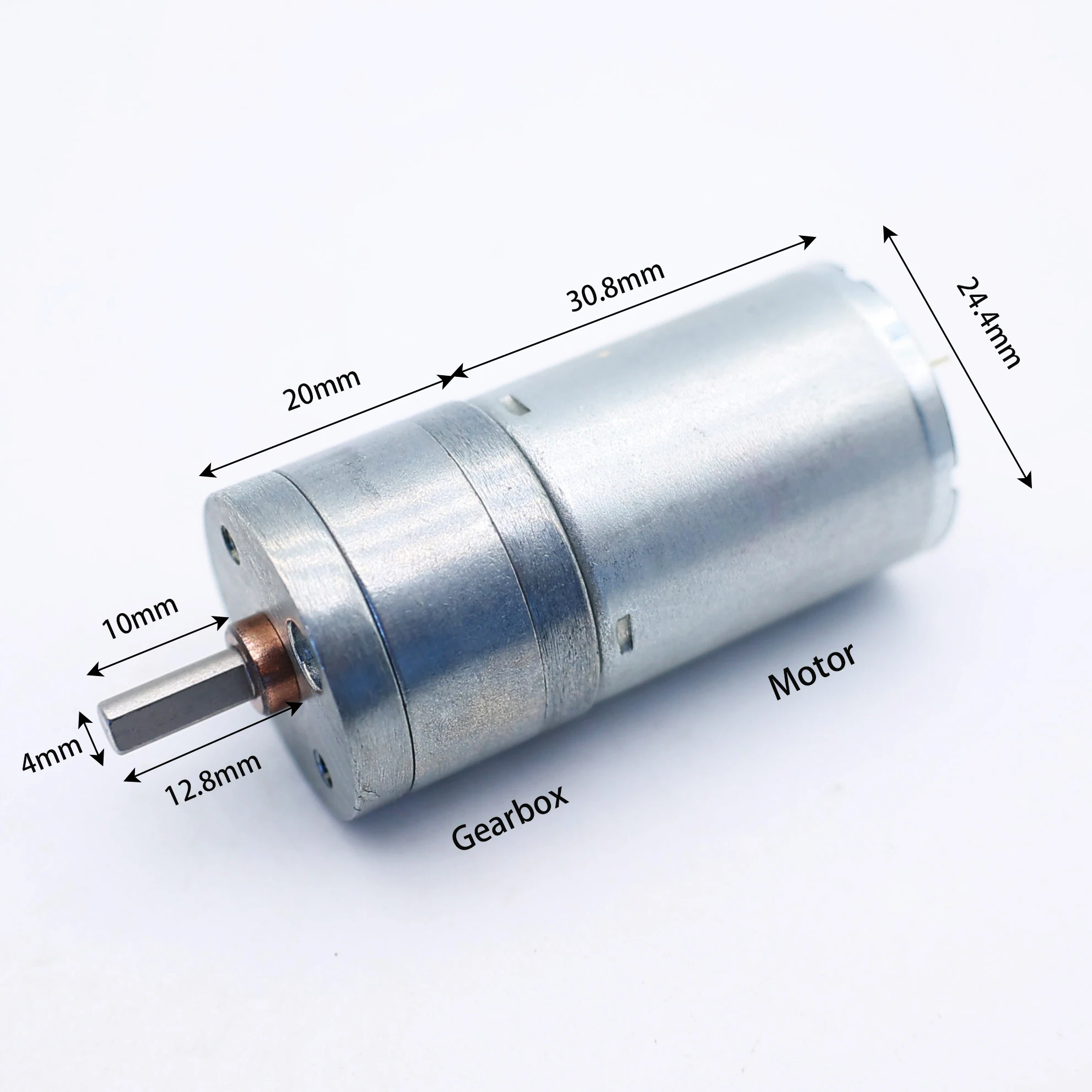

|- Model: GM25-370 micro metal gearmotor;
|- Gearbox: 25 mm metal spur gear reducer;
|- Rated Voltage: DC 3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 5Kgf-cm ;
|- Size : Φ25 * L TBD ;
|- Shaft : Φ4mm D-cut 0.5mm, custom;
|- Encoder : magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush/Metal brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs
|- Gearbox: 25 mm metal spur gear reducer;
|- Rated Voltage: DC 3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 5Kgf-cm ;
|- Size : Φ25 * L TBD ;
|- Shaft : Φ4mm D-cut 0.5mm, custom;
|- Encoder : magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush/Metal brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs
Gearbox with motor Data: | ||||||||||||||||||
GM25-370SH-24118-5.0V | ||||||||||||||||||
Reduction | 10 | 35.5 | 59 | 78 | 103 | 130 | 172 | 226 | 286 | |||||||||
Length(mm) | 19 | 21 | 23 | 23 | 23 | 25 | 25 | 25 | 27 | |||||||||
No-load speed(rpm) | 665 | 187 | 113 | 85 | 65 | 51 | 39 | 29 | 23 | |||||||||
Rated speed(rpm) | 580 | 163 | 98 | 74 | 56 | 45 | 34 | 26 | 20 | |||||||||
Rated torque(kg.cm) | 0.14 | 0.36 | 0.47 | 0.62 | 0.82 | 0.78 | 1.03 | 1.36 | 1.14 | |||||||||
Stalling Torque (kg.cm) | 1.10 | 2.78 | 3.69 | 4.88 | 6.45 | 6.10 | 8.07 | 10.61 | 8.95 | |||||||||
GM25-370SH-11220-24.0V | ||||||||||||||||||
Reduction | 59 | 78 | 103 | 130 | 172 | 226 | 286 | 378 | 500 | |||||||||
Length(mm) | 23 | 23 | 23 | 25 | 25 | 25 | 27 | 27 | 27 | |||||||||
No-load speed(rpm) | 231 | 174 | 132 | 105 | 79 | 60 | 48 | 36 | 27 | |||||||||
Rated speed(rpm) | 210 | 159 | 120 | 95 | 72 | 55 | 43 | 33 | 25 | |||||||||
Rated torque(kg.cm) | 0.47 | 0.62 | 0.82 | 0.78 | 1.03 | 1.36 | 1.14 | 1.51 | 2.0 | |||||||||
Stalling Torque (kg.cm) | 5.35 | 7.07 | 9.34 | 8.84 | 11.70 | 15.37 | 12.97 | 17.14 | 22.67 | |||||||||

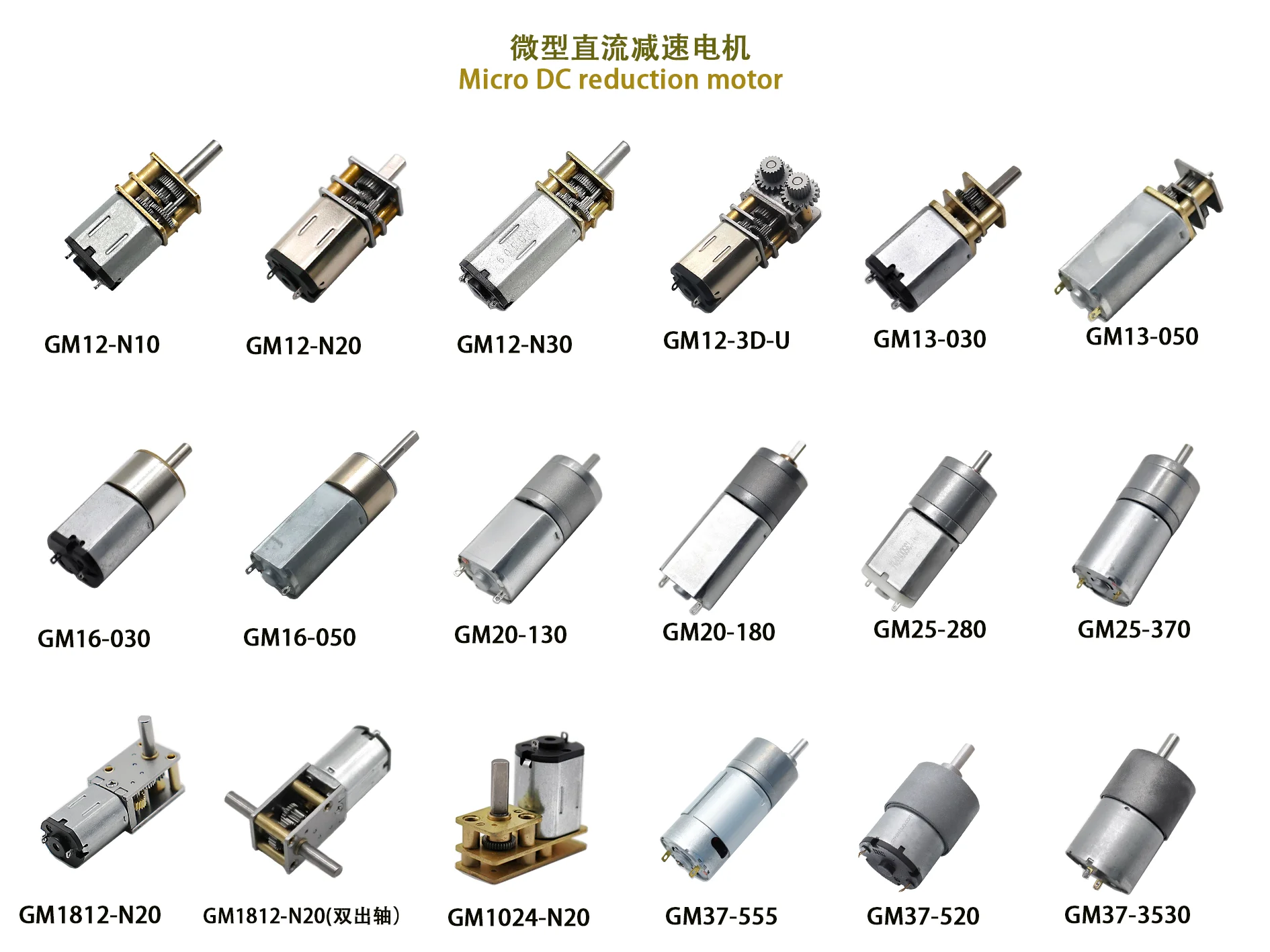

Recommend Products

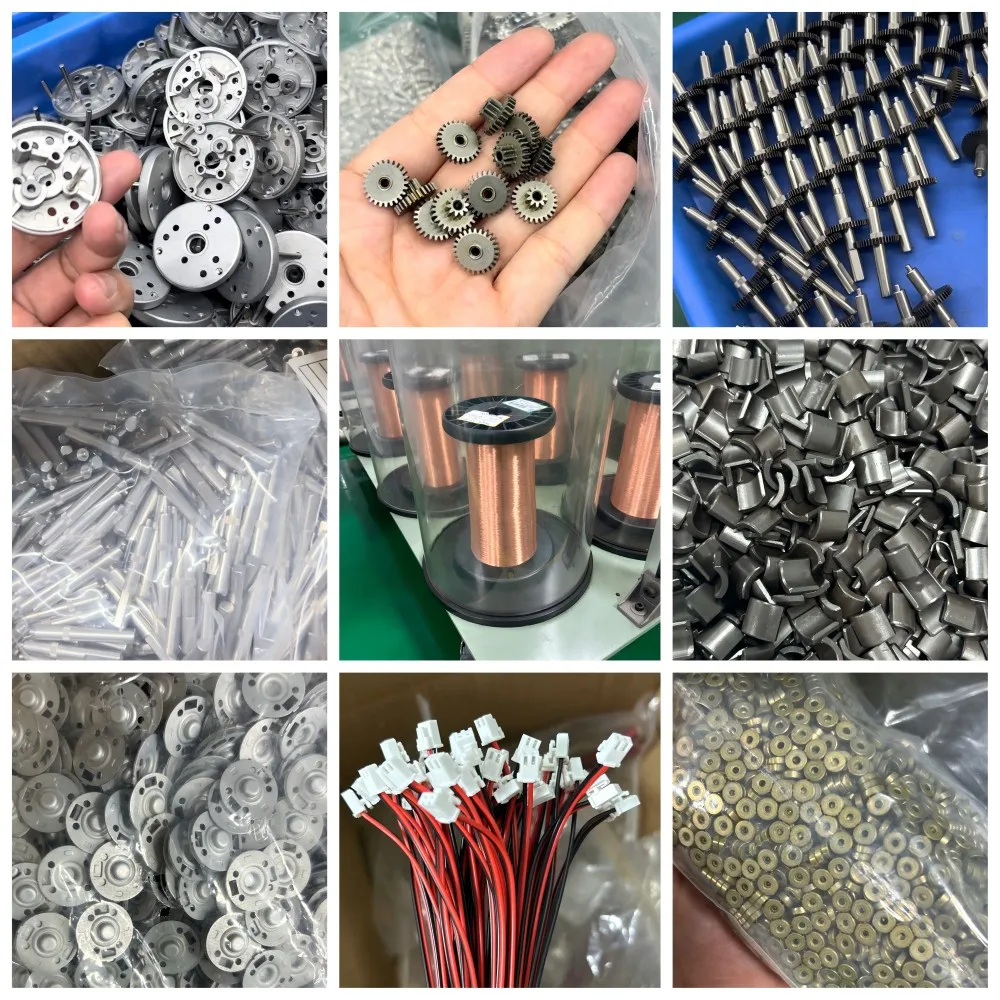

Motor raw materials
