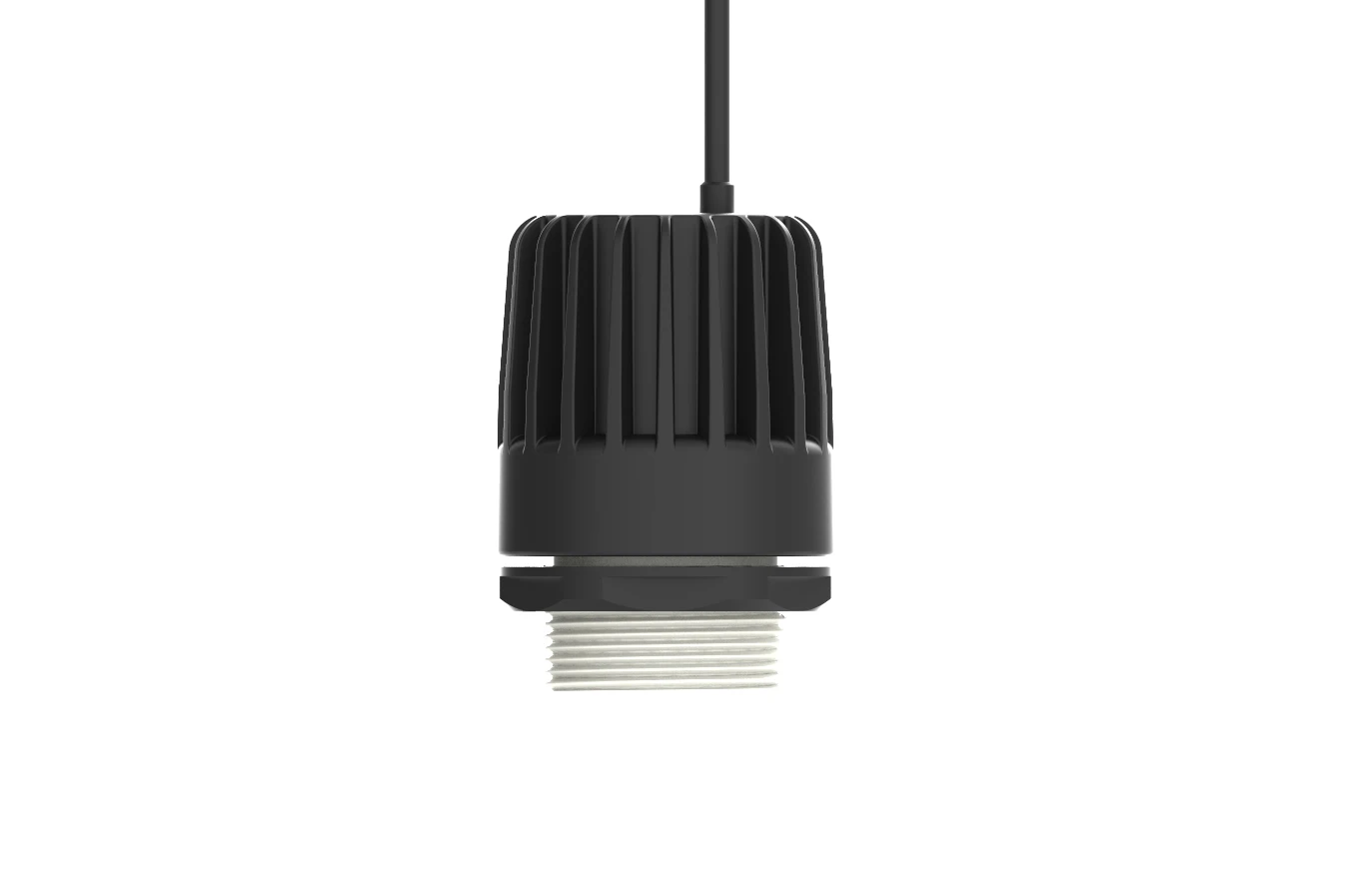

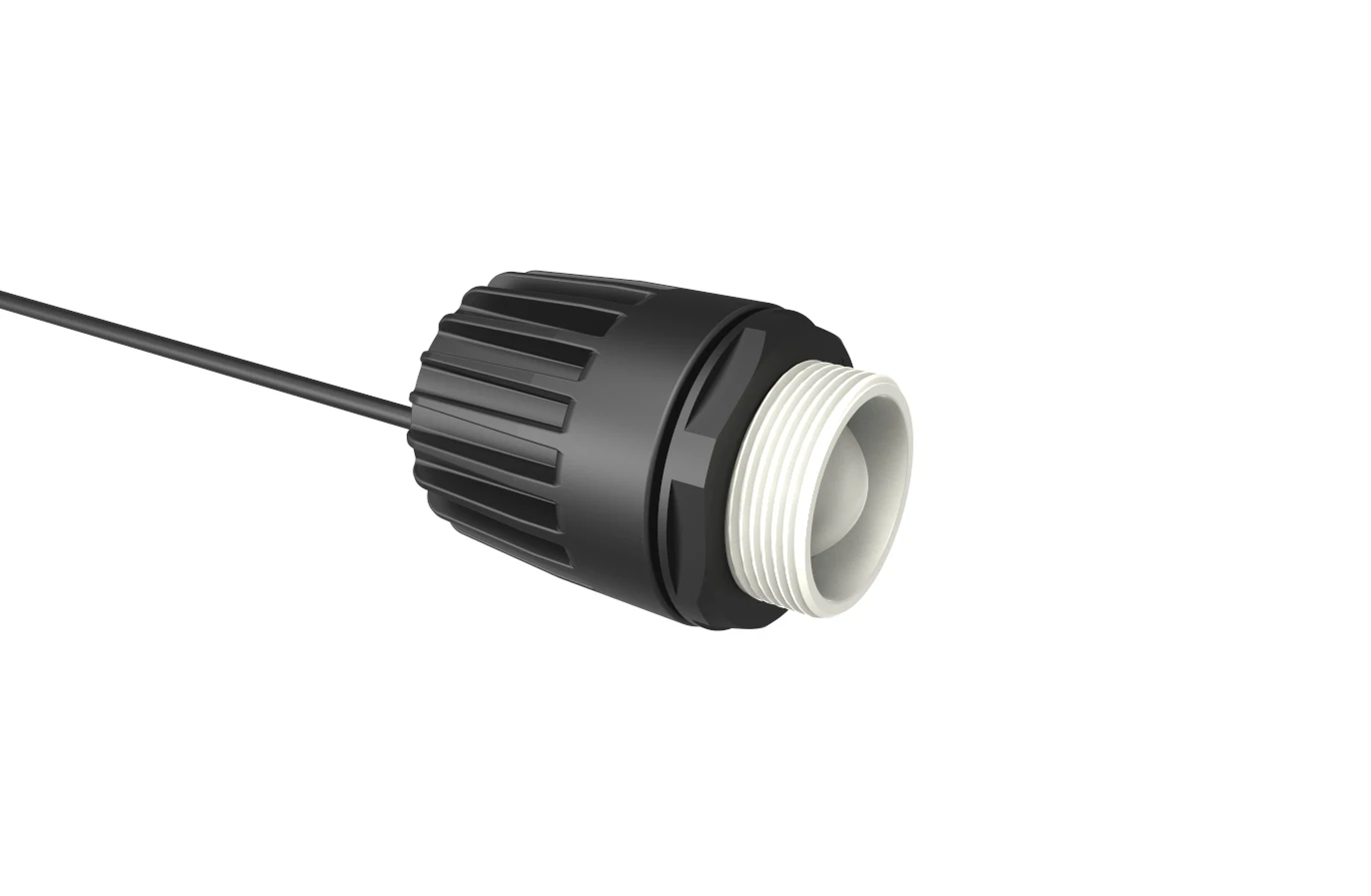

RS485 Radar level meter 120ghz 0.1~20m detection distance High accuracy radar Water level meter Ranging radar Modbus protocol
- Category: >>>
- Supplier: Zhengzhou Shenghao Electronic Technology Co. Ltd.Zhengzhou Ltd.
Share on (1601322368567):
Product Overview
Description

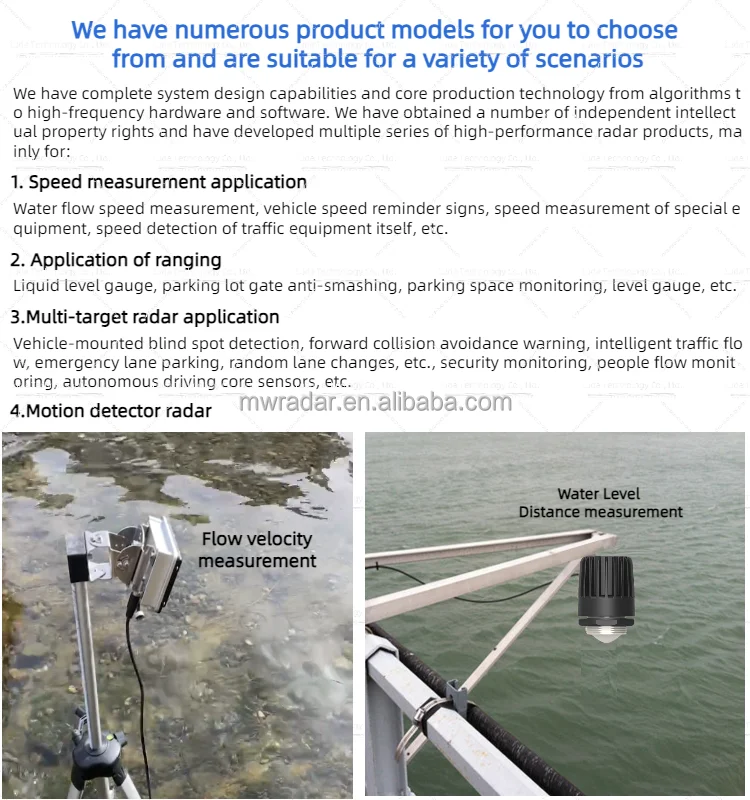

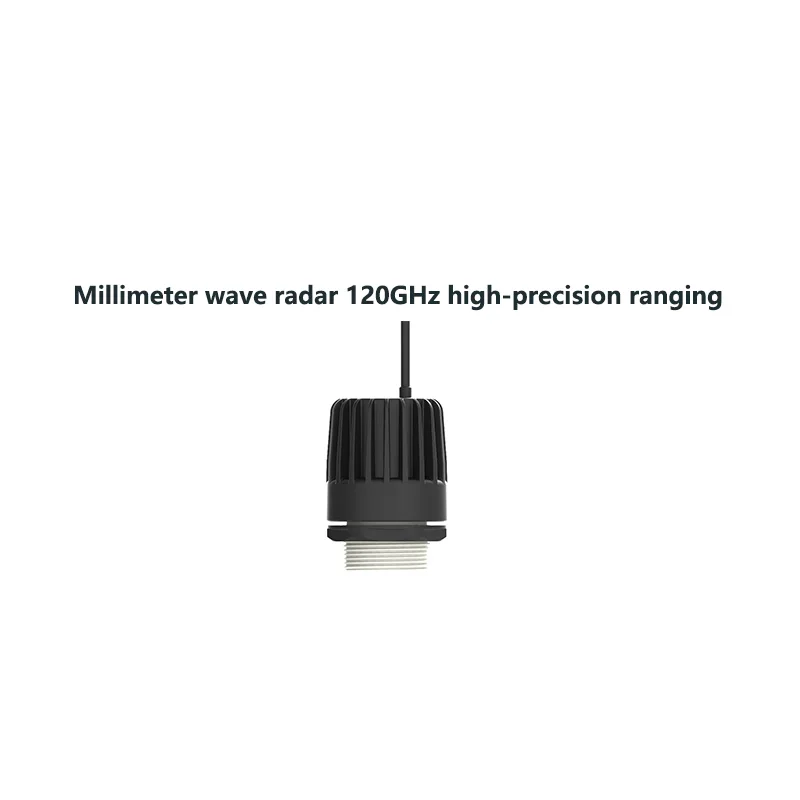

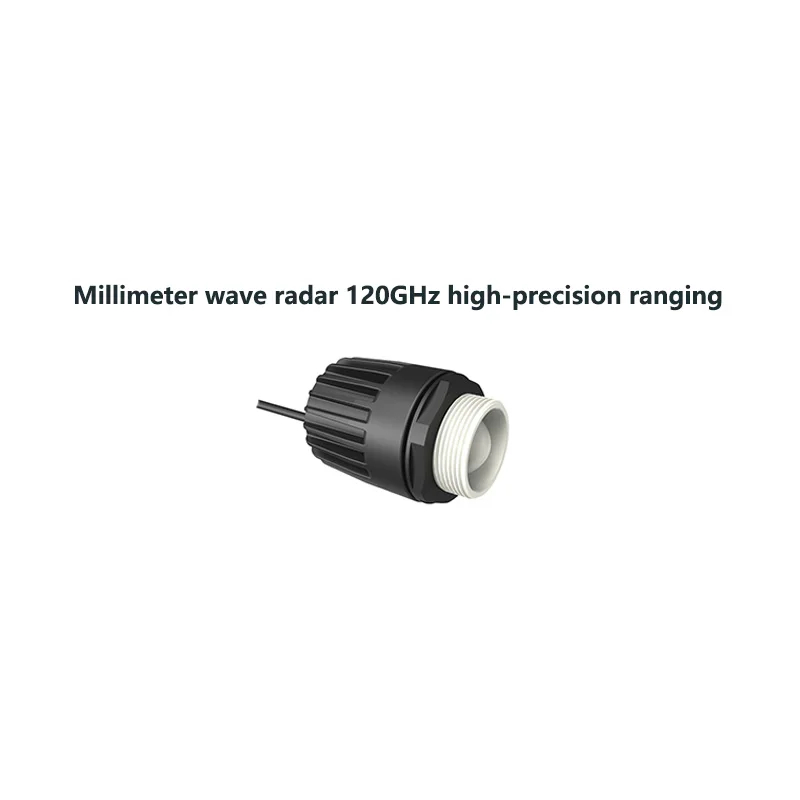

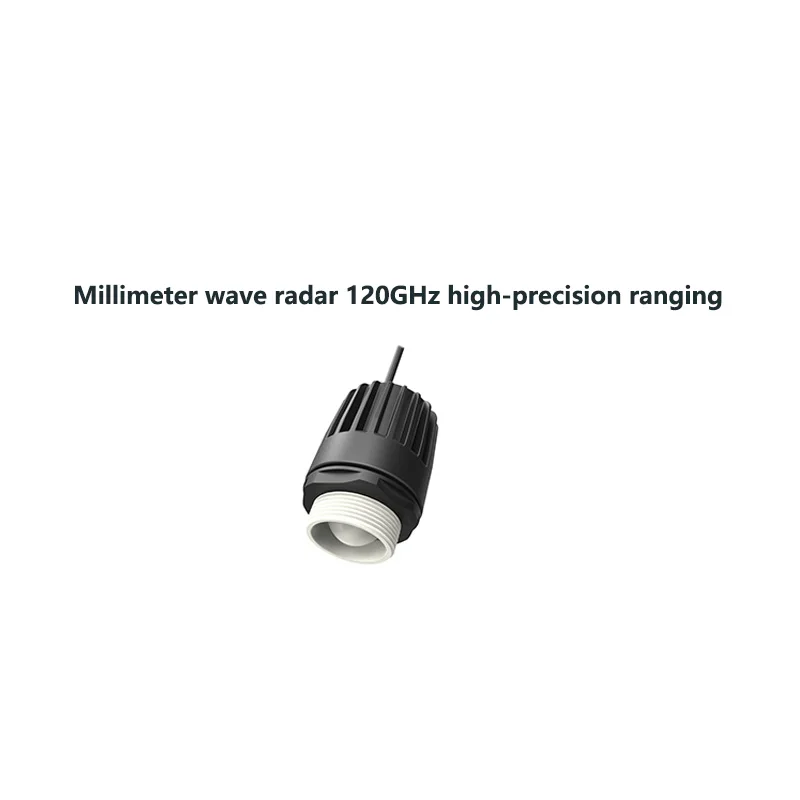

| Millimeter wave radar 120GHz high precision water level gauge This radar level sensor developed by Luda technology. Versatile and simple to install, the radar sensor is used for contactless measurement of the levels of surface water. Accuracy and performance are unaffected by changes in water density. This radar is a transmitter for continuous level measurements using fast sweep Frequency Modulated Continuous Wave (FWCW) technology. The antenna of radar continuously emits signal sweeps with a constantly varying frequency towards the water surface on 120GHz. The separate receiver antenna receives the frequency of the reflected signal from the water and uses them to determine the distance between sensor and water surface. The actual water level of the waterway is then calculated automatically, if required, by the radar sensor. To do this, on initial startup there is the possibility of inputting reference value. Provided that the unit has been mounted correctly according to the operating instructions, the complete radar sensors is flood proof with IP68 rating Features 1,Provide high accuracy detecting level of liquid. 2,Open protocol for sensor network applications 3,PVDF sensor face&IP68 protection for chemically aggressive environments 4,Integrated spirit bubble for easy leveling 5,RS-485 communication 6,Open protocol for sensor network applications Applications Adapt to application like water & waste water treat plant, open channel flow, buffer tanks; |
| Measuring performance | |
| Minimum Range | 0.1 m |
| Maximum Range | 20m |
| Resolution | 1mm |
| Azimuth beam width (3 dB) | 3° |
| Elevation beam width (3 dB) | 3° |
| Measurement Accuracy | ±2mm |
| Set-up time | 1s |
| Operating conditions | |
| Operating frequency band | 120... 123.5 GHz |
| Mains power supply | 9 V...24 V DC typically 12V |
| Operating average current | 20 mA |
| Effective Isotropic Radiated Power | 13 dBm |
| Data interface | RS485 (4-20mA is available on request) |
| Enclosure Protection | Fully sealed, injection molded housing rated to IP68 |
| Operating temperature range | 45°C...+85°C |
| Housing & Mounting | |
| Weight | 280 g |
| Housing material | ABS+PC/ PTFE/PA |

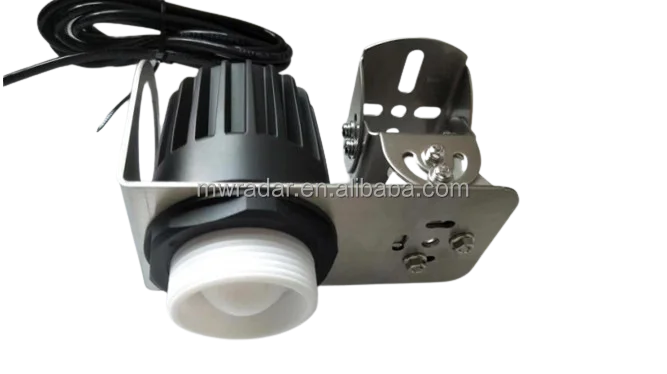

| Installation | Mounting bracket |
