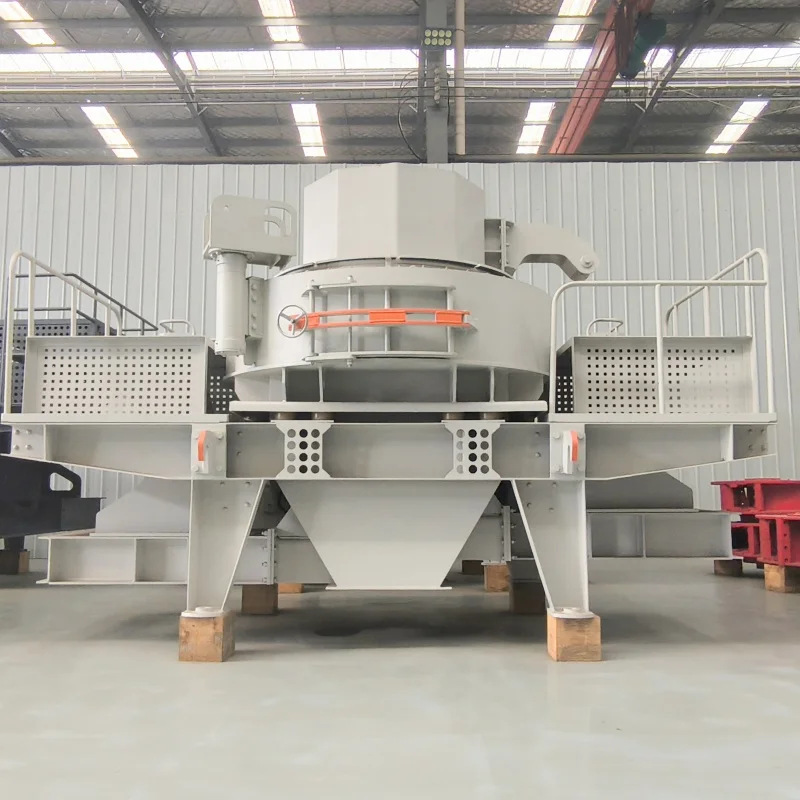

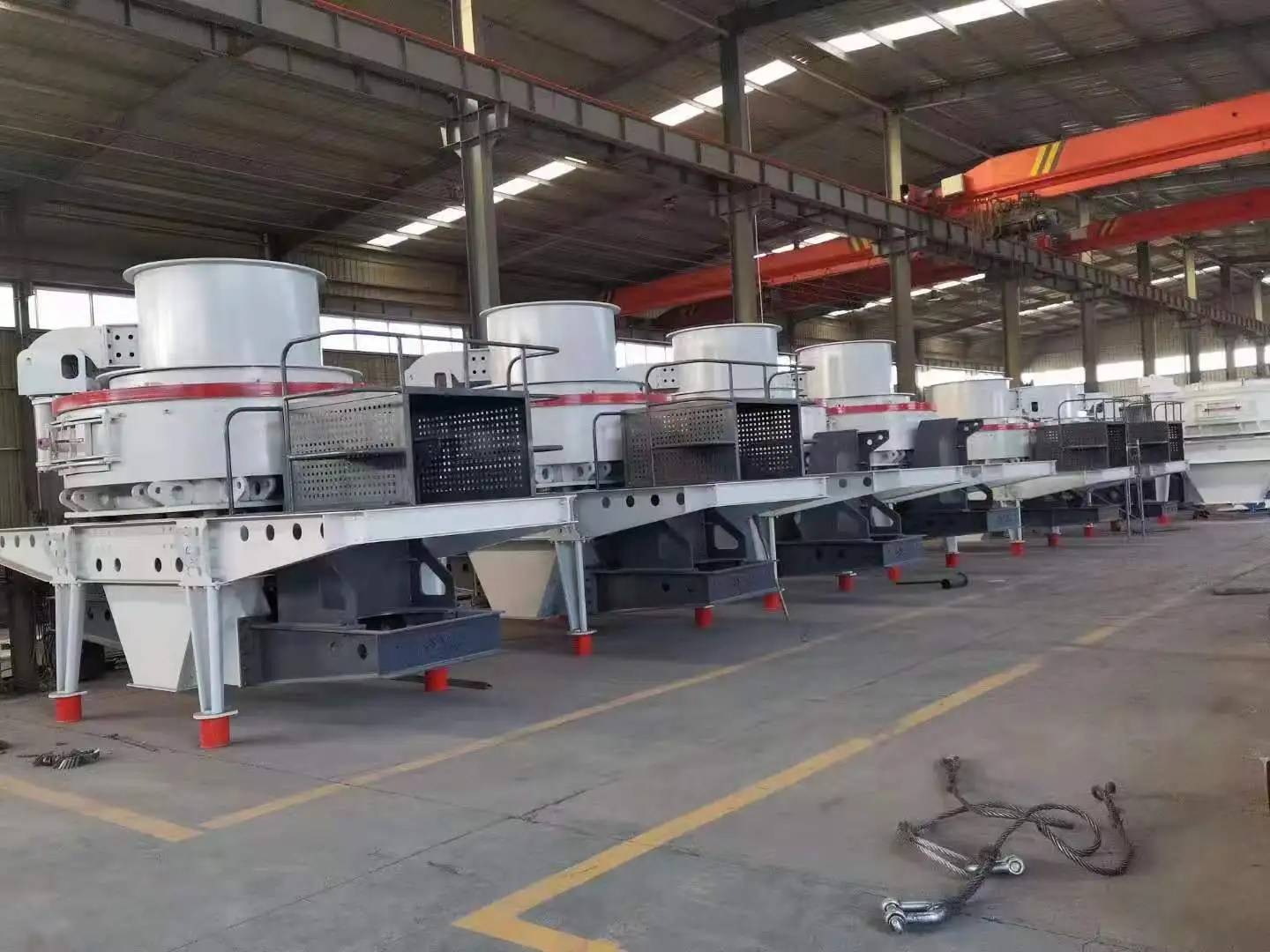

Vertical Shaft Silica Sand Crusher Manufacturer, VSI Sand Maker Machine For Artificial Sand Making, VSI Crusher Price List
- Category: >>>
- Supplier: Henan Zhebang Machinery Manufacturing Co. Ltd.Henan Ltd.
Share on (1601322384196):
Product Overview
Description
Product Description

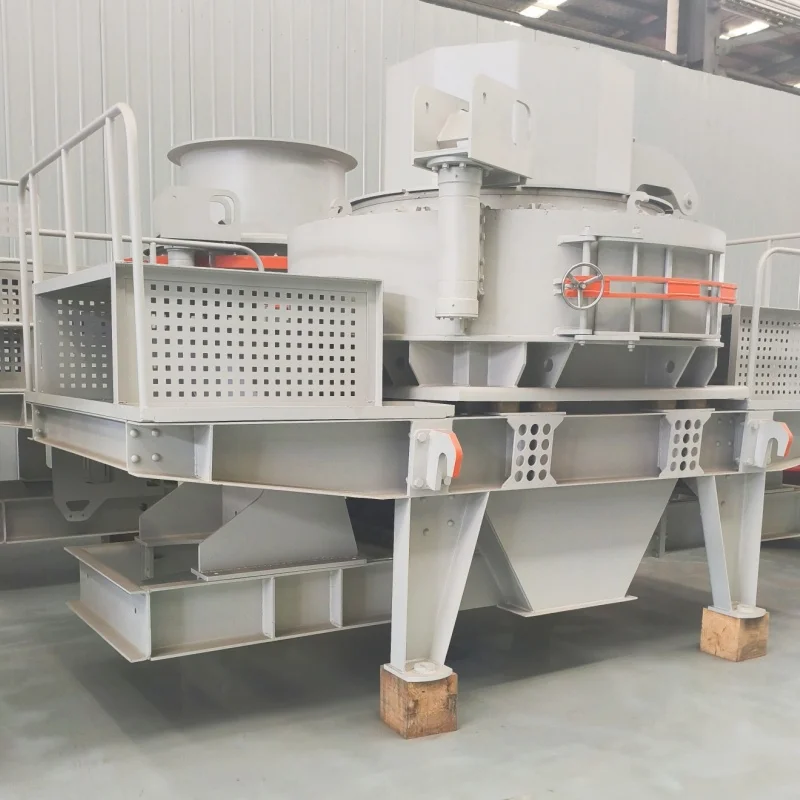

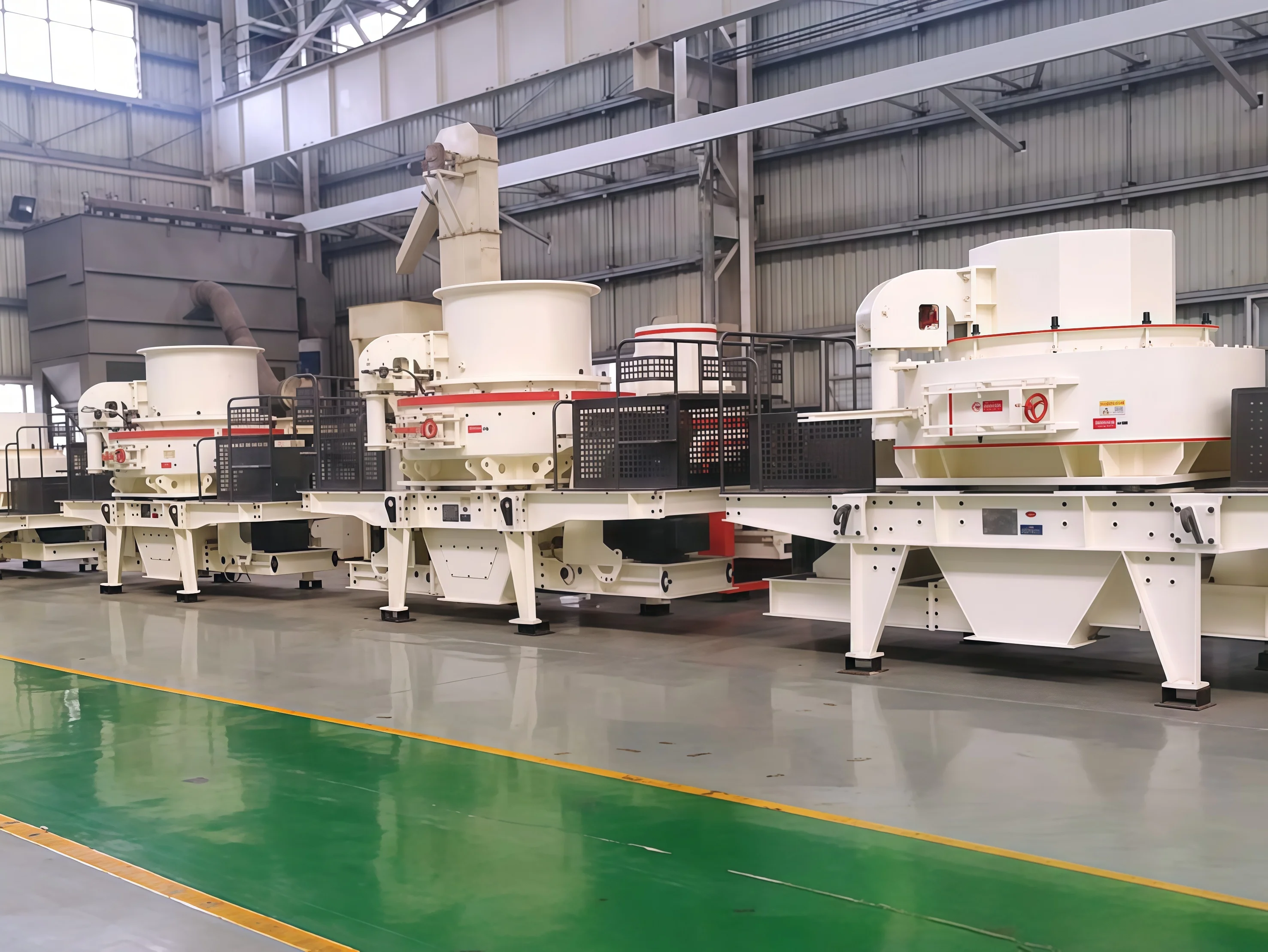

Impact crusher, also known as sand making machine, vertical impact crusher is composed of seven parts: feed, distributor, eddy current crushing chamber, impeller experience, spindle assembly, base transmission device and motor.
Its working principle is divided into the impact breaking sand machine has a complete center feed and a center feed with falling feed two feeding methods, under normal circumstances, the full center feed is mainly "stone iron", generally used to make sand, the output is relatively low; The central feed accompanied by the fall feed is a combination of "stone beating stone" and "stone beating iron", which is generally used for shaping, and the output is relatively high.
The machine is widely used in all kinds of ore, cement, building aggregate, artificial sand, river pebbles, rock and all kinds of metallurgical slag fine crushing and rough grinding operations, especially suitable for silicon carbide, emery, sintered aluminum vanadium, magnesite and other medium hard, extremely hard and abrasive materials fine crushing and rough grinding operations, more advantages than other types of crusher.
Its working principle is divided into the impact breaking sand machine has a complete center feed and a center feed with falling feed two feeding methods, under normal circumstances, the full center feed is mainly "stone iron", generally used to make sand, the output is relatively low; The central feed accompanied by the fall feed is a combination of "stone beating stone" and "stone beating iron", which is generally used for shaping, and the output is relatively high.
The machine is widely used in all kinds of ore, cement, building aggregate, artificial sand, river pebbles, rock and all kinds of metallurgical slag fine crushing and rough grinding operations, especially suitable for silicon carbide, emery, sintered aluminum vanadium, magnesite and other medium hard, extremely hard and abrasive materials fine crushing and rough grinding operations, more advantages than other types of crusher.

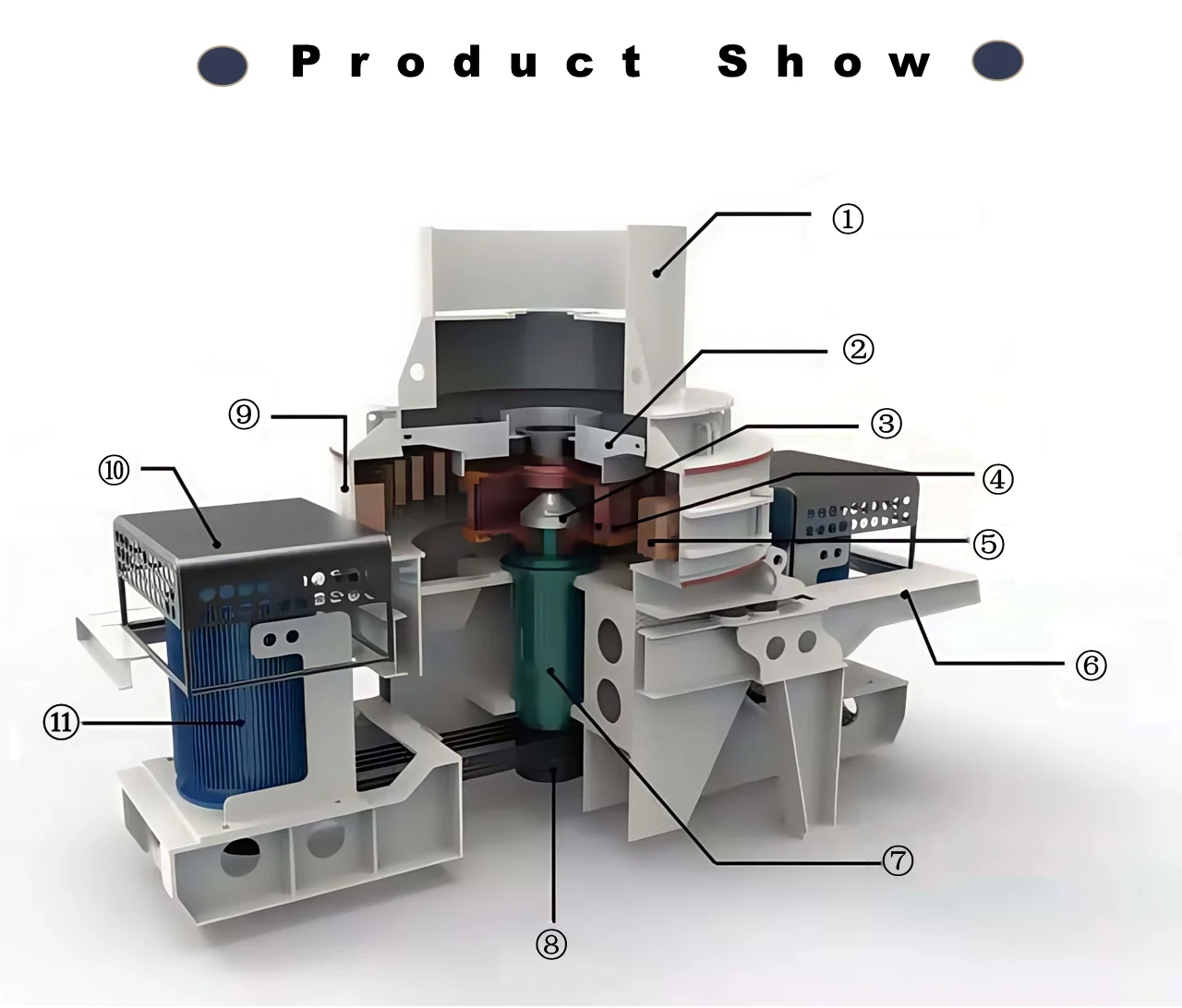

Specification
①Feeding Hopper
②Distributing Disk
③Distributing Cone
④Impellers
⑤Circular Impact Plate
⑥Frame
⑦Main Shaft & Bearing
⑧Flywheel
⑨Cavity
⑩Motor Cap
⑪Motor
Model | Model | VSI9526 | VSI1140 | VSI1145 | VSI6X1150 | VSI6X1263 | |
Capacity（t/h） | Central feeding with circular cascade feeding | 300-380 | 450-520 | 500-640 | 344-368 | 454-486 | |
Fully central feeding | 150-190 | 225-260 | 250-360 | 413-442 | 545-583 | ||
Max.Feeding size （mm） | Soft material | ＜45 | ＜50 | ＜50 | ≤45 | ≤50 | |
Hard material | ＜40 | ＜45 | ＜45 | ≤55 | ≤60 | ||
Rotation speed (r/min ) | 1360-1510 | 1180-1310 | 1100-1310 | 1000-1300 | 900-1200 | ||
Power ( kw ) | 2x132 | 2x200 | 2x 220 | 2x250 | 2x315 | ||
Overall dimension (L x W x H ) ( mm ) | 4640x2650 x2800 | 5570x2900 x3000 | 5100x2790 x3320 | 5500x2750 x3950 | 5700x2980 x4190 | ||

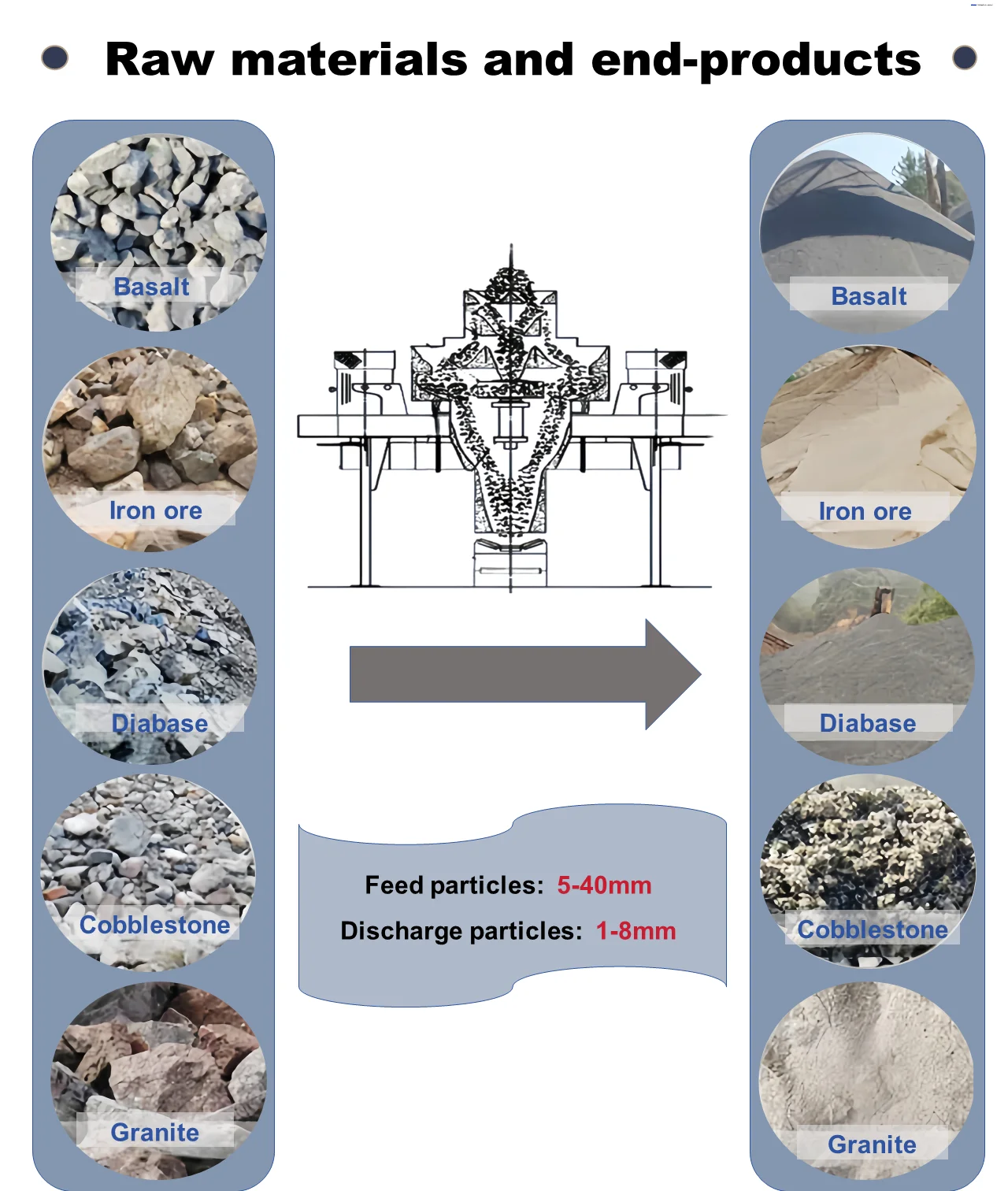

Sand making machine main applicable materials:
This kind of machine is widely used in the artificial sand making of various ores, cement, construction aggregates, artificial sand making, river pebbles, mountain rocks (limestone, granite, basalt, diorite, andesite, etc.), ore tailings, stone chips, construction aggregates, highway road surfacing materials, bedding materials, asphalt concrete and cement concrete aggregates, and the production of various metallurgical slag for the fine crushing and coarse grinding operations, especially for the medium-hard, extra-hard and abrasive materials such as silicon carbide, adamantine, sintered alumina-vanadium earth, magnesia, etc., it is more superior than other types of crushers.
Performance characteristics:
(1) The structure is novel, unique, simple and reasonable, balanced operation, low running cost.
(2) ‘Stone to stone’ ‘stone to iron’, the device state free conversion, sand, stone crushing, multi-purpose machine. The ‘stone to stone’ technology reduces the wear and tear of parts and lowers the production cost.
(3) Small energy consumption, high output, large crushing ratio, energy saving, environmental protection.
(4) With the function of shaping, the product is cubic, high packing density.
(5) During the production process, the stone can form a protective bottom layer, no wear and tear of the machine body, durable.
(6) A small number of wear parts are made of special hard wear-resistant material, small size, light weight, easy to replace parts.
(7) The main shaft bearings are lubricated with thin oil station for circulation, with spare pounds, which can ensure continuous oil supply to the main machine.
(2) ‘Stone to stone’ ‘stone to iron’, the device state free conversion, sand, stone crushing, multi-purpose machine. The ‘stone to stone’ technology reduces the wear and tear of parts and lowers the production cost.
(3) Small energy consumption, high output, large crushing ratio, energy saving, environmental protection.
(4) With the function of shaping, the product is cubic, high packing density.
(5) During the production process, the stone can form a protective bottom layer, no wear and tear of the machine body, durable.
(6) A small number of wear parts are made of special hard wear-resistant material, small size, light weight, easy to replace parts.
(7) The main shaft bearings are lubricated with thin oil station for circulation, with spare pounds, which can ensure continuous oil supply to the main machine.
Company Profile
Our company was founded in 2021 and is located in Zhengzhou, Henan Province. Our company has been dedicated to manufacturing wood crushing equipment, combustion pellet manufacturing equipment, carbon powder molding equipment, sand and gravel crushing equipment, and we have a professional team of experienced technicians to provide customized services to meet the specific needs of different customers.

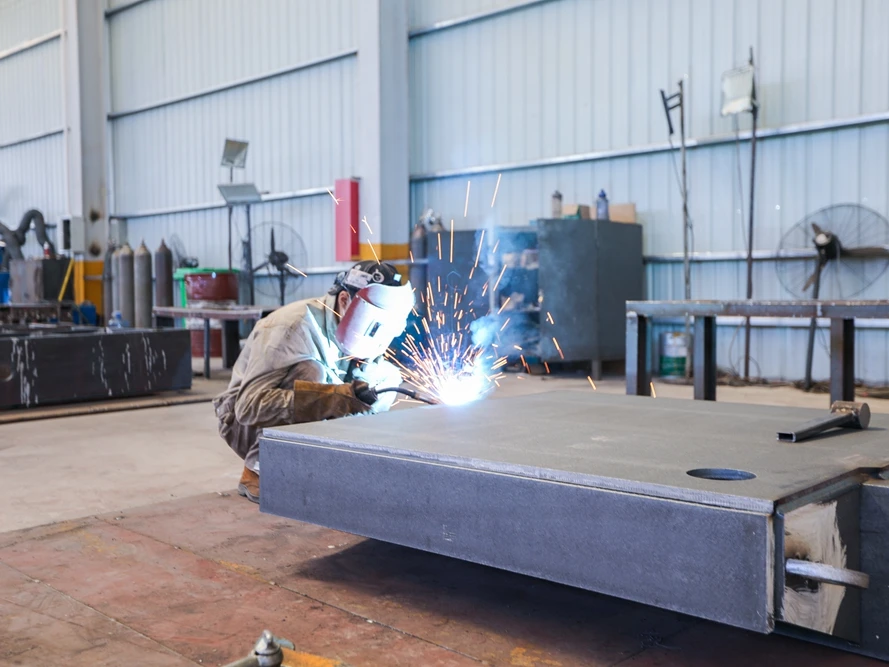

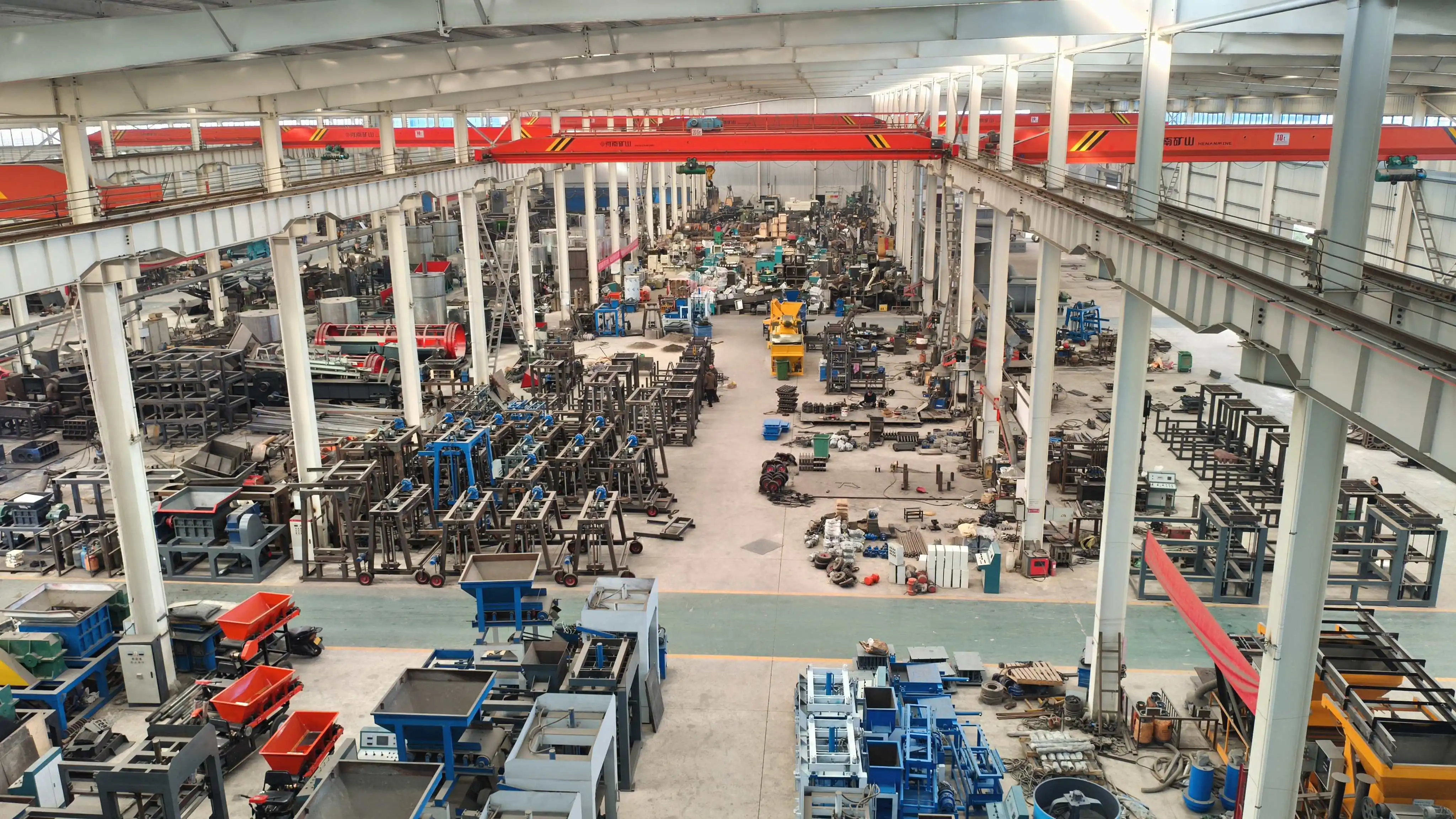

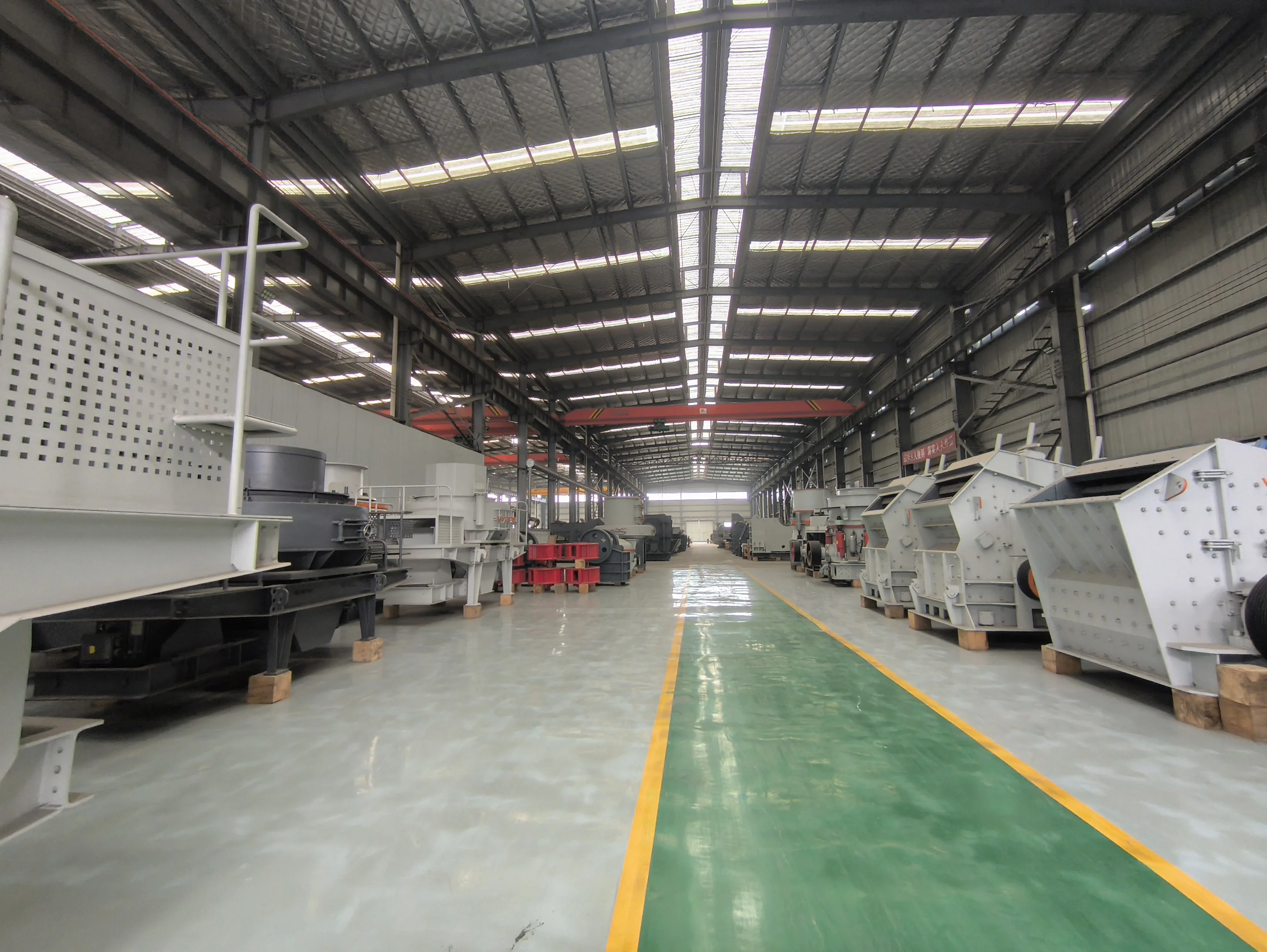

We have a large-scale and well-established production line, which can efficiently fulfill production tasks and ensure product output and delivery time. Direct quotation is available with excellent cost performance.
Related Products
Jaw Crusher
Single Cylinder Cone Crusher
Sand Making Machine
Spring Cone Crusher
Multi-cylinder cone crusher
Impact Crushers
Packing & Delivery
The parts in the wooden box will be individually reinforced to avoid collisions.To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Why Choose Us
widely exported to more than 60 countries
get a lot of praise from customers
FAQ
Q1:Are you a trading company or a manufacturer?
We are the manufacturer, welcome to visit our factory.
Q2:What payment methods do you accept?
We support various payment methods, we can accept 20% or 30% as deposit. If it is a return order, we can receive 100% payment by copy B/L.
Q3:How long is your delivery time?
We have more than 1500 square meters of spot inventory workshop, and it usually takes 5-10 days for goods with sufficient inventory. If you need to customize the equipment, it takes 20-30 days. We will do our best to deliver as soon as possible.
Q4:What if the machine is damaged?
One-year warranty and comprehensive after-sales service. After this period, we will charge a lower fee to maintain after-sales service.
Q5:Where is the market for the product and where is the market advantage?
Our market covers the entire Middle East and European and American countries, and exports to more than 34 countries. In 2019,domestic sales exceeded RMB 23 million. The export value reached 12 million U.S. dollars. Moreover, sales have increased for three consecutive years. The product quality and new product research and development capabilities of Create Machinery are worthy of your trust. And the perfect TUV-CE certificate and reliable pre-sales and after-sales service are what we have been working hard
to do.
