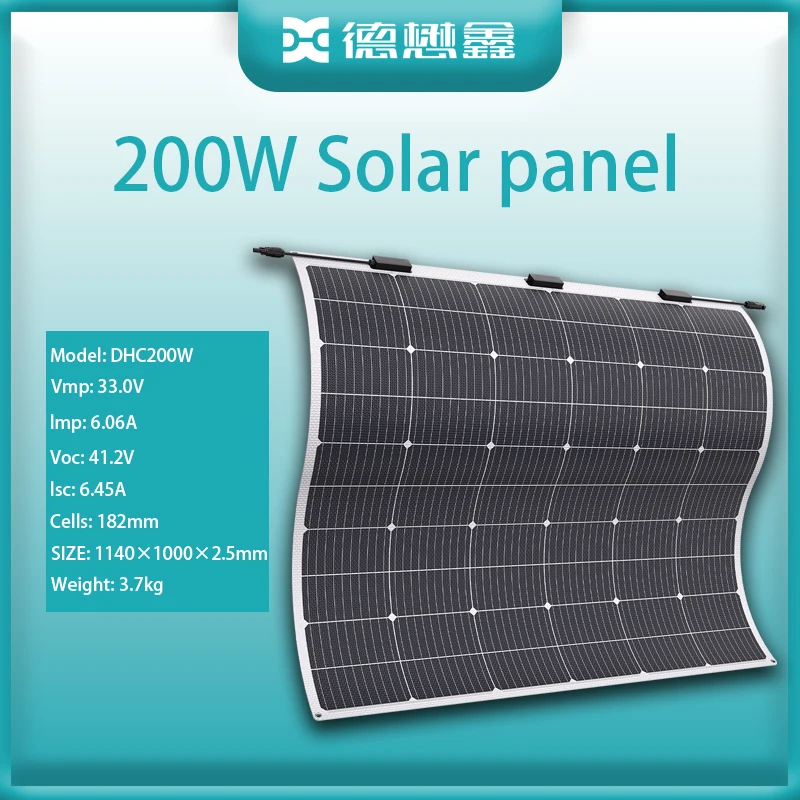

200 Watt Reliable Performance Flexible Solar Panels Maximum Power Yield Panel for Continuous Power Off Grid Applications
- Category: >>>
- Supplier: Jiangsu DHC Environmental Si-Tech Co. Ltd.Jiangsu Ltd.
Share on (1601322406574):
Product Overview
Description
Product Description
ELECTRICAL CHARACTERISTICS | ||
Model | DHCE200M | |
Maximum Power (Pmax) | 200W | |
Maximum Power Voltage (Vmp) | 33.0V | |
Open-circuit Voltage (Voc) | 41.2V | |
Maximum Power Current (Imp) | 6.06A | |
Short-circuit Current (Isc) | 6.45A | |
Cells Efficiency (%) | >23% | |
Operating Temperature | -40℃~85℃ | |
Maximum System Voltage | 600V DC (IEC) | |
Maximum Series Fuse Rating | 20A | |
Nominal Module Operating Temperature(NOMT) | 41±2℃ | |
Temperature Coefficient of Pmax | -0.35%/℃ | |
Temperature Coefficient of Voc | -0.27%/℃ | |
Temperature Coefficient of Isc | +0.048%/℃ | |
STC: Irradiance 1000W/m2 , Cell temperature 25C, AM=1.5. Tolerances of Pmax , Voc and lsc are within ±5% | ||
MECHANICAL PARAMETERS | ||
Solar Cell | Monocrystalline Silicon Cells (182mm*91mm) | |
Number of Cells | 60(6*10) | |
Weight | 3.7kg | |
Module Dimensions | 1140x1000x2.5 mm | |
Backsheet | Black/White/Transparent | |
Frame | Frameless | |
Junction Box | IP 67 rated | |
Output Cables | 0.9M, 4.0mm² Photovoltaic cable | |
Connector | MC4 compatible | |
Project Cases
Project Case Display
DHC provides free smart photovoltaic system design and integration solutions. Our company's products sold worldwide. The company has won the unanimous recognition of consumers with satisfactory quality and perfect after-sales service. We has a professional team, which can help you solve questions.
Company Profile
Founded in 2016, Jiangsu DHC Environmental Science and Technology Company Limited is a technology-based company integrating development, installation, commissioning, marketing and after-sales service. We are always committed to saving energy and protecting the environment. With excellent delivery ability, DHC provides reliable technologies, products and after-sales services for customers. Our main products are solar panel, lithium battery storage system, inverter and their application apparatus..
Why Choose Us
Our Certificates
Packing & Delivery
Knowing that the development of the company depends on the innovation and quality of the products, we have established a quality management system to meet the requirements of the international quality management system. With continuously releasing the original innovations according to the market and customer needs, our company always maintains the novelty and innovative products to take the customer's thoughts and urgency into consideration. Providing excellent service for customers and meeting customer needs are our eternal pursuit! To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
My Contact
Online face-to-face
Just send inquiry and express your requirement, DHC technical engineer always at your service!
FAQ
Q1.Can I have a sample order?
A:Of course we can supply you samples, You can make an enquiry to us and pay the sample fee and freight. These fees can be waived if you place bulk order over 5000 USD next time.
Q2. What about the lead time?
A:Small orders can be shipped for you immediately if we have product in stock, for large orders, the production time is usually about 30 days according to your quantity.
Q3. Is it Ok to print my logo on product? What is the MOQ?
A:It is OK to print the LOGO on foldable solar panels and portable power stations, but can not print on the flexible solar panels.
The MOQ of flexible solar panels are 68pcs.
The MOQ of our foldable solar panels are 50pcs.
The MOQ of our portable power stations are 5 sets.
Q4. What is your payment terms?
A:We can accept Alibaba Trade Assurance Order, T/T and L/C.
Q5. Can i install it myself?
A: The installation of our products is very easy. You can install it yourself according to the installation manual and installation tutorial video.
Q6. What kind of certificates your products have acquired ?
A:We are ISO14001 certified and our product also holds CE and CQC certification.
Q7. Can you send me the price and catalog?
A: Of course,you can tell me your requirements and quantity, and I will provide you with prices and solutions.
Q8. What's your product warranty time?
A:The warranty of flexible solar panel is 3 years.
The warranty of foldable solar panel is 1 year.
The warranty of flexible solar panel is 12 years.
The warranty of portable power station is 1 years.
A:Of course we can supply you samples, You can make an enquiry to us and pay the sample fee and freight. These fees can be waived if you place bulk order over 5000 USD next time.
Q2. What about the lead time?
A:Small orders can be shipped for you immediately if we have product in stock, for large orders, the production time is usually about 30 days according to your quantity.
Q3. Is it Ok to print my logo on product? What is the MOQ?
A:It is OK to print the LOGO on foldable solar panels and portable power stations, but can not print on the flexible solar panels.
The MOQ of flexible solar panels are 68pcs.
The MOQ of our foldable solar panels are 50pcs.
The MOQ of our portable power stations are 5 sets.
Q4. What is your payment terms?
A:We can accept Alibaba Trade Assurance Order, T/T and L/C.
Q5. Can i install it myself?
A: The installation of our products is very easy. You can install it yourself according to the installation manual and installation tutorial video.
Q6. What kind of certificates your products have acquired ?
A:We are ISO14001 certified and our product also holds CE and CQC certification.
Q7. Can you send me the price and catalog?
A: Of course,you can tell me your requirements and quantity, and I will provide you with prices and solutions.
Q8. What's your product warranty time?
A:The warranty of flexible solar panel is 3 years.
The warranty of foldable solar panel is 1 year.
The warranty of flexible solar panel is 12 years.
The warranty of portable power station is 1 years.
