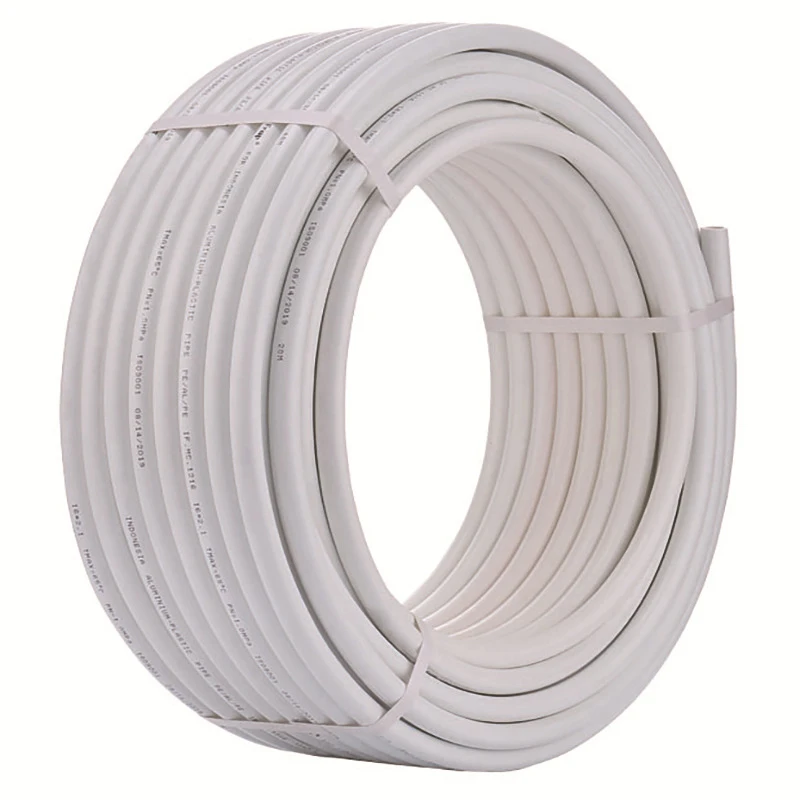

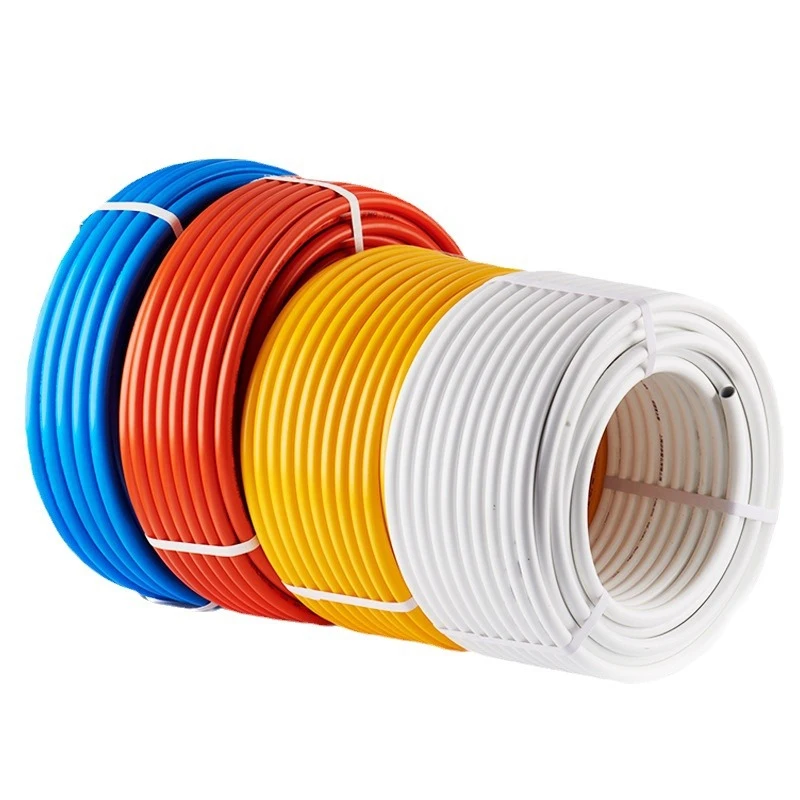

Pex al pex Pipe Floor Heating System Pex A Pipe Floor Heating System
- Category: >>>
- Supplier: Boxi Technology LTDBoxi LTD
Share on (1601322525526):
Product Overview
Description
PEX pipe is cross-linked polyethylene pipe
I. Characteristics
I. Characteristics
1. Temperature resistance
PEX pipe has good temperature resistance. It can be used safely in the temperature range of - 40℃ - 95℃, and can adapt to different hot and cold environments. For example, in the hot water supply system, it can effectively withstand the high temperature of hot water and reduce the risk of pipe deformation and damage. Compared with ordinary polyethylene pipes, its high temperature resistance performance has been significantly improved.
2.Chemical resistance
Good resistance to most chemical substances. Resistant to acid, alkali and other chemical substances, so in some piping systems that may come into contact with chemical substances (such as industrial water or domestic sewage containing a certain degree of acidity, etc.), PEX pipe can also work stably, and is not easy to be corroded and lead to leakage.
3. Flexibility
It is very flexible. It can be easily bent without breaking, which makes the installation process more convenient. When laying pipes in some complicated building structures or narrow spaces, PEX pipe can flexibly change its shape according to the actual situation, which reduces the number of fittings used and lowers the installation cost and potential leakage points.
4. Anti-stress cracking performance
PEX pipe has excellent resistance to stress cracking. It is not easy to produce cracks under long-term stresses such as internal water pressure and external extrusion, which ensures the long-term stability and safety of the piping system.
PEX pipe has good temperature resistance. It can be used safely in the temperature range of - 40℃ - 95℃, and can adapt to different hot and cold environments. For example, in the hot water supply system, it can effectively withstand the high temperature of hot water and reduce the risk of pipe deformation and damage. Compared with ordinary polyethylene pipes, its high temperature resistance performance has been significantly improved.
2.Chemical resistance
Good resistance to most chemical substances. Resistant to acid, alkali and other chemical substances, so in some piping systems that may come into contact with chemical substances (such as industrial water or domestic sewage containing a certain degree of acidity, etc.), PEX pipe can also work stably, and is not easy to be corroded and lead to leakage.
3. Flexibility
It is very flexible. It can be easily bent without breaking, which makes the installation process more convenient. When laying pipes in some complicated building structures or narrow spaces, PEX pipe can flexibly change its shape according to the actual situation, which reduces the number of fittings used and lowers the installation cost and potential leakage points.
4. Anti-stress cracking performance
PEX pipe has excellent resistance to stress cracking. It is not easy to produce cracks under long-term stresses such as internal water pressure and external extrusion, which ensures the long-term stability and safety of the piping system.

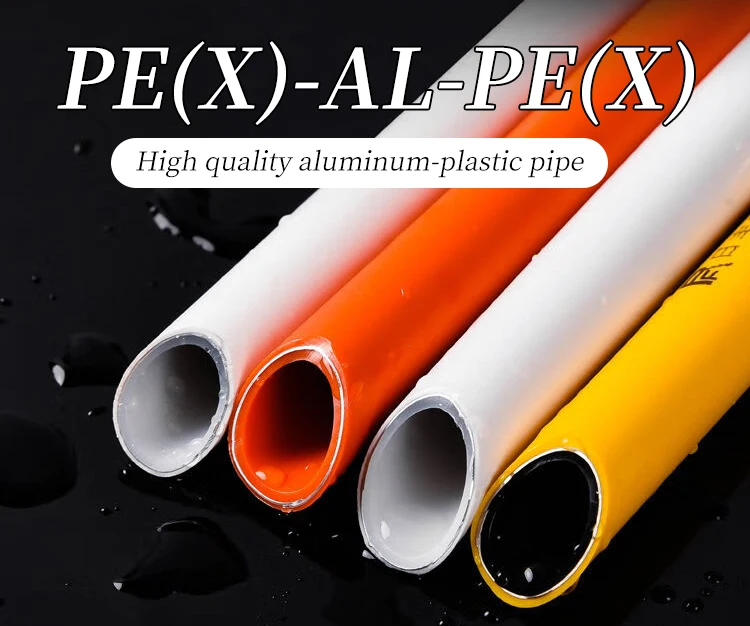

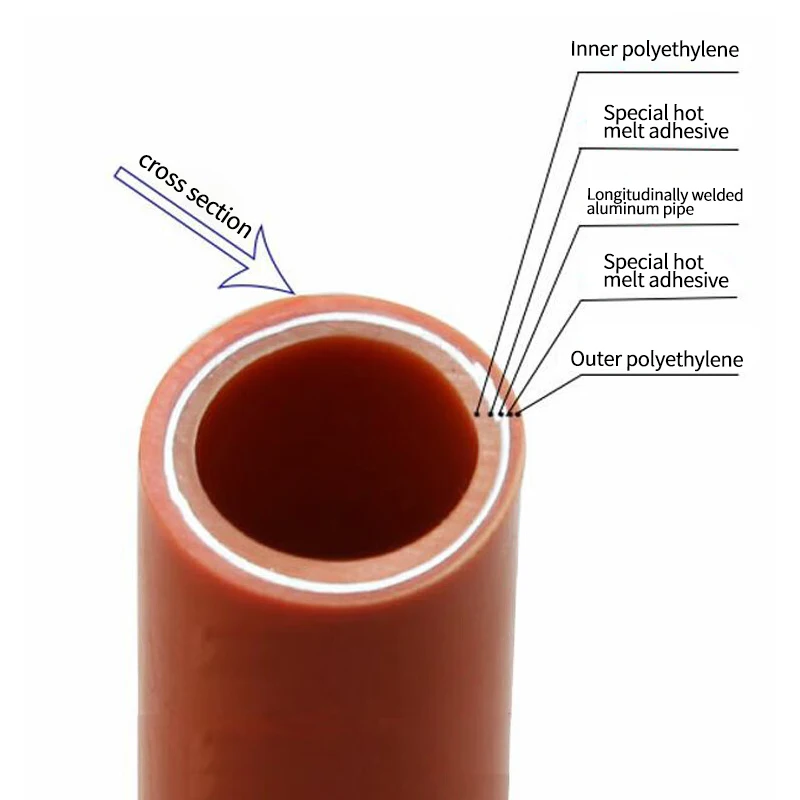

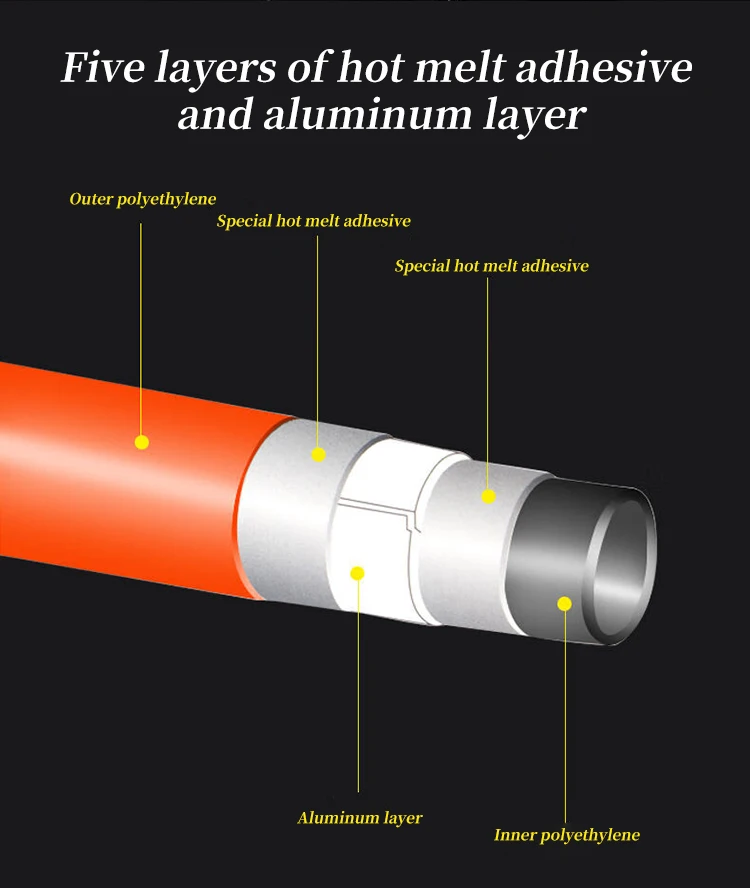

Material | 100% Raw PEX Material&Aluminum |
Size | 16-32mm |
Thickness | 2.0-4.4mm or customized |
Color | White/Bule/Gray/Yellow/Red/Customized |

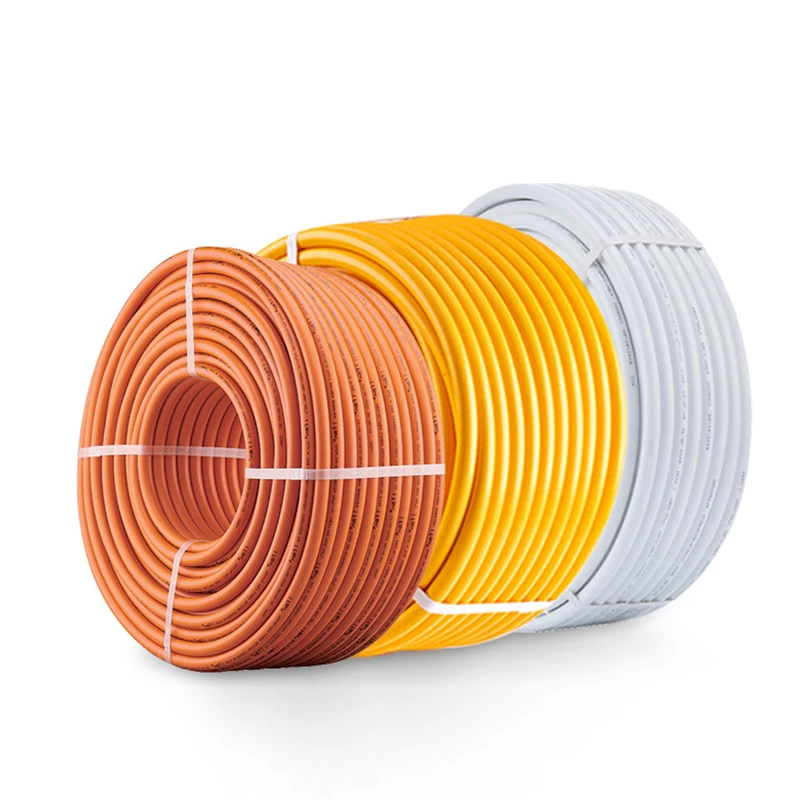

Length | 100-500M per roll |
Connection | Compression/Press/Sliding Fittings |
Sample | Free(Contact us to get free sample) |
Item | Size(mm) | Weight | Package | weight |
G/PCS | PCS/PP Bag | kg/coil | ||
PE-RT pipe | 16*2.0 | 300m/coil | ||
16*2.2 | 200m/coil | |||
20*2.0 | 113 | 300m/coil | 33.9 | |
20*2.3 | 200m/coil | |||
20*2.8 | 200m/coil | |||
25*2.3 | 189 | 200m/coil | 37.8 | |
25*2.8 | 200m/coil | |||
32*2.9 | 266 | 120m/coil | 31.9 | |
32*3.6 | 120m/coil |

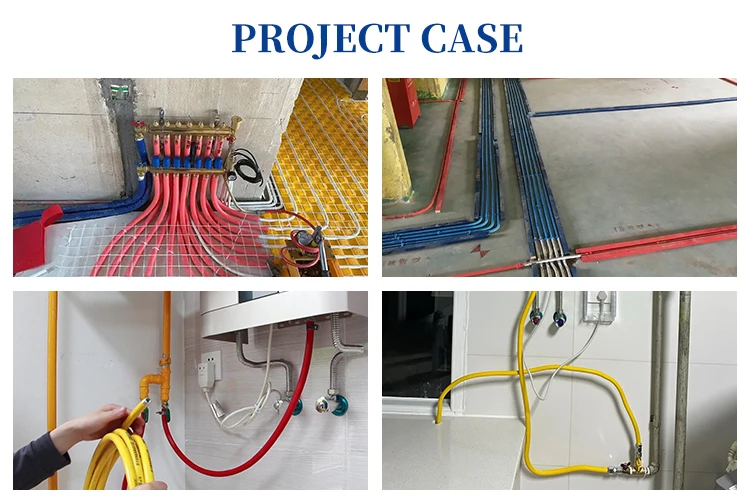

Application Area:
1. For the floor heating system of living rooms, bedrooms, public bathrooms, swimming pools, kindergartens, nursing homes and other special needs.
2. For the supply of cold and hot water in the buildings and piping system of potable water.
3. For the piping system of fluid transmission in food industry such as beverage, alcohol and milk.
2. For the supply of cold and hot water in the buildings and piping system of potable water.
3. For the piping system of fluid transmission in food industry such as beverage, alcohol and milk.
Q1: What are the advantages of PEX expansion fittings?
A1: - High safety: Utilizing the thermosetting characteristics, toughness and memory function of the pipe, the connection is achieved by directly compressing the pipe, without the hidden dangers of aging,
breakage and leakage of the rubber ring, which improves the safety of the pipe system.
- Firm connection: Each connection is tightly connected, and the pipe is pressed into the ribs in the pipe fittings. After the test, the pipe will not fall off even if it is stretched to break, ensuring the firmness of the connection.
- Reusable: The pipe fittings can be disassembled and reused, without wasting pipe fittings and reducing the cost of use.
- Convenient installation: It can be operated with water and can be installed even when the pipe valve is not tightly closed.
Q2: What pipe systems are PEX expansion fittings used in?
A2: PEX expansion fittings are widely used in residential and commercial hot and cold water, drinking water distribution systems, and sealed central heating systems, including underfloor heating systems.
Q3: How to connect PEX expansion fittings?
A3: 1. Preparation: Make sure the ends of the PEX pipe and fittings are smooth and have no obvious damage or dirt.
2. Choose fittings:Choose appropriate PEX expansion fittings according to the pipe diameter.
3. Insert the pipe: Insert the PEX pipe end into thepipe fitting to be connected, and make sure the insertion depth meets the manufacturer's regulations to ensure the reliability of the connection.
4. Perform expansion: Use a special PEX expansion tool to expand the connection point so that the pipe fitting and the PEX pipe are tightly combined.
5. Check the connection: After the expansion is completed, perform a visual inspection of the connection point to ensure that the connection is firm and the PEX pipe is not loose.
6. Pressure test: After the installation is completed, perform a system pressure test to ensure that there will be no problems with the connection point under normal working pressure.
A1: - High safety: Utilizing the thermosetting characteristics, toughness and memory function of the pipe, the connection is achieved by directly compressing the pipe, without the hidden dangers of aging,
breakage and leakage of the rubber ring, which improves the safety of the pipe system.
- Firm connection: Each connection is tightly connected, and the pipe is pressed into the ribs in the pipe fittings. After the test, the pipe will not fall off even if it is stretched to break, ensuring the firmness of the connection.
- Reusable: The pipe fittings can be disassembled and reused, without wasting pipe fittings and reducing the cost of use.
- Convenient installation: It can be operated with water and can be installed even when the pipe valve is not tightly closed.
Q2: What pipe systems are PEX expansion fittings used in?
A2: PEX expansion fittings are widely used in residential and commercial hot and cold water, drinking water distribution systems, and sealed central heating systems, including underfloor heating systems.
Q3: How to connect PEX expansion fittings?
A3: 1. Preparation: Make sure the ends of the PEX pipe and fittings are smooth and have no obvious damage or dirt.
2. Choose fittings:Choose appropriate PEX expansion fittings according to the pipe diameter.
3. Insert the pipe: Insert the PEX pipe end into thepipe fitting to be connected, and make sure the insertion depth meets the manufacturer's regulations to ensure the reliability of the connection.
4. Perform expansion: Use a special PEX expansion tool to expand the connection point so that the pipe fitting and the PEX pipe are tightly combined.
5. Check the connection: After the expansion is completed, perform a visual inspection of the connection point to ensure that the connection is firm and the PEX pipe is not loose.
6. Pressure test: After the installation is completed, perform a system pressure test to ensure that there will be no problems with the connection point under normal working pressure.
