  • high quality SJSZ series double screw extruder PVC pipe making machine
high quality SJSZ series double screw extruder PVC pipe making machine
high quality SJSZ series double screw extruder PVC pipe making machine
high quality SJSZ series double screw extruder PVC pipe making machine
high quality SJSZ series double screw extruder PVC pipe making machine
high quality SJSZ series double screw extruder PVC pipe making machine
high quality SJSZ series double screw extruder PVC pipe making machine
high quality SJSZ series double screw extruder PVC pipe making machine

high quality SJSZ series double screw extruder PVC pipe making machine

Share on (1601322533713):


Price:$11,000.00

Quantity:


Product Overview

Description



Product Description

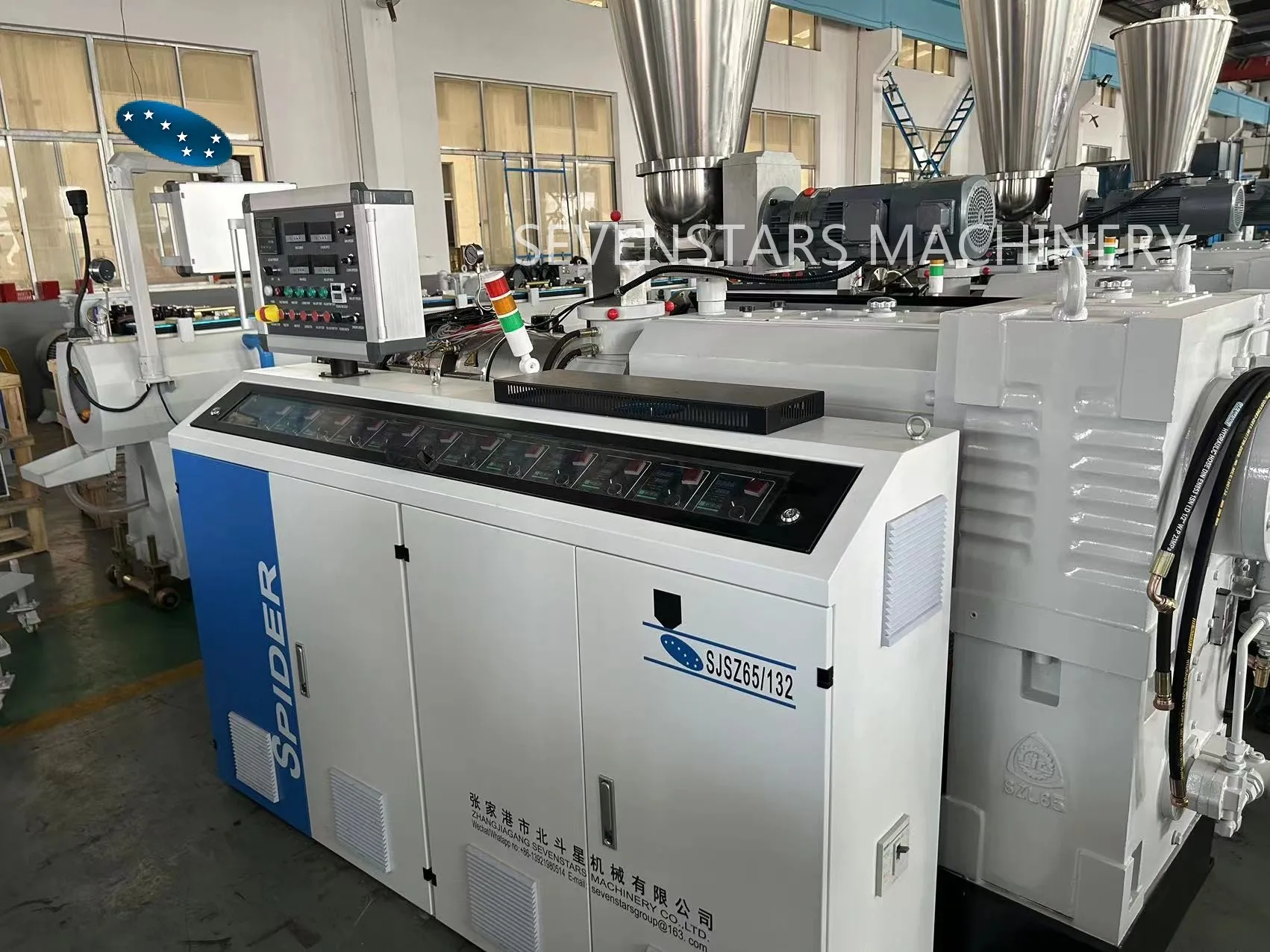

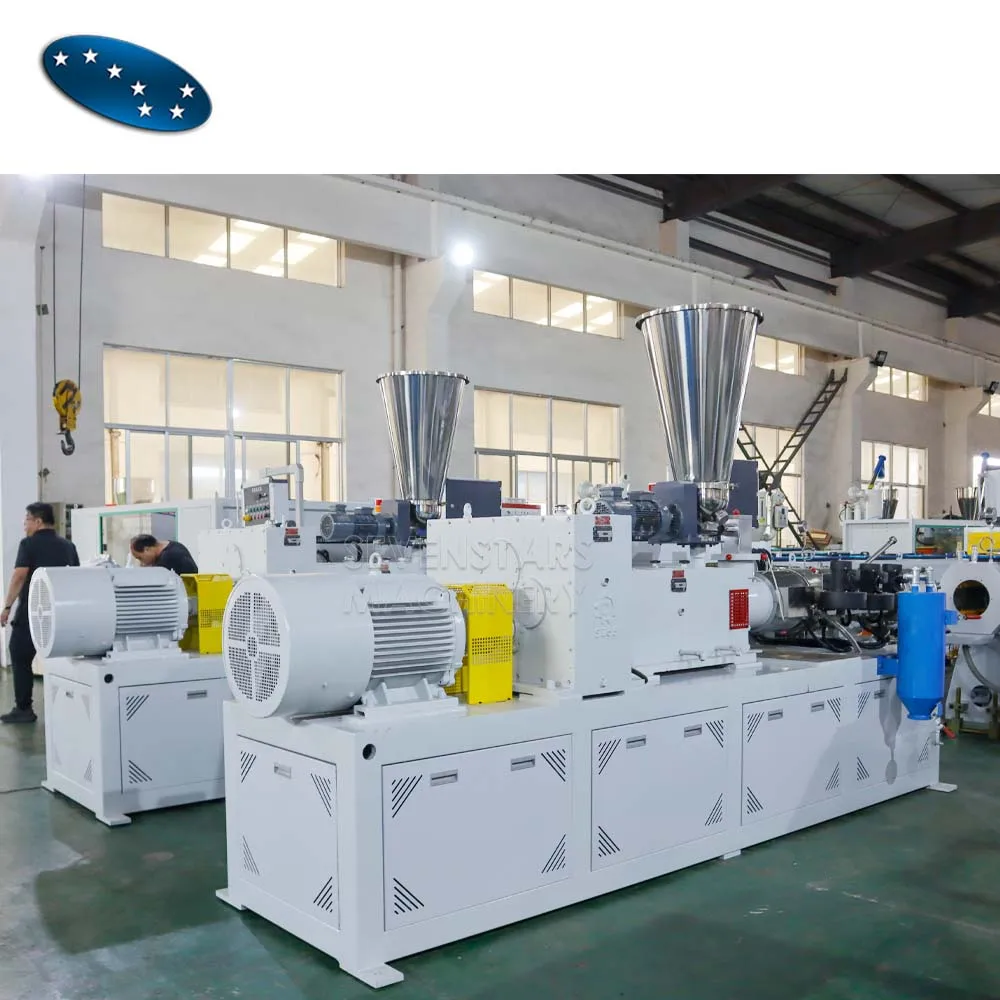

SJSZ series Plastic extruder machinery:
This machine is one kind of special equipment for all kinds of PVC extruding and forming. It is equipped with different moulds and auxiliary machines, which can produce all kinds of PVC pipes,profiles, decorative board, WPC material pellets etc.
Feature：
1. The core of the screw adopts auto circular cooling regulation system to raise efficiency.
2. The gearwheel and distribution box adopt famous bearing and imported paint. The gearwheel adopts alloy steel and is processed by nitrogen.
3. The temperature-control system adopts imported temperature-control system and imported tractor.

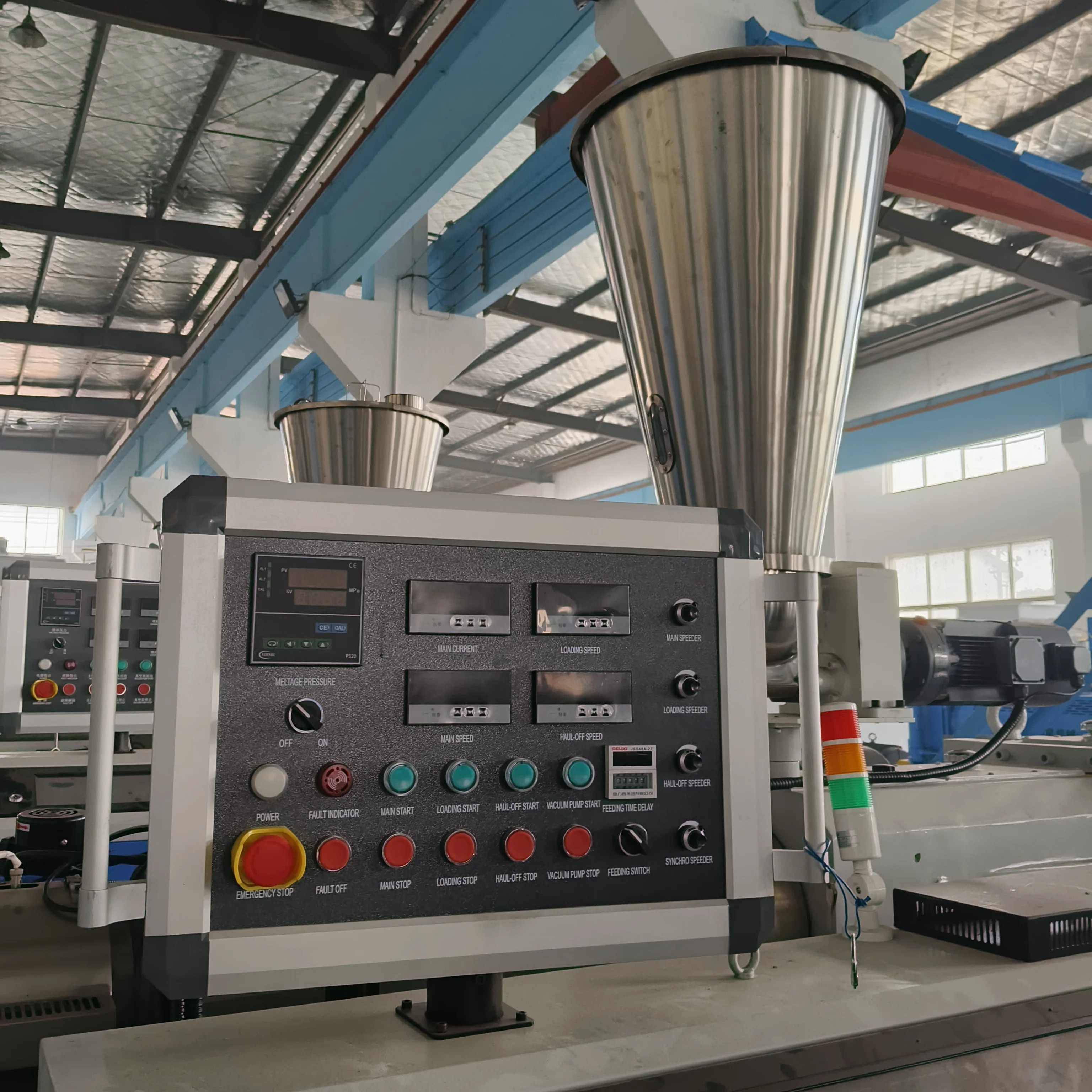

4. The electric control system has multiple alarm functions and current protective device.
5. Low shearing rate, uneasy degradation,plasticization uniform and agglomeration
6. Reliable quality ,wide application range and long servicing life.
7. Automatic temperature control, vacuum gas exhaustion, oil cooled screws
8. Stepless speed regulation,as well as a forced feeding and self-cleaning mechanism.

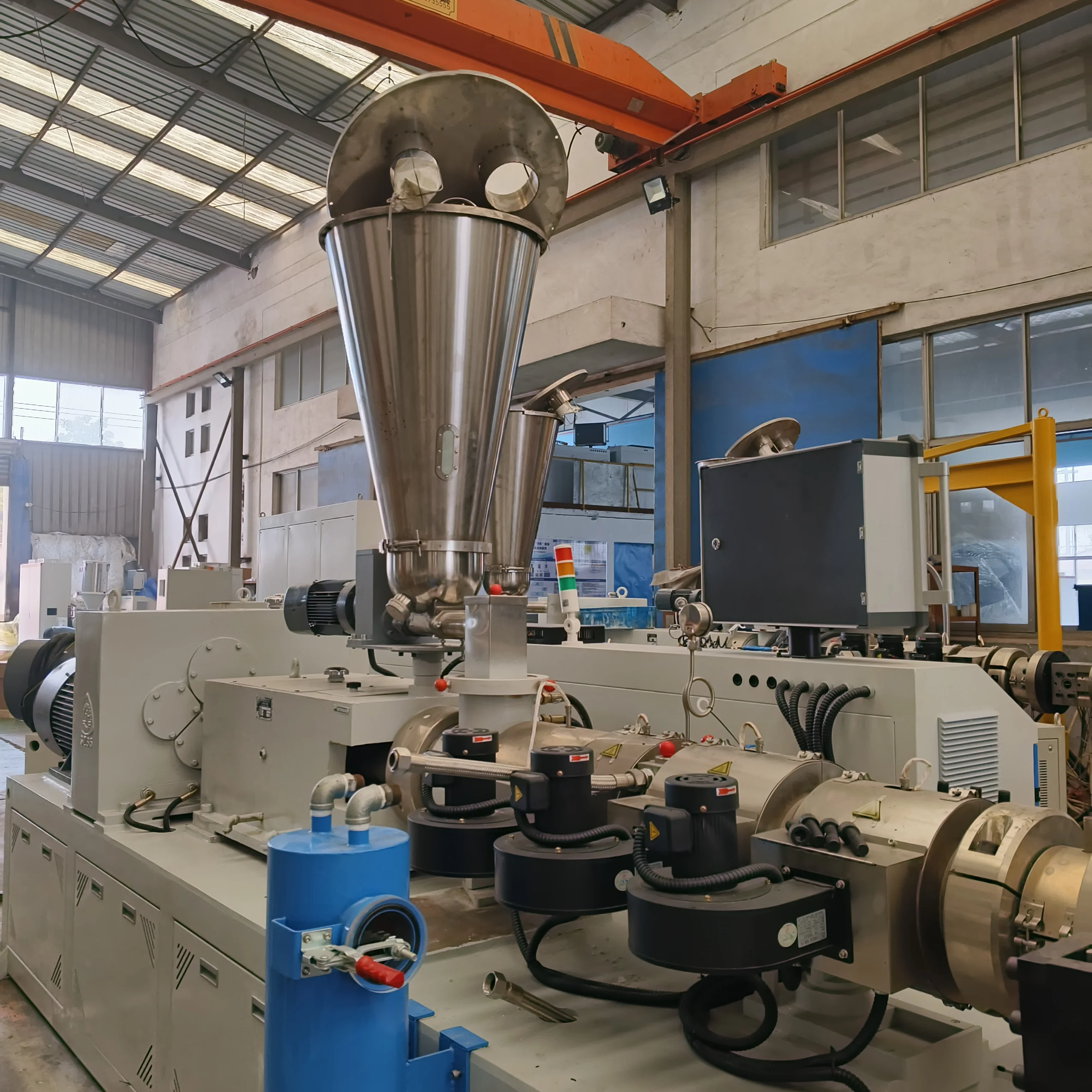

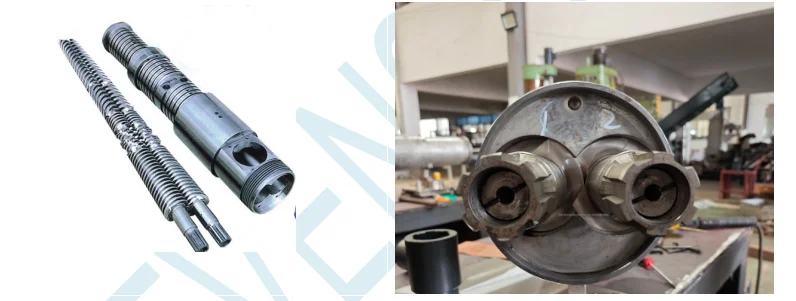

Screw and barrel
Barrel temperature control system: heating area: Heating Zones + Stainless steel surface shell +Air blower cooling

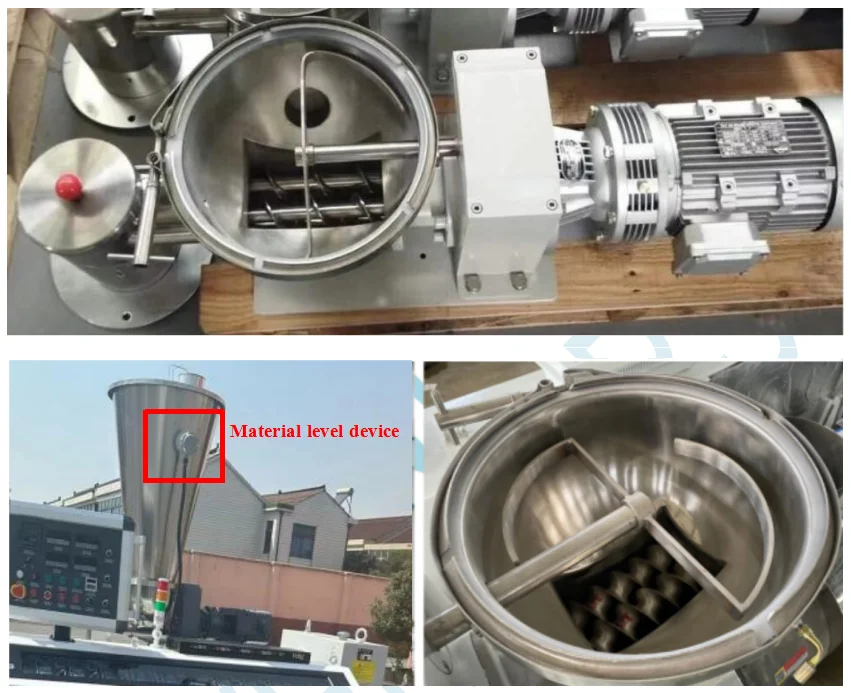

Dosing feeding device
1.Can be adjusted separately or synchronized adjusting with extrusion.
2.Prevent blanking accumulation
3.Material level device is connected with the feeder to ensure the safe supply of materials, and has the function of monitoring and adjusting to improve production efficiency

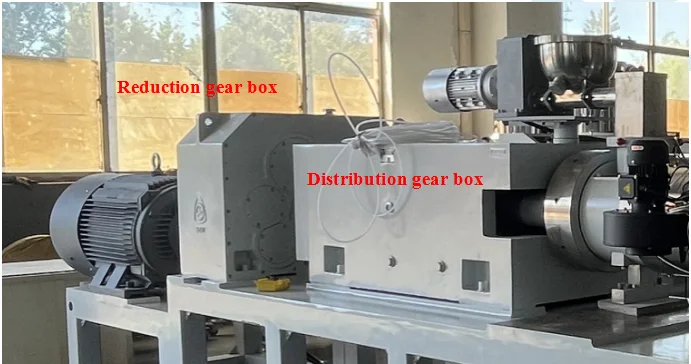

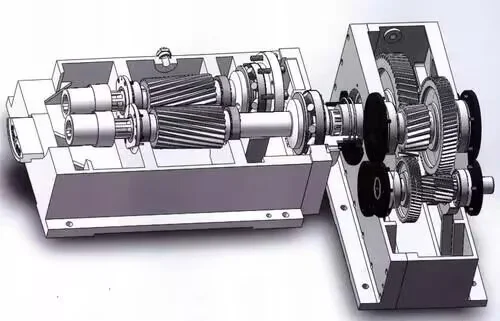

Deceleration Aystem
The main motor is connected to the reducer through a coupling


PVC foam board
PVC cable trunking
SPC floor


Garden pipe
Door and window profile line
Drip tank


PVC celling panel
Water Pipe
PVC electric pipe


Product Paramenters


Model
Pipe range
Extruder
Max output
Max speed
Total power
PVC-50*2
16-50mm
SJSZ65/132
250kg/h
10 m/min
85 kw
PVC-63
16-63mm
SJSZ51/105
150 kg/h
10 m/min
60 kw
PVC-110
50-110mm
SJSZ55/110
180 kg/h
10 m/min
70 kw
PVC-160
63-160mm
SJSZ65/132
300 kg/h
5 m/min
90 kw
PVC-250
110-250mm
SJSZ80/156
400 kg/h
3.5 m/min
120 kw
PVC-315
160-315mm
SJSZ80/156
400 kg/h
3 m/min
160 kw
PVC-450
250-450mm
SJSZ92/188
700 kg/h
1.5 m/min
200 kw
PVC-630
315-630mm
SJSZ92/188
700 kg/h
0.9 m/min
230 kw
