10KW 200KW Water Turbine Flow 0.025 1.5 M3/S 110 480V Head 15 150M Double Outlet Hydraulic Turbine

Product Overview

Description

10KW-200KW Water Turbine Flow 0.025-1.5 M3/S 110/220/380/480V Head 15-150M Double Outlet Generator Parts Hydraulic Pump Spare Parts

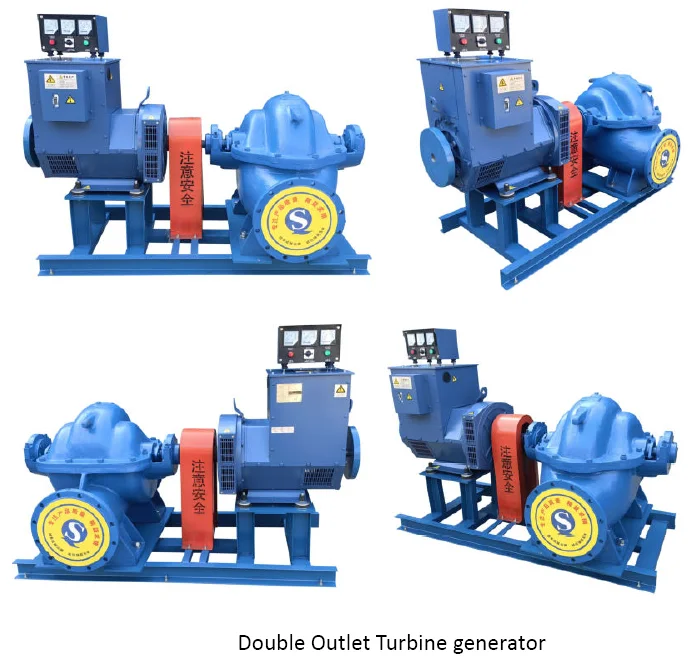

Double Outlet Hydraulic Turbine Generator

Power: 10 - 200kW;

Voltage: 110/220/380/480v or Customized;

Frequency: 50/60hz;

Water head: 15 - 150m;

Flow: 0.025-1.5 m3/s

Inlet pipe diameter: 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 500mm, 600mm, 700mm, etc

Fluid: Clear water or liquid with physicochemical properties similar to water

Temperature: below 50℃.



 The double outlet water turbine generator unit is composed of a double outlet water turbine and a generator through a coupling. The water turbine mainly consists of a volute, a double outlet runner, a main shaft, a seal, a suspension, bearings, etc.
During operation, under the action of the working head, the water flows through the water intake pipe to the inlet of the water turbine and enters the volute to impact the rotation of the runner. The main shaft drives the generator to work.



The double outlet water turbine generator unit is a horizontal structure with the following technical advantages:
1. The installation of the double outlet turbine generator do not have to change the flow direction of the pipeline, which is more convenient to install use and maintain.
2. The water turbine and generator are separated, which is more easy to maintain and reliable.
3. The water turbine has 2 separate bearings, and the generator has 2 separate bearings, making the structure more reliable.
4. The water turbine has an independent oil lubrication system, resulting in longer bearing life.
5. The dual outlet structure automatically balances axial force, with reliable structure, long bearing life, and stable operation;
6. The runner has been optimized by Computational fluid dynamics software (CFD) with high efficiency.

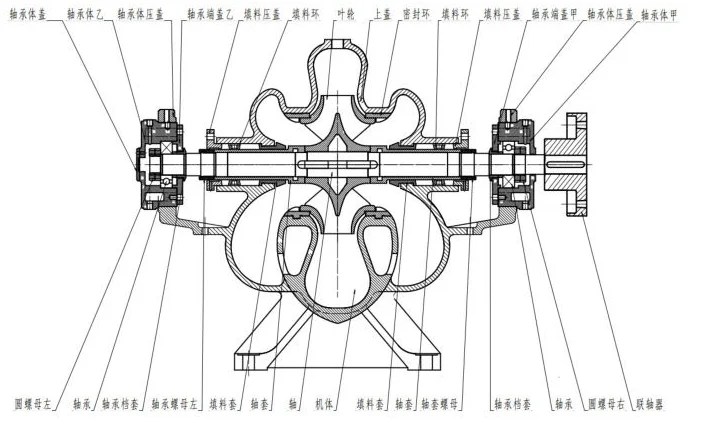

Product structure diagram

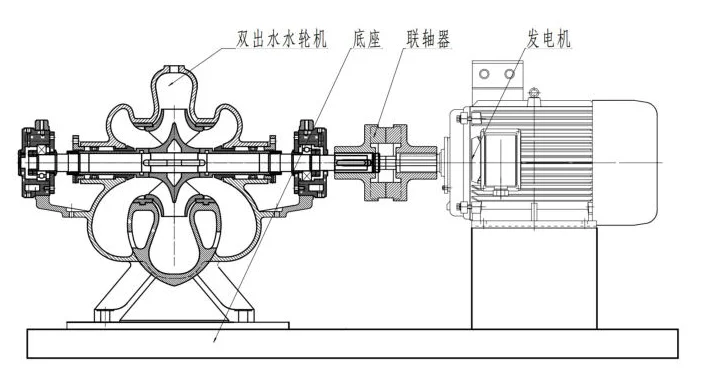

Overall Structure of Double Outlet Turbine Generator





Specification:

P/kw	Head/m	Flow m3/s	Minal inlet pipe inner dia./mm	Suggested head/m
5kw	10-30mm	0.02-0.055	150	20
8kw	10-30mm	0.02-0.065	150	26
10kw	15-40m	0.02-0.07	150	30
15kw	20-60mm	0.08-0.2	200	40
	12-50m	0.08-0.2	200	25
20kw	20-70m	0.08-0.25	200	40
	8-50m	0.08-0.25	250	25
30kw	20-60m	0.05-0.24	250	40
	12-40m	0.04-0.26	250	25
40kw	12-40m	0.052-0.25	300	30
50kw	20-60m	0.1-0.4	300	40
	12-30m	0.1-0.46	400	25
100kw	15-50m	0.05-0.4	400	35
	15-50m	0.05-0.4	400	40







The types of hydro turbine generator:

Francis Turbine Generator
Double Nozzle Pelton Turbine
Mixed Flow Turbine Generator
Double outlet hydraulic turbine generator
Kaplan Turbine Generator: Horizontal Pressure Type Axial Turbine and Vertical Open Channel Axial Turbine
Turgo Turbine Generator

When buying turbine generator, users should select the proper turbine generator with proper specifications of rated power, water head and water flow,
according to their own site conditions of water resource.



Application



Pls contact me for more information!
