Industrial G4 Primary Air Filter Keel Frame Activated Carbon Panel Dust Filter for Construction and Manufacturing Industries
- Category: >>>
- Supplier: Success Way (suzhou) Clean Tech Co. LtdSuccess Ltd
Share on (1601322574722):
Product Overview
Description
PRODUCTS DESCRIPTION

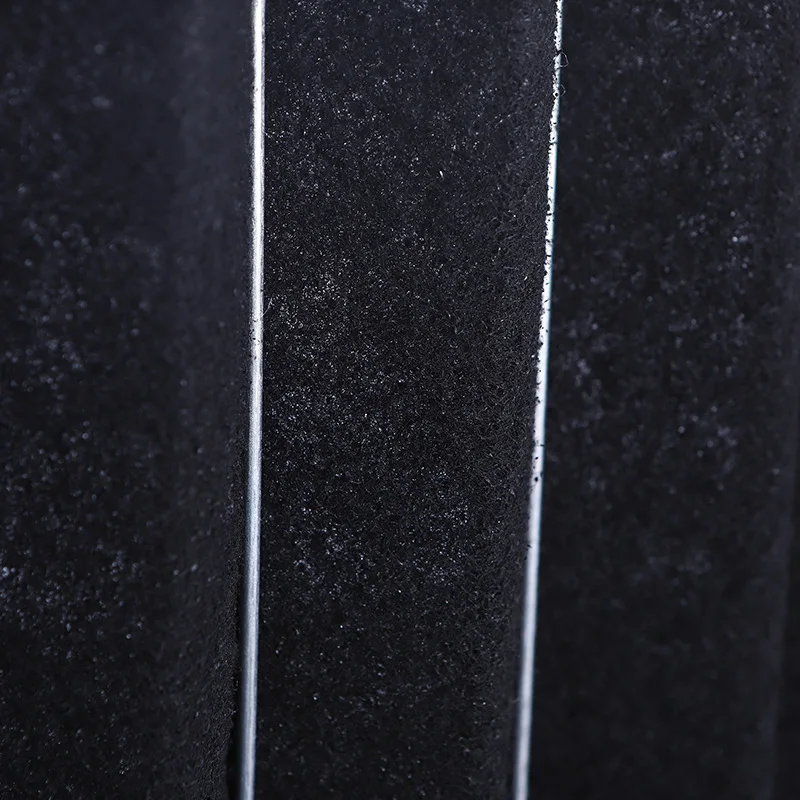

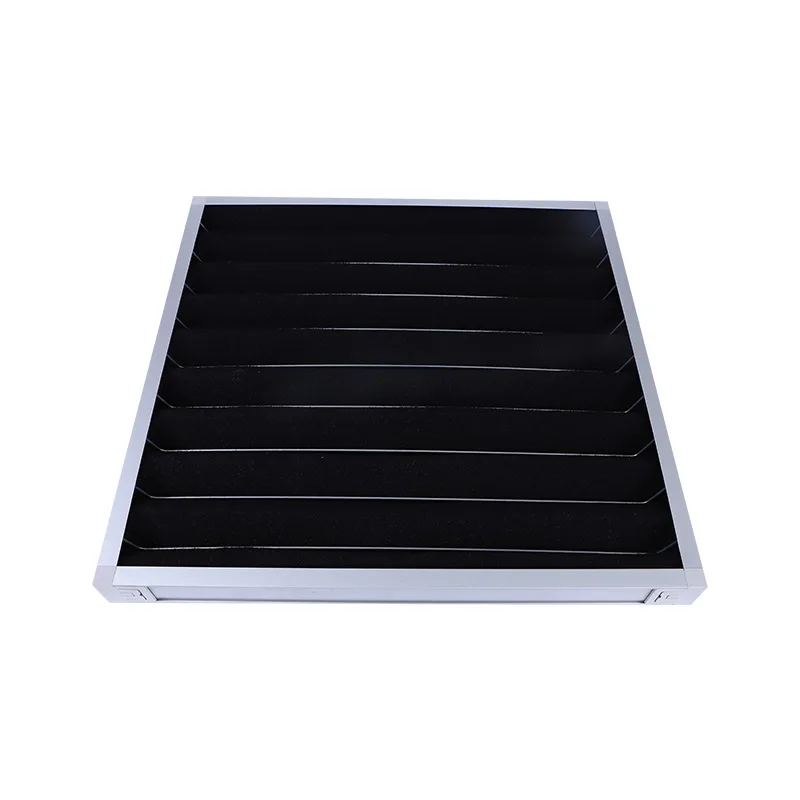

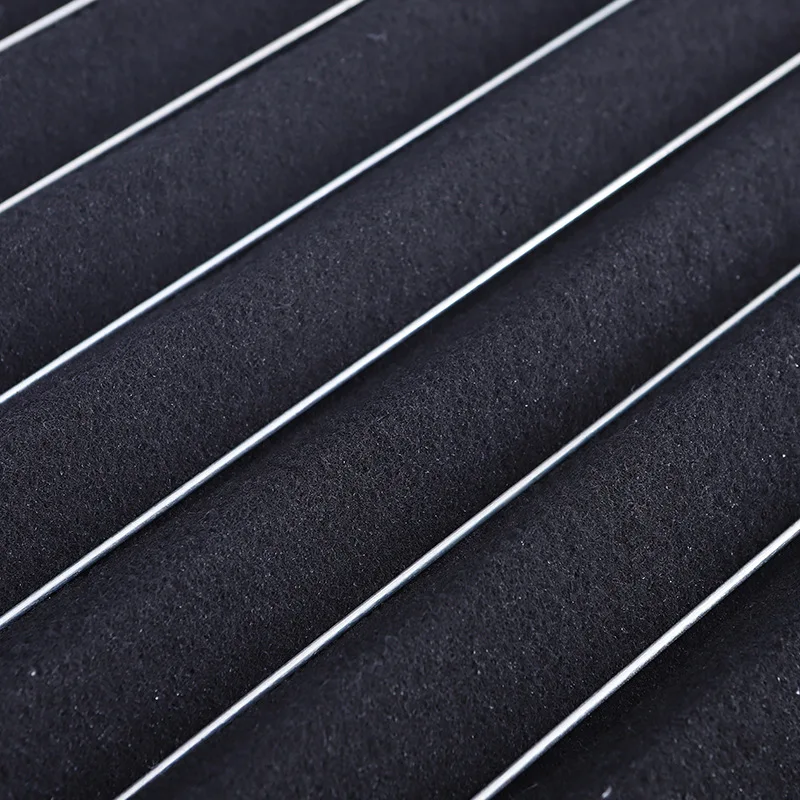

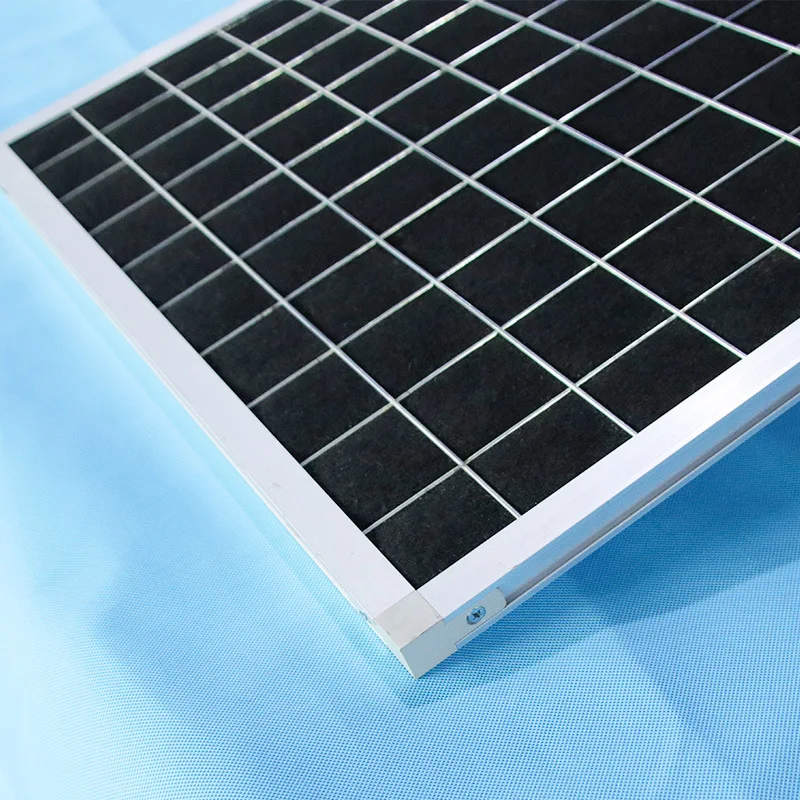

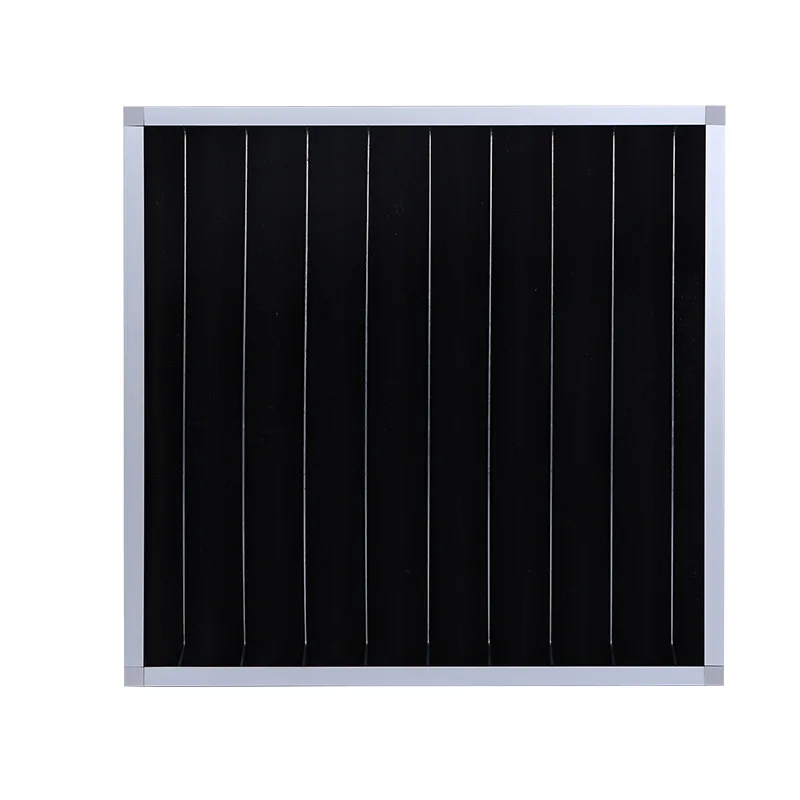

The filter uses new synthetic fiber and glass fiber as filter material, afterfolding,it has high filtration efficiency, high dust holding capacity, lowresistance and other features. Widely used in fresh air outlet's air purifying ofgeneral air-conditioning system, air purifcation system and spray fresh airsupply system, it can also be used as a pre-filter of medium efficiency filter toextend its service life. Generally its ambient temperature of use is less than 93degrees.
Product Paramenters
Product name | Industrial G4 Primary Air Filter Keel Frame Activated Carbon Panel Dust Filter for Construction and Manufacturing Industries | ||||||
Frame material | galvanized metal/al-alloy/stainless steel | ||||||
Filter material | active carbon | ||||||
Effectiveness(EN799) | G4 | ||||||
Size | custom size available | ||||||
Details Images
Actual Size (mm) | Effectiveness (EN779) | Air Volume (m³/h) | Initial Resistance (Pa) | Final Resistance (Pa) |
595*595*46 | G4 | 3400 | 135 | 2 times initial resistance |
295*595*46 | 1700 | 135 | ||
595*595*21 | 2000 | 85 | ||
295*595*21 | 1000 | 85 |
