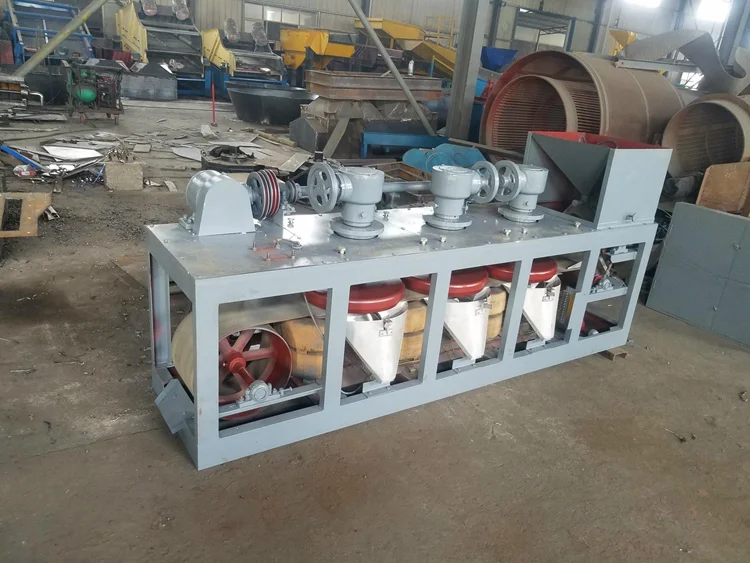

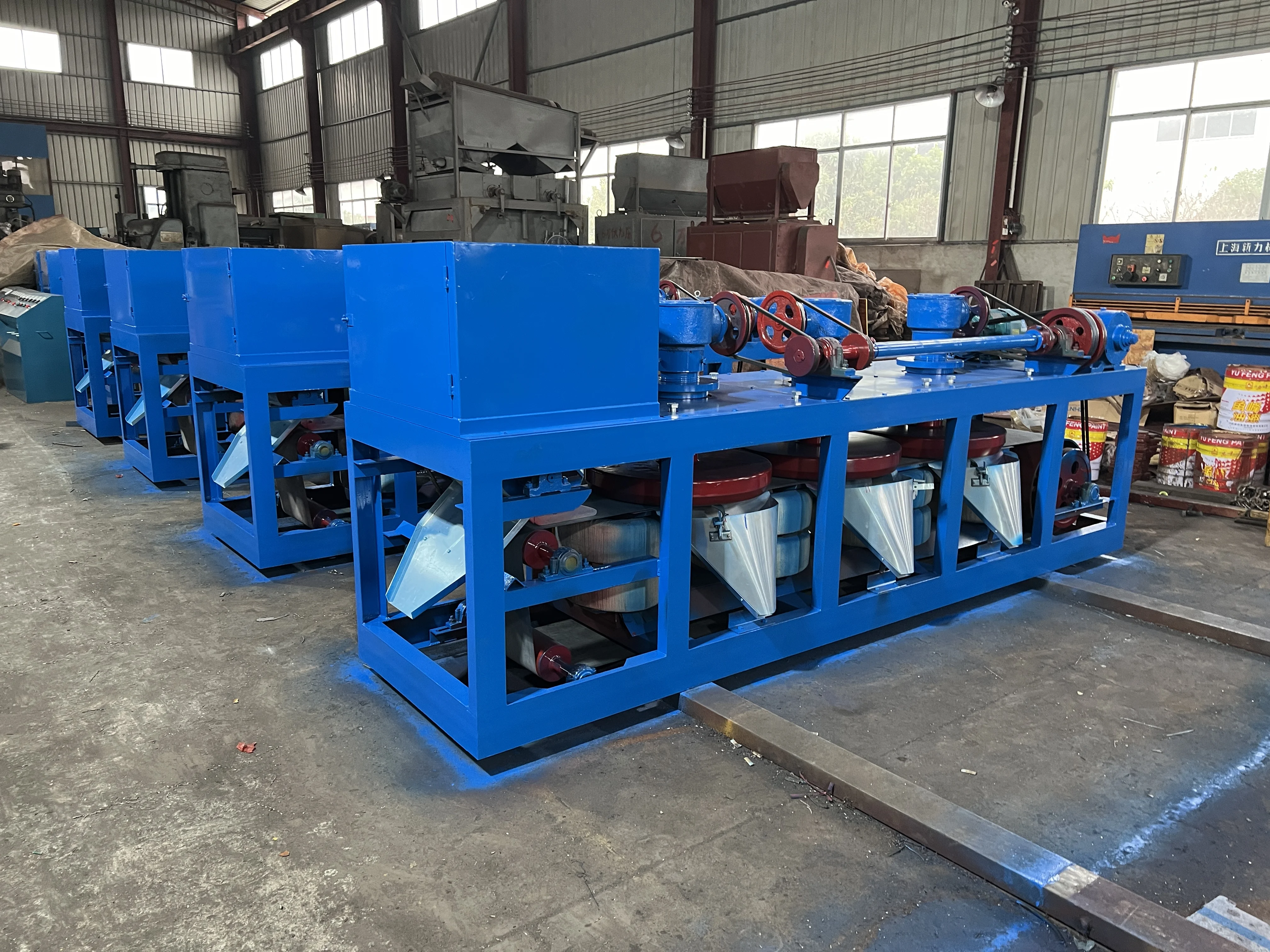

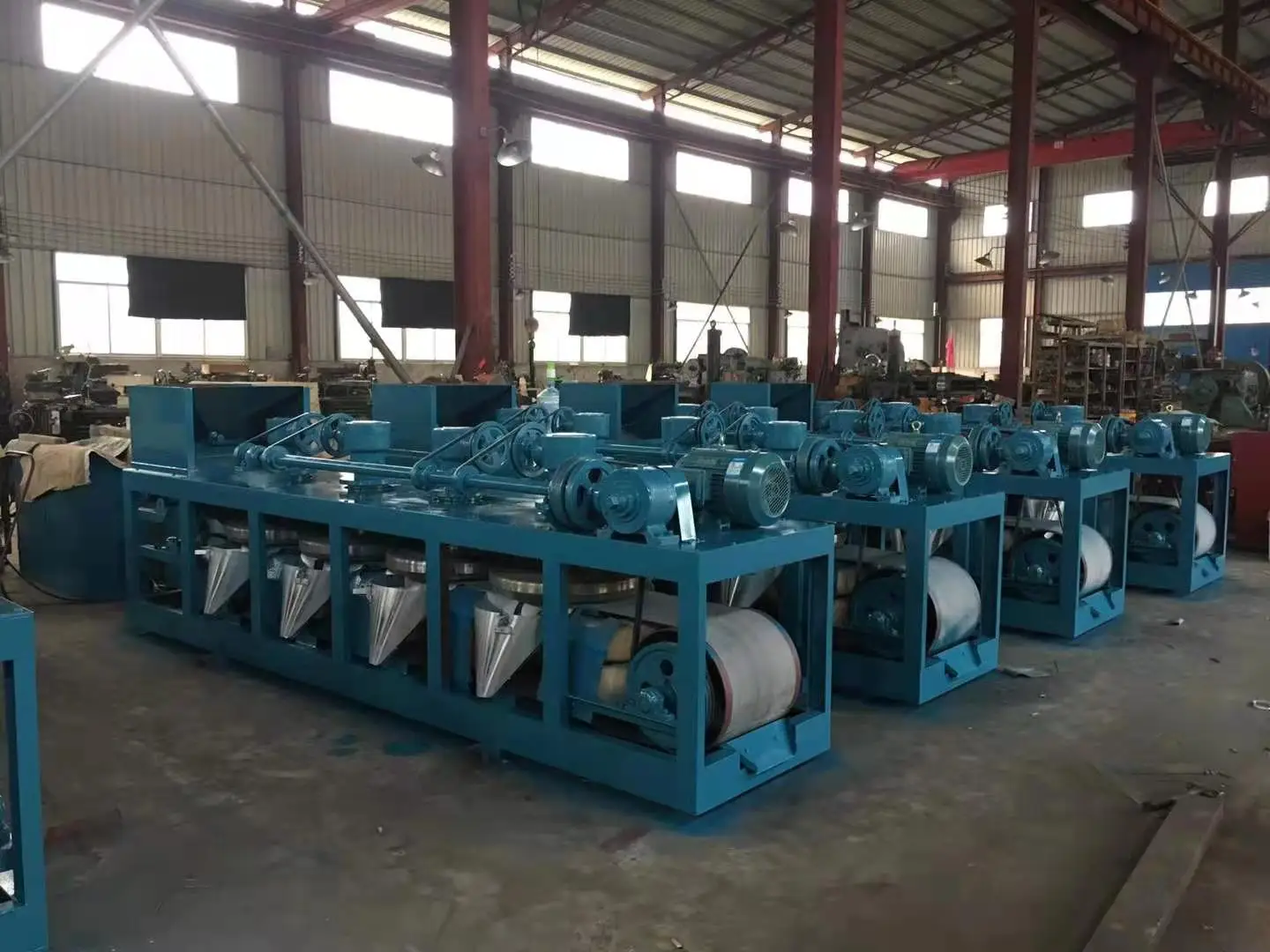

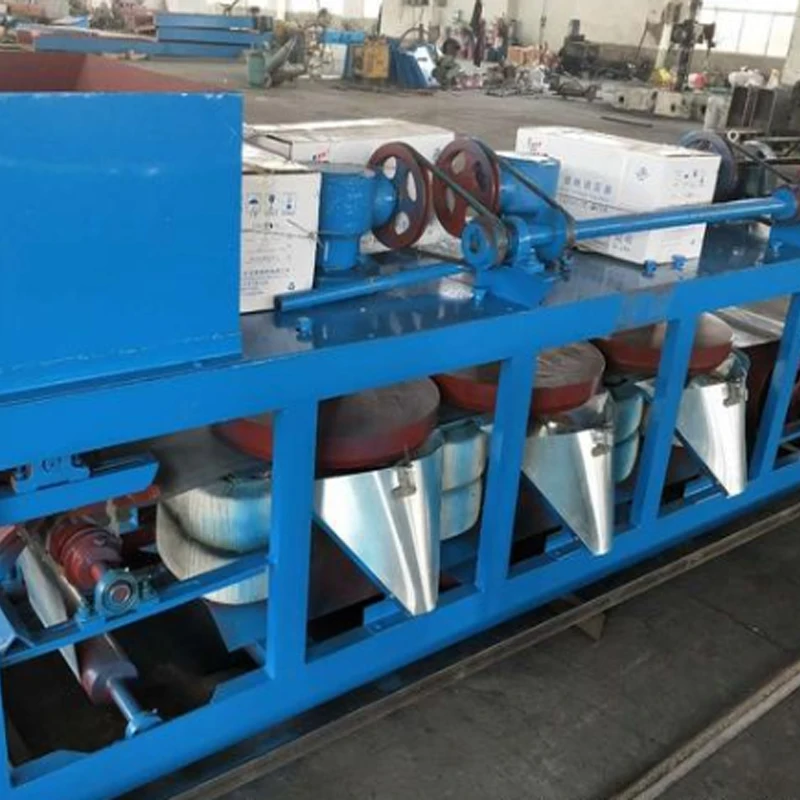

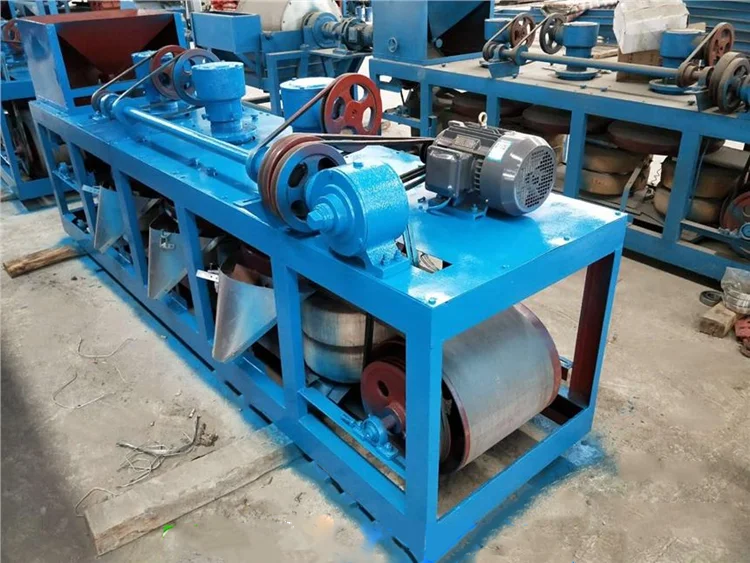

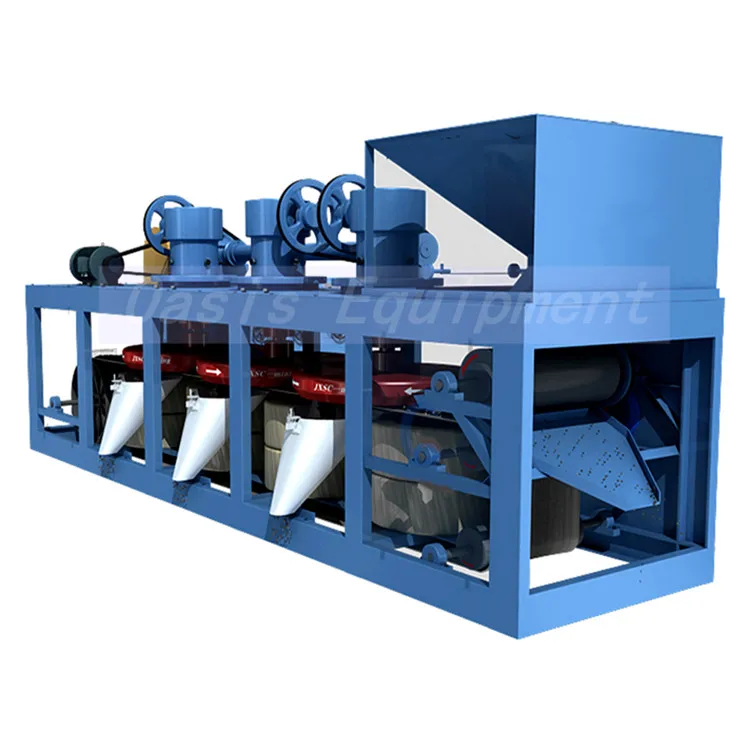

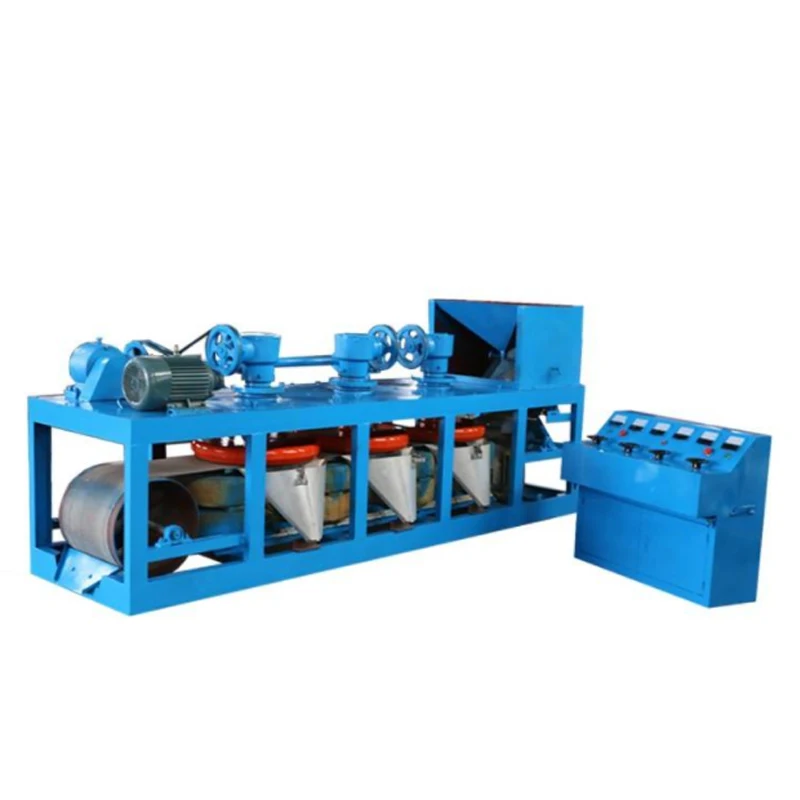

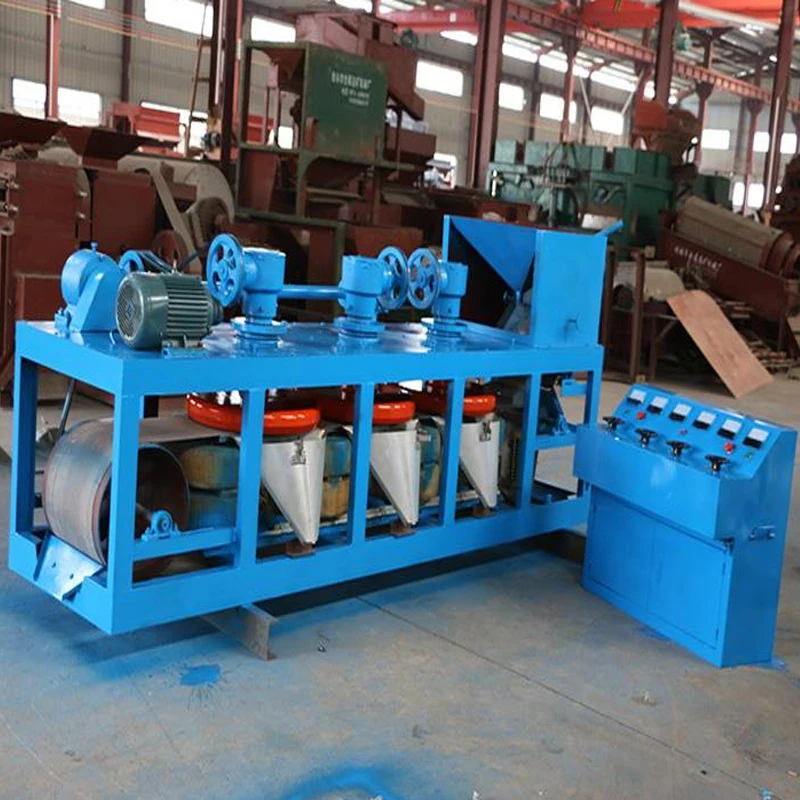

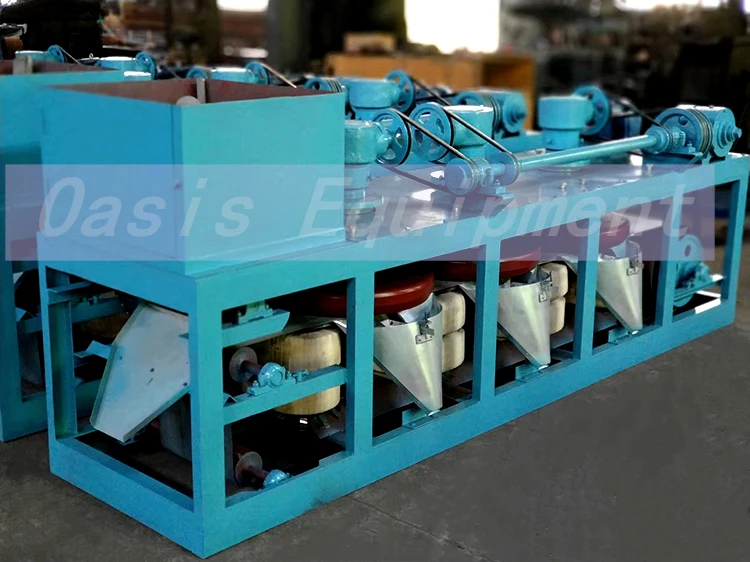

3 Disc Magnetic Separator Monazite/Zircon/Iron 18000 20000GS Mining Dry Magnet Separator Machine
- Category: >>>
- Supplier: Shicheng Oasis Mineral Equipment Manufacturing Co. Ltd.Shicheng Ltd.
Share on (1601322629792):
Product Overview
Description
Product Paramenters
Model | LZCP3-500 | LZCP3-600 | LZCP855 |
Magnetic field | 17000GS | 20000GS | 18000GS |
Disk number | 3PCS | 3PCS | 1PCS |
Disk diameter | 500mm | 600mm | 885mm |
Disk revolution | 25-40r/min | 22-38r/min | 22-38r/min |
Excitation coil | 4groups | 4groups | 2groups |
Motor power | 1.5+1.5KW | 2.2+1.6KW | 3+1.5KW |
Coil temperature | 65℃ | 80℃ | 65℃ |
Coil current rating | 1.2-1.9A | 1.2-1.9A | 3.5A |
Feeding width | 210mm | 300mm | 300mm |
Feed size | < 2mm | < 2mm | < 4mm |
Dimension size(mm) | 2800×800×1220 | 3150×900×1250 | 2550×1030×1250 |
Capacity | 100-500kg/h | 200-800kg/h | 300-1600kg/h |
Weight: | 1900kg | 2300kg | 3200kg |
Product Overview
Three(single) disk magnetic separator is dry magnetic separation machine.Suitable for titanium ore and plastic,black and white tungsten,titanium,zircon sand,chromium,Tin sand weak magnetic minerals such as sorting and selection
Features and application:
1. It’s dry strong magnetic separator.
2. Suitable for separating and featured selection of weak magnetic minerals like titanium ore, high tin, black and white tungsten, tin sand, red iron, brown iron, feldspar, kaolin, titanium, chromium, zircon sand
Features and application:
1. It’s dry strong magnetic separator.
2. Suitable for separating and featured selection of weak magnetic minerals like titanium ore, high tin, black and white tungsten, tin sand, red iron, brown iron, feldspar, kaolin, titanium, chromium, zircon sand
Our Service
1. Our Service:
(1) Select equipment model;
(2) Design and manufacture products according to clients' special requirement;
(3) Train technical personnel for clients.
2. Serivces during the sale:
(1) Pre-check and accept products ahead of delivery;
(2) Help clients to draft solving plans;
(3) Guide clients how to install equipment successfully without problem.
3. After-sale services:
(1) Assist clients to prepare for the first construction scheme;
(2) Install and debug the equipment;
(3) Train the first-line operators on site.
(1) Select equipment model;
(2) Design and manufacture products according to clients' special requirement;
(3) Train technical personnel for clients.
2. Serivces during the sale:
(1) Pre-check and accept products ahead of delivery;
(2) Help clients to draft solving plans;
(3) Guide clients how to install equipment successfully without problem.
3. After-sale services:
(1) Assist clients to prepare for the first construction scheme;
(2) Install and debug the equipment;
(3) Train the first-line operators on site.
Company Profile
Shicheng Oasis Mineral Equipment Manufacturing Co.,Ltd is an import-export trade enterprise specializing in the production, sale and installation of mineral equipment, environmental protection equipment, hardware and machinery. We awarded CE and ISO9001:2008 international quality management system certification.
Company mainly produces laboratory and production crushers, conveyors, feeders, vibrating screens, ball mill, washing machine, mixing tank, magnetic separator, shaking table, jigging machine, spiral chute, flotation machine, melting furnace, sand washing machine and etc.
Company mainly produces laboratory and production crushers, conveyors, feeders, vibrating screens, ball mill, washing machine, mixing tank, magnetic separator, shaking table, jigging machine, spiral chute, flotation machine, melting furnace, sand washing machine and etc.
Certifications
Customer Photos
Exhibition
FAQ
1.Q:What Information needed to get accurate quotation and proposal?
A:1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone, what is the general particle size(mm) of the raw ore?
3). What is the handling capacity (tons per hour) you need?
4) .What is the elements of the raw ore? How much percent % of each minerals?
2.Q:Can we send the mineral samples to you to run the ore-dressing experiment test?
A:?Yes, we can run the ore-dressing experiment for our customers. After the test, we will give you the reasonable flowchart, suitable solution and equipment selection. etc. based on the test results.
3.Q:What about warranty of the equipment? Any spare parts supplied?
A:The warranty period of OASIS equipment is 12 months. And of course we will supply the spare parts to you for life-long time at lowest cost.
4.Q: The reason you choose OASIS?
A:1). Professional manufacturer of supplying mining equipment, Ore beneficiation equipment and mining dryers.?
2). Experienced and professional R&D team and manufacturing team.
3). Professional sales team consisted of dedicated, dynamic and innovative staff with international version.
4). Professional logistics service ensuring safety and timely delivery of products all over the world.
A:1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone, what is the general particle size(mm) of the raw ore?
3). What is the handling capacity (tons per hour) you need?
4) .What is the elements of the raw ore? How much percent % of each minerals?
2.Q:Can we send the mineral samples to you to run the ore-dressing experiment test?
A:?Yes, we can run the ore-dressing experiment for our customers. After the test, we will give you the reasonable flowchart, suitable solution and equipment selection. etc. based on the test results.
3.Q:What about warranty of the equipment? Any spare parts supplied?
A:The warranty period of OASIS equipment is 12 months. And of course we will supply the spare parts to you for life-long time at lowest cost.
4.Q: The reason you choose OASIS?
A:1). Professional manufacturer of supplying mining equipment, Ore beneficiation equipment and mining dryers.?
2). Experienced and professional R&D team and manufacturing team.
3). Professional sales team consisted of dedicated, dynamic and innovative staff with international version.
4). Professional logistics service ensuring safety and timely delivery of products all over the world.
