Fuel dispenser filter water separator,replacement cimtek 70059/70064 fuel pump gasoline filter
- Category: >>>
- Supplier: Zhengzhou Dinly Filter Co. Ltd.Zhengzhou Ltd.
Share on (1601322643900):
Product Overview
Description
Products Description

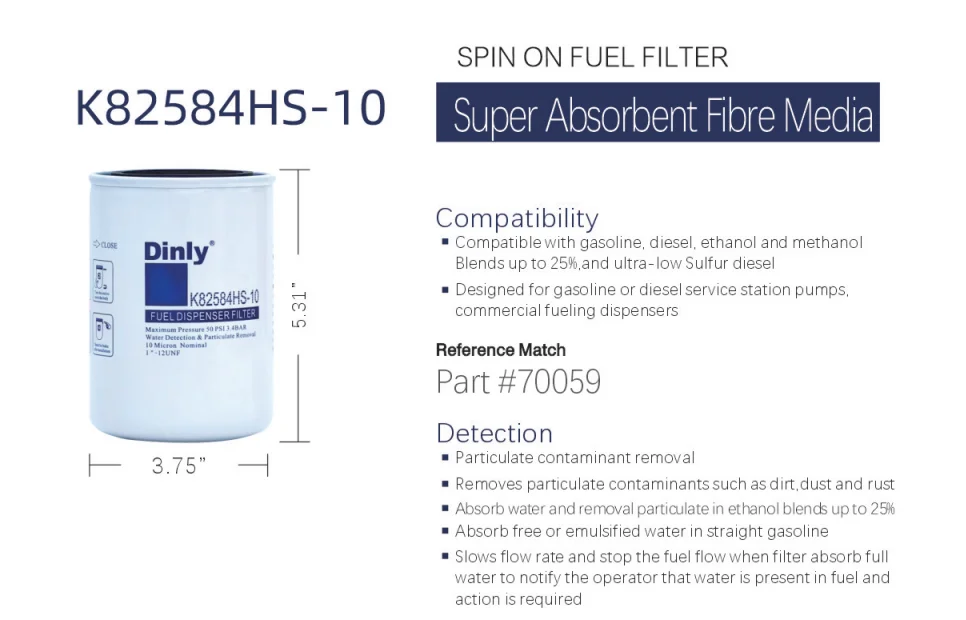

Compatibility:
Compatible with gasoline, diesel, ethanol and methanol.Blends up to 25%,and ultra-low Sulfur diesel.
Designed for gasoline or diesel service station pumps, commercial fueling dispensers.
Detection:
Particulate contaminant removal.
Removes particulate contaminants such as dirt,dust and rust.
Absorb water and removal particulate in ethanol blends up to 25%.
Absorb free or emulsified water in straight gasoline.
Slows flow rate and stop the fuel flow when filter absorb full water to notify the operator that water is present in fuel and action is required.
Absorb water and removal particulate in ethanol blends up to 25%.
Absorb free or emulsified water in straight gasoline.
Slows flow rate and stop the fuel flow when filter absorb full water to notify the operator that water is present in fuel and action is required.
Details Images
Thread Size : 1"-12UNF
25 GPM (94.6 LPM) MAX FLOW
50 PSI (3.4BAR) MAX WORKING PRESSURE
25 PSID (1.7BAR) MAX DIFFERENTIAL PRESSURE
NOT FOR USE WITH AVIATION APPLICATIONS
Filter for Water detection and Particulate Removal
10/30 Micron Super Absorbent Fibre Media

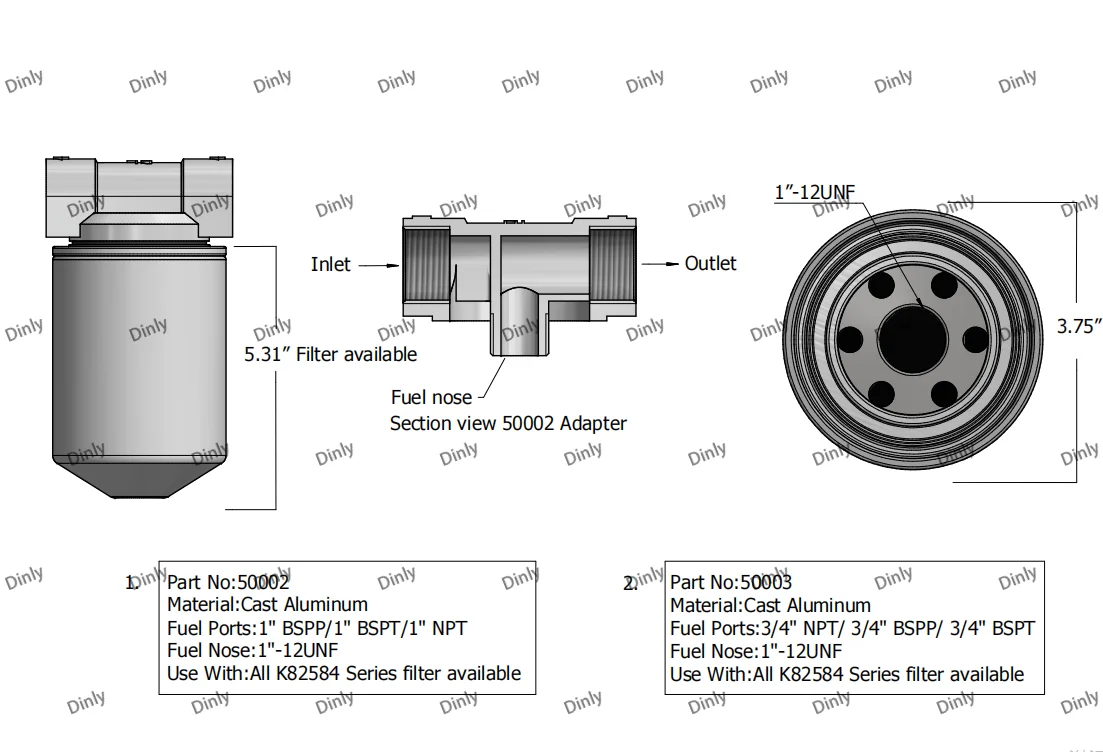

Multiple layers of Microglass material and Self-developed special absorbent Media (1"-12UNF),5.31 "length.
Recognized by International Standardization Organization (IS09001:2015) for use with Service station pumps and dispensers,transfer pumps.
25 PSID (1.7BAR) MAX DIFFERENTIAL PRESSURE
NOT FOR USE WITH AVIATION APPLICATIONS
Filter for Water detection and Particulate Removal
10/30 Micron Super Absorbent Fibre Media
Multiple layers of Microglass material and Self-developed special absorbent Media (1"-12UNF),5.31 "length.
Recognized by International Standardization Organization (IS09001:2015) for use with Service station pumps and dispensers,transfer pumps.
Product Paramenters
Brand Name | Dinly |

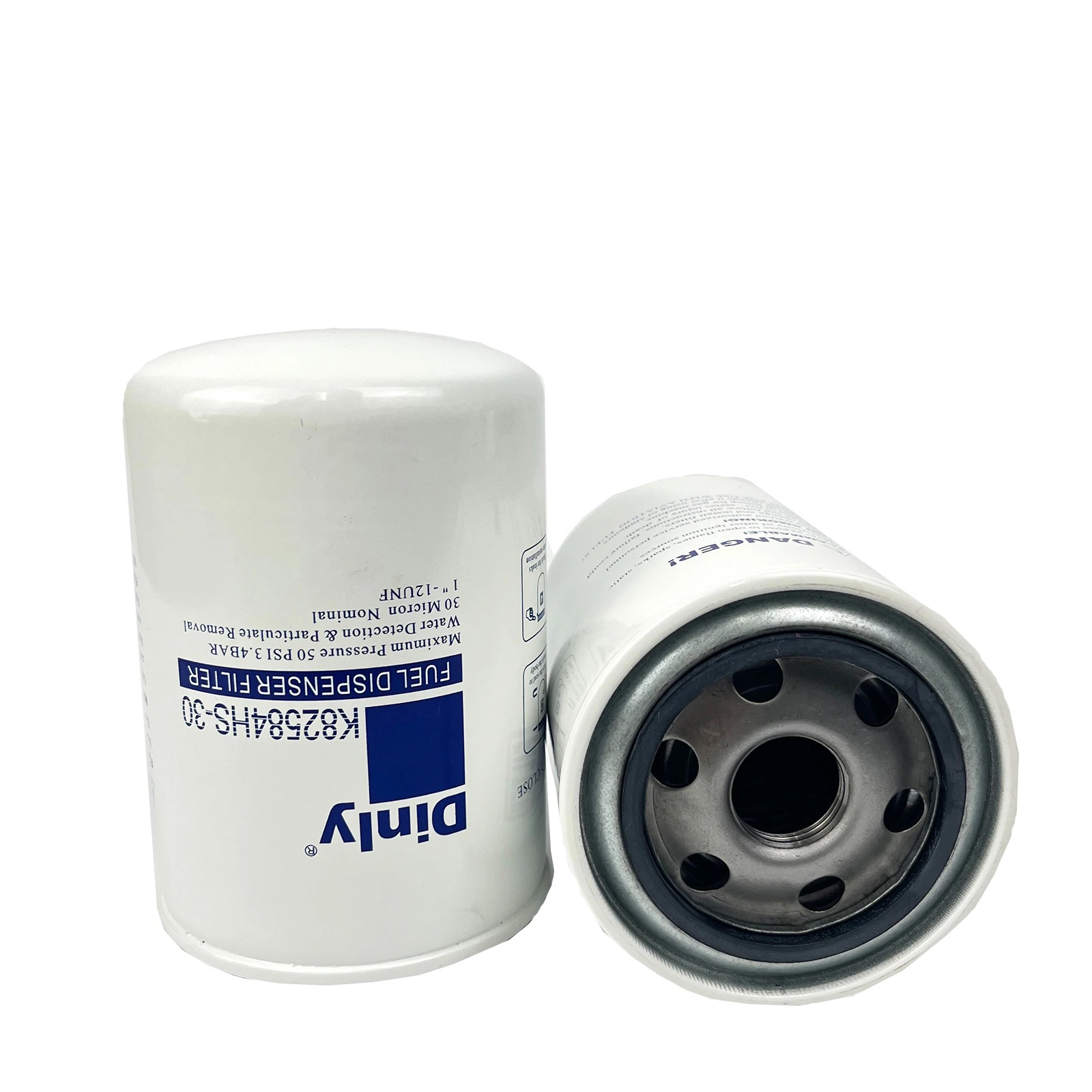

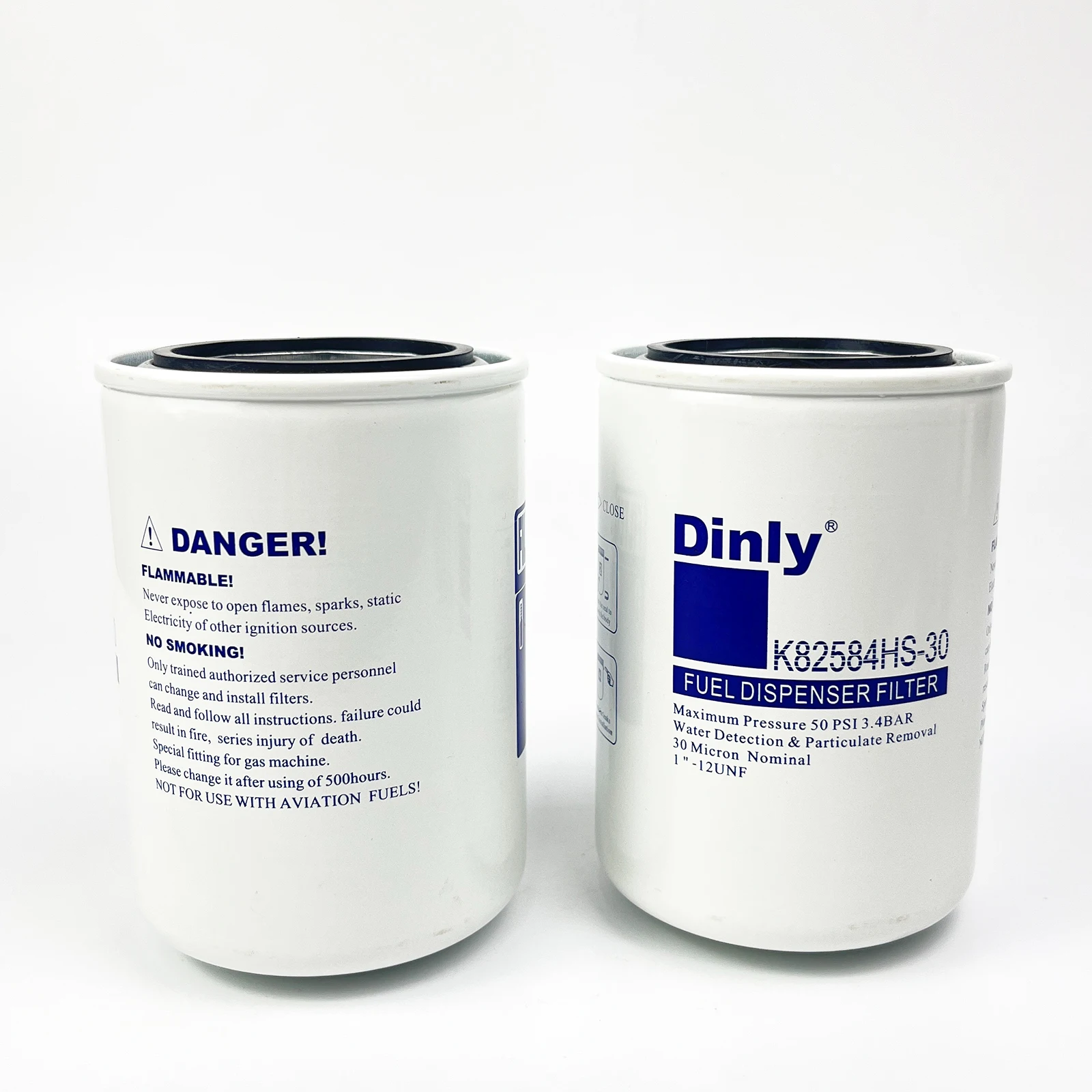

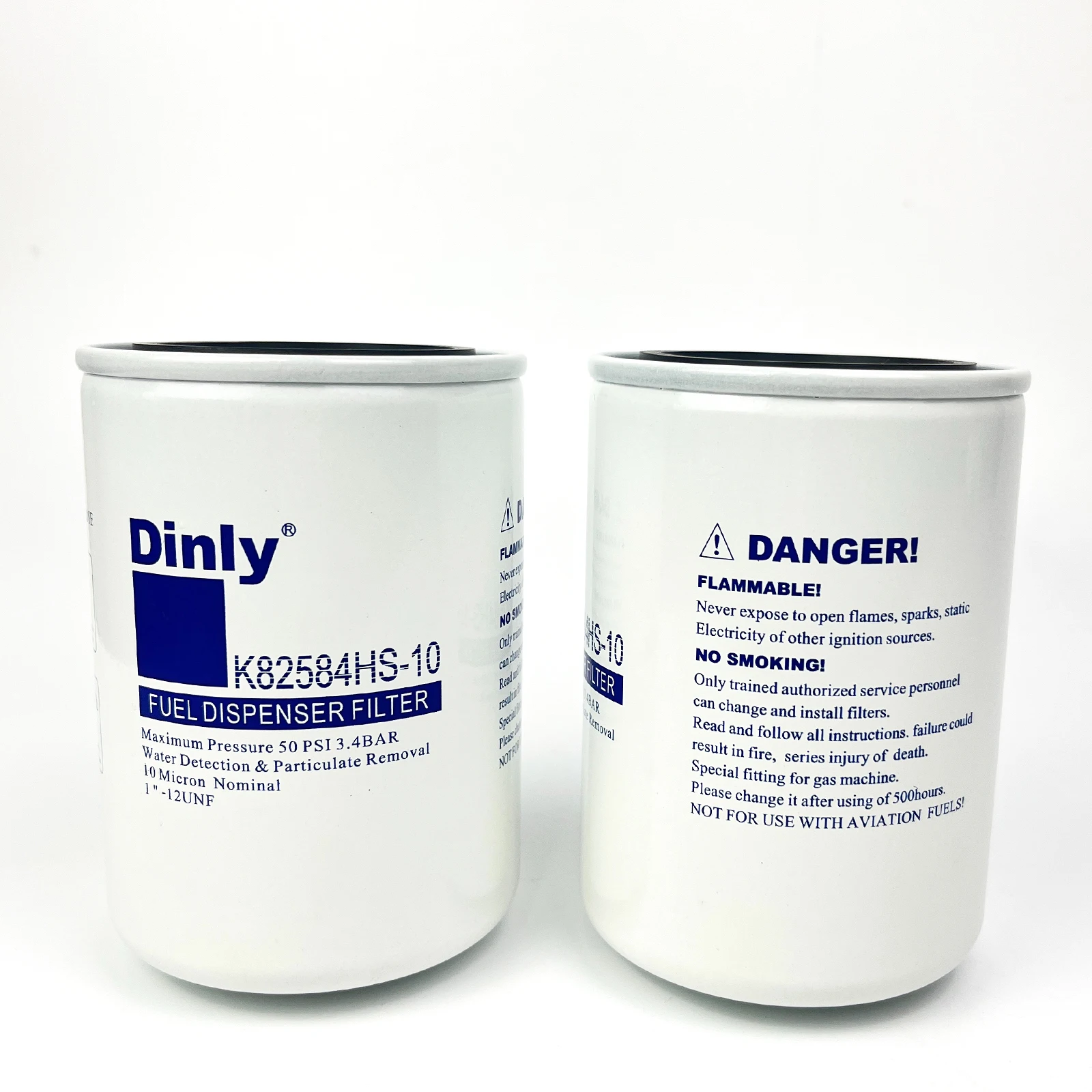

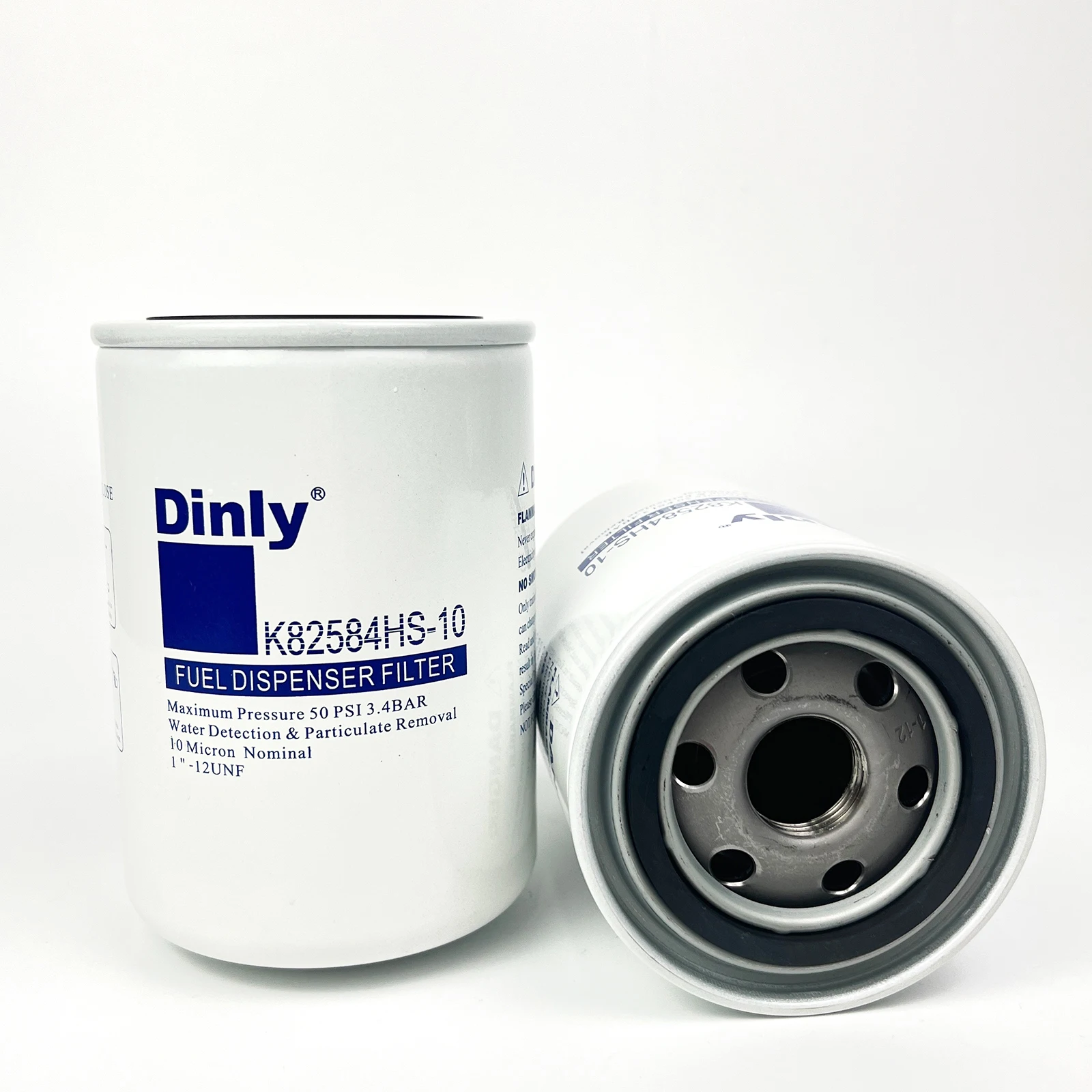

Model Number | K82584HS-10/30 |
Fuel Type | Straight Gasoline, Diesel/ULSD,Ethanol and methanol blends up to 25% |
Function | Remove Particulate & Detect Water |
Media | super absorbent fiber media |
Strainer | 10/30 micron |
Packing | Box, Carton |
Our particulate removal filter has very large market requirement, our filter has a large flow rate and longer working life, lower cost, fast delivery service, and we support customers to customize language and logo.

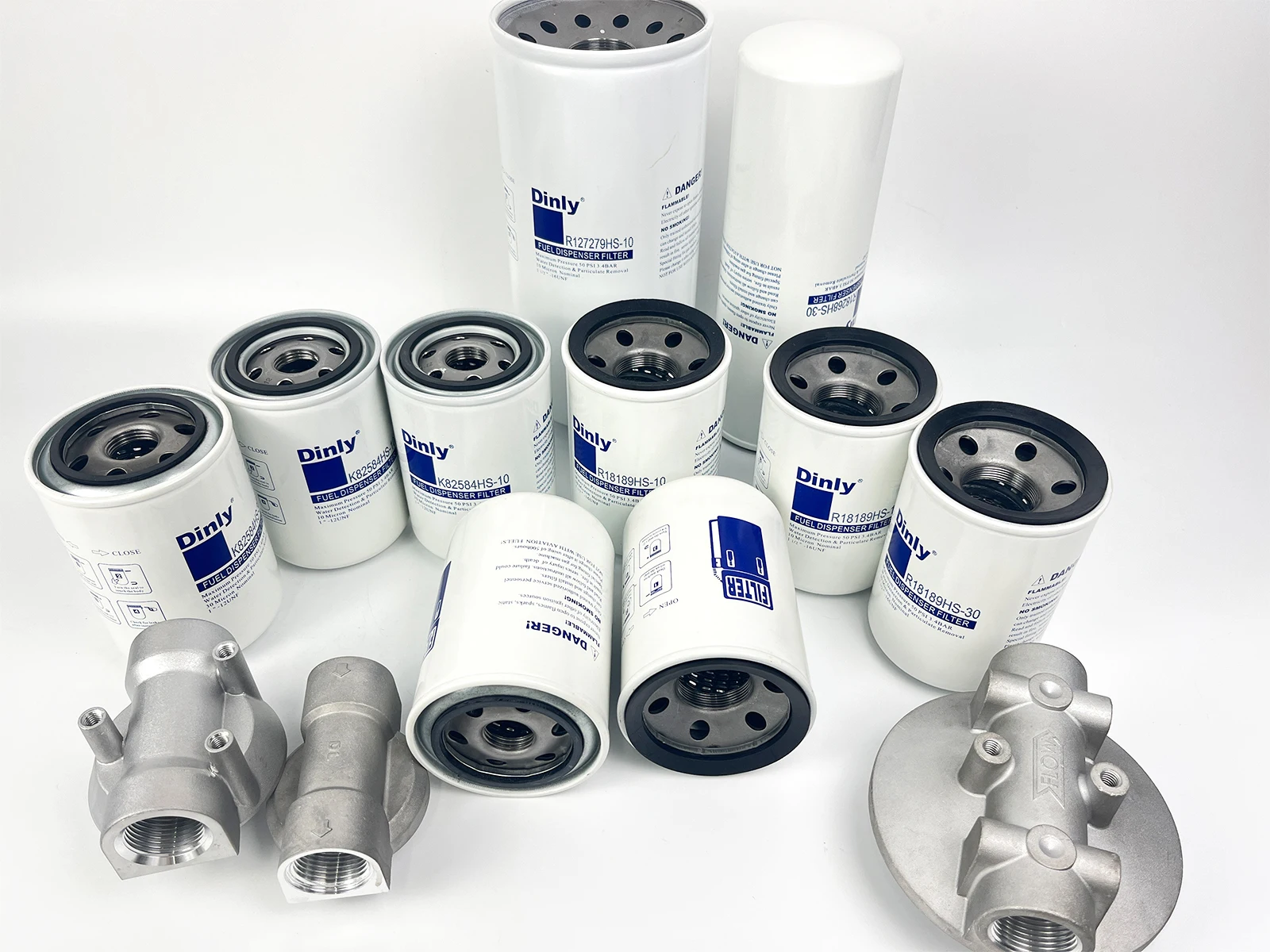

We have normal size filter, middel size filter, and large size filter, our filter are comparable to Cim-tek series filters.Our filter have a larger filtration area, could improve the filter flow rate and enlarge the working life for the filter.
Company Profile
Zhengzhou Dinly Filter co., Ltd
Established in 2004, Zhengzhou Dinly filter Co., Ltd (Dinly) is a national high-tech enterprise that located in Zhengzhou High-tech Development zone, whichis a factory focus on the research and development, manufacturing and sales of fuel dispenser filters.
With the benefit of complete technical system and ability of continuous innovation, Dinly owes more than 30 patents and other independent intellectual property rights.Dinly has a complete enterprise standard system, the manufacturing system is operated in strict accordance with lS09001 quality management standard,lS014001 environmental management standard,IS045001 Safety management standard.Dinly has advanced automatic production equipment with an annual capacity of more than 800,000 flters, and provided customers with fast delivery and thoughtful after-sales service.
At present, Dinly's business has covered over 50 foreign countries and regions, which has a long-term partnership with China Sinopec, CNPC and other well-known fuel dispenser manufacturers.Dinly is one of the earliest conglomerates in the feld of fuel dispenser filters which has a management and technical team with more than 20 years of senior experience, could provided customers with reasonable fuel filtration solutions.
With the benefit of complete technical system and ability of continuous innovation, Dinly owes more than 30 patents and other independent intellectual property rights.Dinly has a complete enterprise standard system, the manufacturing system is operated in strict accordance with lS09001 quality management standard,lS014001 environmental management standard,IS045001 Safety management standard.Dinly has advanced automatic production equipment with an annual capacity of more than 800,000 flters, and provided customers with fast delivery and thoughtful after-sales service.
At present, Dinly's business has covered over 50 foreign countries and regions, which has a long-term partnership with China Sinopec, CNPC and other well-known fuel dispenser manufacturers.Dinly is one of the earliest conglomerates in the feld of fuel dispenser filters which has a management and technical team with more than 20 years of senior experience, could provided customers with reasonable fuel filtration solutions.

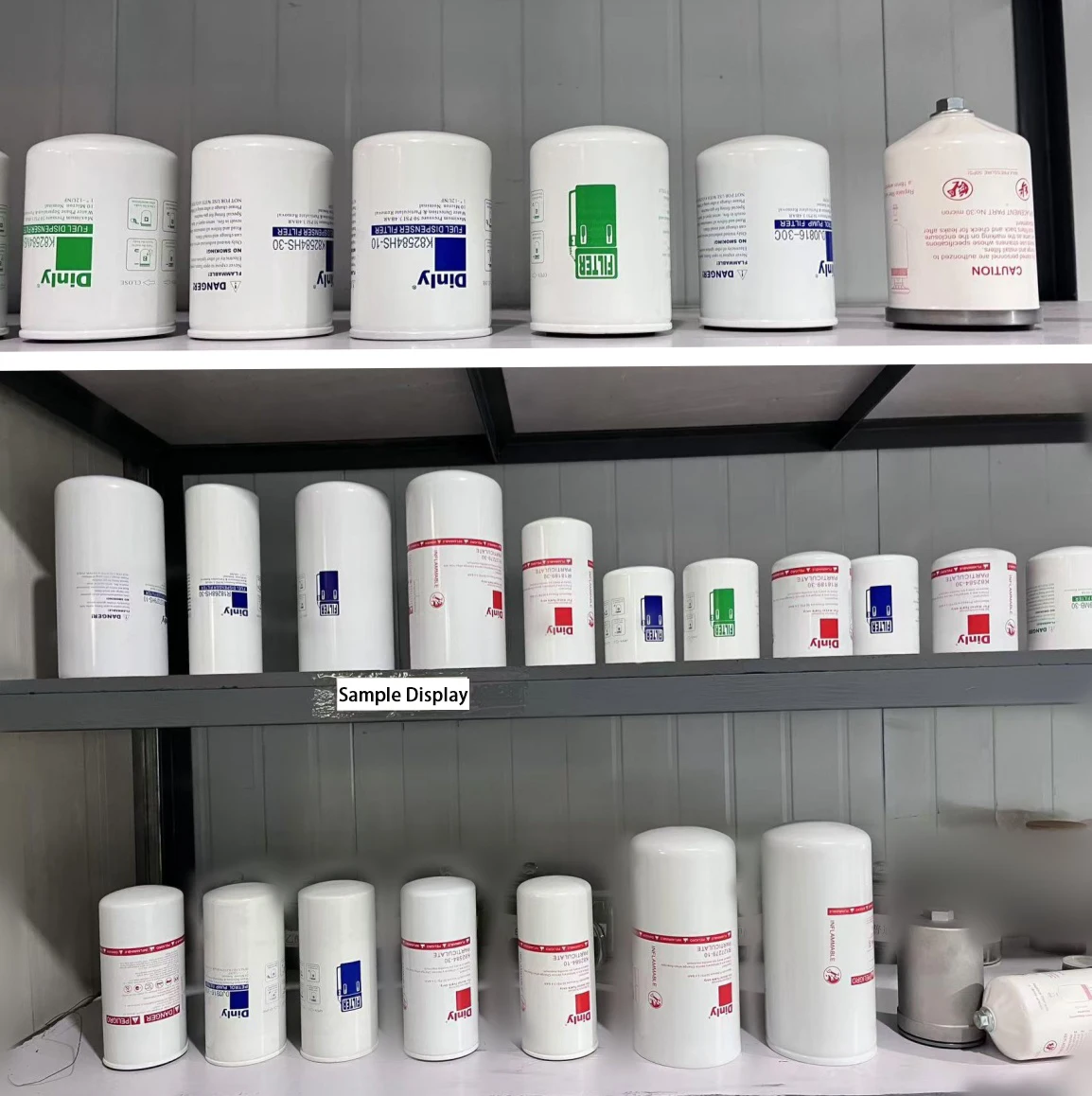

Sample Display
Certifications
Packing & Delivery
FAQ
Q1 : Why choose us?
Q4 : What is the service time?
A4 : Available 7days,24hours for you.
Q5 : Could you offer door to door service?
A5 : Yes. We have many shipping options to choose.
A1 : We focus on the design, research and development, production, and sales of oil filtration in the fuel dispenser industry.
Q2 : Are you factory or trader?
A2 : We are a factory, Since 2004 year.
A2 : We are a factory, Since 2004 year.
Q3 : Where is your Location ?
A3 : We are located at No. 9 Changchun Road, Zhengzhou High-tech Industrial Development Zone.welcome to visit.
A3 : We are located at No. 9 Changchun Road, Zhengzhou High-tech Industrial Development Zone.welcome to visit.
Q4 : What is the service time?
A4 : Available 7days,24hours for you.
Q5 : Could you offer door to door service?
A5 : Yes. We have many shipping options to choose.
Q6 : When it will be produced after ordering?
A6 : Arrange production immediately after paymen.
A6 : Arrange production immediately after paymen.
