turbine shaft rhf5hb
- Category: >>>
- Supplier: Dongguan Leqian Plastic Hardware Products Co. Ltd.Dongguan Ltd.
Share on (1601323479006):
Product Overview
Description
Best Selling
Product Description
Product Information

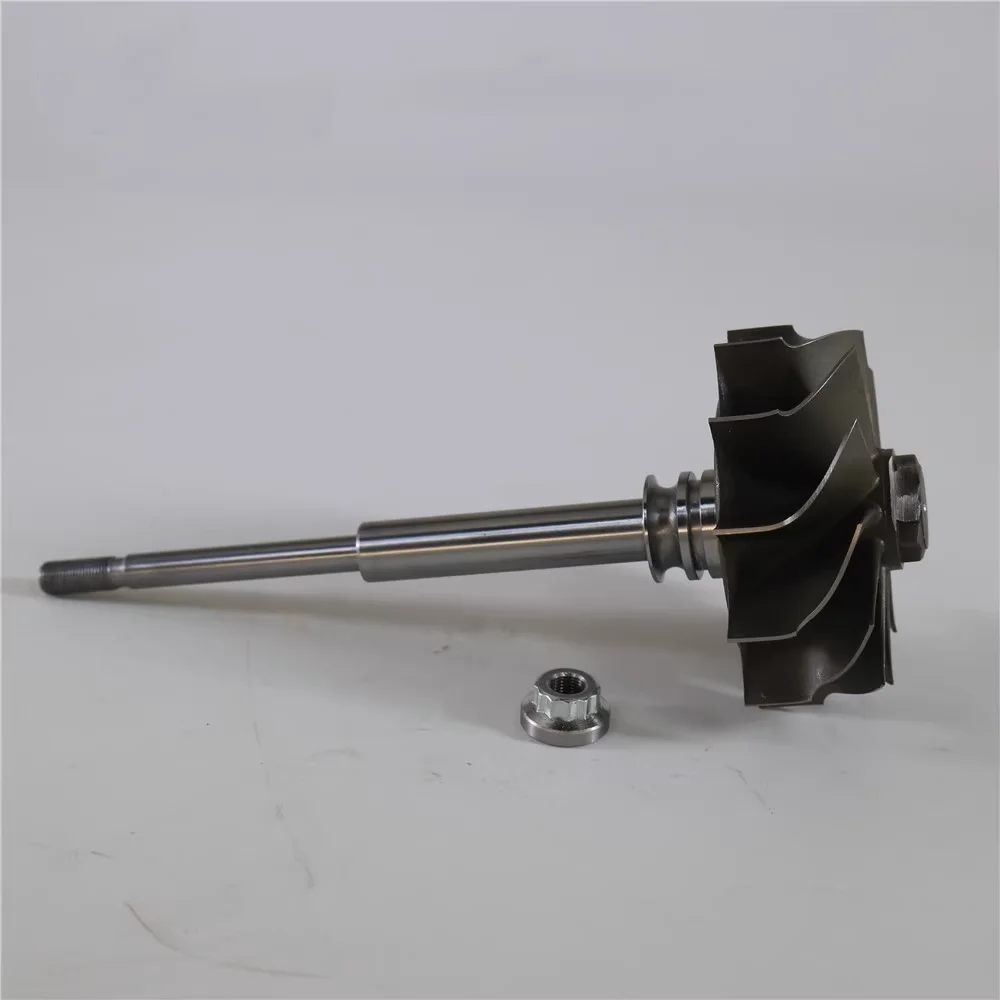

Item Name : MAMBA D5 (5+5) IHI RHF5HB VF34 VF36 VF53 Ball Bearing Turbine Shaft Wheel (48.0/53.4/5+5/L+3/OE Size)
Product : Brand New in Box.
- Feathered bolt-on upgraded and Lighter D5 (5+5) Blade turbine wheel from OE 11 Blade will reduce back pressure to support higher top end.
- Fits turbo #: IHI RHF5HB Ball Bearing, VF34, VF36 and VF53.
- Shaft Length +3mm for larger & higher billet wheel to support higher top end.
- Warning: NOT FOR VF22, VF23, VF24, VF28 nor VF29 with shorter shaft length.
Wheel Spec
Inducer Diameter A : 53.4 mm
Exducer Diameter B : 48.0 mm
Journal Bearing C : 8.0 mm
Compressor Wheel Bore D : 6.1 mm
Length : 107 mm
Blade : 5+5
Weight : 163 (g)
Kit Includes : 1 x Turbine wheel
Item Name : MAMBA D5 (5+5) IHI RHF5HB VF34 VF36 VF53 Ball Bearing Turbine Shaft Wheel (48.0/53.4/5+5/L+3/OE Size)
Product : Brand New in Box.
Situation : Balanced by SCHENCK
Application
Application
- Feathered bolt-on upgraded and Lighter D5 (5+5) Blade turbine wheel from OE 11 Blade will reduce back pressure to support higher top end.
- Fits turbo #: IHI RHF5HB Ball Bearing, VF34, VF36 and VF53.
- Shaft Length +3mm for larger & higher billet wheel to support higher top end.
- Warning: NOT FOR VF22, VF23, VF24, VF28 nor VF29 with shorter shaft length.
Wheel Spec
Inducer Diameter A : 53.4 mm
Exducer Diameter B : 48.0 mm
Journal Bearing C : 8.0 mm
Compressor Wheel Bore D : 6.1 mm
Length : 107 mm
Tip Height : 9.2 mm
Blade : 5+5
Weight : 163 (g)
Material : 713C Inconel
Kit Includes : 1 x Turbine wheel
Features
MAMBA D5 (5+5), Spool faster, Lower Back Pressure to support top end.
MAMBA D5 (5+5), Spool faster, Lower Back Pressure to support top end.
Using Effects
Turbo D5 (5+5) IHI RHF5HB VF34 VF36 VF53 For Subaru STI Turbine Wheel (48.1/53)
