30years factory manufacture gate valve API ANSI Standard cast steel metal seated high pressure flange gate valve
- Category: >>>
- Supplier: Shanghai Biaoyi Valve Co. Ltd.Shanghai Ltd.
Share on (1601323518580):
Product Overview
Description
Company Profile
Canton Fair
Due to different materials, pressures and sizes, the prices of valves cannot be displayed one by one. Please contact customer service to give a correct quotation.
Why Choose Us
Accept customization
1. Material customization
2. Size customization
3. Color customization
4. Pressure customization
5. Logo customization
3. Color customization
4. Pressure customization
5. Logo customization
Please tell our customer service about your needs, and we will give you a suitable quotation as soon as possible according to your needs! Thank you!
Our company participates in large-scale urban construction projects in China.
1. Project of China Railway
2. Project of GREENTOWN CHINA HOLDINGS LTD
3. Project of Hangzhou asian games village
4. Project of Shenzhen Fangda Plaza
4. Project of Shenzhen Fangda Plaza
Product Description

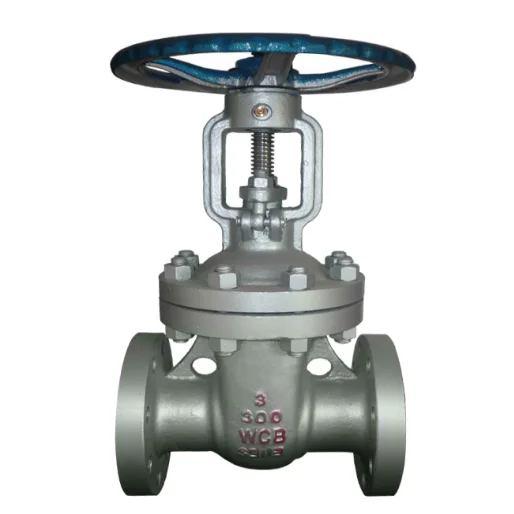

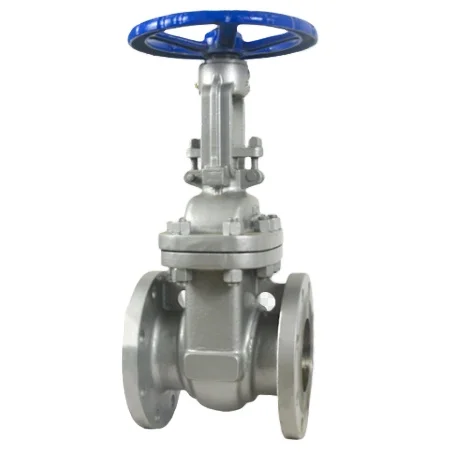

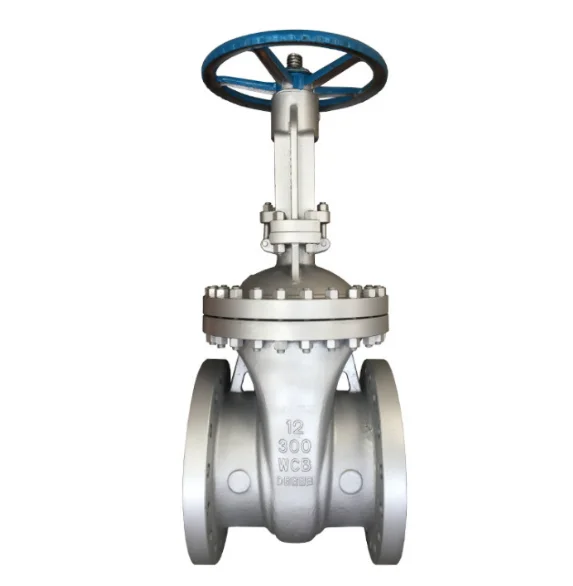

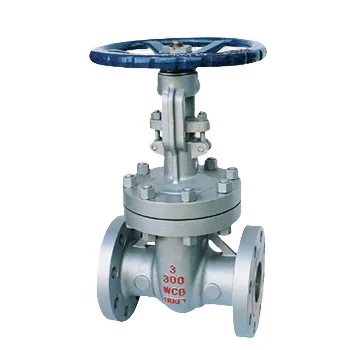

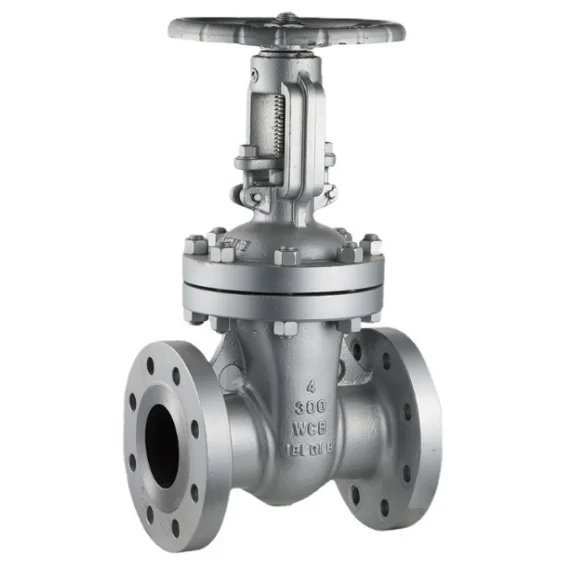

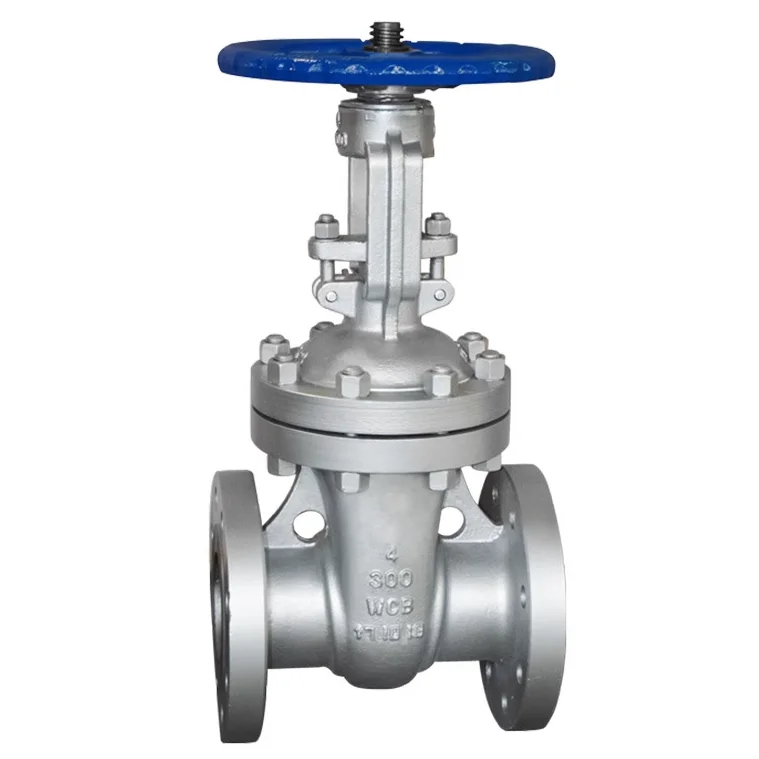

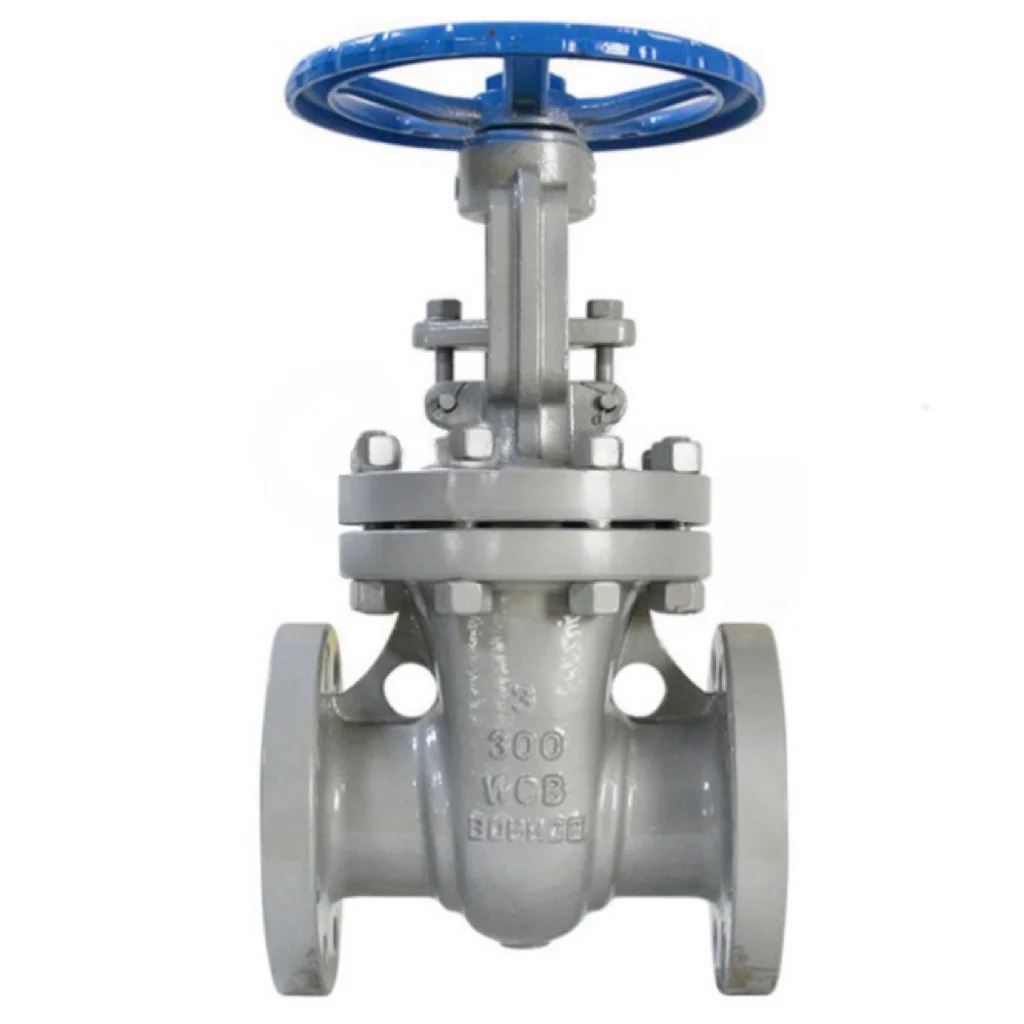

Z41H-600LB Gate valve is one of the most widely used cut-off valves in industrial pipelines. It is mainly used to put through or cut off the medium in the pipeline, but not for regulating the medium flow.
Gate valves are suitable for a wide range of pressure, temperature and diameters, especially for medium and large diameter pipelines.
Designed and manufactured to API 600 and API 602, the valve is suitable for the pressure class CALSS150 ~ CALSS2500 industrial pipeline.
Main features
1. Thestructure adopts wedge type elastic gate , large diameter set rolling bearing, easy to open and close.
2. The valve stem after tempering and surface nitriding treatment, corrosion resistance and abrasion resistance.
3. Gate and seat wear resistance, high temperature resistance, corrosion resistance, abrasion resistance, long service life.
5. The valve body material variety is complete, packing, gasket according to the actual working condition or user requirements reasonable selection, can be applicable to all kinds of temperature and medium working condition.
6. American standard gate valve fluid resistance is small. The medium channel inside the gate valve body is direct, and the medium flowing through the gate valve does not change its flow direction, so the flow resistance is small.
7. Less effort to open and close. When opening and closing, the movement direction of the gate is perpendicular to the flow direction of the medium. Compared with globe valves, API gate valves require less effort to open and close.
8. Medium flow direction is generally not restricted. The medium can flow in any direction from both sides of the gate valve, which can be connected or cut off. Easy to install, suitable for sub medium flow direction may change in the pipeline.
2. The valve stem after tempering and surface nitriding treatment, corrosion resistance and abrasion resistance.
3. Gate and seat wear resistance, high temperature resistance, corrosion resistance, abrasion resistance, long service life.
4. Various piping flange standards and flange sealing surface types can be adopted to meet the needs of various projects and user requirements.
5. The valve body material variety is complete, packing, gasket according to the actual working condition or user requirements reasonable selection, can be applicable to all kinds of temperature and medium working condition.
6. American standard gate valve fluid resistance is small. The medium channel inside the gate valve body is direct, and the medium flowing through the gate valve does not change its flow direction, so the flow resistance is small.
7. Less effort to open and close. When opening and closing, the movement direction of the gate is perpendicular to the flow direction of the medium. Compared with globe valves, API gate valves require less effort to open and close.
8. Medium flow direction is generally not restricted. The medium can flow in any direction from both sides of the gate valve, which can be connected or cut off. Easy to install, suitable for sub medium flow direction may change in the pipeline.
Relevant implementation standards
Design standard: API60D or API600,JIS B2073-2083
Structure length: ANSI B16.10 and JISB2002
Connection mode: The flange
Butt welding end size: ANSI B16.25
Transmission mode: Manual, electric, bevel gear
Pressure grade: 150Lb, 300LB, 600LB
Material: Carbon steel (WCB), stainless steel (304\\304L\\316\\316L)
Applicable temperature: carbon steel ≤425 ℃, stainless steel ≤200℃
Applicable medium: water, steam, oil, acid, alkali medium, etc
Structure length: ANSI B16.10 and JISB2002
Connection mode: The flange
Butt welding end size: ANSI B16.25
Transmission mode: Manual, electric, bevel gear
Pressure grade: 150Lb, 300LB, 600LB
Material: Carbon steel (WCB), stainless steel (304\\304L\\316\\316L)
Applicable temperature: carbon steel ≤425 ℃, stainless steel ≤200℃
Applicable medium: water, steam, oil, acid, alkali medium, etc
item | value |
Application | General |
Port Size | DN50~DN600 |
Warranty | 3 years |
Place of Origin | China |
Shanghai | |
Model Number | Z41H-600LB |
Power | Hydraulic |
Temperature of Media | HighTemperature, Low Temperature, Medium Temperature, Normal Temperature |
Brand Name | |
Structure | Gate |
Media | Water |
Customized support | OEM, ODM, OBM, Software reengineering |
Product name | Z41H-600LB |
Design standard | API60D or API600,JIS B2073-2083 |
Structure length | ANSI B16.10 and JISB2002 |
Connection mode:The flange | ANSI B16.5 |
Butt welding end size | ANSI B16.25 |
Transmission mode | Manual, electric, bevel gear |
Pressure grade | 150Lb, 300LB, 600LB |
Material | Carbon steel (WCB), stainless steel (304\\304L\\316\\316L) |
Applicable temperature | carbon steel ≤425 ℃, stainless steel ≤200℃ |
Applicable medium | water, steam, oil, acid, alkali medium, etc |
Main parts and materials

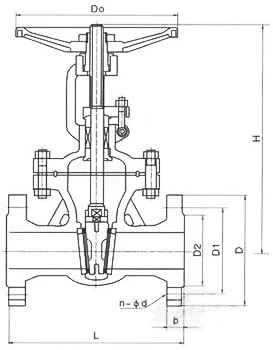

Main structure and connection dimensions
