630mm Polyethylene PE 1/2 Inch HDPE Pipe Making Machine Machinery Production Line
630mm Polyethylene PE 1/2 Inch HDPE Pipe Making Machine Machinery Production Line
630mm Polyethylene PE 1/2 Inch HDPE Pipe Making Machine Machinery Production Line
630mm Polyethylene PE 1/2 Inch HDPE Pipe Making Machine Machinery Production Line
630mm Polyethylene PE 1/2 Inch HDPE Pipe Making Machine Machinery Production Line
630mm Polyethylene PE 1/2 Inch HDPE Pipe Making Machine Machinery Production Line
630mm Polyethylene PE 1/2 Inch HDPE Pipe Making Machine Machinery Production Line

630mm Polyethylene PE 1/2 Inch HDPE Pipe Making Machine Machinery Production Line

Share on (1601324129398):


Price:$66,666.00

Quantity:

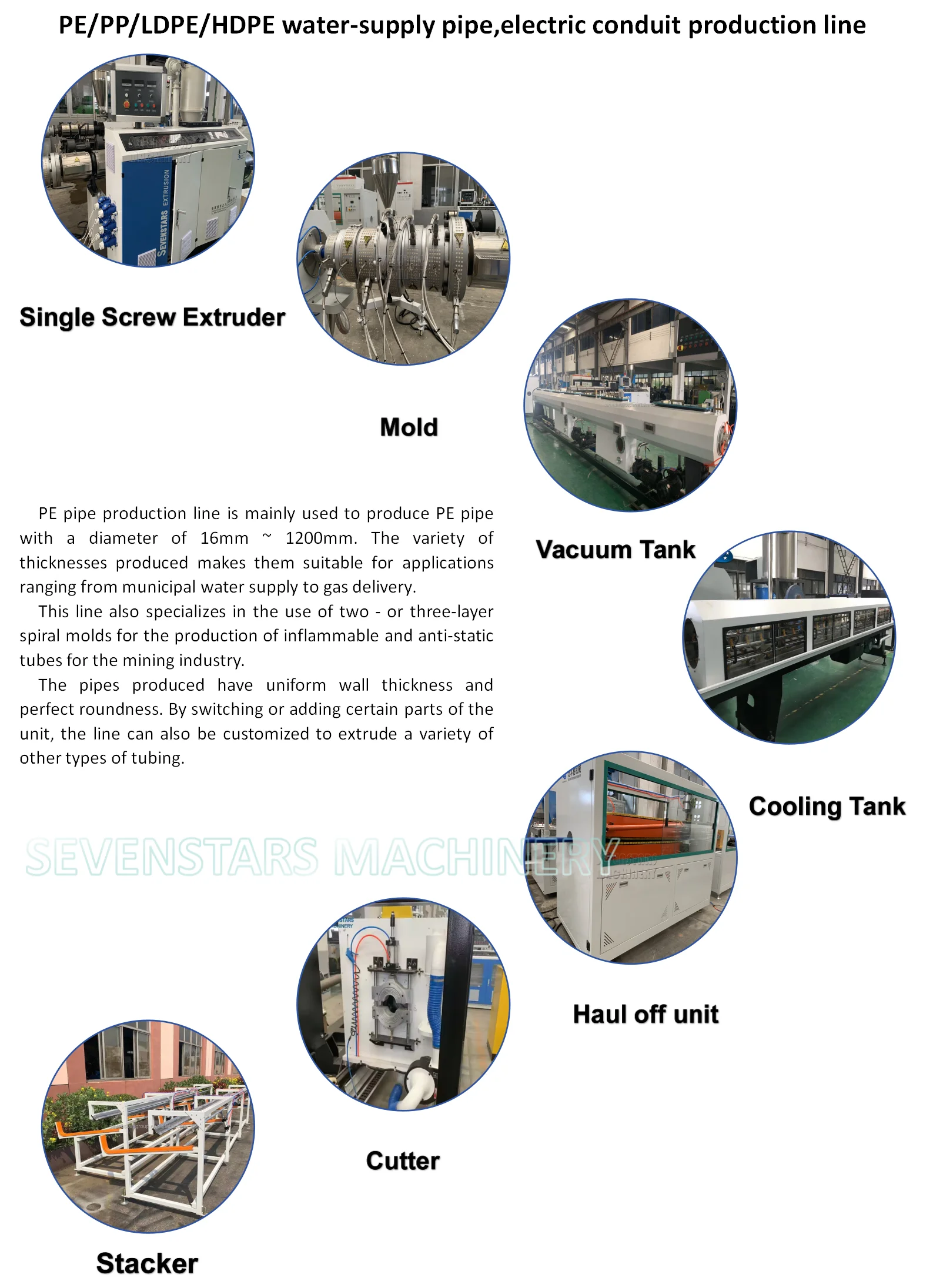

Product Overview

Description







Product Description



1. The material is non-toxic and not easy to breed bacteria
2. Excellent corrosion resistance
3. Long service life, it can be used for 50 years at rated temperature and pressure
4. Good toughness, not easy to crack

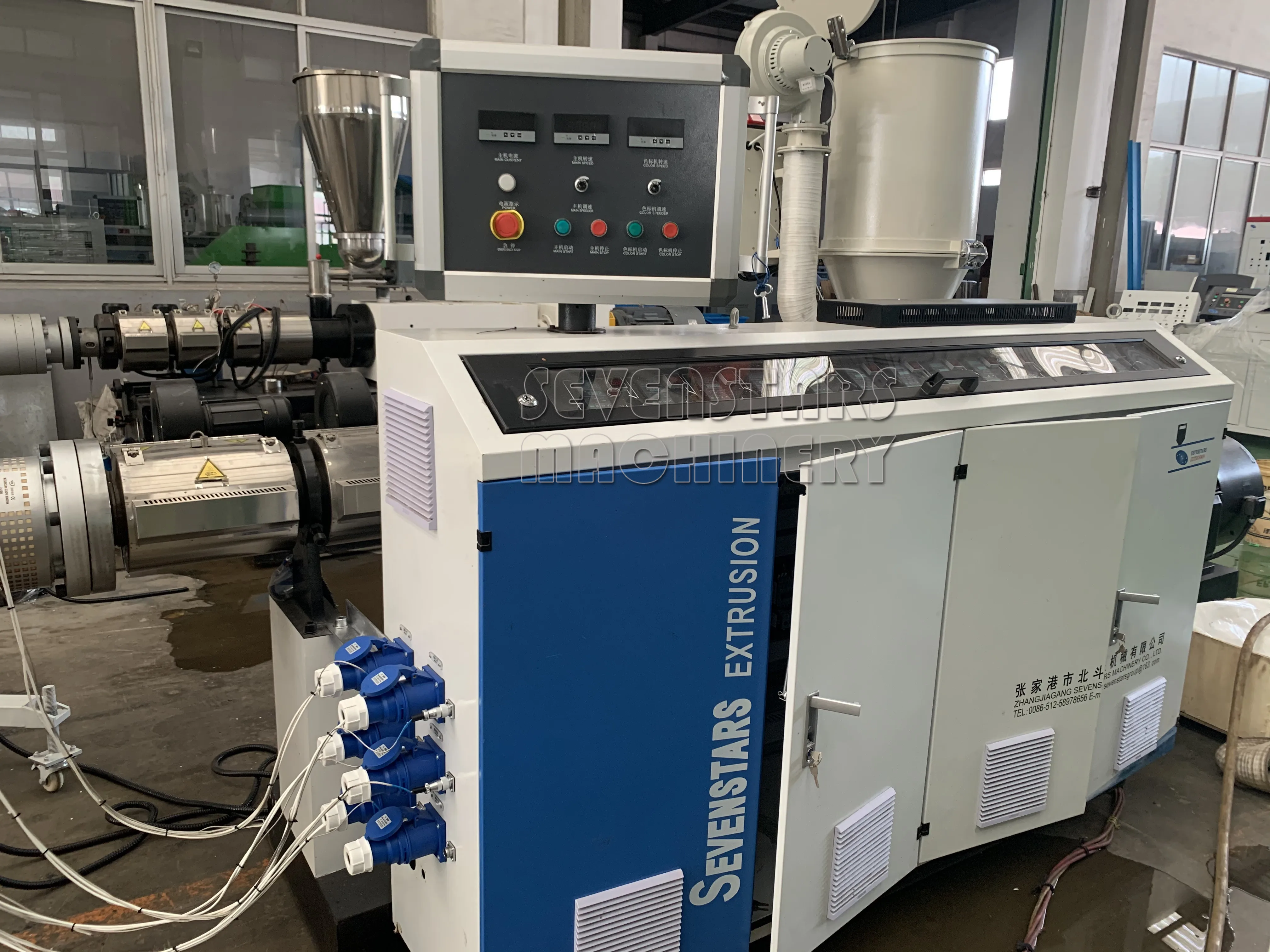

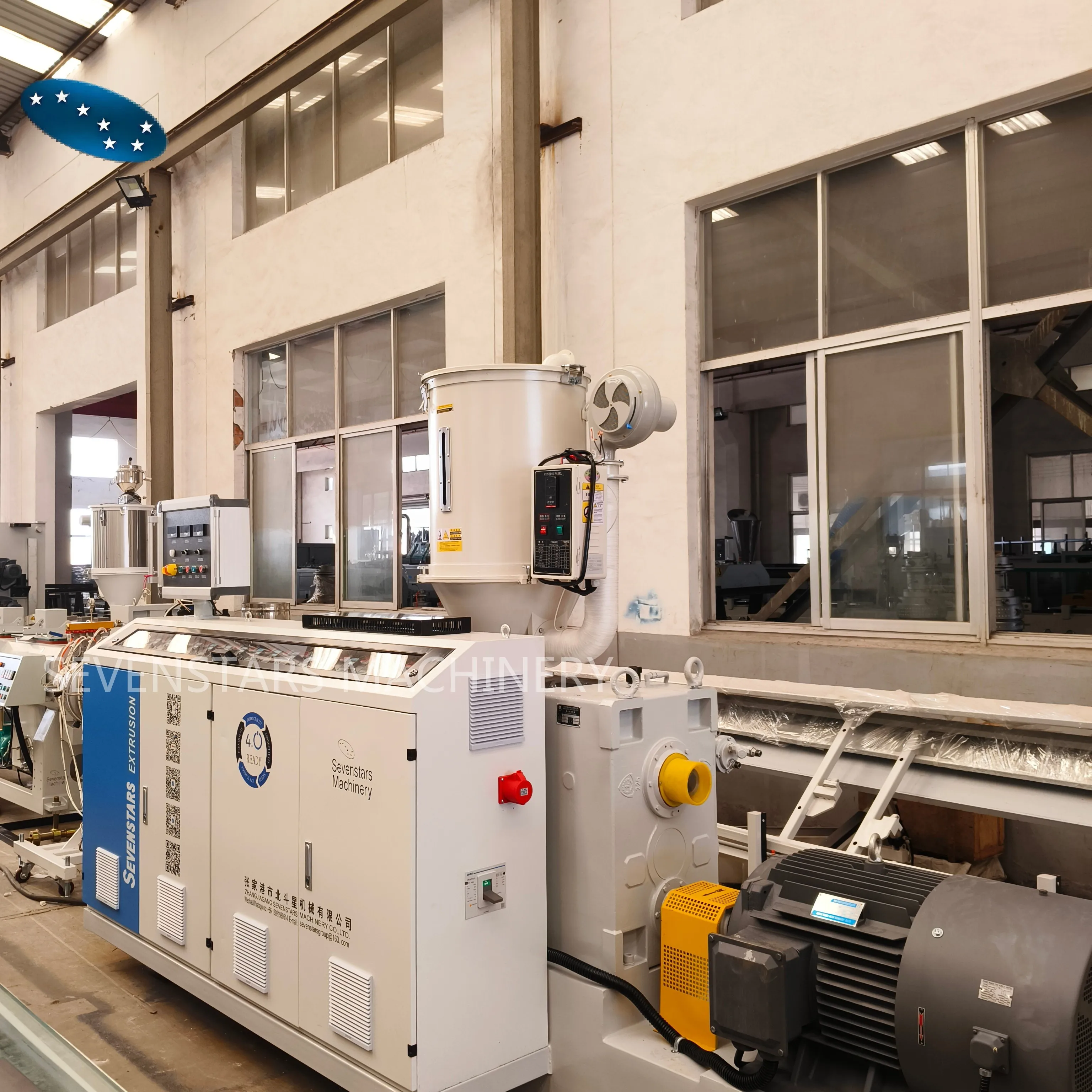

Single Screw Extruder.
1. Simens Touch Screen and PLC
2. Spiral Structure of Barrel
3. Special Design of Screw
4. Air Cooled Ceramic Heater
5. High Quality Gearbox
Based on 33:1 L/D ratio for screw design, we have developed 38:1 L/D ratio. 38:1 ratio has advantage of 100% plasticization, increase output capacity by 30%, reduce power consumption up to 30% .

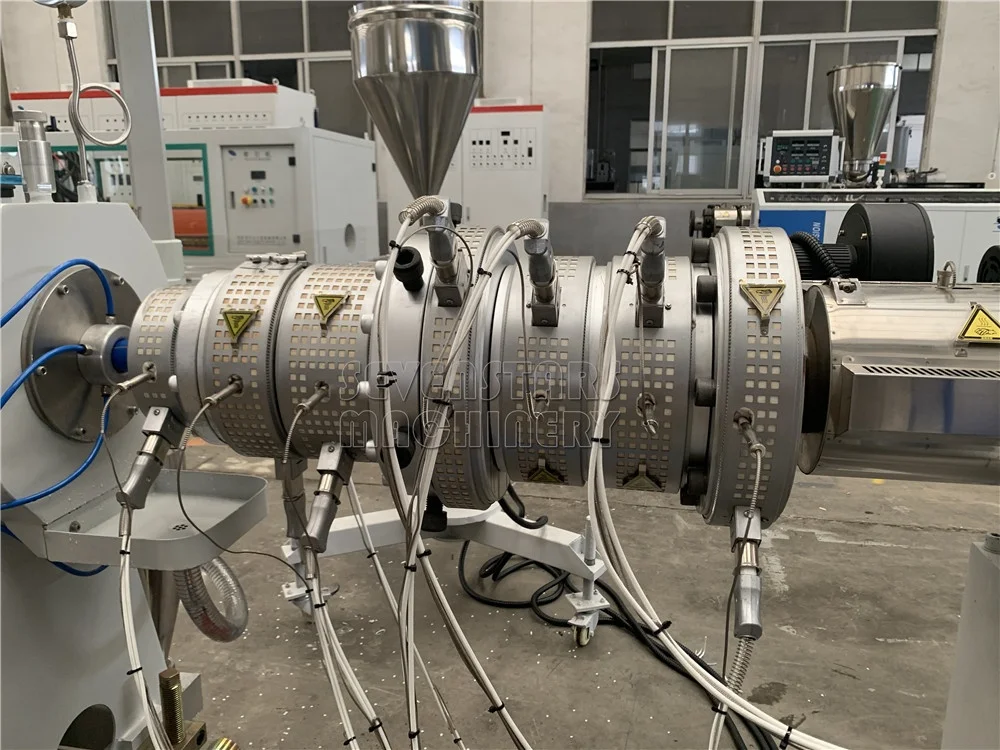

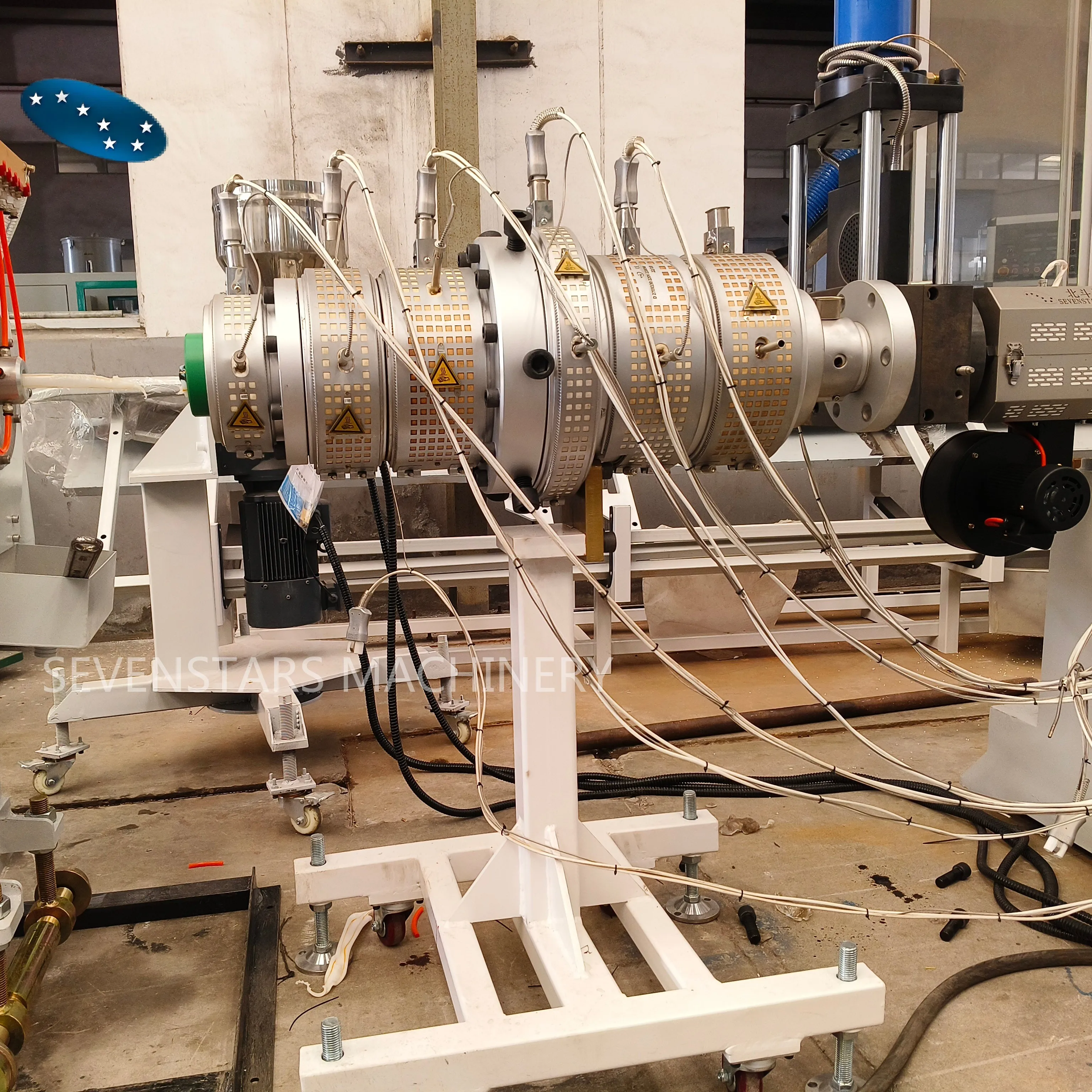

Mold
Extrusion die head adopts spiral structure, and each material flow channel is evenly placed. Each channel is heat treated and mirror-polished to ensure smooth material flow. The die head is compact and provides stable pressure with little impact on output capacity. Can produce single and multilayer tubes.

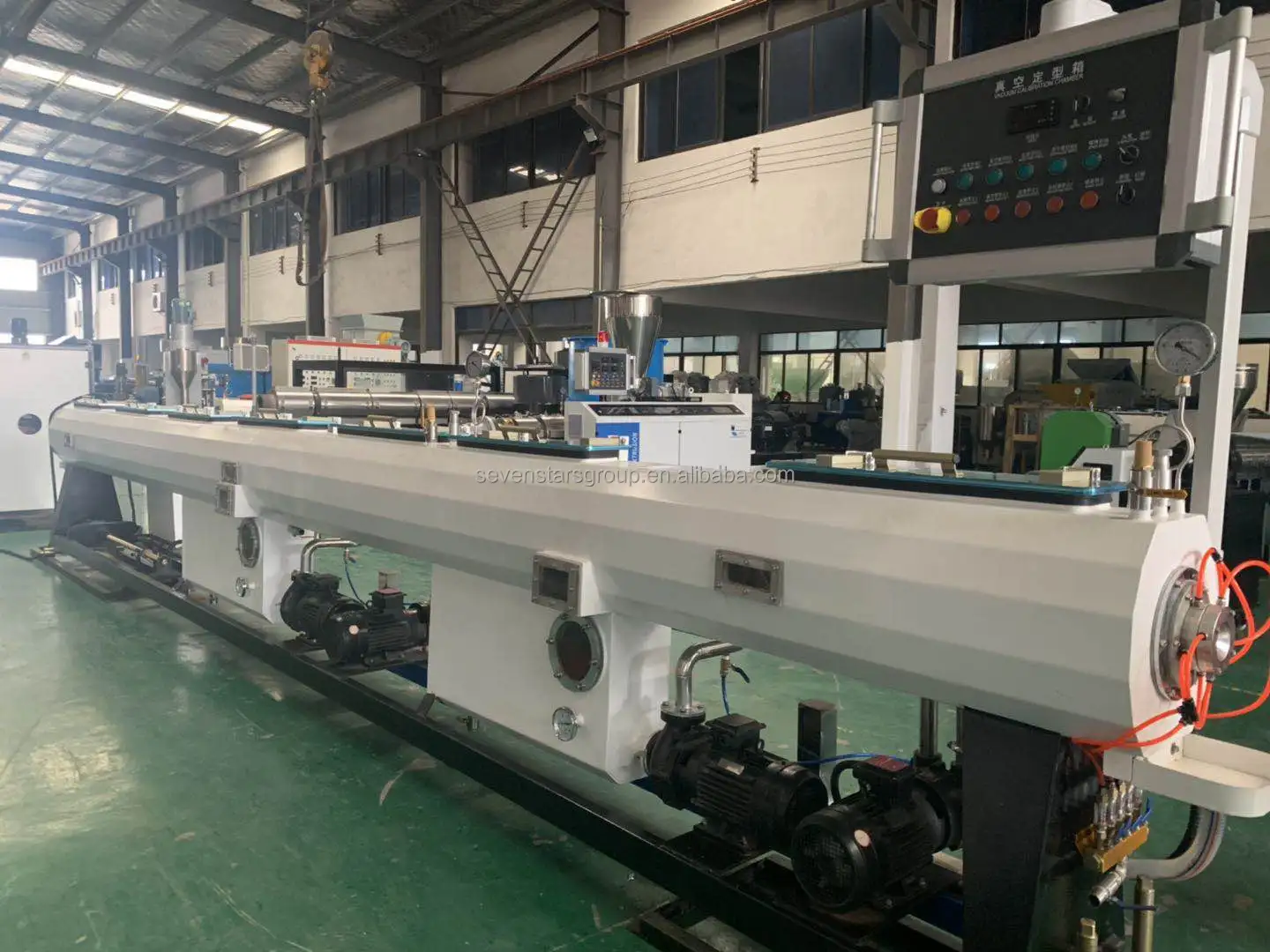

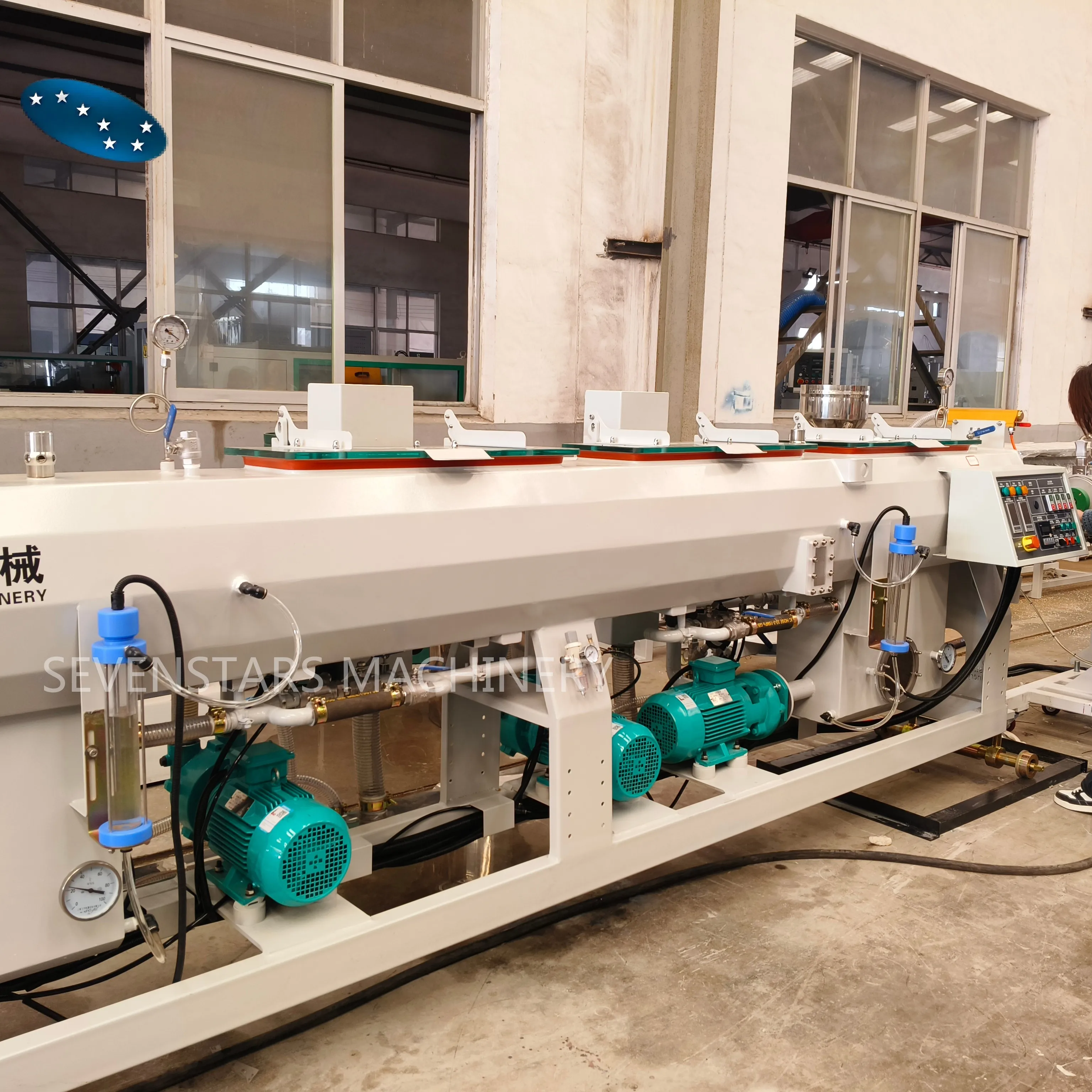

Vacuum Tank
The vacuum tank is used to shape and cool the pipe to a standard size. We use a double cavity structure. The first section is shorter to ensure very strong cooling and vacuum functions. A calibrator is installed at the front of the first section to ensure rapid tube forming and cooling.

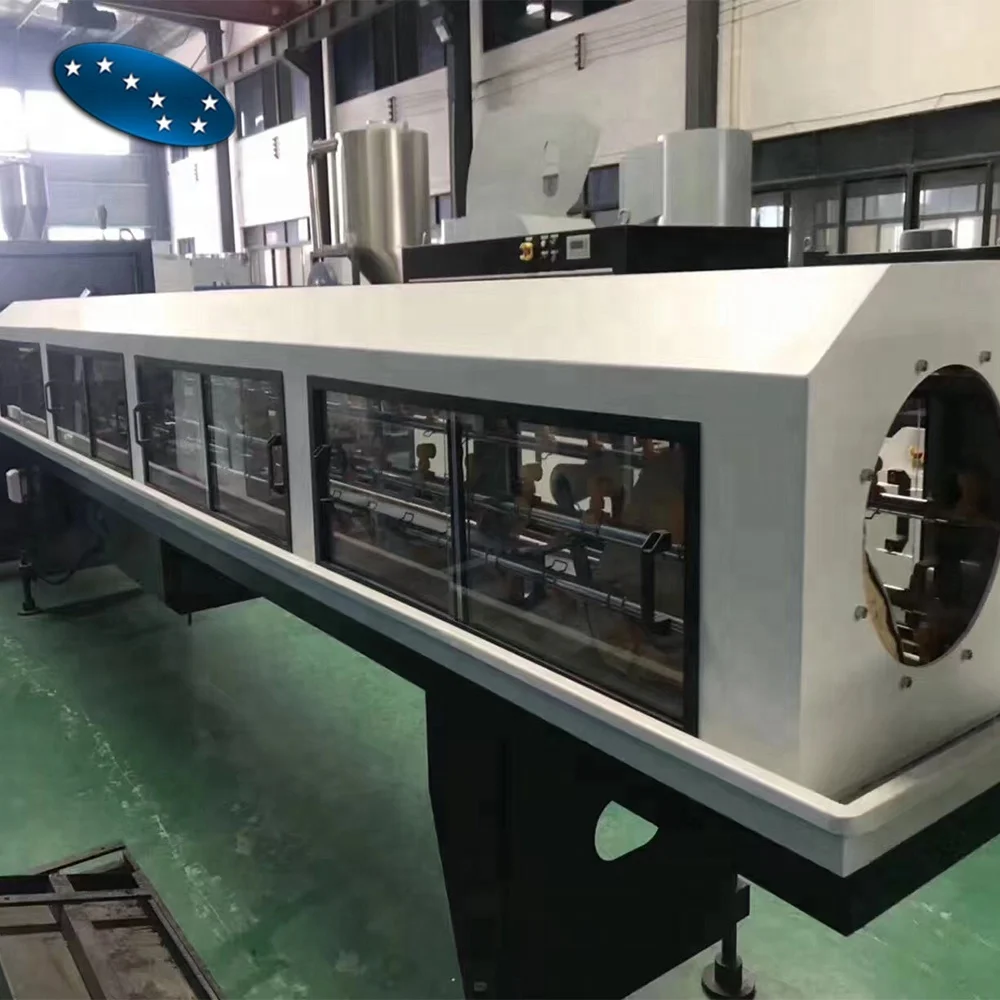

Cooling Tank
There is a water filter, and a high-quality nozzle is used to further cool the pipe, and the pipe is finally completed.

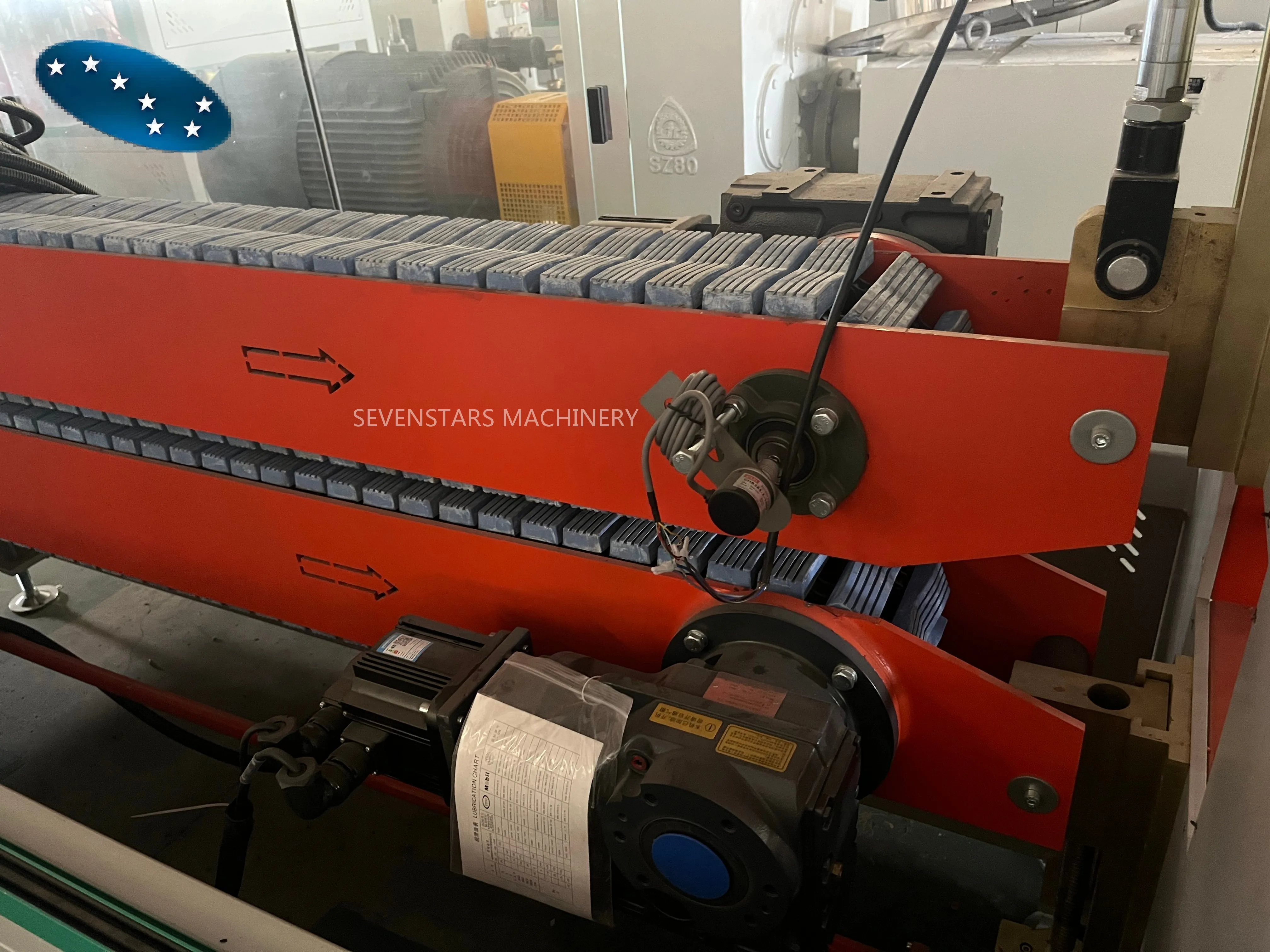

Haul off unit
The traction device provides sufficient traction to pull the pipe steadily and is equipped with a length calculation device. We will customize the drawing speed, claw number, effective drawing length according to the different pipe size and thickness to avoid deformation of the pipe during the drawing process.


Cutter
The cutting machine is controlled by Siemens PLC with traction device for precise cutting. Customers can set the length of pipe they want to cut.

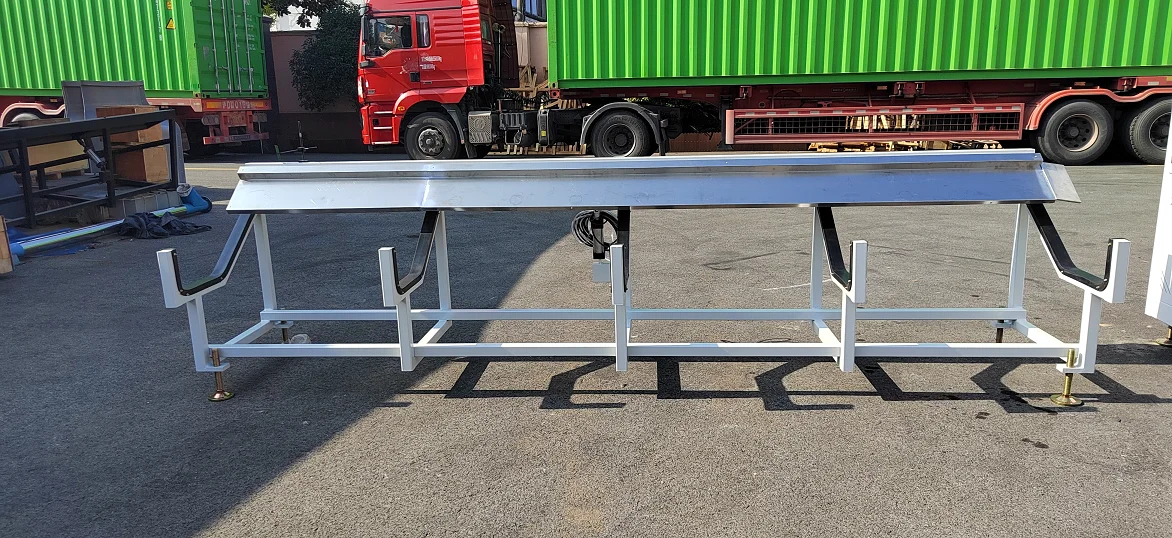

Stacker
Pipe stack, customized according to demand.


Product Paramenters


Item
Pipe diameter(mm)
Main power(kw)
Heating power(kw)
Capacity(kg/h)
SJ65/33
16-63mm
45
2.5*4
120-150
SJ65/33
20-110mm
75
4.5*4
150-200
SJ75/33
75-160mm
90
5.5*5
220-280
SJ75/33
90-250mm
132
5.5*5
250-350
SJ90/33
110-315mm
160
8*5
400-450


Company Profile




Zhangjiagang Sevenstars Machinery Co., Ltd.
We devote ourselves to the development, research and production of plastic machines and liquid food and beverage packing and filling machines.

For plastic machines, our main products include:
big-mouth PVC pipe extrusion production lines,
PE big-mouth for gas,
water supply extrusion production lines,
PET bottle recycling line
PE/PP film recycling line
PVC/WPC foam board extrusion line
PVC/WPC profile extrusion line
PP hollow sheet extrusion line
HDPE/LDPE pipe extrusion line
PPR PIPE extrusion line
plastic extruders,
high speed mixers and various plastic auxiliary machines.

Please feel free to contact us for further details. We are looking forward to forming a profitable business relationship with your company in the near future. We welcome you to visit our company at any time.




Packaging & Delivery




FAQ


1. who are we?
We are based in Jiangsu, China, start from 2006,sell to South America(15.00%),Africa(15.00%),Mid East(12.00%),South Asia(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),Southeast Asia(10.00%),North America(5.00%),Eastern Europe(5.00%),Western Europe(4.00%),Central America(2.00%),Eastern Asia(1.00%),Oceania(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Plastic Recycling Line, Plastic Pelletizing Line, Plastic Board Production Line; Plastic Profile Extrusion Line; Plastic Pipe Extrusion Production Line

4. why should you buy from us not from other suppliers?
We have factory, we can control both the manufacture of the machine materials and its fabrication into the finished product to ensure the dependability of our products. We have four modern standard workshops, we have our own skilled worker team, sales team

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Escrow;
Language Spoken:English,Chinese
