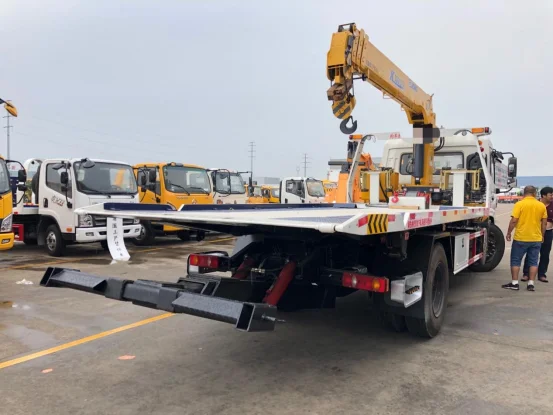

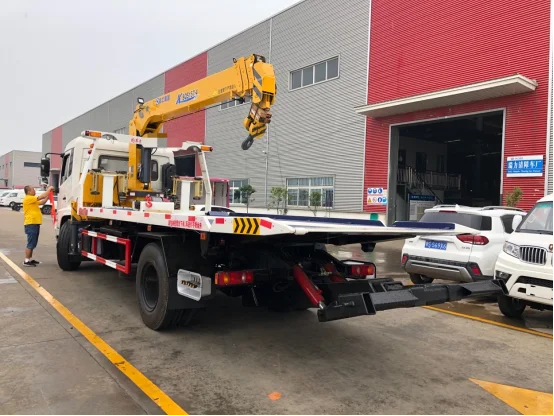

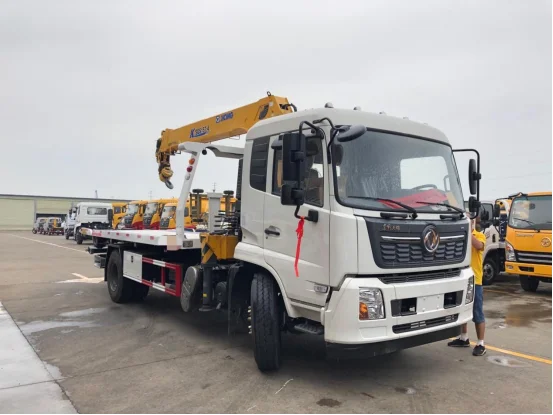

The original factory sold six Dongfeng sky brocade with hanging yellow plate wrecker road recovery car

Vehicle name

National six Dongfeng Sky Brocade with Yellow Tag Wrecker (5000)

Vehicle model:

CLW5182TQZD6,

Chassis model

DFH1180EX8

Total mass

18000kg.

Quality

 13300 kg.

Wheelbase

5000mm.

Overall dimensions

9650×2550×3700mm.

Configuration

Tianjin VR row half cab, Cummins 230hp (displacement: 6200ml, power: 169kw), Fast 8 speed transmission, 4.5T front axle, 9t rear
axle, 10.00R20 steel wire tire, with direction assist, air brake, ABS, electric doors and Windows, central control lock, travel
recorder, original air conditioning, main driver shock absorber seat, the rest according to the manufacturer's standard. Crane
configuration: Optional 6.3-8 tons crane (with crane wrecker need to include girder)

Top configuration

8 tons of top, double beam, 8 tons of lifting (14mm thick, 30 meters long), plate length 6.1 meters (including 1.2 meters of
hydraulic flip plate at the tail), width 2.55 meters, using 6mm thick pattern plate, 8 tons of split three-section rear bracket,
bilateral linkage operation, imported multi-way valve, a set of auxiliary trolley, a pair of L-type tire holder, four binding
belts, A pair of LED working lights, a toolbox, a set of auxiliary gas pipe, a set of drag fork and drag fork seat, a set of
yellow electronic alarm light, a hand washing box, the rest according to standard.
