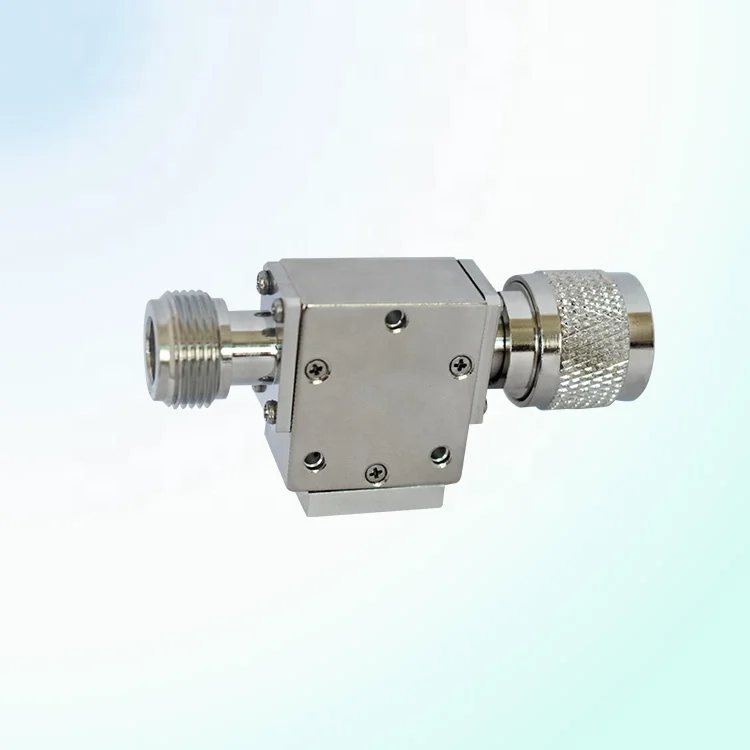

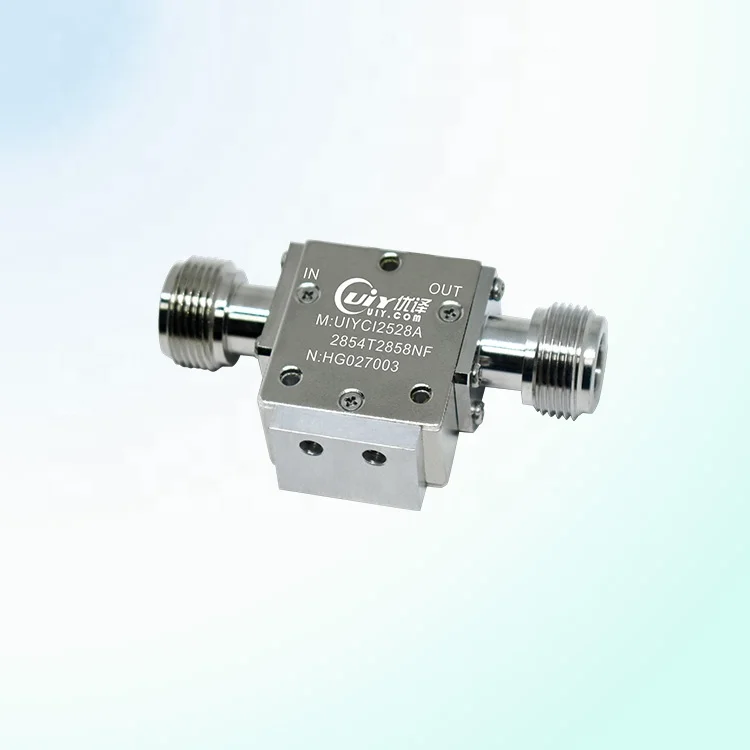

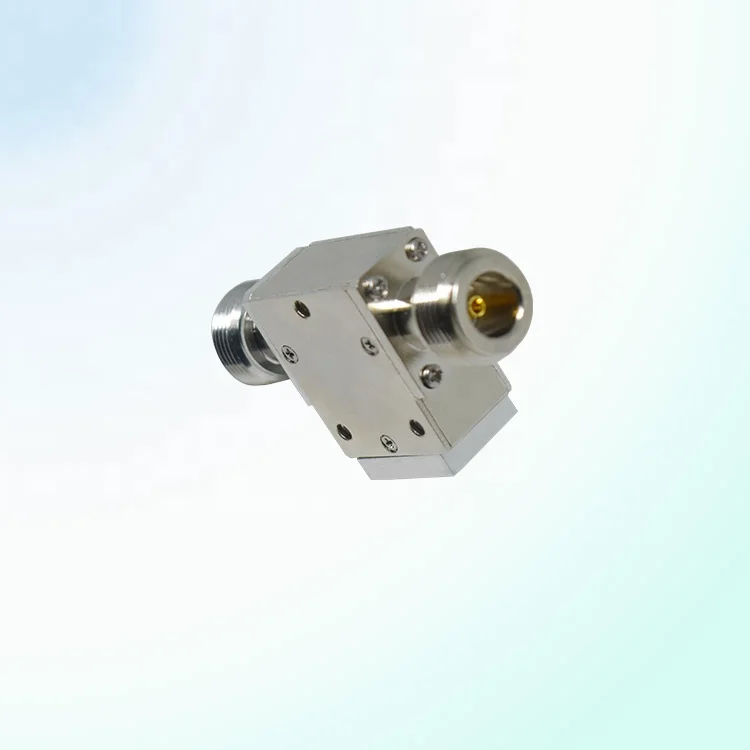

Customized Uhf 2300~3000mhz 100w High Isolation Rf Coaxial Isolator With sma m/f Connector For In building Solutions
- Category: >>>
- Supplier: UIY Inc.UIY Inc.
Share on (1601324281182):
Product Overview
Description
Product Description
Product Name | Customized Uhf 2300~3000mhz 100w High Isolation Rf Coaxial Isolator With sma-m/f Connector For In-building Solutions |
Material | Metal |
Function | Signal Transmission |
Package | Giftbox |
RF Isolator is a two port device that protects RF components in a system from excessive signal reflection.
It is a non-reciprocal device that ensures that all the power is transmitted from port 1 to port 2, while isolating absorbing/isolating any power incident at port 2.
An isolator is often placed at the in front of sensitive component sin the Rx/Tx chain to avoid unwanted signals from damaging sensitive components.
An isolator is often placed at the in front of sensitive component sin the Rx/Tx chain to avoid unwanted signals from damaging sensitive components.

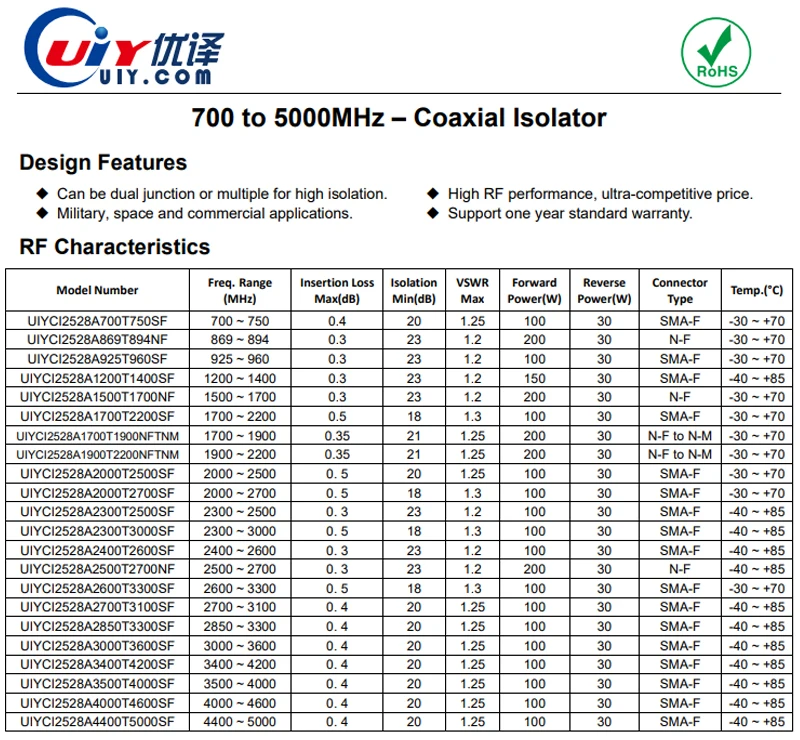

RF Characteristics
Product Name | UIY 700~5000MHz Coaxial Isolator |
Model No. | UIYCI2528A |
Frequency Range | 700 ~ 5000MHz |
Insertion Loss Max | 0.3dB |
Isolation Min | 23dB |
VSWR Max | 1.15 |
Forward Power | 200W |
Reverse Power | 30W |
Connector Type | SMA, N |
Temp.(°C) | -40 ~ +85°C |

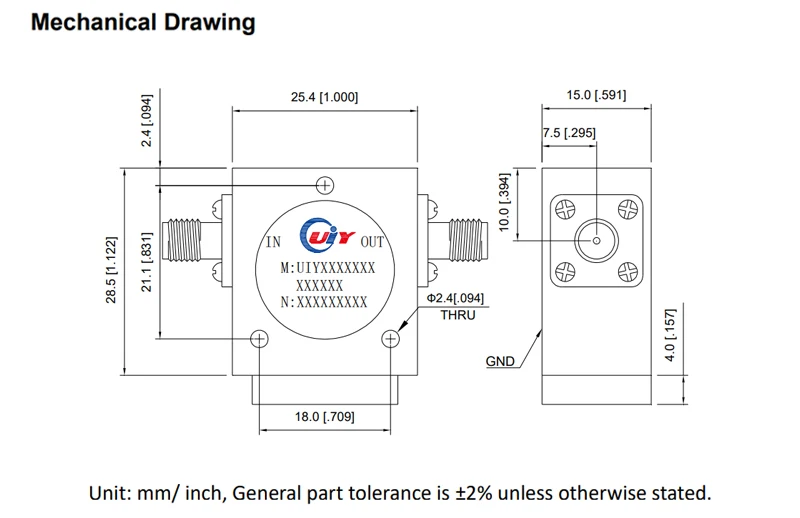

Dimension LxWxH | 25.4 x 28.5 x 15mm |
Warranty | one year |
Certificates | RoHS, REACH, ISO9001, ISO14001 |
Applications:
telecommunicationsvideo and broadcast
receivers, transmitters
satellite communications
radar system
aerospace and space
municipal
telemetry
automotive
medical and pharmaceutical
R&D labs
transportation
oil & gasmining, industrial
receivers, transmitters
satellite communications
radar system
aerospace and space
municipal
telemetry
automotive
medical and pharmaceutical
R&D labs
transportation
oil & gasmining, industrial
*Operating frequency from 10MHz to 40GHz
*Power up to 3000W
*Connector type optional SMA, N, K, BNC, 2.92mm, 7/16 DIN and 4.3-10 mini DIN with female, jack, male, male to female and plug genders
*Connector type optional SMA, N, K, BNC, 2.92mm, 7/16 DIN and 4.3-10 mini DIN with female, jack, male, male to female and plug genders
Related Products

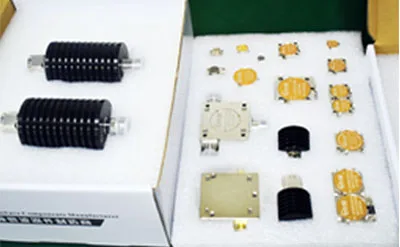

Packing&Shipping
1-Packaging Details: standard export carton
2-Shipping Method: DHL, FedEx, TNT, UPS
3-Delivery Time: 7-10 days after payment.
4-Payment: T/T, PayPal, Credit Card
5-Others: Pls feel free to ask me, we will reply you soon
2-Shipping Method: DHL, FedEx, TNT, UPS
3-Delivery Time: 7-10 days after payment.
4-Payment: T/T, PayPal, Credit Card
5-Others: Pls feel free to ask me, we will reply you soon

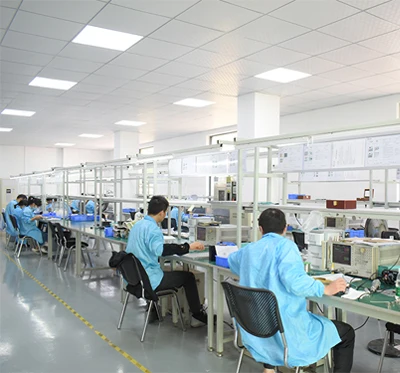

Company Introduction
Since 2003, UIY Inc. has become a critical supplier and partner to major companies serving the Aerospace, Radar, Defense, Medical, Communications and Specialty Test industries.

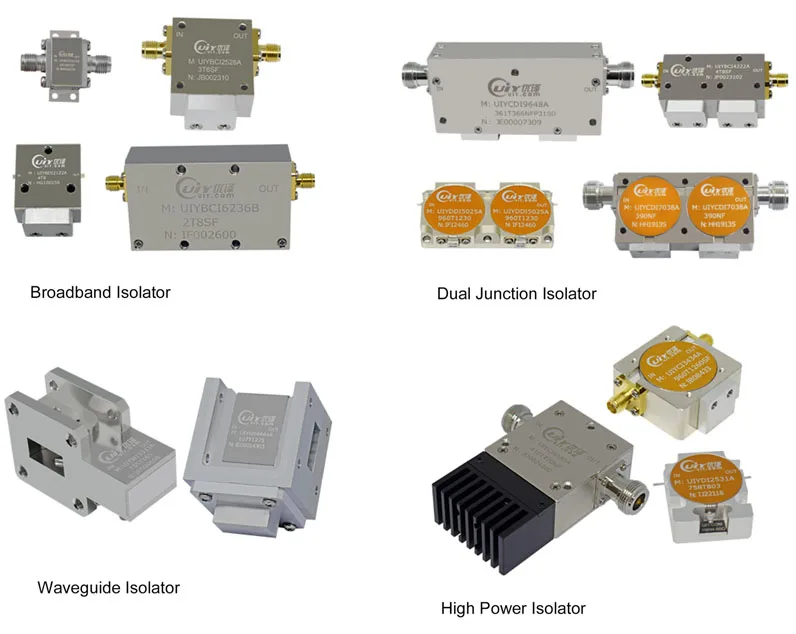

UIY's product offerings include:
RF Isolator, RF Circulator
Coaxial Termination, Coaxial Attenuator
RF Filters, Duplexer, Triplexer
Power Divider/Splitter, RF Combiner/Hybrid Coupler
Directional Coupler
TX RX Combiner/Splitter/Multi coupler
Waveguide to Coaxial Adapter, etc.
We offer cost-effective customized solutions in a wide range of RF and Microwave Components and Subsystems.
Advantages:
we offer - ROHS Compliant
we offer - HFSS Simulation
we guarantee - One Year warranty
we guarantee - Fast Delivery
we support - Contract Manufacturing
UIY's product offerings include:
RF Isolator, RF Circulator
Coaxial Termination, Coaxial Attenuator
RF Filters, Duplexer, Triplexer
Power Divider/Splitter, RF Combiner/Hybrid Coupler
Directional Coupler
TX RX Combiner/Splitter/Multi coupler
Waveguide to Coaxial Adapter, etc.
We offer cost-effective customized solutions in a wide range of RF and Microwave Components and Subsystems.
Advantages:
we offer - ROHS Compliant
we offer - HFSS Simulation
we guarantee - One Year warranty
we guarantee - Fast Delivery
we support - Contract Manufacturing
FAQ
Q. Are you a factory or trading company?
A: We are a factory and we have been in business for over 20 years as a manufacturer of microwave components. We provide competitive price and professional service.
Q. Do you have any certificates?
A: Yes, we have ISO, RoHS and REACH certificates.
Q. What about lead time for sample and production?
A: It's about 2 weeks for new design sample and 1~4 weeks for production. It depends on the order quantity.
A: We are a factory and we have been in business for over 20 years as a manufacturer of microwave components. We provide competitive price and professional service.
Q. Do you have any certificates?
A: Yes, we have ISO, RoHS and REACH certificates.
Q. What about lead time for sample and production?
A: It's about 2 weeks for new design sample and 1~4 weeks for production. It depends on the order quantity.
Q. what is the quality of your products?
A: We are ISO9001-2015 standard factory, and run strictly by the quality control management system.
Q. Why should I choose you?
A: Our products are featured by excellent performances, compact size, competitive price, reliable quality.Our production is in full compliance with iso 9001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system. We are committed to providing our customers with high-quality products for a long time, and the one-time qualified rate of FP is as high as 98 %.
A: We are ISO9001-2015 standard factory, and run strictly by the quality control management system.
Q. Why should I choose you?
A: Our products are featured by excellent performances, compact size, competitive price, reliable quality.Our production is in full compliance with iso 9001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system. We are committed to providing our customers with high-quality products for a long time, and the one-time qualified rate of FP is as high as 98 %.
Q. How long is the warranty period?
A: 1 year, with unconditional technical support, repairs, or replacement. Responses within 1 hour during business hours, 24 hours otherwise.
Q. Do you offer OEM services?
A: UIY operates as an independent brand, and as such, all products must feature the UIY logo,but we offer customization to suit your needs.
Our Services & Strength
◆ Can be dual junction even three for high isolation.
◆ High RF performance, ultra-competitive price.
◆ Mil, space and commercial applications.
◆ Custom design available upon request.
◆ Guaranteed for one year standard.
A: 1 year, with unconditional technical support, repairs, or replacement. Responses within 1 hour during business hours, 24 hours otherwise.
Q. Do you offer OEM services?
A: UIY operates as an independent brand, and as such, all products must feature the UIY logo,but we offer customization to suit your needs.
Our Services & Strength
◆ Can be dual junction even three for high isolation.
◆ High RF performance, ultra-competitive price.
◆ Mil, space and commercial applications.
◆ Custom design available upon request.
◆ Guaranteed for one year standard.
