ZUPPER RC 3050 single acting large hydraulic cylinder Ton Single Acting Hydraulic Jack solid Steel Cylinder 5T 10T to 200T
- Category: >>>
- Supplier: Chengdu Jianxi Import and Export Co. LTDChengdu LTD
Share on (1601324302267):
Product Overview
Description
Specification
1. Mechanical crimping tool for connecting fitting with pipe
2. Crimp XPAP,PEX with fittings up to dia20mm
Item No | JT-1620 |
Length | APPROX.467mm |
Weight | 1.7kg |
Package | plastic box |
Crimping die for U type | dia 16mm,20mm |
Fetures

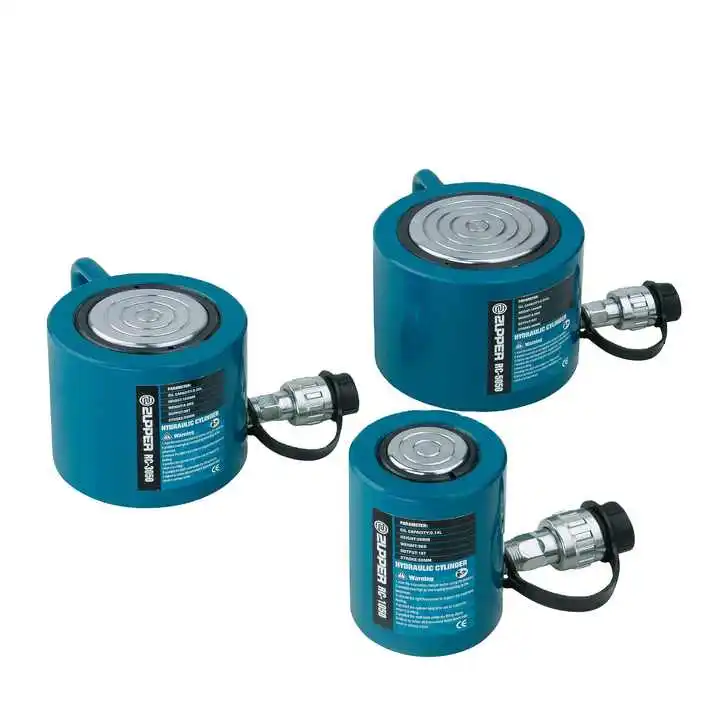

RC-3050 single acting hydraulic steel cylinder
Output: 30T
Stroke: 50mm
It has the characteristic of low collapsed height, if the requirement of stroke need to be higher than RMC series, RC series is suit for this case.
Output: 30T
Stroke: 50mm
It has the characteristic of low collapsed height, if the requirement of stroke need to be higher than RMC series, RC series is suit for this case.

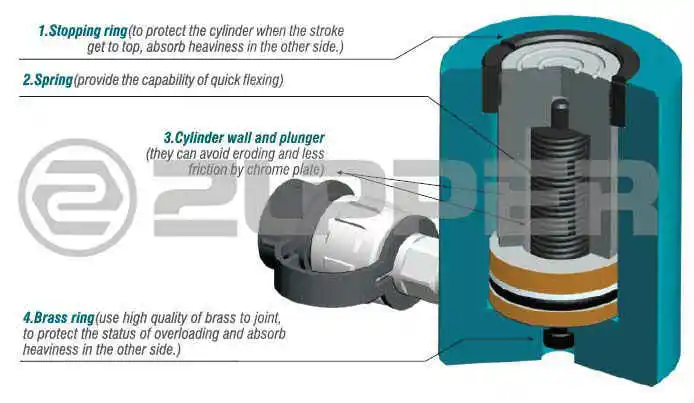

The surface of principle axis is finished with chrome plate to protect the using of long-eity of the product Plunger has the function of retracting automatically WRC rotary head, can work in bevel.

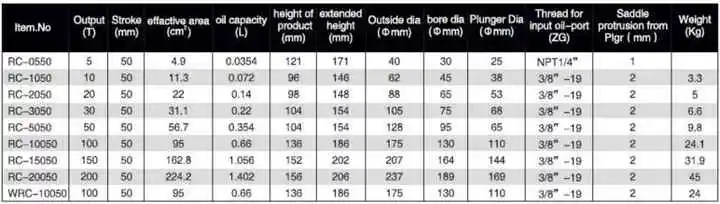

Item No | Output(T) | Stroke(mm) | Oil capacity(L) | Height of product(mm) | Weight(kg) |
RC-0550 | 5 | 50 | 0.0354 | 121 | |
RC-1050 | 10 | 50 | 0.072 | 96 | 3.3 |
RC-2050 | 20 | 50 | 0.14 | 98 | 5 |
RC-3050 | 30 | 50 | 0.22 | 104 | 6.6 |
RC-5050 | 50 | 50 | 0.354 | 104 | 9.8 |
RC-10050 | 100 | 50 | 0.66 | 136 | 24.1 |
RC-15050 | 150 | 50 | 1.056 | 152 | 31.9 |
RC-20050 | 200 | 50 | 1.402 | 156 | 45 |
RC-10050 | 100 | 50 | 0.66 | 136 | 24 |
