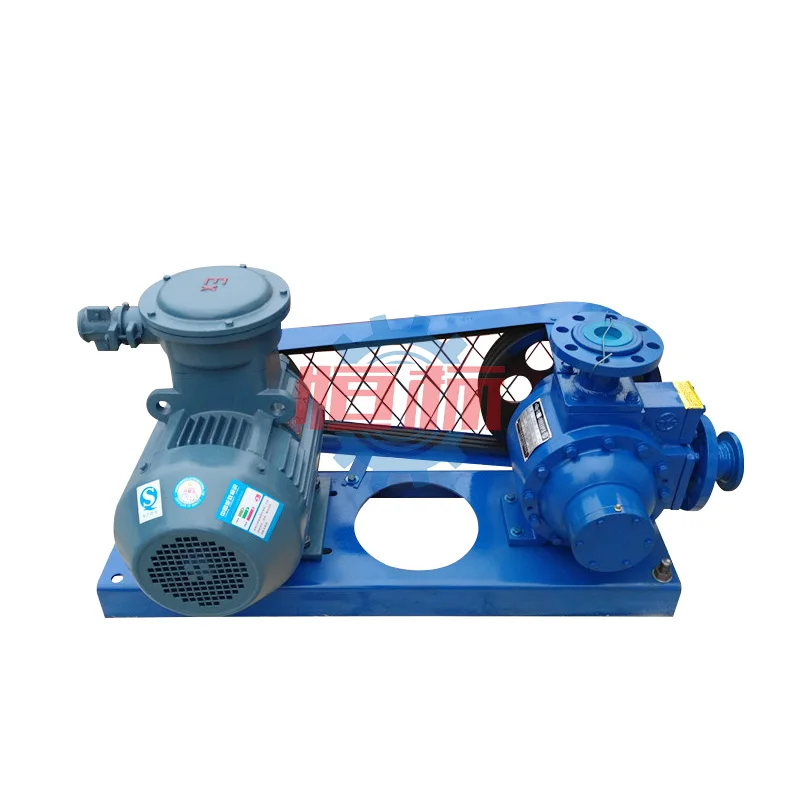

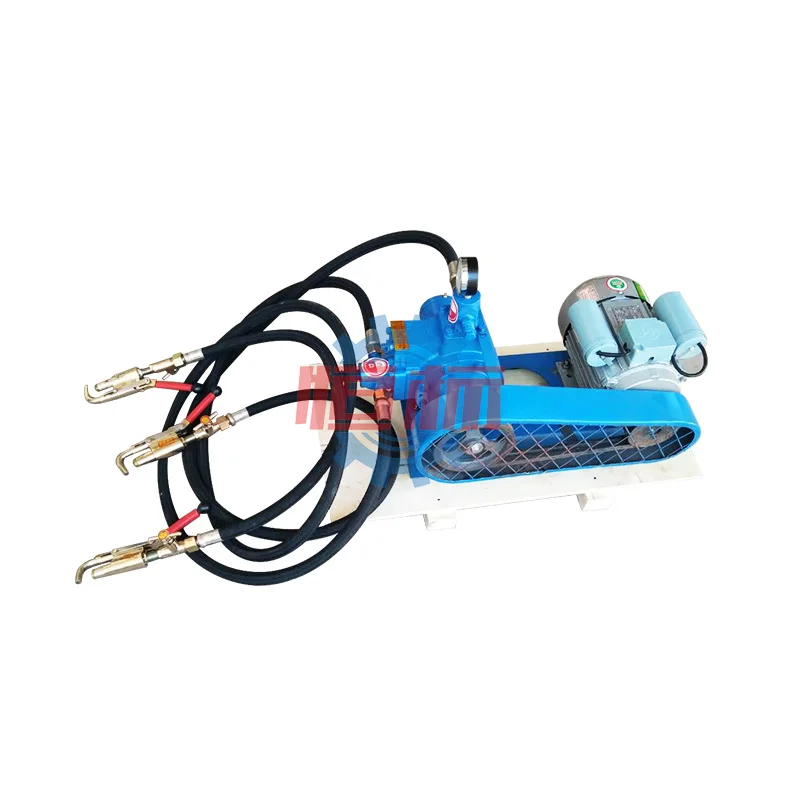

Factory Price Mini Electric Manual Lpg Vane Transfer Filling Gas Pump From India
Factory Price Mini Electric Manual Lpg Vane Transfer Filling Gas Pump From India
Factory Price Mini Electric Manual Lpg Vane Transfer Filling Gas Pump From India
Factory Price Mini Electric Manual Lpg Vane Transfer Filling Gas Pump From India
Factory Price Mini Electric Manual Lpg Vane Transfer Filling Gas Pump From India
Factory Price Mini Electric Manual Lpg Vane Transfer Filling Gas Pump From India

Factory Price Mini Electric Manual Lpg Vane Transfer Filling Gas Pump From India

Share on (1601324331147):


Price:$400.00-500.00

Quantity:


Product Overview

Description



Product Description


YQB series LPG pump is mainly used for transportation of liquefied petroleum gas, propylene, ammonia, but also for irrigation and transport all kinds of similar nature or volatile liquids and petroleum products. The pump is a positive displacement vane pump,advanced structure, the surface of a composite curve consisting of a stator, mechanical seals at both ends, with respective end surfaces are fixed using the "O"-ring, with the rotational movement of the member are made of metal should be relatively non-metallic with the use of safe and reliable, a machine function.

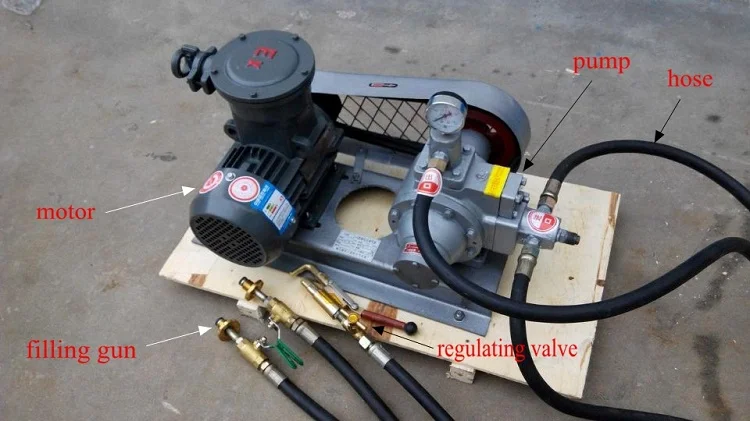

Details Images


Working principle
Liquefaction type of positive displacement pump, liquid ammonia pump vane pump, working on blade centrifugal slide, flow associated with the rotation speed of shaft, the stator surface using the original domestic made from composite curve, stator and rotor, baffle, leaf of ten sealed cavity, because the stator surface is composite curve, as the rotor turns into the oral cavity volume increases gradually, and formed the negative pressure suction, thus the oil suction, after the rotor rotation Angle, volume section decreases, thus the oil hydraulic, between oil absorption cavity and cavity pressure oil has an oil separates oil absorption and pressure oil cavity.The blade is closely attached to the inner surface of stator by centrifugal force and two-baffle structure, which makes the pump work normally under rated condition.






Product Paramenters

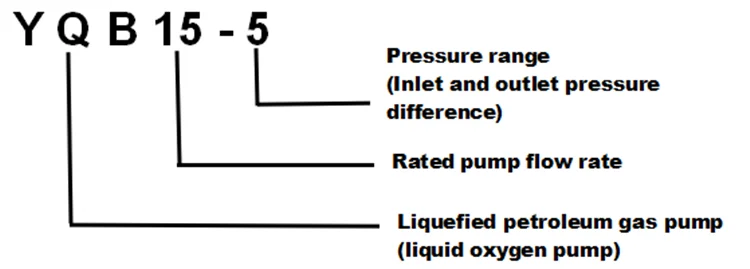

Model
Speed n
Flow Q
Pressure difference
ΔP
Working pressure
P
Power
N
Inlet size
Outlet size
Temperature
℃
YQB2-5
600r.P.m
2 m3/h
1.8MPa





0.5MPa
2.0MPa
1.5KW
1
1
-40 ~40
YQB5-5
780r.P.m
5 m3/h
2.0MPa
2.2KW
1
1
-40 ~40
YQB10-5
600r.P.m
10m3/h
0.5MPa
1.8MPa
5.5KW
2
2
-40 ~40
YQB15-5
780r.P.m
15m3/h
1.8MPa
5.5KW
2
2
-40 ~40
YQB25-5
600r.P.m
25m3/h
0.5MPa
1.8MPa
11KW
3
3
-40 ~40
YQB35-5
780r.P.m
35m3/h
1.8MPa
11KW
3
3
-40 ~40
YQB50-5
780r.P.m
50 m3/h
0.5MPa
1.8MPa
15KW
4
4
-40 ~40
YQB80-5
780r.P.m
80 m3/h
0.5MPa
1.8MPa
18KW
4
4
-40 ~40


Packaging&Shipping




Comanpy information










FAQ


1. Who are we?
We are based in Hebei, China, start from 2010,sell to Mid East(20.00%),Southeast Asia(15.00%),Western Europe(10.00%),Central America(10.00%),Eastern Europe(10.00%),South Asia(5.00%),North America(5.00%),South America(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Africa(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Lobe Pump/Gear Pump/Screw Pump/Centrifugal Pump/High Viscosity Liquid Rotor Pump

4. Why should you buy from us not from other suppliers?
Hebei Shenghui Pump Co., Ltd is a professional pump manufacturing base with research,developing,manufacturing and operating enterprise. And it has rich manufacturing experience and technology.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean, Hindi,Italian
