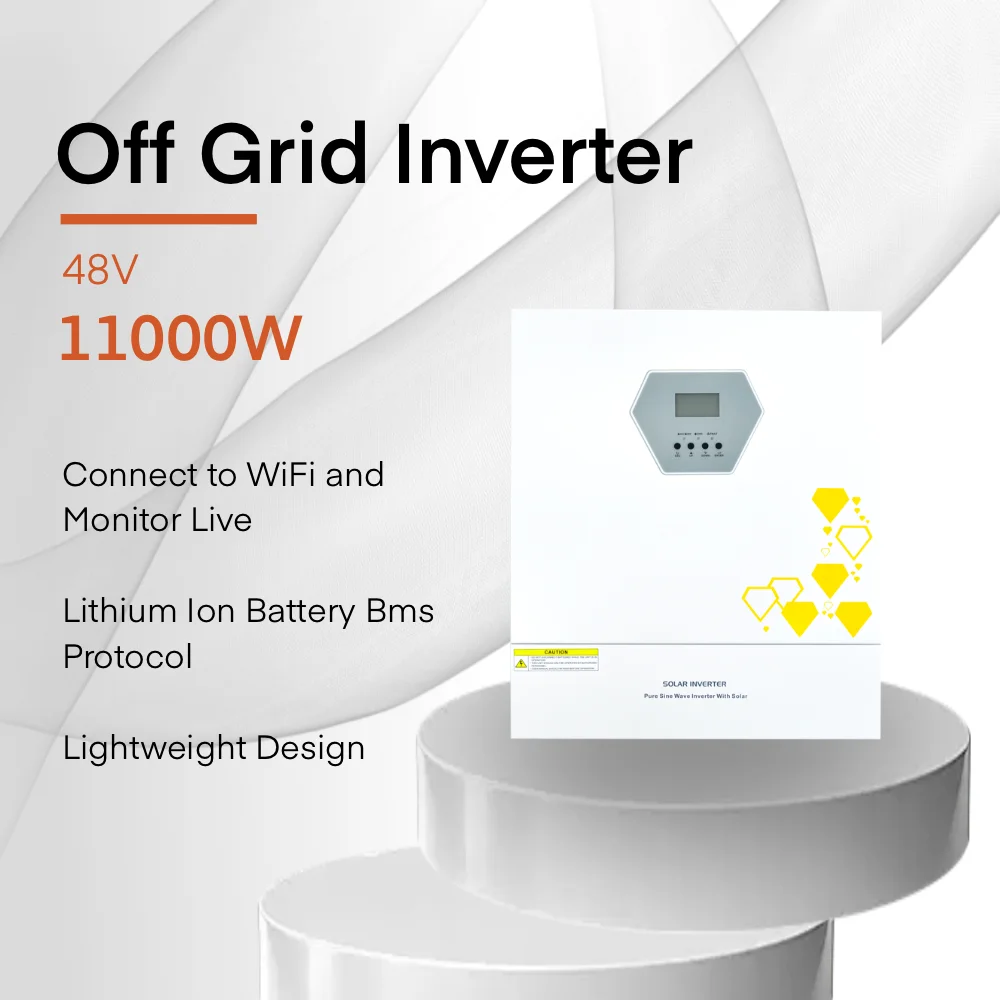

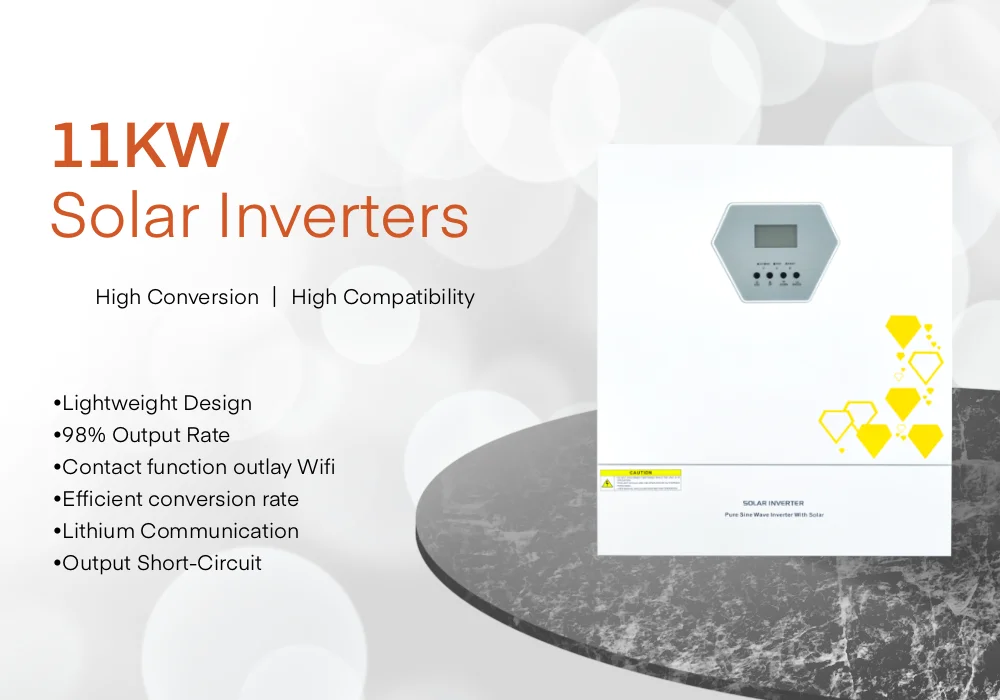

10000w 10kw single phase inverter 48v mppt 10 kw 12kva off grid solar inverter for solar energy system
- Category: >>>
- Supplier: Hefei Energynice Power Co. Ltd.Hefei Ltd.
Share on (1601324333423):
Product Overview
Description
Product Description
Specification
Model | GD11048MH | GA11048JMH | |
Nominal Voltage | 220/230/240VAC | ||
Voltage Range | 90-280VAC3V(Inverter Mode) 170-280VAC3V(UPSMode) | ||
Frequency | 50-60Hz Auto sensing | ||
Rated Output Power | 11000W | 11000W | |
Output Voltage(Ac) | 220/230/240VAC±5% | ||
Output Frequency | 50/60Hz±0.1% | ||
Waveform | Pure sine wave | ||
Transfer time(AC to DC) | 10ms for Computer Equipment, 20ms for Household Equipment | ||
Peak Power | 22000VA | 22000VA | |
Overload Capacity(Battery Mode) | 21s@105%~150%Load； 11s@150%~200%Load； 400ms@>200%Load | ||
Peak Efficiency(Battery Model) | 98% | ||
Norminal Voltage | 48VDC | ||
constant charging Voltage | 56.4VDC | ||
Float Charging Voltage | 54VDC | ||
Pv Charging Way | MPPT | ||
Max PV Input Power | 2*5500W | 2*5500W | |
MPPT Controller Voltage | 90-500VDC | ||
MAX PV Input Voltage | 500VDC | 500VDC | |
MAX Pv Charge Current | 150V | 150A | |
MAX AC Charge Current | 60A | 60A | |
MAX Charge Current | 150A | 150A | |

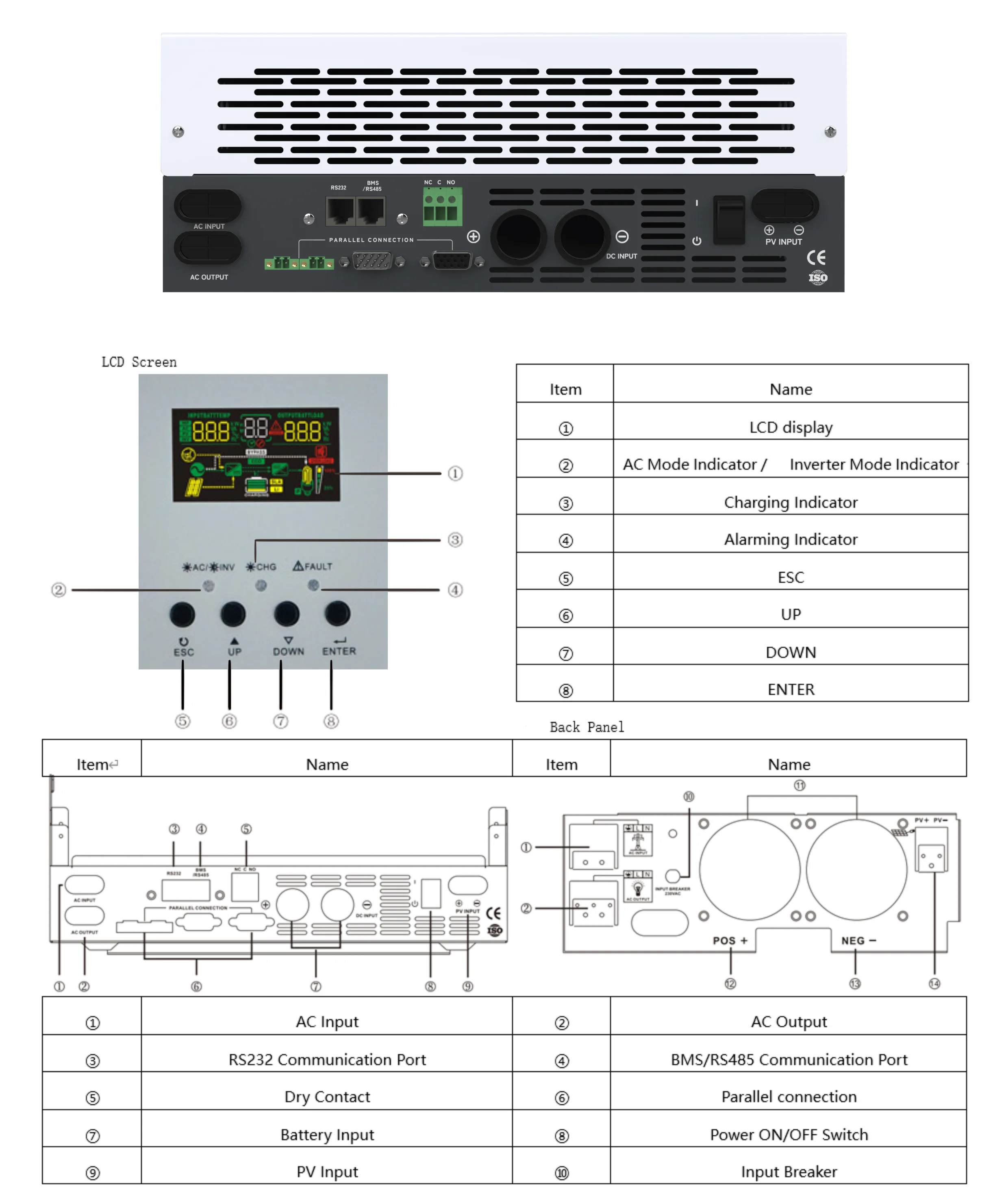

LCD Display | AC input Voltage,AC input frequency,PV Voltage,PV Current,Output Voltage. Output Frequency, Battery Voltage,Load Current,etc. | ||
RS232 | 5PIN/Pitch2.0mm | ||
Expansion Slot Communication Interface | 2x5PIN/Pitch2.54mm，Lithium battery BMS communication card、WIFl,etc | ||

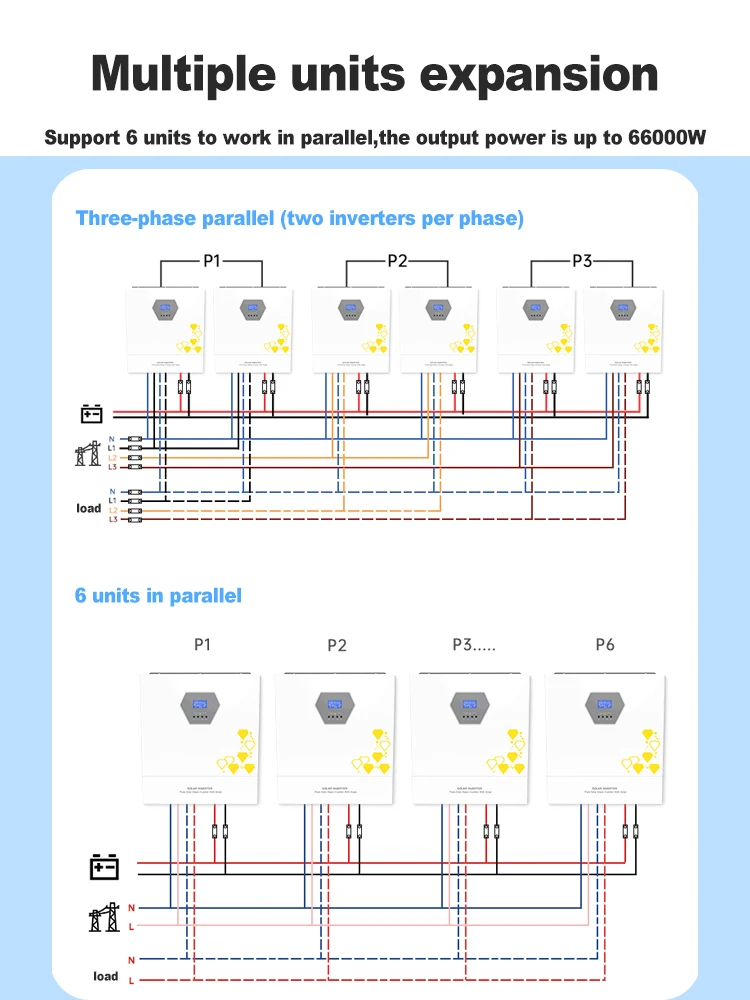

Parallel Interface | Yes | ||
Operating Temperature | 0-40°C | ||
Humidity | 20%~95%(Non-condensing) | ||
Storage Temperature | -15~60°C | ||
Altitude | <1000m | ||
Noise(dB) | ≤50db | ||

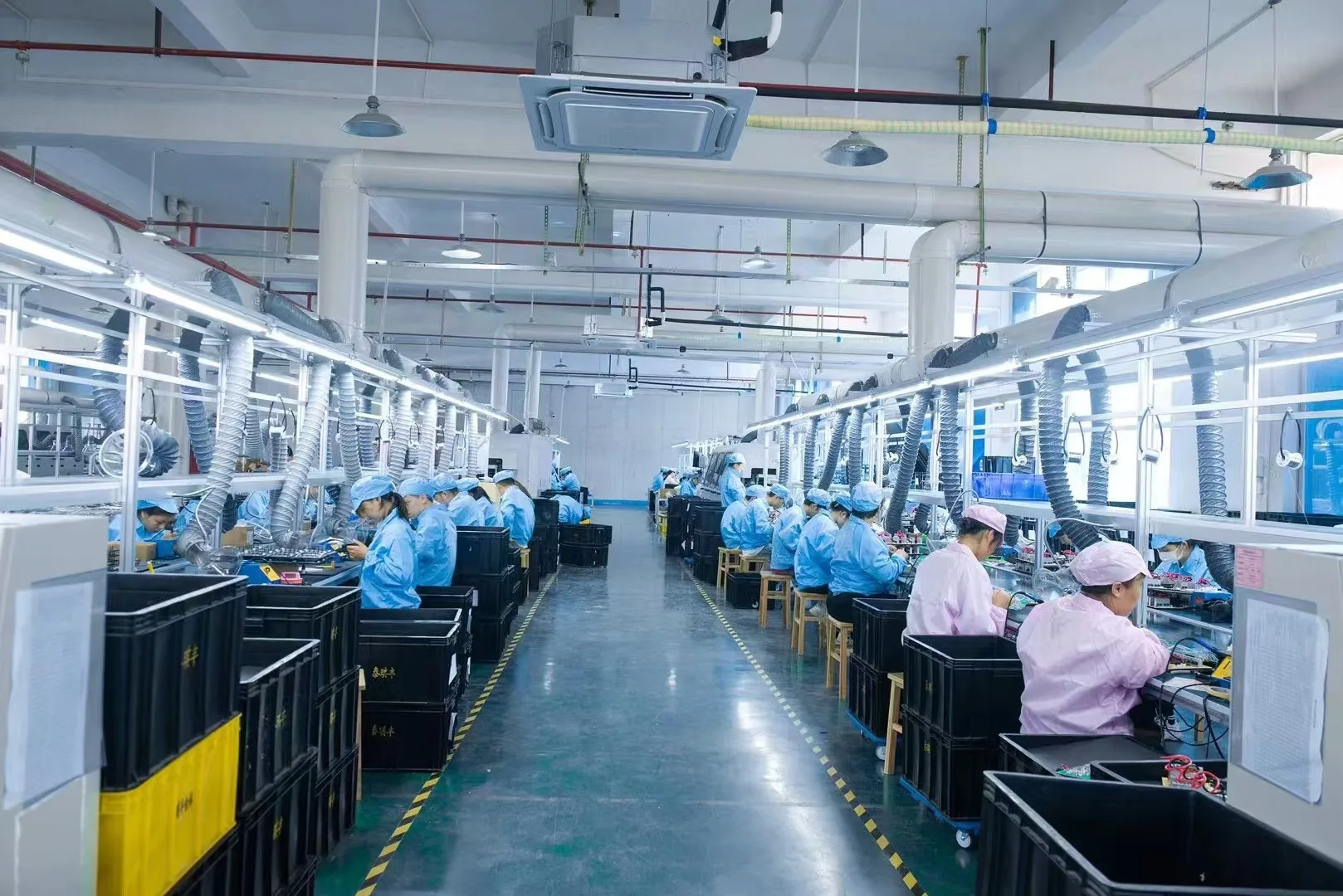

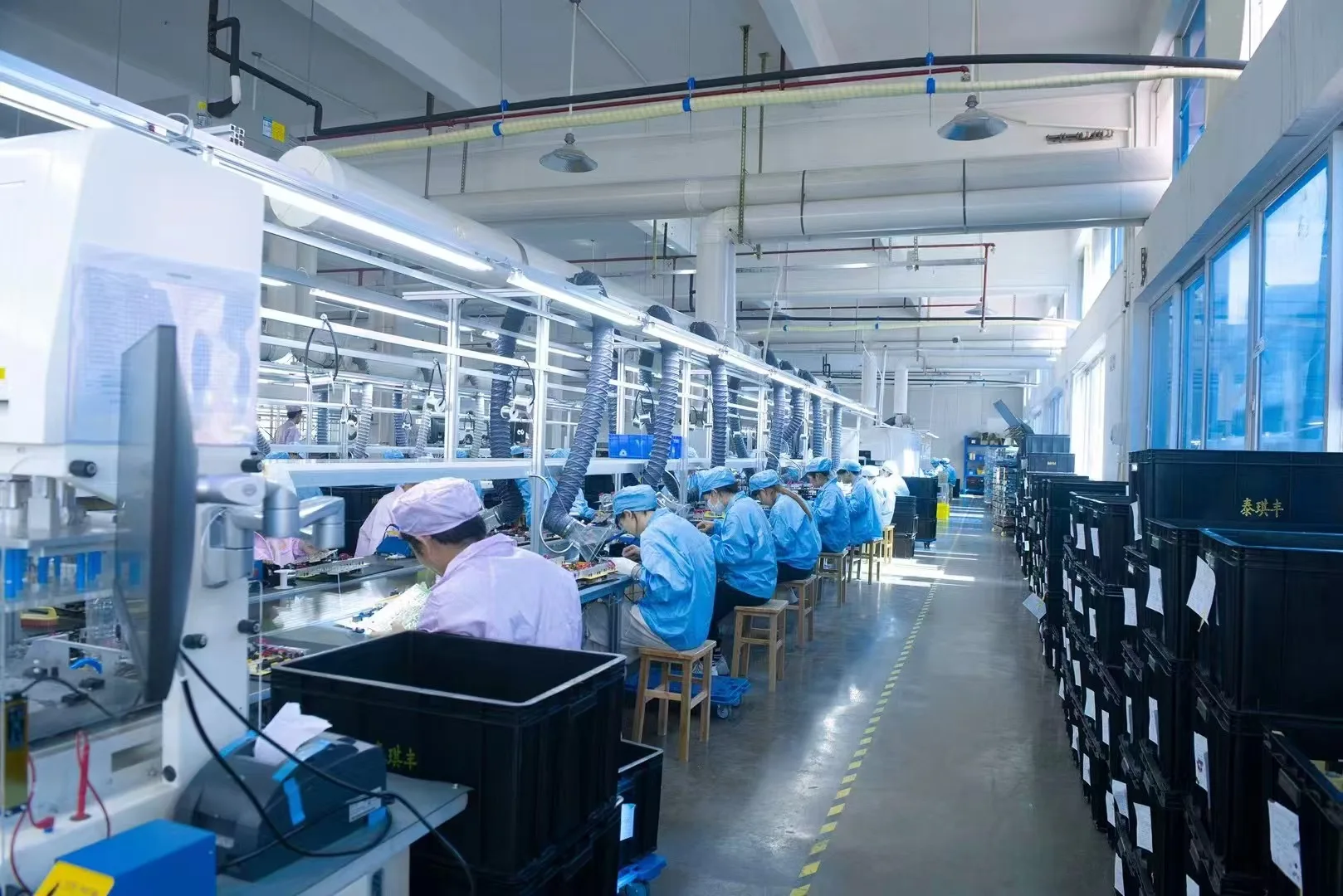

Company Profile
E-nice power company established in 2015, is a professional engaged in the research, development, sale and service of lead-acid batteries, lithium batteries, ups uninterruptible power supply, inverter, photovoltaic module production.
We are located Hefei with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
In addition, we have obtained CE,Rohs, Msds certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as central Asia, Middle East, Africa, Europe and other continents. We also welcome orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.

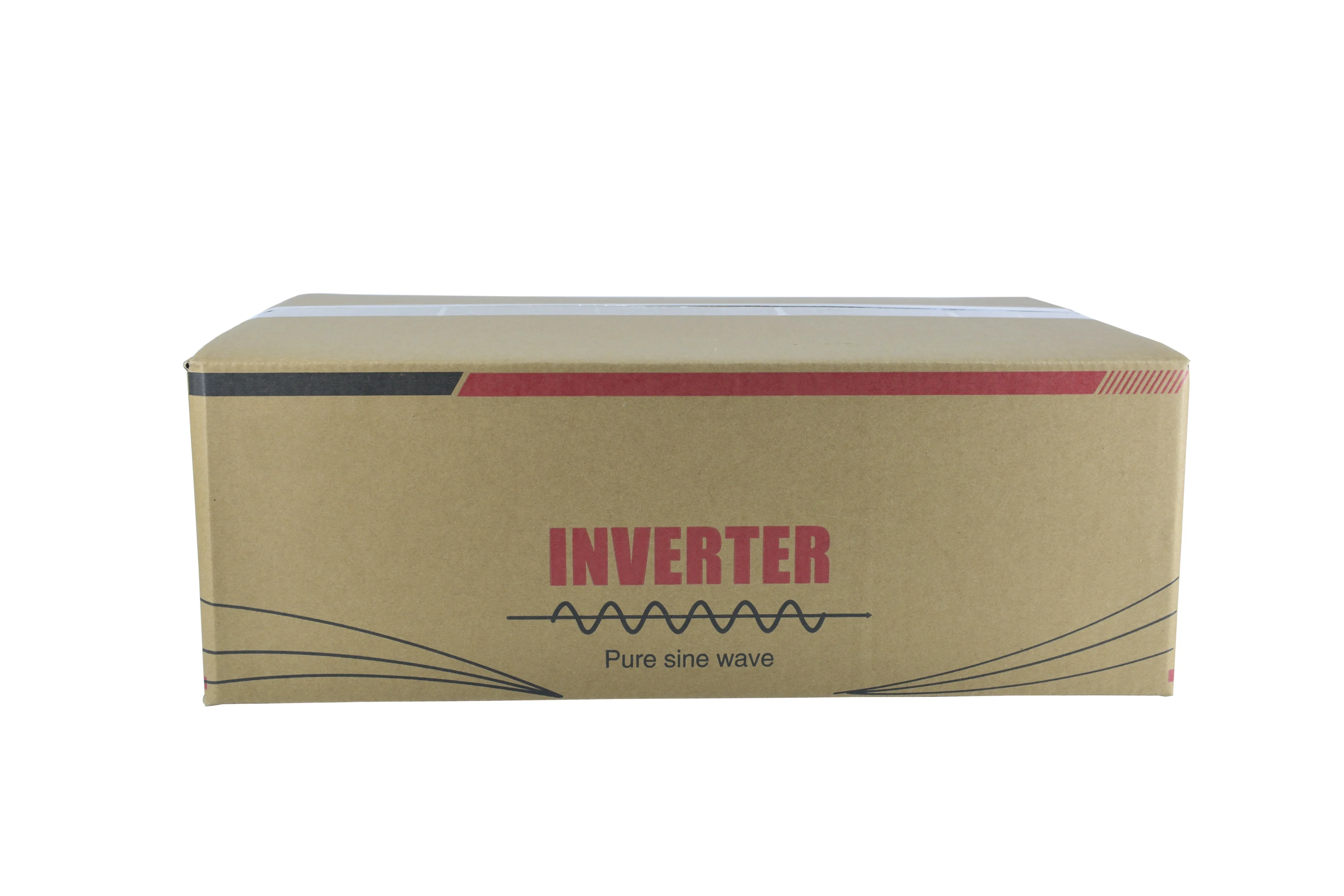

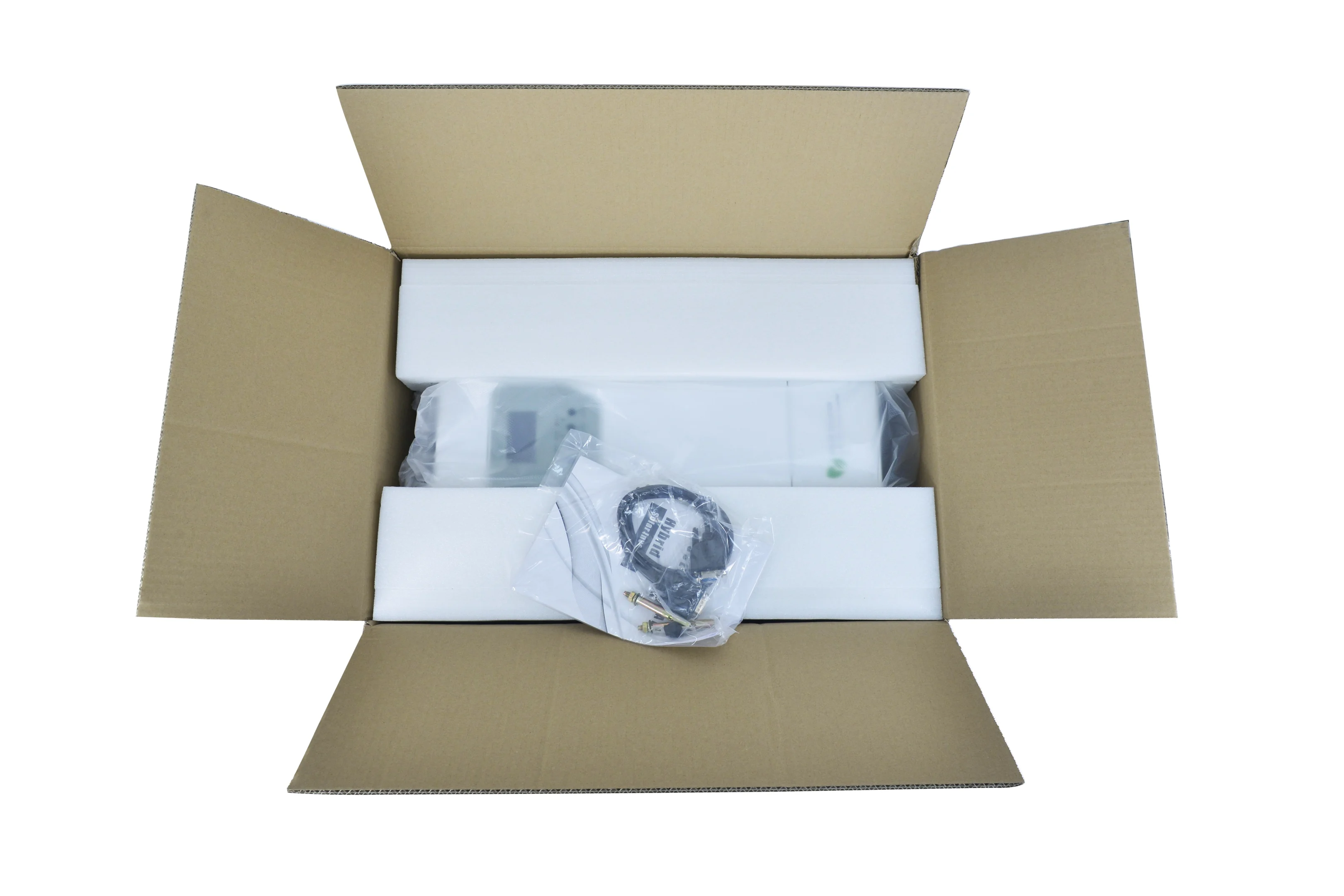

Packing & Delivery
FAQ
A: What are your main products?
B: Are you a factory or trading company?
We are a factory with more than 30 years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive tech support, and after-sales services.
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.

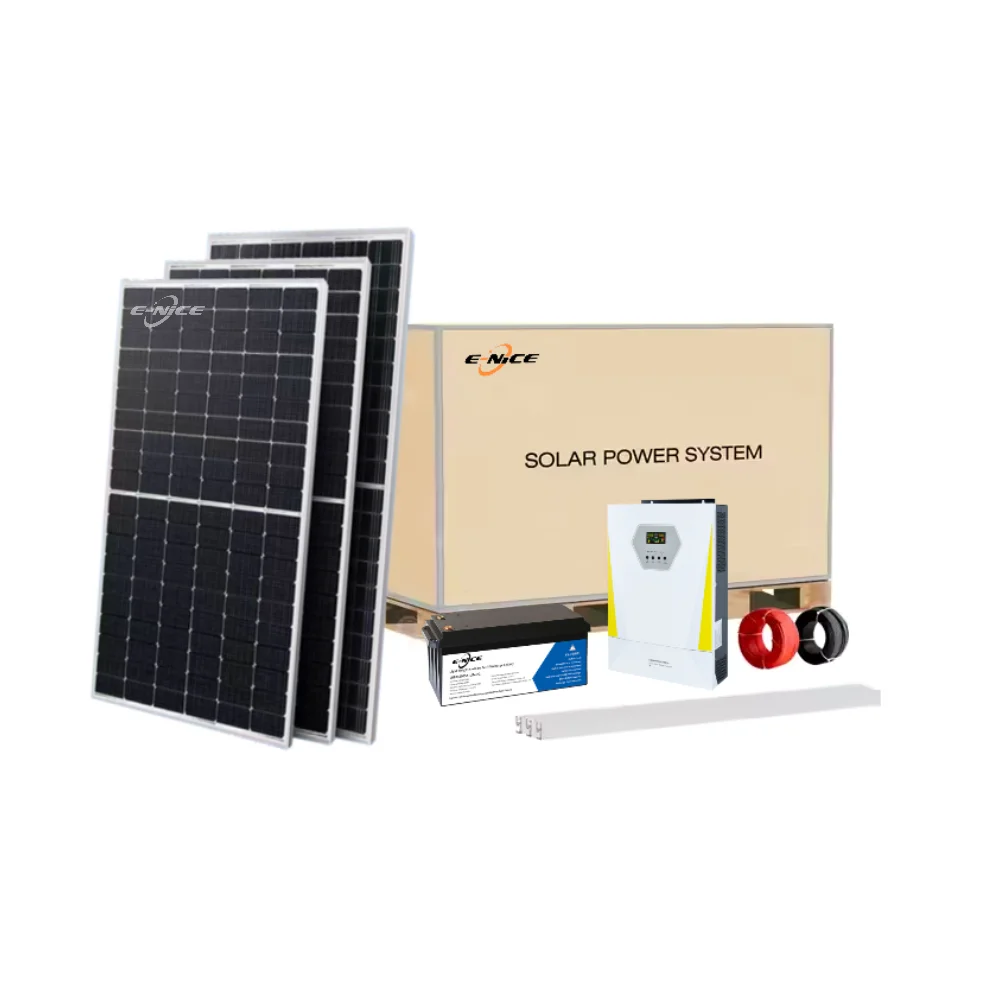

We have many series of solar products, mainly producing solar systems, solar panels, solar inverters, powerwall, solar lithium ion batteries,solar application solutions and solar mounting systems, and all related solar accessories.
B: Are you a factory or trading company?
We are a factory with more than 30 years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive tech support, and after-sales services.
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
