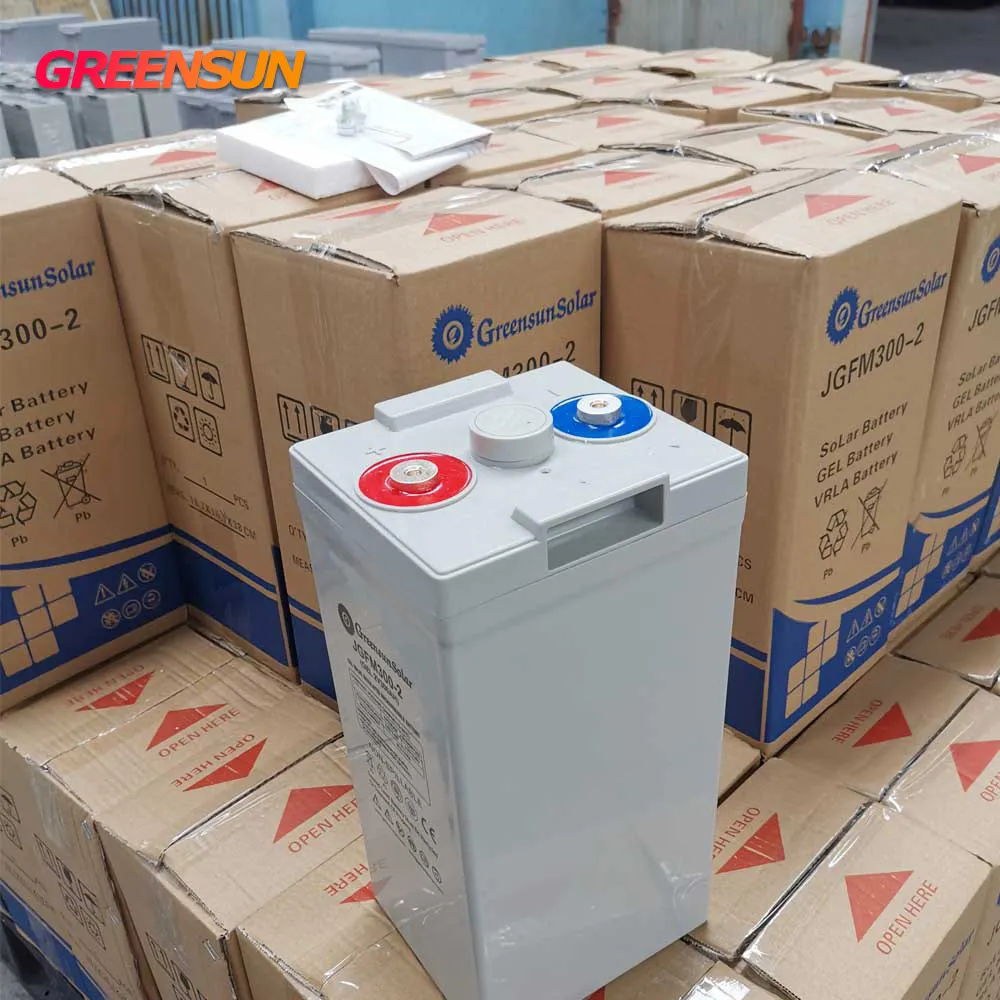

Long Life 2V 100Ah 150ah 200ah Lead Acid GEL Battery Bateria de AGM 150 ah 2v 12v
- Category: >>>
- Supplier: Greensun Solar PowerGreensun Power
Share on (1601324361780):
Product Overview
Description
Product Description
Specification
Model | JGFM200-2 | JGFM300-2 | JGFM500-2 | JGFM600-2 | JGFM800-2 | ||||
Nominal Voltage | 2v | ||||||||
Nominal Capacity(10HR) | 200AH | 300AH | 500AH | 600AH | 800AH | ||||
Dimensions(mm) | 172*111*335 | 172*152*340 | 240*170*340 | 240*170*340 | 468*169*340 | ||||
Approx Weight | 12kg | 16.5kg | 26kg | 28kg | 48kg | ||||
Terminal | T11 | ||||||||
Container Material | ABS | ||||||||
Max. Discharge Current | 1400A (5s) | 2000A (5s) | 3500A (5s) | 4200A (5s) | 5600A (5s) | ||||
Internal Resistance | Approx 1.2mΩ | Approx 0.8mΩ | Approx 0.55mΩ | Approx 0.6mΩ | Approx 0.6mΩ | ||||
Operating Temp.Range | Discharge : -20 ~ 55℃ (4~131°F) Charge : 0 ~ 40℃ (32-104°F) Storage : -20 ~ 40℃(-4-122°F) | ||||||||
Nominal Operating Temp. Range | 25 ± 3℃ (77±5°F) | ||||||||
Cycle Use | Initial Charging Current less than 50.0A.Voltage 2.4V~2.5V at 250℃(77°F)Temp. Coefficient -5mV/ ℃ | ||||||||
Standby Use | No limit on Initial Charging Current Voltage 2.25V~2.3V at 250℃(77°F)Temp. Coefficient -3mV/ ℃ | ||||||||
Design Life Time | 5-8 Years | ||||||||
Warranty | 3-5 Years | ||||||||

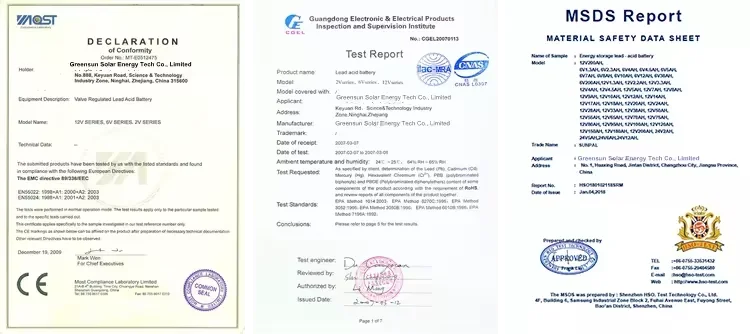

Certifications

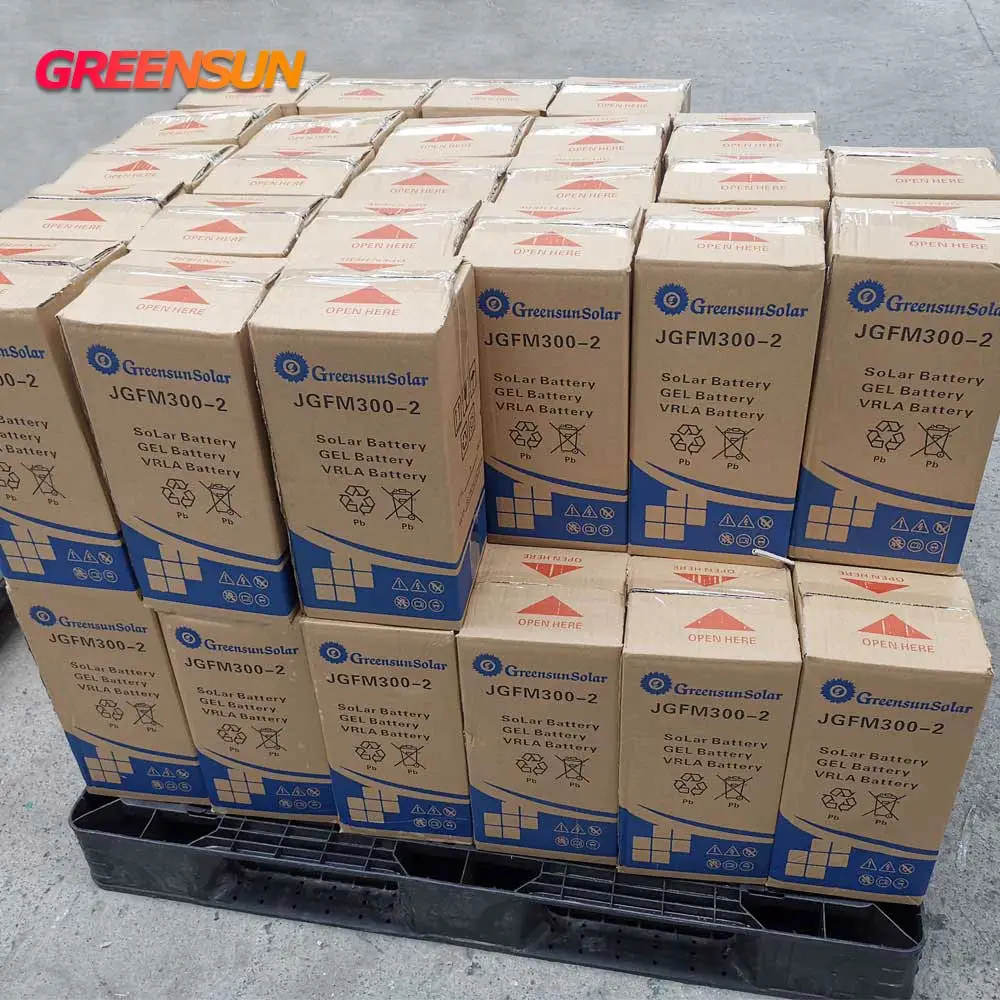

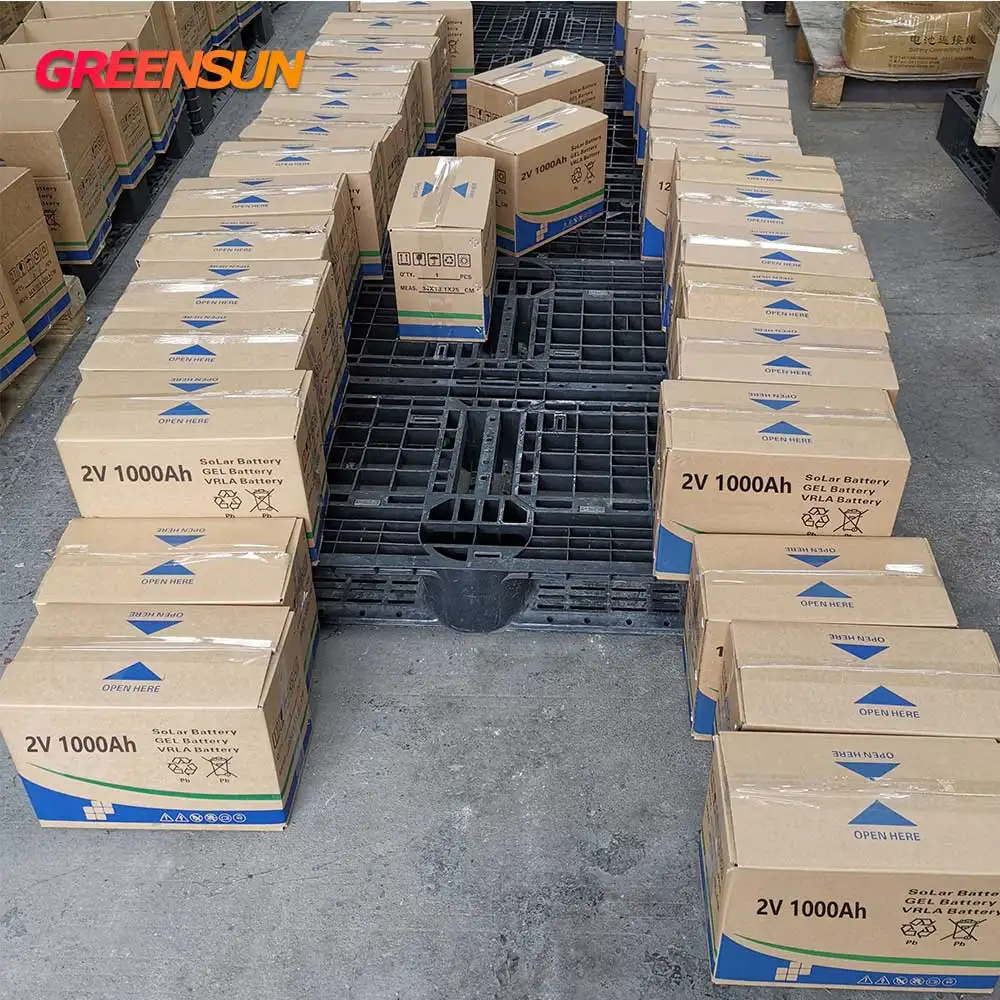

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

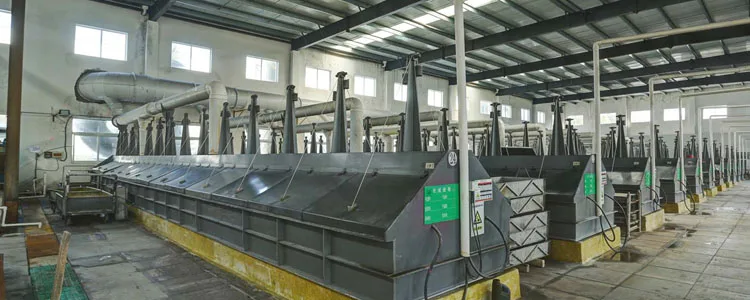

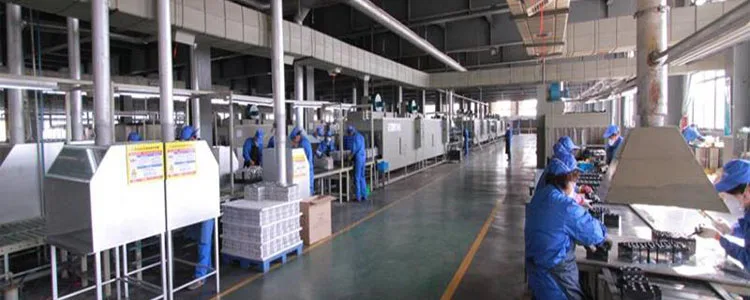

Our factory

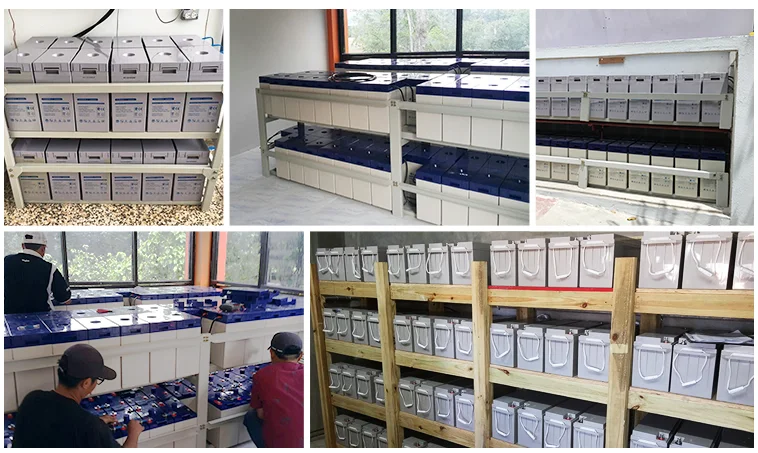

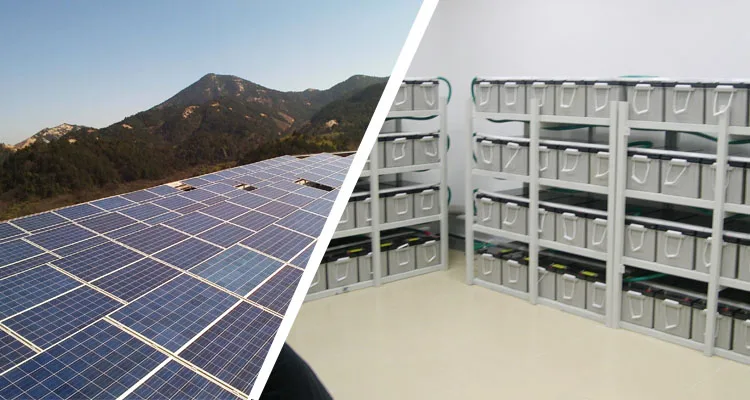

Projects
