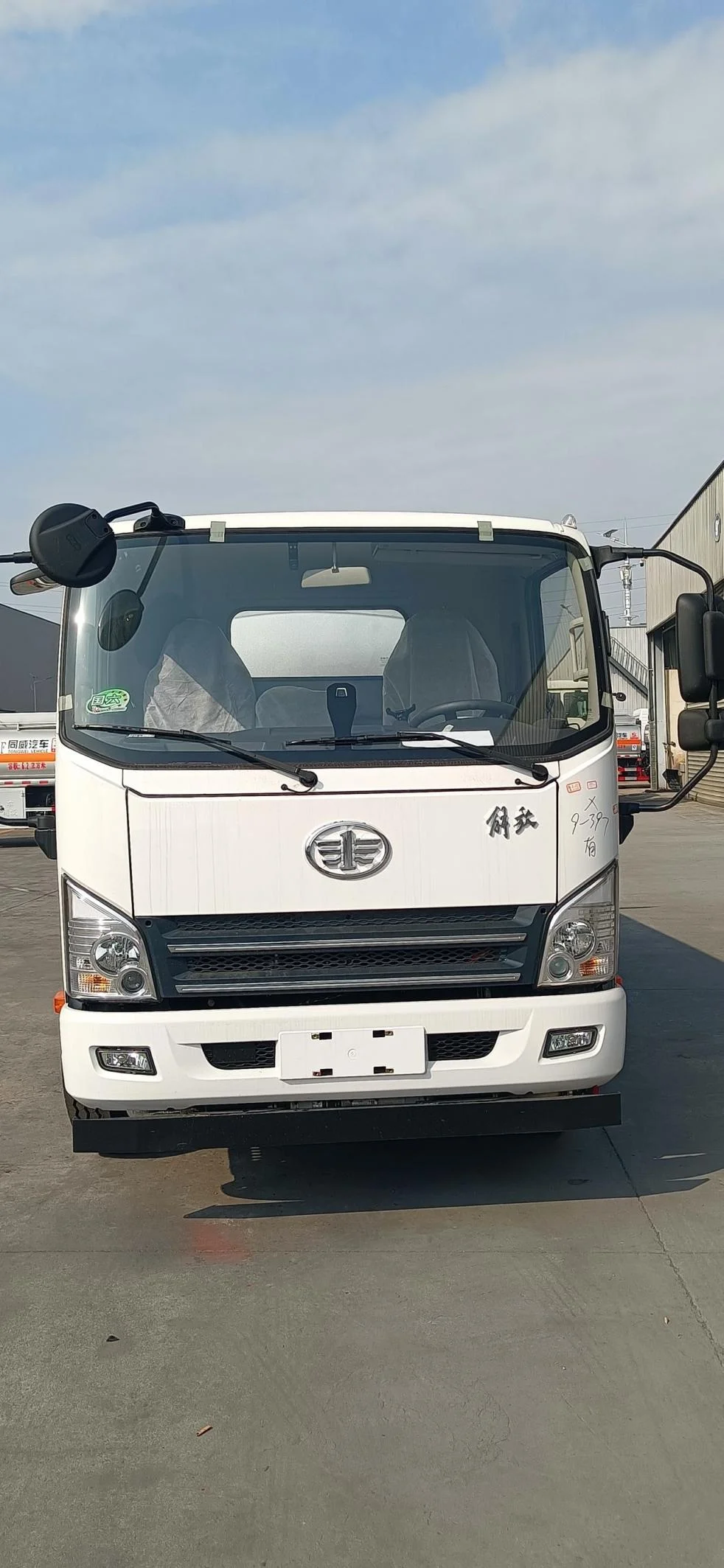

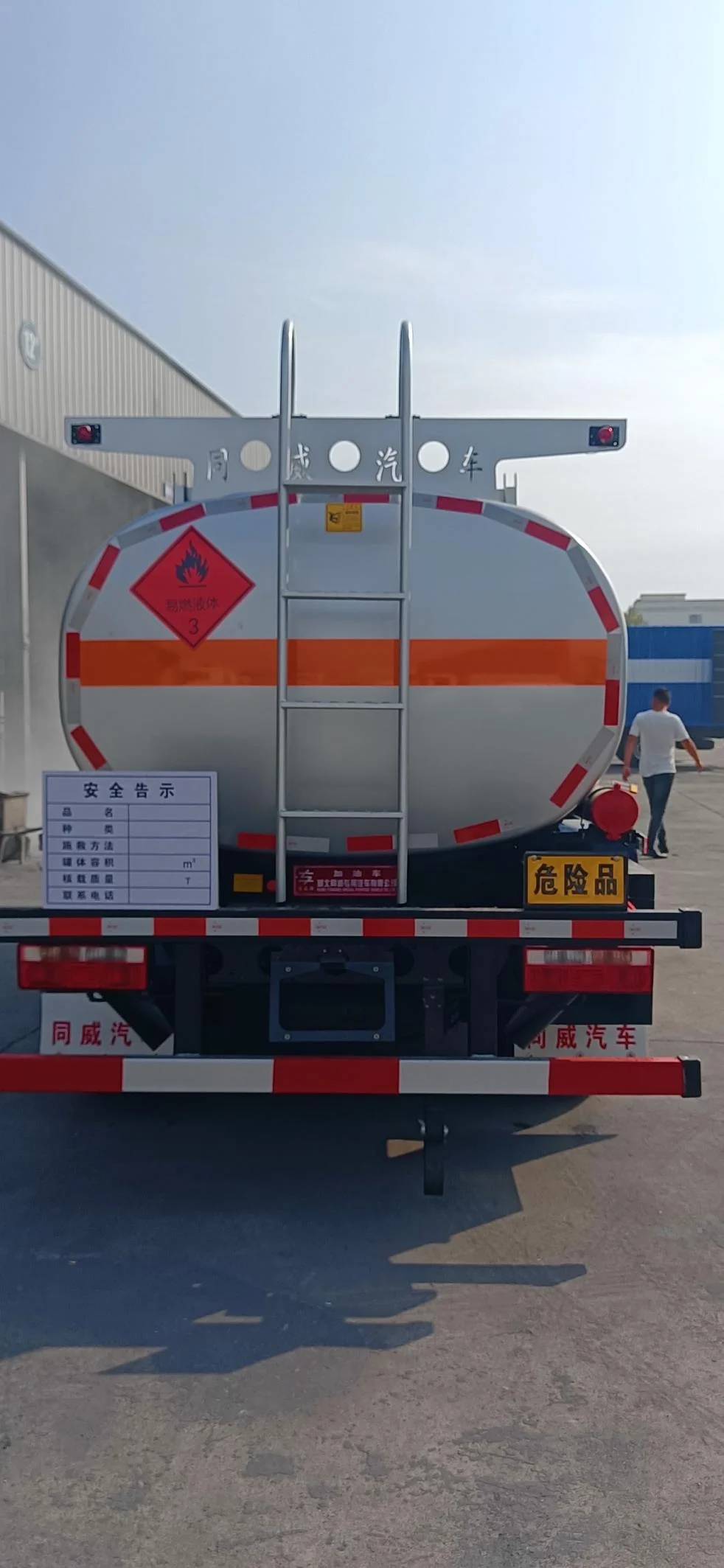

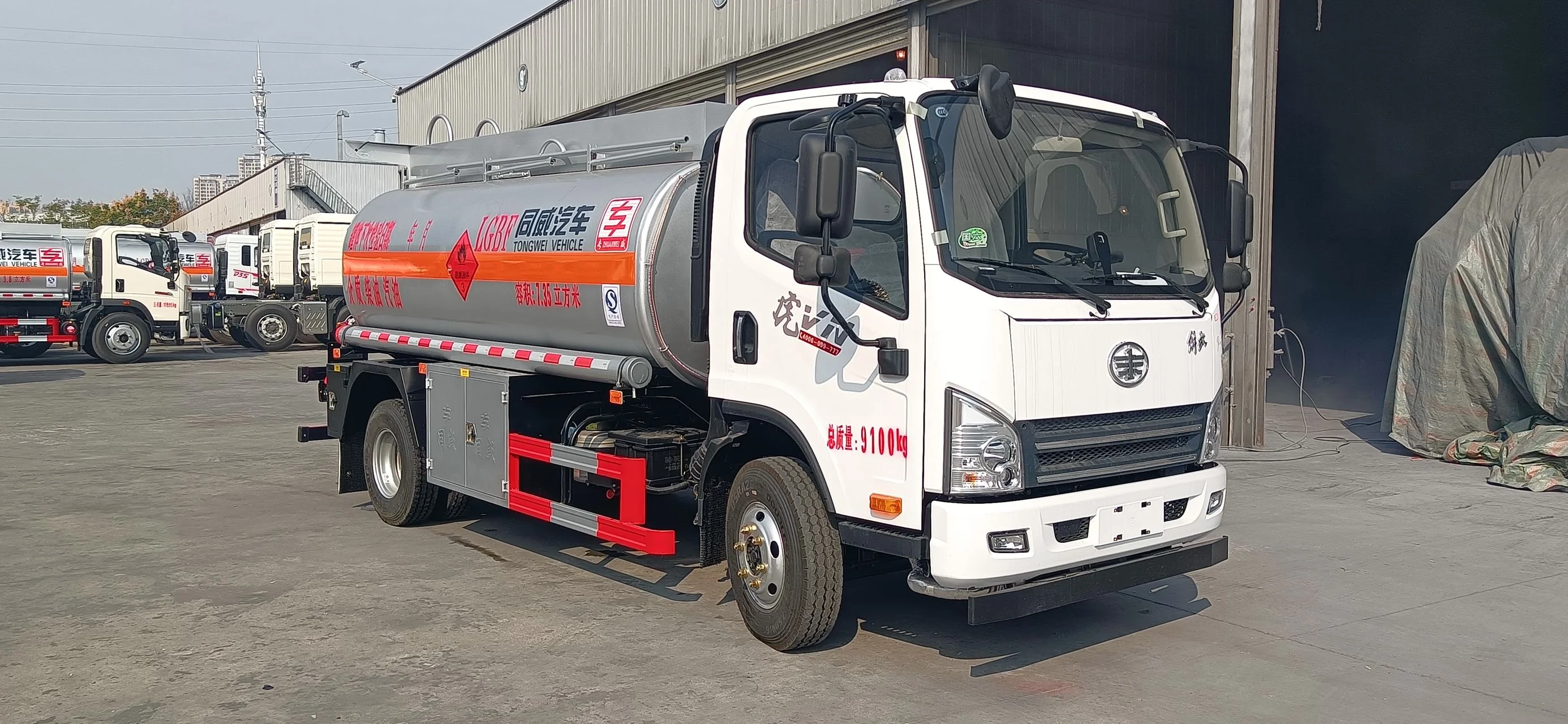

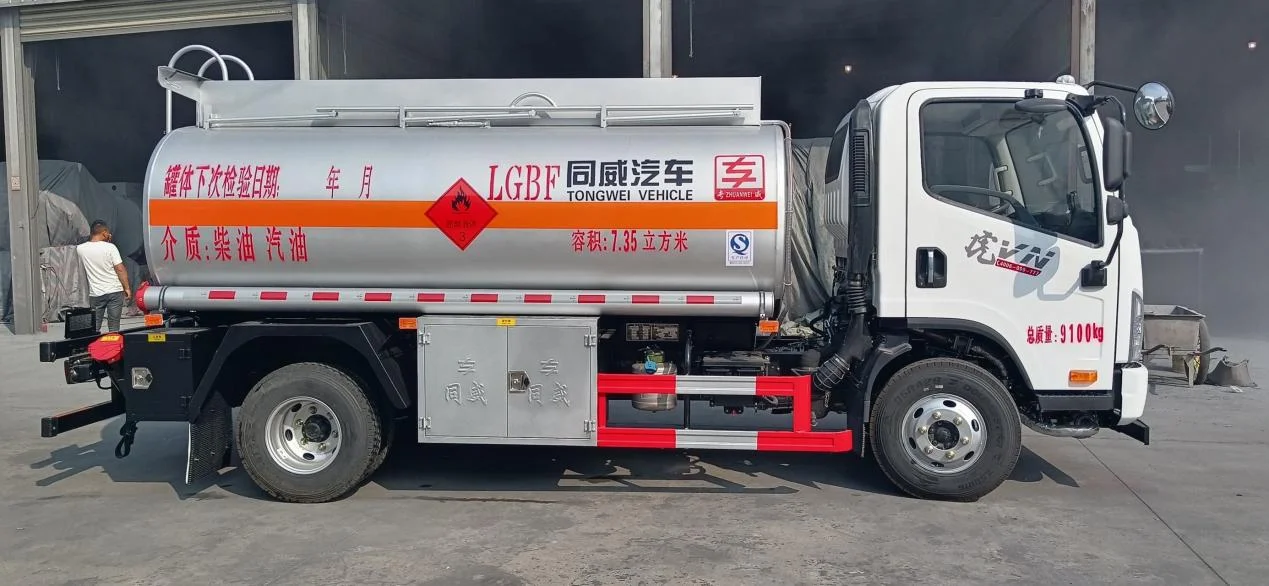

New Special Diesel Gasoline Oil Mobile Fuel Tanker Truck For Fuel Transporting

Vehicle name

Liberation Tiger V light truck 7.35 cubic 5 tons refueling truck

Tank volume:

7.35 cubic meters

Total weight

9100Kg

Rated load

4905,4970 Kg

Maintenance weight

4000Kg

Engine

Tin wood 140 HP

Transmission

Wanli 6

Chassis model

CA1091P40K61L2BE6A84

Chassis configuration:

 Tiger VN flat top cab, wheelbase 3600, color: Yunnan White, Xichai CA4DB1A14E68, 300,6 GS42, 140PS, 270 welding bridge (speed
ratio 4.875, wheel base 1640), 7.50R1616 vacuum tire, 780*180*60*4, DR650, With domestic ABS, front disc and rear wedge brake, air
conditioning + electric doors and Windows + central control lock, gas horn, overhead box,80L aluminum alloy fuel tank, plate
spring 3/7+3, tire burst emergency safety device, front collision warning + lane departure auxiliary warning, front and lower
protection, anti-splash fender, exhaust spark extinguish, speed limit 79km/h, Beidou +GPRS driving recorder (with video Frequency
recording function), with electrostatic towing zone,NFH, special for dangerous production of tanks in strict accordance with the
announced size, tank thickness greater than or equal to 4.2mm,

Tank material

Q235 high quality carbon steel plate, standard gear oil pump (can pump in and out); Standard with a full set of European standard
lower oil system (including 1 European standard tank cover, tank mouth built-in breathing valve, a subsea valve, 1 lower loading
and unloading oil valve, 1 oil and gas recovery valve, 1 oil and gas recovery interface, 1 anti-overflow probe rod and socket);
The top side of the tank is equipped with folding lifting protective guardrail, the rear ladder, the operation box is equipped
with voice alarm system device, anti-static disk;
