Nuuko Wind Turbine Power Solar Hybrid Turbine 5Kw Wind Power Generation Free Home Solar Systems
- Category: >>>
- Supplier: Nuuko Power Co. Ltd.Nuuko Ltd.
Share on (1601324415346):
Product Overview
Description
Products Description
Off Grid 5kw Wind Turbine Power Solar Hybrid Turbine 5Kw Wind Power Generation Home Solar Systems Complete Solar Power Panels

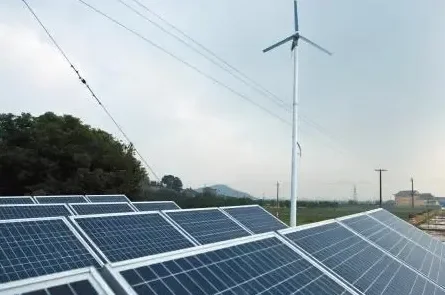

Solar wind energy systems is a new energy power generation system that utilizes wind energy and solar energy resources. It is wind power generator and solar cell phalanx two kinds of power generation equipment to generate electricity together.The solar wind hybrid system uses solar cell arrays and wind generators (converting alternating current to direct current) to store the generated electrical energy in the battery pack. When the user needs electricity, the inverter converts the DC power stored in the battery pack into AC power and sends it to the user's load through the transmission line.
5KW solar wind energy systems | ||||||
Product | Model | Quantity | Description | |||
Wind turbine generator | NS-M5kw/48v | 1 | Generator, blade, tail rudder, hood hub | |||
6m tower | Independent tower | 1 | 6m | |||
Solar energy panel | Single crystal solar panel 550w | 12 | Size: 2278*1134*35mm | |||
Solar energy support | 550w stent | 12 | Customer choice | |||
Wind power controller | 5kw/DC48v | 1 | DC: 48v AC: 110v/220v single phase | |||
Photovoltaic controller | 48v | 1 | ||||
Wind power off-grid inverter | 6kw/220v inverter | 1 | DC 48V input; MPPT intelligent control | |||
Colloid cell | 200ah/12v | 12 | Size:530*245*24 | |||

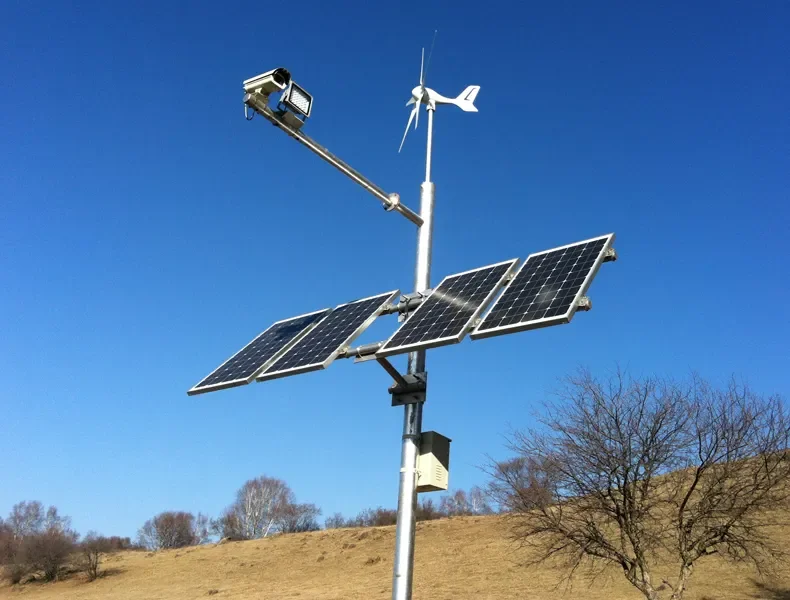

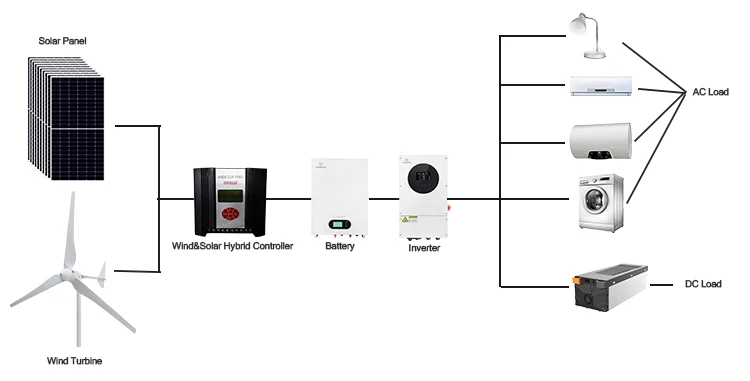

The solar wind hybrid system is mainly composed of wind turbines, solar photovoltaic cells, controllers, batteries, inverters, AC and DC loads and other parts. The system is a composite renewable energy power generation system integrating wind energy, solar energy, battery and other energy power generation technologies and system intelligent control technology.
Utilizing the complementarity of wind energy and solar energy, a relatively stable output can be obtained, and the solar wind hybrid system has high stability and reliability.

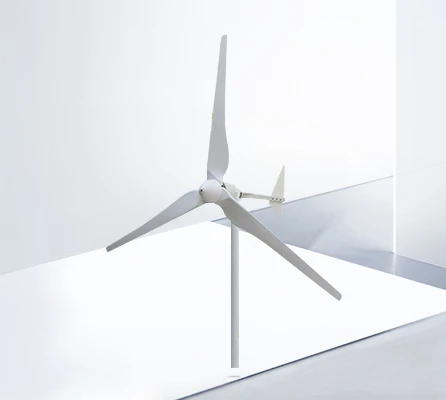

Wind Turbine
> 3 years warranty, 20+ year service life
> Advantage: light weight, small volume > Starting wind speed: 2m/s > Rated wind speed: 12m/s > Security wind speed: ≤50m/s
> 3 years warranty, 20+ year service life
> Advantage: light weight, small volume > Starting wind speed: 2m/s > Rated wind speed: 12m/s > Security wind speed: ≤50m/s
The wind power generation part is to use the wind turbine to convert the wind energy into mechanical energy, convert the
mechanical energy into electrical energy through the wind generator, then charge the battery through the controller, and supply
power to the load through the inverter.

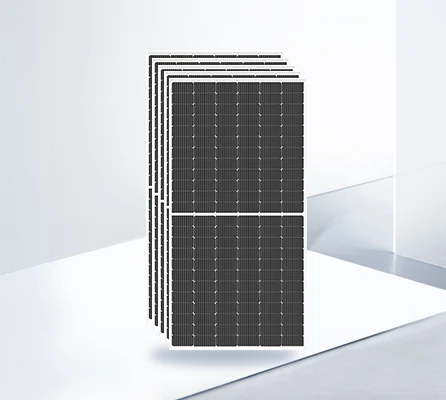

Solar Panel
> Max power: 550w
> Size: 2278*1134*35 mm
> Glass: 3.2mm Tem pered
> 25 years power output guarantee
The photovoltaic power generation part uses the photovoltaic effect of the solar panel to convert light energy into electrical
energy, then charges the battery, and converts direct current into alternating current through the inverter to supply power to the
load.
energy, then charges the battery, and converts direct current into alternating current through the inverter to supply power to the
load.

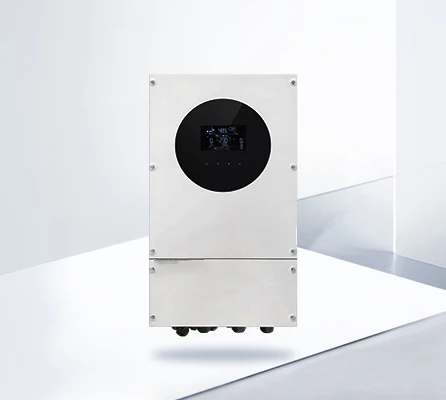

Inverter
> Pure sine wave output
> Pure sine wave output
> IP65 waterproof and dust proof makes the inverter suitable for various working environments
The inverter converts the direct current in the battery into a standard 220v alternating current to ensure the normal use of
alternating current load equipment. At the same time, it also has an automatic voltage stabilization function, which can improve
the power supply quality of the wind-solar hybrid power generation system.
alternating current load equipment. At the same time, it also has an automatic voltage stabilization function, which can improve
the power supply quality of the wind-solar hybrid power generation system.

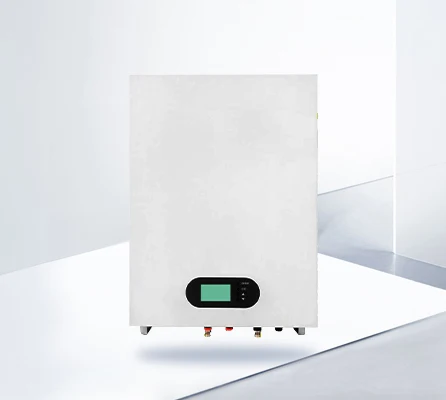

Battery
> Wall-mounted to save space
> Standard equipped with LED display, real-time understanding of battery status
The battery part is composed of multiple batteries, which play two roles of energy regulation and load balance in the system at
the same time.
It converts the electrical energy output by the wind power generation system and the photovoltaic power generation system into
chemical energy and stores it for use when the power supply is insufficient.
the same time.
It converts the electrical energy output by the wind power generation system and the photovoltaic power generation system into
chemical energy and stores it for use when the power supply is insufficient.

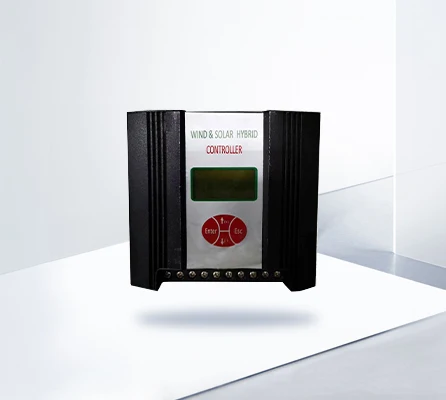

Controller
> DC 48V input; MPPT intelligent control > Protection Function: Solar reverse charge
> protection: Solar reverse connection
protection, > Battery-over-charge-protection
> Battery-reverse connection protection
> DC 48V input; MPPT intelligent control > Protection Function: Solar reverse charge
> protection: Solar reverse connection
protection, > Battery-over-charge-protection
> Battery-reverse connection protection
The control part continuously switches and adjusts the working state of the battery pack according to the changes in the intensity
of sunshine, wind force and load.
of sunshine, wind force and load.

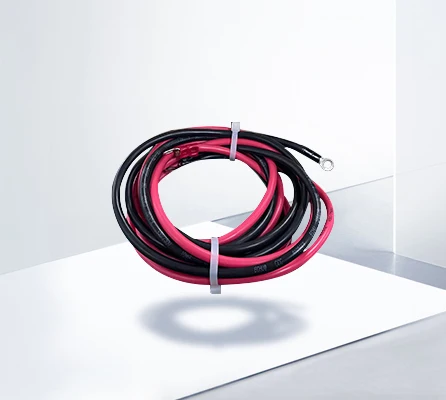

Cables
> 3 pcs 16mm2*35CM battery cable 4 pcs 16mm2*2M battery connect cable
> 4mm2 PV cable 20M 6mm2 wind cable 50M
> terminals and MC4+ 1P63A Battery switch
Company Profile

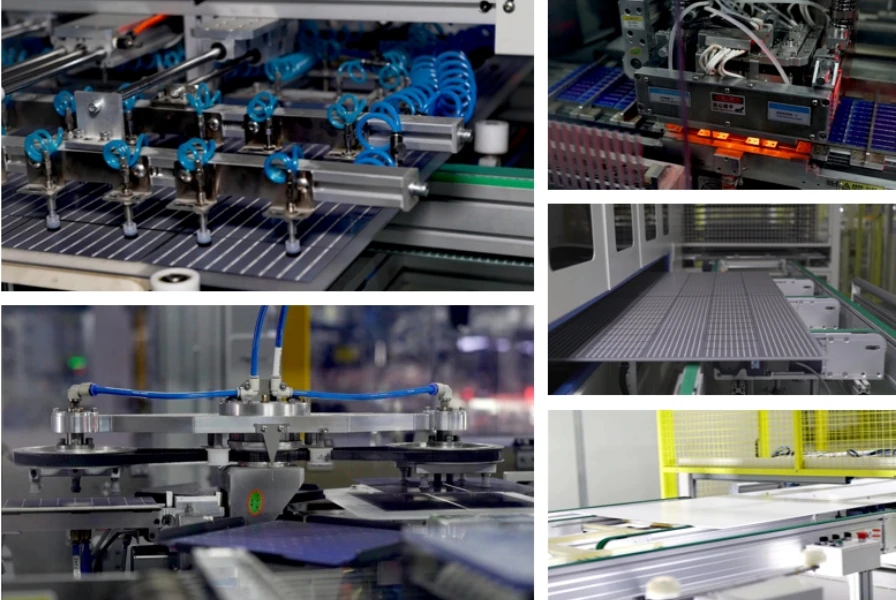

NUUKO POWER is an energy company focusing on photovoltaic module manufacturing, photovoltaic system solutions, photovoltaic power station development and investment, and multi-scenario customized services. The core members have more than 10 years of experience in the photovoltaic industry. Products have been exported to more than 70 countries in Europe, Asia, the Middle East, Africa, and Latin America, and have been widely recognized by the market. With continuous technological innovation, comprehensive global sales network and customized services, we continue to provide users with excellent products and services as well as energy solutions.
Certifications
Exhibition
Packing & Delivery
One-stop solution service
NUUKO sells a variety of commercial and residential solar systems.Design different systems to meet customer requirements.We have professional sales staff and various brands of solar products to meet the needs of customers.

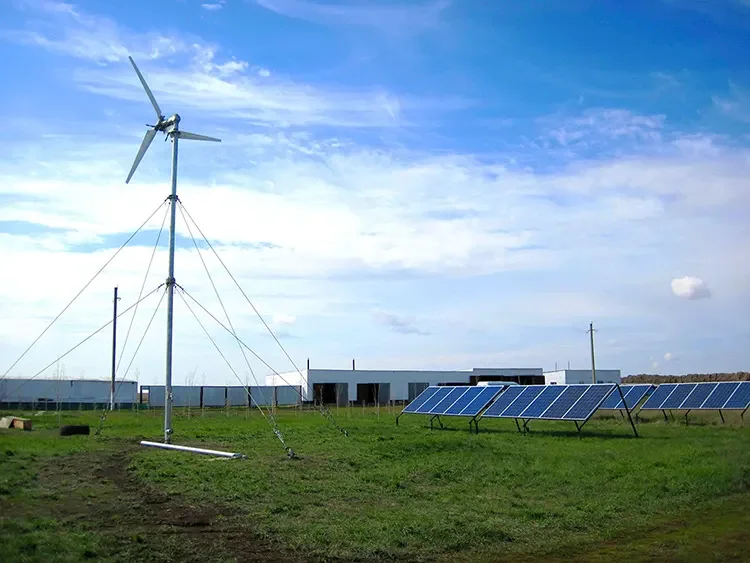

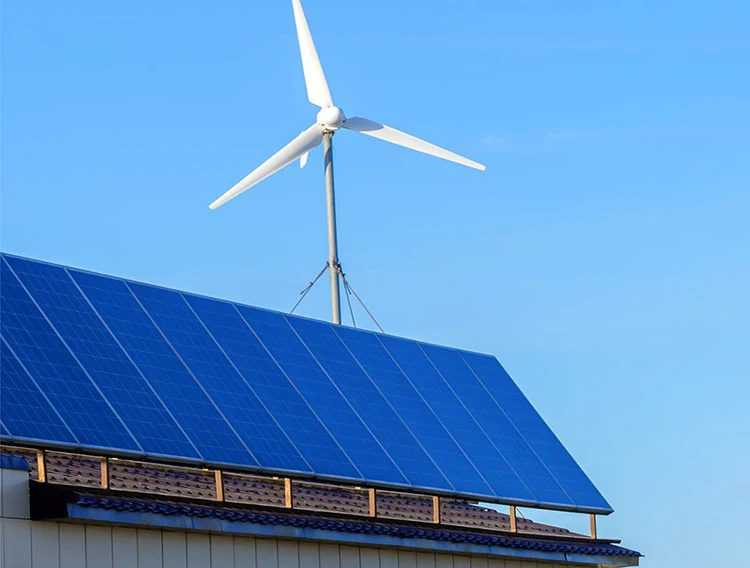

Project Cases
