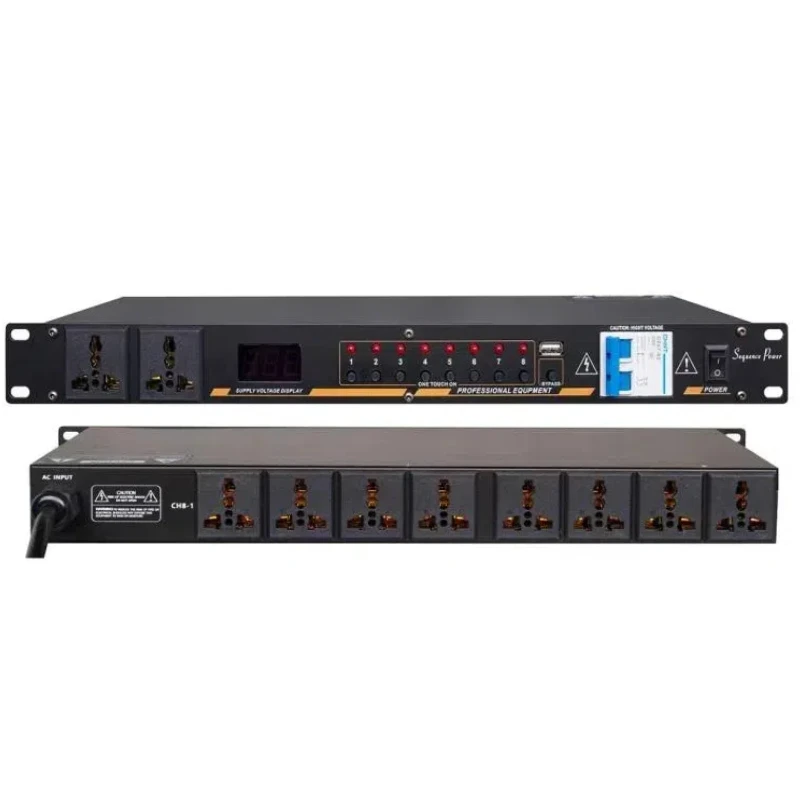

Paulkison Stage Equipment System 10 Outlet Power Sequencer Controller Conditioner Surge Protector Power Supply Regulator

● One-button pass-through function, applied to different devices

● Air switch protection, short circuit, over current phenomenon automatically disconnect the power supply

● Each channel has an independent switch control

● A total of ten controllable eight power output, each up to 30A

● Controllable output delay time is 1S

●USB power supply, lights can be used

1 Panel color: iron black

2 Power input conditions (single-phase 3-wire) : AC90-260V 50-60HZ two-phase (three-wire: zero, fire,ground) Number of

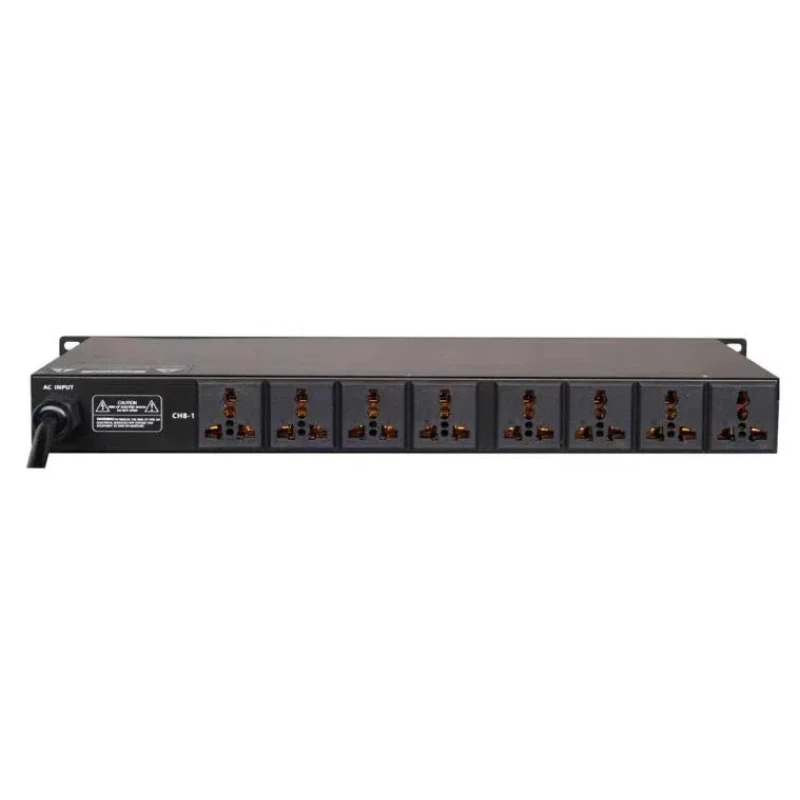

3 channels: 8-way universal socket relay controlled with 2-way universal socket direct output

4 Relay controlled output maximum withstand single power/total power (reactive power) : 5000W/8000W maximum withstand reactive power

5 Output power socket specifications: flame retardant ABS material, can withstand up to 13A current brass material, standard universal socket

6The function features are as follows: 1. Enable in sequence and disable in reverse sequence 2. The PASS key enables all channels to be enabled simultaneously 3. Accurate voltage display 4. Overcurrent protection 5. Panel channel independent closing 6.USB port maximum output 5V/500MA, can be connected to the DJ lamp

7 Switch Interval/Timing time: 1 second by default

8 Output relay contact current: 30A 277VAC

9 Circuit board specifications: double-sided fiberboard, the main power line thickening and coarse processing
10 Power supply specifications: Built-in switching power supply, suitable for global voltage AC90-260V 50-60HZ

11 Main cable specifications: 3*4 square cable, total length of 1.0 m (without power input plug)

12 Open type: square boat switch

13 Single independent switch: Supports panel independent control

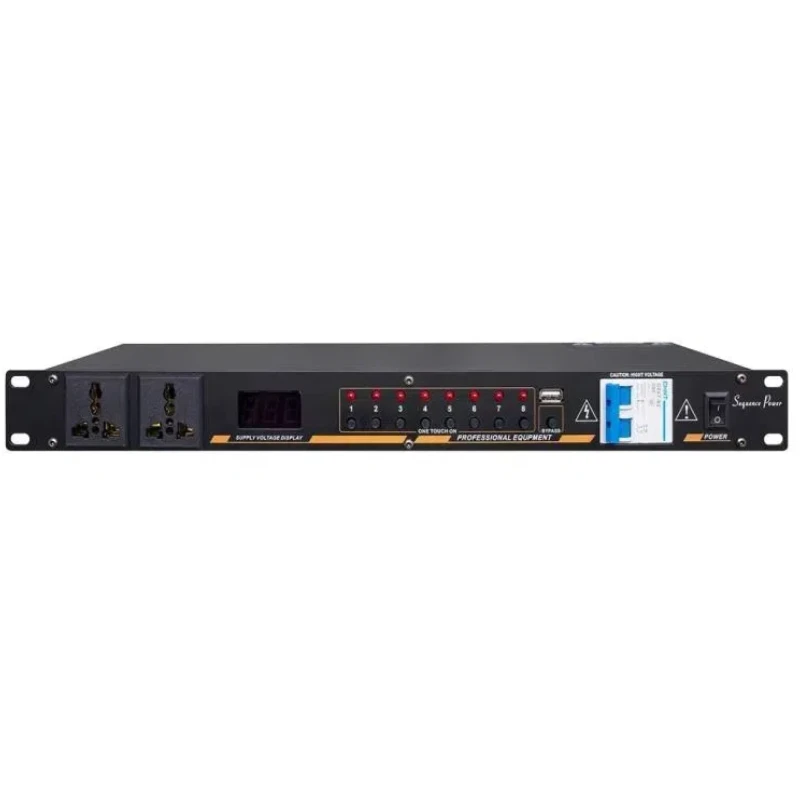

14 Function display Voltage display meter type: red green digital tube display voltmeter

15 Power purification function (EMI professional power grid filter) : none (optional individual or per band
filter)

16 Short-circuit overcurrent protection Circuit breaker configuration: zero circuit breaker, fireline control, overcurrent
protection, (63A short-circuit protection)

17 Body size: Length 482MM * Width 185MM * height 44MM (non-standard 1U)
