5 Tons Wheel Loader ZL50HC ZL50NC With Factory Price

5 Tons Wheel Loader ZL50HC ZL50NC With Factory Price

Category: >>>
Supplier: Caterbe Construction Equipment (Wuhan) Co. Ltd.Caterbe Ltd.

Price:$37,000.00-40,000.00

Quantity:

Product Overview

Description

Products Description

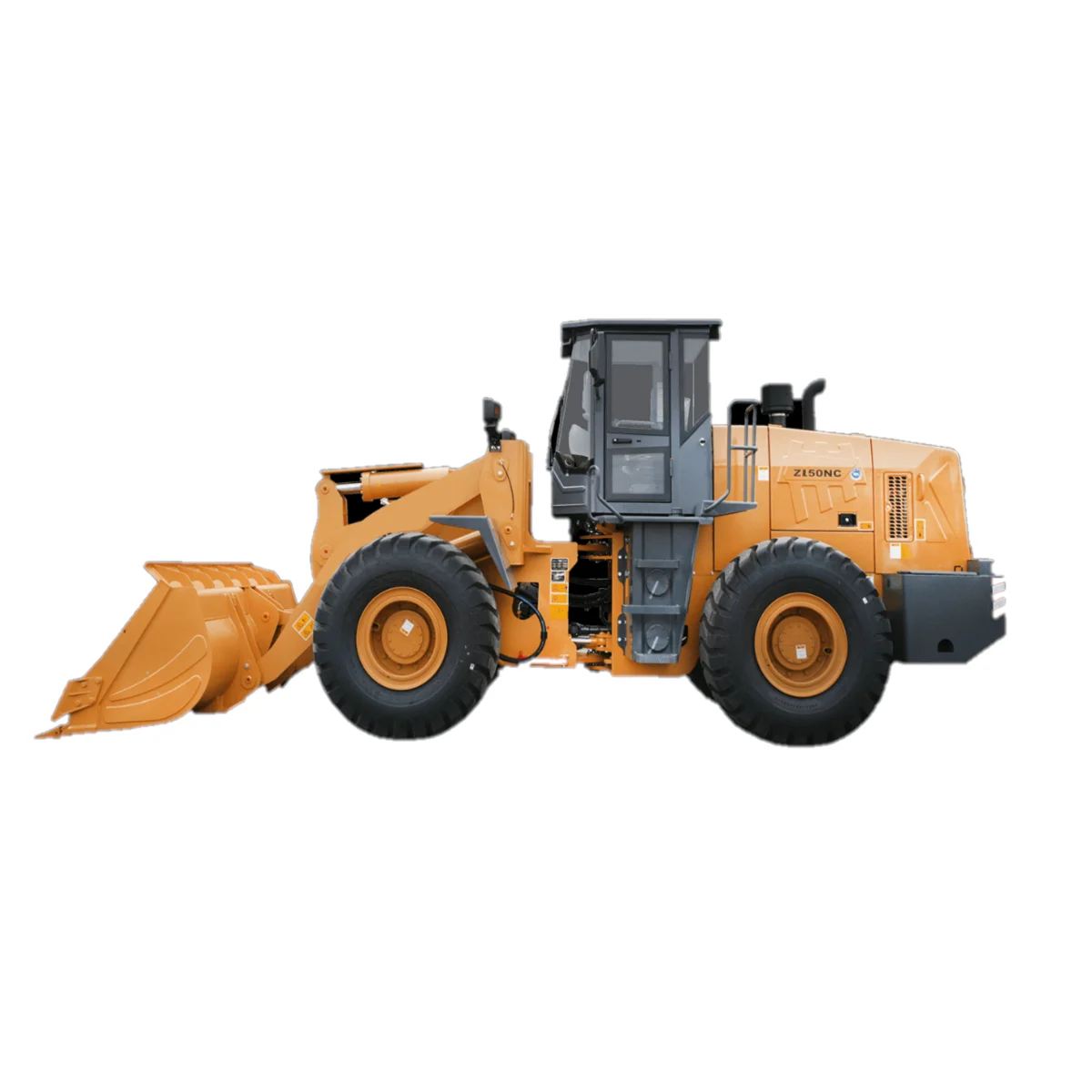

5 Tons Wheel Loader ZL50HC

Equipped with National IV engine, efficient, reliable and powerful;

Heavy-duty, reinforced front and rear frames, large-span articulation, enhanced torsion resistance and high reliability;

The reinforced large-ratio gearbox has strong traction, matched with a reinforced heavy-duty drive axle, optimized key components, improved load-bearing capacity, better overall reliability and longer service life;

Adopting long wheelbase and center layout, the load is greatly increased and the stability of the whole machine is good;

The application of load-sensing full hydraulic steering system and dual-pump confluence working hydraulic system saves energy and reduces consumption, and has high operating efficiency;

Equipped with pneumatic clamp disc parking brake system , forced neutral start, the whole machine is safer and more reliable;

One-piece wing-span hood, large-opening hood side door, double gas springs to assist in opening the hood, spacious maintenance space, convenient daily maintenance;

The work light uses LED lights, high brightness and long life;

High-precision full LCD display instrument, accurately displays the working status of each major component;

Equipped with Longgong's new fourth-generation appearance, the overall atmosphere is beautiful; the cab has a larger space and a more comfortable ride;

Lonking's intelligent management system can control the various operating data of the equipment in real time through mobile phones, computers and other devices to improve the utilization rate of the equipment.

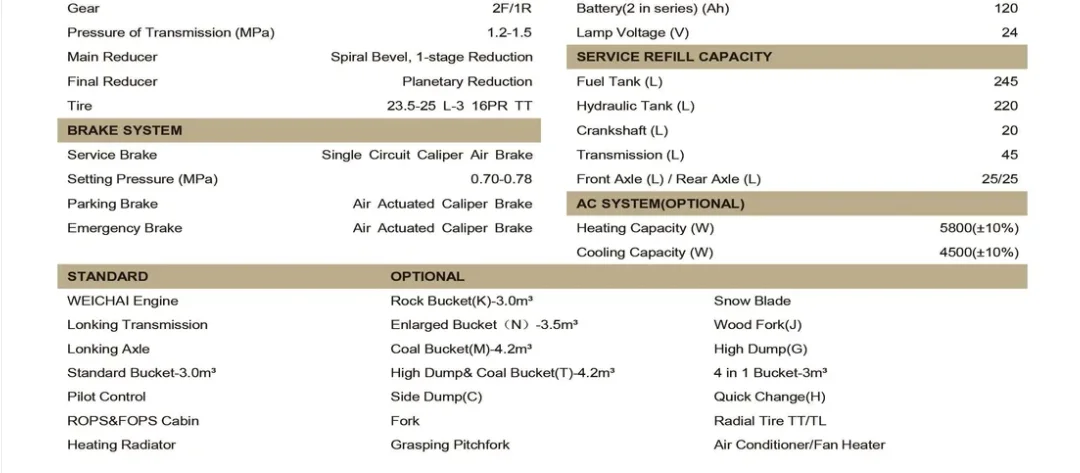

Product Paramenters

Bucket Capacity	3.0m³
Rated Payload	5000kg
Operating Weight	17300(HD17700)±300kg
Traction Force	155±3k N
Breakout Force	170±3k N
L×W×H	8220(8560)×3010×3380mm
Maker/Model	WD10G220E21
Rated Power	162kW/2200rpm
Maximum Torque	860N·m/1400-1600rpm
Bore x Stroke (mm)	126×130mm
No. of Cylinders / Displacement	6/9.726L
Air Cleaner	Three Stage Air Cleaner
Alternator	70Amp
Battery	2-24V/ 120Ah
Starting Motor	24V/7.5kW
Transmission Type	Planetary Powershift
Shift Type	Mechanical Powershift Control
Pressure of Transmission	1. 1-1.5MPa
Torque Converter Type	Single-stage,Duo-turbine,4-element
Axles	Rigid (Front)&Oscillating (Rear)
Rear Axle Oscillation (°)	± 10°
Differential	Conventional
Main Reducer	Spiral Bevel, 1-stage Reduction
Final Reducer	Planetary Reduction
Tire	23.5-25 L-3 16PR TT
Travel Speed-Forward	11.5/36 km/h
Travel Speed-Reverse	16 km/h
Service Brake	Gas Push Oil Caliper Brake
Setting Pressure	0.70-0.78MPa
Parking Brake	Air Actuated Caliper Brake
Emergency Brake	Air Actuated Caliper Brake
Type	Hydraulic Load Sensing System
Pump	176L/min·2200rpm
System Pressure	15MPa
Cylinder Type	Double Acting
Steering Angle	±35°
Type	Joystick Control (Single-lever)
Pump	220L/min·2200rpm
Control Valve	2 Spool
System Pressure	16MPa
Cycle Time (Sec)	11
Fuel Tank (L)	285L
Hydraulic Tank (L)	270/275(3rd Spool)L
Crankshaft (L)	20L
Transmission (L)	46L
Front Axle/Rear Axle (L)	28L/28L
