7.5m FRB blades rotor Variable pitch wind power generation 10kw system customized
- Category: >>>
- Supplier: Qingdao HenryD Wind Power Equipment Co. Ltd.Qingdao Ltd.
Share on (1601331847742):
Product Overview
Description
HENRYD! 10kw pitch controlled wind turbine with wind power generator for 10kw wind power
system
Wind turbine main body price: USD7200.00
( INCLUDING GENERATOR WITH NACELLE 1set, BLADES 3pcs ,VARIABLE PITCH
HUB,TAIL ONLY)
If you aslo need tower, controller invertor, pls contact with us via e-mail.
Product Description

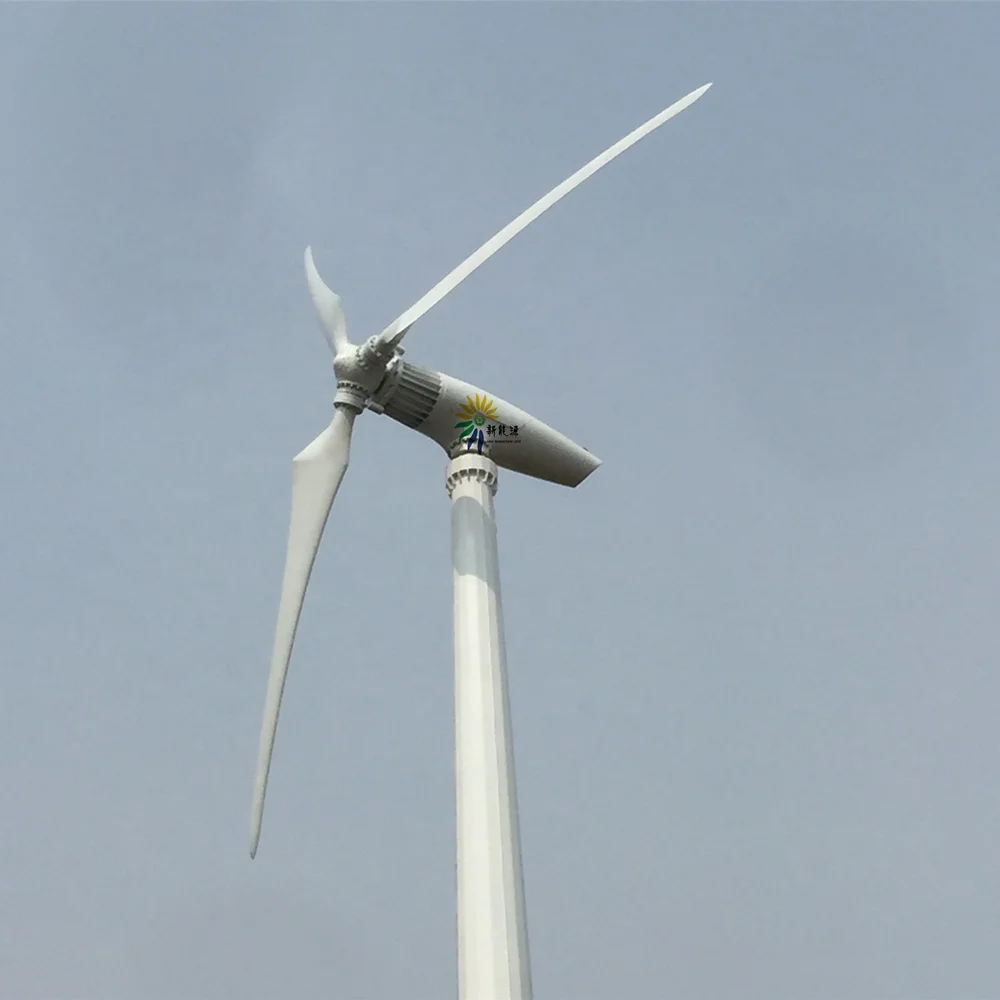

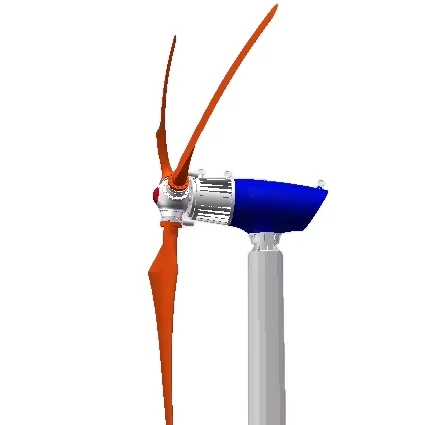

Rich wind place variable pitch wind turbine FD7.5-10kw
Centrifugal variable pitch control, yaw, auto brake, manual brake protection system, more reliable in
rich wind place
Low wind speed start up, pitch regulation, safe system
FD7.5-10kw install in rich wind place;
1. 10kw pitch controlled wind turbine technical data:
| Technical Parameters | |
| Item | FD7.5-10kw |
| Rotor diameter(m) | 7.5 |
| Blade material | Reinforced FPR |
| Blade quantity | 3 |
| Rated wind speed(m/s) | 11 |
| start-up wind speed(m/s) | 3 |
| Working wind speed(m/s) | 3.0-30 |
| Security wind speed(m/s) | 50 |
| Start torque (n/m) | 7N.m |
| Speed regulation method | variable pitch,Electromagnetic brake + Yawing |
| Stop method | Electromagnetic Brake + Manual brake |
| Generator type | Permanent magnet,three phase, AC |
| Rated power | 10KW |
| Maximum power | 13KW |
| Rated rotating speed(r/min) | 200 |
| Working voltage | DC120V/DC240/DC380/DC500v |
| main body weight(kg) | 1200 |
10kw variable pitch wind turbine Output power data:
| Power w | Wind speed (m/s) | Roration speed (r/min) | Output power (W) |
| 10000 | 3 | 66 | 260 |
| 4 | 87 | 515 | |
| 5 | 109 | 902 | |
| 6 | 131 | 1877 | |
| 7 | 153 | 3298 | |
| 8 | 175 | 4924 | |
| 9 | 197 | 7010 | |
| 10 | 218 | 10101 | |
| 11 | 225 | 10507 | |
| 12 | 232 | 10858 | |
| 13 | 251 | 11160 | |
| 14 | 259 | 11350 | |
| 15 | 266 | 11650 | |
| 16 | 274 | 12060 | |
| 17 | 280 | 12380 | |
| 18 | 280 | 12380 | |
| 19 | 280 | 12380 | |
| 20 | 280 | 12380 |
Production Capacity: 100 sets per year
Main market: US, Canada, Australia, New Zealand, European,
Testing Machinery:
Generator platform test
Spring test instrument
Blade angle test platform
Automatic pitch controlled system instrument
Blade balance adjustment instrument
Blade weight center test platform
Turbine turn-to-turn test system
......
CE, ISO,IEC approved
Recommend for

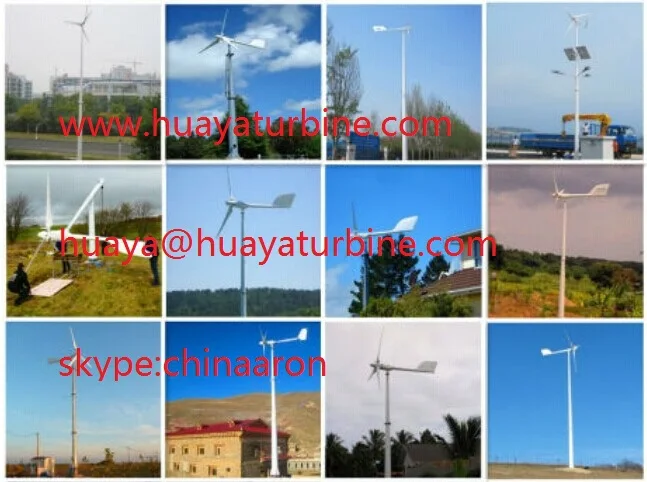

• home, garden, signal station, army, island,farm...
10kw wind power generator can be used with solar panels to provide more reliable year-round energy supply.
3. Pitch controlled element
Rotating speed change of wind rotor drives the centrifugal pitch control mechanism to adjust blade pitch;
wind pressure on wind rotor will reduce, and then wind turbine rotating speed slow down. Close loop
control, reliable regulation.
Pitch control mechanism is sensitive, reliable, and can be used in variable environments.
Wind turbine start up: keep a big blade pitch, start up with 3m/s wind speed;
Wind turbine start to run: reduce blade pitch step by step, better for speedup;
4-12m/s wind speed: regulate the optimum blade pitch to keep the max output power of wind turbine;
Encountering to strong wind: adjust blade pitch into negative angle to keep rotating speed within limits;
Manual stop: operate manual winch to adjust blade pitch into negative angle, blade will lose it
aerodynamics, start mechanical brake to stop wind turbine.
4. 10kw pitch controlled wind turbine advantages
1.) Leading centrifugal pitch control technology
5kw pitch controlled wind turbine, centrifugal pitch controlled mechanism of Wind turbine adjusts blade
pitch following wind rotor rotating speed, and keep wind turbine at rated rotating speed. The wind turbine
has a stable output power and safe running and is maintenance free.
2.) Auto protection system: APS System
Auto protection system, is selfdeveloped system. When wind speed is over 30m/s or output votlage is
over rated, protection system will stop wind turbine, when wind speed is suitable, it will release wind
turbine again
3.) Blade technology:
Choose aerofoil through wind tunnel test, optimize design according to aerodynamics, self design and manufactured blade. 5kw wind turbine blade has high efficiency and wide TSR. It is approved by relating
dept and all of the users.
Vacuum mould blades with protection film
C.W blades, low noise level, high efficiency

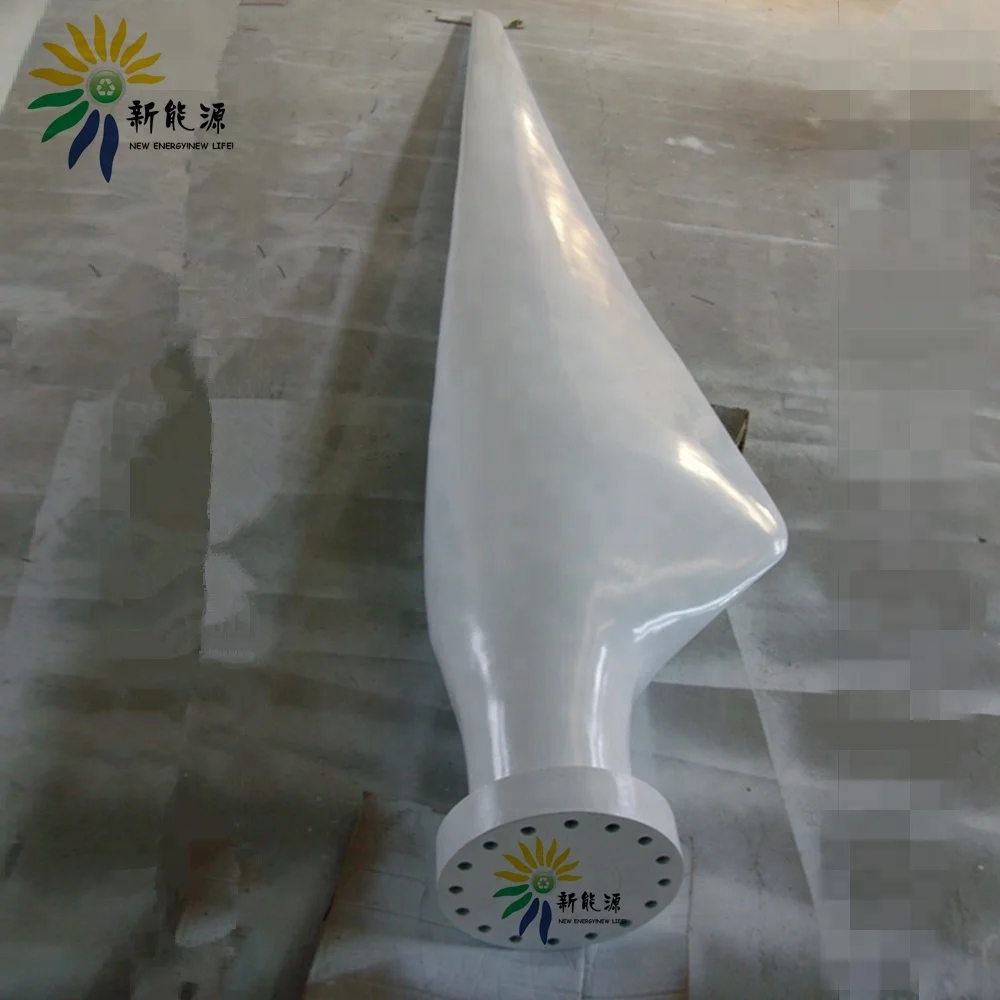

FRB material, 3 pcs blades per set
Adjust blades rotor balance before delivery

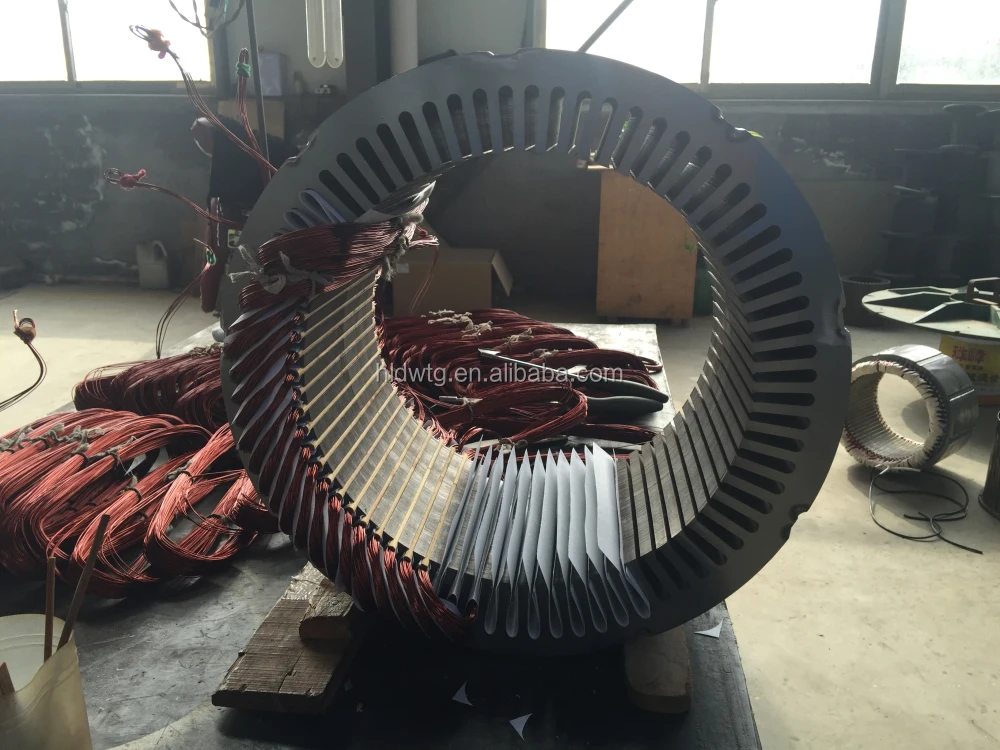

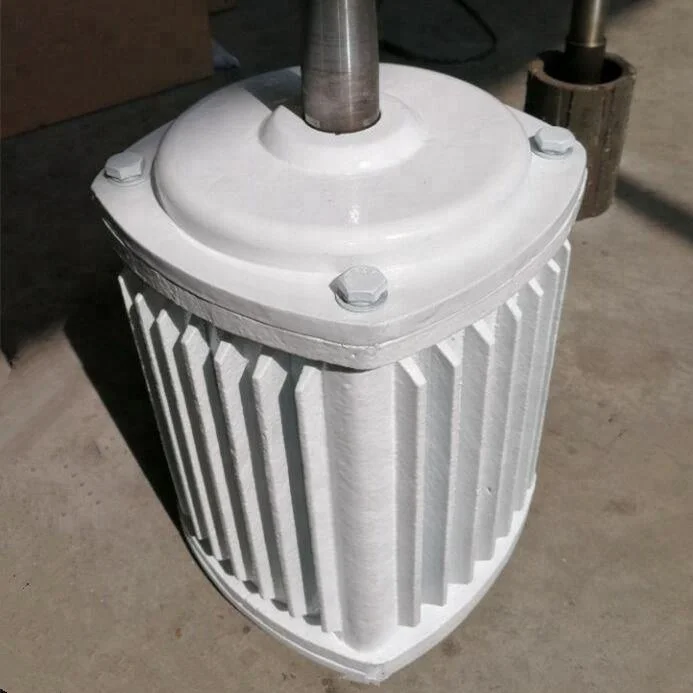

4.) Generator technology:
Direct drive, wind rotor matches PM generator in optimum TSR High efficiency, low start-up torque.
Allow continuous running in over speed and over load condition 1.5 times of rated speed and power
Maintenance free
5.) Installation technology:
tilt-up tower, particular patent technology, save installation cost
6.) 30% more electricity generated
5kw pitch controlled wind turbine double-grade pitch controlled system not only guarantees optimum
efficiency of wind rotor, wind turbine safety and steady output power when the wind speed is higher
than rated wind speed, but also makes sure the system can trace the optimum tip speed ratio when
the wind speed is lower than rated wind speed to make the wind turbine easy startup, good wind rotor
efficiency and more power generation at low wind speed zone.
7.) Multiple protection measures
Leading eadge protection finishing:reduce 10% wind rotor noise, good anti-corrosion capability, prolong
service life effectively

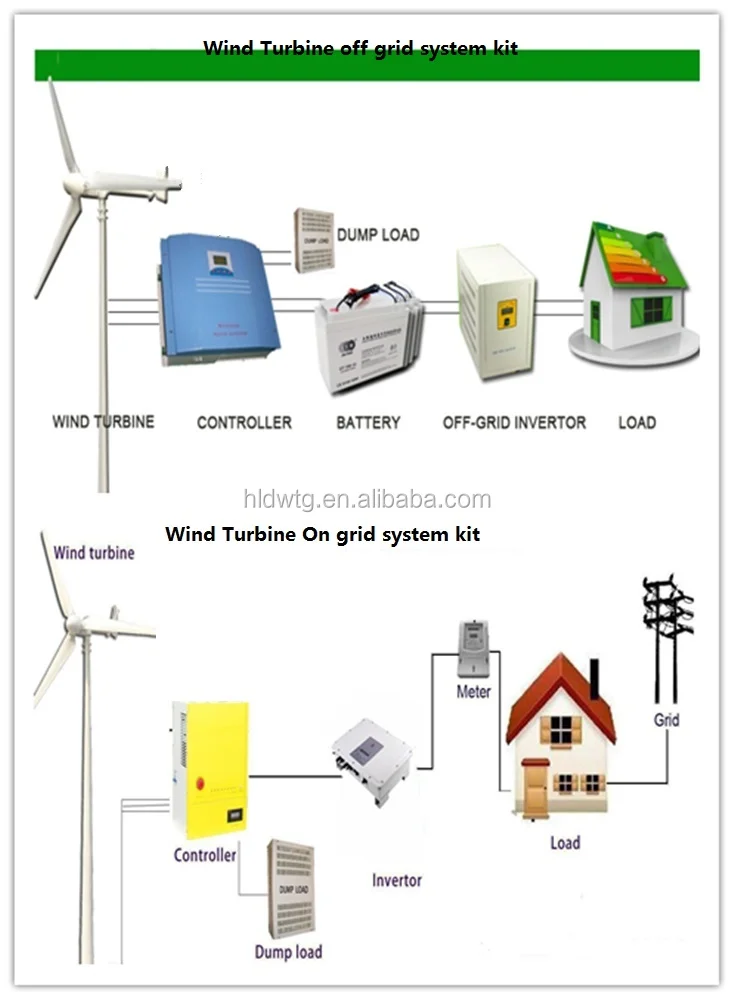

5. Working system
On grid working system:
10kw wind turbine with tower + PWM on grid controller with dump load + 10k/15 grid tie inverter;
On grid system wiring diagram
Off grid working system:
10kw wind turbine with tower + PWM off grid controller with dump load+ battey group + pure sine wave
inverter

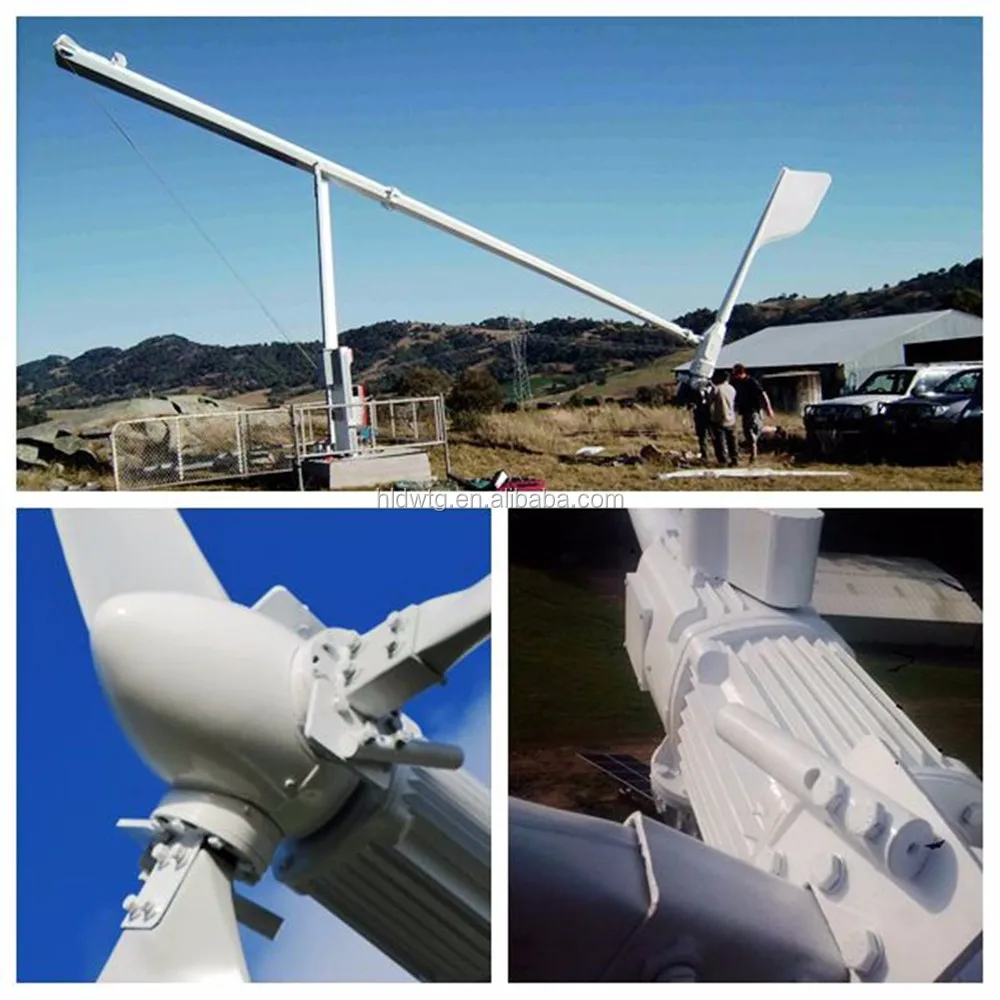

6.Tower type: guy wire tower, stand lone tower, tilting up tower, hydraulic tower
(optional)
Tower height can be manufacture according to user's request.
The tower with hot-galvanize.
We provided the tower foundation drawing after confirm the tower type, tower height.

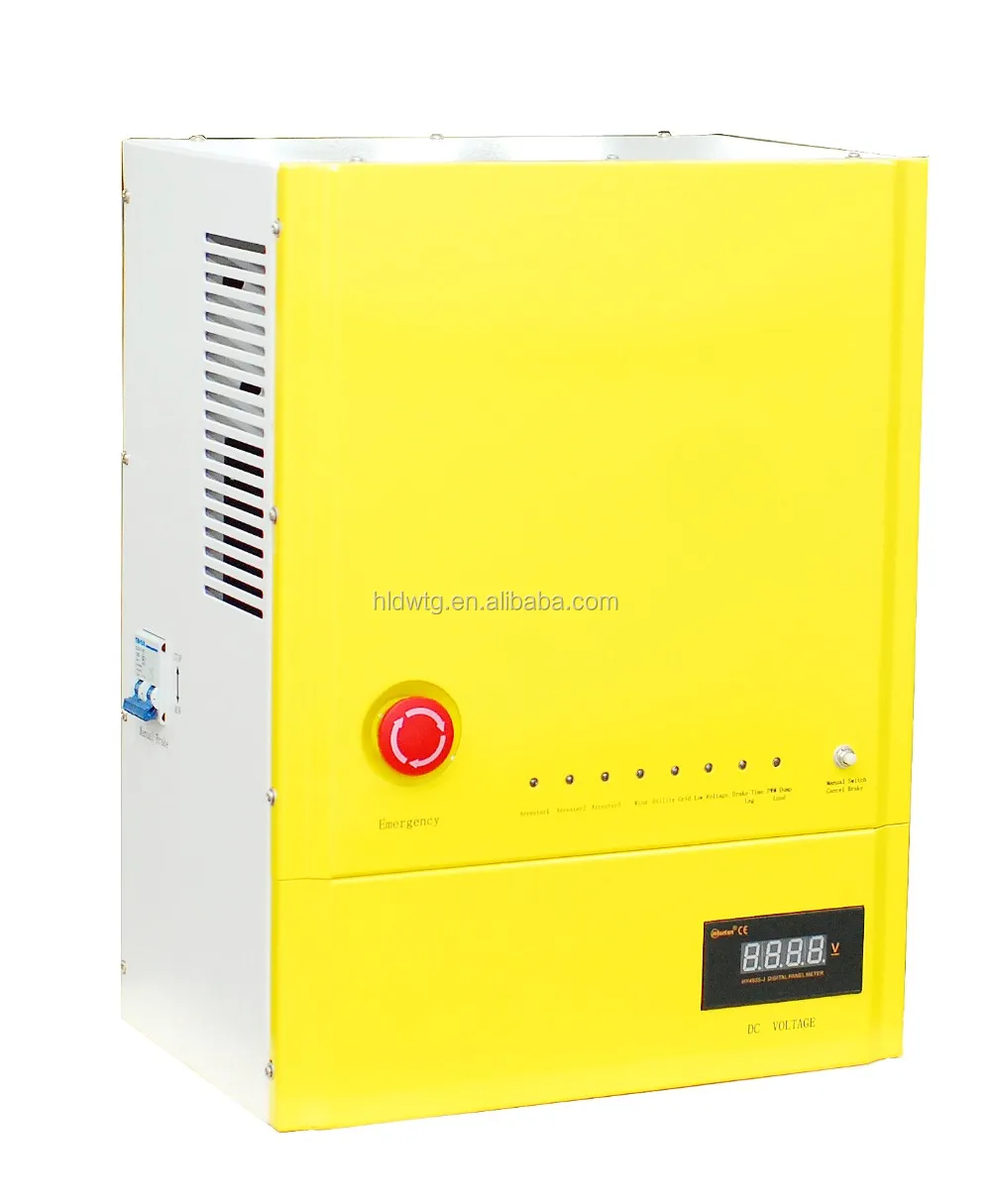

7. Matched controller
Controller converts 3 phase AC power to Dc and charge to the battery group or feed to the grid tie
inverter.
Controller with auto brake function, PWM voltage stablization function.
Matched with off grid single phase/ 3 phase pure sine wave inverter.
On grid system grid tie inverter ABB power one inverter, our provided grid tie inverter.
10KW ON GRID controller normal spec:
Type | 10KW |
Wind turbine rated power | 10KW |
Wind turbine Max. power | 20KW |
Function | Rectifier, control, dc output |
Display mode | LCD |
Display content | Wind turbine voltage, wind turbine current, wind turbine power, Solar panel voltage, solar panel current, solar panel power, DC output voltage, output current, output power |
PWM constant voltage | ≥480dc |
3-phase dump load voltage of the wind turbine | 560±5Vdc |
Time-lapse of the wind turbine 3-phase dump load | 12-20 min |
Low-voltage | ≤200Vdc |
PWM dump load fuse | 32A |
DC output fuse | 40A |
Work environment temperature | -30-60°C |
Relative humidity | <90% No condensation |
Noise (1m) | <40dB |
Degree of protection | IP20(Indoor) |
Cooling method | Forced air cooling |
*Communication interface (optional) | RS485/USB/GPRS/Ethernet |
*Temperature compensation (optional) | -4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C |
Size of the controller | 655*480*320 mm |
Weight of the controller | 26Kg |
Size of the dump load | 760*520*550 mm |
Weight of the dump load | 38Kg |

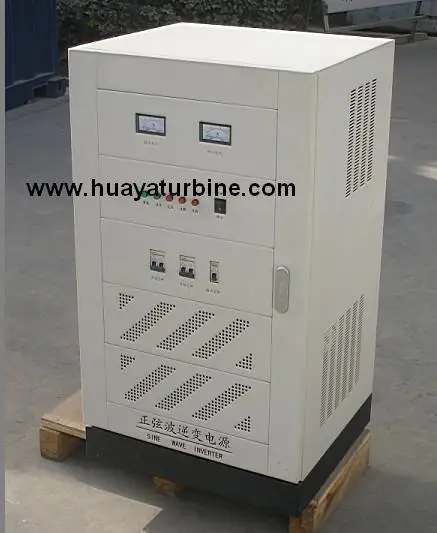

8. Matched grid tie inverter 10k/15k, pure sine wave inverter single phase/ 3 phase

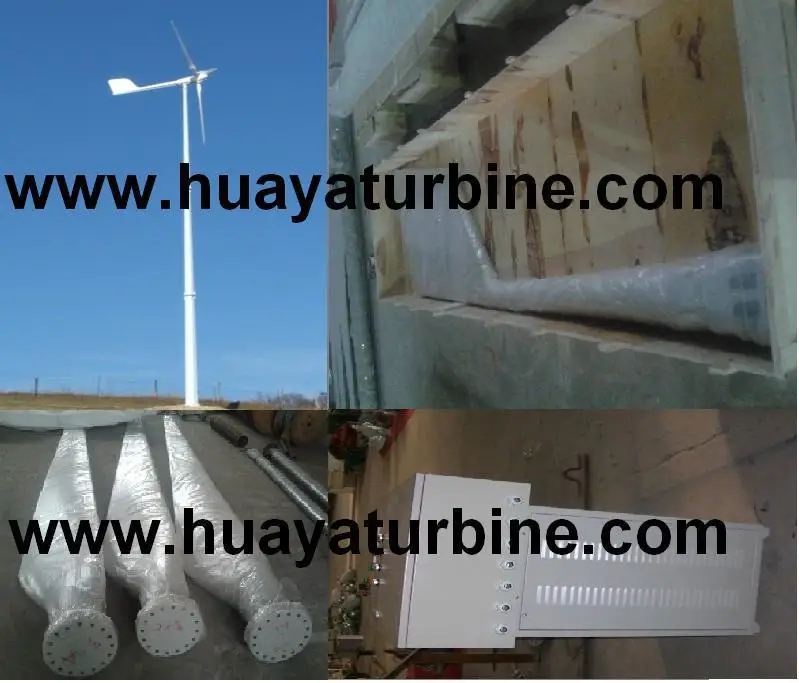

Packaging & Shipping
| Item | Description | Packing | G.W(Kg) | ||
| Packing method | outside size(m) | ||||
| 1 | Hub,nose cone and under cover | plywood box | 0.68*0.71*0.77 | 48 | |
| 2 | Generator/rotor body | plywood box | 2.06*1.14*0.72 | 670 | |
| 3 | Blades | plywood box | 3.58*0.59*0.42 | 140 | |
| 4 | Tail vane | Tail vane plate | plywood box | 2.08*1.28*0.32 | 270 |
| Tail vane frame | |||||
| Giant-shaped steel & others | |||||
| 5 | Tail rod | soft package | 3.3*0.54*0.14 | 75 | |
| 6. | On grid controller | carton | 0.570*0.550*0.330 | 26.5 | |
| 7. | Unload box | carton | 0.770*0.550*0.460 | 34.5 | |
| TTL: | 4.35 | 1264 | |||
Normally we delivery the products by sea. If you need us check the delivery cost,
pls let us know the destination port to you. Then we will check the delivery cost accordingly.
Our Services
Provide professional wind turbine technical support;
Provide on/off grid system design, wind solar hybrid system design service.
Completely system provider and designer;
Wind turbine type, model, capacity selection professional support;
Tower design, foundation drawing support;
Provide Pma, hub, flange drawing;
Provide OEM service, customized service.
Support paypal /west union payment, TT payment;
Company Information
We started to manufacture wind turbine in 1994. In 2004, there are only 4 small wind turbine manufactures
in China. We keep improving and develop in the small wind turbine field. We are not the leading small wind
turbine exporter, but we are the leading wind turbine manufacture and designer now.
We manufacture 300w-30kw fixed pitch wind turbine;
2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 60kw pitch controlled wind turbine;
1kw, 2kw, 3kw, 5kw Vertical axis wind turbine;
On grid system/off grid system, wind solar hybrid system; Water heating system;
For more details, pls contact with us via e-mail.
Ce, IEC, CNACL, truck test.
Workship, office building,stock...
