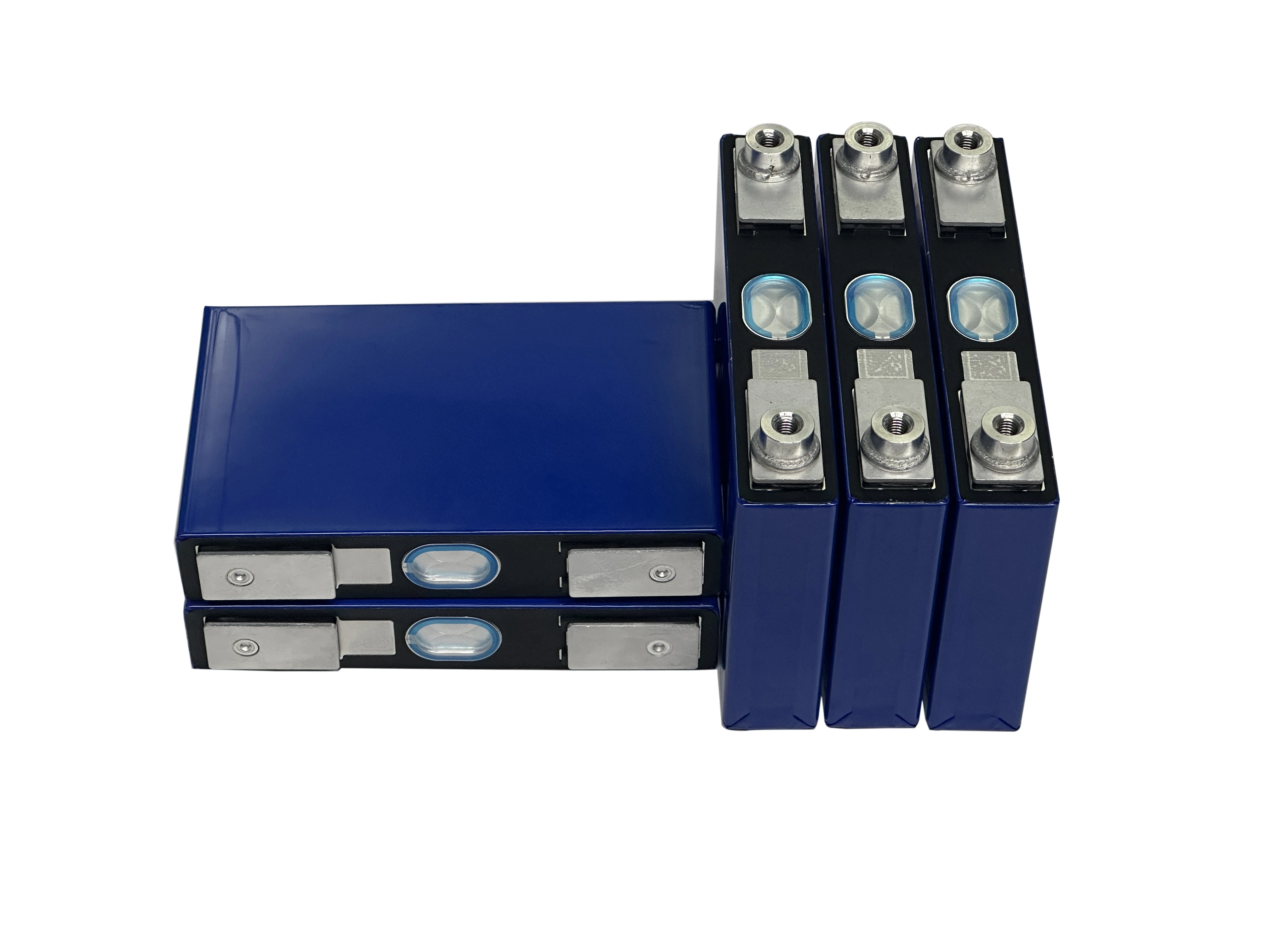

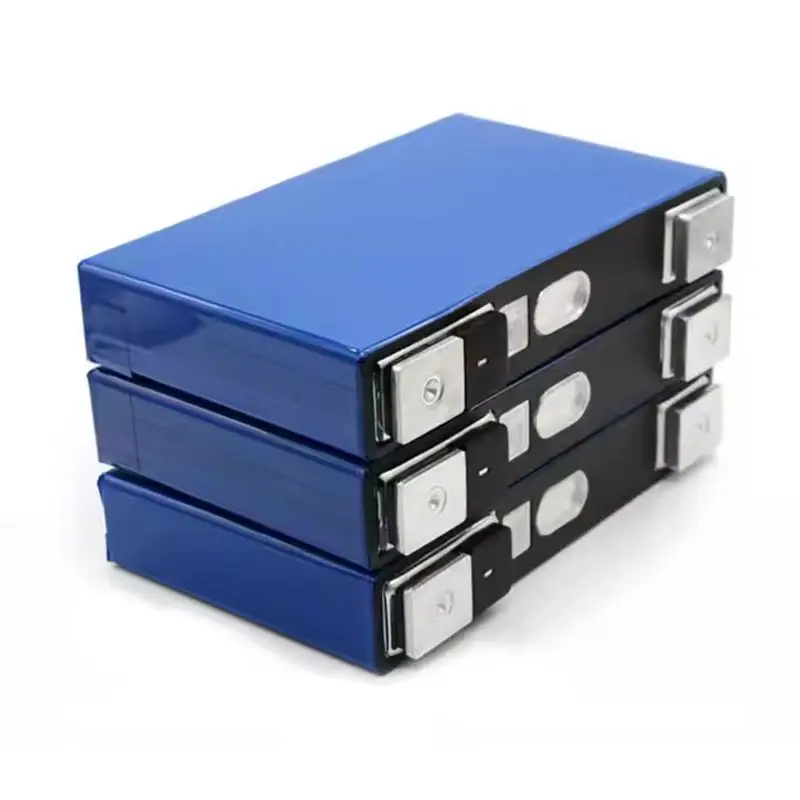

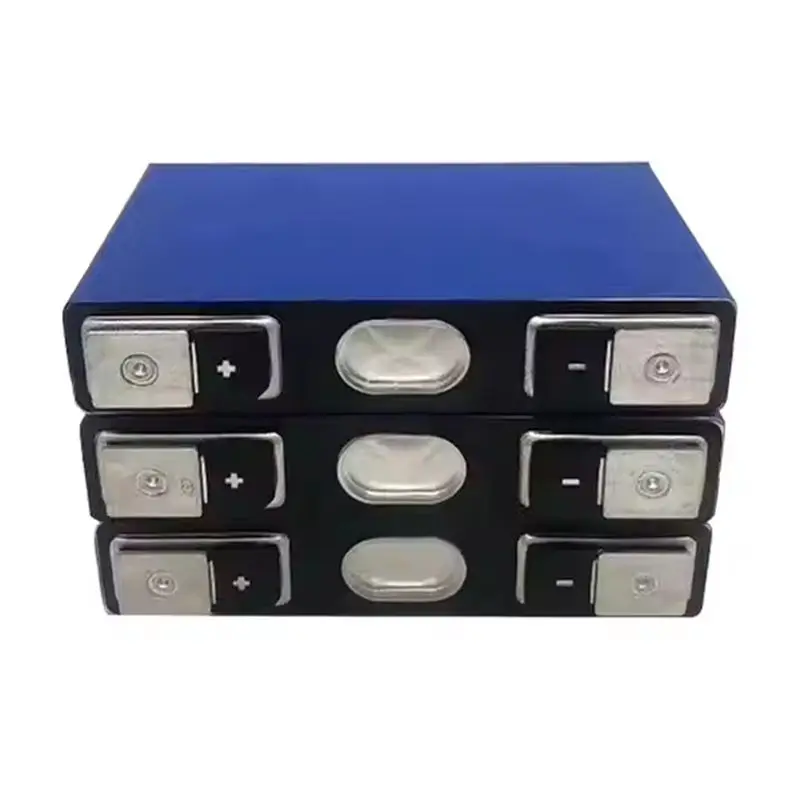

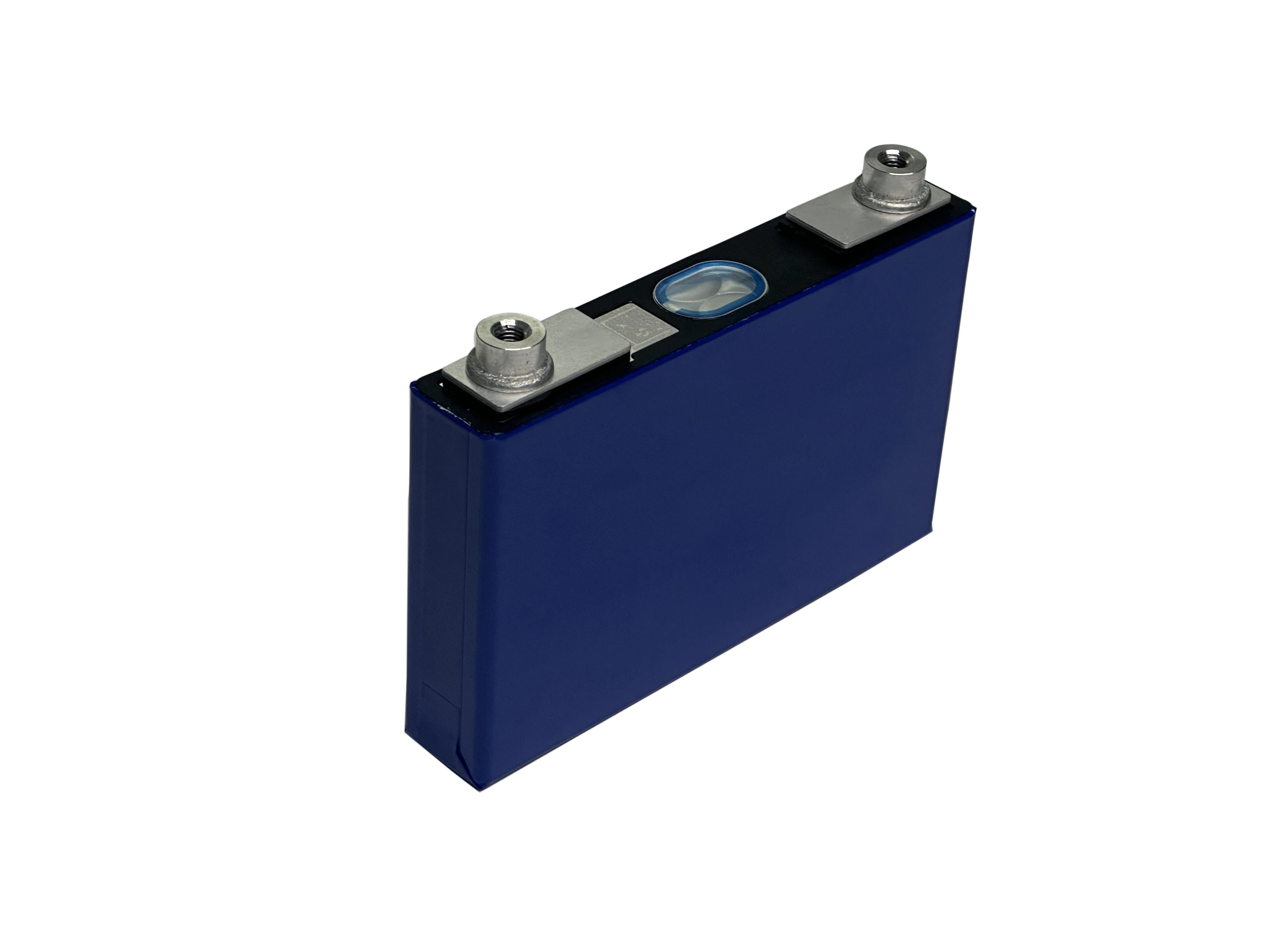

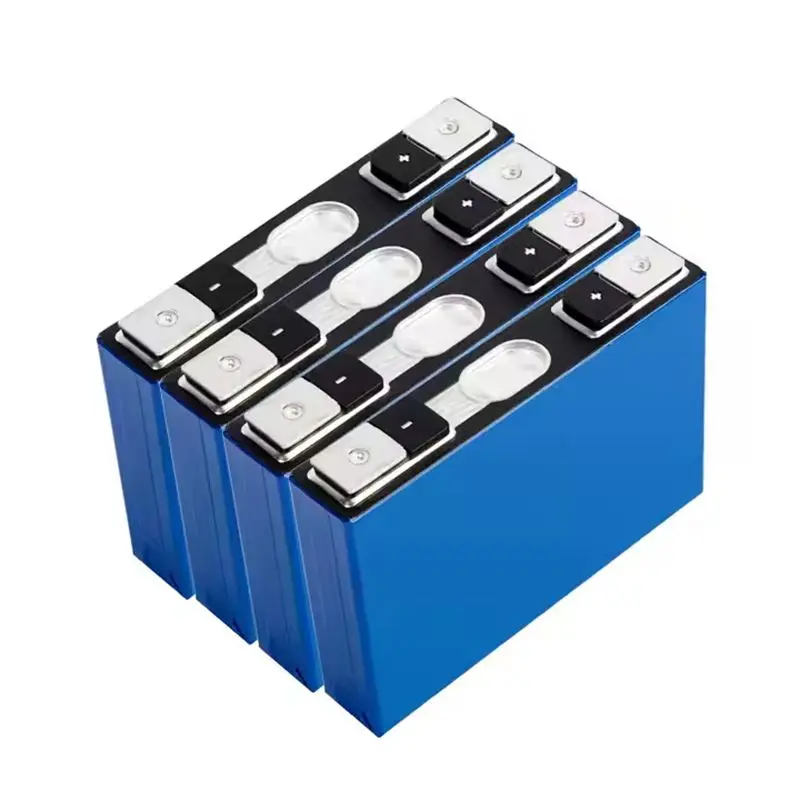

HIgh Quality NMC 3.7V 60Ah 51Ah 53Ah Prismatic Lithium ion Battery NCM Cells Lithium Ion Batteries Power Application
- Category: >>>
- Supplier: Shenzhen OSN Power Tech Co. Ltd.Shenzhen Ltd.
Share on (1601331862004):
Product Overview
Description
Product Description
Highlights
Compared with traditional AGM/lead acid batteries, LiFePO4 battery/ Lithium iron phosphate batteries are:
* Higher safety and stability：non-toxic, non-polluting, no rare earth metals, no explosion, no fire.
* Long service life：10 times lifespan extended to 2000-4500 cycles.
* 1/4 lighter than lead-acid batteries.
* The LFP battery can work in a wide temperature range from -20 to +75°C
* No memory effect. Can be charged on demand without loss of capacity.
* Suitable for RV, ship, home storage, telecommunication (base station battery)
* High energy density up to 1C-110A discharge
* Higher safety and stability：non-toxic, non-polluting, no rare earth metals, no explosion, no fire.
* Long service life：10 times lifespan extended to 2000-4500 cycles.
* 1/4 lighter than lead-acid batteries.
* The LFP battery can work in a wide temperature range from -20 to +75°C
* No memory effect. Can be charged on demand without loss of capacity.
* Suitable for RV, ship, home storage, telecommunication (base station battery)
* High energy density up to 1C-110A discharge
Specification
Material | NCM Lithium Battery |
Model | 60Ah |
Nominal Voltage | 3.7V |
Capacity | . 60Ah |
Charging Current | · Standard Charging: 30A (0.5C rate) |
· Max. Charging: 60A (1C rate) | |
Max. Discharging Rate | · Continuous Discharging: 60A(1C) |
· Max. Discharging: 180A(3C) | |
Cut-off Voltage | · Charging: 4.20V |
· Discharging: 2.75V | |
Internal Resistance | ≤ 0.7mΩ (At 0.2C rate, 2.0V cut-off) |

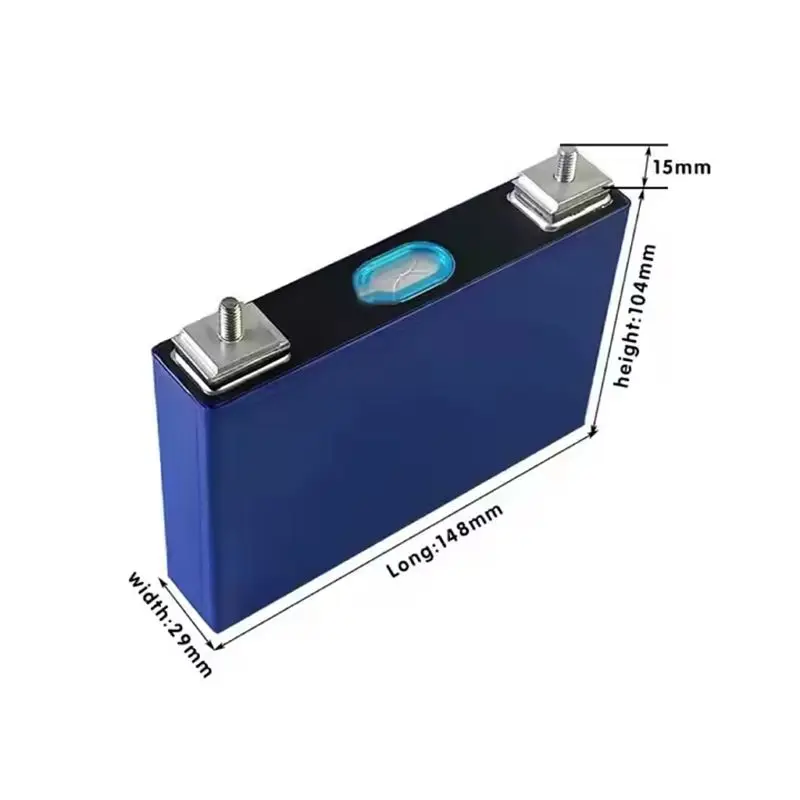

Dimensions | 148*29*102(mm) |
Weight | 0.95±0.02KG |
Terminal | M6 Laser Welded Studs Or customized |
Working Temperature | · Charging: 0℃~45℃ |
· Discharging: -20℃~60℃ | |
Storage Temperature | · ≤1month: -10–45℃ |
· ≤3month: 0–30℃ | |
· ≤6month: 20±5℃ | |
Life Cycle | >2500 times (80% of initial capacity at 0.5C rate, IEC Standard) |
Application
Application
Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
Electric Performance Curve

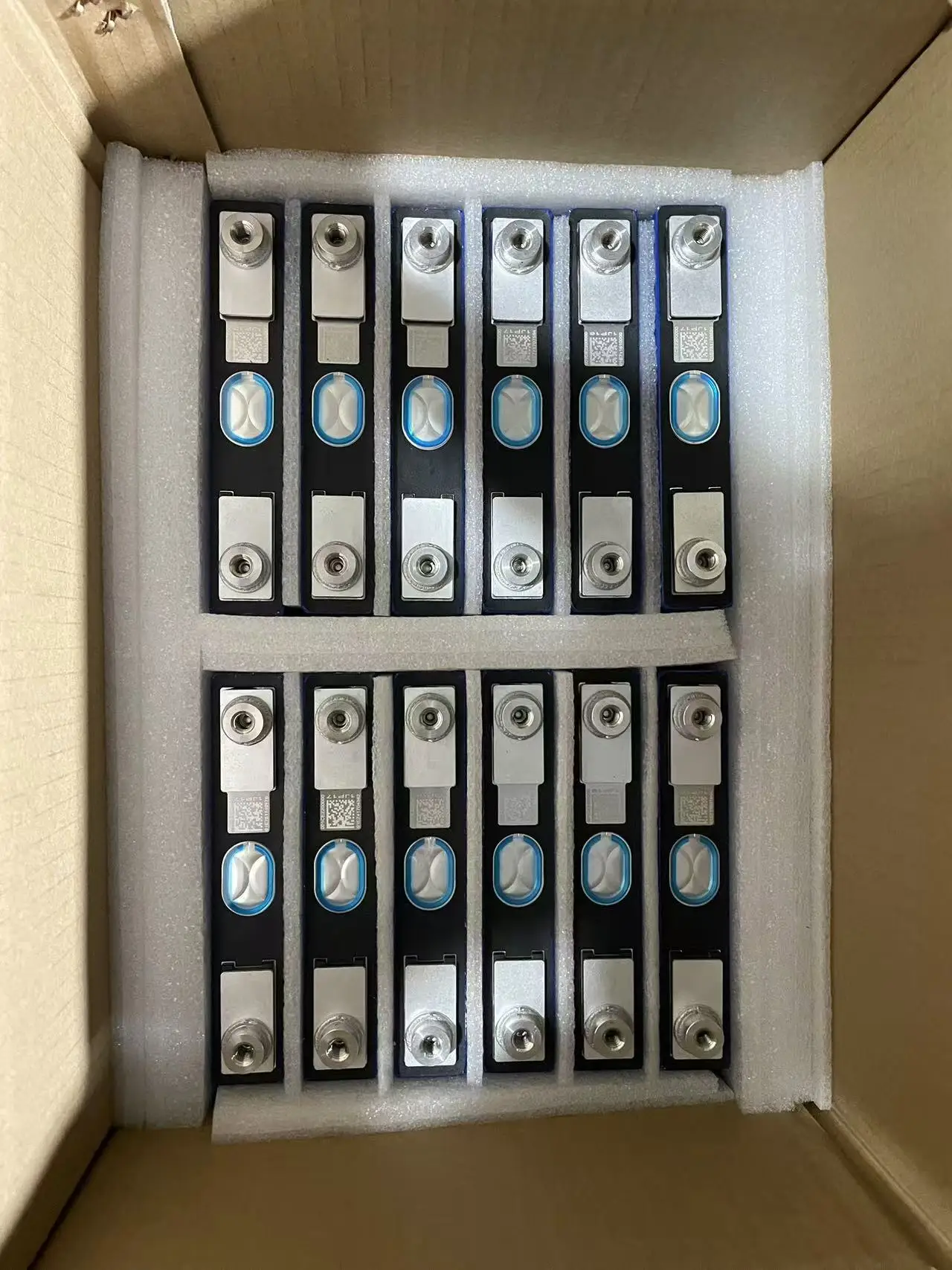

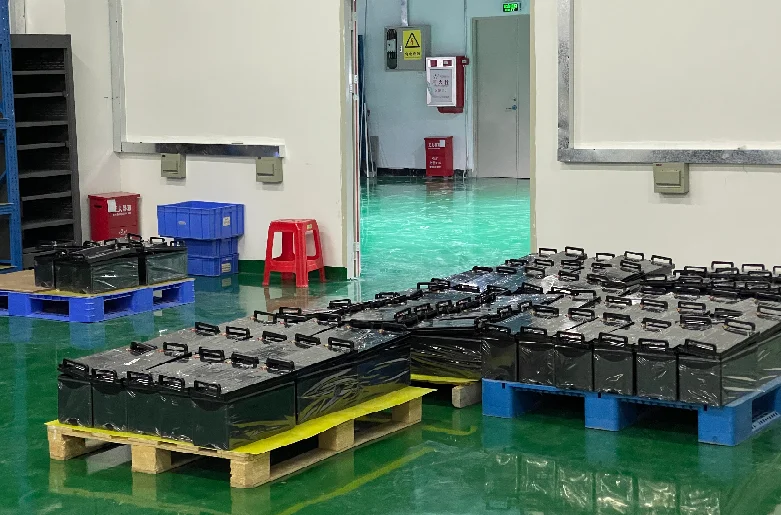

Packing & Delivery

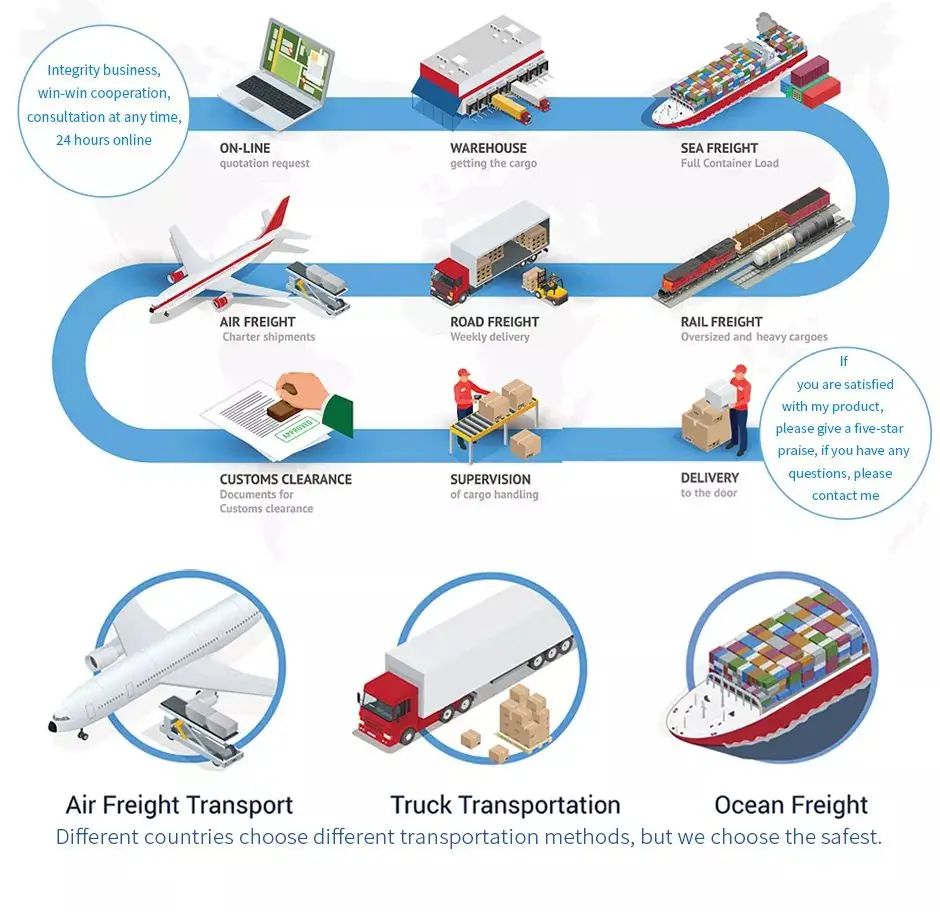

We offer a variety of shipping methods: sea, land, air.

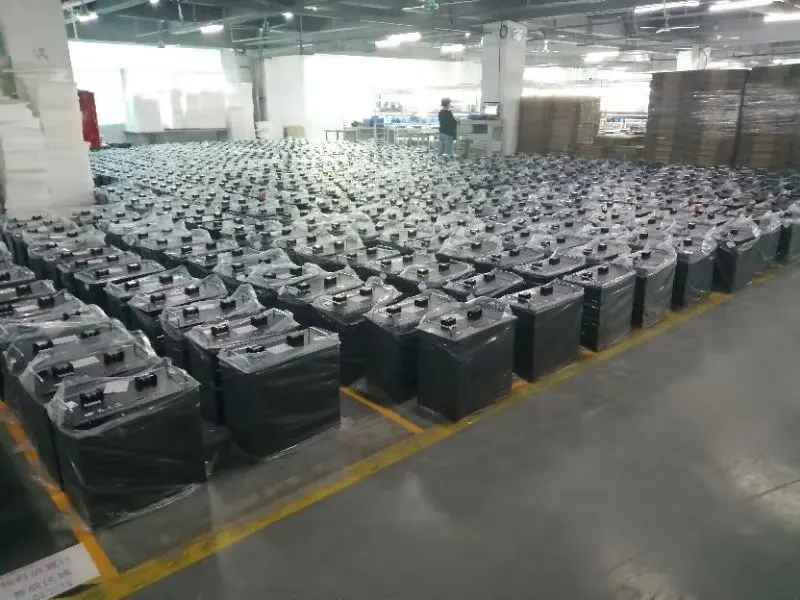

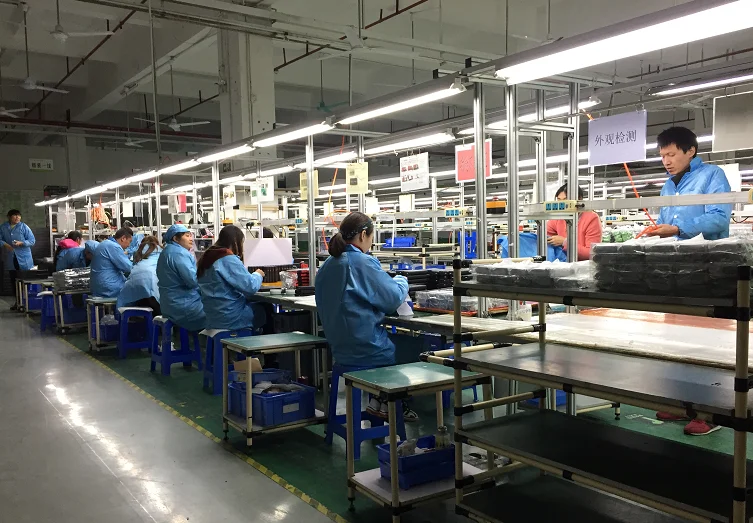

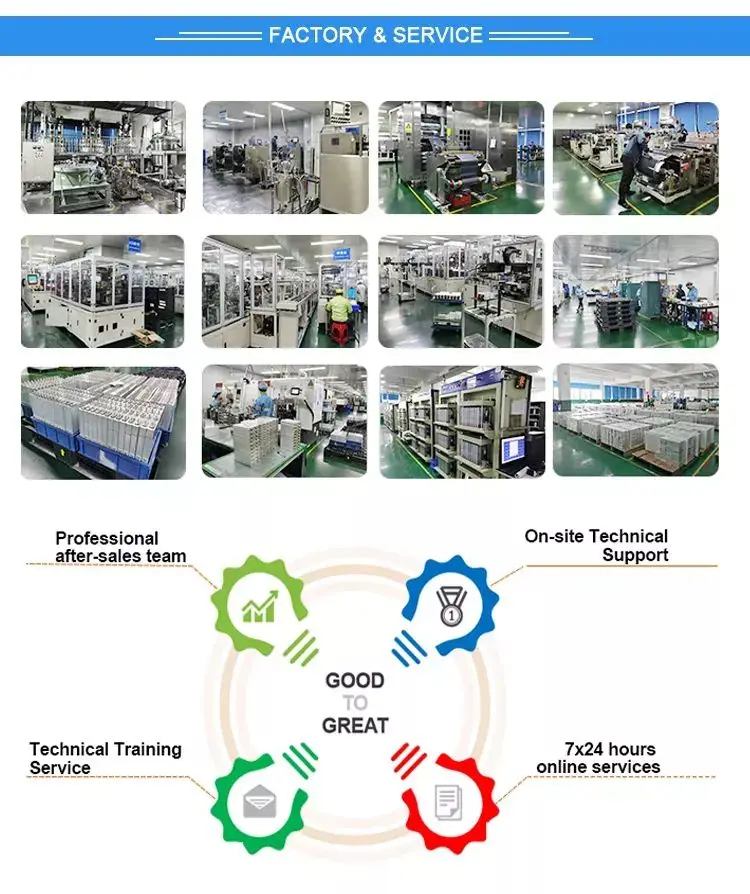

Company Profile
OSN Power Energy Limited (website www.osnpower.com) has grown to the leading manufacturer of lithium battery packs with 10 years of experience. We boast of more than 300 trained workers,36 experienced engineers and technicians in lithium battery R&D solution and efficient sales teams to meet customers specific battery requirement Power Tech Limited develops and manufactures high power and superior performance N C M/ L F P /L T O lithium-ion battery packs which are widely used in electric bikes,electric-scooters,motorcycles,energy storage system.Especially in high-end smart e-scooter field,we supply battery packs for stable demands of customers from all over the world.We cooperate with customers from all over the world,providing total solutions for the customers from project evaluation,design,production,inspection,logistics,insurance to after-sales services.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2008,sell to Western Europe(40.00%),North America(40.00%),Southeast Asia(10.00%),South America(4.00%),Eastern Europe(4.00%),Africa(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lithium Batteries
4. why should you buy from us not from other suppliers?
Shen Zhen OSN POWER Tech limited is a modern enterprise that specializes in lithium battery developing and manufacturing in China.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2008,sell to Western Europe(40.00%),North America(40.00%),Southeast Asia(10.00%),South America(4.00%),Eastern Europe(4.00%),Africa(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lithium Batteries
4. why should you buy from us not from other suppliers?
Shen Zhen OSN POWER Tech limited is a modern enterprise that specializes in lithium battery developing and manufacturing in China.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese
