High RPM 24V/48V/96V Electric Power Generator Low Noise Horizontal Wind Turbine 800w 1kw 3kw for Home Use
- Category: >>>
- Supplier: Nantong R&x Energy Technology Co. Ltd.Nantong Ltd.
Share on (1601331886324):
Product Overview
Description
You May Like
Products Description
High RPM 24V/48V/96V Electric Power Generator Low Noise Horizontal Wind Turbine 800w 1kw 3kw for Home Use
compared to vertical wind turbines.
2. Lower Cost: Horizontal-axis wind turbines are much more widely used and mass-produced,
which leads to lower manufacturing costs.
which leads to lower manufacturing costs.
3. Compatibility with existing infrastructure: Horizontal-axis turbines are more easily
integrated into existing power grids and infrastructure since they generate power in the same way as traditional power plants.
integrated into existing power grids and infrastructure since they generate power in the same way as traditional power plants.
4. Simpler Maintenance: Horizontal-axis wind turbines have a simpler design and require less maintenance when compared to vertical-axis turbines.
Overall, horizontal wind turbines provide greater efficiency, power output, and lower maintenance costsmaking them a more cost-effective and practical option for widespread deployment.
Product Parameters
Model | RX-600M | RX-800M | RX-1000M | RX-1200M | RX-1500M | RX-2000M | RX-3000M | ||||||
Rated Power | 600W | 800W | 1000W | 1200W | 1500W | 2000W | 3000W | ||||||
Max Power | 650W | 850W | 1050W | 1500W | 2000W | 2500W | 3500W | ||||||
Blades Length | 750mm | 810mm | 900mm | 950mm | 1000mm | 1080mm | 1150mm | ||||||
Wheel Diameter | 1550mm | 1750mm | 1830mm | 1950mm | 2100mm | 2300mm | 2400mm | ||||||
Blades Quantity | 3/5 | 3 | 3 | 3 | 3 | 3 | 3 | ||||||
Rated Voltage | 12/24/48V | 12/24/48V | 24/48V | 24/48/96V | 24/48/96V | 24V-120V | 48V-120V | ||||||
Start Up Speed | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | ||||||
Rated Speed | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | ||||||
Cut-in Speed | 3m/s | 3m/s | 3m/s | 3m/s | 3m/s | 3m/s | 3m/s | ||||||
Survival Speed | 45m/s | 45m/s | 45m/s | 45m/s | 45m/s | 45m/s | 45m/s | ||||||
Blades Material | Nylon fiber | ||||||||||||
Generator Type | Three Phase Permanent Magnet Generator | ||||||||||||
Working Temperature | -80℃~+80℃ | ||||||||||||
Protection Level | IP54 | ||||||||||||
Working environment humidness | ≤90% | ||||||||||||
Altitude | ≤4500m | ||||||||||||
Tower Type | Guyed Cable Tower | ||||||||||||
Overload Protection | Electromagnetic Brake | ||||||||||||
Gross Weight | 15kg | 16.5kg | 26kg | 38kg | 40kg | 45kg | 50kg | ||||||
Packing List(cm) | 24*42*94 | 24*42*95 | 32*42*122 | 34*135*44 | 34*135*44 | 34*135*44 | 34*135*44 | ||||||

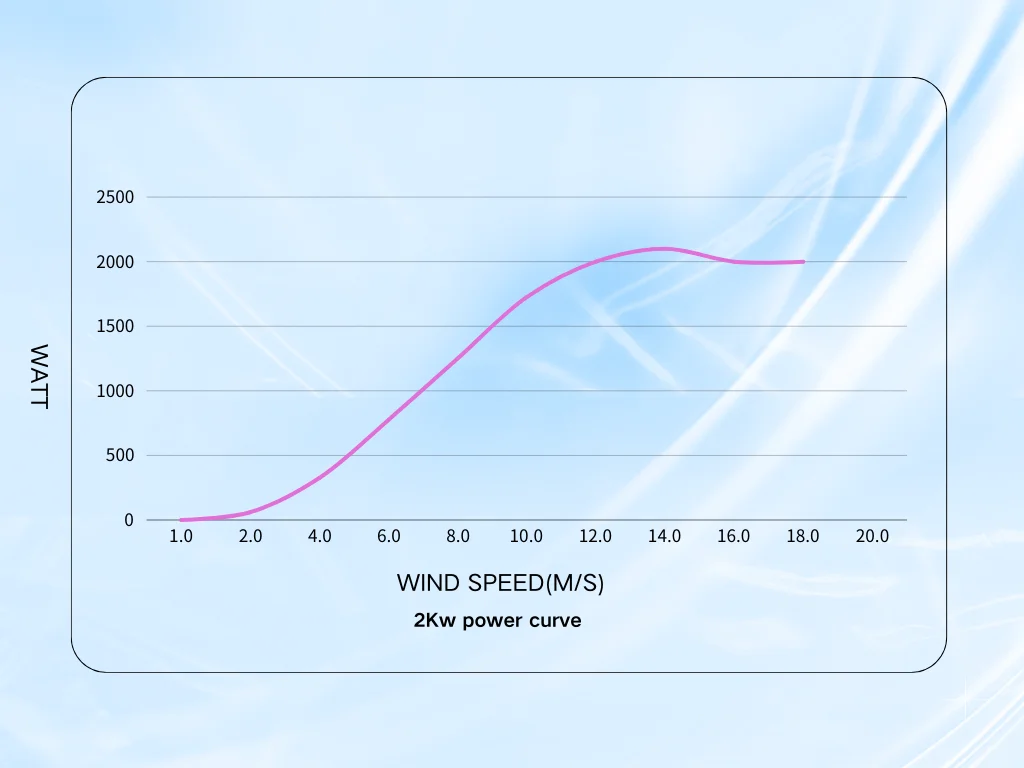

Power Curve

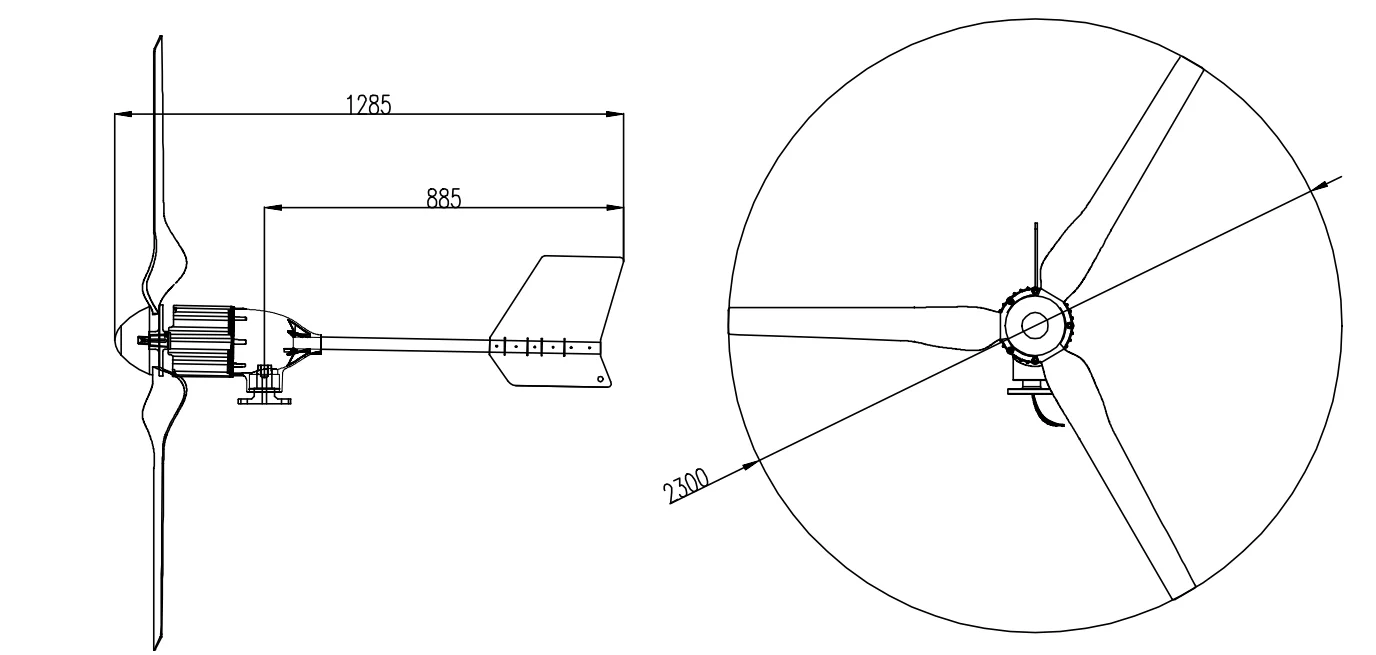

Drawing
Details Images
What's Difference With HAWT And VAWT
The main difference between horizontal and vertical wind turbines is their orientation relative to the wind direction.
Horizontal wind turbines have an axis that is parallel to the wind, while vertical wind turbines have an axis that is perpendicular to the wind.
This affects their design, performance, and application in various ways.
Some of the advantages of horizontal wind turbines are:
1. They are more efficient and can capture more wind energy than vertical wind turbines
2. They can be installed on higher
towers to access stronger and more consistent winds
towers to access stronger and more consistent winds
3. They are more widely used and have more research and development support than vertical wind turbines
Some of the disadvantages of horizontal wind turbines are:
They can cause noise and visual pollution, as well as pose a threat to birds and bats
Some of the advantages of vertical wind turbines are:
1. They are omnidirectional and do not need to face the wind direction to operate
2. They can operate in lower and more turbulent winds, making them suitable for
urban and residential areas
urban and residential areas
3. They have have very low noise
Some of the disadvantages of vertical wind turbines are:
1. They are less efficient and can capture less wind energy than horizontal wind turbines
2. They have lower rotational speeds and torque, which limits their power output
Connection Diagram
