AAAC All Aluminium Alloy Conductor Overhead Cable NFC 34125 Insulated and Bare Power Transmission Cable
- Category: >>>
- Supplier: KINGYEAR INC.KINGYEAR INC.
Share on (1601331898331):
Product Overview
Description
Why Choose Us
Products Description
Applications
AAAC Aluminum Alloy Conductor is Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio; affords better sag characteristics. Aluminum alloy gives higher resistance to corrosion than ACSR.

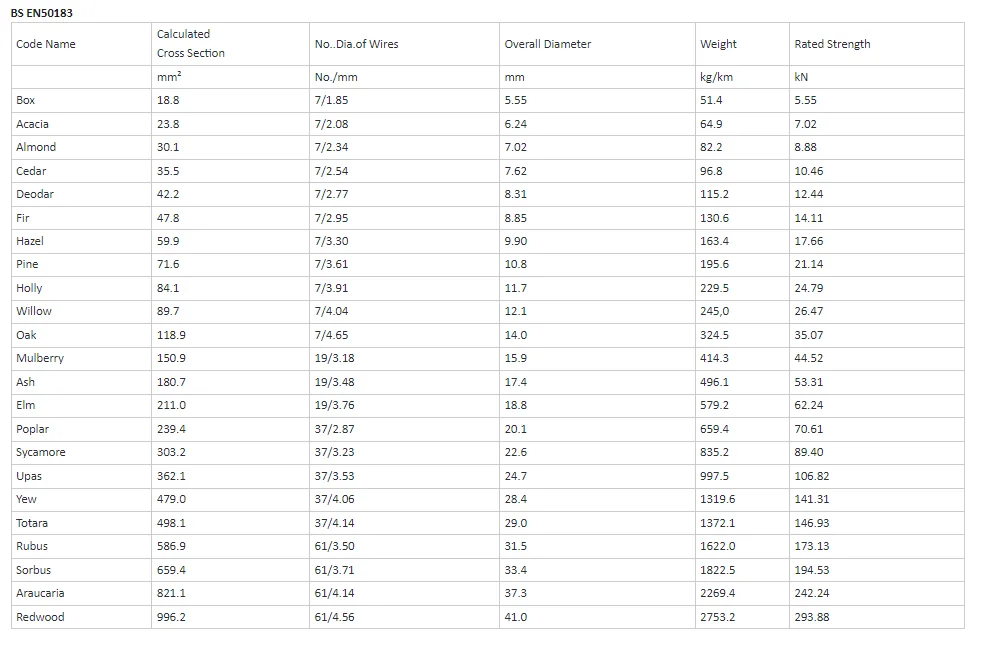

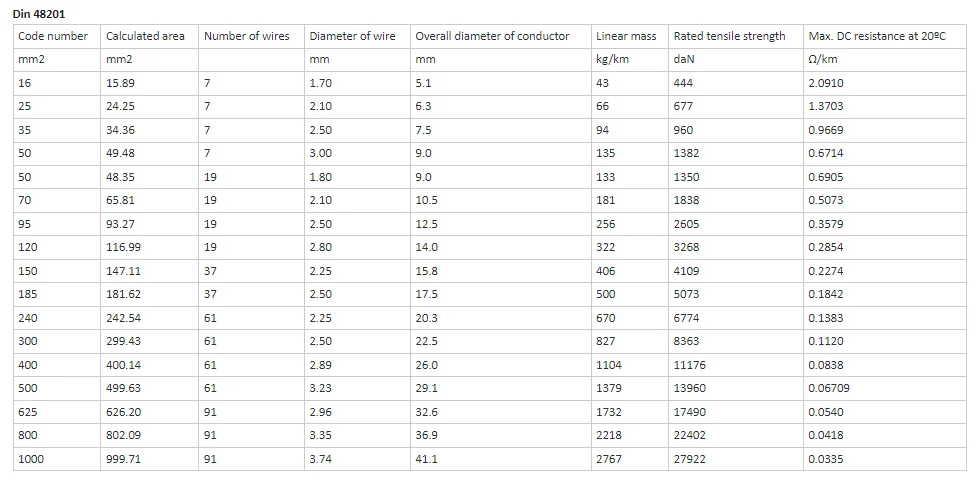

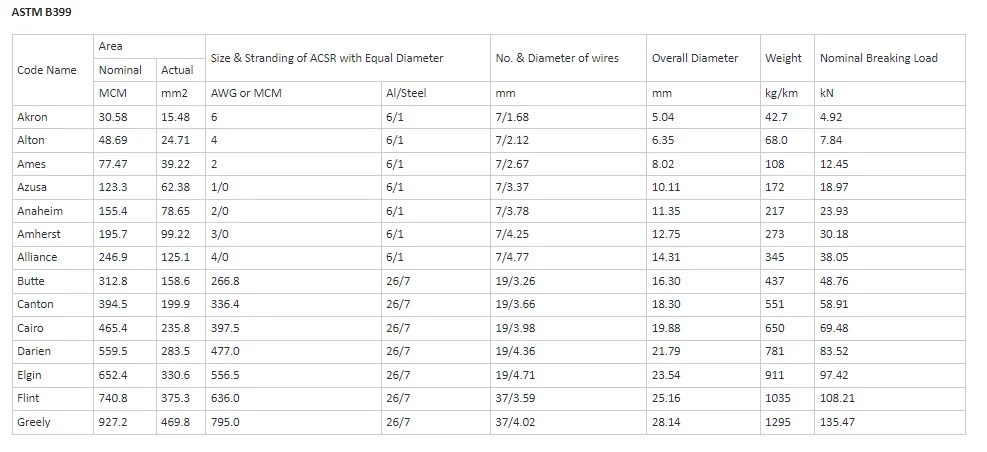

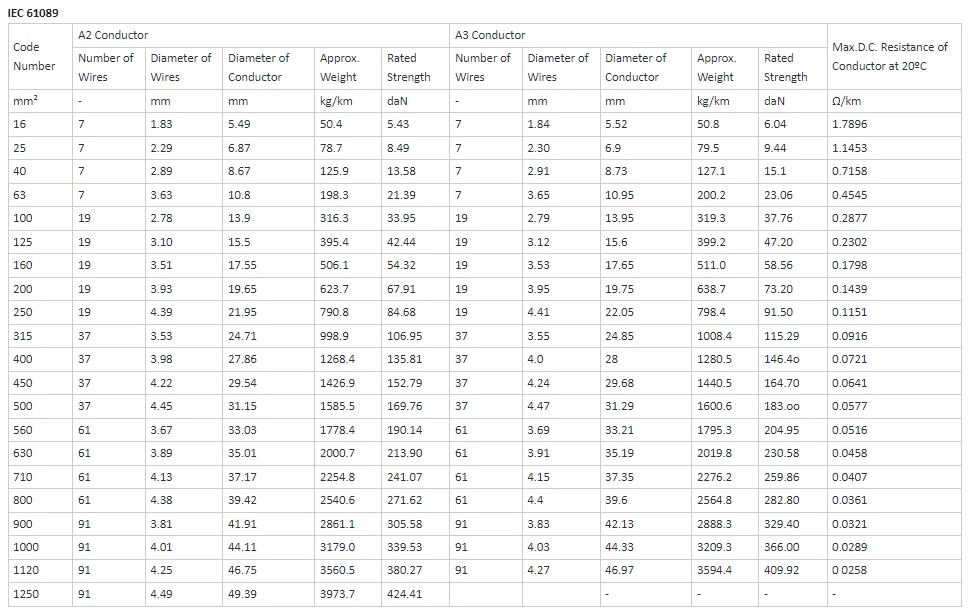

Specification
Physical contents of aluminum alloy :-
1. Resistivity - 0.03284 Ohms mm2/m at 20°C
2. Density - 2.70 kgm/dm3 at 20°C
3. Coefficient of Linear Expansion - 23 x 10-6 / °C
4. Constant Mass Temperature Coefficient (a) - 0.00360/ °C
5. Material - Heat treated Al. Mg. Si. Alloy
- Approximately 0.5% Mg & 0.5% Si
1. Resistivity - 0.03284 Ohms mm2/m at 20°C
2. Density - 2.70 kgm/dm3 at 20°C
3. Coefficient of Linear Expansion - 23 x 10-6 / °C
4. Constant Mass Temperature Coefficient (a) - 0.00360/ °C
5. Material - Heat treated Al. Mg. Si. Alloy
- Approximately 0.5% Mg & 0.5% Si
Certifications

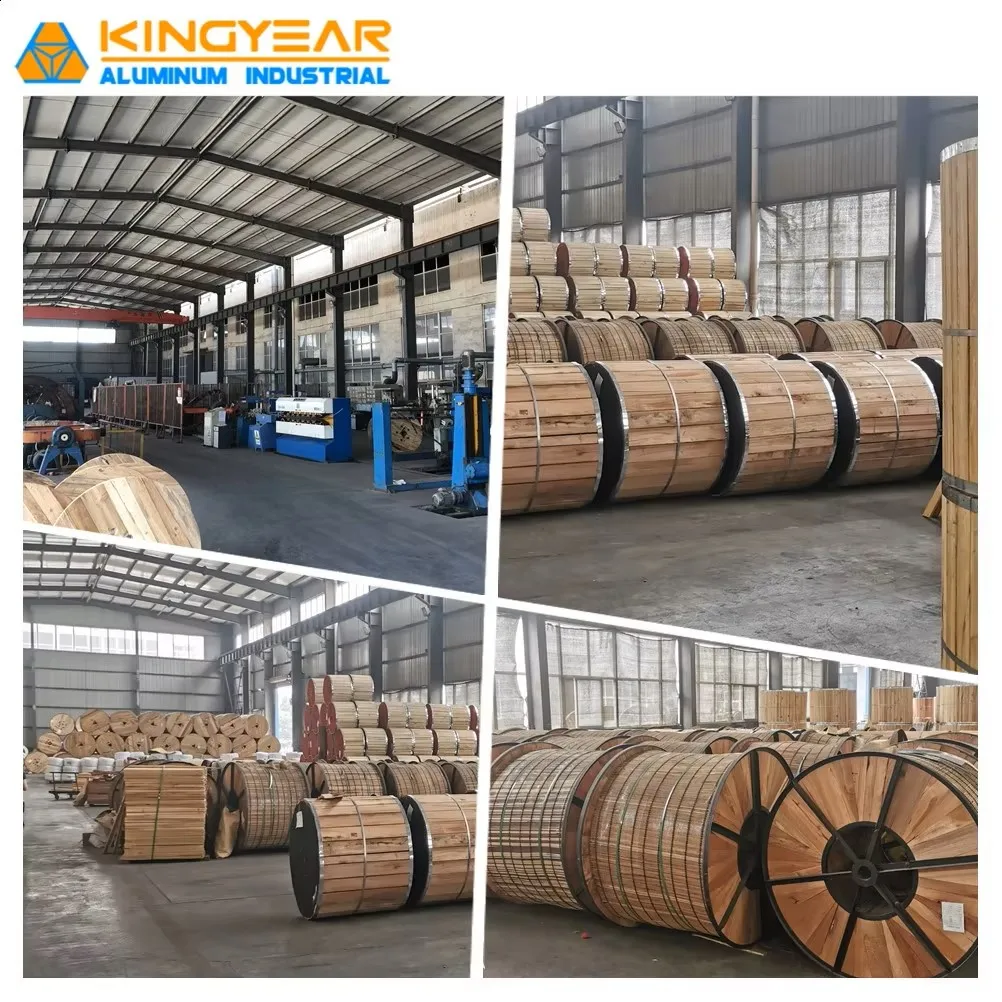

Product packaging
Exhibition

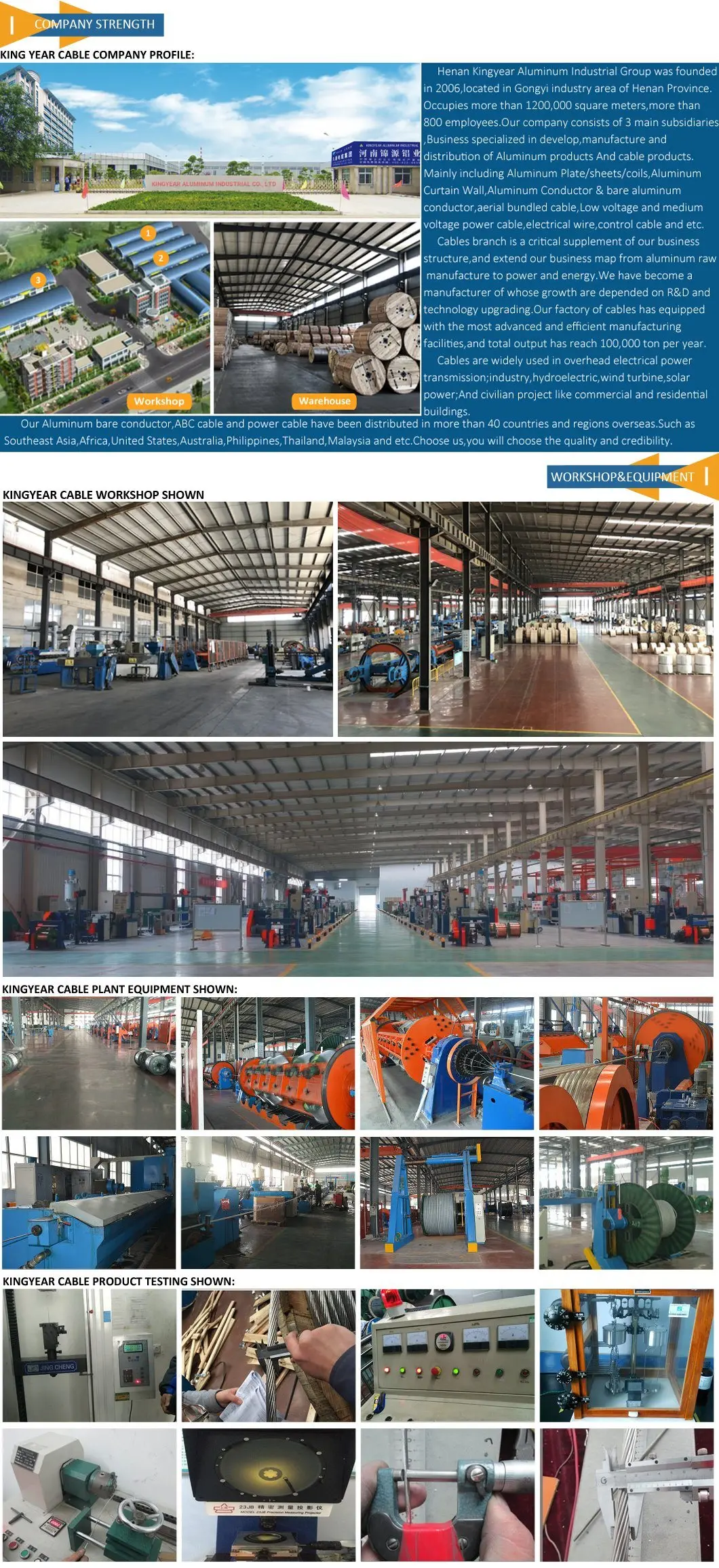

Company Strength
FAQ
Why Choose Us
Products Description
Applications
AAAC Aluminum Alloy Conductor is Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio; affords better sag characteristics. Aluminum alloy gives higher resistance to corrosion than ACSR.
Specification
Physical contents of aluminum alloy :-
1. Resistivity - 0.03284 Ohms mm2/m at 20°C
2. Density - 2.70 kgm/dm3 at 20°C
3. Coefficient of Linear Expansion - 23 x 10-6 / °C
4. Constant Mass Temperature Coefficient (a) - 0.00360/ °C
5. Material - Heat treated Al. Mg. Si. Alloy
- Approximately 0.5% Mg & 0.5% Si
1. Resistivity - 0.03284 Ohms mm2/m at 20°C
2. Density - 2.70 kgm/dm3 at 20°C
3. Coefficient of Linear Expansion - 23 x 10-6 / °C
4. Constant Mass Temperature Coefficient (a) - 0.00360/ °C
5. Material - Heat treated Al. Mg. Si. Alloy
- Approximately 0.5% Mg & 0.5% Si
Certifications
Product packaging
Exhibition
Company Strength
FAQ
