3KW 100KW Kaplan Turbine Generator Horizontal Pressure Axial Flow Water Turbine Mini Hydro Turbines For Sale

Product Overview

Description

3KW-100KW Kaplan Turbine Generator Horizontal Pressure Axial Flow Water Turbine Mini Hydro Turbines For Sale



Horizontal Pressure Type Axial Turbine; Kaplan Turbine Generator;

Power: 3 - 100kW;

Voltage:Customized;

Frequency: Customized;

Fluid: water, physical and chemical properties similar to water;

Temperature: below 50℃.

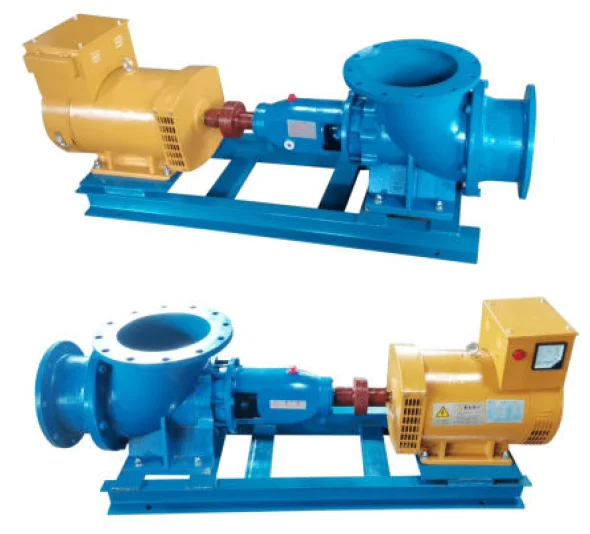

Pressure Type Kaplan Turbine Generator is composed of kaplan turbine and generator using coupling. Hydraulic turbine is mainly composed of guide vane, impeller, main shaft, seal and suspension et al. As high pressure fluid is guided through inlet pipe into turbine, the fluid would force the impeller to rotate. Electricity is generated when the rotor rotates with respect to the stator.



Pressure type kaplan turbine is horizontally mounted. Itsadvantagesare as follows:
1. Pipe inlet and pipe outlet is easy to install;
2. Turbine and generator are separated, which is easy to maintain;
3. Turbine has 3 bearings; generator has 2 bearings, which is more reliable;
4. The separate oil lubrication system of turbine ensures a longer life span of bearings.

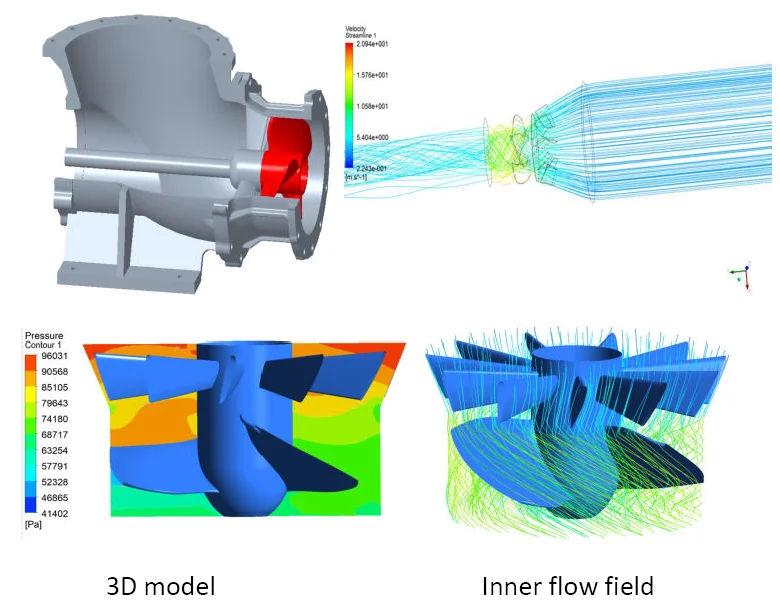

5.The hydraulic part cooperated with Dr. Punit Singh using CFD is high in efficiency.

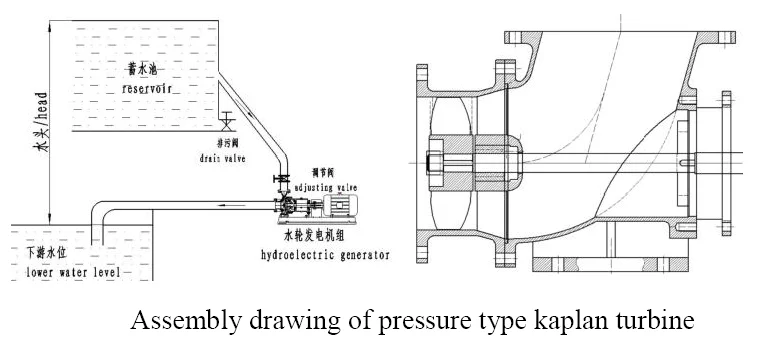

Installation and structure













Specification:

P/kw	Head/m	Flow m3/s	Minal inlet pipe inner dia./mm
3	4	0.05-0.15	200
5	2	0.1-0.38	300
	3	0.11-0.21	250
	4	0.11-0.2	250
	6	0.06-0.15	200
8	3	0.11-0.22	300
	4	0.11-0.23	300
	5	0.11-0.23	300
	8	0.06-0.2	250
10	6	0.15-0.25	300
	4	0.15-0.4	350
	2	0.35-1.1	600
15	8	0.15-0.4	350
	4	0.2-0.55	400
20	6	0.2-0.55	400
	4	0.2-0.55	400
30	15	0.15-0.75	400
	10	0.15-0.75	450
	8	0.2-0.85	500
	6	0.2-0.85	500
50	8	0.3-1.2	600

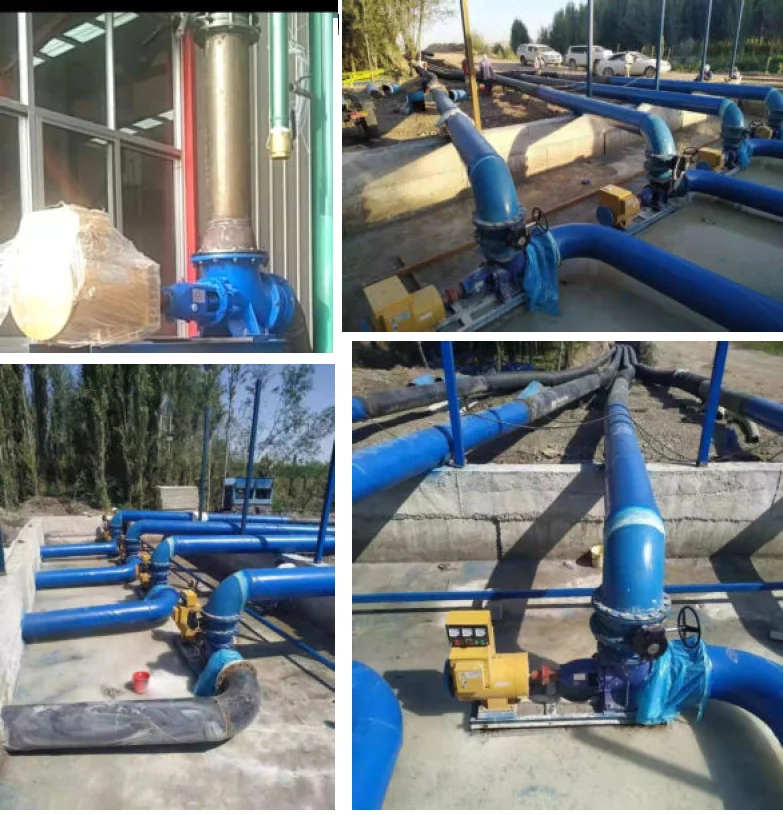

Application



The types of hydro turbine generator:

Francis Turbine Generator
Double Nozzle Pelton Turbine
Mixed Flow Turbine Generator
Double outlet hydraulic turbine generator
Kaplan Turbine Generator: Horizontal Pressure Type Axial Turbine and Vertical Open Channel Axial Turbine
Turgo Turbine Generator

When buying turbine generator, users should select the proper turbine generator with proper specifications ofrated power, water headandwater flow,
according to their own site conditions of water resource.

Pls contact me for more information!
