30 200KN High Tensile Strength Biaxial Fiberglass Geogrid for Road and Reinforced Cement Pavement
- Category: >>>
- Supplier: Shandong Vegas Engineering Materials Co. Ltd.Shandong Ltd.
Share on (1601332259544):
Product Overview
Description
Product Description

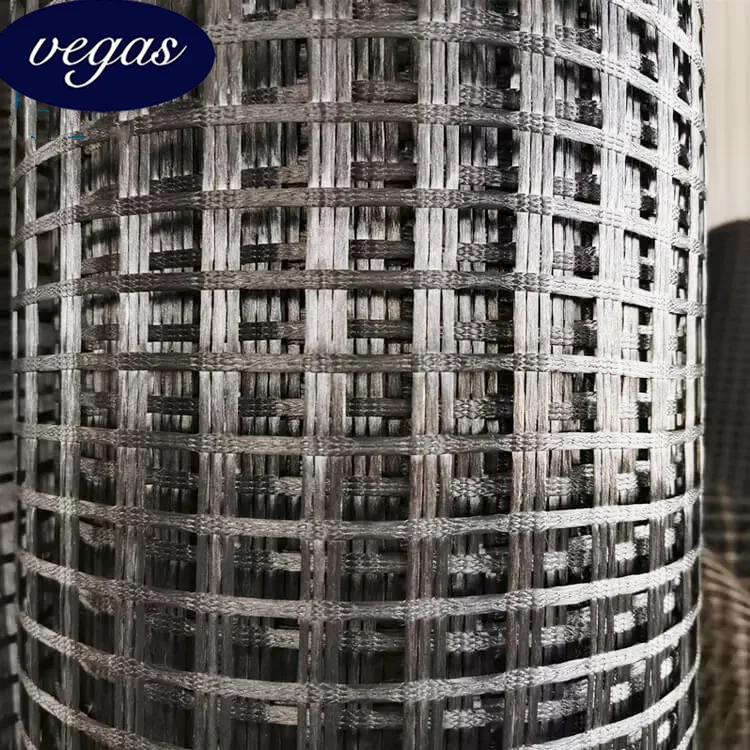

30-200KN High Tensile Strength Biaxial Fiberglass Geogrid for Road and Reinforced Cement Pavement

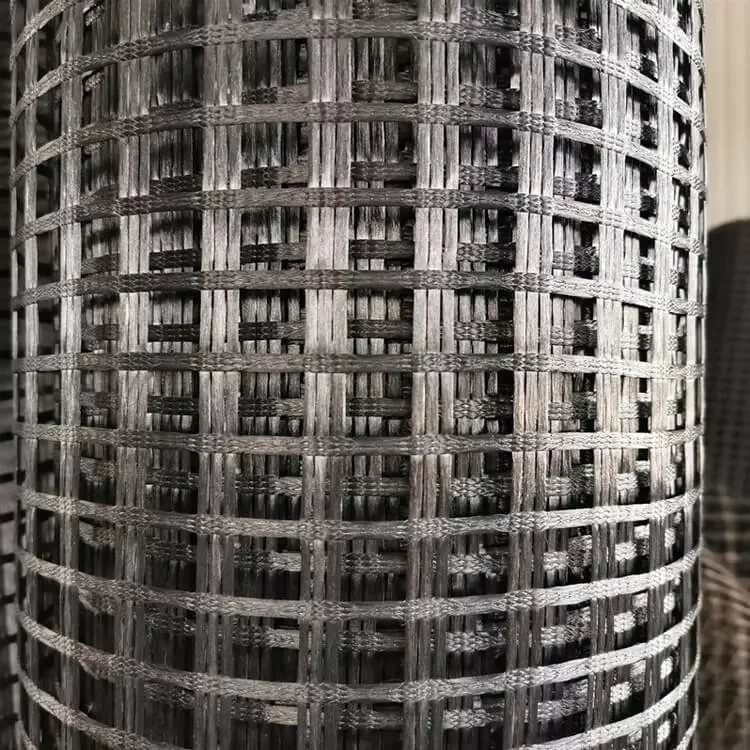

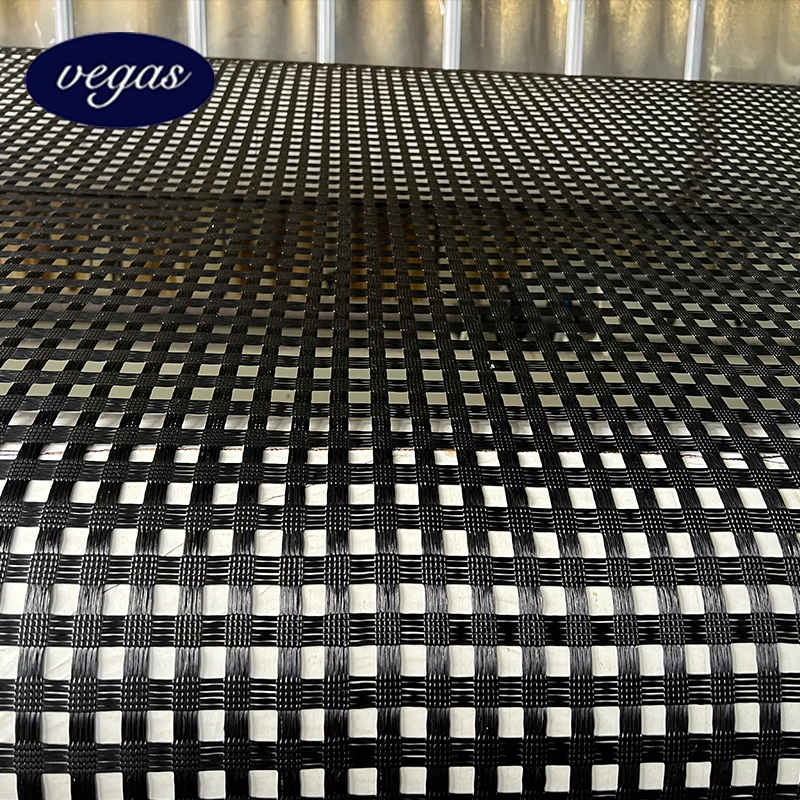

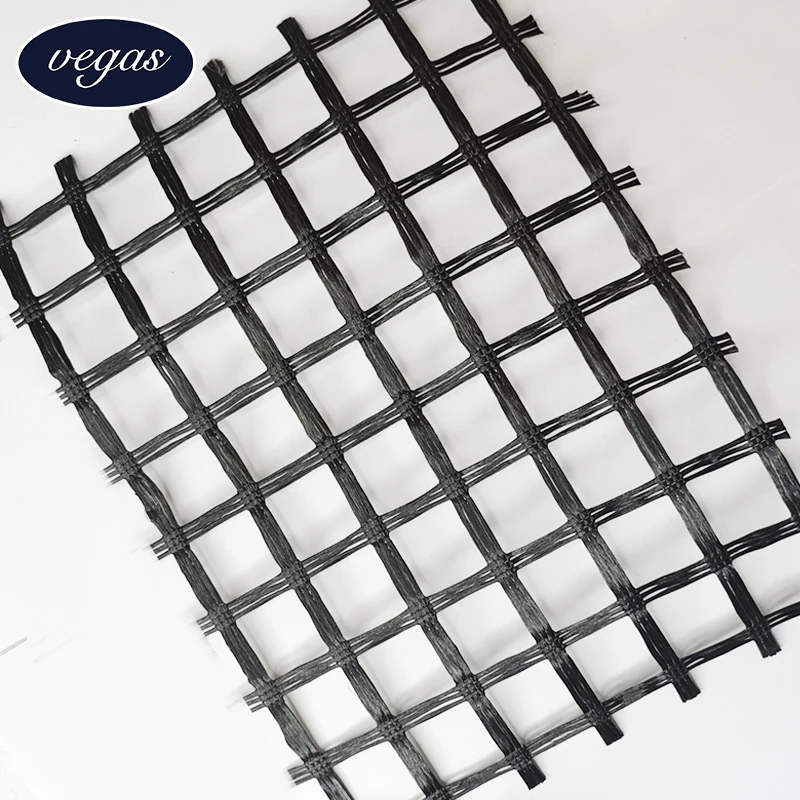

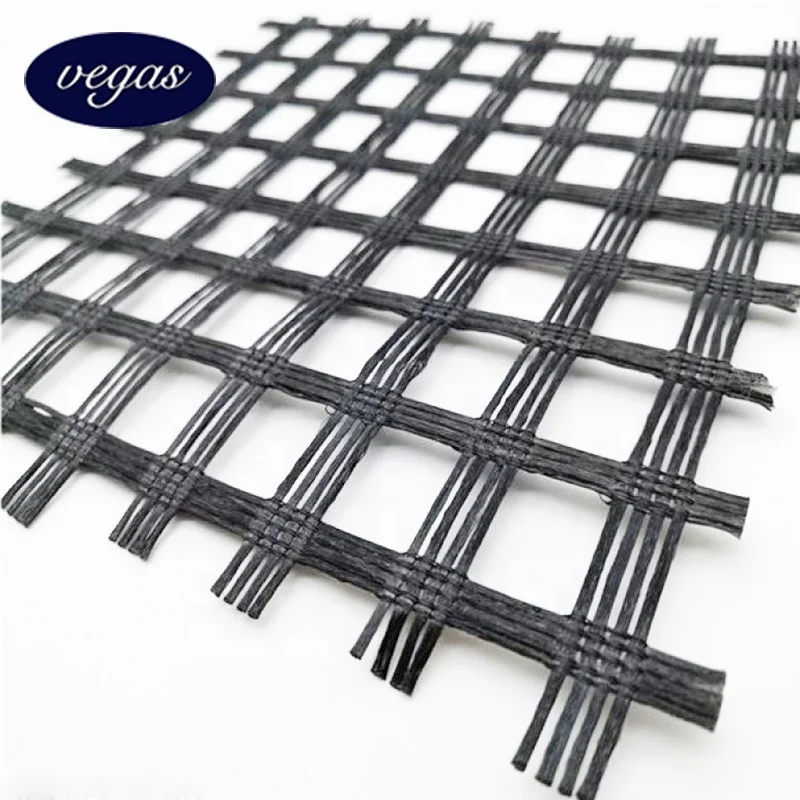

Vegas Fiberglass geogrids is composed of a reticular structural material made of glass fiber filament with modified bitumen coating. It withstands high and low temperatures and can resist corrosion. Asphalt geogrid is a stress relief asphalt reinforcement grid.
Vegas Fiberglass Geogrid can provide large tensile gauges from 30kN/m to 400kN/m which can perform excellent reinforcement function in major projects.
Features
30-200KN High Tensile Strength Biaxial Fiberglass Geogrid for Road and Reinforced Cement Pavement
Highlights：
○ Reduces/Prevent Reflective Cracking
○ High Modulus Fiberglass Grid
○ Bituminous Coating Which Enhances Pavement life
○ Self Adhensive type - easy installation to save labour cost
○ Reduces/Prevent Reflective Cracking
○ High Modulus Fiberglass Grid
○ Bituminous Coating Which Enhances Pavement life
○ Self Adhensive type - easy installation to save labour cost
Specification
30-200KN High Tensile Strength Biaxial Fiberglass Geogrid for Road and Reinforced Cement Pavement
Specification | EGA 30-30 | EGA 50-50 | EGA 80-80 | EGA 100-100 | EGA 120-120 | EGA 150-150 | EGA 200-200 | EGA 300-300 | |||||||||

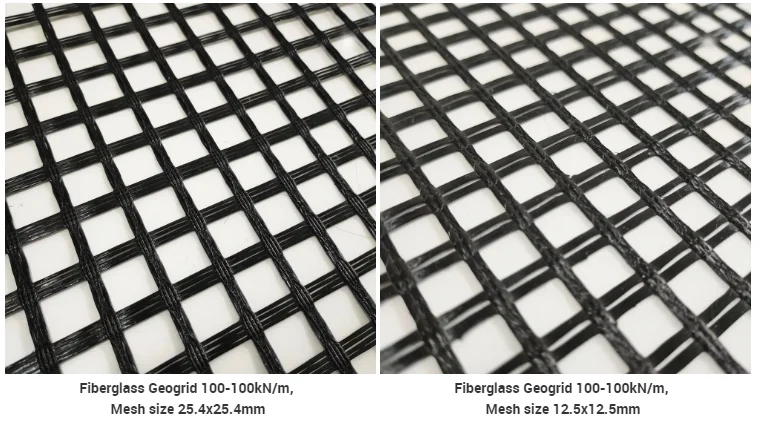

Mesh Size(mm) | 25.4x25.4 or12.5x12.5 or 50.8x50.8 | ||||||||||||||||
Breaking strength (KN/M) | warp direction | 30 | 50 | 80 | 100 | 120 | 150 | 200 | |||||||||
Across warp | 30 | 50 | 80 | 100 | 120 | 150 | 200 | ||||||||||
Elongation at break (%) | warp direction | 4 | |||||||||||||||
Across warp | 4 | ||||||||||||||||
Elasticity modulus(GPA) | 67 | ||||||||||||||||
Thermal tolerance(℃） | -100~280 | ||||||||||||||||
width | 1-6m | ||||||||||||||||
If you have any questions, please feel free to contact us, we are pleased to answer them!
Whatsapp/Wechat: +86-15610351850

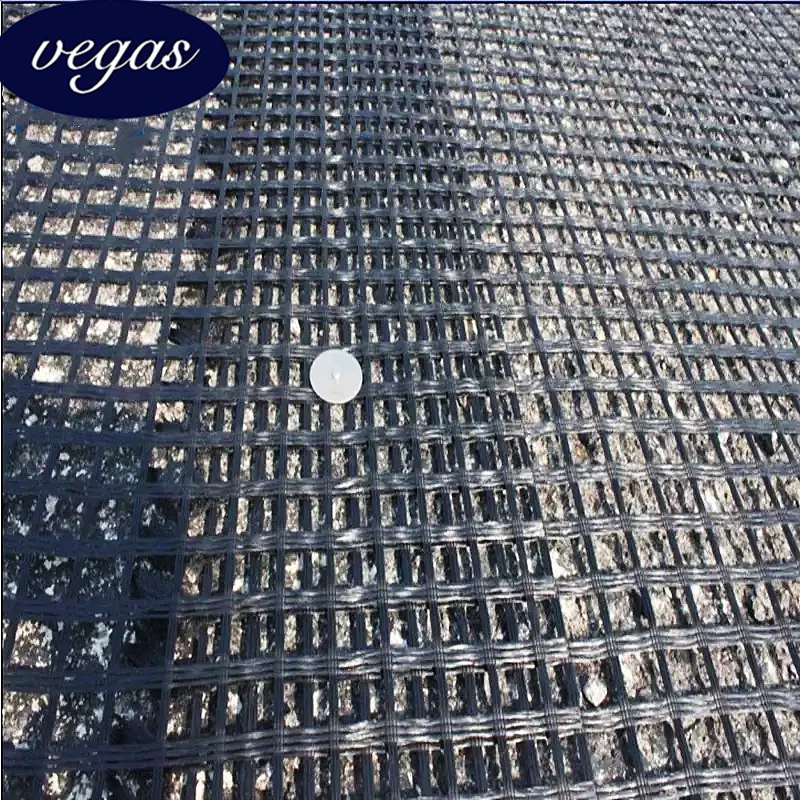

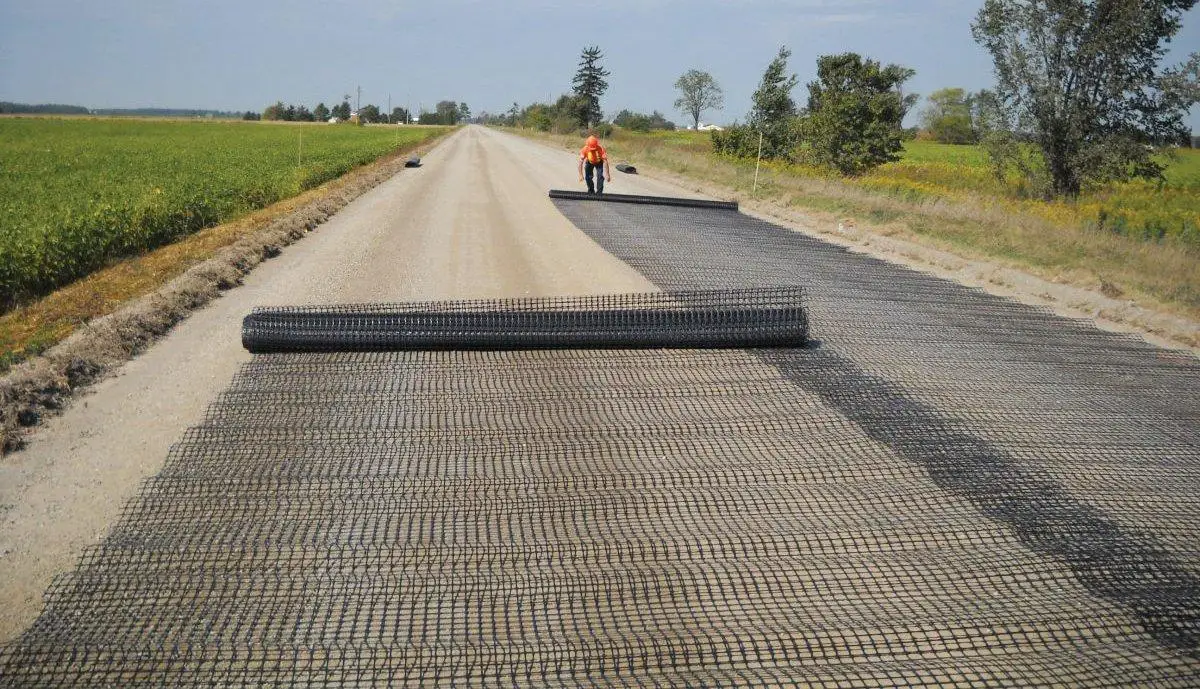

Application
30-200KN High Tensile Strength Biaxial Fiberglass Geogrid for Road and Reinforced Cement Pavement
1. Old asphalt concrete pavement, reinforced asphalt surface, prevention and treatment of diseases.
2. Cement concrete pavement should be rebuilt into composite pavement to restrain plate shrinkage and other reflected cracks.
3. Road expansion and reform project, prevent and control cracks caused by new and old joint and uneven settlement.

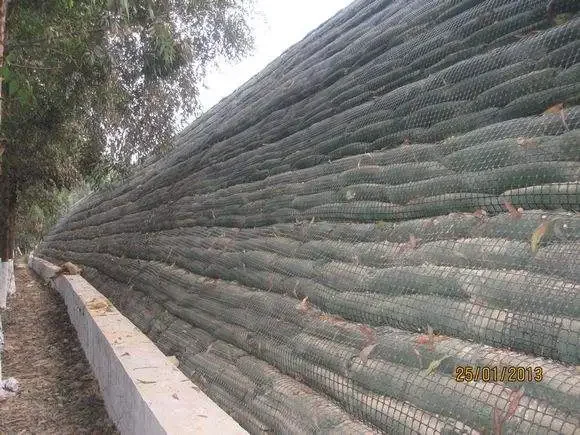

4. The reinforcement treatment of soft soil foundation is conducive to the consolidation of water from soft soil, effectively restrain settlement, evenly distribute stress, and enhance the overall strength of roadbed.
5. The semi-rigid base of the new road produces shrinkage cracks, and the reinforcement is strengthened to prevent the pavement cracks caused by the reflection of foundation cracks.
2. Cement concrete pavement should be rebuilt into composite pavement to restrain plate shrinkage and other reflected cracks.
3. Road expansion and reform project, prevent and control cracks caused by new and old joint and uneven settlement.
4. The reinforcement treatment of soft soil foundation is conducive to the consolidation of water from soft soil, effectively restrain settlement, evenly distribute stress, and enhance the overall strength of roadbed.
5. The semi-rigid base of the new road produces shrinkage cracks, and the reinforcement is strengthened to prevent the pavement cracks caused by the reflection of foundation cracks.

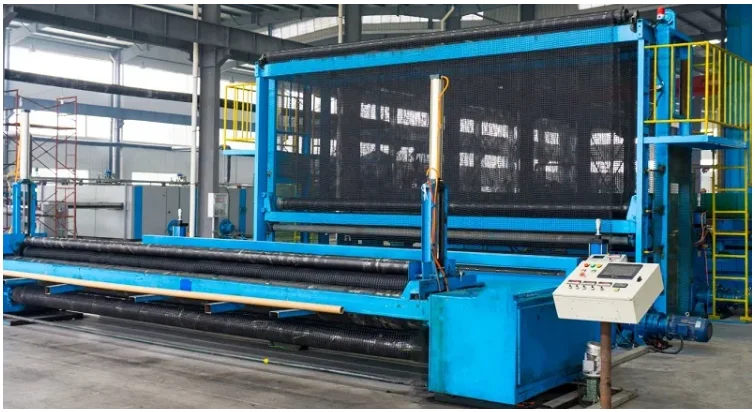

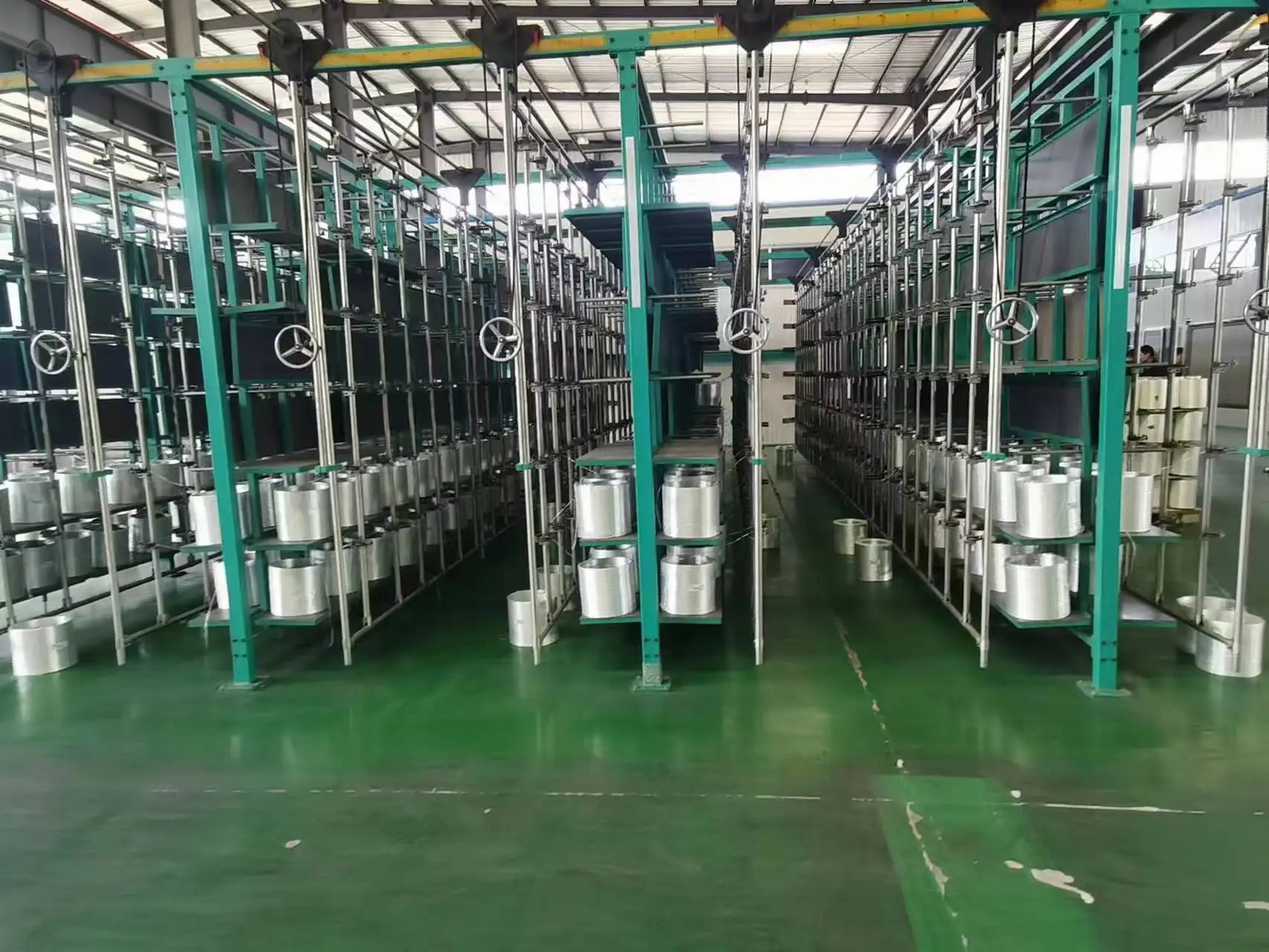

Production line
30-200KN High Tensile Strength Biaxial Fiberglass Geogrid for Road and Reinforced Cement Pavement

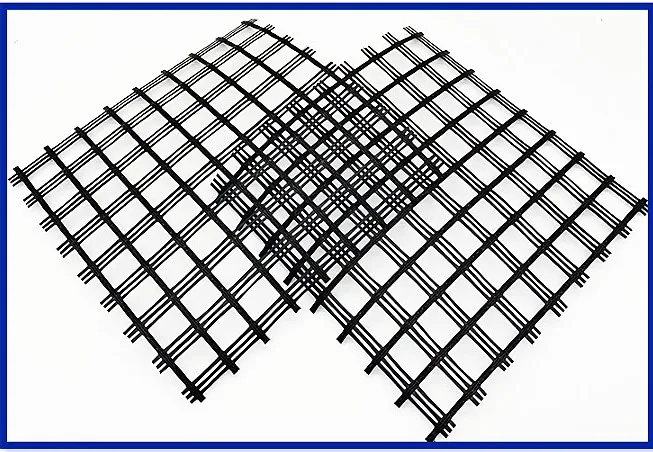

Fiberglass geogrid is a kind of new favorable asphalt reinforcement material to strengthen the road surface.
This product is made by knitted and covering fiberglass industrial long yarns.
It is featured by high vertical and horizontal tensile strength, low elongation at large extension, high flexibility, and high and low temperature resistance.
The products after bituminous polymer coating own optimal aperture stability, alkali resistance and aging resistance.

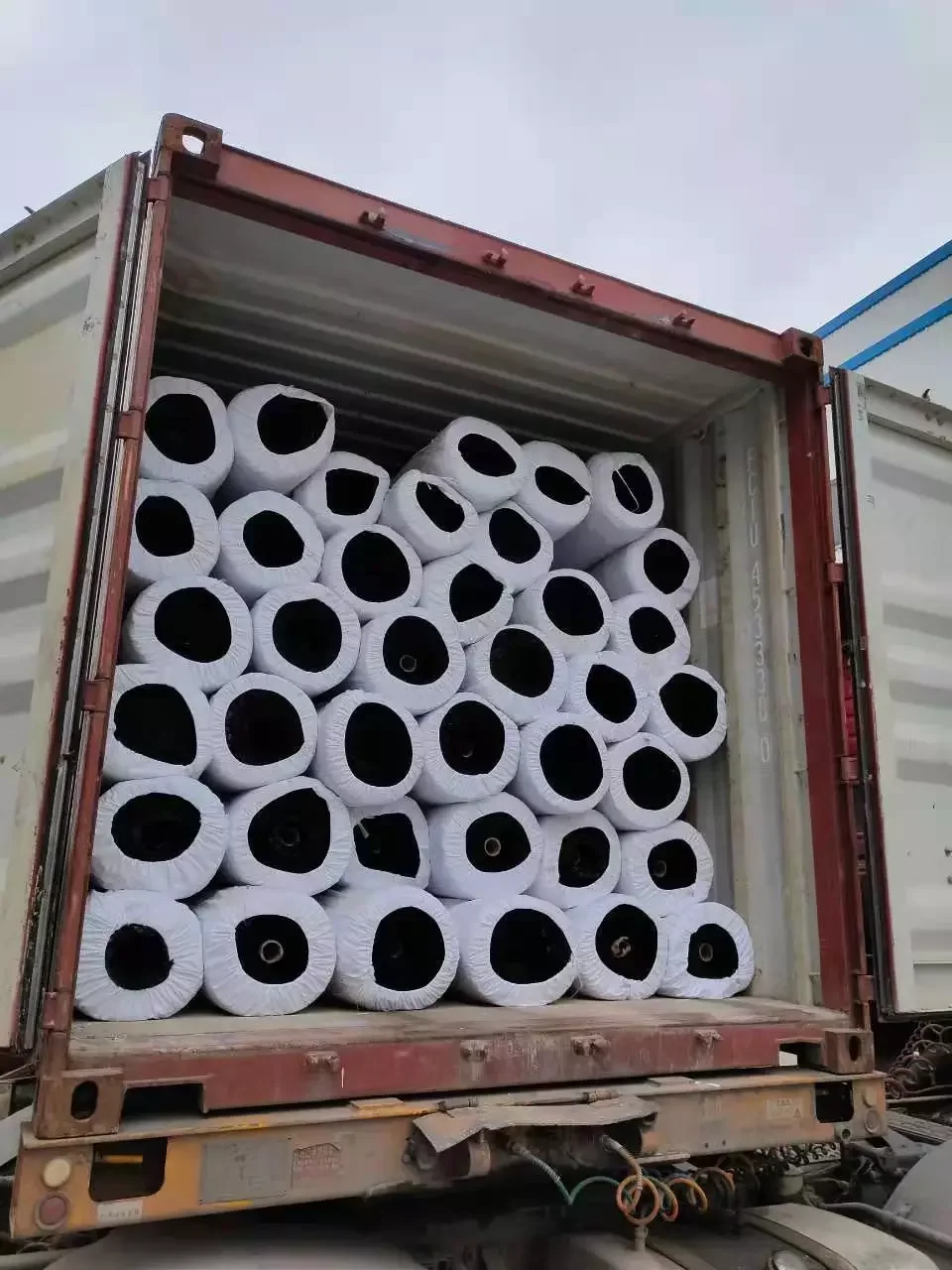

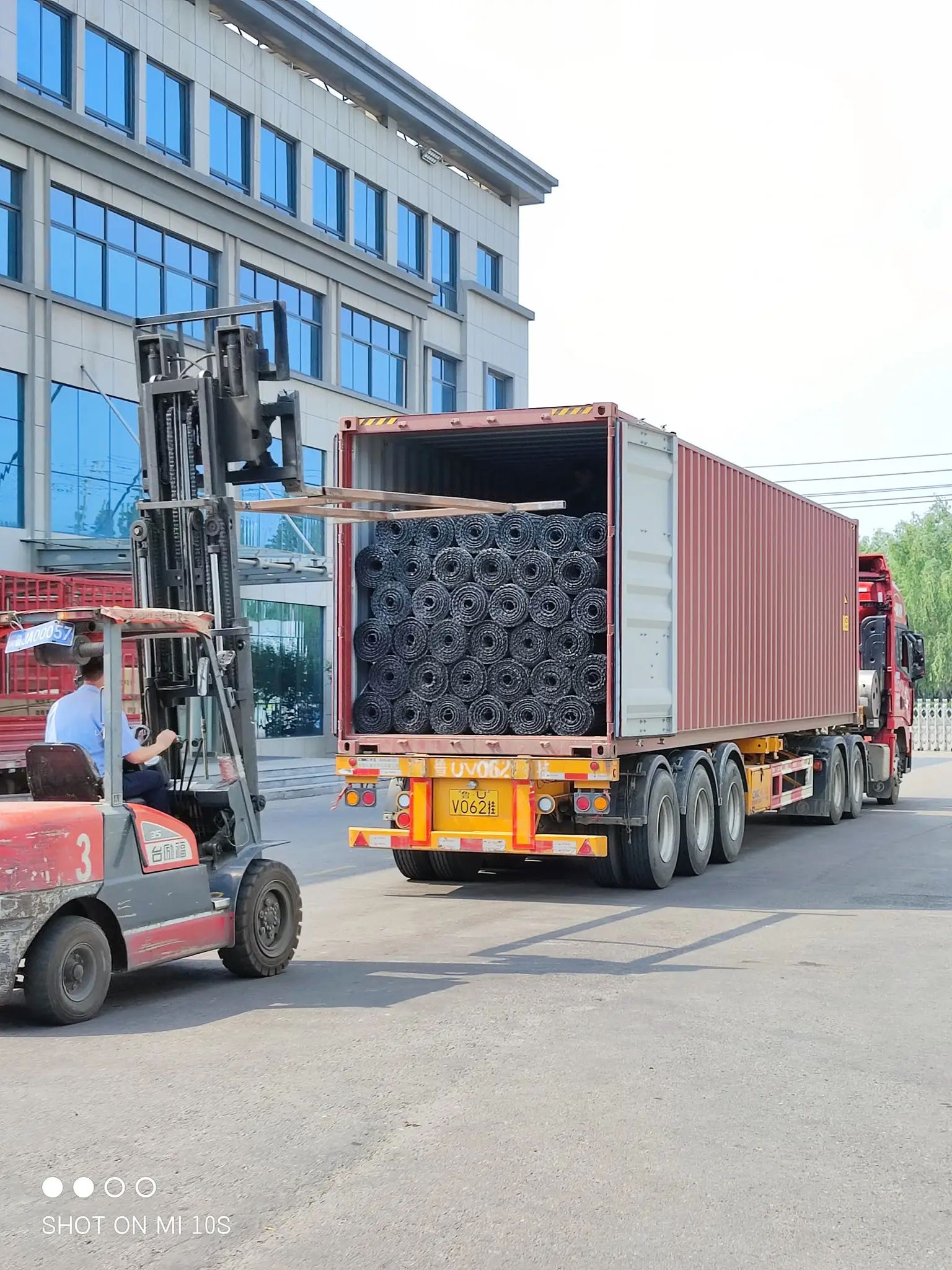

Packing
30-200KN High Tensile Strength Biaxial Fiberglass Geogrid for Road and Reinforced Cement Pavement
