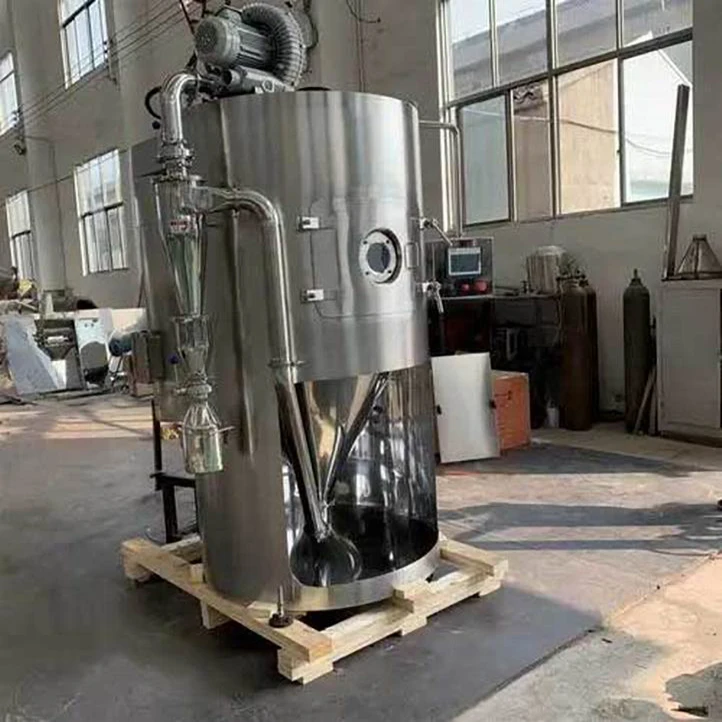

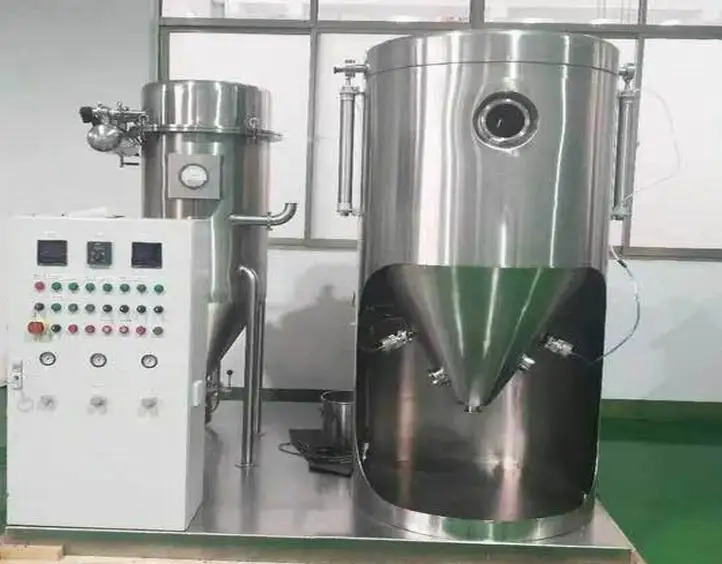

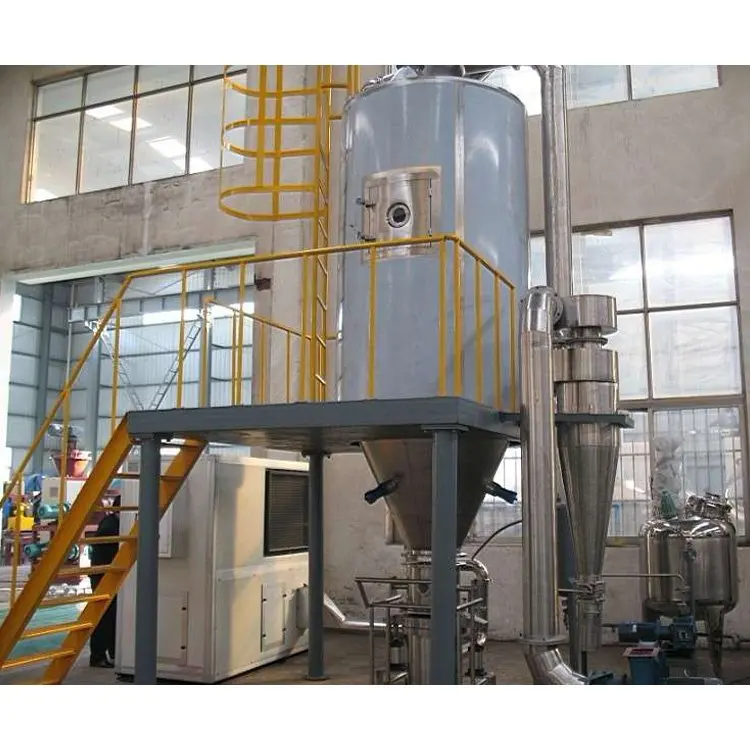

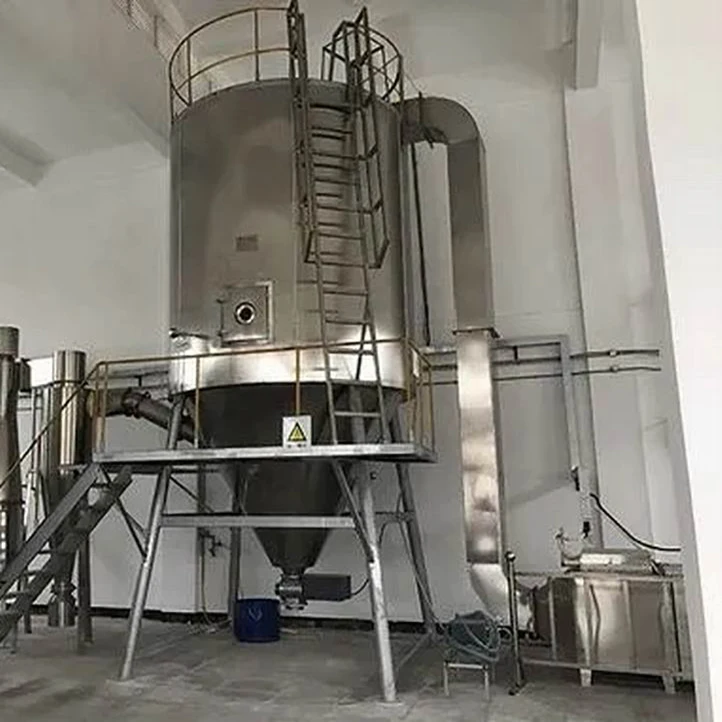

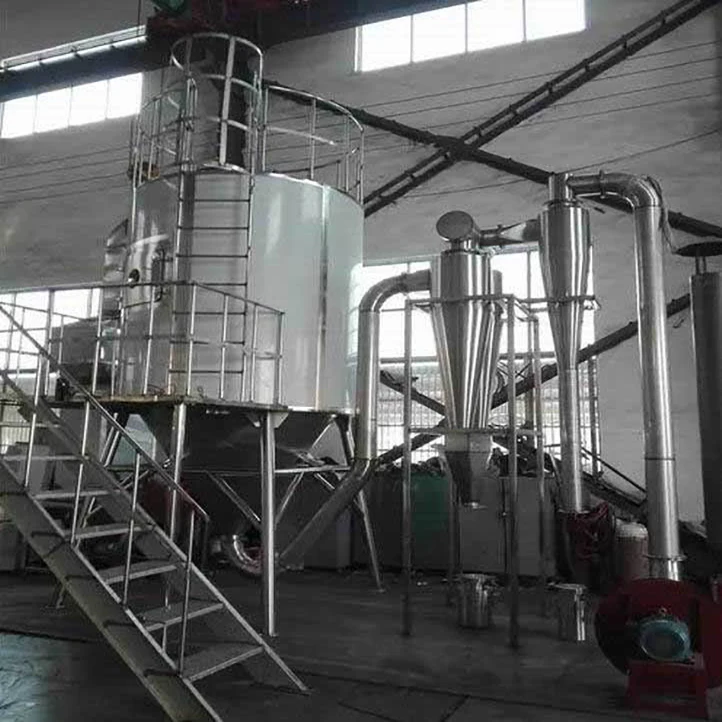

High quality CE approved centrifugal spray dryer whey protein industrial liquid powder dryer custom design
- Category: >>>
- Supplier: Changzhou Haihan Drying Equipment Technology Co. Ltd.Changzhou Ltd.
Share on (1601332279360):
Product Overview
Description
Products Description
The centrifugal spray drying is the widest used technologyinthe liquid shaping technology anddryingindustryltis most suitable for producing powder,particle solid products from materialsof solution,emulsion,soliquoid and pumpable paste states.Therefore,when the particle size of the distribution finalproducts,the residual water contents,the stocking density andthe particle shape meet the precision standards,the centrifugal spray drying is one of the most desired technologies.
Principle Of Work
After filtering and heating,the air enters into the air distributor at the top of the dryer.The hot air enters into the drying chamber in the spiral form uniformly.By passing through the high-speed centrifugal atomizer at the top of the tower,the material liquid will be rotated and sprayed into extremely fine mist liquid beads.Through the very short time of contacting with hot air,the materials can be dried into the finished products.The finished products will be discharged continuously from the bottom of the drying tower and from the cyclone separator.The waste gas will be discharged by blower.
Scope Of Application
Chemical industry: Sodium fluoride (potassium), alkaline dyestuff and pigment, dyestuff intermediates, compound fertilizer, formaldehyde silicic acid, catalyst, sulfuric acid agent, amino acid, silica, etc.
Plastic resin: AB, ABS emulsion, urea-formaldehyde resin, phenol-formaldehyde resin, mastic (urea) formaldehyde resin, polyethylene, polyvinyl chloride and so on.
Food industry: enriched milk powder, tickle prion, cocoa milk powder, milk replacer powder, hunting blood powder, egg white (yolk) and so on.
Food and plant: oats, chicken juice, coffee, instant tea, flavored spices meat, protein, soybean, peanut protein, hydrolysis, etc.
Sugar: corn syrup, corn starch, glucose, pectin, maltose, potassium sorbate, etc.
Ceramics: aluminum oxide, tile materials, magnesium oxide, talcum powder, etc.
Plastic resin: AB, ABS emulsion, urea-formaldehyde resin, phenol-formaldehyde resin, mastic (urea) formaldehyde resin, polyethylene, polyvinyl chloride and so on.
Food industry: enriched milk powder, tickle prion, cocoa milk powder, milk replacer powder, hunting blood powder, egg white (yolk) and so on.
Food and plant: oats, chicken juice, coffee, instant tea, flavored spices meat, protein, soybean, peanut protein, hydrolysis, etc.
Sugar: corn syrup, corn starch, glucose, pectin, maltose, potassium sorbate, etc.
Ceramics: aluminum oxide, tile materials, magnesium oxide, talcum powder, etc.
Features
1.High speed of dryer.After the spraying of the materal liquid,the surface area of the material will be increased greatly. In the hot-air flow,95%-98% of water can be evaporated at the moment The time of completing the drying needs only several seconds.It is especialy suitable for dryer the heat sensitive materals
2.Its final products own the good uniformity,mobility and dissolving capacity. And the final products are high in purity and good in qualiy.
3.The procucion procedure is simple and the operational control is easy. The liquid with the moisture contents 40-60%(for special materials,The conterts may reach 90%)can be dried into powder or particle products at a time. After the drying.ther is no need for smashing and sorting,so as to reduce the operation procedures in the production and enchance the product puriy .The product particle diamenters,looseness and water contents can be adjusted through changing the operaton condition in a certain scope.It is very convenient to carry out the control and management.
2.Its final products own the good uniformity,mobility and dissolving capacity. And the final products are high in purity and good in qualiy.
3.The procucion procedure is simple and the operational control is easy. The liquid with the moisture contents 40-60%(for special materials,The conterts may reach 90%)can be dried into powder or particle products at a time. After the drying.ther is no need for smashing and sorting,so as to reduce the operation procedures in the production and enchance the product puriy .The product particle diamenters,looseness and water contents can be adjusted through changing the operaton condition in a certain scope.It is very convenient to carry out the control and management.
Outlines
1.Atomization:Atomizing system must ensure a uniorm distribution of the fog drops,which is crucial to ensure a good qualified rate of products.
2.Contact of hot airflow and fogdrops:When enough hot air enters into dying tower, the drection and angle of hot
airflaw have to be considered,no matter co- current flow,adverse current or mixed flow,must ensure the suficient heat exchange,it is crucial.
airflaw have to be considered,no matter co- current flow,adverse current or mixed flow,must ensure the suficient heat exchange,it is crucial.
3.The angle design of pipelines and cone:It is very impotant to select the suitable angle,here we would like to share
our experience and datas fom producion of thousands of this equipment.
our experience and datas fom producion of thousands of this equipment.

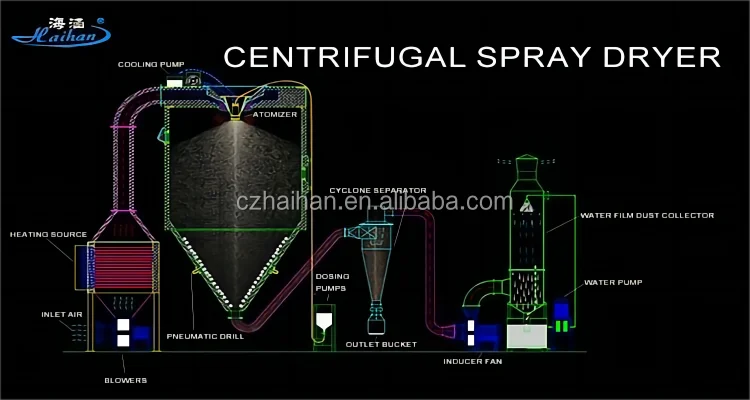

Sketch Diagram
Technical Parameters
Ttem/Model（LPG） | 5 | 25 | 50 | 100 | 150 | 200-2000 | |||||
Inlet temperature(℃) | 120-500 automatically-controlled | ||||||||||
Outlet temperature(℃) | 75-140 | ||||||||||
Max.water evaporation(kg/h) | 5 | 25 | 50 | 100 | 150 | 200-2000 | |||||
Way of atomizing | Compress air transmission | Mechanicai transmission | |||||||||
Rotation speed(rpm) | 25000 | 18000 | 18000 | 18000 | 15000 | 8000-15000 | |||||
Diamter of atomizing tray(mm) | 50 | 100 | 120 | 140 | 150 | 180-340 | |||||
Heat supply | Electricity | Electricity+steam, | Electricity+steam,fuel oil and gas | Settled by users themselves | |||||||
Max Electric heating power(kw) | 9 | 36 | 63 | 81 | 99 | ||||||
Overall dimensions (L×W×H)(m) | 1.8×0.93×2.2 | 3×2.7×4.26 | 3.7×3.2×5.1 | 4.6×4.2×6 | 5.5×4.5×7 | Decided according to be concrete conditions | |||||
Dried Powder Restoring Rate(%) | ≥95 | ||||||||||

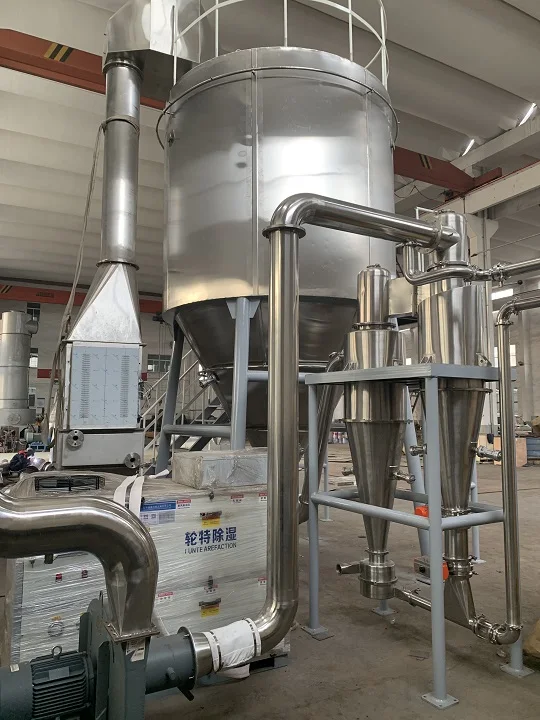

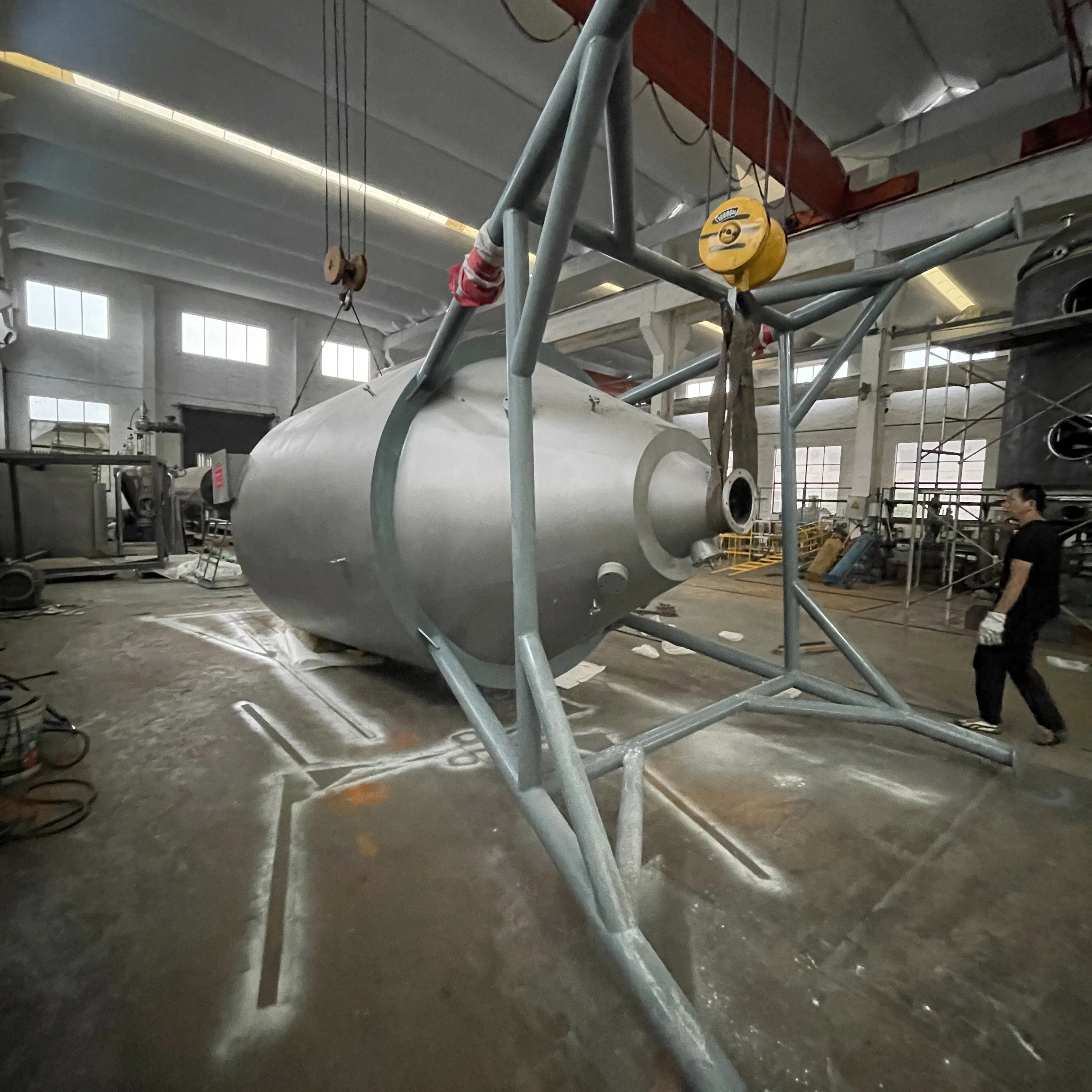

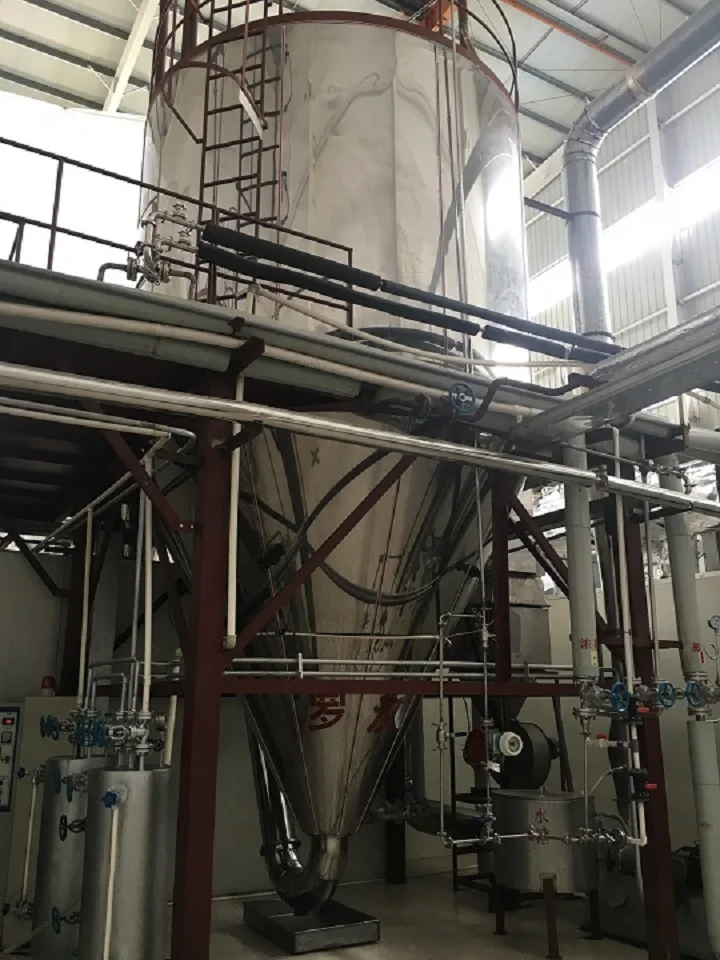

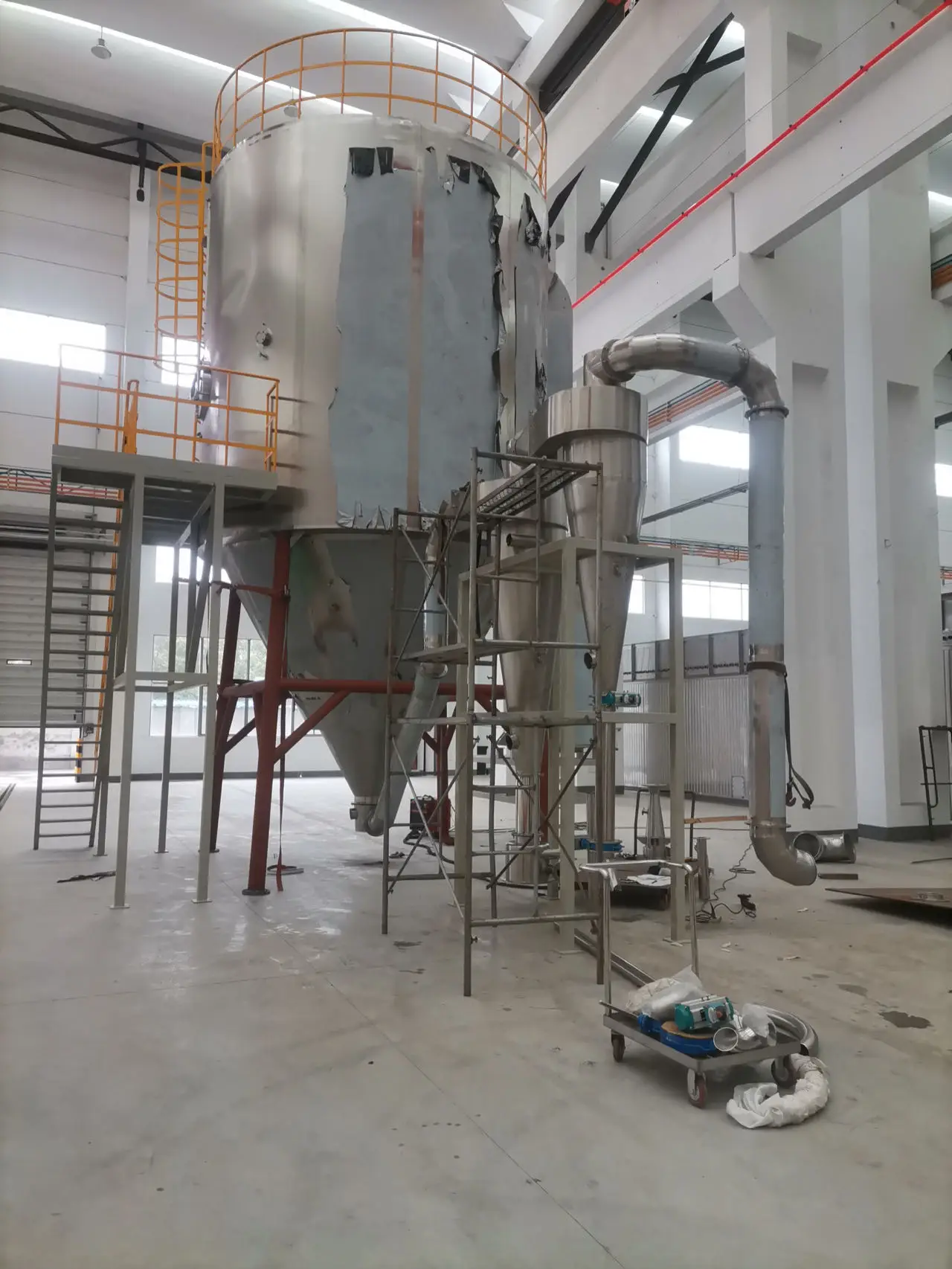

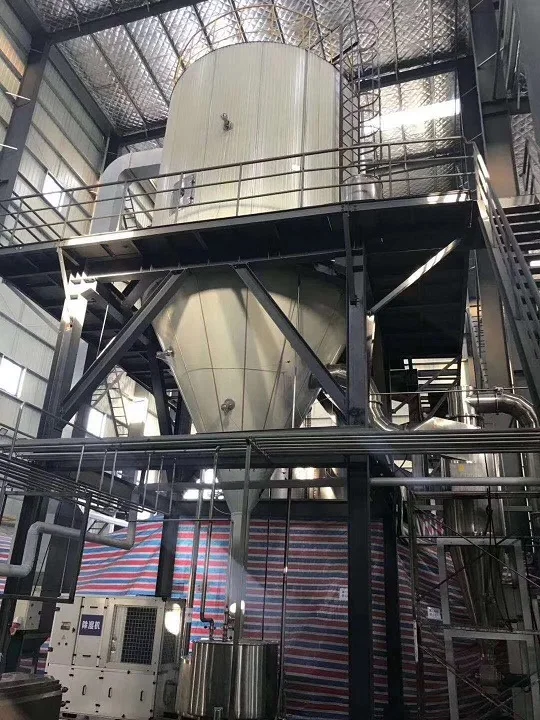

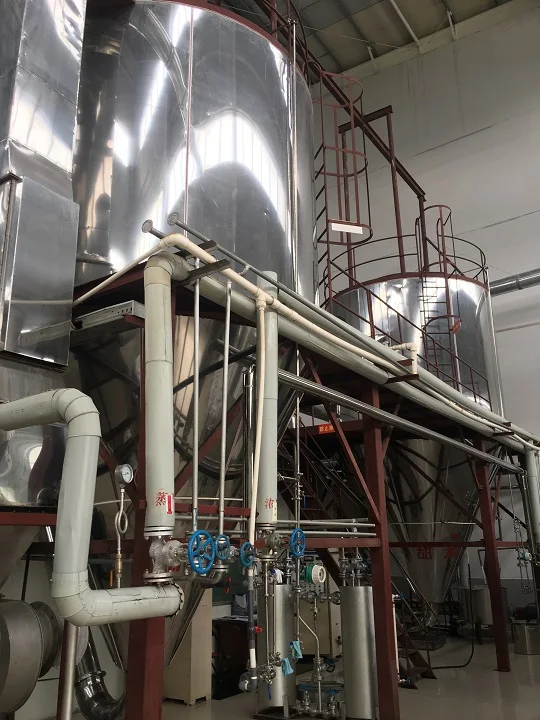

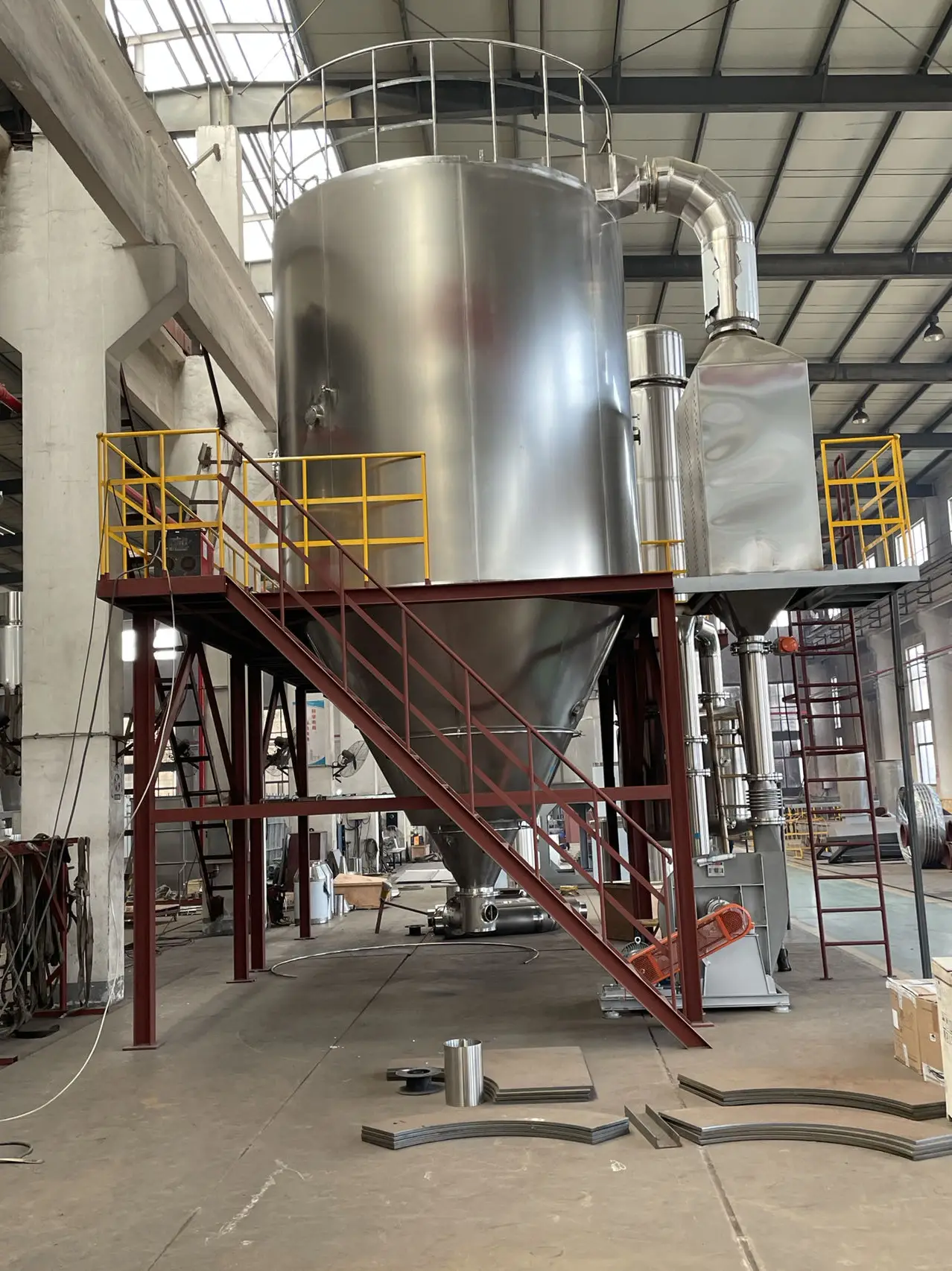

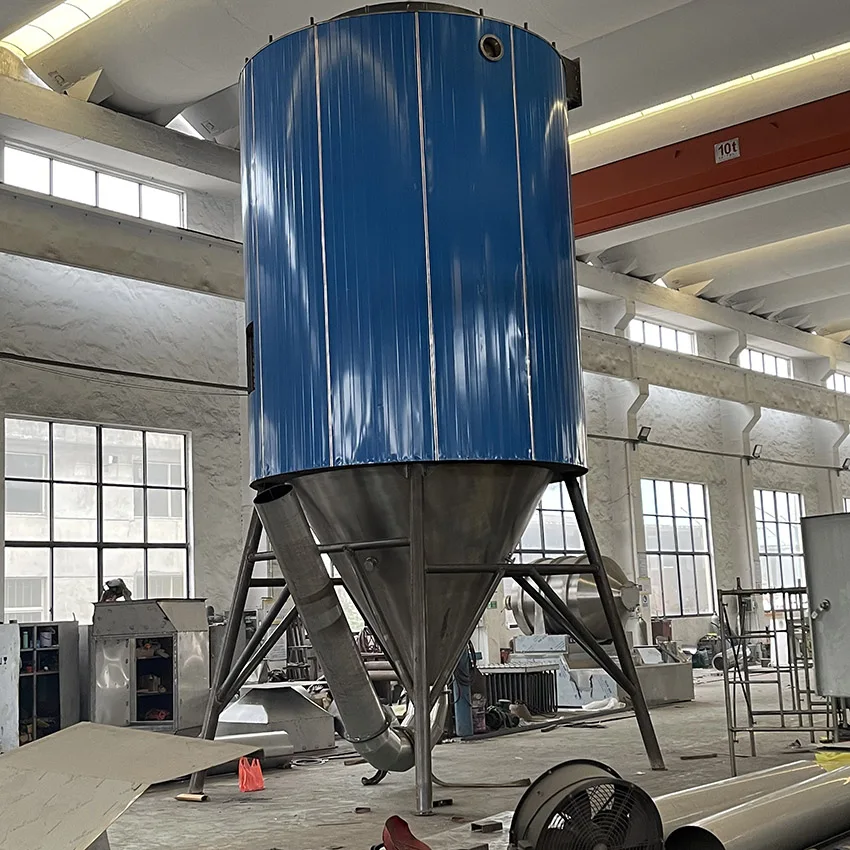

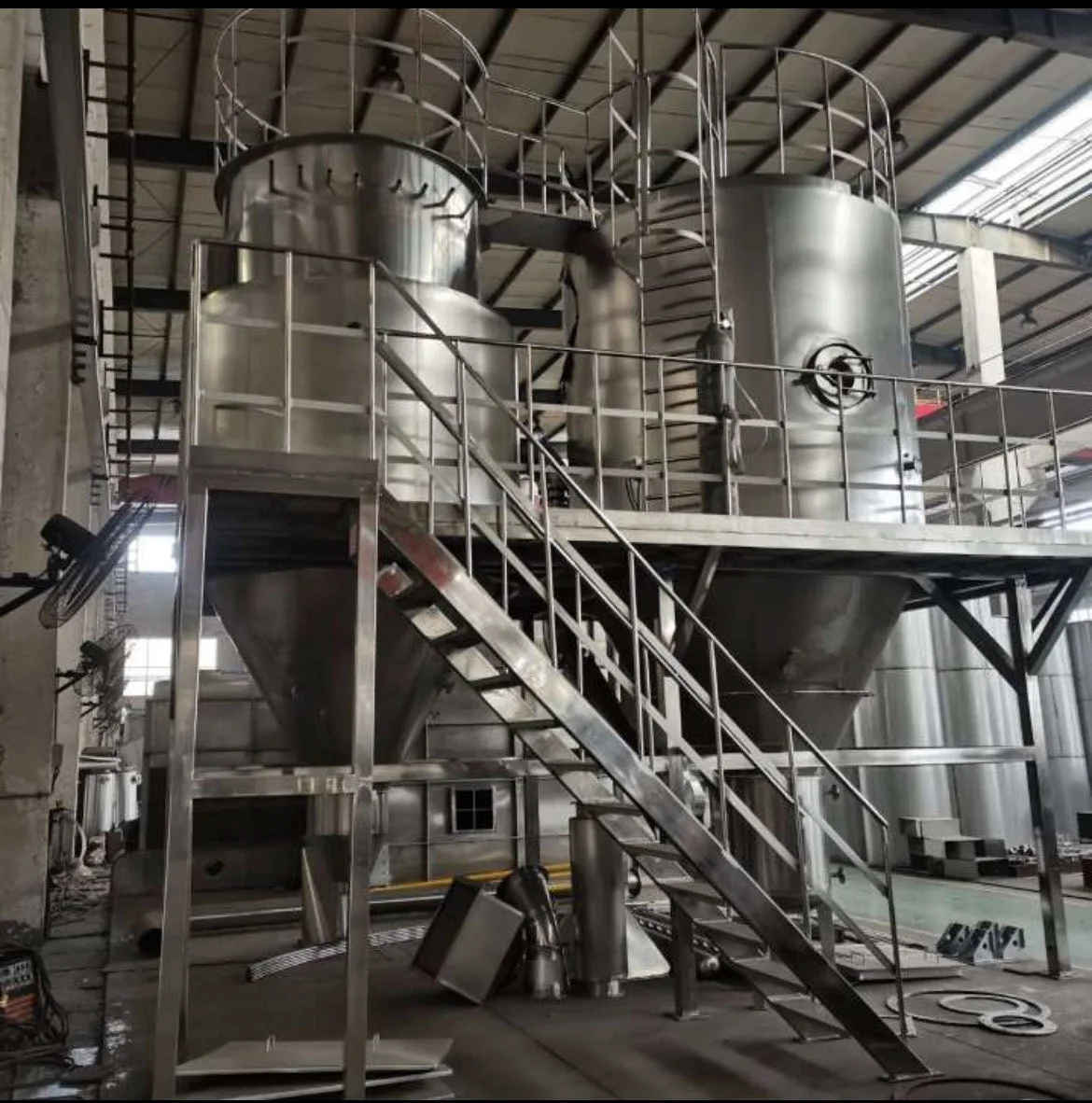

Equipment Pictures
Q1:Are you a manufacturer, trading company or third party?
A: We are a manufacturer who has been producing machines for more than 20years.
Q2: What is your minimum order quantity?
Our minimum order is 1 unit. However, if the customer orders from 3 units. In this way, the unit price per unit will be more suitable.
Q3: What is your price?
The unit price will vary depending on your design process, the materials required and the quantity ordered.
Q4: What are your main products?
We mainly produce drying equipment, pelletisation equipment, crushing equipment, mixing equipment, screening equipment, heat source equipment and so on. We will send you the catalogue. This is our website, www.haihan.com\t
Q5: Can any product be customised with an imprint?
A: If you need to print your company logo on the product and it can be customised. Or if you have your own
design idea, it would be our pleasure to customise it for you.
Q6: What kind of after-sales service can you provide?
A: We have a professional after-sales service team that can contact you in a short time.
They can supervise the installation, commissioning and training of your workers.
Q7:what services can we provide?
Accepted Delivery Terms: Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
Q8:What information do you need to know for better model selection?
A: We need to know the following basic information:
What is the name of the material you need to process?
What is the initial moisture percentage before drying?
What is the remaining moisture percentage after drying?
What is the heating temperature that the material can withstand in the drying process?
What is the heating source, steam, water, electricity or others?
A: We are a manufacturer who has been producing machines for more than 20years.
Q2: What is your minimum order quantity?
Our minimum order is 1 unit. However, if the customer orders from 3 units. In this way, the unit price per unit will be more suitable.
Q3: What is your price?
The unit price will vary depending on your design process, the materials required and the quantity ordered.
Q4: What are your main products?
We mainly produce drying equipment, pelletisation equipment, crushing equipment, mixing equipment, screening equipment, heat source equipment and so on. We will send you the catalogue. This is our website, www.haihan.com\t
Q5: Can any product be customised with an imprint?
A: If you need to print your company logo on the product and it can be customised. Or if you have your own
design idea, it would be our pleasure to customise it for you.
Q6: What kind of after-sales service can you provide?
A: We have a professional after-sales service team that can contact you in a short time.
They can supervise the installation, commissioning and training of your workers.
Q7:what services can we provide?
Accepted Delivery Terms: Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
Q8:What information do you need to know for better model selection?
A: We need to know the following basic information:
What is the name of the material you need to process?
What is the initial moisture percentage before drying?
What is the remaining moisture percentage after drying?
What is the heating temperature that the material can withstand in the drying process?
What is the heating source, steam, water, electricity or others?
