Factory Store Veterinary Syringe Pump High Quality Accuracy automatic syringe pump
Quick Details:
1. 4.3"Color TFT LCD screen,with high resolution with LED backlight
2. Built-in lithium battery, more than 5 hours working time after fully charged
3. Syringe Mode: Volume mode, time mode, drug weight mode, micro mode, sequential mode, drug library mode
4. User friendly interface with audible and visual alarm system
5. Automatic identification function of syringe specifications: It can be used for syringes of 5ml, 10ml, 20ml, 30ml and 50 ml.

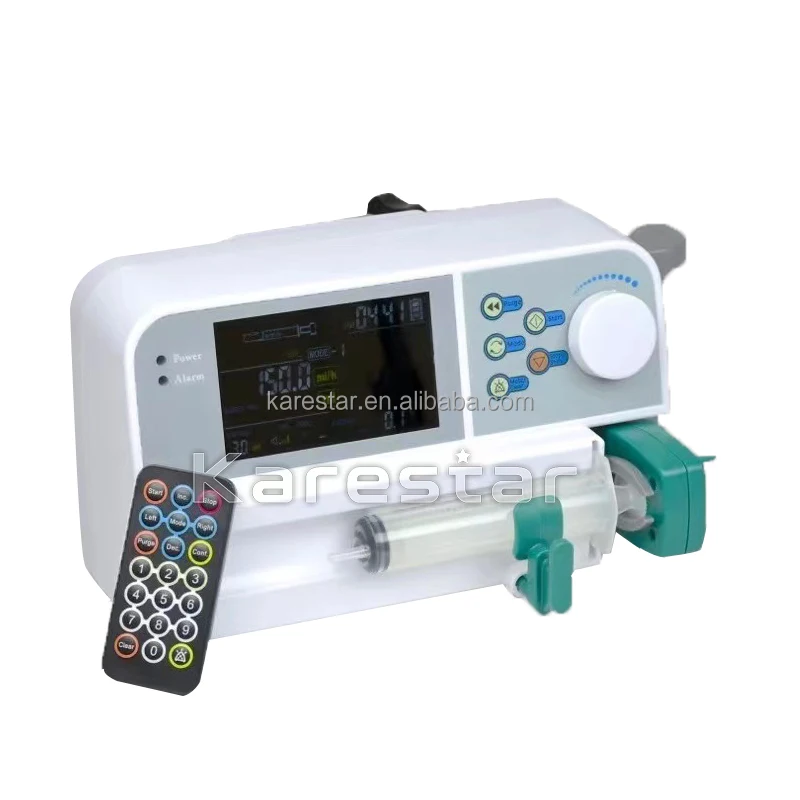

6. Remote Control: The user can control the infusion pump within 5 meters
3. Syringe Mode: Volume mode, time mode, drug weight mode, micro mode, sequential mode, drug library mode
4. User friendly interface with audible and visual alarm system
5. Automatic identification function of syringe specifications: It can be used for syringes of 5ml, 10ml, 20ml, 30ml and 50 ml.
6. Remote Control: The user can control the infusion pump within 5 meters
7. Double Occlusion Detector -Safer Infusion
8. Occlusion, air-in-line, audio ,visual alarm volume adjustable
8. Occlusion, air-in-line, audio ,visual alarm volume adjustable
Standard Configuration | Other Option: | ||
Main machine+Remote control | 1 PC | Trolley | |
Power cord | 1 PC | ||
Specification
Model | K-G01 Digital syringe pump |
Screen | 4.3" TFT color LCD Screen with light resolution, with LED backlight |
Battery | Rechargeable Lithium battery: DC11.1V, 3000mAh, working hours >=5 hours at 5mL/h, remaining battery displayed. |
Dimension | W*H*D：282mm(L)×210mm(W)×148mm(H)；Weight：2.2kg |
Infusion Mode | constant mode, time mode, drug weight mode, micro mode, sequential mode, drug library mode |
Automatic identification function of syringe specifications | 5mL,10mL, 20mL, 30mL, 50mL syringes |
Remote control | More convenient and save time Remote control is instead of button operation The user can control the infusion pump within 5 meters |
SyrInge Management | Preset 20 brands, can be editted, |
Rate Unit (including drug weight unit) | mL/h, mg/h, µg/h, µg/kg/min, mg/kg/min, µg/kg/h, mg/kg/h. |
Flow Rate Range | 50ml syringe:0.1~1800ml/h(0.1~999.9ml/h step:0.1ml/h) 30ml syringe:0.1~900ml/h(1000~1800/ml/h step:1ml/h) 20ml syringe:0.1~600ml/h 10ml syringe:0.1~300ml/h 5ml syringe:0.1 150ml/h |
Increment | 0.01 mL/h steps (for settings from 0.01 to 99.99 mL/h); 1 mL/h steps (for settings from 100 to 999 mL/h) |
Volume Limit | 0.1~1999.9ml (step:0.1ml) |
Accuracy Volume: | 9999.9ml(step:0.1ml) |
Accuracy: | Within+ 2% |
Purge Rate | 50ml syringe:1800ml/h (Bolus rate:1200ml/h) 30ml syringe:900ml/h(Bolus rate:600ml/h) 20ml syringe:600ml/h(Bolus rate:400ml/h) 10ml syringe:300ml/h(Bolus rate:200ml/h) 5ml syringe:150ml/h(Bolus rate:100ml/h) |
KVO | 0.1~5ml/h (ajustable,step:0.1ml/h) |
Bolus Mode | 8 level adjustable, 20-150KPa, dynamically pressure display |
Occlusion Pressure | Three levels for acclusion: High, Middle, Low. |
Simultaneous display: | time, battery, injection state, mode, speed, injection volume and time, syringe size, alarm sound, block, accuracy, body weight, drug dose and liquid amount |
History (Event Log) | 10000 events can be stored and exported |
Drug Library | Hundreds drugs can be imported and exported. |
Alarm | including all abnormal conditions alarm system, with visible, audible and details show on the screen. |
Communication Port | USB,RJ45 for future use, Ethernet Port |
Keypad Lock | Yes, optional |
Power Source | AC: 100V ~ 240V, 50Hz/60Hz, <=45VA |
Classification | Class Ⅱ, CF, IPX4 |
Warranty: | Two years, battery one year |
Transport & Storage | Temperature :-20℃～＋55℃,Humidity：10%~95%，Air pressure：50~106KPa |
