gsm remote start car oil engine cut off tracker bluetooth tracking devices for car motorcycle security chip 4G J16 rastreador
- Category: >>>
- Supplier: Shenzhen Uniguard Technology LimitedShenzhen Limited
Share on (1601332473775):
Product Overview
Description
Products Description
UniGuard J16 4G LTE GPS Tracker with BLE relay Features
◇ Real-time tracking by APP/Platform (www.gpspos.net)
◇ 4G LTE FDD +2G Quad bands GPS tracker
◇ Industry standard GPS module. Faster networking speed, more stable GPS signal

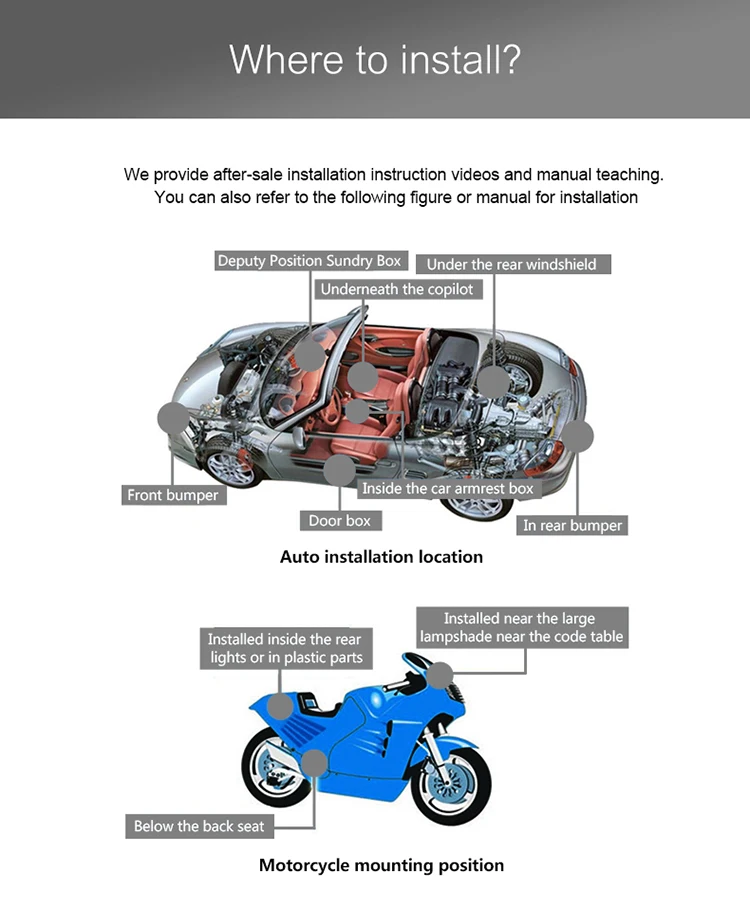

◇ Small size. It is easy to be installed hidden.
◇ Real time tracking
◇ Remote vehicle engine cut off with connection of 12V or 24V relay
◇ Vibration alarm.
◇ Geo-Fence alarm.
◇ Power tamper alarm. 150mAh built-in backup battery.
◇ Web tracking platform & APP, support branding and customization

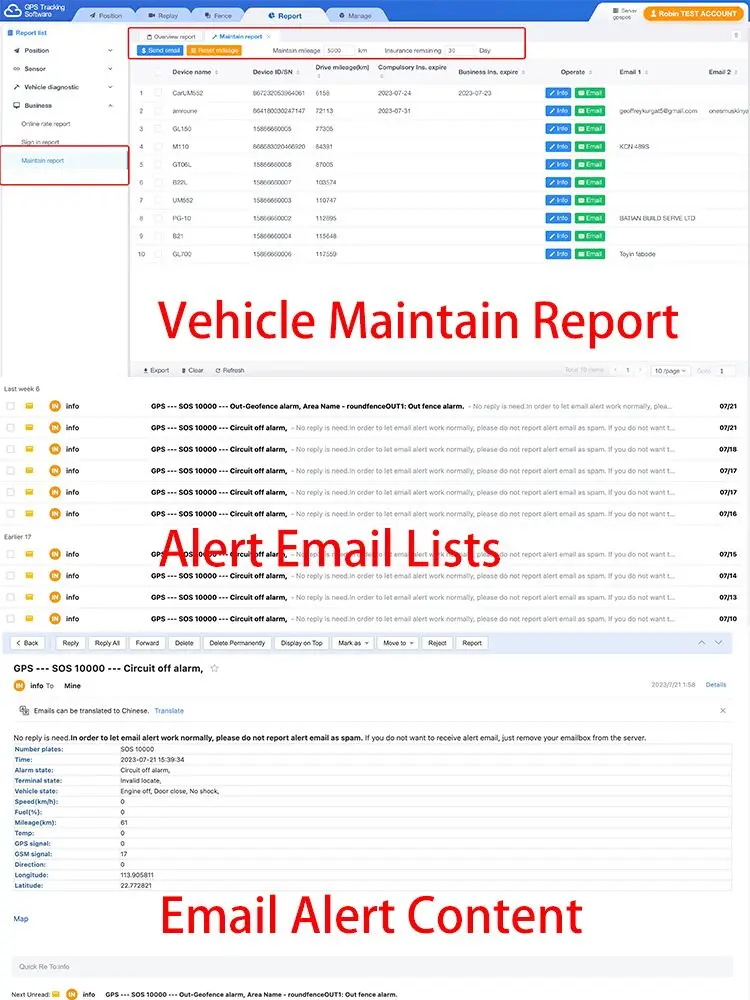

◇ Email alert. When any alarm is triggered, the vehicle owner can receive email alerts without login APP or tracking software
◇ Vehicle maintenance report. Check vehicle maintenance by mileage or insurance days on web tracking software, send a remind email to vehicle owner online

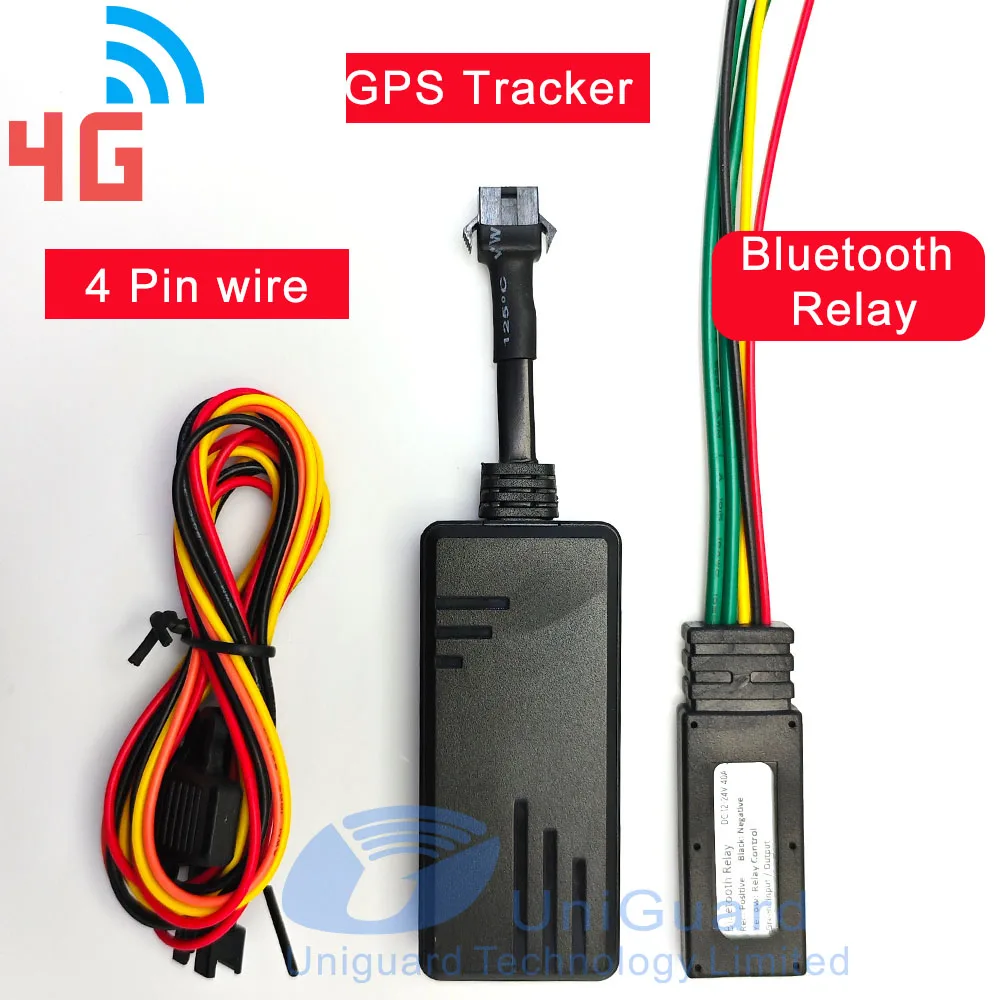

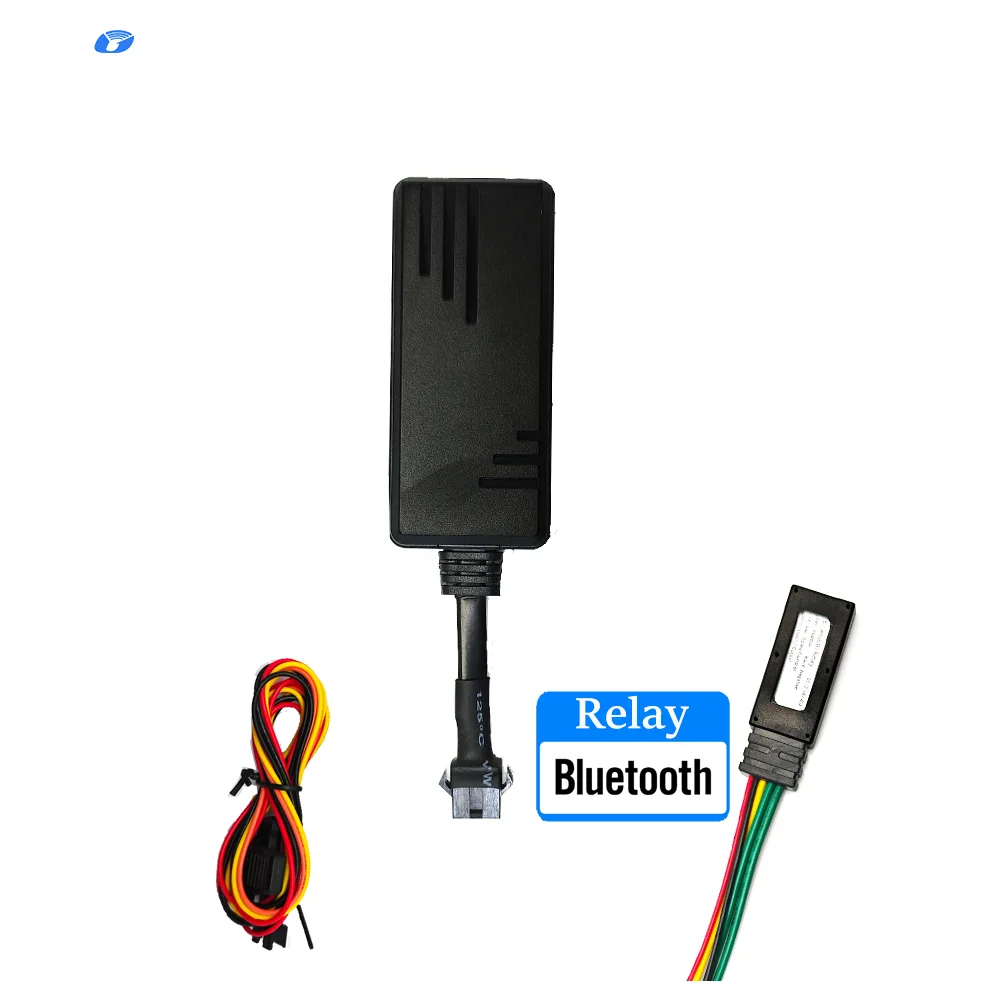

◇ BLE relay for engine control
◇ ACC ON/OFF alarm. Setting up alarm when vehicle engine switched ON and OFF.
◇ Movement alarm. Setting up a circle to restrict vehicle movement. There is alert when vehicle moves out of this circle area.
◇ Low battery alarm. When device backup battery power is low, device shall send alarm.
J16 GPS tracker has 2 versions because of the quantity of wires
4 wire: It is a basic GPS tracker with engine immobilize by connecting with a 12V or 24V relay.
8 wire: Beside engine kill function, SOS button for emergency alert and Microphone for remote voice monitoring are included.
4 wire: It is a basic GPS tracker with engine immobilize by connecting with a 12V or 24V relay.
8 wire: Beside engine kill function, SOS button for emergency alert and Microphone for remote voice monitoring are included.
Packing Details for Basic 4wires:
1pc gps tracker
1pc cable
1pc user manual
1pc sticker
Notice: Above Price is for basic 4 wire J16, If needs 8 wire J16 GPS tracker, please contact us for quotation.
UniGuard J16 4G LTE GPS Device Specs:
Item | Specification |
Brand | UniGuard J16 BLE Relay(4G LTE GPS Tracker) |
Network | 4G |
4G LTE Bands | B1/B2/B3/B4/B5/B7/B8/ B28/B66 |
2G GPRS Bands | GSM 850/900/1800/1900MHz |
Chip | SIMCOM A7670SA |
GPS Channel | 66 |
Positioning Mode | GPS, LBS, AGPS, Real - Time Positioning |
Track View | PC. IOS APP, Android APP, SMS |
Positioning accuracy | ＜10 meters |
Time To First Fix(open sky) | Cold status ＜38s Hot Status ＜2s |
Working current | 50mA |
Data Storage Quantity | 500 |
Net Weight | 56g |
Gross Weight | 150g |
Size | 77*36*16 mm |
Battery | 150mAh |
Battery Life( Hour) | ＜12H |
Packing Size | 13*9*6 cm |
Color | Black |

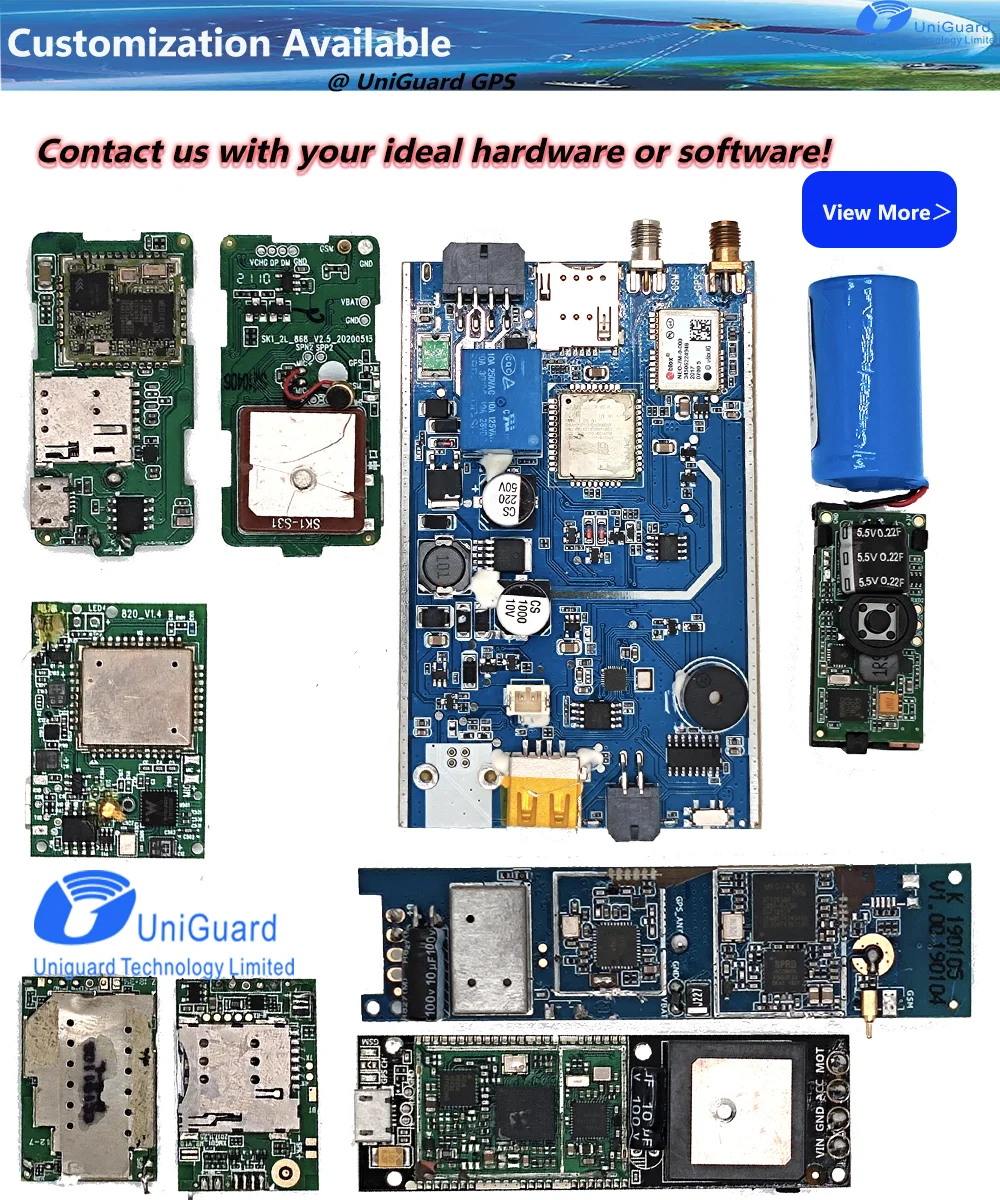

Customization
Customization
UniGuard has been manufacturing gps tracking products over 10 years, with experienced technical team and production lines.
Customization Details:
1. logo printing
2. packing box customization
2. hardware casing customization
4. software customization
5. customized URL
Customization Details:
1. logo printing
2. packing box customization
2. hardware casing customization
4. software customization
5. customized URL

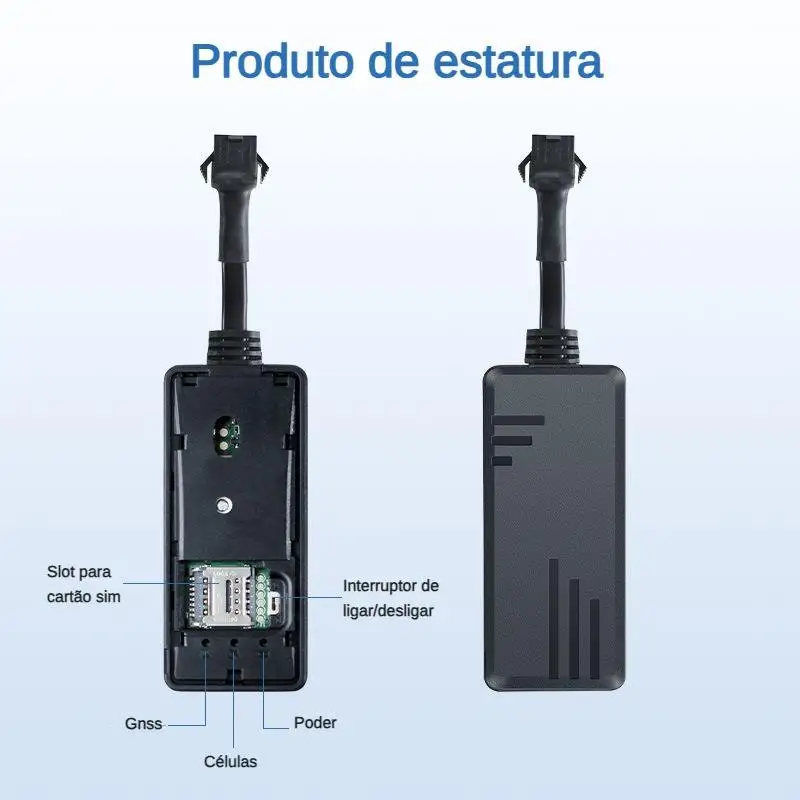

UniGuard J16 Wired mini GPS Tracker 4G
Wire GPS Tracker is widely applied on fleet management, logistics transportation, Car rent company, Financial Car Loan Insurance company, Motorcycle industries, etc.
J16 GPS Tracker is a popular and ANATEL approved live tracking device with engine kill function. Its GSM module is SIM7670SA module which supports bands of all countries and work in all countries, especially for USA, Brazil, Mexico, Chile, Peru, Ecuador, Columbia, Argentina, etc.
ANATEL certification is a must to sell and distribute the J16 GPS tracker in Brazil. It is small in size and comes with built in antenna. By connecting with relay, it can remotely cut off vehicle engine. As well, it has a built-in 150mAh backup battery. In case of tamper or disconnection with main power, there is alert at APP or preset phone number.
ANATEL certification is a must to sell and distribute the J16 GPS tracker in Brazil. It is small in size and comes with built in antenna. By connecting with relay, it can remotely cut off vehicle engine. As well, it has a built-in 150mAh backup battery. In case of tamper or disconnection with main power, there is alert at APP or preset phone number.

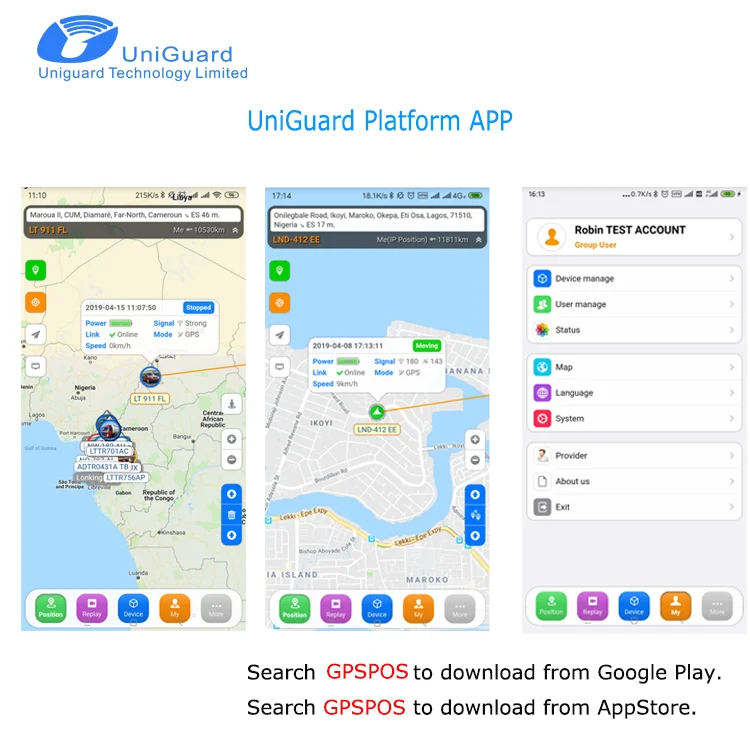

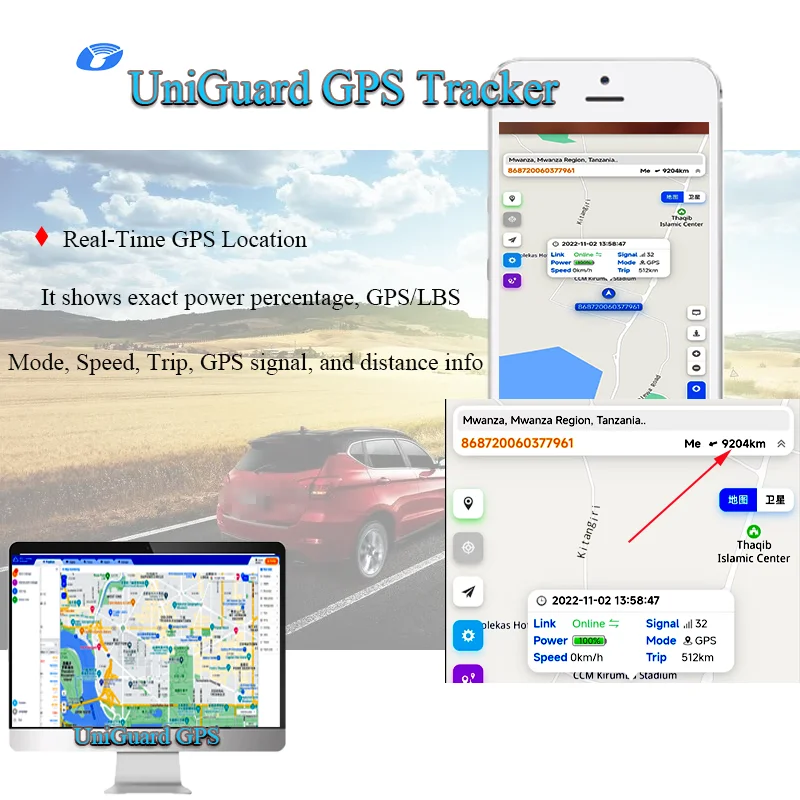

Web Platform And Mobile APP

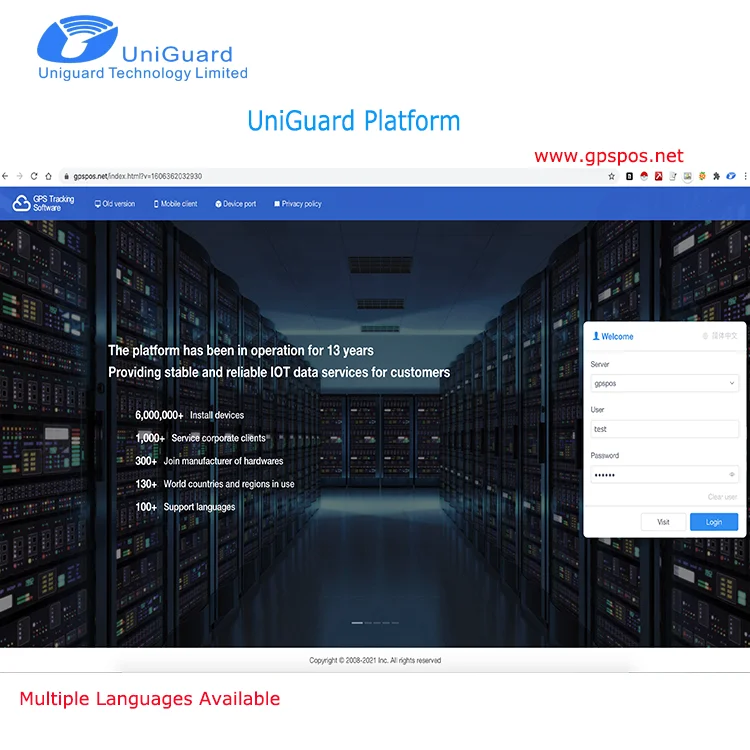

UniGuard GPSPOS Powerful GPS Tracking Platform(GPSPOS)
UniGuard GPS Company has its own web platform and mobile app, iOS and Android application both. Our web platform is hosted by cloud cluster server. The distingushed features are:
1. It can host unlimited quantity of gps tracking device
2. it can track person, pet, vehicles at simultanously.
3. Multiple maps optional: Google map,Tecent map, gaode map, baidu map,tian map,mapbox map,OSM map,microsoft map, ArcGIS map
4. High speed server, and never goes down.
5. Main functions: Live Track, history play back, Stop engine, set time interval and, set time zone,etc,Translate physical address, Fuel lever monitoring, View all types of alarm & report, etc.
6. Admin account is easy and friendly for fleet management.
7. Language choices: it suppors 100+ languages
1. It can host unlimited quantity of gps tracking device
2. it can track person, pet, vehicles at simultanously.
3. Multiple maps optional: Google map,Tecent map, gaode map, baidu map,tian map,mapbox map,OSM map,microsoft map, ArcGIS map
4. High speed server, and never goes down.
5. Main functions: Live Track, history play back, Stop engine, set time interval and, set time zone,etc,Translate physical address, Fuel lever monitoring, View all types of alarm & report, etc.
6. Admin account is easy and friendly for fleet management.
7. Language choices: it suppors 100+ languages
8.Email alert
9. Vehicle maintain report
Product Catagory
Company Profile
GPS tracker, Magnetic GPS tracker, Solar Powered GPS tracker, and GPS Tracking Software.
Certifications
Packaging
FAQ
Q: Are you manufacturer?
A: yes. We have been manufacturing GPS Trackers in China over 10 years. Accept customization!
Q:Do you accept OEM/ODM?
A: yes, Thank you for sharing your ideal appearance of functions of hardware/ software, we can customize for you.
Q: Quality guarantee
A: 24 months warranty. All products have been 100% quality checked, and will be double tested before shipping.
Q: MOQ
A: 2pcs.
Q: Your Advantages that surpass all other suppliers?
* High Qulity GPS Trackers
* Competitive prices
* Fast shipping
* 24 hrs online service
* experienced technical team online for technical support.
* user friendly mobile application and web platform
Q: What type of GPS Tracking Device do you offer?
A: yes. We have been manufacturing GPS Trackers in China over 10 years. Accept customization!
Q:Do you accept OEM/ODM?
A: yes, Thank you for sharing your ideal appearance of functions of hardware/ software, we can customize for you.
Q: Quality guarantee
A: 24 months warranty. All products have been 100% quality checked, and will be double tested before shipping.
Q: MOQ
A: 2pcs.
Q: Your Advantages that surpass all other suppliers?
* High Qulity GPS Trackers
* Competitive prices
* Fast shipping
* 24 hrs online service
* experienced technical team online for technical support.
* user friendly mobile application and web platform
Q: What type of GPS Tracking Device do you offer?
A: Our products includes car tracker, pet tracker, personal tracker, asset tracker, fuel monitoring device, temperature monitoring device, RFID authorized drive, Load sensor, GPS padlock, solar tracker,etc.
Q: How to monitor the GPS Tracker?
A: User can login the web gps tracking software and Phone IOS/Android Tracking APP to monitor their vehicle or pets or kids respectively at real time.
Q: Can I have admin account at the gps tracking system and any monthly cost?
A: We shall offer you admin account so you can create subaccount. No monthly or yearly subscription charge for long term business.
Q: How much data is needed per month?
A: Per real test, a month 30 Mb GPRS data plan is enough.
Q: Do you offer branded service?
A: YES.
Software: We can support clients with customized URL. Need yearly order above 1000 units.
Hardware. We offer logo printing on both GPS tracking device and Packing box. MOQ is 200 pcs.
Q: How do you support me and what is the warranty?
A: We offer real time support by Phone, Email and Whatsapp. 24 months warranty available.
Q: Can the GPS tracking device work in my country?
A: Except USA, Australia, Canada, Singapore, Japan, Korea, which need 3G or 4G GPS locator, almost all the rest countries still support 2G internet and use 2G GPS tracking system.
Q: What is minimum order quantity?
A: We advise clients to take at least 2 samples for testing purpose.
Q: How to monitor the GPS Tracker?
A: User can login the web gps tracking software and Phone IOS/Android Tracking APP to monitor their vehicle or pets or kids respectively at real time.
Q: Can I have admin account at the gps tracking system and any monthly cost?
A: We shall offer you admin account so you can create subaccount. No monthly or yearly subscription charge for long term business.
Q: How much data is needed per month?
A: Per real test, a month 30 Mb GPRS data plan is enough.
Q: Do you offer branded service?
A: YES.
Software: We can support clients with customized URL. Need yearly order above 1000 units.
Hardware. We offer logo printing on both GPS tracking device and Packing box. MOQ is 200 pcs.
Q: How do you support me and what is the warranty?
A: We offer real time support by Phone, Email and Whatsapp. 24 months warranty available.
Q: Can the GPS tracking device work in my country?
A: Except USA, Australia, Canada, Singapore, Japan, Korea, which need 3G or 4G GPS locator, almost all the rest countries still support 2G internet and use 2G GPS tracking system.
Q: What is minimum order quantity?
A: We advise clients to take at least 2 samples for testing purpose.
